300 °C Electric Foundry Mold Dryer 鋳型乾燥機

Electric Hot Air Foundry Mold Dryer



  • The definitive mold dryer designed to meet the needs of foundries.
  • Excellent for drying water-based mold coatings, molds, and cores.
  • Ready to use simply by connecting the power cable.



電気式熱風鋳型乾燥機



◆鋳物工場のニーズに応えた鋳型乾燥機の決定版です。


◆水性塗型、鋳型、中子の乾燥に抜群の効力を発揮します。


◆電源ケーブルを接続するだけでご使用できます。

  • Foundry Mold Dryer
  • X-3MS Foundry Mold Dryer


Foundry Mold Dryer Overview

  • Maximum Continuous Operating Temperature: 300 °C
  • Heater Capacity: 30 kW to 60 kW
  • Equipped with a High-Efficiency Honeycomb Block Heater
  • Equipped with an inverter for airflow adjustment (variable from 20 to 60 Hz) Energy-efficient!
  • Blower Motor Capacity: 1.5 kW to 5.5 kW
  • All models are equipped with an energy-saving automatic drying function
    (timer-controlled continuous operation from blower operation to hot air operation and completion of mold drying)
  • Standard equipment includes instruments for controlling airflow, pressure, temperature, and drying time during the mold drying process



保証期間２年

  • 連続使用最高温度　３００℃
  • ヒータ容量30kW～60kW
  • 高効率ハニカムブロックヒータ搭載
  • 風量調節用インバータ搭載（20～60Hz可変）省エネ！
  • 送風機電動機容量1.5kW～5.5kW
  • 全機種 省エネ自動乾燥機能搭載（送風運転から熱風運転、鋳型乾燥終了まで連続した運転をタイマで実施）
  • 鋳型に加わる風量、圧力、温度、時間をコントロールする計器が標準装備


Model Lineup

X-3MS X-4MS X-5MS


Typical Applications

Note: Some illustrations may contain Japanese text.

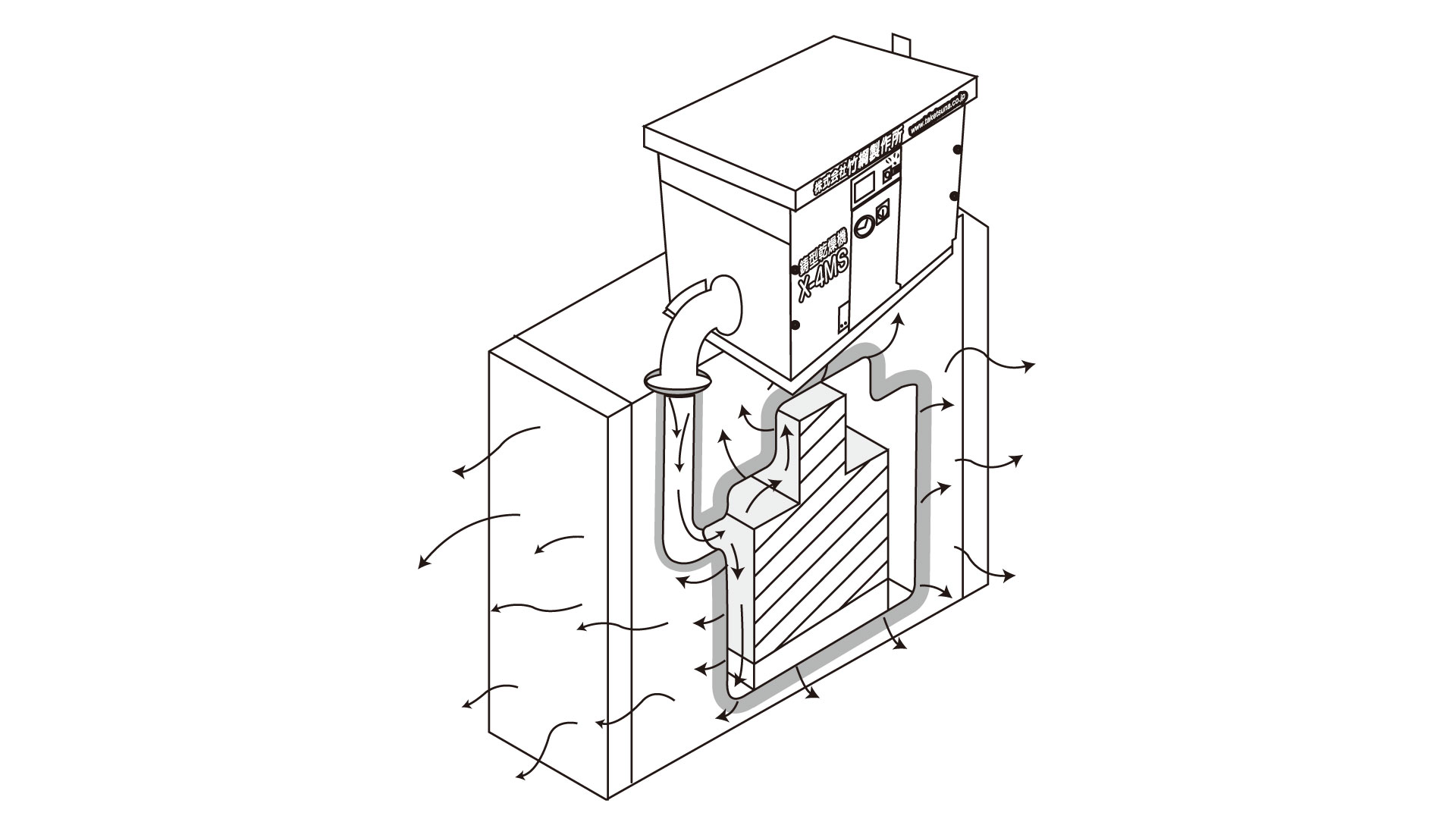

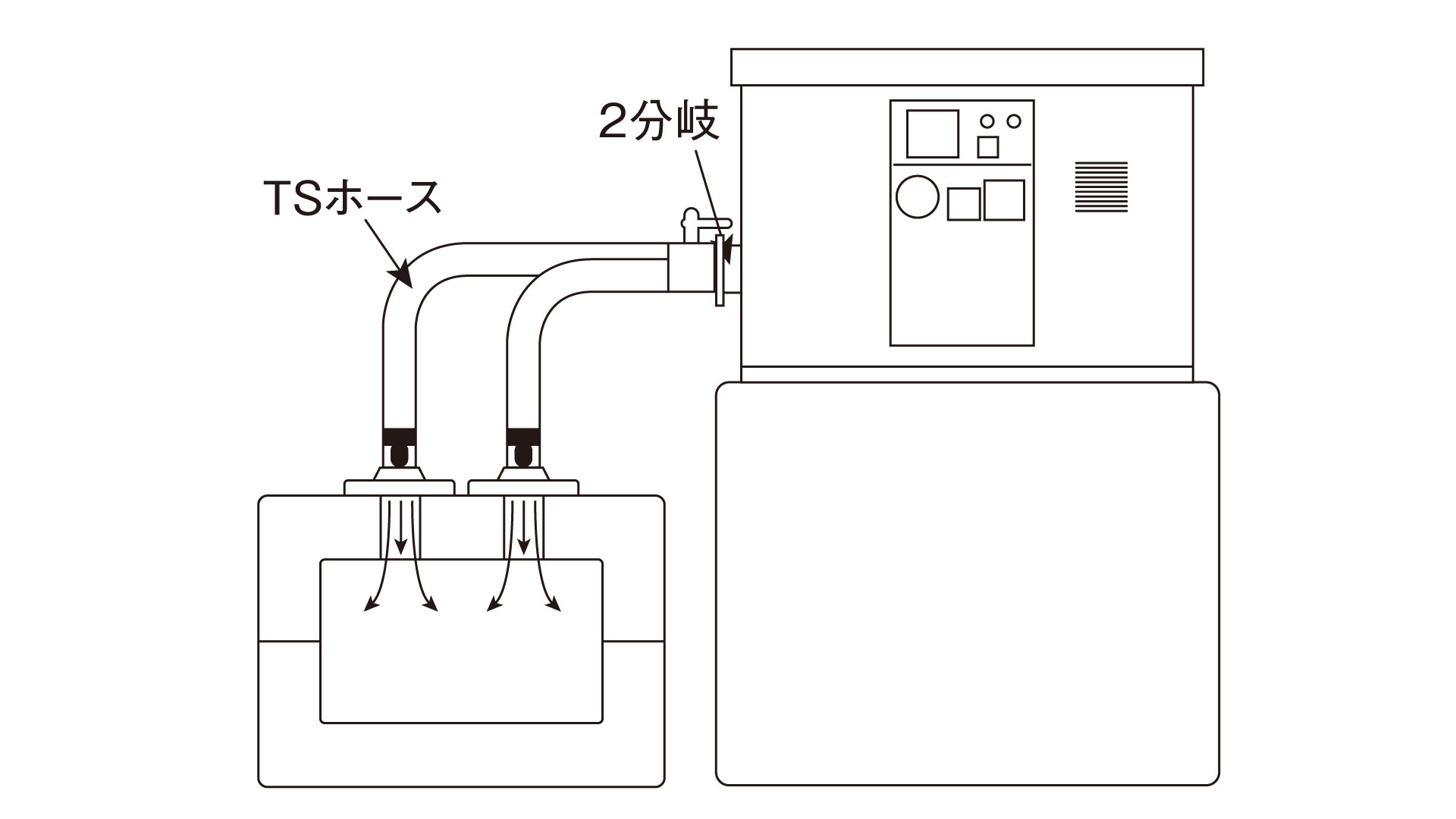

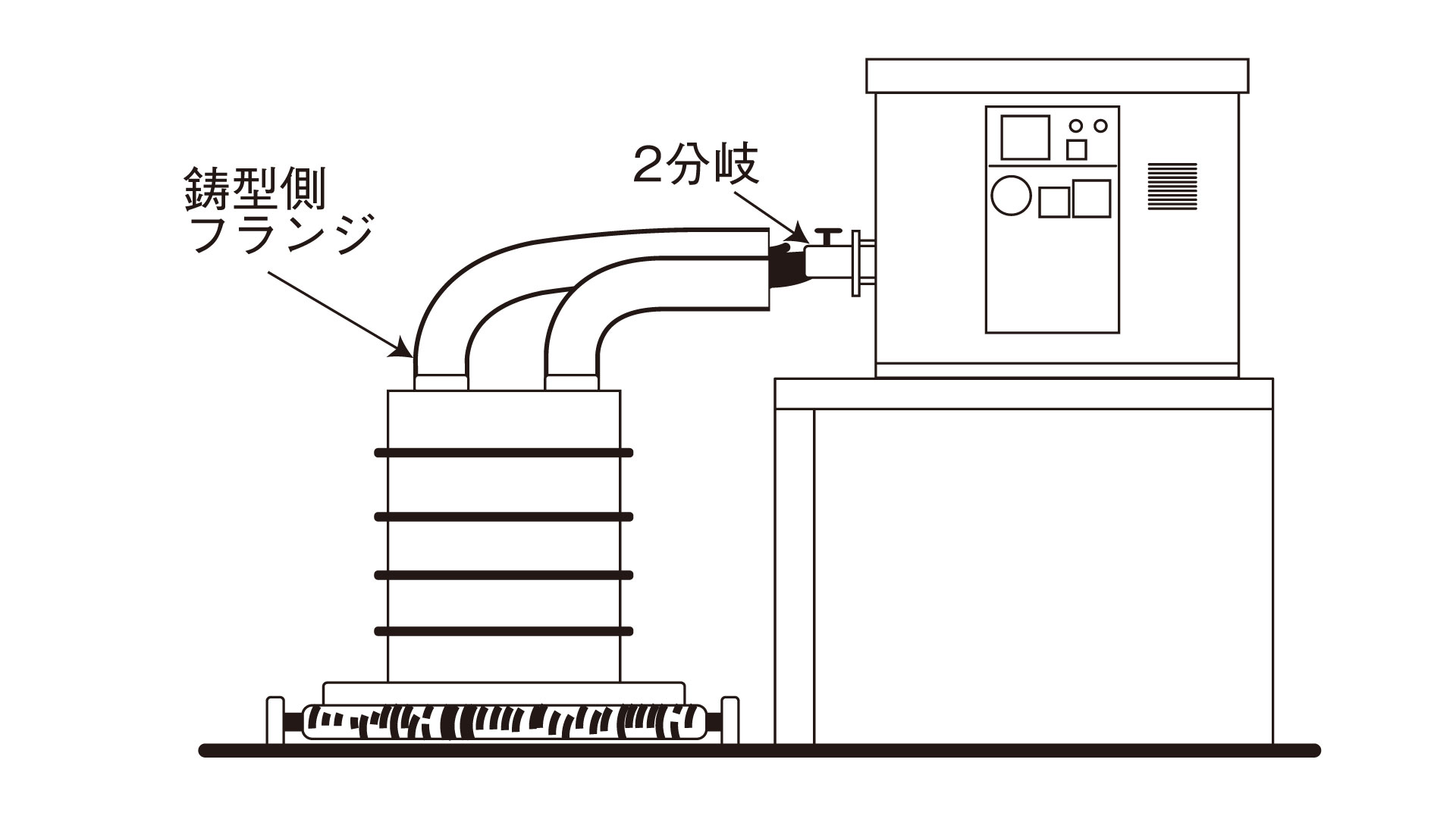

  • Pressure-Assisted Moisture Extraction Drying
  • Pressure-Assisted Moisture Extraction Drying

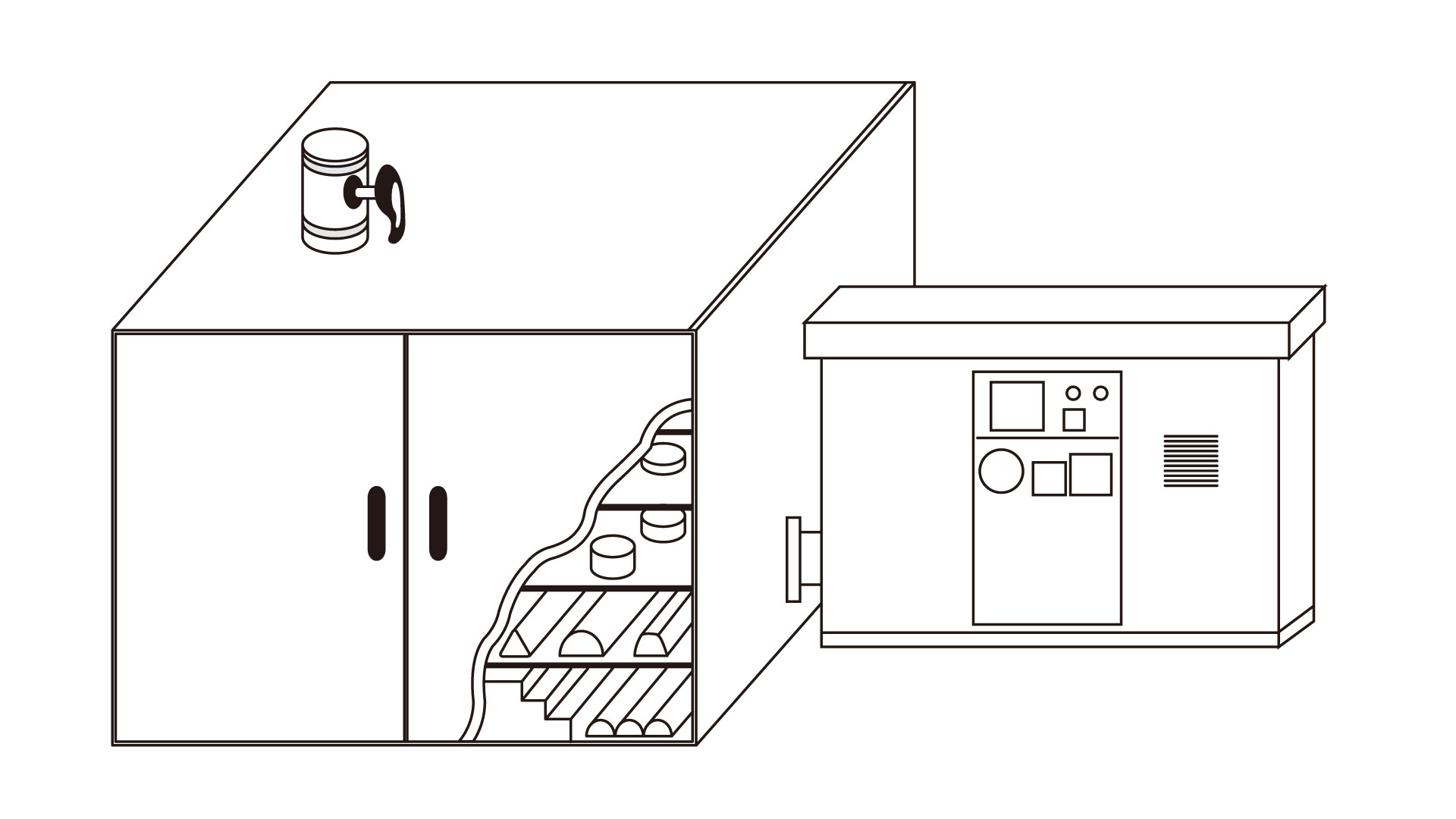

  • Core Drying Chamber
  • Drying of Medium-Sized Molds

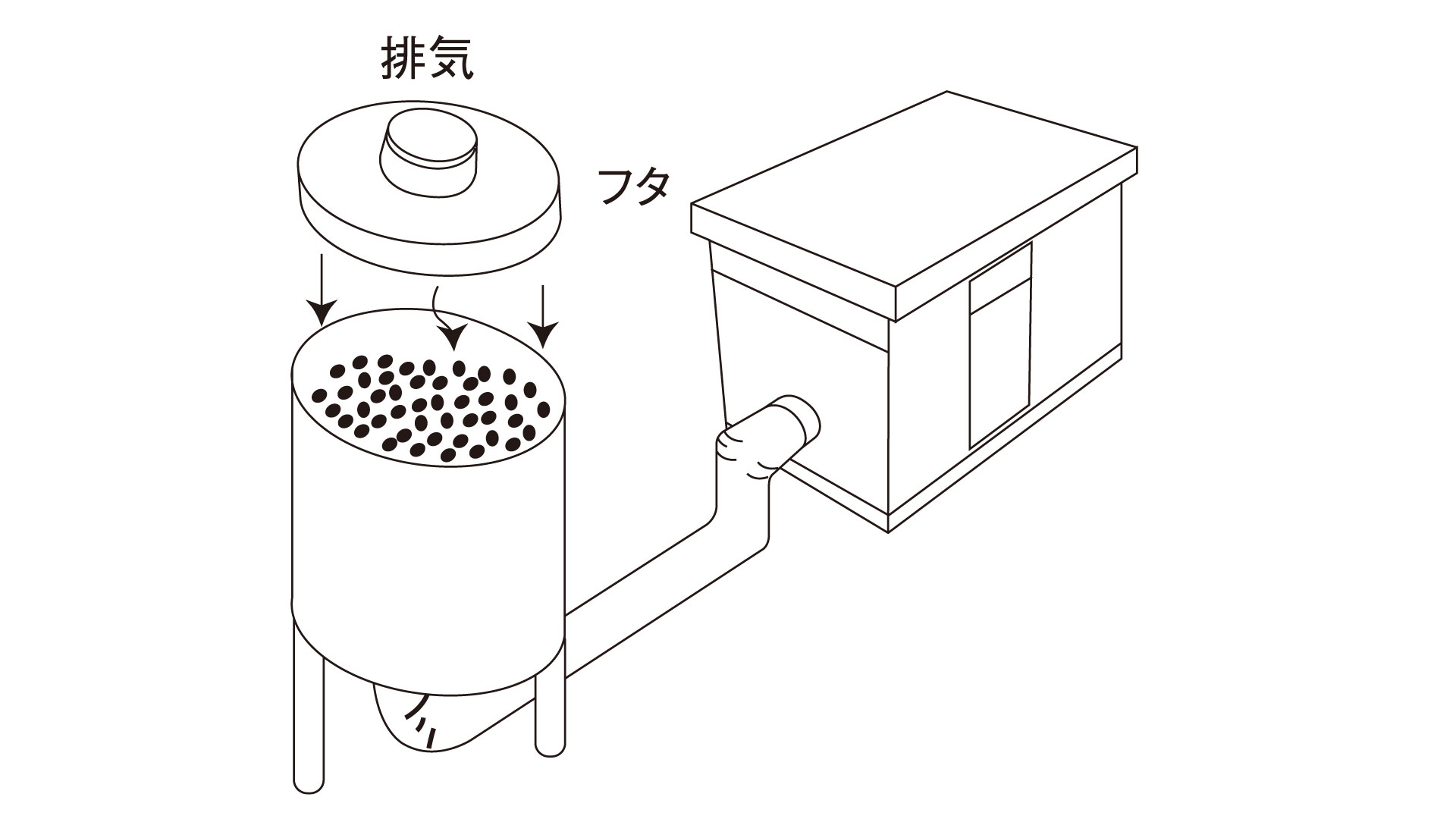

  • Fluidized Drying of Sand and Resin Chips

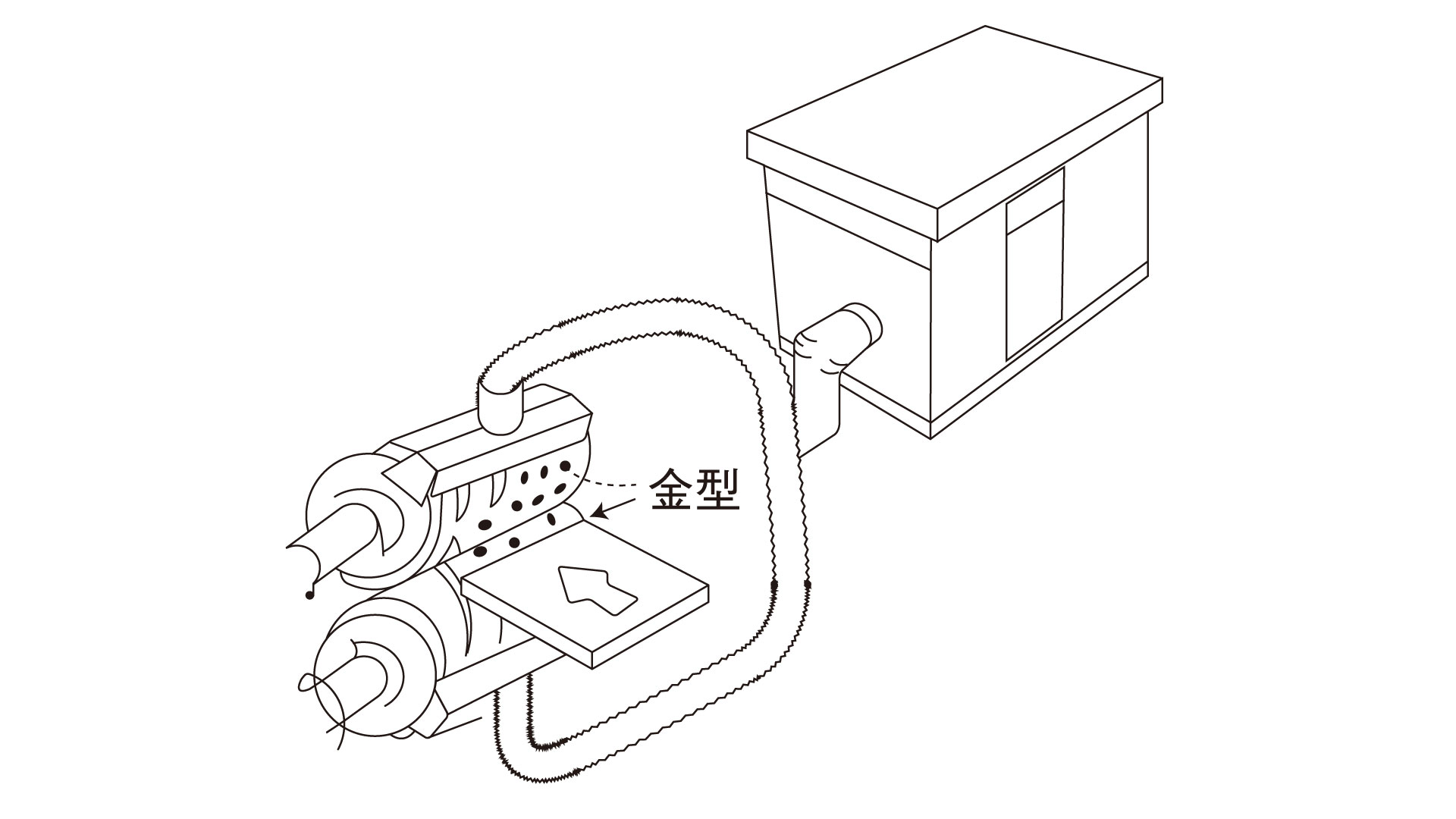

  • Heating of Forging Dies

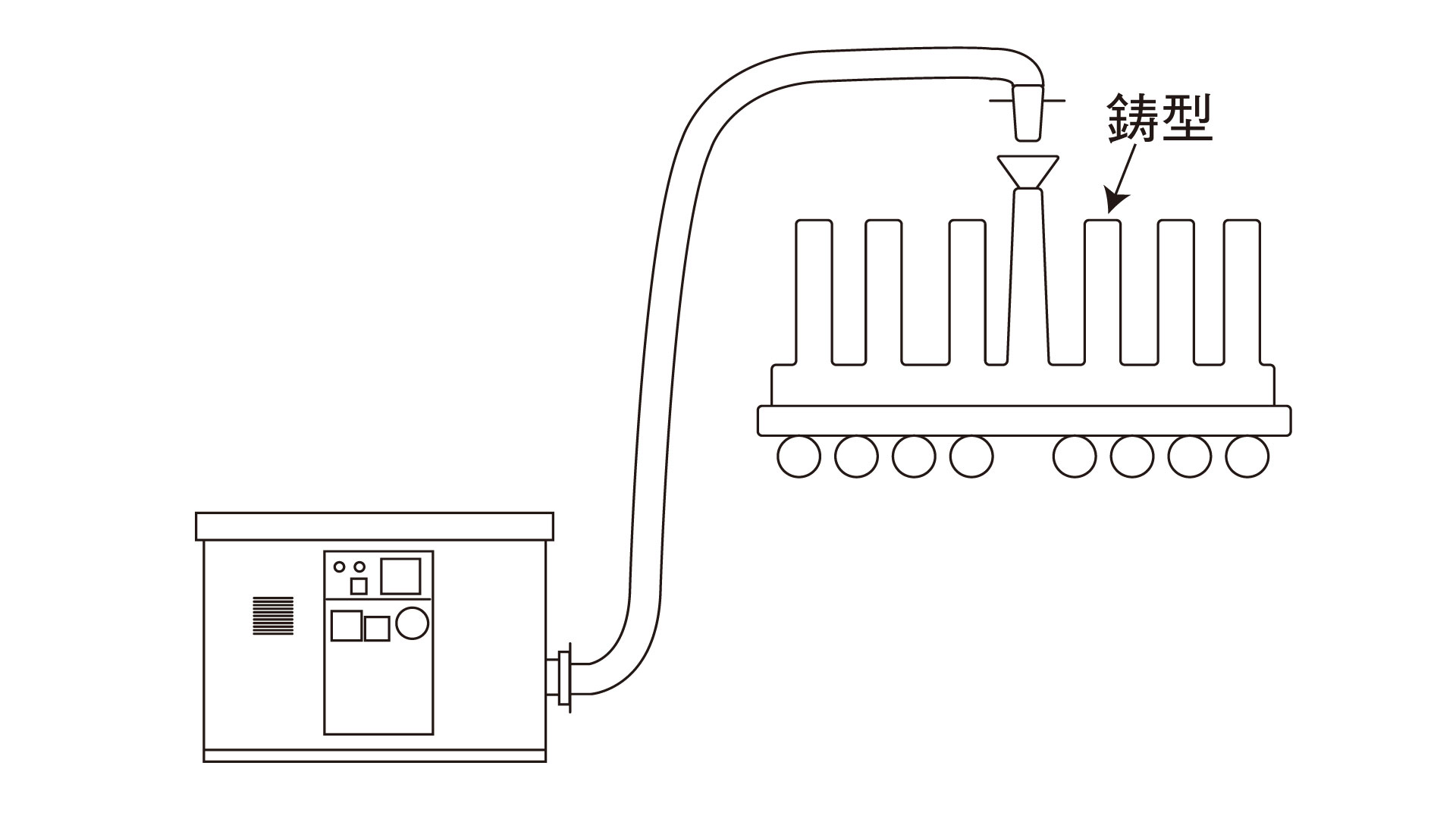

  • Drying of Ingot Molds

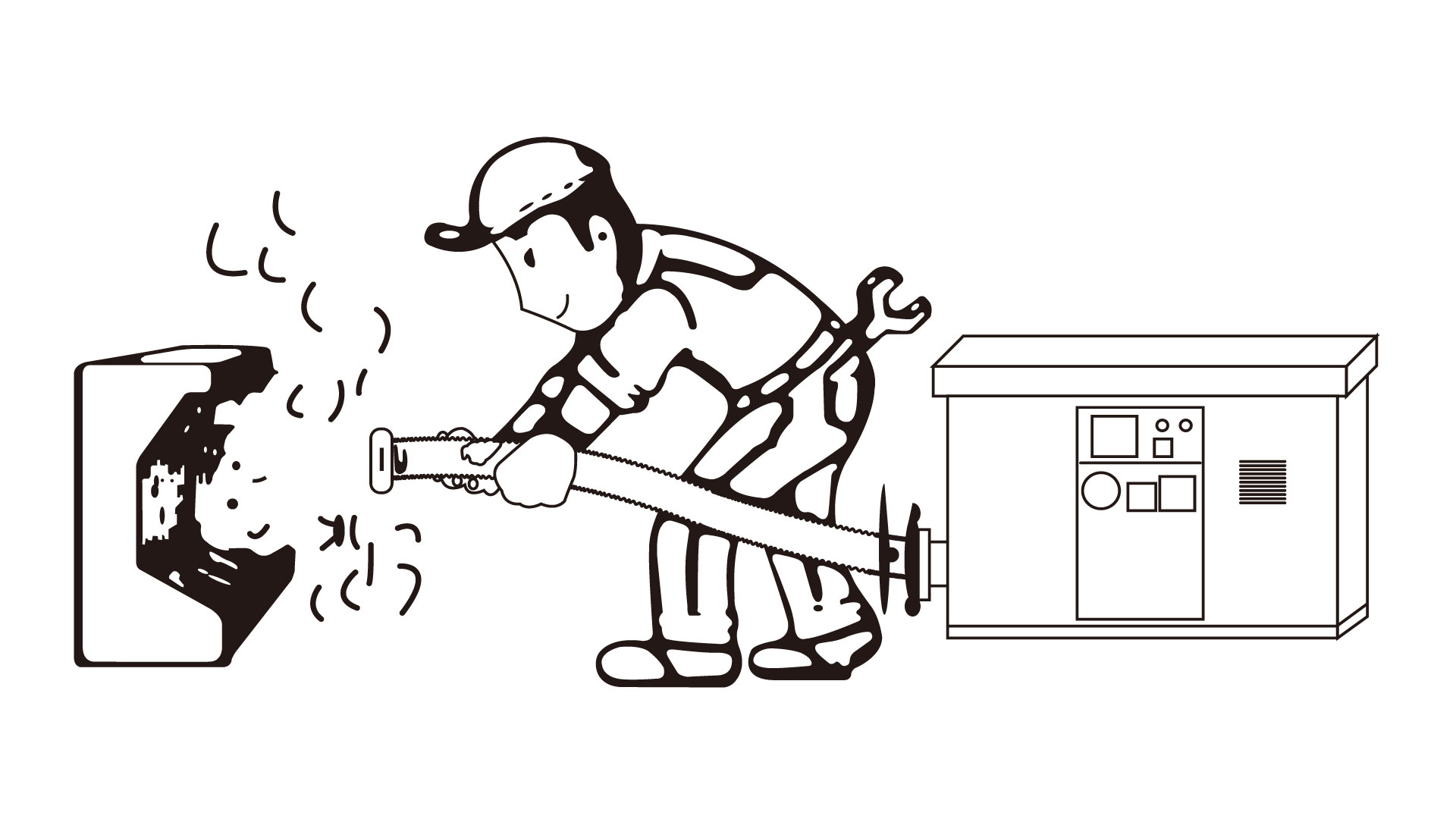

  • Drying of Water-Based Mold Coatings

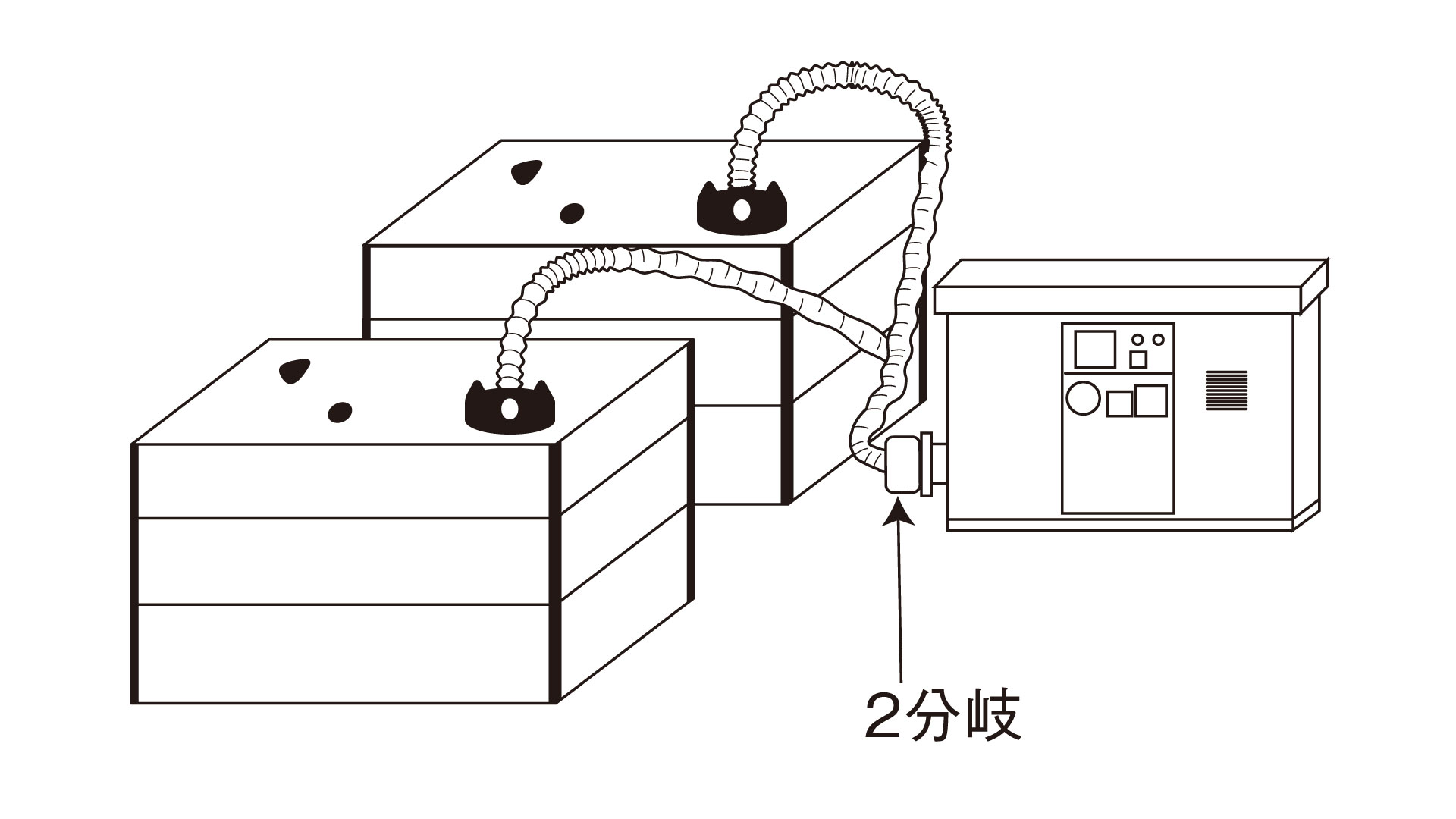

  • Simultaneous Drying of Multiple Molds

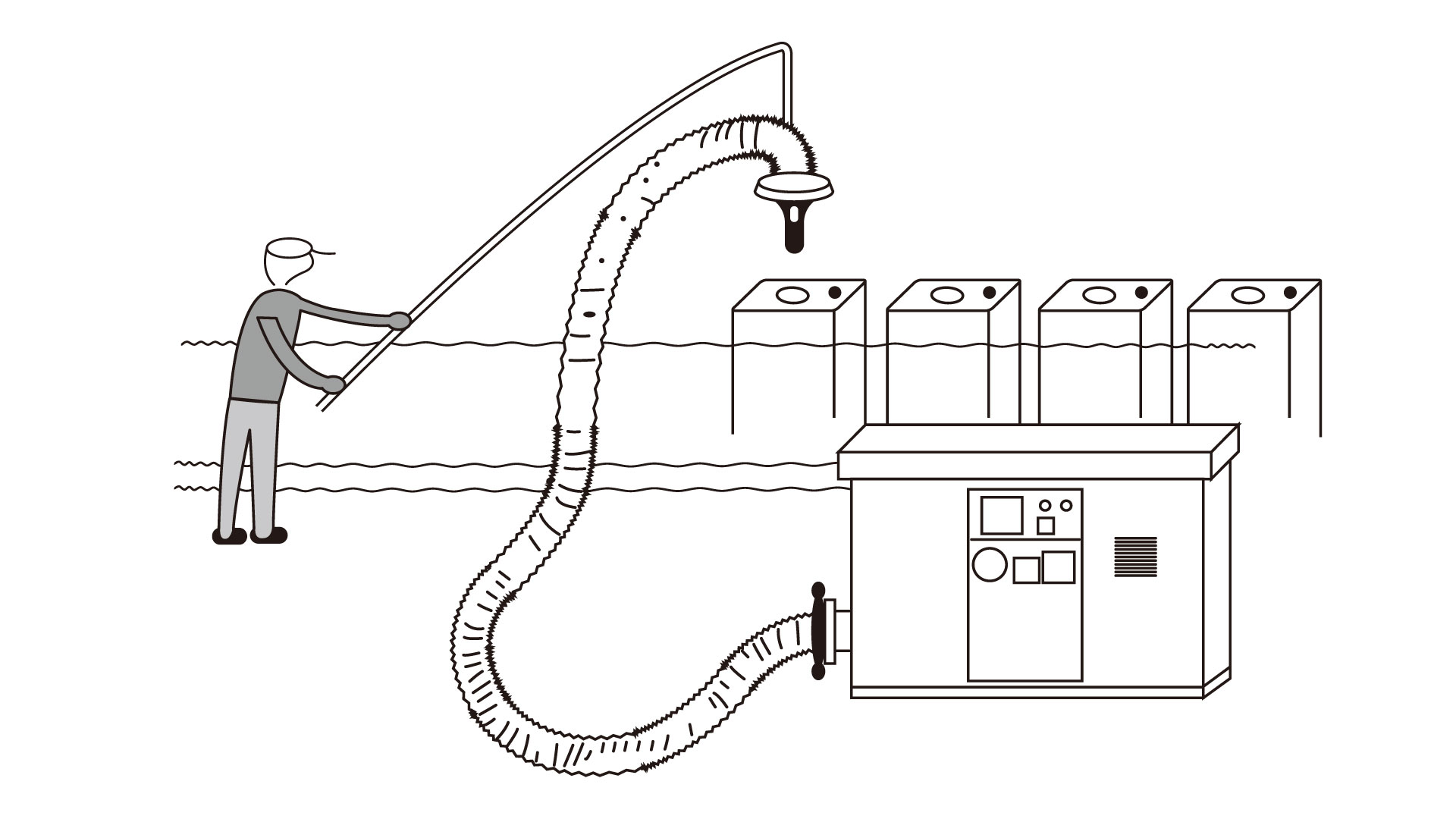

  • Drying of Movable Molds
  • Drying of Water-Based Varnish Coatings

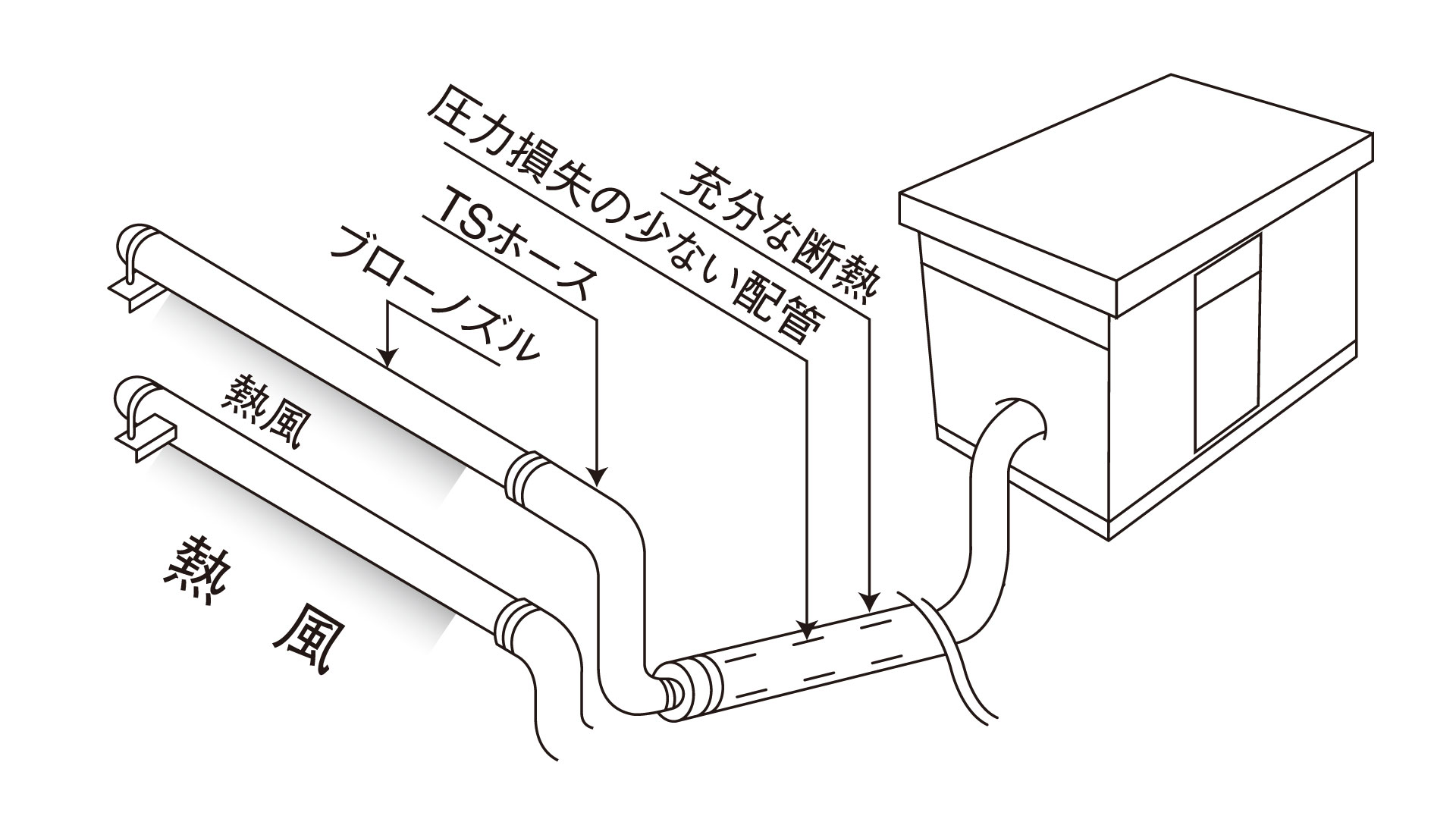

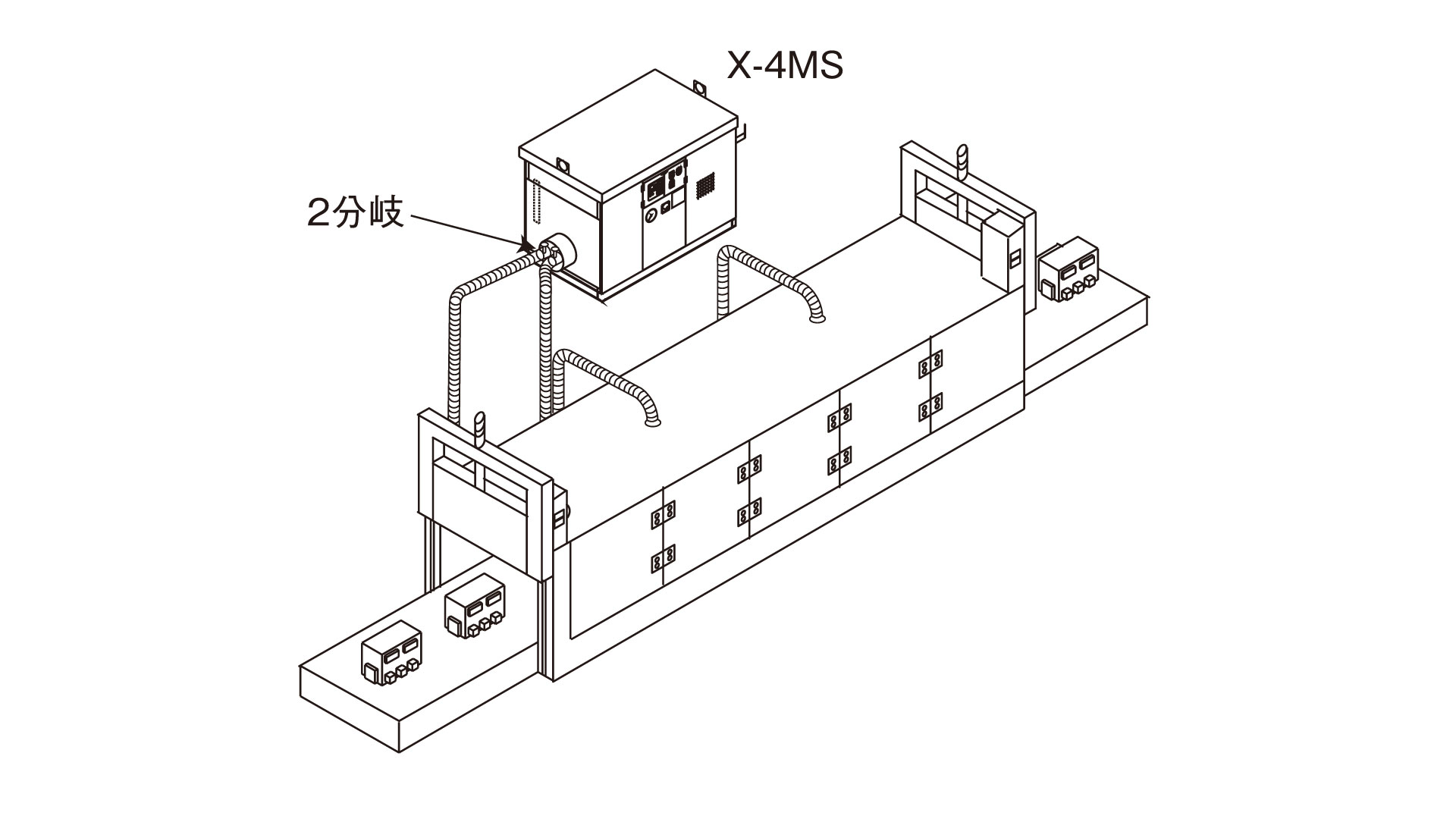

  • Drying Water-Based Mold Coatings on Cores Inside a Tunnel
  • Low-Temperature Drying of Water-Based Mold Coatings on Foam Patterns
  • Simultaneous Drying of Multiple Medium-to-Large Molds

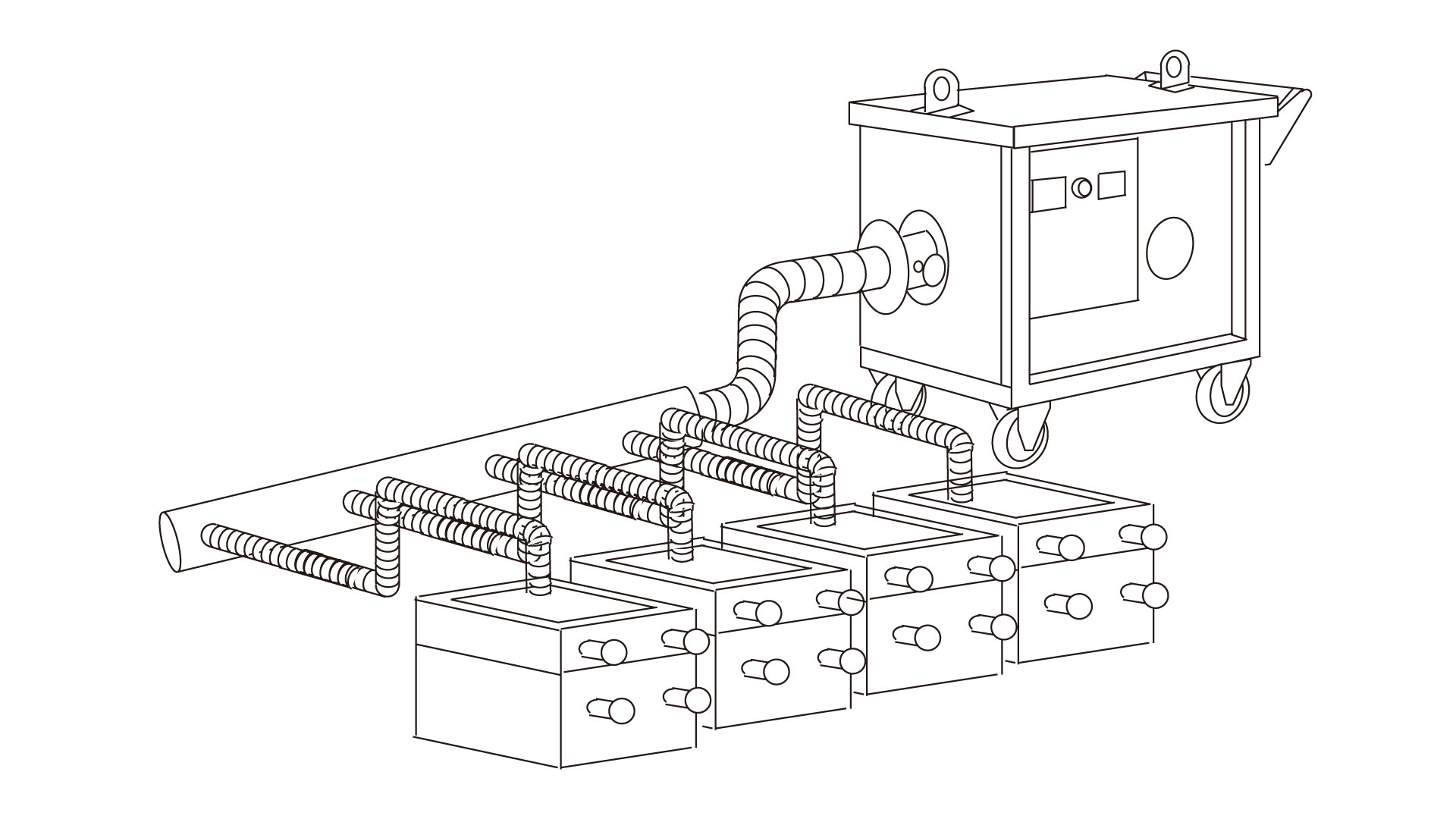

  • Simultaneous Drying of Small Molds (Casting Weight Approx. 50–100 kg)
  • Pressure-Assisted Moisture Extraction Drying
  • Pressure-Assisted Moisture Extraction Drying
  • Core Drying Chamber
  • Drying of Medium-Sized Molds
  • Fluidized Drying of Sand and Resin Chips
  • Heating of Forging Dies
  • Drying of Ingot Molds
  • Drying of Water-Based Mold Coatings
  • Simultaneous Drying of Multiple Molds
  • Drying of Movable Molds
  • Drying of Water-Based Varnish Coatings
  • Drying Water-Based Mold Coatings on Cores Inside a Tunnel
  • Low-Temperature Drying of Water-Based Mold Coatings on Foam Patterns
  • Simultaneous Drying of Multiple Medium-to-Large Molds
  • Simultaneous Drying of Small Molds (Casting Weight Approx. 50–100 kg)


Our products can also be used for many other applications. Please feel free to contact us for further consultation.


Standard Specifications

Note: For 380 V–440 V models, the model number prefix varies depending on the specified voltage
(e.g., 3380-, 3400-, 3415-, 3440-).
Please specify the required voltage when placing your order.
* X-5MS: 380 V is available in 50 Hz only.


Model

X-3MS
Model No. N/A
Power Supply

3-phase 380 V / 400 V / 415 V / 440 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 15 kW / 30 kW (Selectable)
Max Outlet Air Temp. 300 °C
Max Inlet Air Temp. 40 °C
Max Air Volume 20.3 m³/min
Max Static Pressure 4.25 kPa
X-3MS Foundry Mold Dryer
Performance Curve
Outline Drawing
Model

X-4MS
Model No. N/A
Power Supply

3-phase 380 V / 400 V / 415 V / 440 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 30 kW / 45 kW (Selectable)
Max Outlet Air Temp. 300 °C
Max Inlet Air Temp. 40 °C
Max Air Volume 26.0 m³/min
Max Static Pressure 5.10 kPa

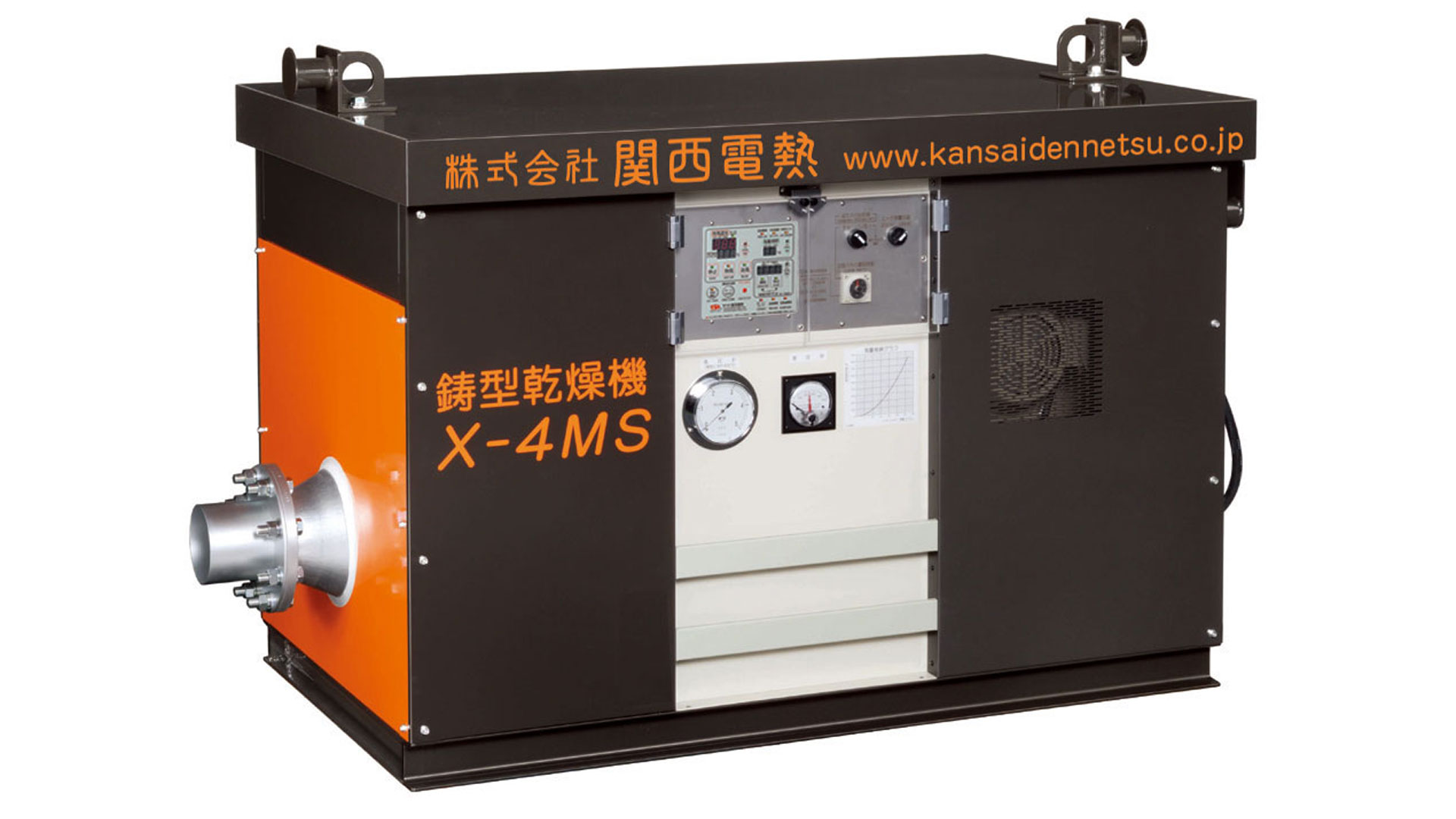

X-4MS Foundry Mold Dryer
Performance Curve
Outline Drawing
Model

X-5MS
Model No. N/A
Power Supply

3-phase 380 V, 50 Hz
3-phase 400 V / 415 V / 440 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 40 kW / 60 kW (Selectable)
Max Outlet Air Temp. 300 °C
Max Inlet Air Temp. 40 °C
Max Air Volume 33.0 m³/min
Max Static Pressure 8.90 kPa

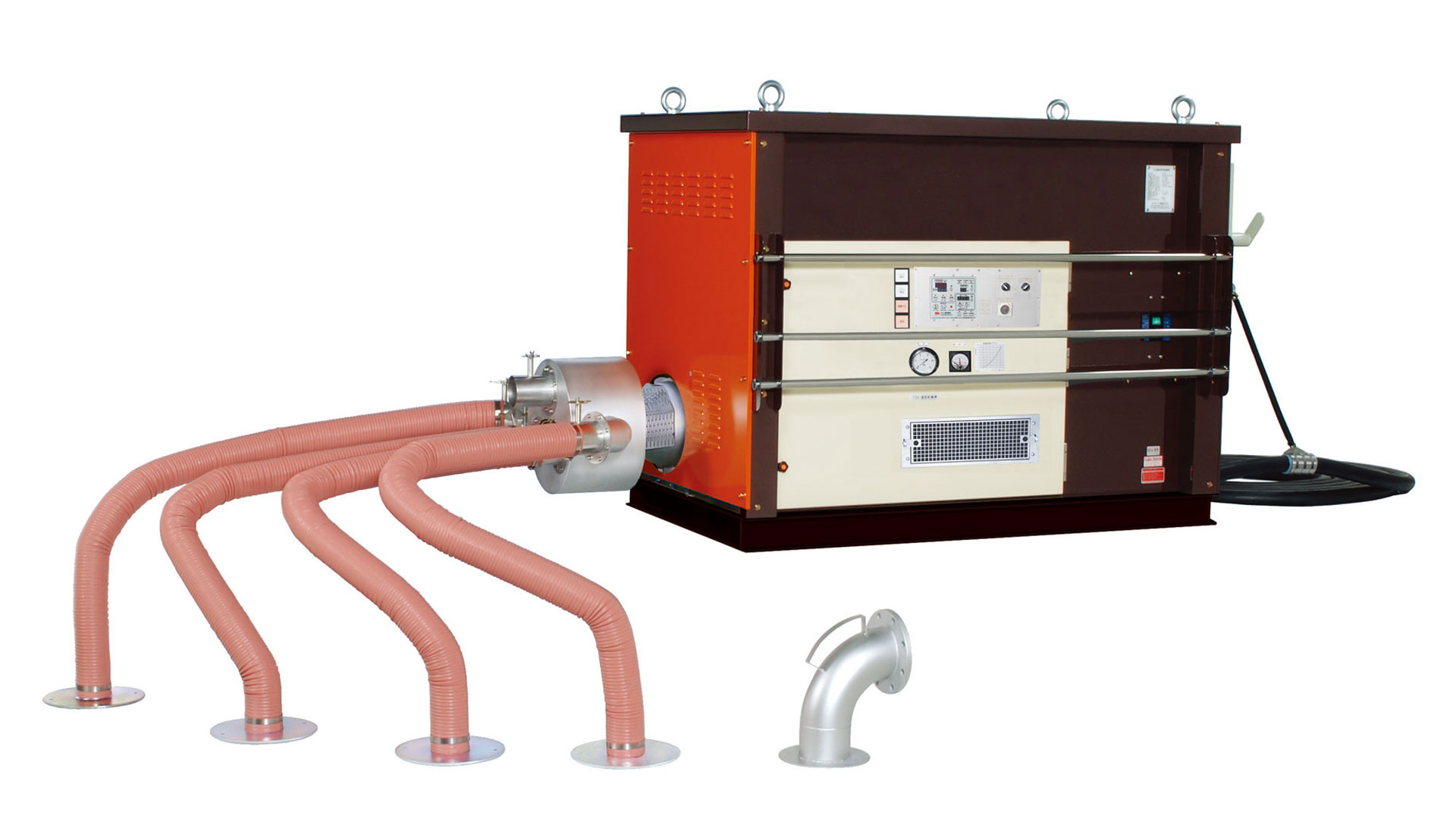

X-5MS Foundry Mold Dryer
Performance Curve
Outline Drawing
