ST Series Furnace Circulator

Improve Furnace Temperature Uniformity with a Furnace Circulator



  • Improves temperature distribution, drying efficiency, and heating efficiency inside furnaces.
  • Easy to install and highly effective.




炉内温度の改善 炉内サーキュレータ



◆炉内の温度分布、乾燥効率、加熱効率の向上に




◆簡単に設置でき、効果抜群です。

  • Furnace Circulator


Furnace Circulator Overview

  • Maximum Operating Furnace Temperature: 350 °C
  • The impeller installed inside the furnace creates airflow along the furnace walls, providing uniform heat transfer to products being heated or dried.
  • Easy to retrofit or add to existing furnaces, requiring only a shaft mounting hole in the furnace wall.




保証期間１年

  • 使用可能最高炉内温度　３５０℃
  • 炉内に設置した翼車で炉壁に添ったエアの流れを作りだし、内部乾燥加熱対象物に均一な熱を伝達
  • 炉壁にシャフト用穴加工のみの施工で使用できるので、後付けや追加取付けが容易
Operation Manual


Model Lineup

ST130-01 ST250-01


Typical Applications

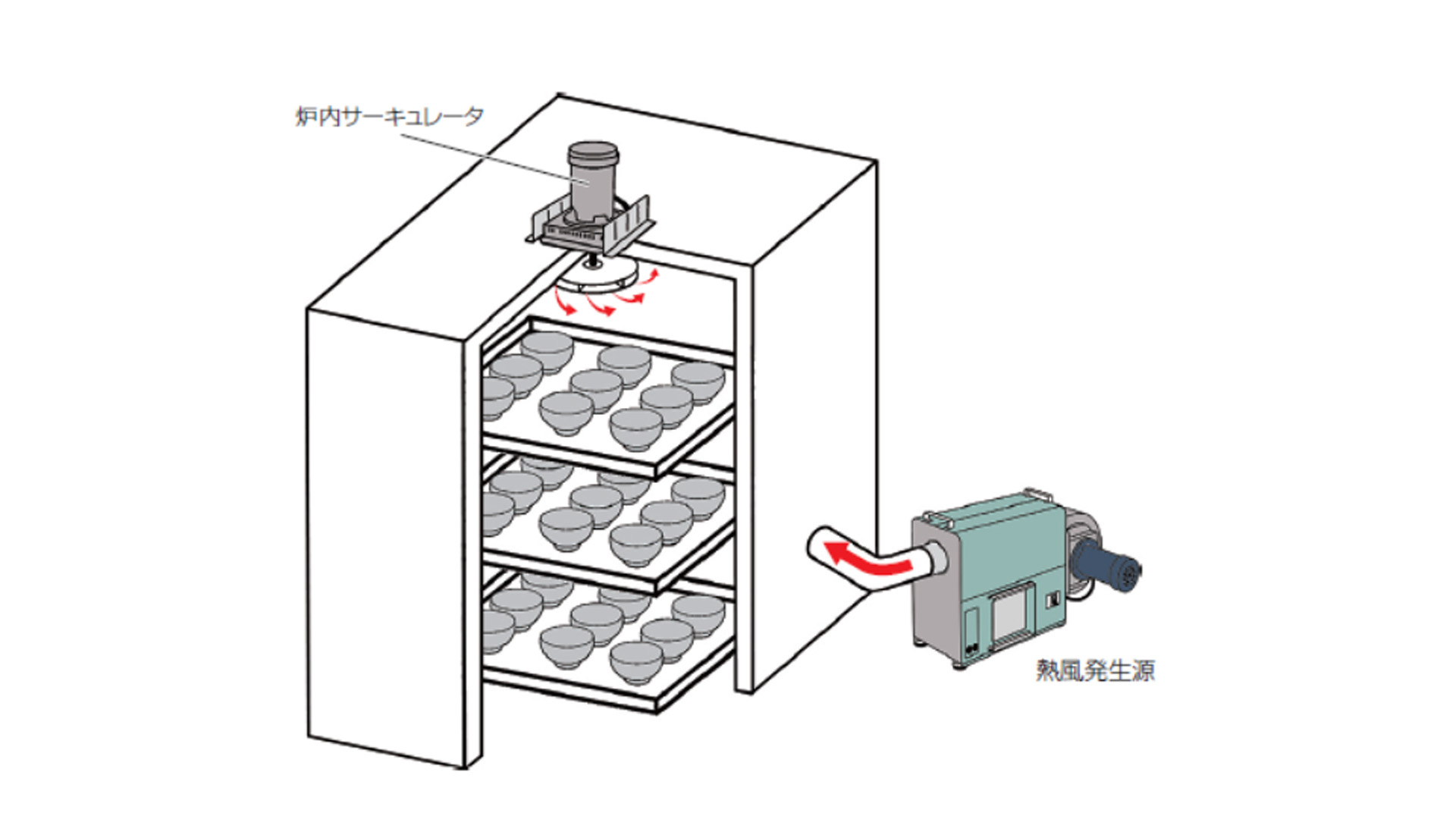

  • Improved Product Quality Through Better Temperature Uniformity in Ceramic Drying Ovens

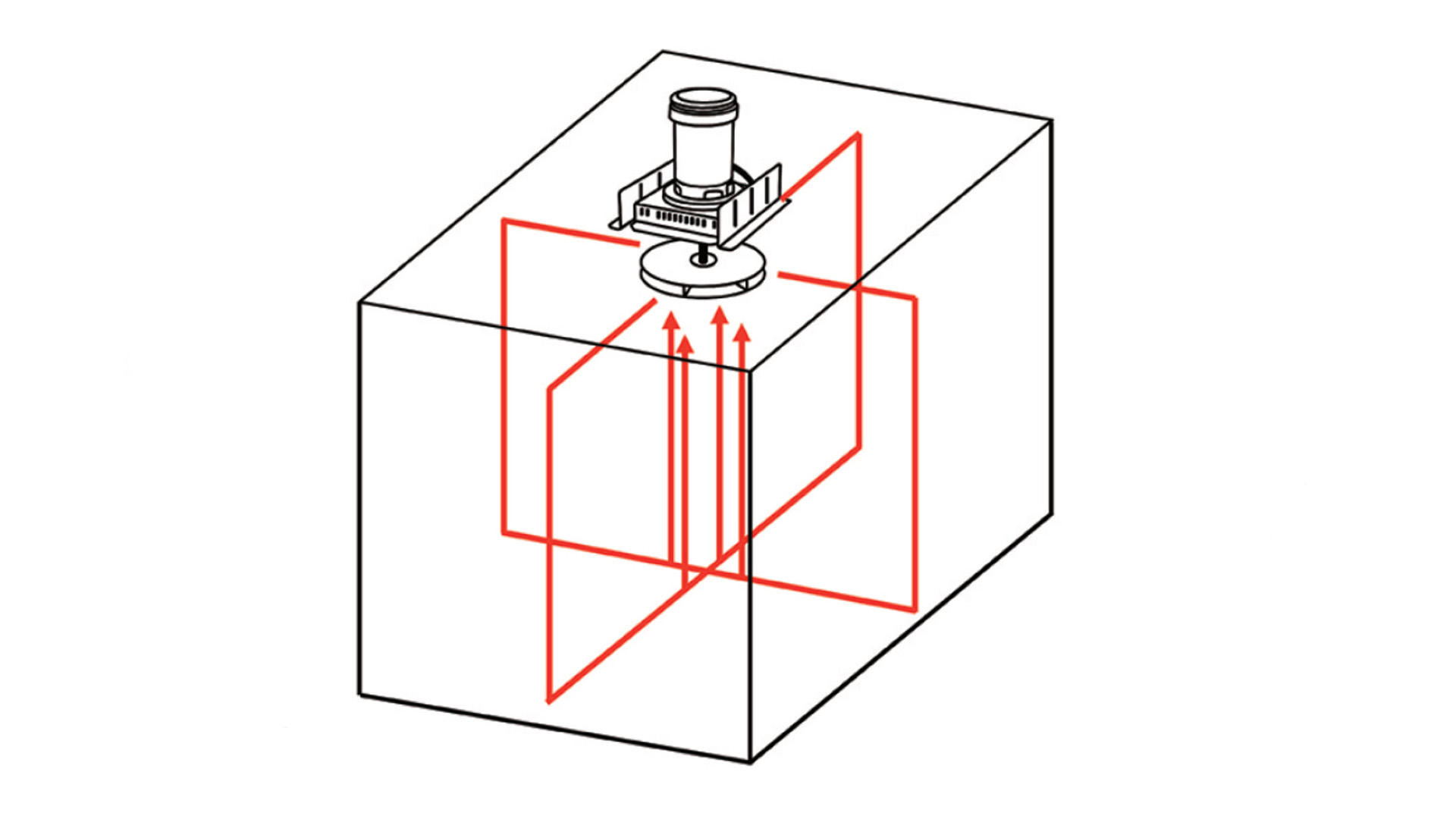

  • Airflow Pattern Inside the Furnace

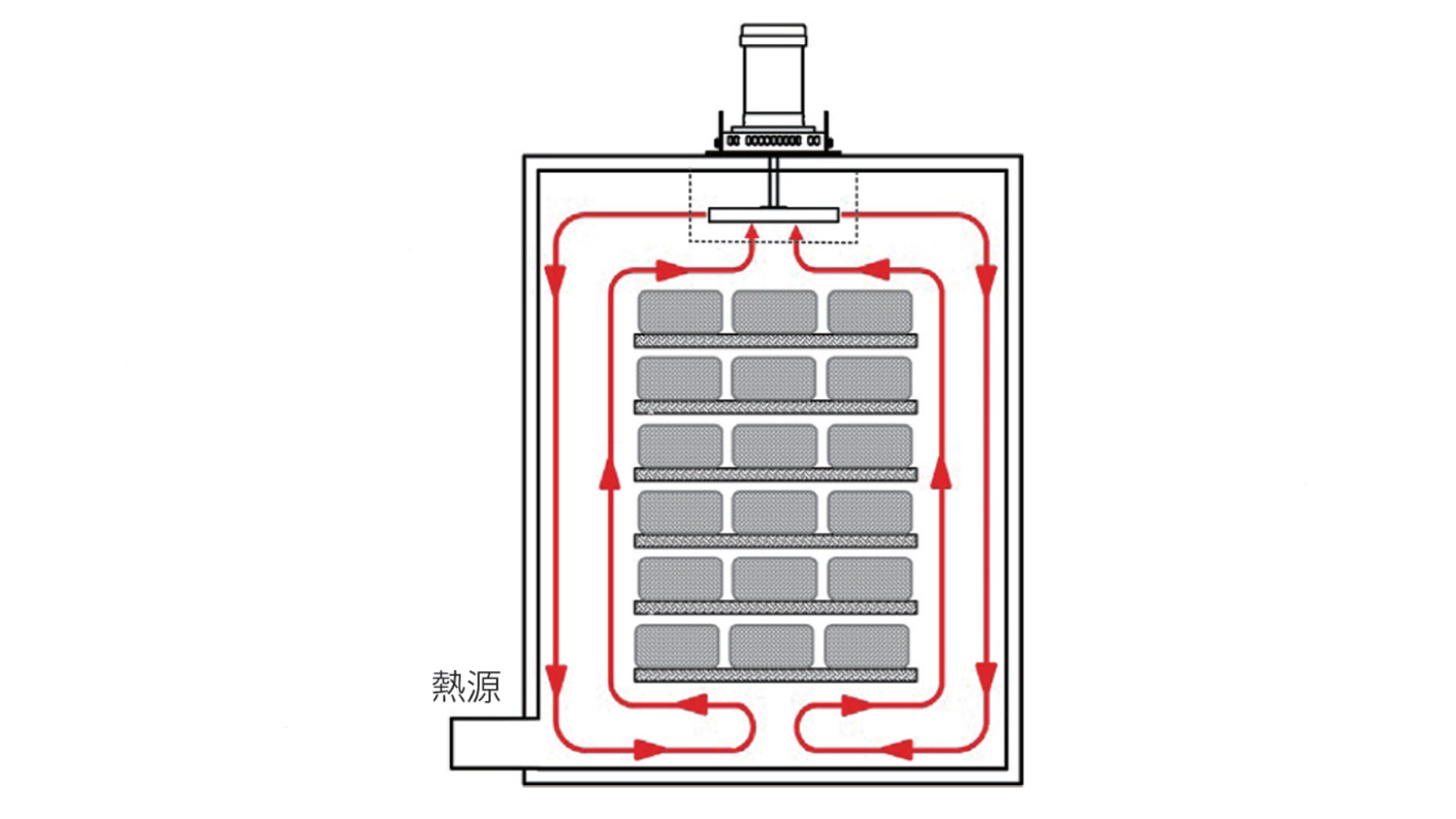

  • Uniform Airflow to Heated and Dried Products
  • Improved Product Quality Through Better Temperature Uniformity in Ceramic Drying Ovens
  • Airflow Pattern Inside the Furnace
  • Uniform Airflow to Heated and Dried Products


Many other applications are also possible. Please contact us for details.


Related Products

Circulation Fan


Standard Specifications

Model

ST130-01
Effective Furnace Volume / Effective Height Approx. 5.0 m³ / Approx. 1.5 m
Motor Capacity 130 W
Rated Air Volume 5.0 m³/min
Power Supply / Number of Poles 3-phase 200 V, 2-pole (For inverter control only)
Furnace Circulator
Outline Drawing
Model

ST250-01
Effective Furnace Volume / Effective Height Approx. 9.0 m³ / Approx. 2.5 m
Motor Capacity 250 W
Rated Air Volume 8.5 m³/min
Power Supply / Number of Poles 3-phase 200 V, 2-pole (For inverter control only)
Furnace Circulator
Outline Drawing
