Super Heater Electric Hot Air Heater
Electric Heater for High-Temperature Hot Air Generation
- High-temperature heating: Air, argon, helium, and carbon dioxide
- Industrial processes: Resin molding, metal melting and softening, annealing, instant drying, localized heating, catalyst heating, IC firing, reaction acceleration, sterilization, and electric furnace heating
- Combustion testing: Small aircraft engines, internal combustion engines, continuous ram combustion, ultra-low NOx combustors, and HST combustion
- Capable of delivering hot air up to 800 °C.

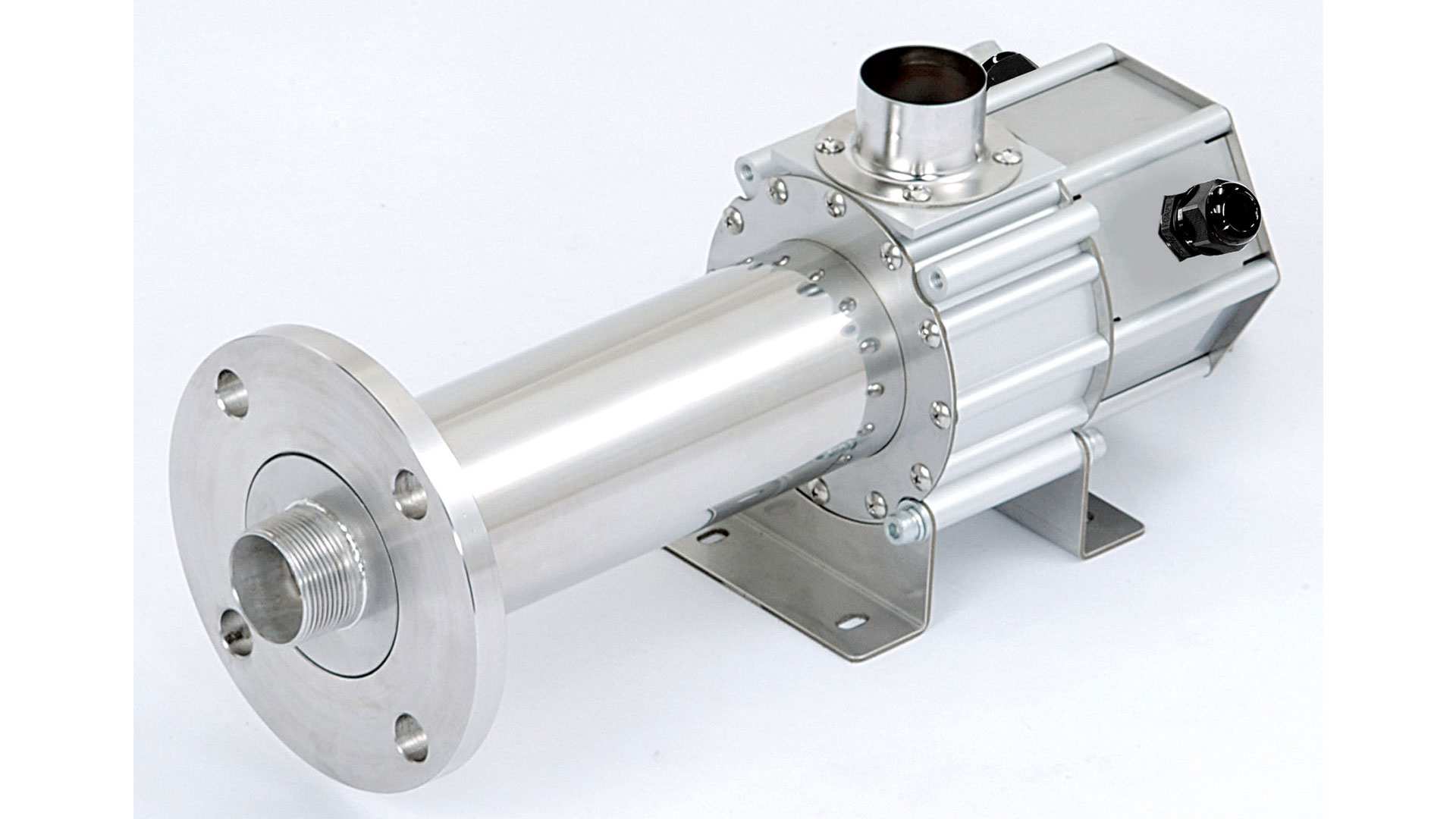

Super Heater Overview
- Maximum Continuous Operating Temperature: 800 °C
- Heater Capacity: 3 kW to 20 kW
- Equipped with four K-type thermocouples as standard
- Using the dedicated temperature control unit (TCU Series) enables hot-start operation and ensures safety circuit functionality
- The FH Series blower unit is compact and lightweight, offering excellent noise reduction, ventilation performance, and long service life
- The SHF Series is also available as an integrated high-temperature hot air unit combining the Super Heater (SH Series), blower, operation panel, and control circuitry

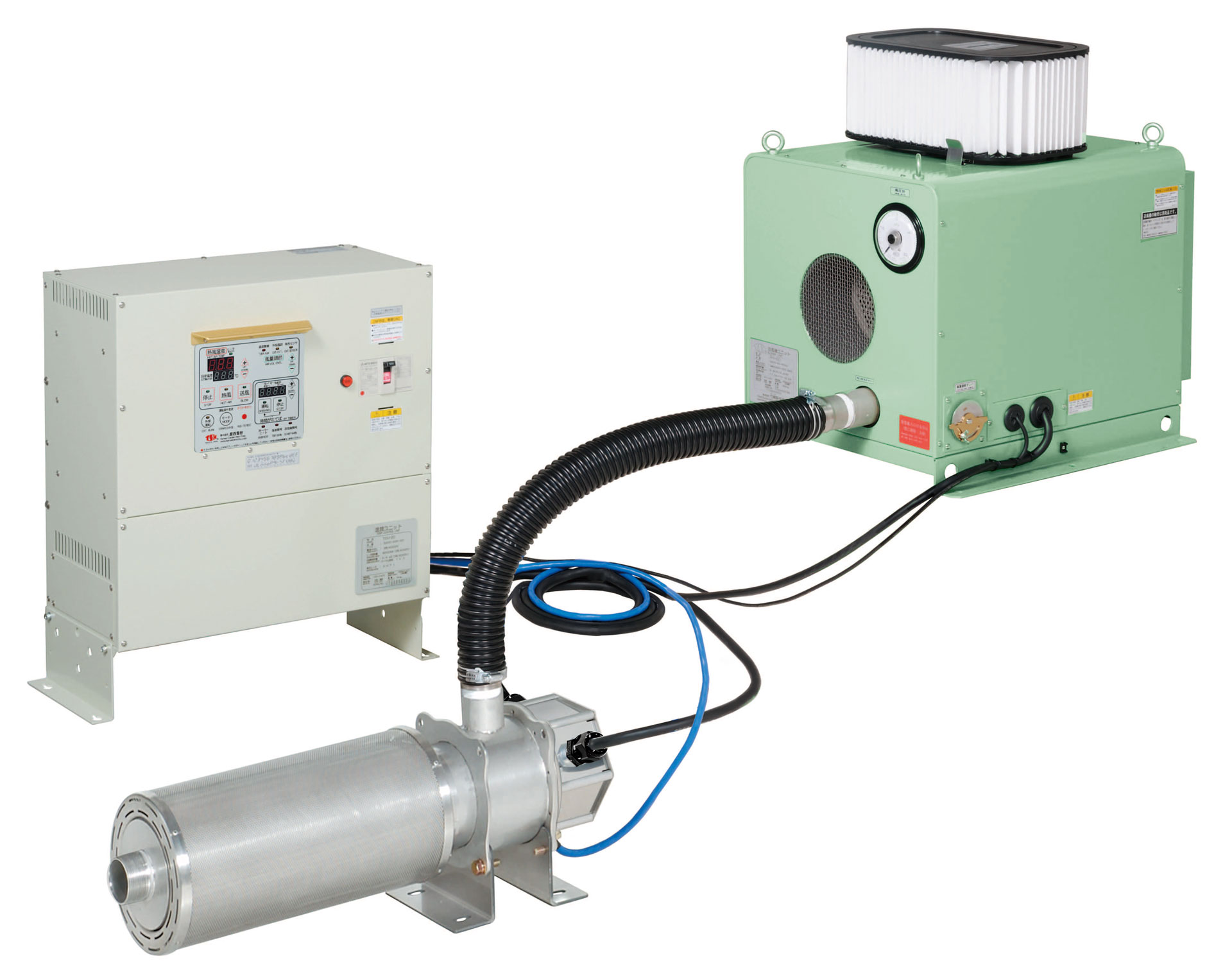

* For each Super Heater unit, either one TCU Series temperature control unit or one FH Series blower unit is required.

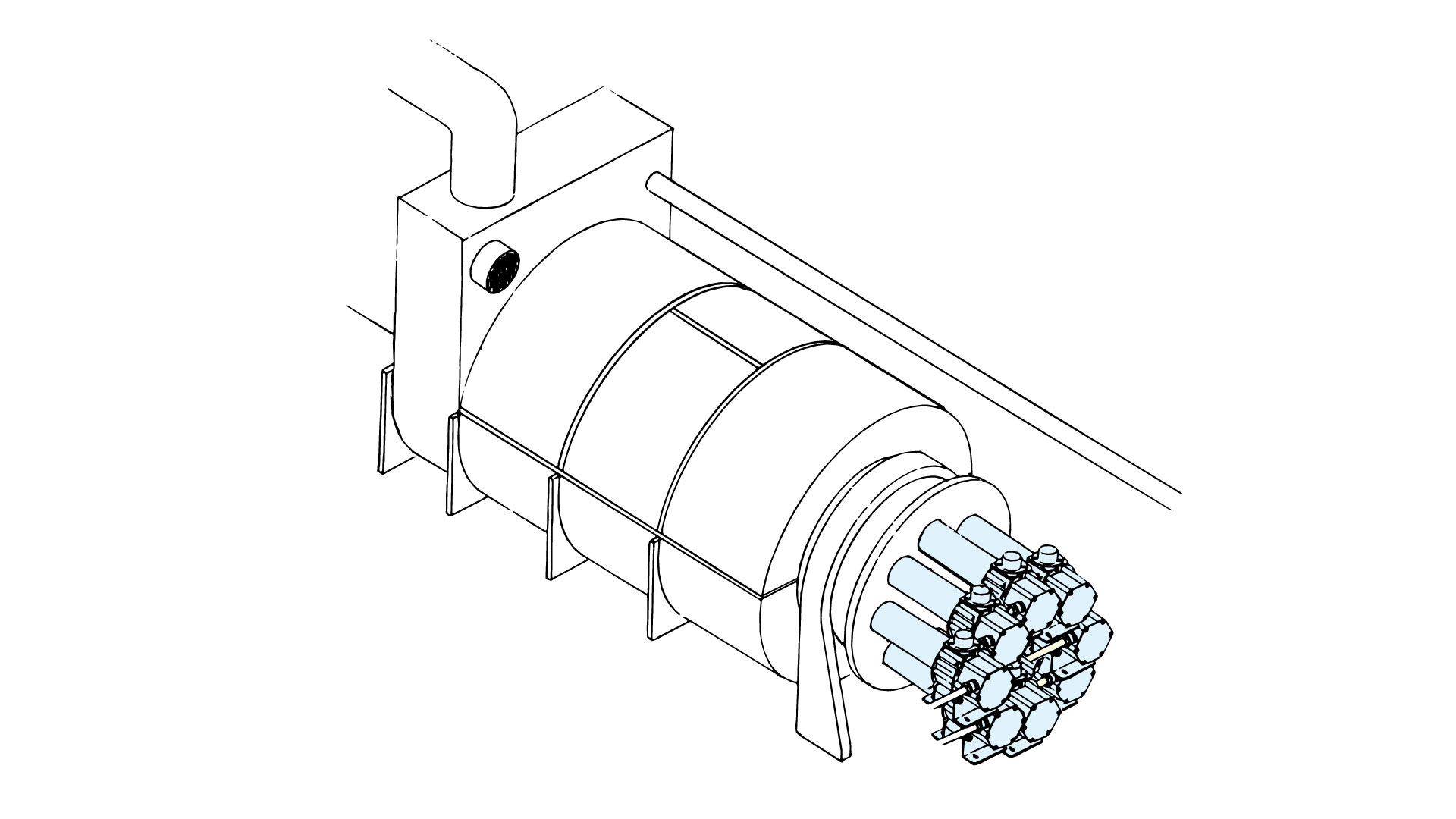

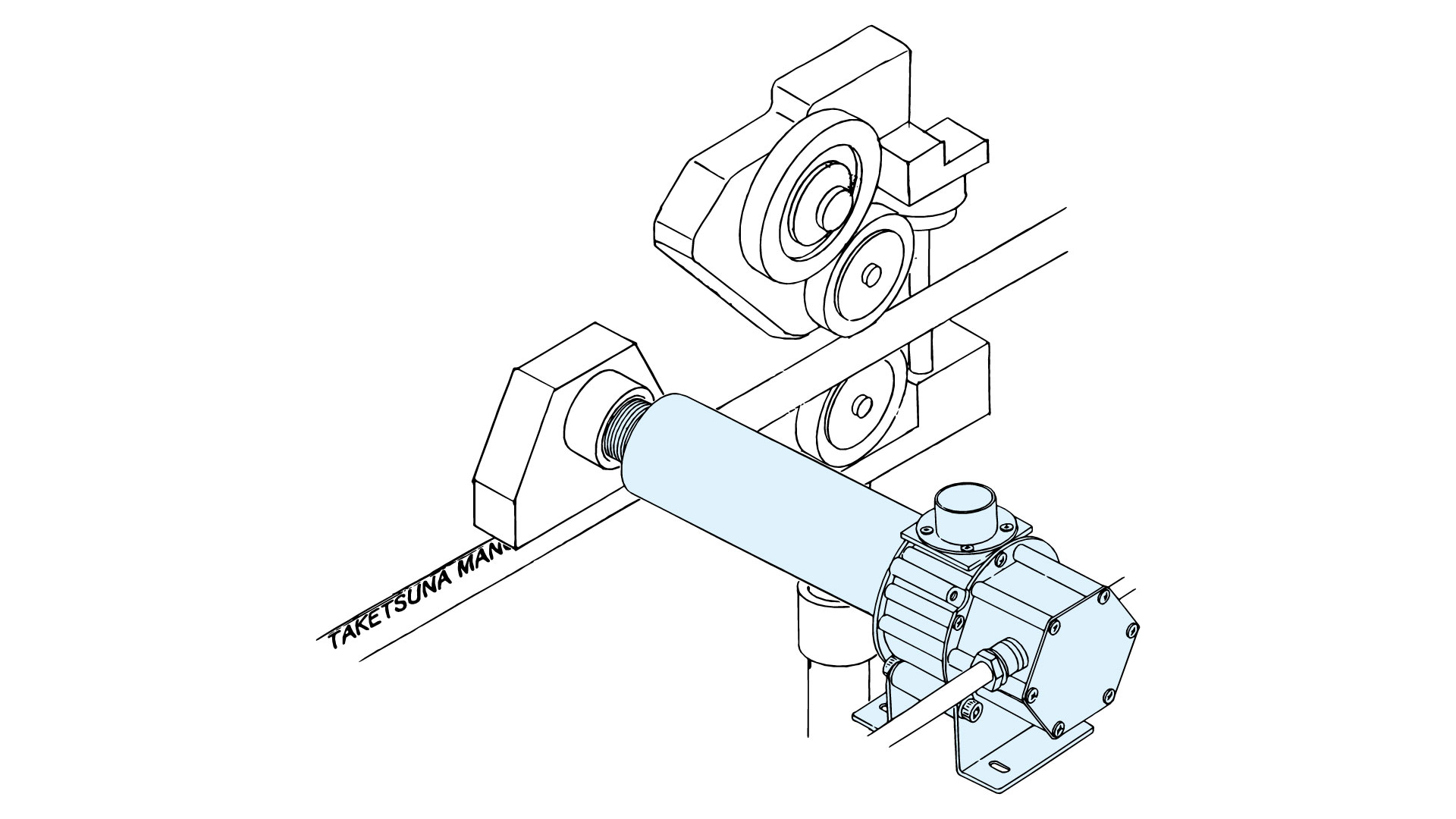

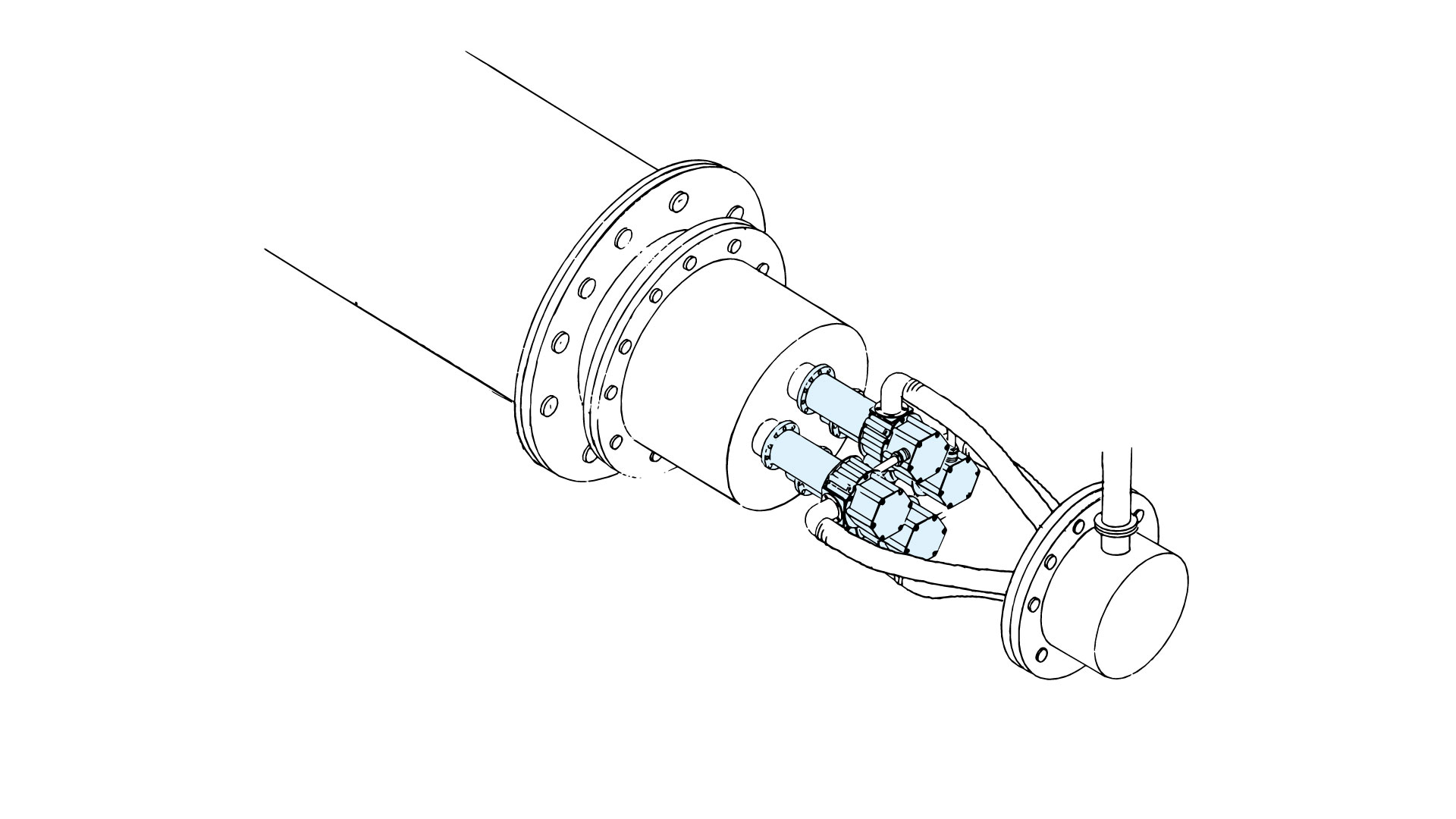

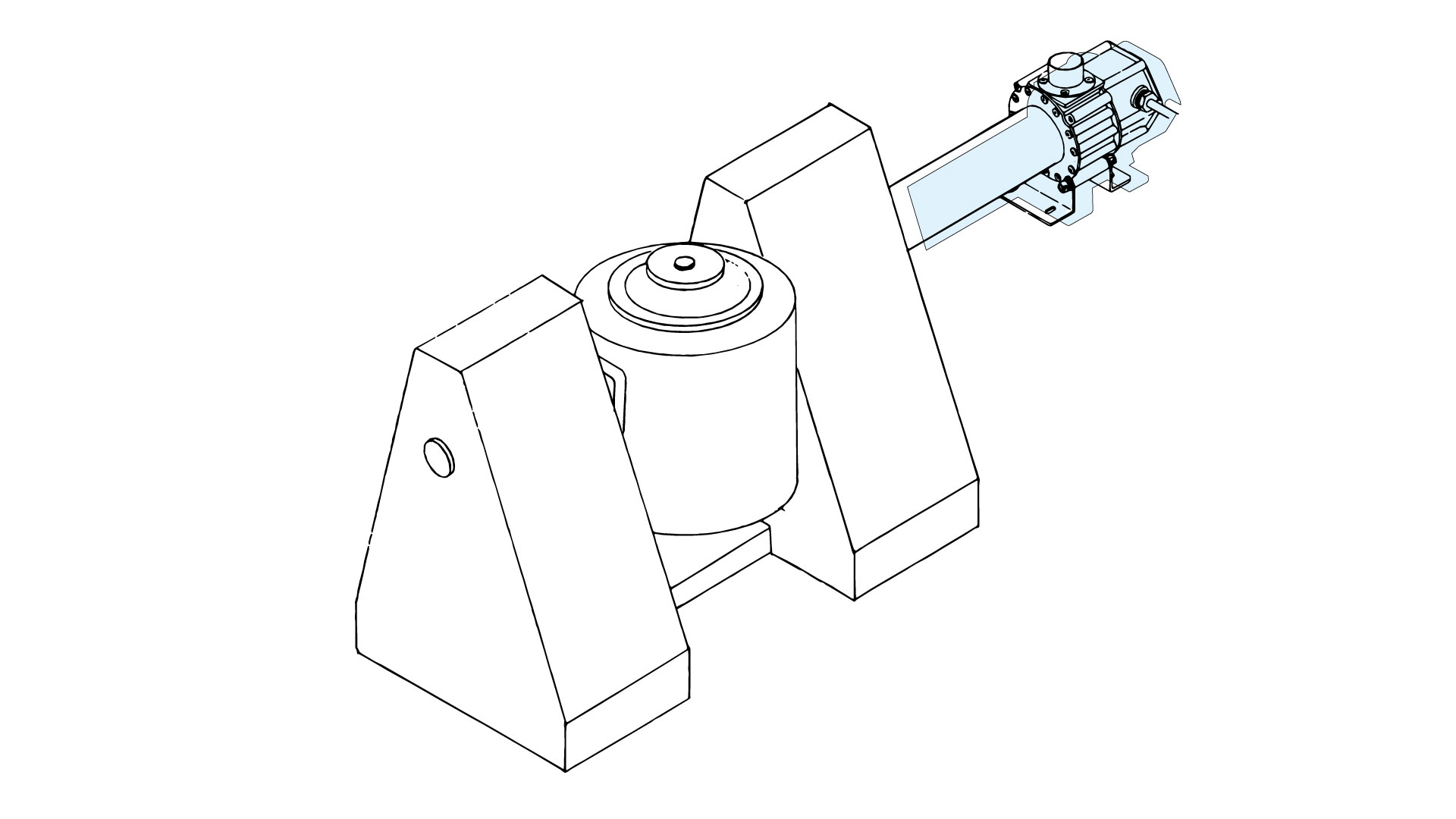

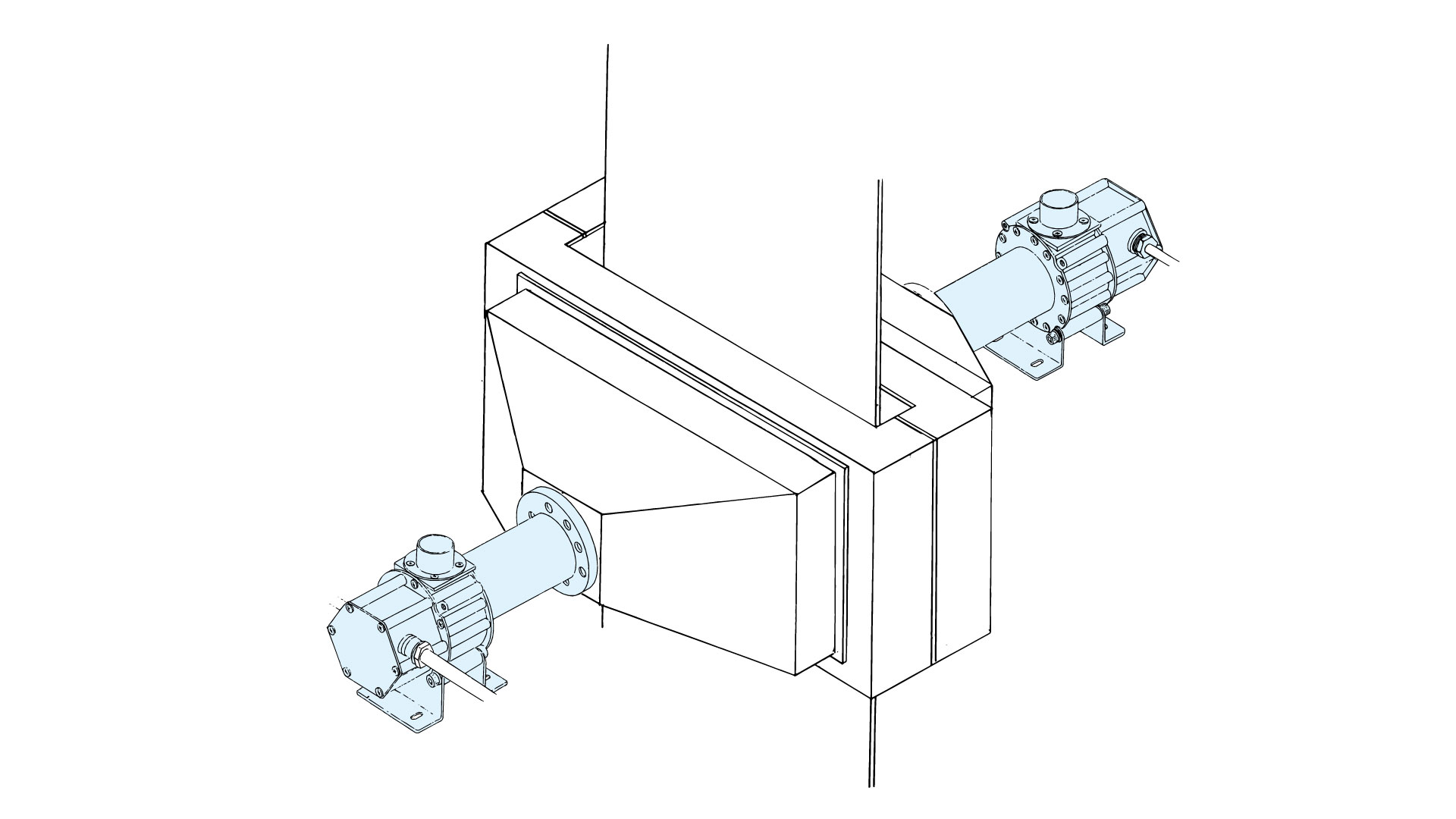

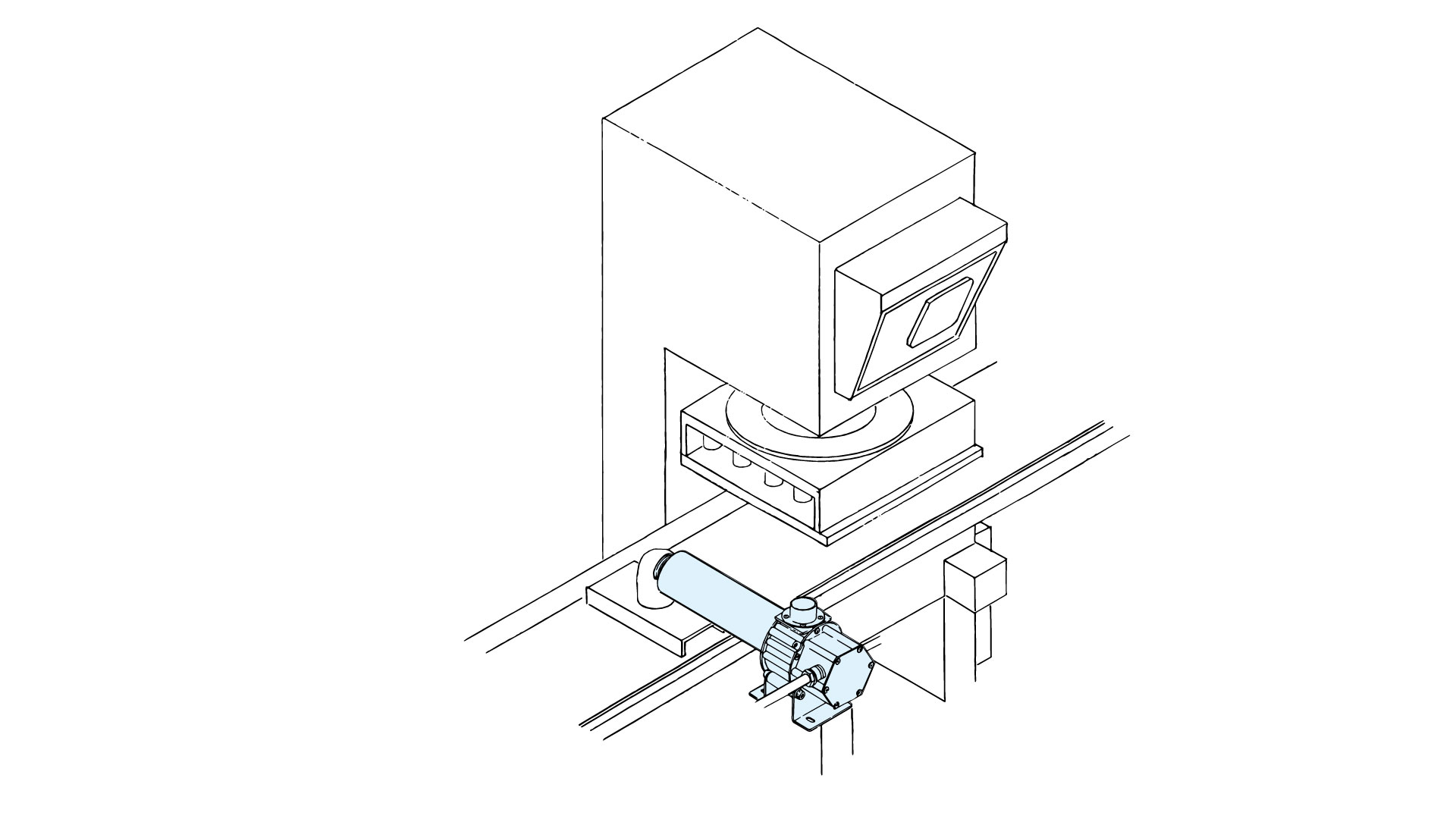

Typical Applications
Our products can also be used in many other applications. Please feel free to contact us for further information.
Standard Specifications
Note: Model numbers and power supply specifications vary depending on the voltage and frequency.
The compatible frequency differs by voltage specification.
Please specify the required voltage and frequency when placing your order.
| Model |

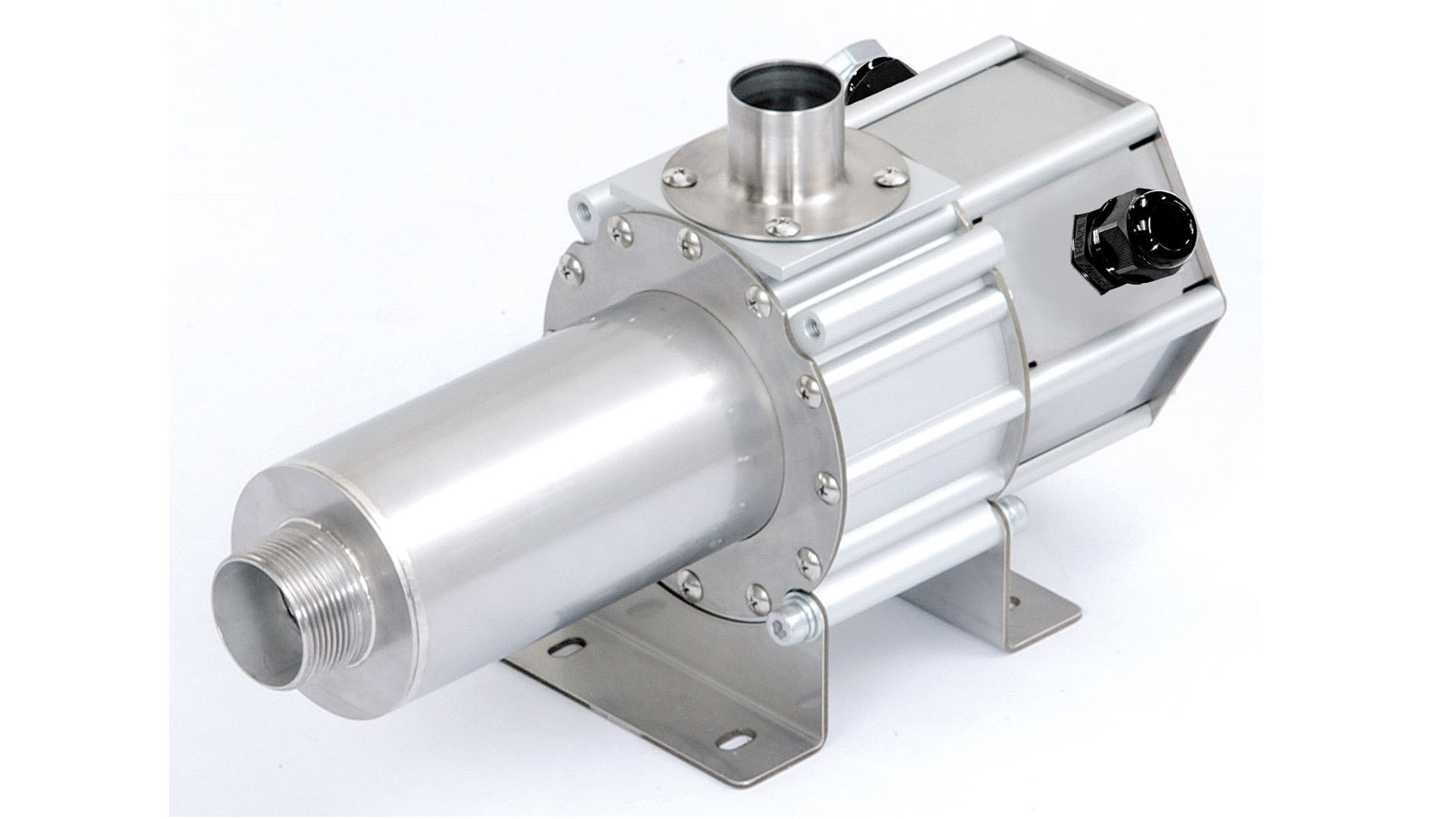

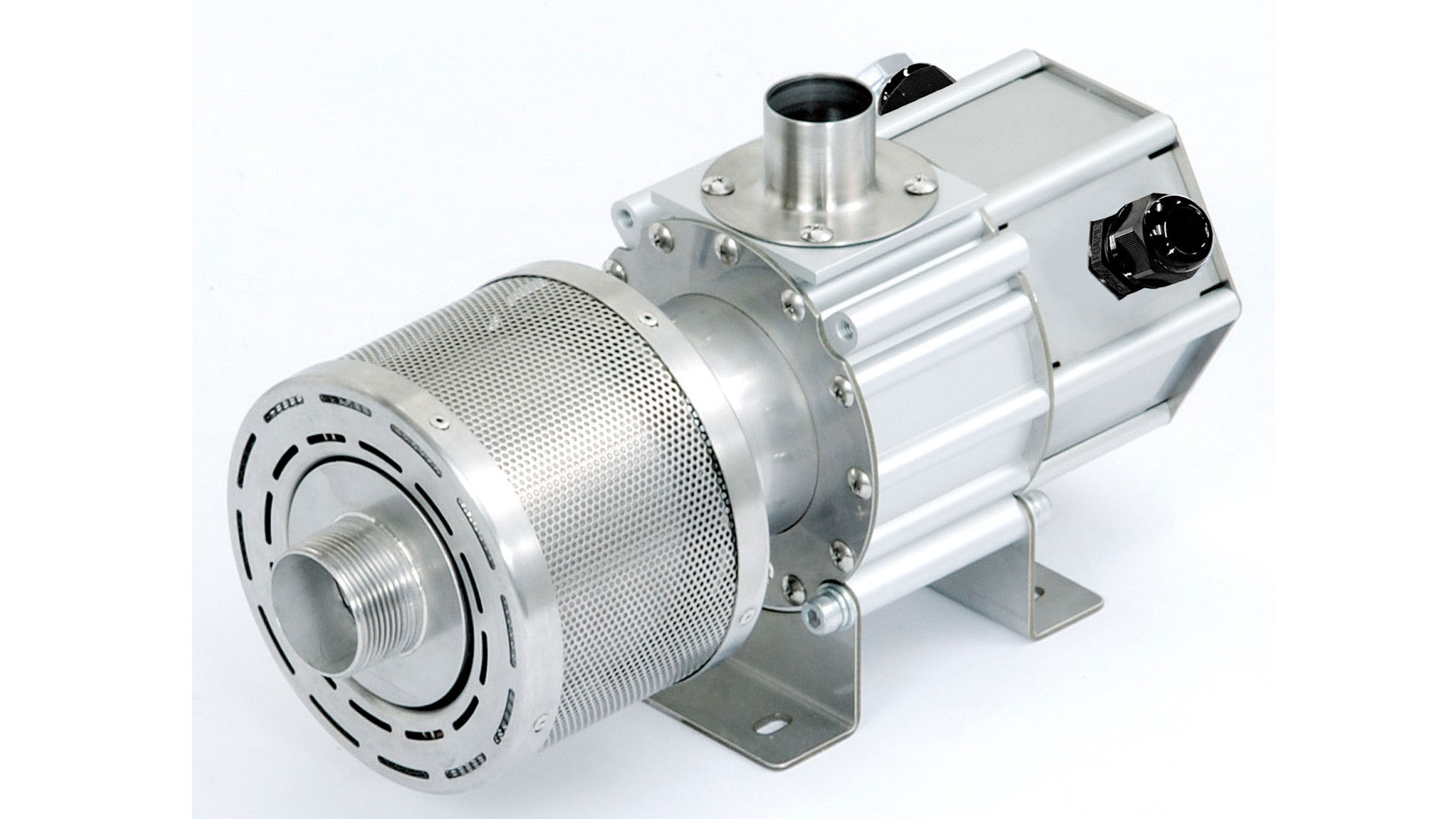

SH41 |
||
|---|---|---|---|
| Model No. | 3220-440-3K-(Inlet Attachment) | 3220-440-4K-(Inlet Attachment) | |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
||
| Heater Capacity | 3 kW | 4 kW | |
| Max Outlet Air Temp. | 700 °C | ||
| Max Inlet Air Temp. | 70 °C | ||
| Max Air Volume | 2.5 m³/min | ||
| Min Air Volume | 0.20 Nm³/min | 0.27 Nm³/min | |
| Heater Casing Pressure Rating |
FD38: approx. 30 kPa |
||
 |
|

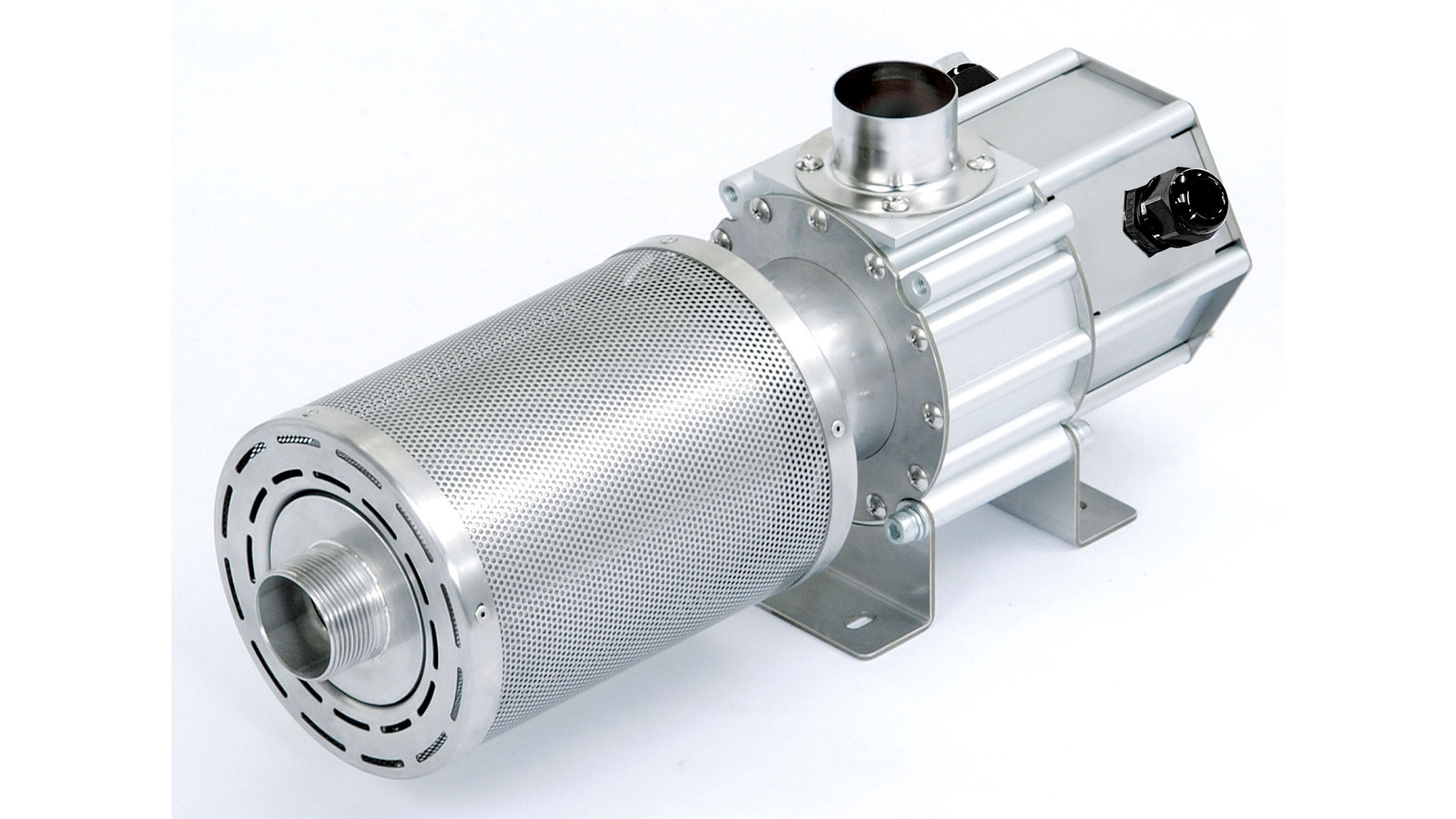

||
| Model |

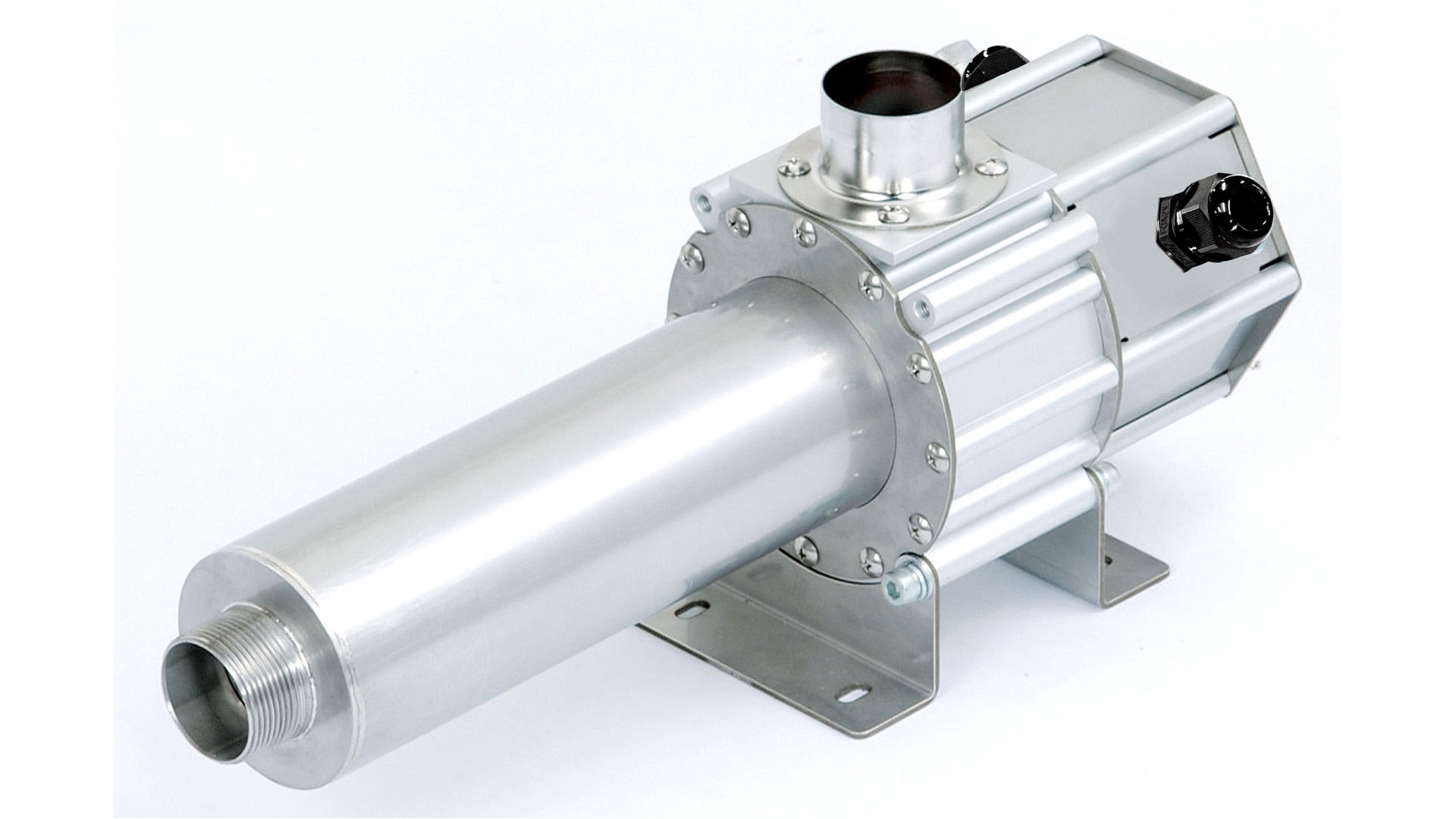

SH51 |
|
|---|---|---|
| Model No. | 3220-440-6K-(Inlet Attachment) | 3220-440-8K-(Inlet Attachment) |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|
| Heater Capacity | 6 kW | 8 kW |
| Max Outlet Air Temp. | 800 °C | |
| Max Inlet Air Temp. | 70 °C | |
| Max Air Volume | 2.2 m³/min | |
| Min Air Volume | 0.32 Nm³/min | 0.42 Nm³/min |
| Heater Casing Pressure Rating |
FD38: approx. 30 kPa |
|
 |
|
|

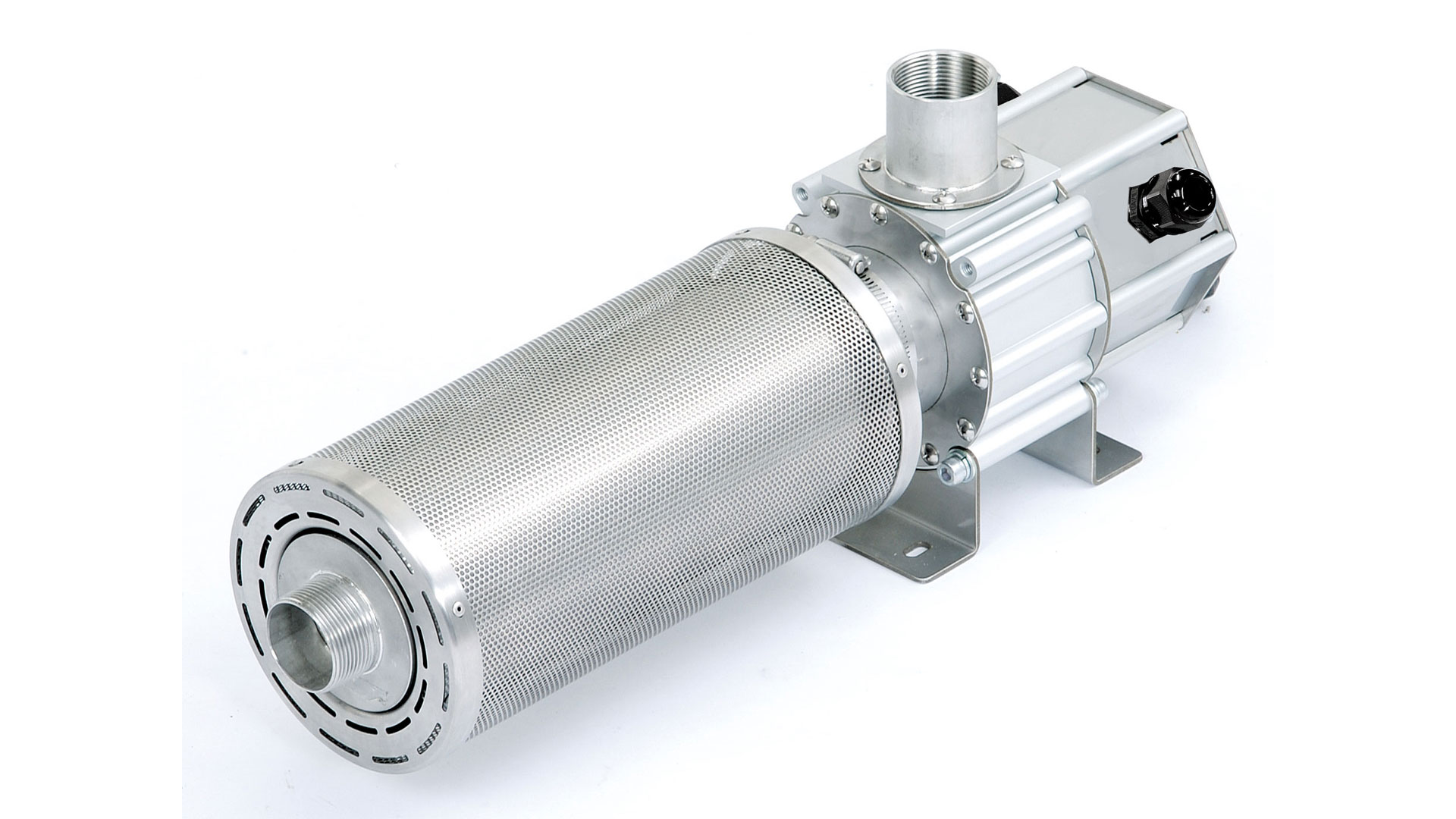

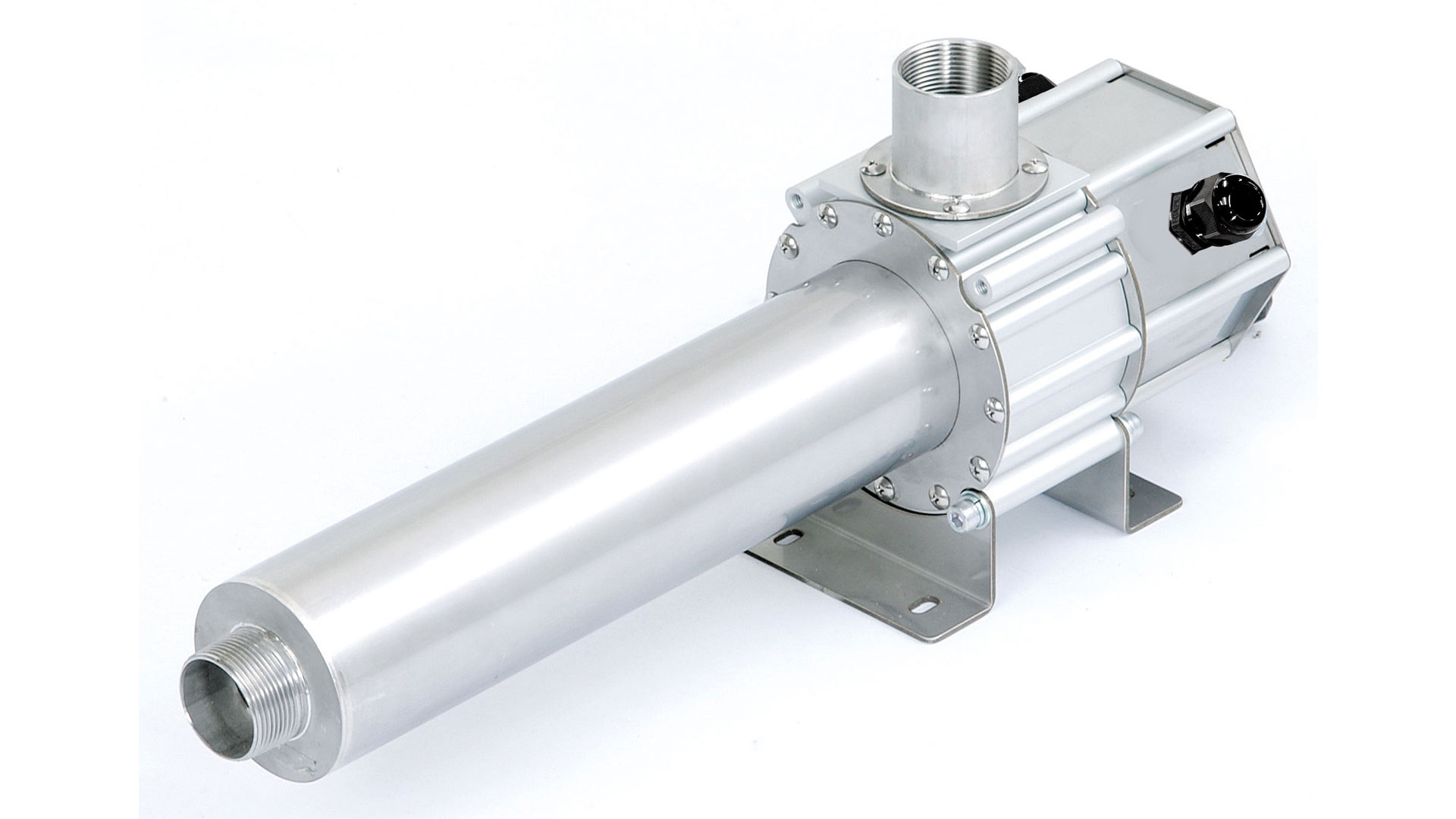

| Model |
SH61 |
|
|---|---|---|
| Model No. | 3220-440-10K-(Inlet Attachment) | 3220-440-12K-(Inlet Attachment) |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|
| Heater Capacity | 10 kW | 12 kW |
| Max Outlet Air Temp. | 800 °C | |
| Max Inlet Air Temp. | 70 °C | |
| Max Air Volume | 2.0 m³/min | |
| Min Air Volume | 0.55 Nm³/min | 0.65 Nm³/min |
| Heater Casing Pressure Rating |
FD38: approx. 30 kPa |
|
 |
|
|
| Model |

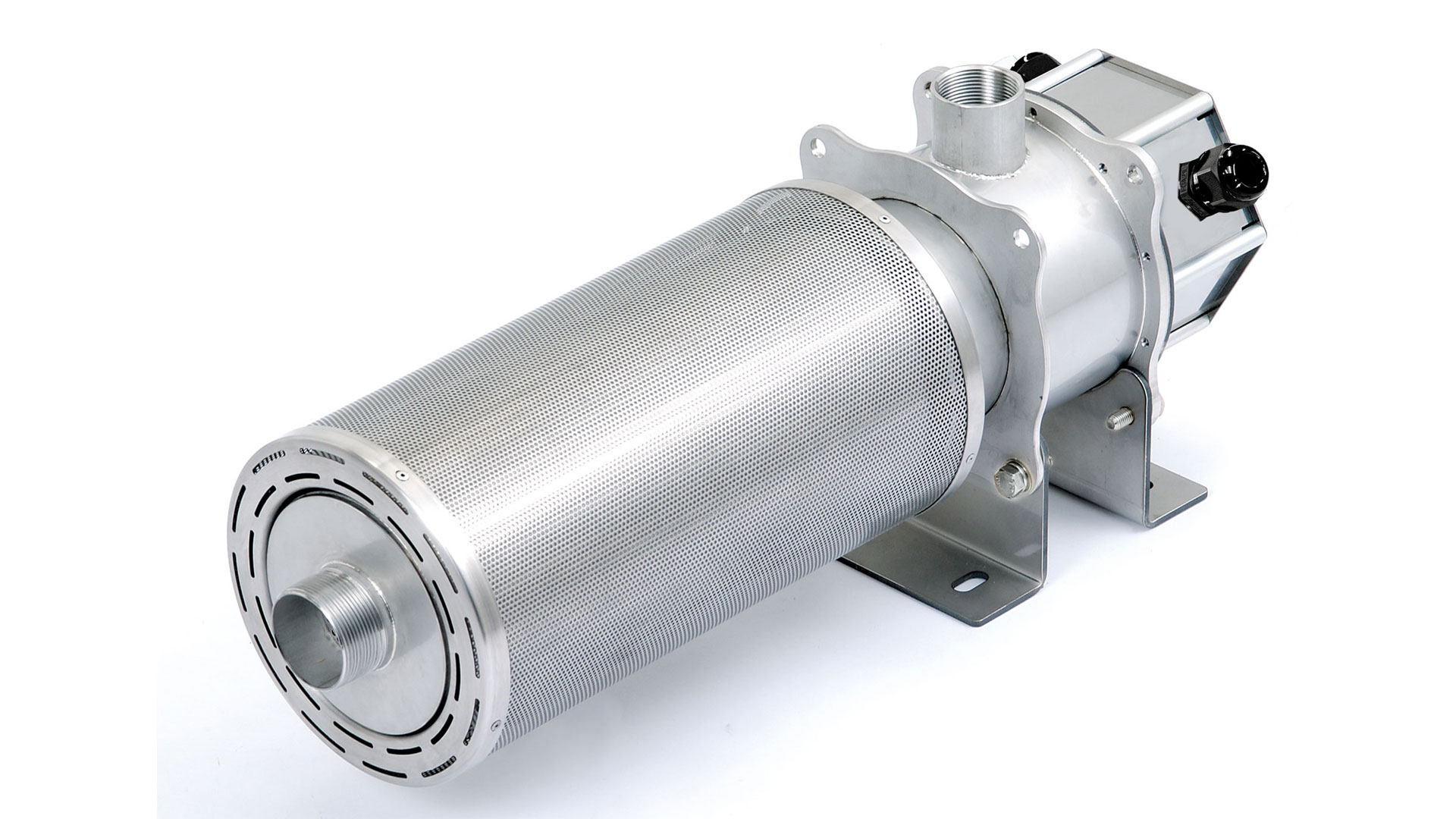

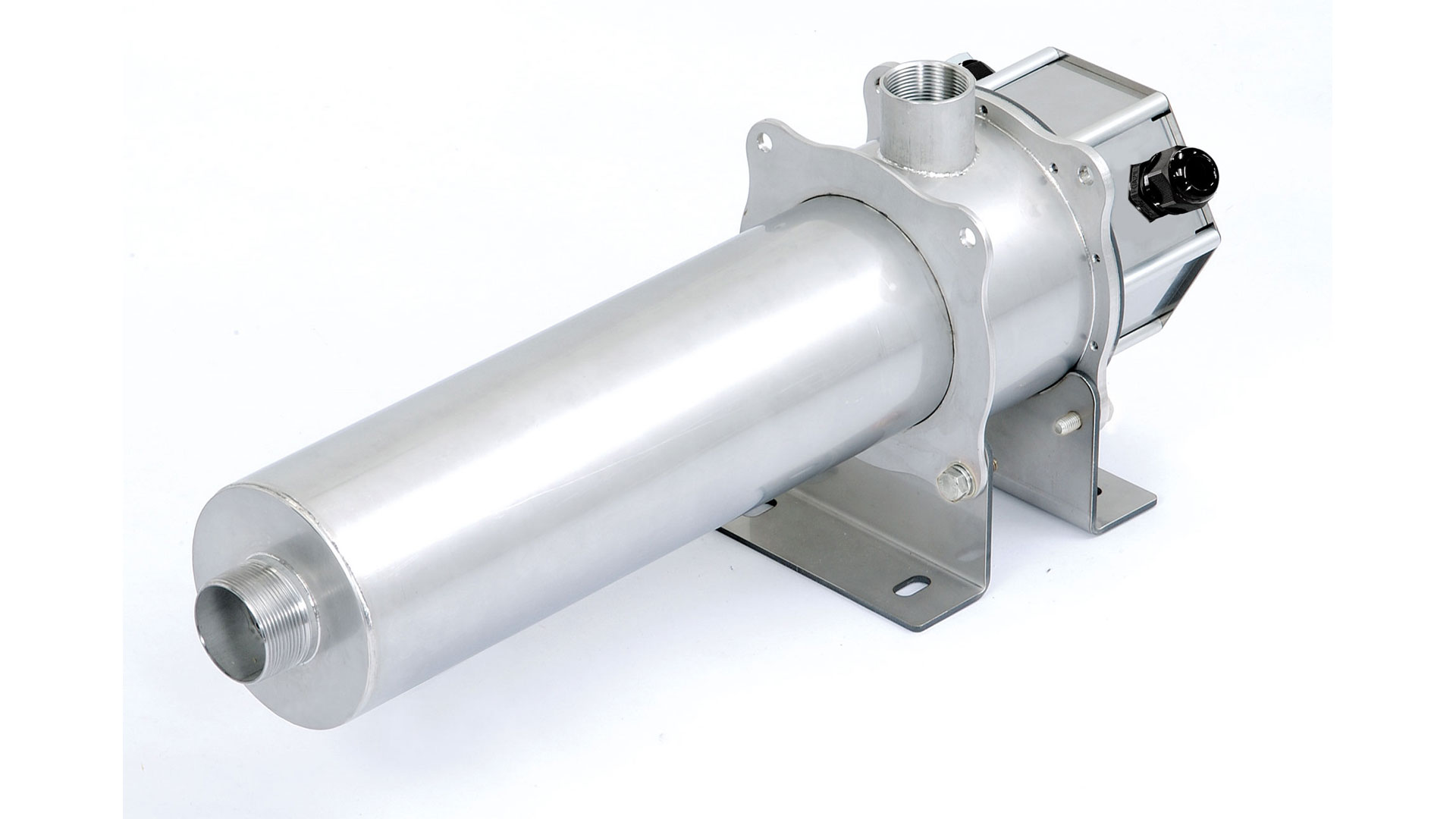

SH71 |
|
|---|---|---|
| Model No. | 3220-440-15K-40A | 3220-440-20K-40A |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|
| Heater Capacity | 15 kW | 20 kW |
| Max Outlet Air Temp. | 700 °C | |
| Max Inlet Air Temp. | 70 °C | |
| Max Air Volume | 4.0 m³/min | |
| Min Air Volume | 1.00 Nm³/min | 1.37 Nm³/min |
| Heater Casing Pressure Rating | Approx. 490 kPa | |
 |
|
|
When placing your order, please specify one of the following air supply sources and provide the required information.
1. FH Series Blower Unit:
Please specify the model and part number of the FH Series blower unit.
2. Commercially Available Blower:
Please specify the blower’s rated current and operating frequency.
(Applicable only to blowers with a motor capacity of 3.7 kW or less.)
3. Compressed Air or Compressed Gas:
Please specify whether compressed air or compressed gas will be used. If using compressed gas, please specify the gas type.
(An external run ON/OFF signal input is required when supplying air or gas.)
| Model |
TCU8K |
|||
|---|---|---|---|---|
| Model No. | 3220-440-3K | 3220-440-4K | 3220-440-6K | 3220-440-8K |
| Compatible Super Heater | SH41 | SH51 | ||
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|||
 |
|
|||
| Model |
TCU12K |
|
|---|---|---|
| Model No. | 3220-440-10K | 3220-440-12K |
| Compatible Super Heater | SH61 | |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|
|
|
|
| Model |
TCU20K |
|
|---|---|---|
| Model No. | 3220-440-15K | 3220-440-20K |
| Compatible Super Heater | SH71 | |
| Power Supply |
3-phase 220 V / 380 V / 400 V / 440 V, 50/60 Hz |
|
|
|
|
| Model |

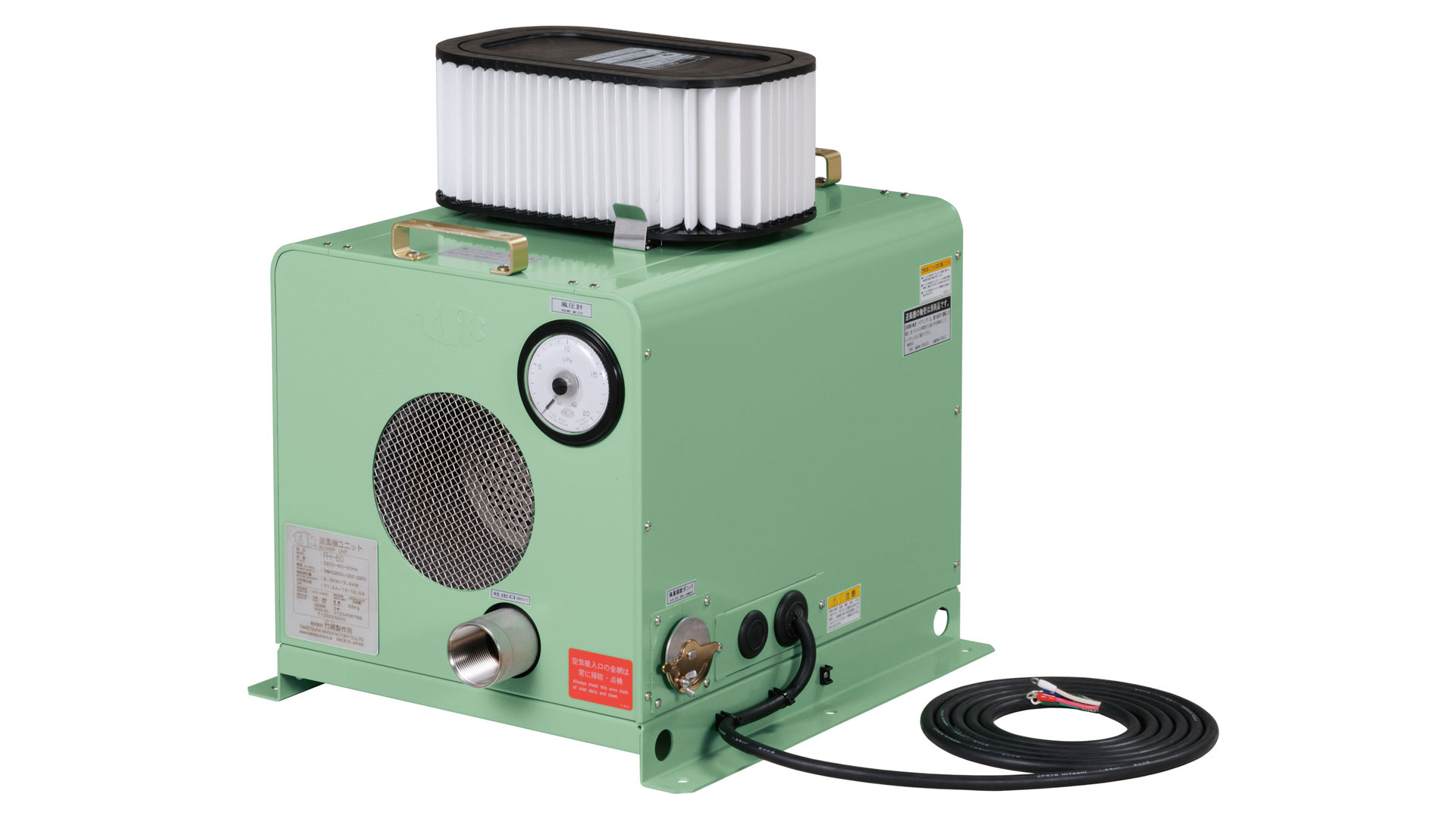

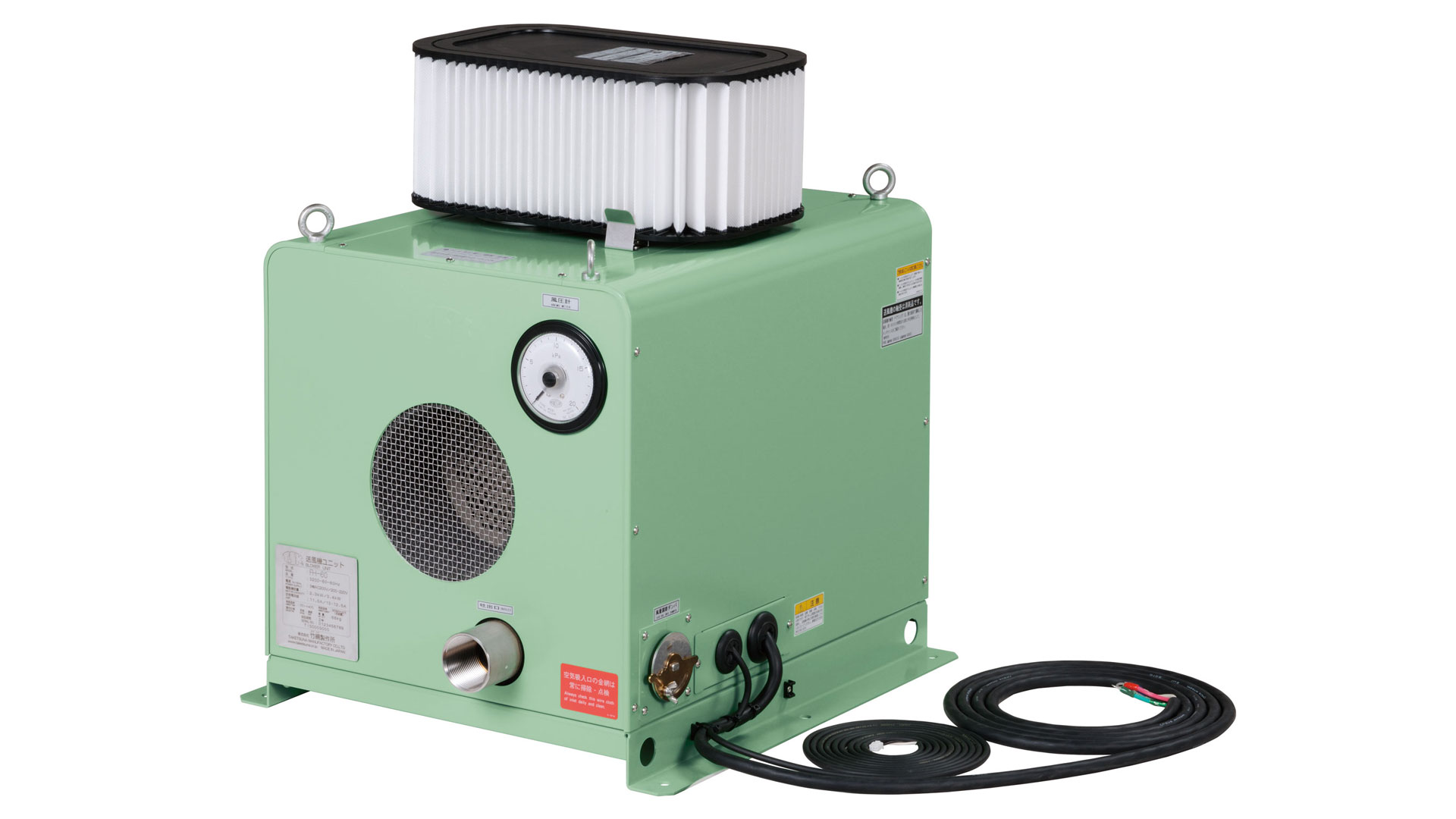

FH30 |
|---|---|
| Model No. | 3220-440-30 |
| Compatible Super Heaters | SH41 to SH71 |
| Power Supply |
3-phase 380 V / 400 V, 50 Hz |
 |
|
| Model |
FH40 |
|---|---|
| Model No. | 3220-440-40 |
| Compatible Super Heaters | SH41 to SH71 |
| Power Supply |
3-phase 380 V / 400 V, 50 Hz |
|
|
| Model |
FH50 |
|---|---|
| Model No. | 3220-440-50 |
| Compatible Super Heaters | SH41 to SH71 |
| Power Supply |
3-phase 380 V / 400 V, 50 Hz |
 |
|
| Model |
FH60 |
|---|---|
| Model No. | 3220-440-60 |
| Compatible Super Heaters | SH41 to SH71 |
| Power Supply |
3-phase 380 V / 400 V, 50 Hz |
|
|
| Model |

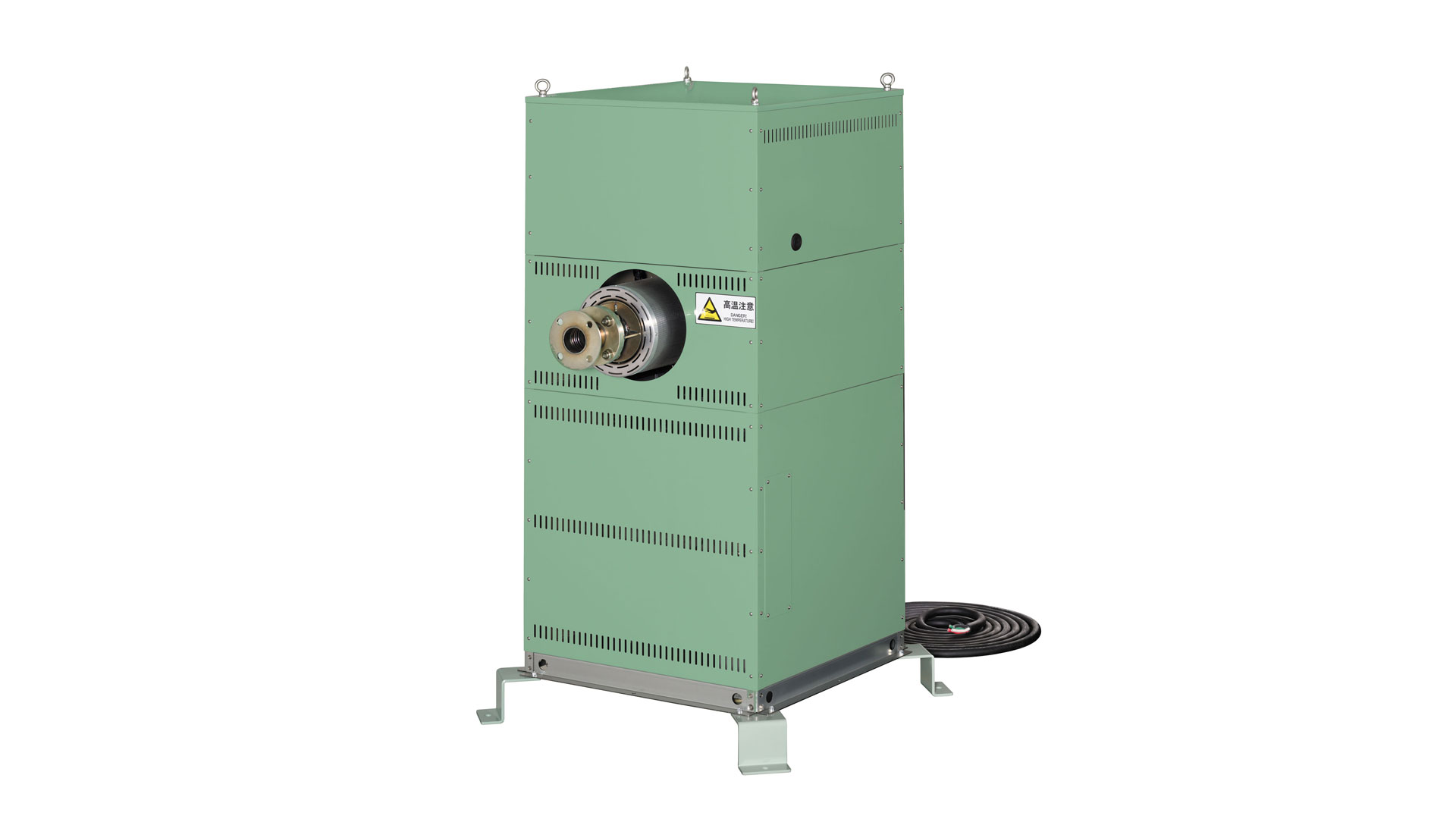

SHF-61TF |
|---|---|
| Model No. | 3400-12TF-1.9X / 3440-12TF-1.9X |
| Heater Capacity | 12 kW |
| Power Supply |
3-phase 400 V / 440 V, 50/60 Hz |
 |
|

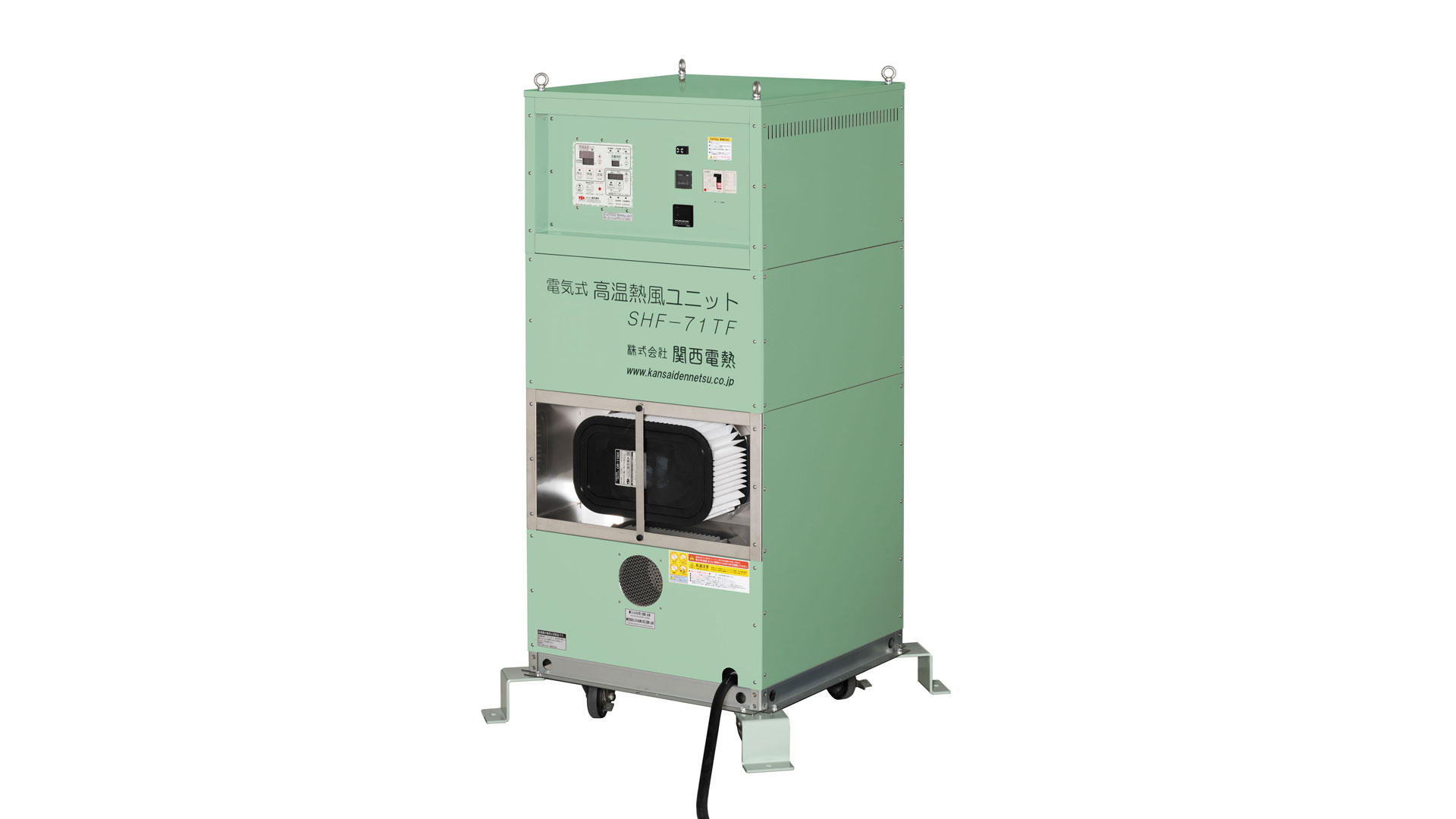

| Model |
SHF-71TF |
|---|---|
| Model No. | 3400-20TF-1.9X / 3440-20TF-1.9X |
| Heater Capacity | 20 kW |
| Power Supply |
3-phase 400 V / 440 V, 50/60 Hz |
 |
|
For pricing, customization, or technical inquiries, please contact us:
sales@kansaidennetsu.co.jp
