High-Blow (Air Knife) Nozzle

Aluminum High-Blow Nozzle



  • The High-Blow Nozzle is a high-precision aluminum air knife engineered for rapid drying, cooling, and water removal applications.


  • Ideal for system integration.


  • Suitable for rapid water removal, drying, and cooling applications.


  • Enables simultaneous water removal and drying.


  • Applications include PCB water removal, air knife coating, defrosting, air curtains, uniform surface treatment, and rinse washing, etc.



High-Blow Nozzle Overview

  • All-aluminum construction
  • Adjustable slit width
  • Excellent discharge air velocity accuracy (left-right variation of wind speed within ±3%)
  • Ten air supply port variations
  • Heat resistance up to 250 °C
  • Pressure resistance up to 2 kgf/cm² (≈0.20 MPa)
Operation manuals


Model Lineup

15AL 25AL 40AL 50AL


Typical Applications

Note: Some illustrations may contain Japanese text.


  • Cleaning machine

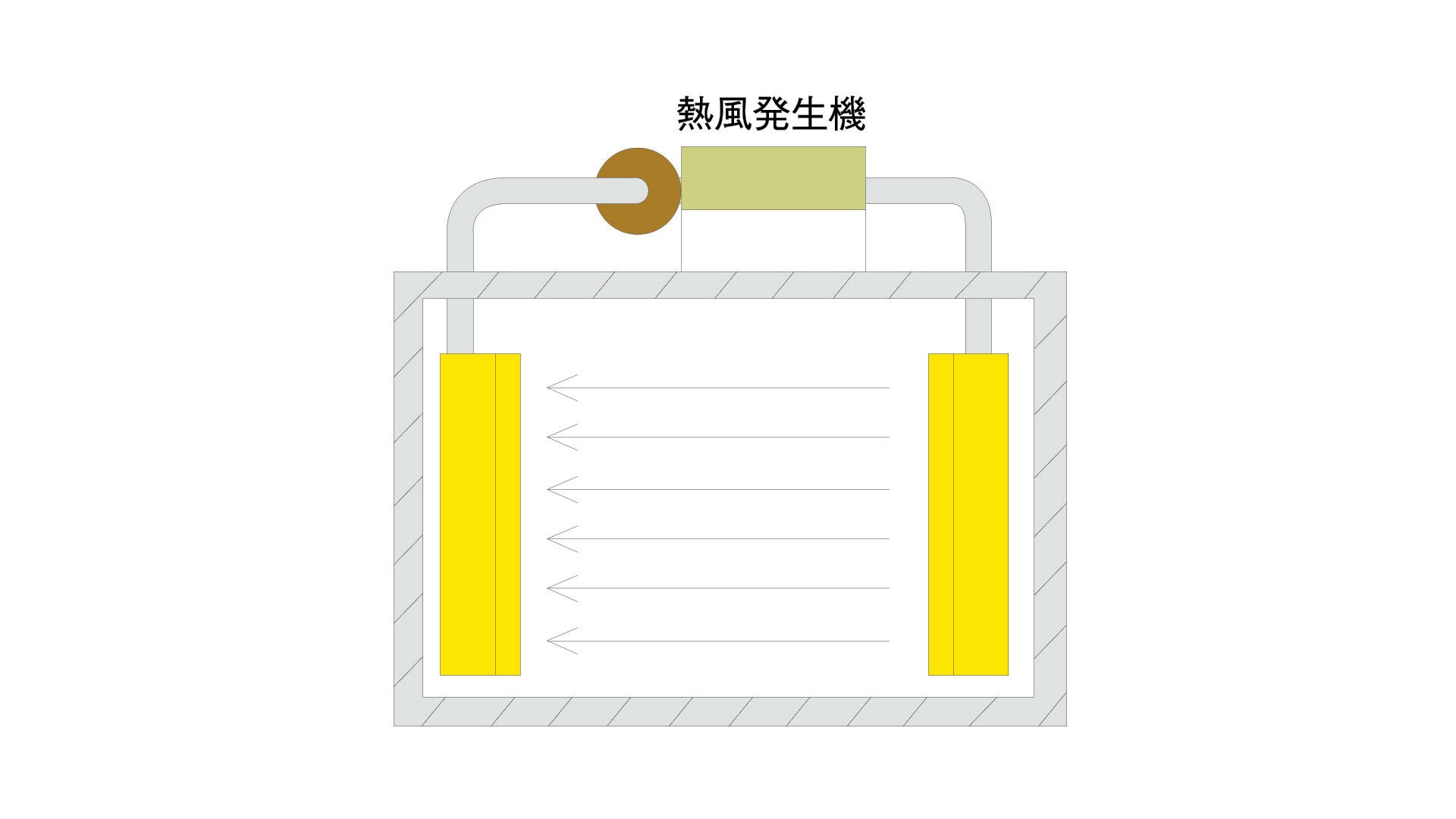

  • Airflow straightening in drying ovens

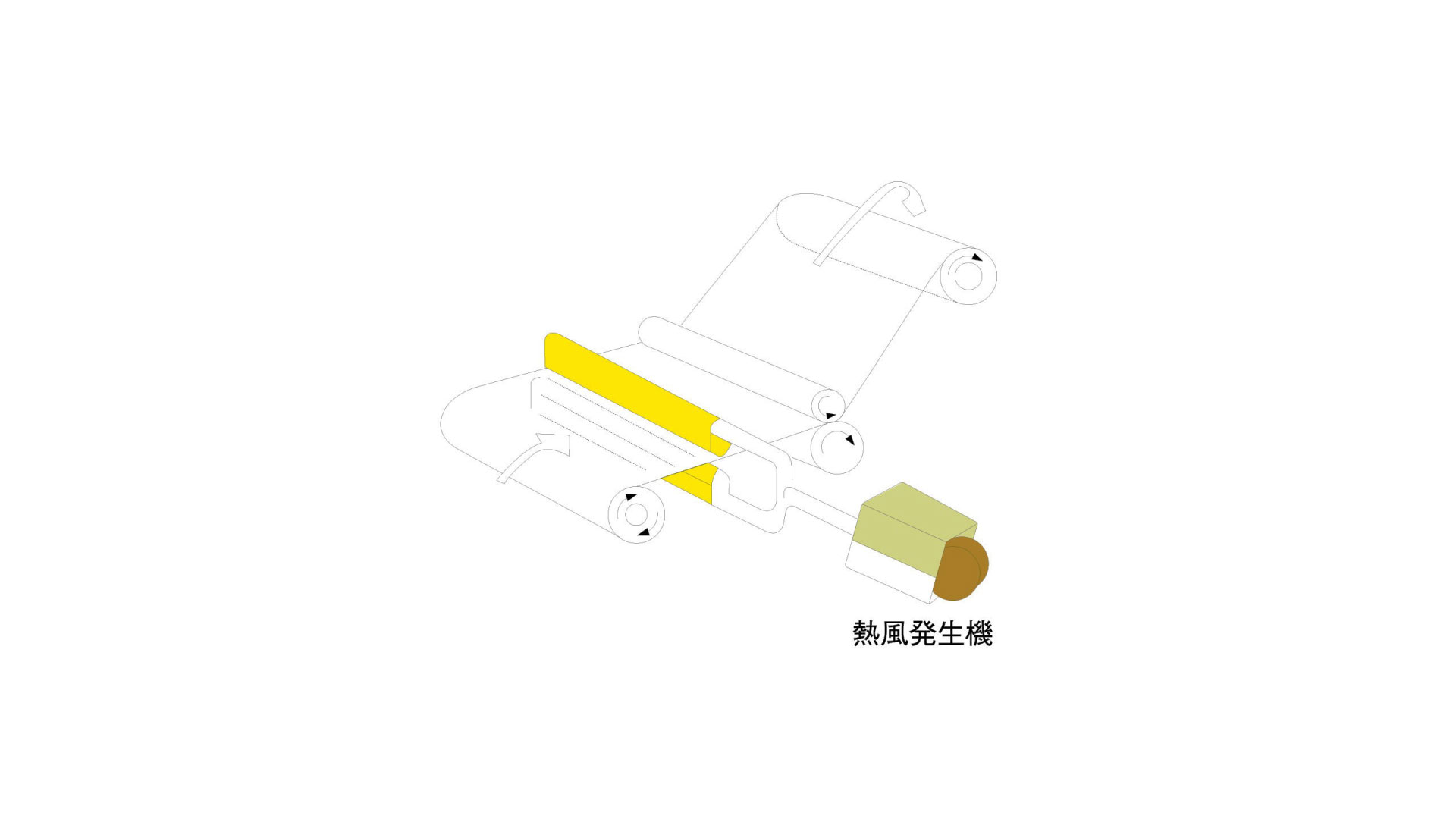

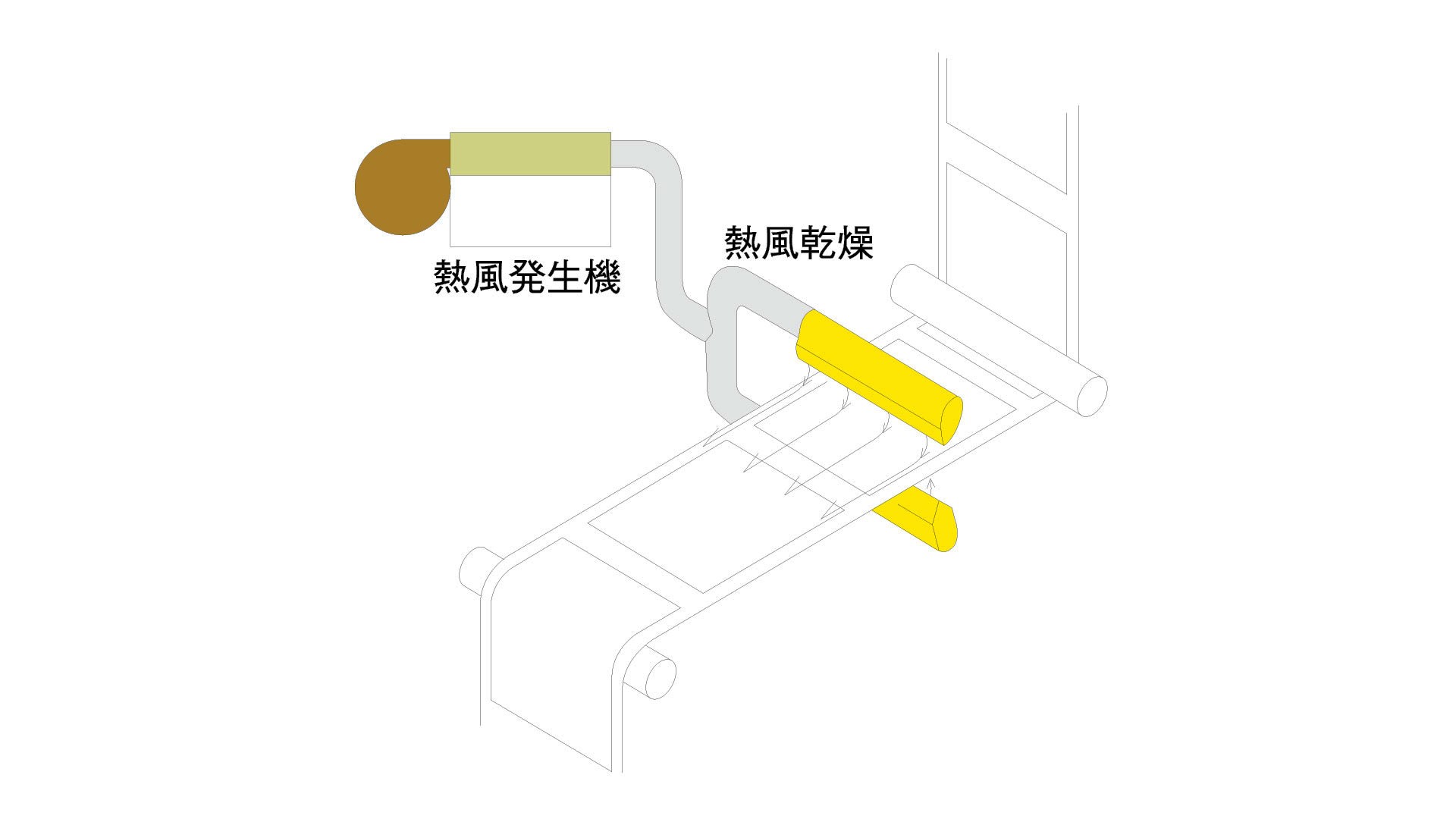

  • Sheet heating and drying
  • Drying oven
  • Cast iron pipe cooling
  • Water removal and drying of cans and bottles after washing

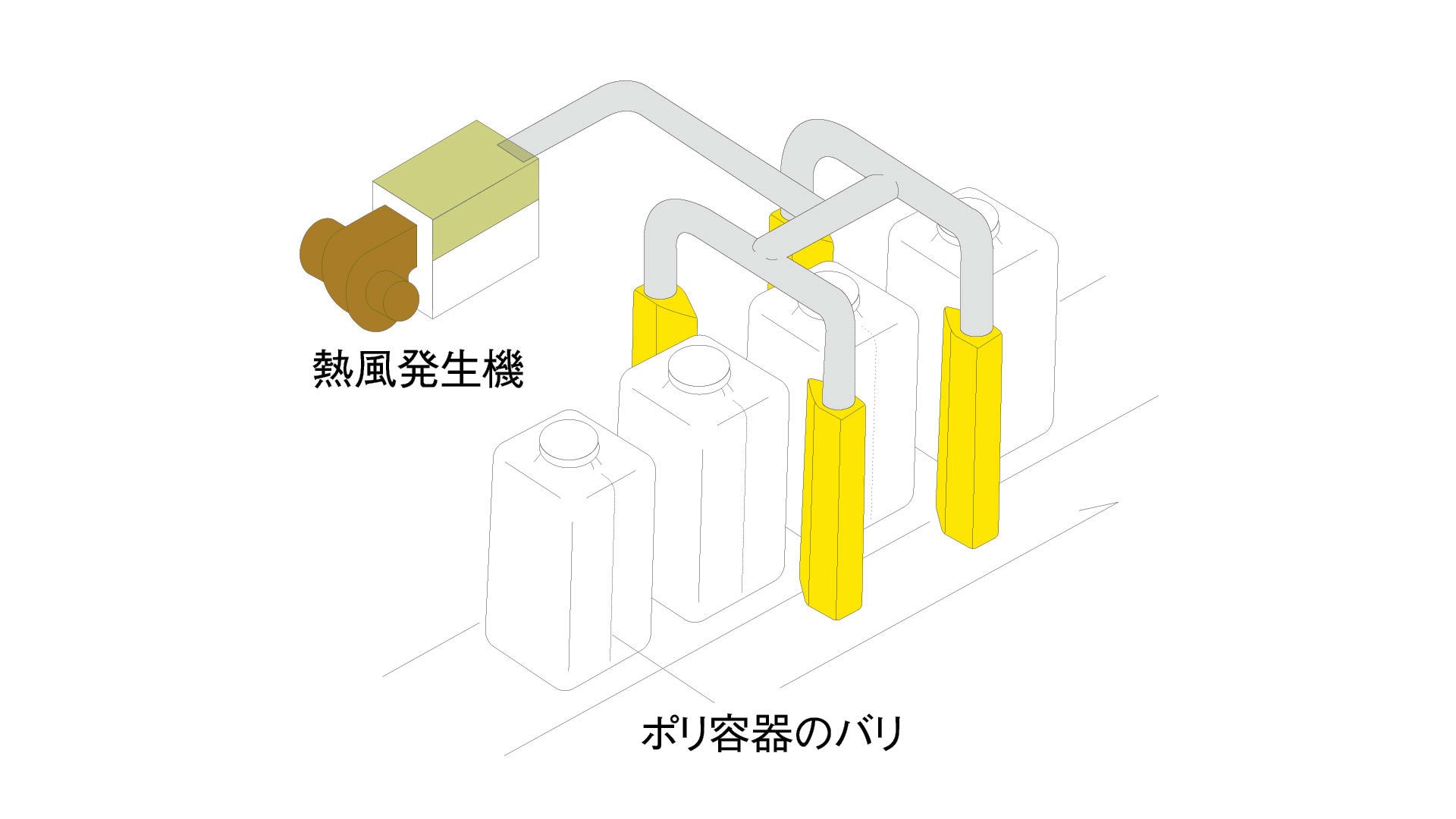

  • Localized hot-air deburring of plastic containers
  • Wire drying after washing
  • Air blowing into gaps in stacked paper, cardboard, or plywood
  • Rapid drying of printed materials and labels
  • Air curtain
  • Air curtain
  • PCB cleaning
  • Cooling at the exit of conveyor heating furnaces

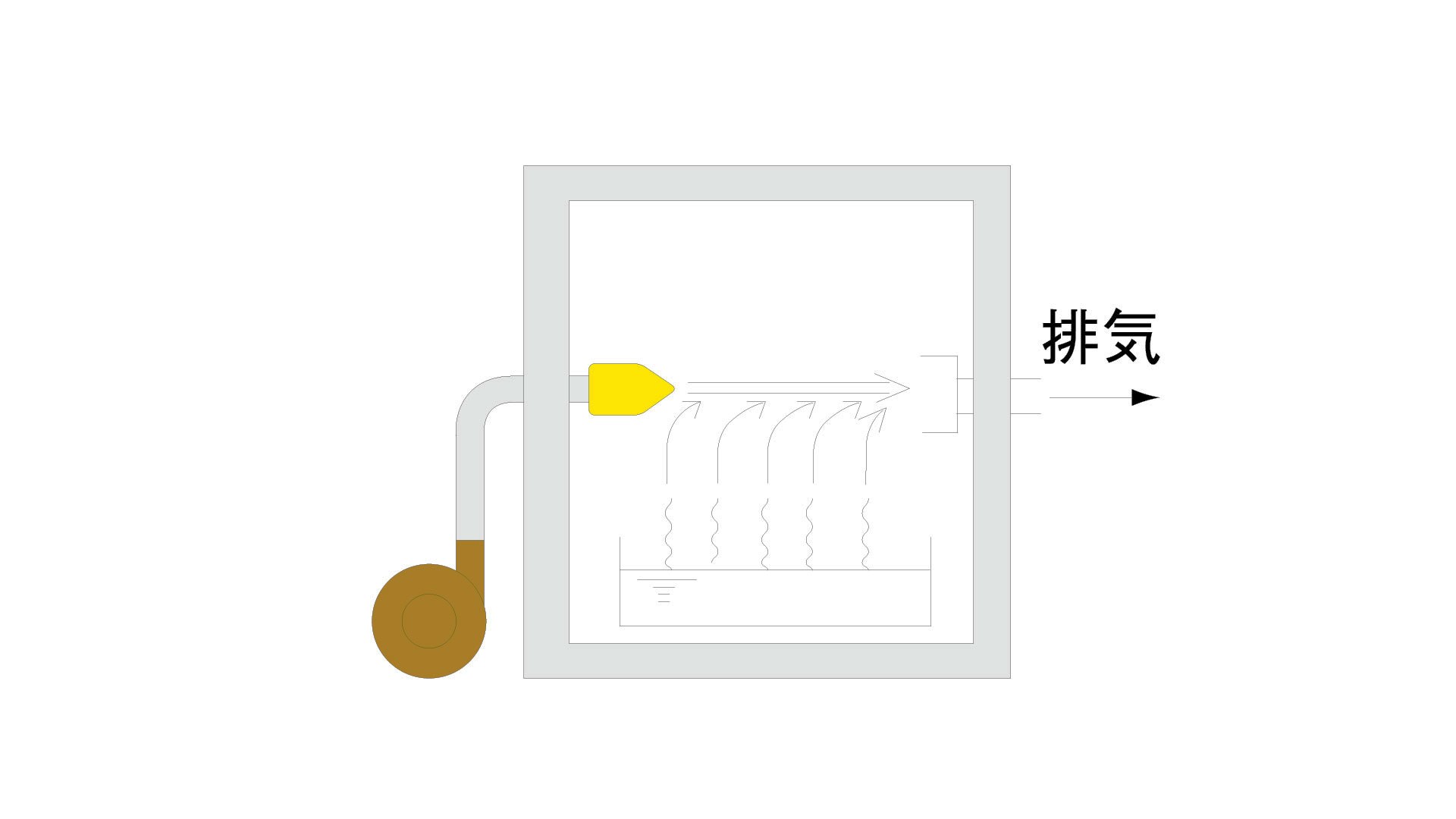

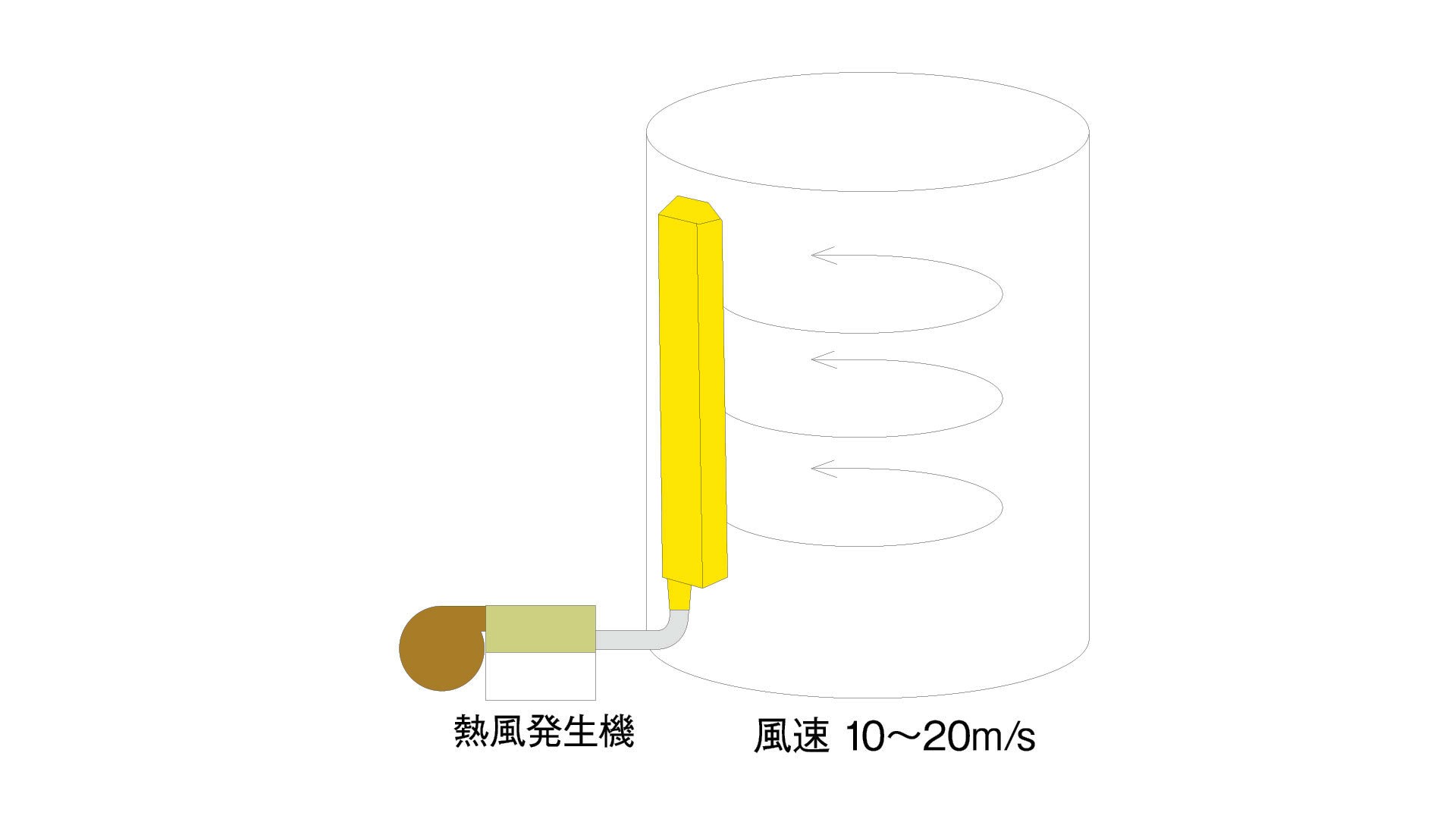

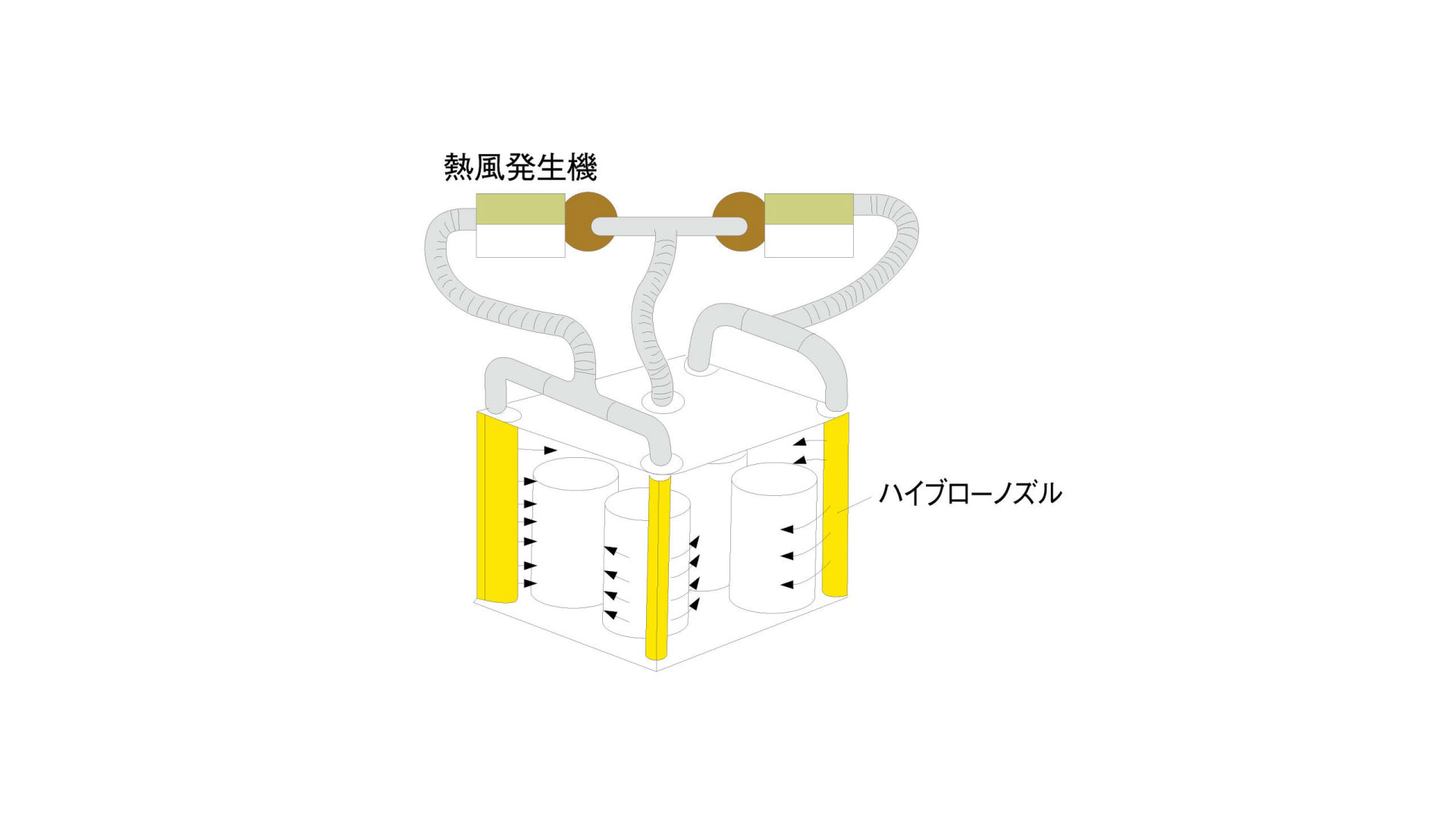

  • Agitation drying inside tanks

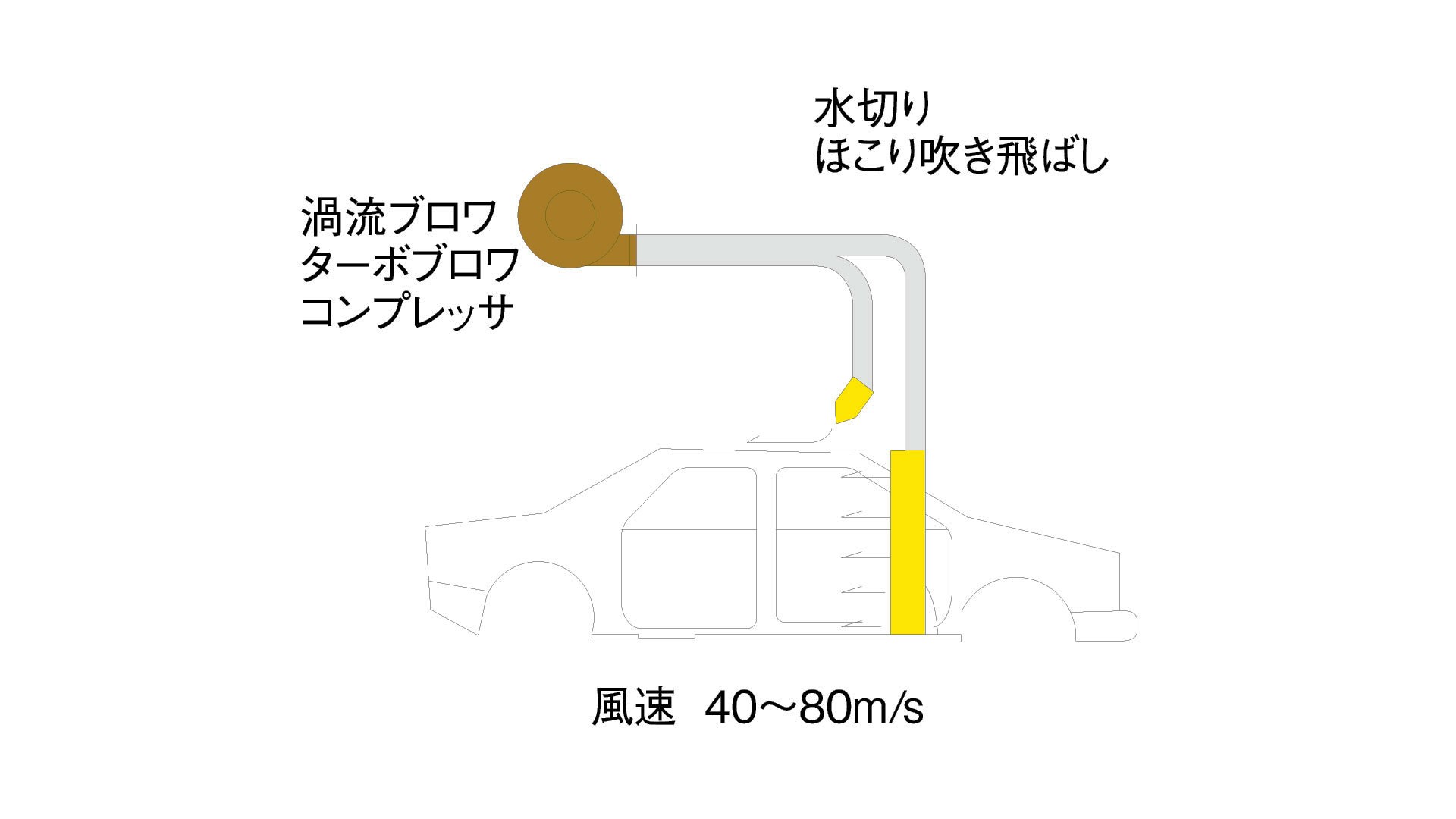

  • Automotive air blow

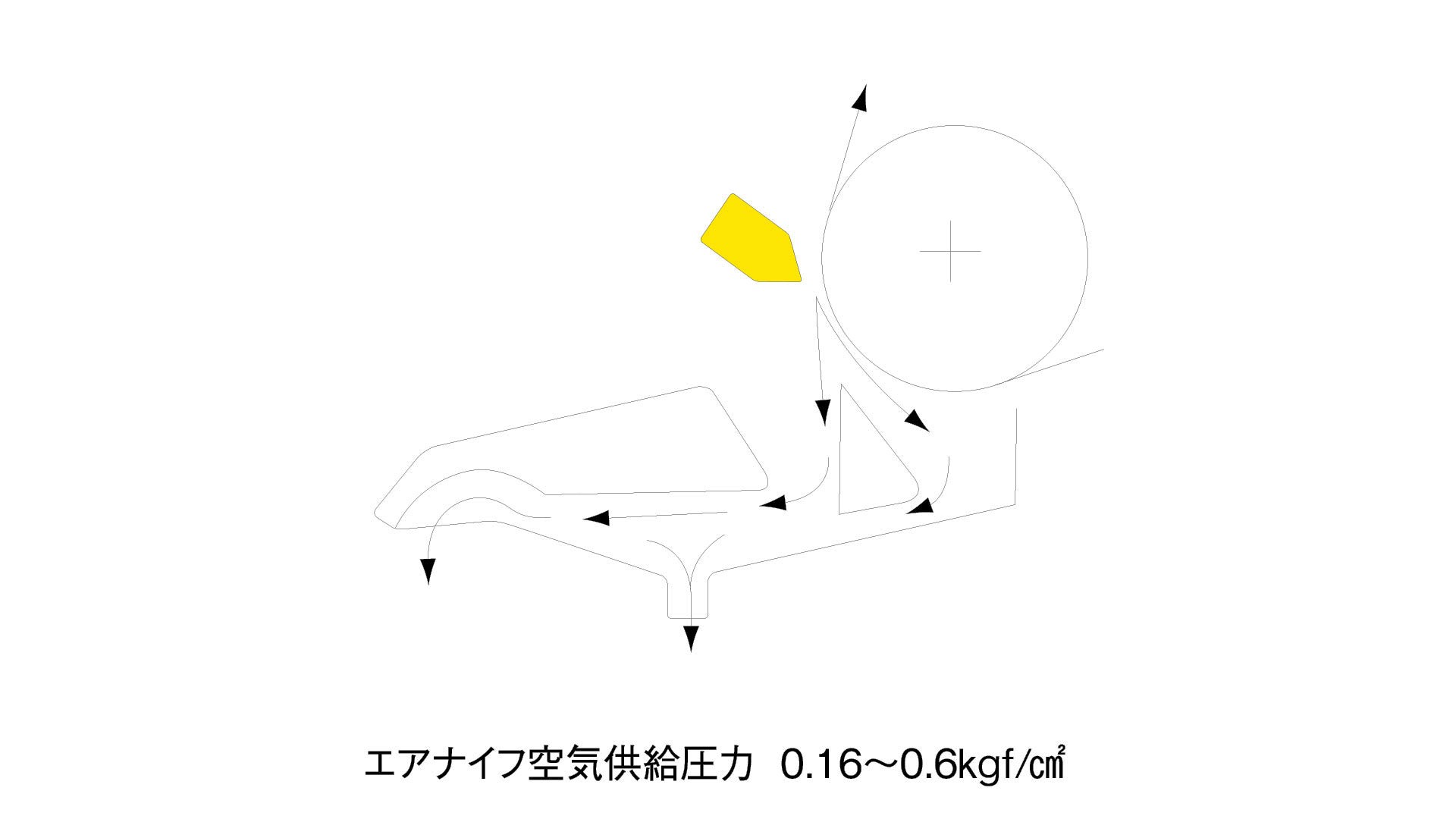

  • Air knife coater

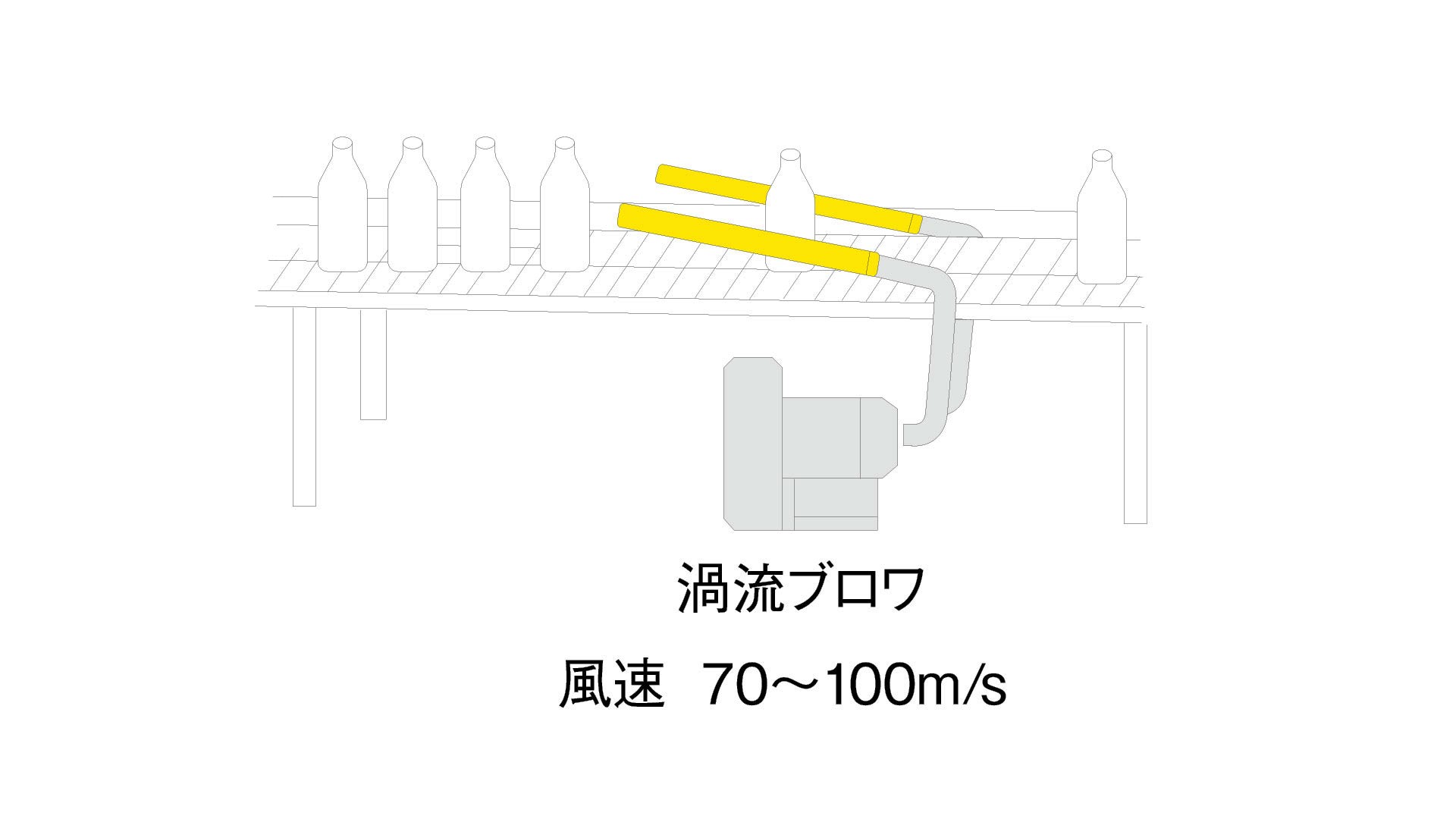

  • Water removal before label application on bottles and cans

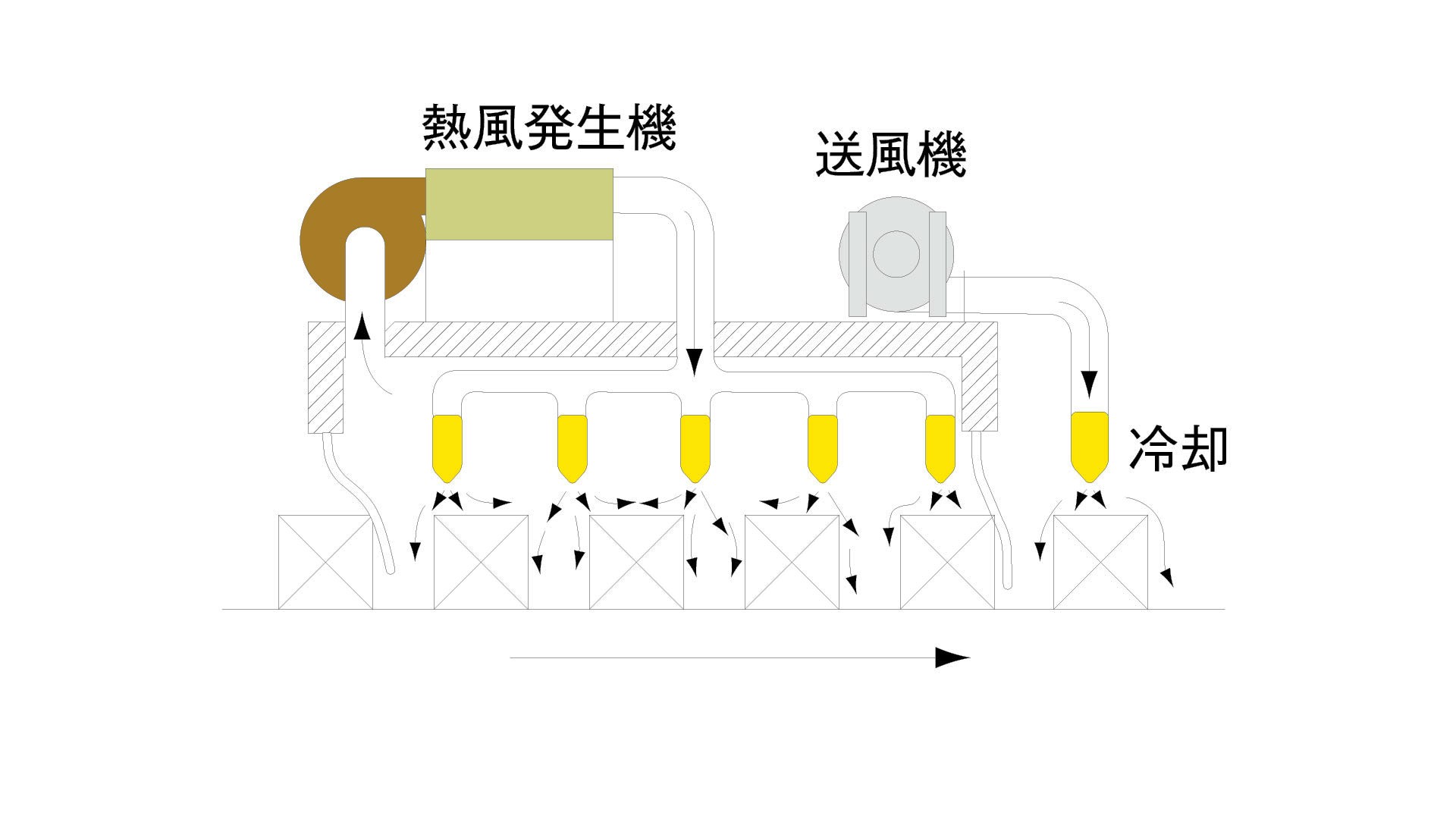

  • Water removal and drying in automated conveyor washing systems (5-nozzle configuration)
  • Water removal and drying with high static pressure hot air generator integration
  • Cleaning machine
  • Airflow straightening in drying ovens
  • Sheet heating and drying
  • Drying oven
  • Cast iron pipe cooling
  • Water removal and drying of cans and bottles after washing
  • Localized hot-air deburring of plastic containers
  • Wire drying after washing
  • Air blowing into gaps in stacked paper, cardboard, or plywood
  • Rapid drying of printed materials and labels
  • Air curtain
  • Air curtain
  • PCB cleaning
  • Cooling at the exit of conveyor heating furnaces
  • Agitation drying inside tanks
  • Automotive air blow
  • Air knife coater
  • Water removal before label application on bottles and cans
  • Water removal and drying in automated conveyor washing systems (5-nozzle configuration)
  • Water removal and drying with high static pressure hot air generator integration



Our products can also be used for many other applications. Please feel free to contact us for further consultation.


Related Products

High-Blow Nozzle SUS  High-Blow Nozzle Mini  Blow Nozzle  TSK-PN Nozzle  Pen Nozzle  Shrink Nozzle  HN Nozzle


Standard Specifications

Model

15AL
Slit Length 100–600 mm
Adjustable Slit Width 0.5–2.0 mm
Air Supply Port Variations S1 / S2 / U1 / U2 / F1 / F2

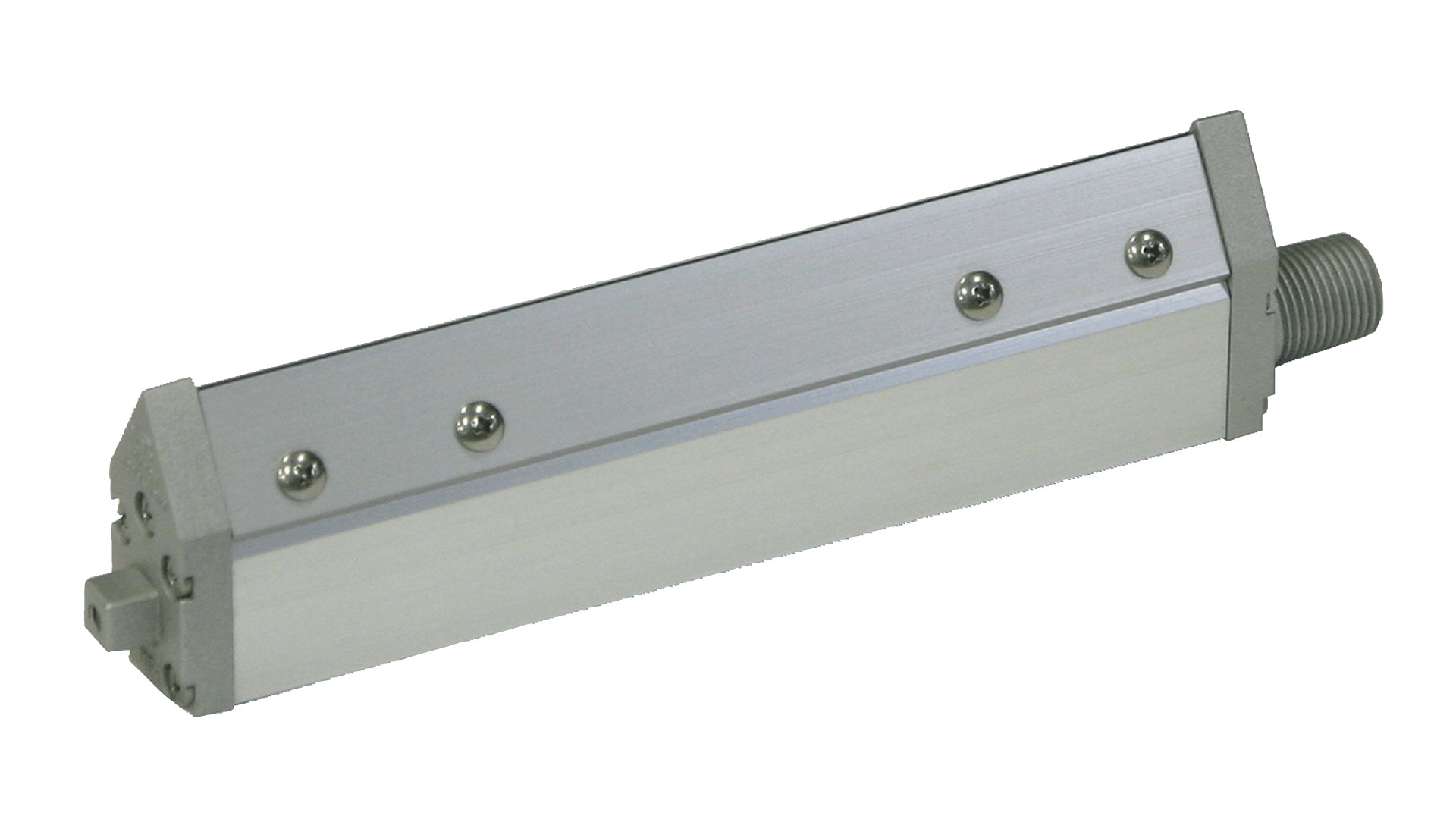

High-Blow Nozzle 15AL
Performance Curve
Outline Drawing
Model

25AL
Slit Length 200–1000 mm
Adjustable Slit Width 0.5–2.0 mm
Air Supply Port Variations S1 / S2 / U1 / U2 / U3 / F1 / F2 / F3
High-Blow Nozzle 25AL
Performance Curve
Outline Drawing
Model

40AL
Slit Length 200–1500 mm
Adjustable Slit Width 1.0–3.0 mm
Air Supply Port Variations S1 / S2 / U1 / U2 / U3 / U4 / F1 / F2 / F3 / F4

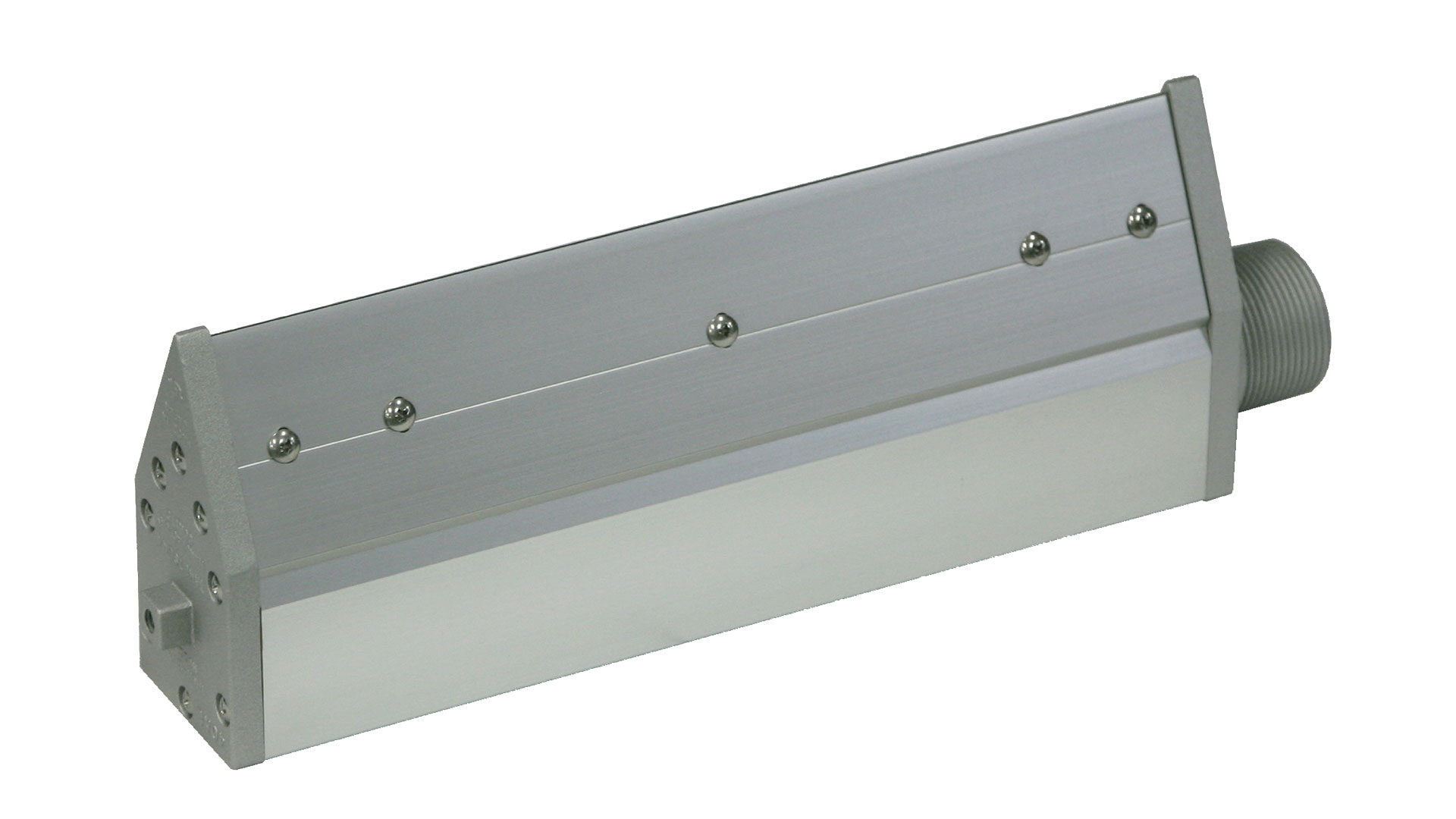

High-Blow Nozzle 40AL
Performance Curve
Outline Drawing
Model

50AL
Slit Length 300–2000 mm
Adjustable Slit Width 1.0–5.0 mm
Air Supply Port Variations S1 / S2 / U1 / U2 / U3 / U4 / F1 / F2 / F3 / F4

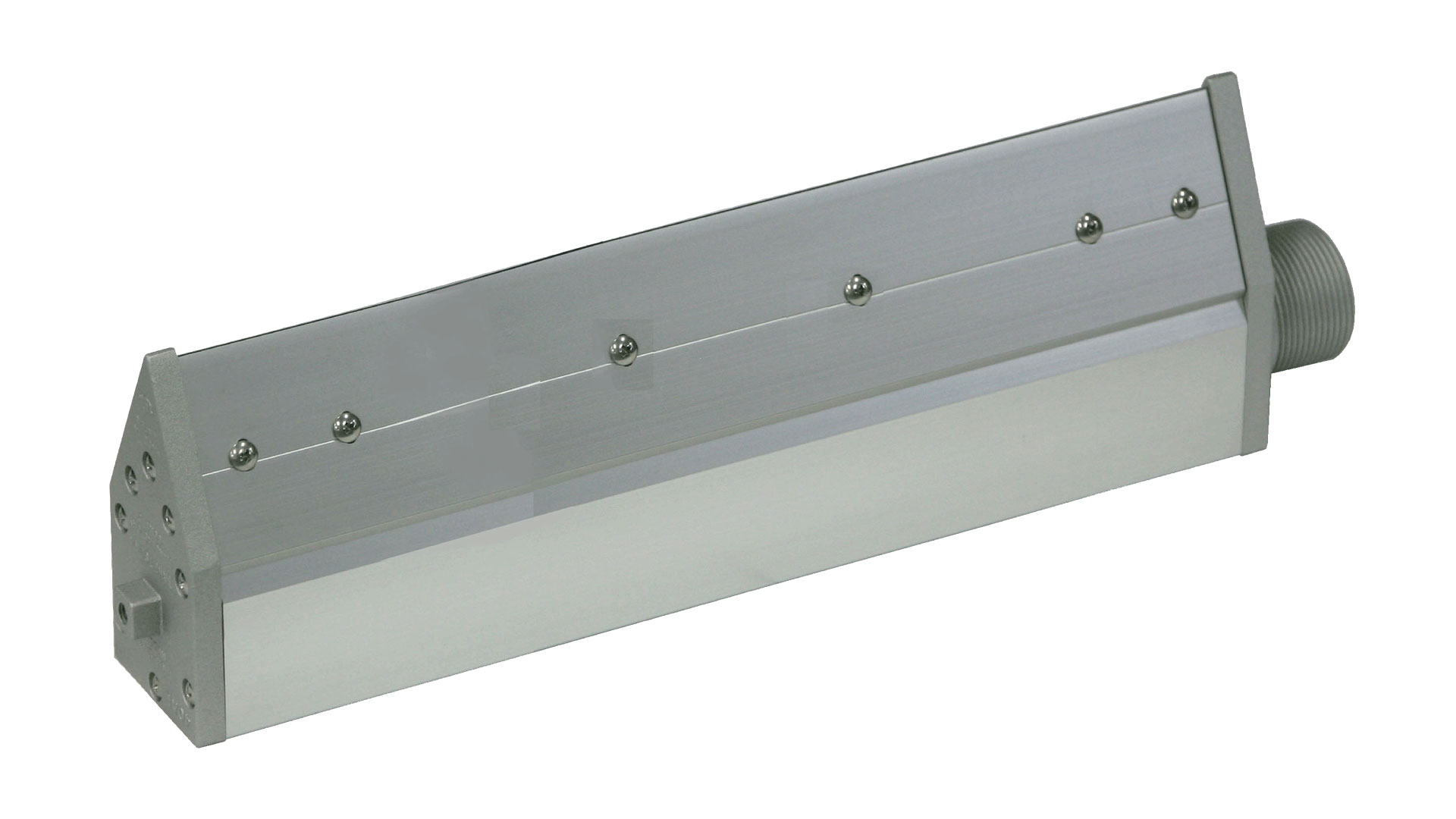

High-Blow Nozzle 50AL
Performance Curve
Outline Drawing
