Heat Exchanger 熱交換器
Heat Exchangers Recovering an Average of 70% of Exhaust Heat
- Recovers exhaust heat from heating, combustion, and drying equipment using electricity, steam, gas, or kerosene as heat sources.
- No power supply required, allowing for simple and easy installation.
- No aluminum materials, which are susceptible to corrosion, are used.
- For models equipped with copper heat exchanger elements,bacteria are eliminated within four hours after shutdown (as reported by the U.S. National Institutes of Health).
排気熱より平均７０％熱回収 熱交換器
◆電気、蒸気、ガス、灯油を熱源とする加熱、燃焼、乾燥設備の排気熱を回収。
◆電源は不要。簡単設置できます。
◆腐食に弱いアルミ材を一切使用しておりません。
◆熱交換器のエレメントが銅仕様のものは、銅についた菌が運転停止時4時間後には死滅します（米国立衛生研究所発表）。
Heat Exchanger Overview 熱交換器概要
- Maximum continuous operating temperature:
200 °C (SUS element specification) - Maximum continuous operating temperature:
180 °C (copper element specification) - Available in five models according to the required air processing volume
- Average heat recovery efficiency:
70% (copper element specification) → Energy-saving!
保証期間１年
- 連続使用最高温度 ２００℃（エレメントＳＵＳ仕様）
- 連続使用最高温度 １８０℃（エレメント銅仕様）
- 処理風量に応じて各５種類ラインナップ
- 平均熱回収率７０％（エレメント銅仕様）省エネ！

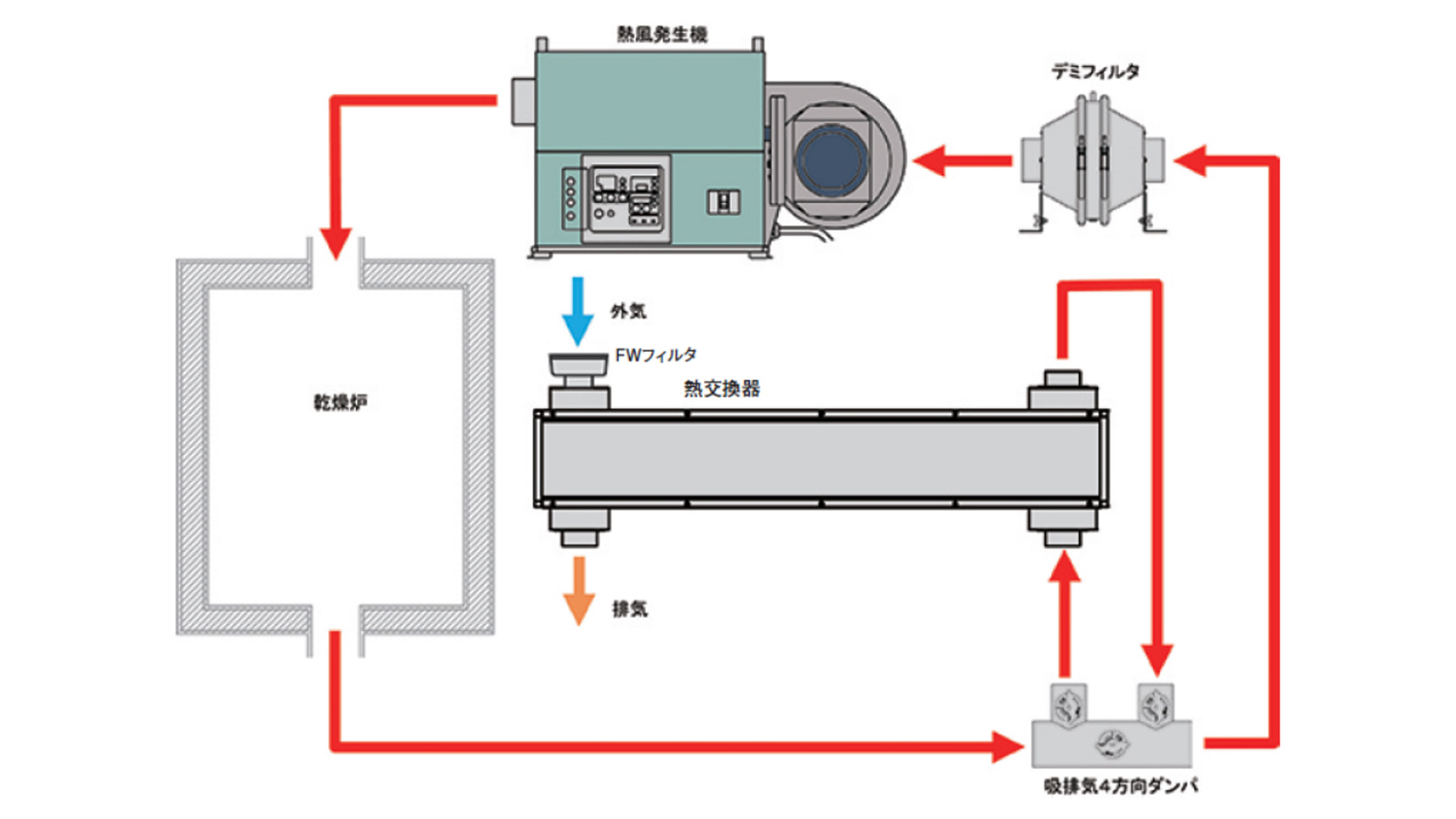

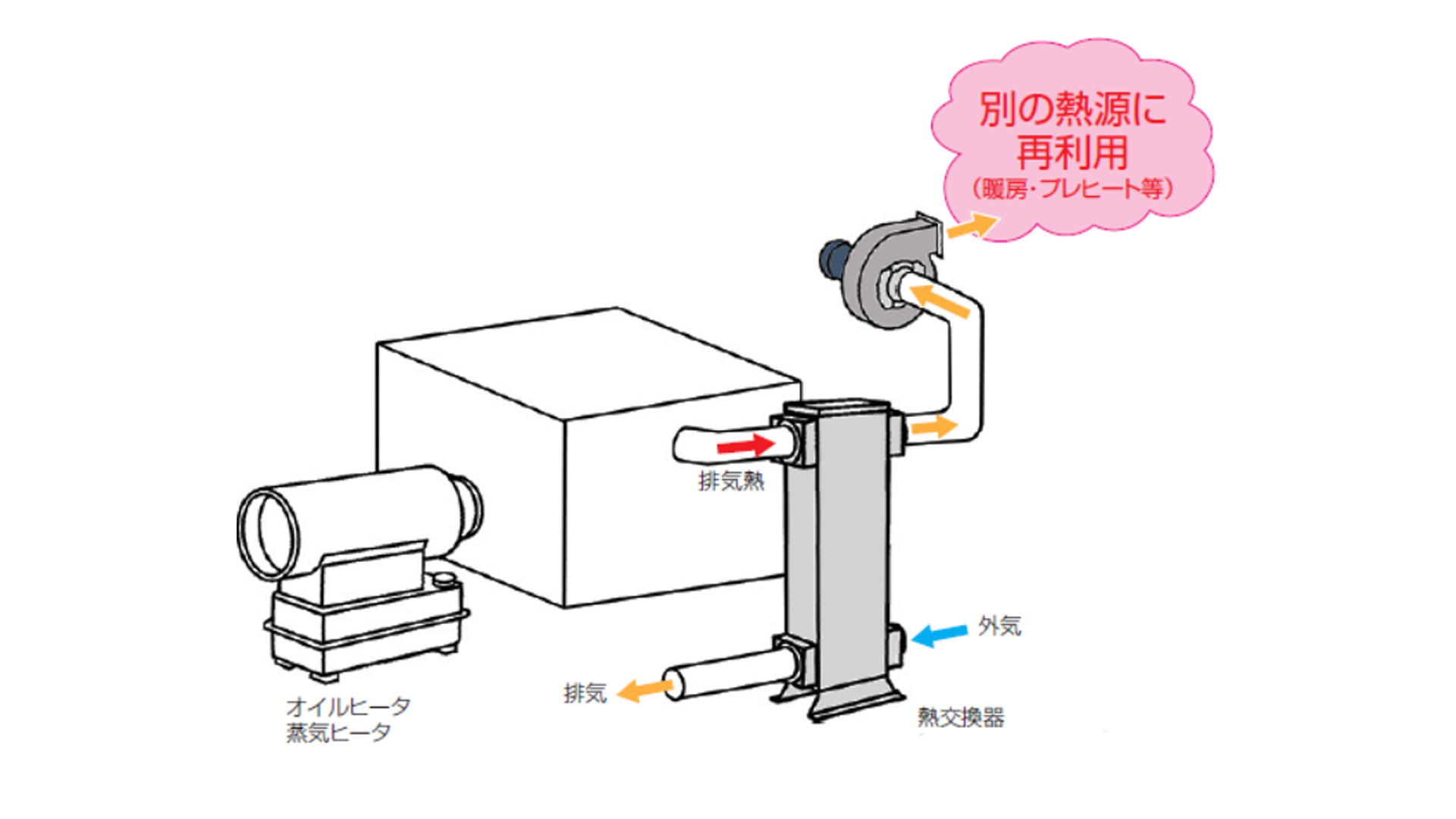

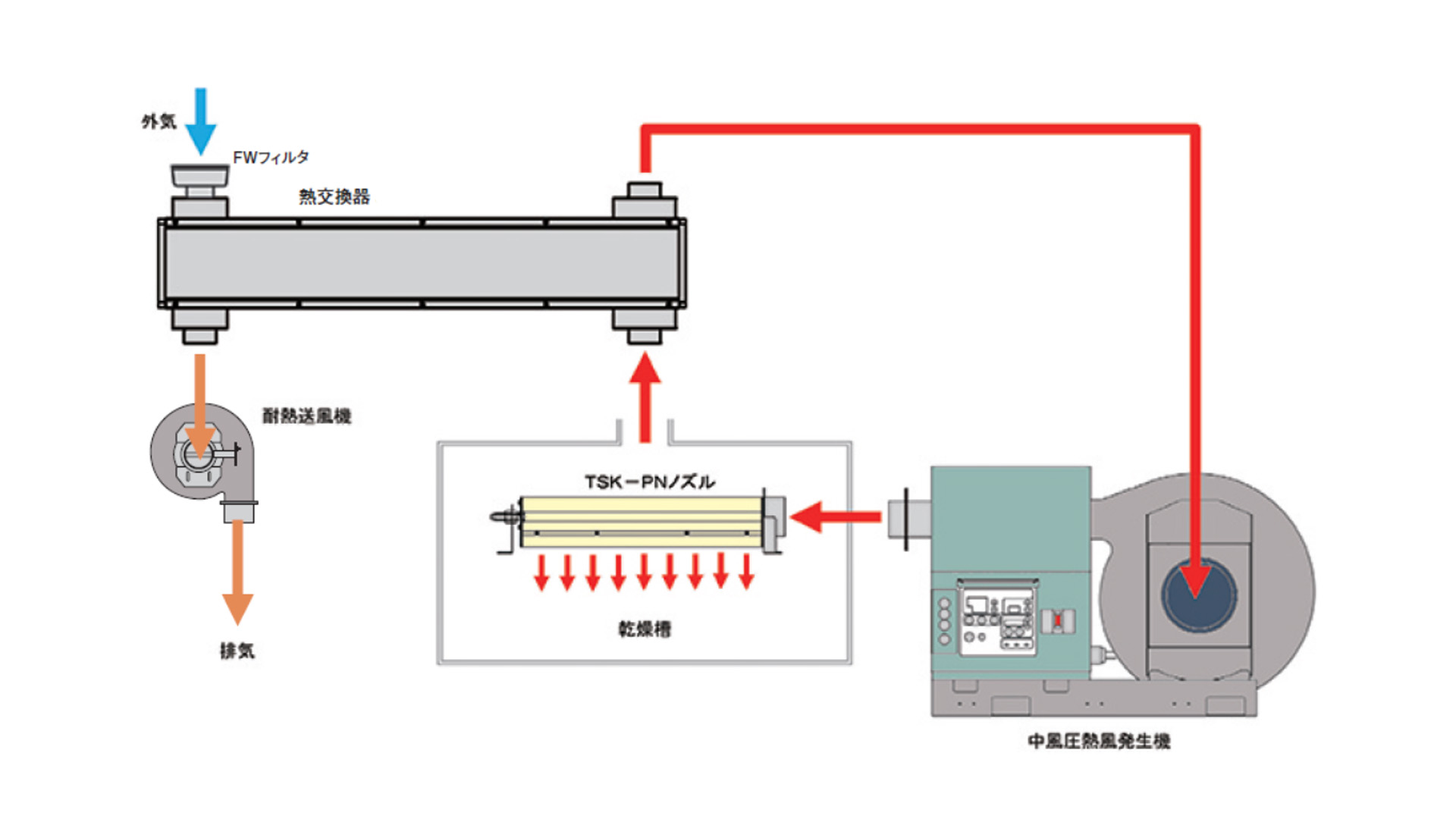

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Standard Specifications List
Note:
Models with suffix NSAC are equipped with copper heat exchanger elements (Max operating temperature: 180 °C).
Models with suffix NSAS are equipped with stainless steel (SUS) elements (Max operating temperature: 200 °C).
注記：
NSAC の接尾辞が付いたモデルには、銅製の熱交換器エレメントが搭載されています（最高動作温度：180 °C）。
NSAS の接尾辞が付いたモデルには、ステンレス鋼（SUS）製のエレメントが搭載されています（最高動作温度：200 °C）。
| Model |
NSAC20-4-75 |
|---|---|
|
Average Heat Recovery Efficiency |
Approx. 70% |
|
Max Operating Temperature |
180 °C |
|
Air Processing Volume |
4 m³/min |
 |
|
| Model |

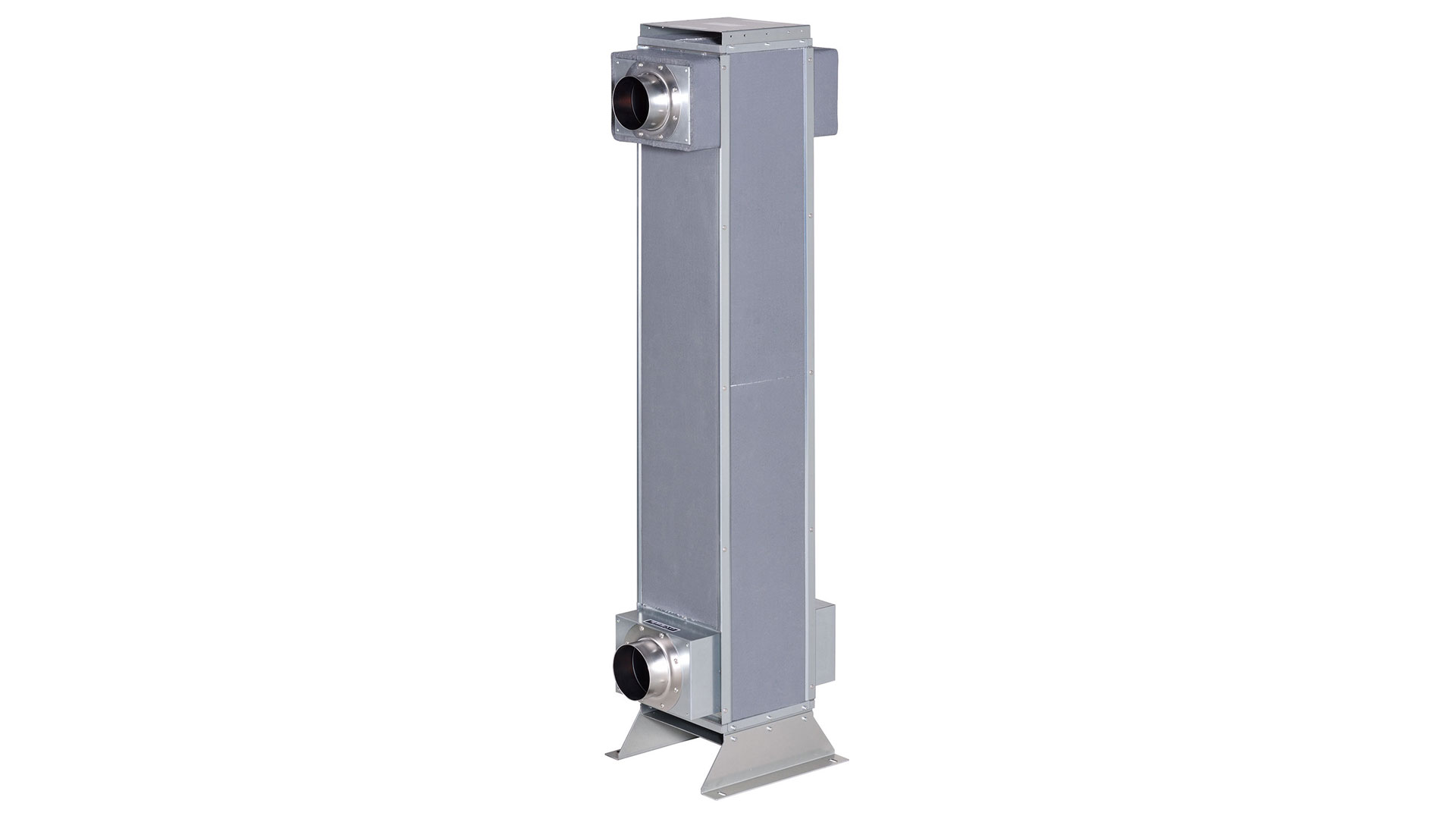

NSAC40-8-100 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 70% |
| Max Operating Temperature | 180 °C |
| Air Processing Volume | 8 m³/min |
 |
|
| Model |
NSAC60-12-125 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 70% |
| Max Operating Temperature | 180 °C |
| Air Processing Volume | 12 m³/min |
 |
|
| Model |

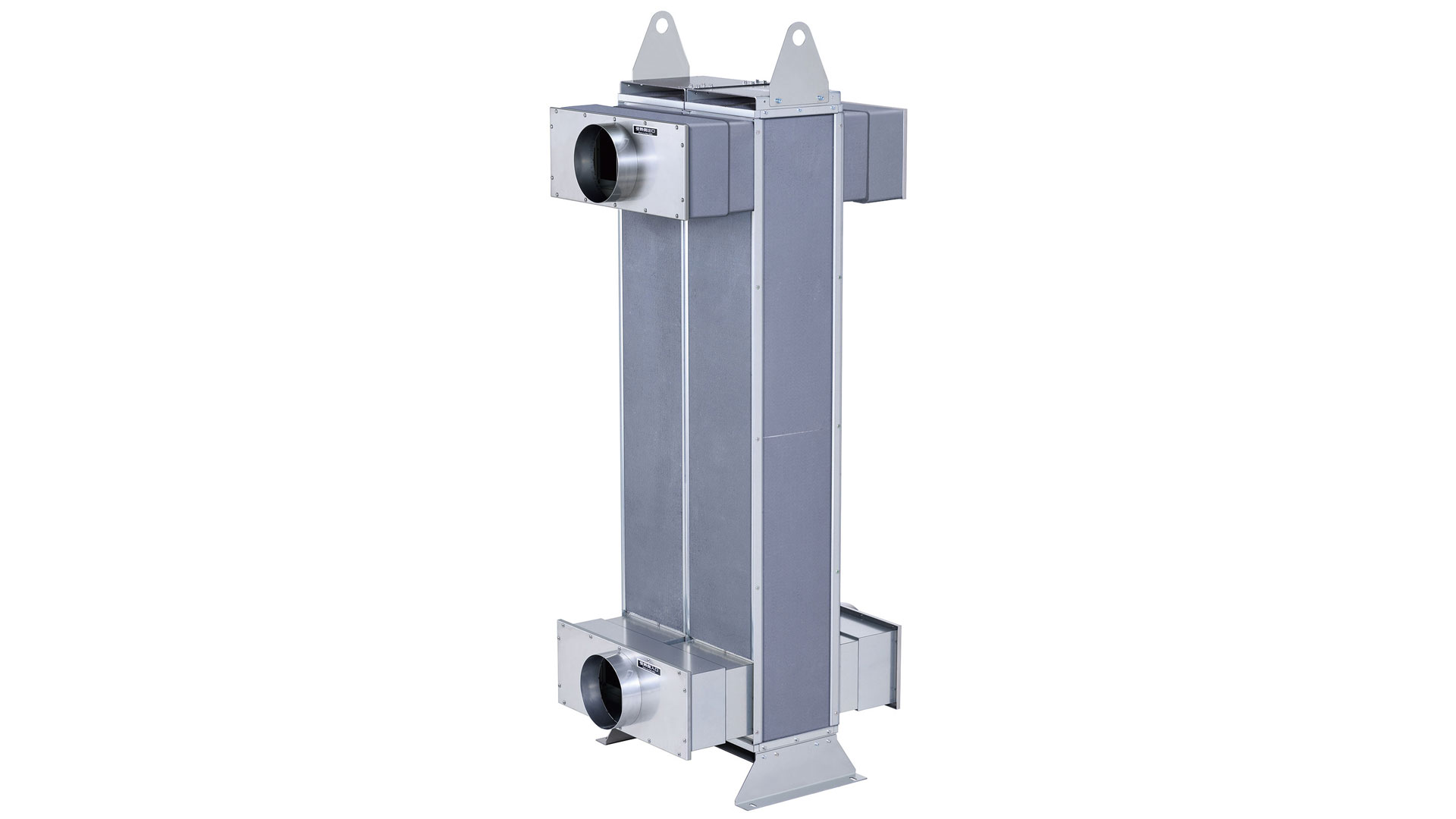

NSAC40W-16-150 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 70% |
| Max Operating Temperature | 180 °C |
| Air Processing Volume | 16 m³/min |
 |
|
| Model |
NSAC60W-24-200 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 70% |
| Max Operating Temperature | 180 °C |
| Air Processing Volume | 24 m³/min |
 |
|
| Model |
NSAS20-4-75 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 60% |
| Max Operating Temperature | 200 °C |
| Air Processing Volume | 4 m³/min |
|
|
| Model |
NSAS40-8-100 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 60% |
| Max Operating Temperature | 200 °C |
| Air Processing Volume | 8 m³/min |
|
|
| Model |
NSAS60-12-125 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 60% |
| Max Operating Temperature | 200 °C |
| Air Processing Volume | 12 m³/min |
|
|
| Model |
NSAS40W-16-150 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 60% |
| Max Operating Temperature | 200 °C |
| Air Processing Volume | 16 m³/min |
|
|
| Model |
NSAS60W-24-200 |
|---|---|
| Average Heat Recovery Efficiency | Approx. 60% |
| Max Operating Temperature | 200 °C |
| Air Processing Volume | 24 m³/min |
|
|
| Model |

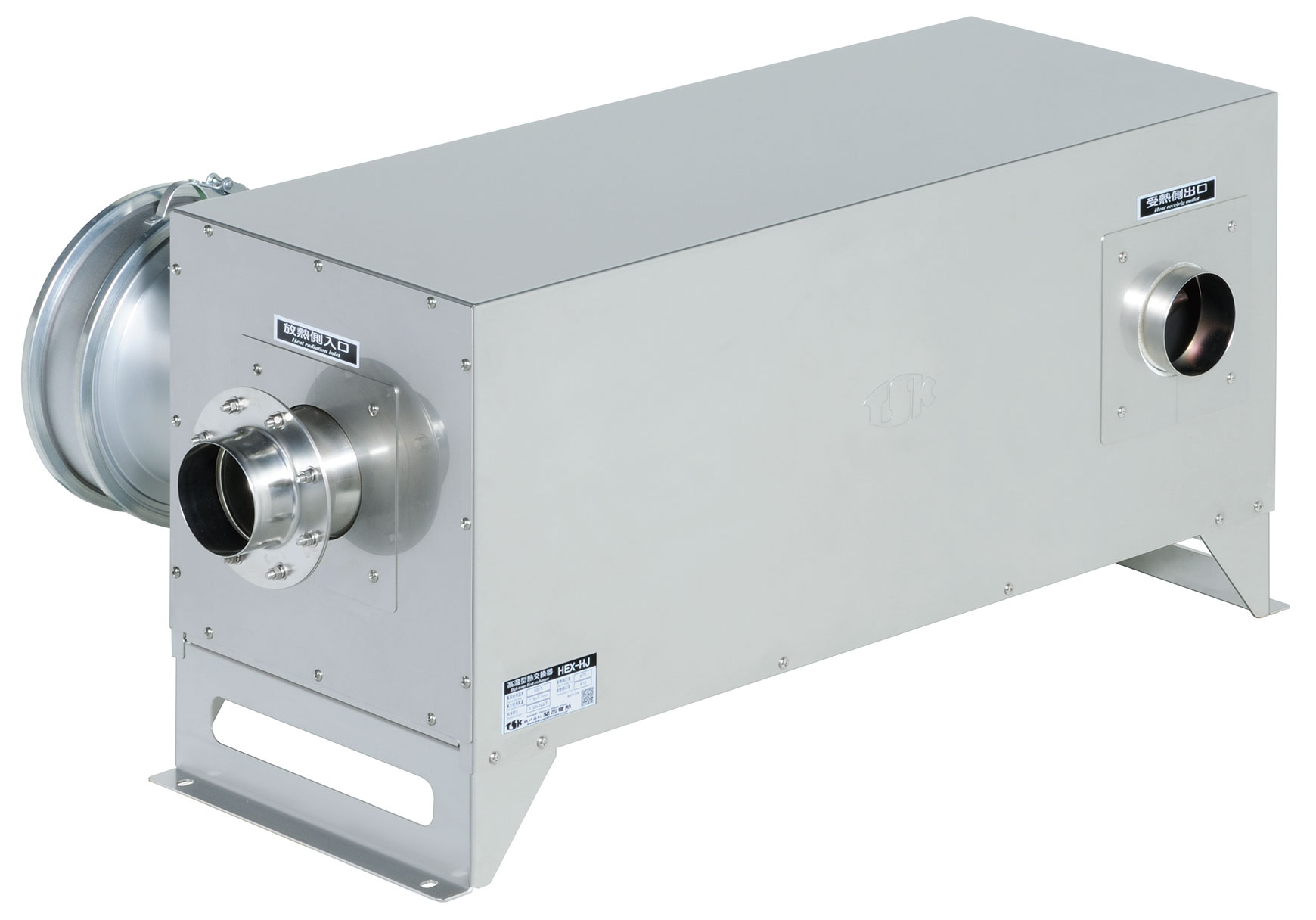

HEX-HJ |
|---|---|
| Average Heat Recovery Efficiency | Approx. 35% |
| Max Operating Temperature | 500 °C |
| Air Processing Volume | 1.5 Nm³/min |
 |
|
