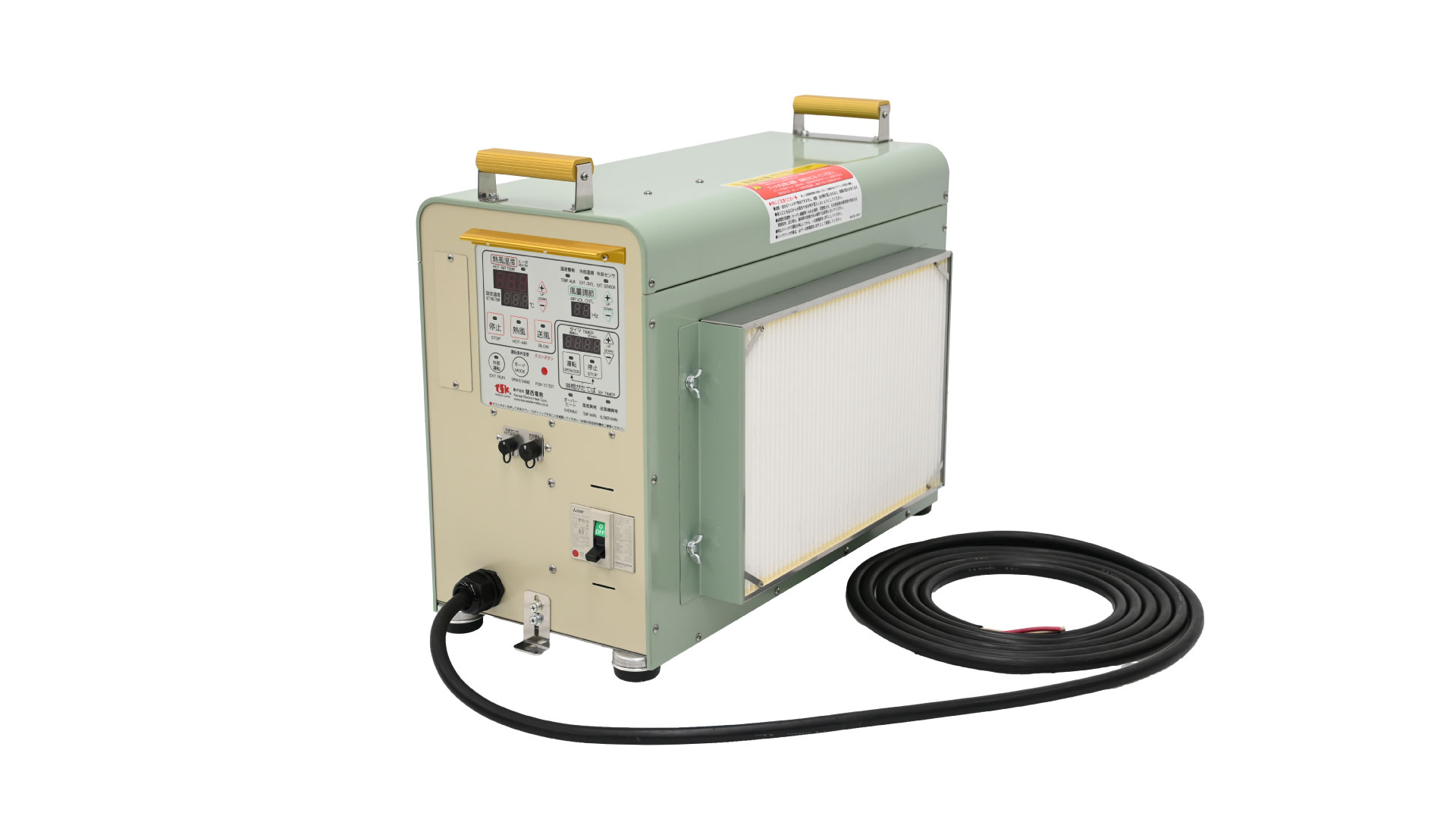

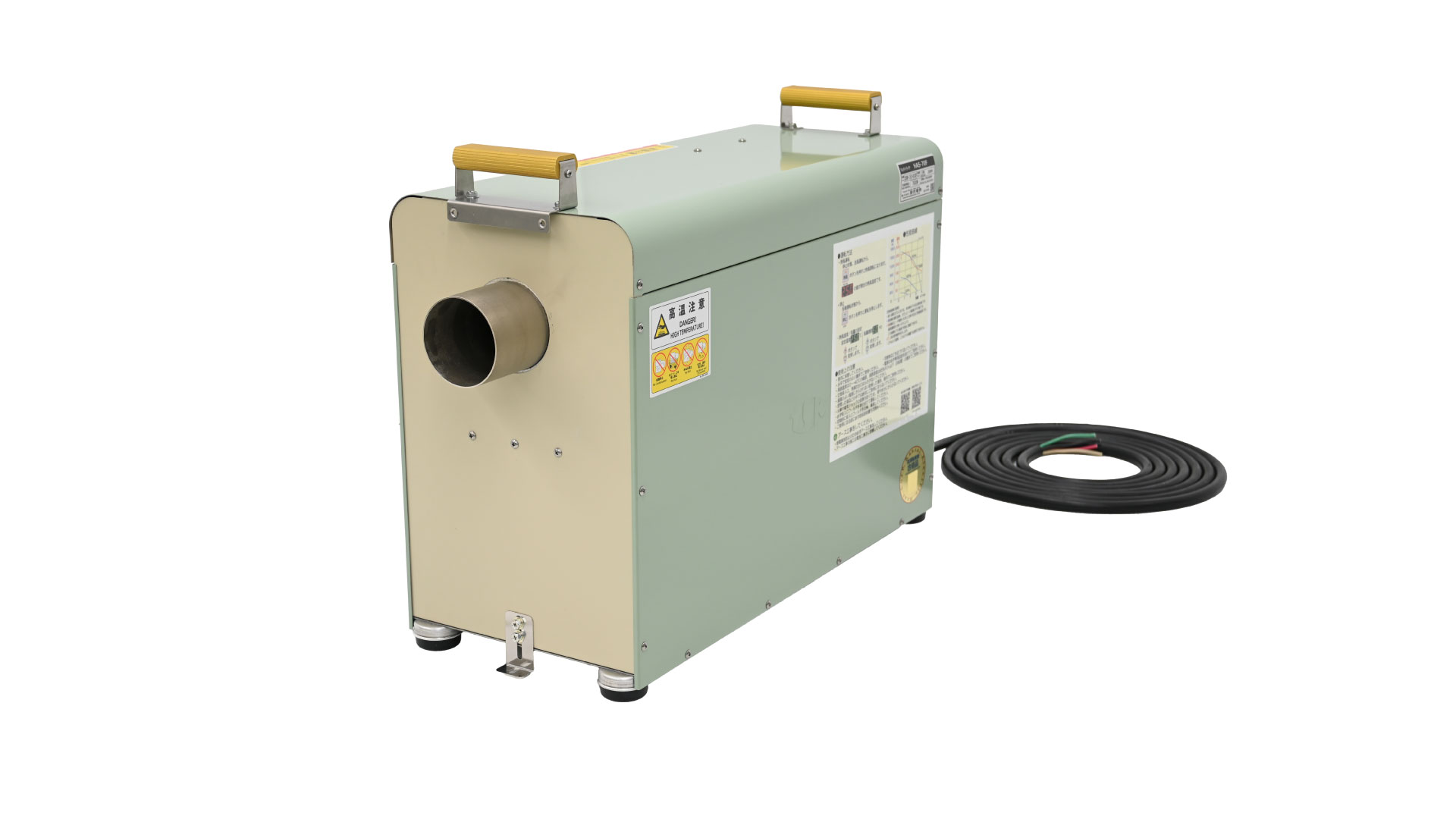

Multi-Dryer
The Definitive Electric Hot Air Dryer for Continuous Operation 365 Days a Year!
◆ Equipped with a newly designed control panel that enhances durability, energy efficiency, performance, reliability, safety, and overall ease of operation.
◆ Available in two types:
- Standard Type
- High-Static-Pressure Type
The high-static-pressure model is equipped with a DC high-pressure blower, providing approx. 9 times higher static pressure than the standard type, independent of power supply frequency.

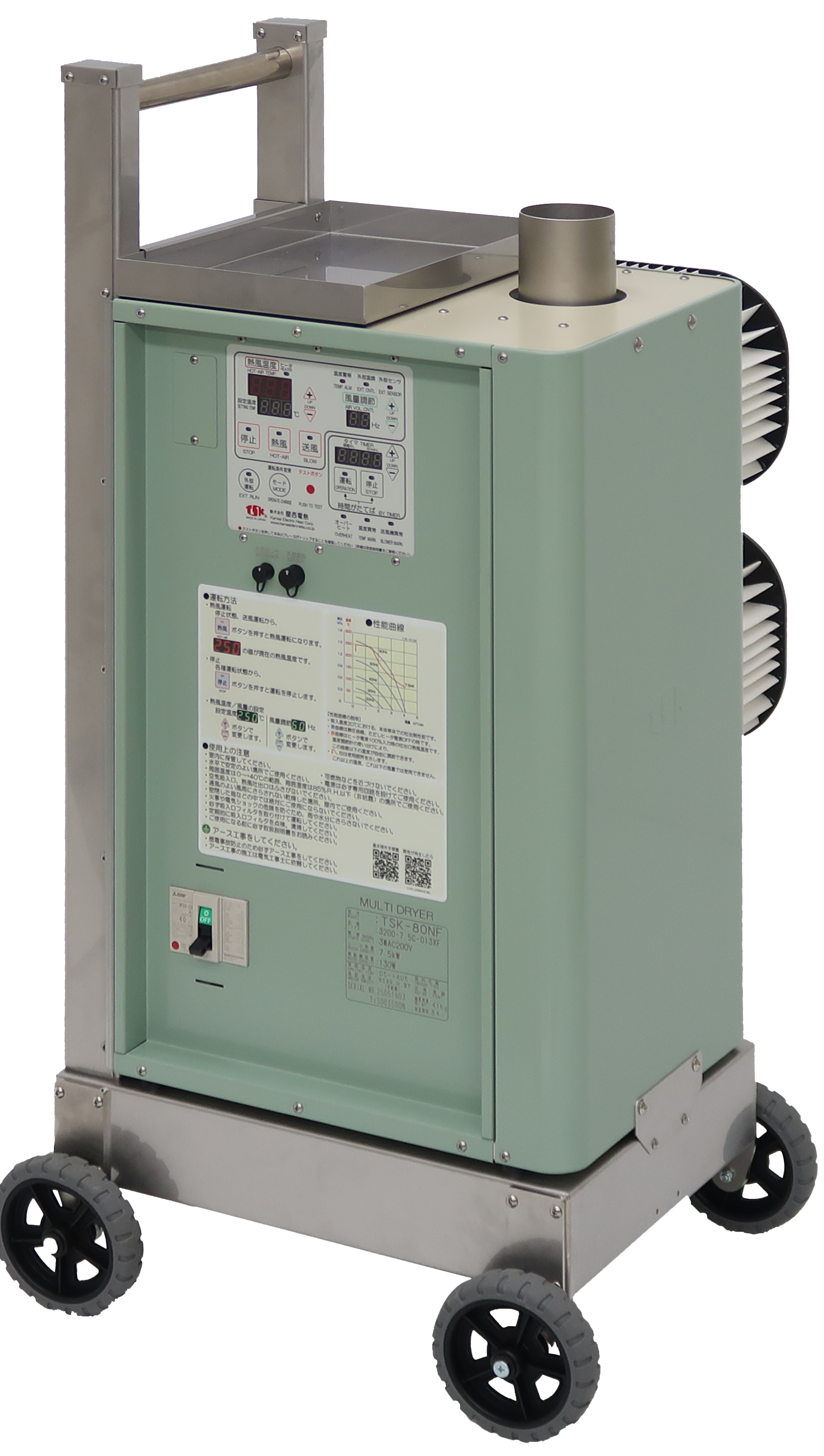

◆ A new vertical-installation-only model (TSK-80NF) has been added to the lineup.
◆ Ready to use simply by connecting the power cable.
365日連続運転 電気式熱風乾燥機の決定版！！
◆耐久性、経済性、高性能、高信頼性、安全性に使いやすさ、新機能をプラスした操作パネルを搭載。
◆標準タイプと高風圧タイプの2タイプをラインナップ
高風圧タイプは直流式の高風圧送風機を搭載することで、電源周波数に関係なく、標準タイプの約9倍の圧力を有します。
◆新たに縦型設置専用マルチドライヤTSK-80NFもラインナップしました。
◆電源ケーブルを接続するだけでご使用できます。
Multi-Dryer Overview
3-Year Warranty
- Maximum continuous operating temperature: 300 °C
- All models are equipped with external run input and alarm output functions as standard.
- Connector-type external temperature sensor function
- All models support interlocking with external devices

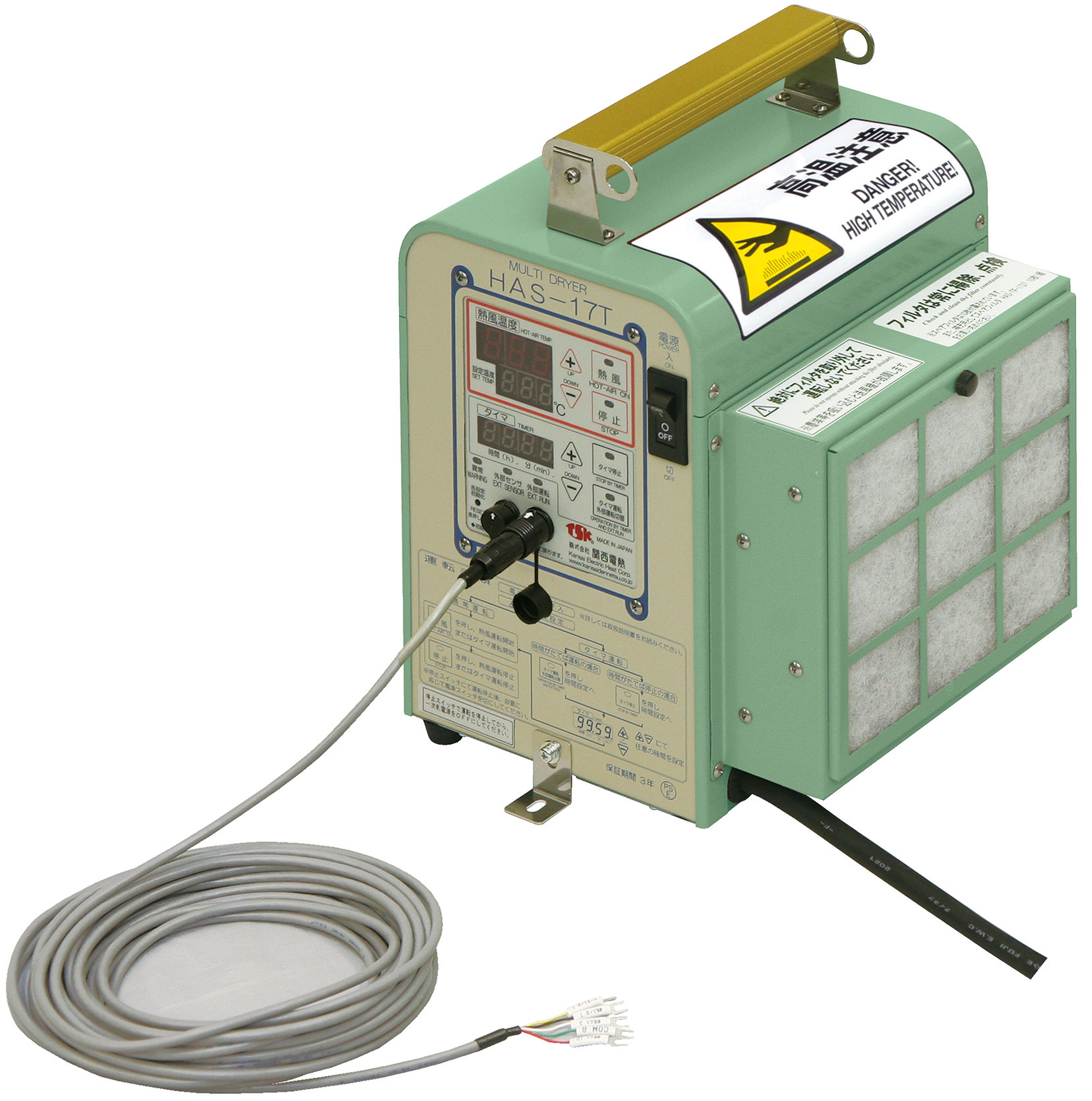

via optional HR30-7P connector - Timer-operation function with remaining-time display
- Heater capacities: 1.4 kW, 2.8 kW, 3.7 kW, 5 kW, 7.5 kW
- Blower motor capacities: 12 W to 130 W
- Equipped with airflow-adjustment damper

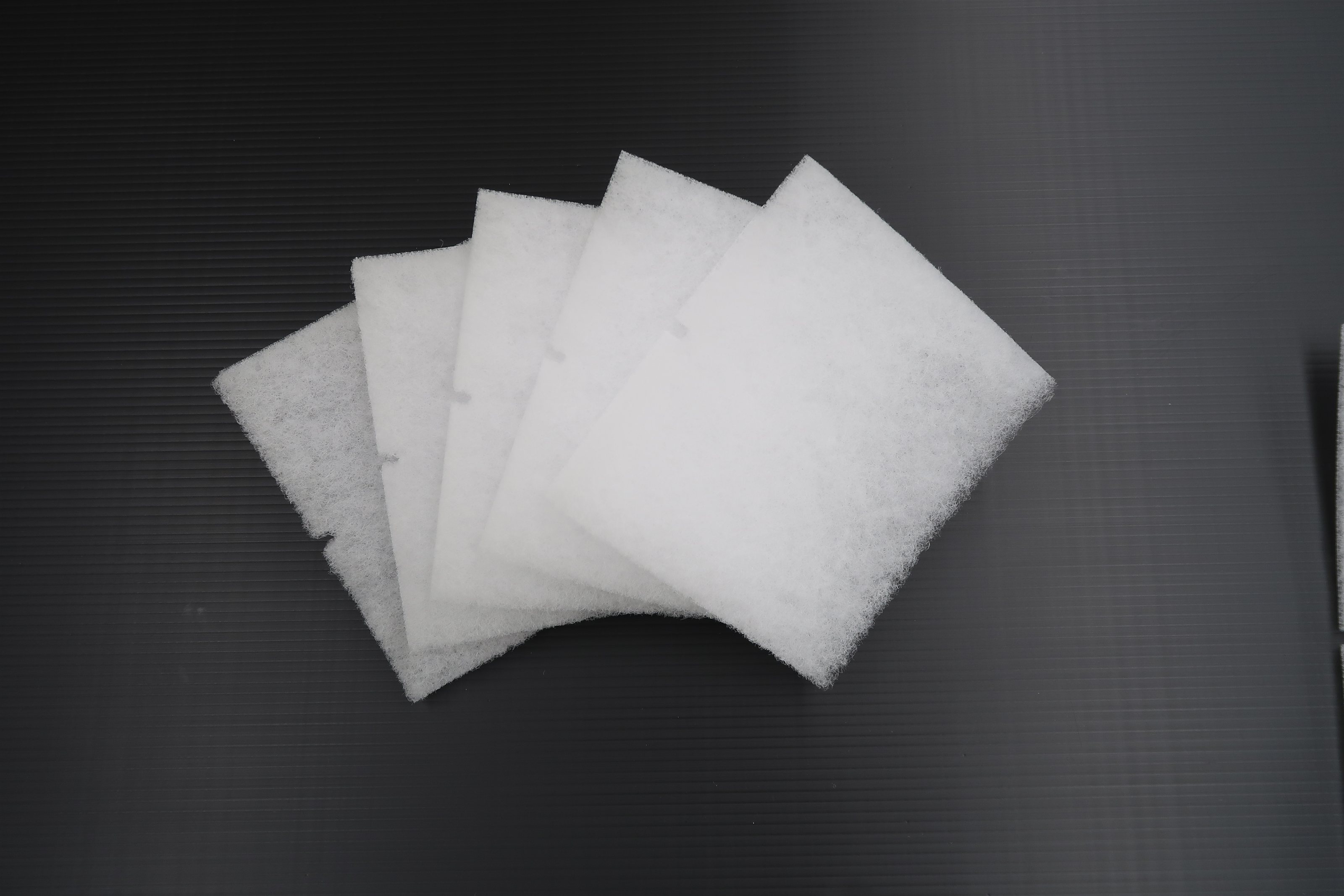

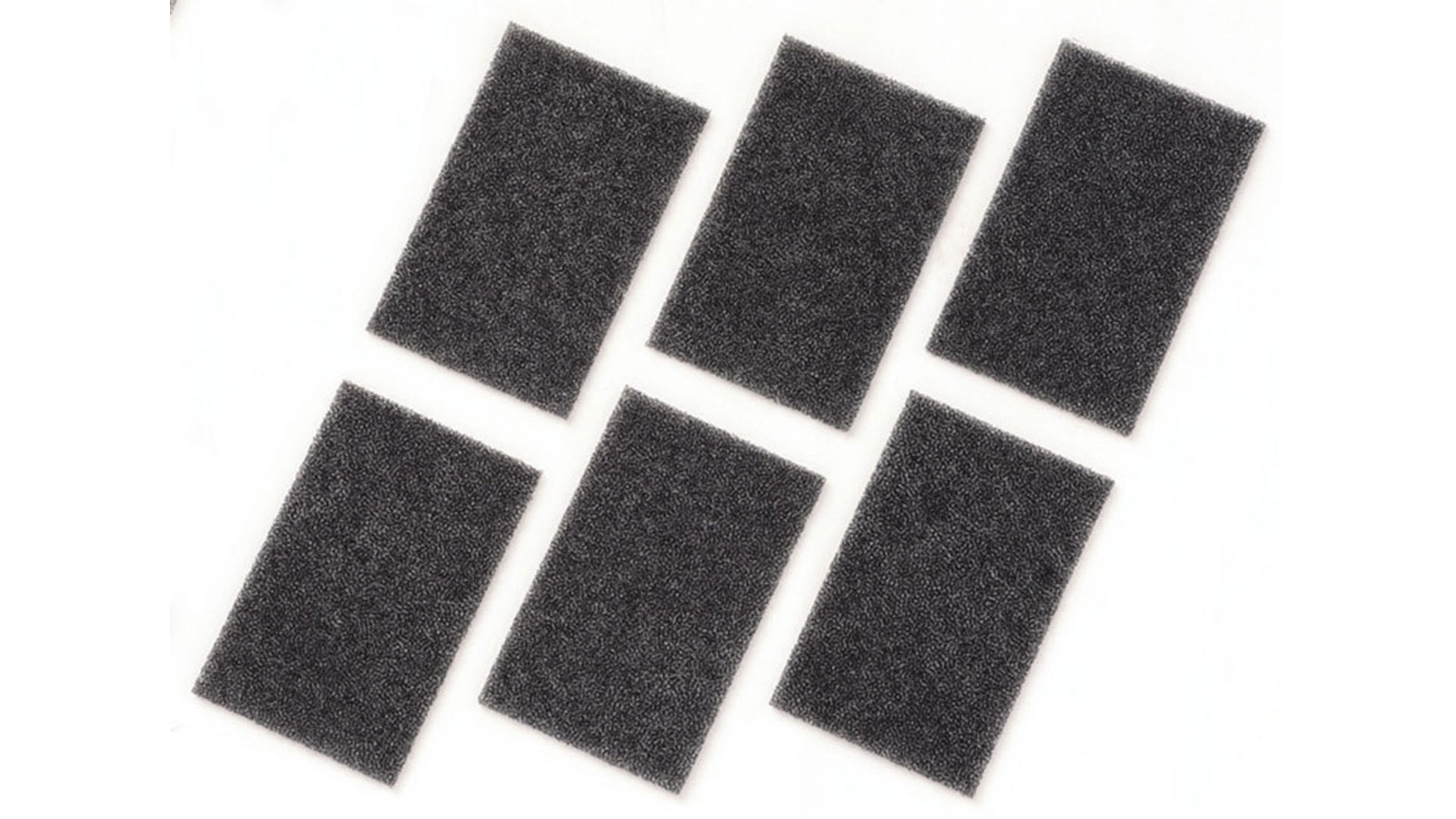

- All models equipped with inlet air filter
- Programmable timer:
(Some models: 250 °C / 200 °C)
(No sensor parameter settings required)
(Some models are equipped with inverter control.)
Settable from 1 minute to 99 hours 59 minutes in 1-minute increments
Important Notes
- Although all models are equipped with filters, oil fumes and oil mist cannot be removed.
- Do not use the unit in locations or environments containing:
- oil fumes
- Class 3 petroleum vapors (mineral oils, aerosols, etc.)
- airborne oil mist
- aromatic hydrocarbon solvents
- other air contaminated with oil-based substances
- If oil-based substances enter the internal components of the hot-air generator,
there is a risk of fire or other serious accidents. - If the installation environment includes any of the above conditions,
please consult us before use (special countermeasure models are available).
保証期間３年
- 連続使用最高温度 ３００℃（一部機種２５０・２００℃）
- 全機種、外部運転機能、異常出力機能を標準装備
- コネクタ装着式外部センサ機能（外部センサの設定不要）
- 全機種 オプションHR30-7Pにて外部機器との連動可能
- タイマ運転時間表示式タイマ運転機能
- ヒータ容量1.4kW・2.8kW・3.7kW・5kW・7.5kW
- 送風機電動機容量12W～130W
- 風量調節用ダンパ搭載（一部インバータ搭載）
- 全機種送風機吸入口フィルタ搭載
- タイマ1分刻みで1分～99時間59分設定可能
【ご注意ください】
- 全機種フィルタを装備しておりますが、油煙・油分は除去できません。
- 設置場所や吸い込みエアに、油煙・第３石油類（鉱物油・アロシン等）などの気体、油分・芳香族炭化水素系溶剤・オイルミストなどが含まれる場合は、ご使用できません。
- 熱風発生機内部に油分類が混入されると、火災などの事故につながる恐れがあります。
- 設置場所が上記に該当する場合、ご使用前に必ず弊社にご相談ください（対策機種があります）。
Standard Specifications List
Note: Model numbers vary depending on the voltage specification.
For single-phase models:
- 100 V: prefix 1100-
- 200 V: prefix 1200-
- 220 V: prefix 1220-
- 230 V: prefix 1230-
For three-phase models (380 V to 480 V):
The prefix varies depending on the specified voltage
(e.g., 3380-, 3400-, 3415-, 3440-, 3480-).
Please specify the required voltage when placing your order.
| Model |

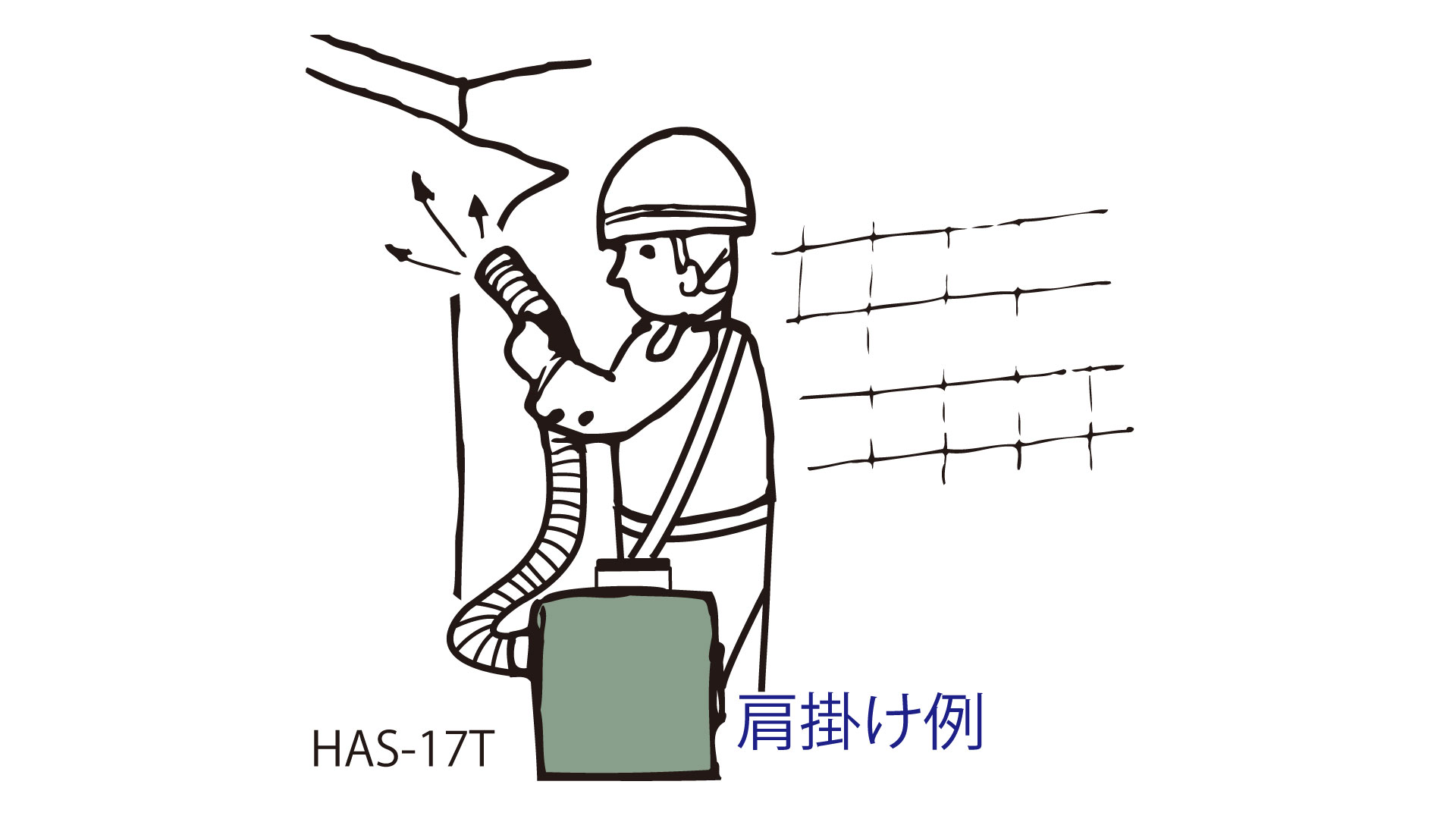

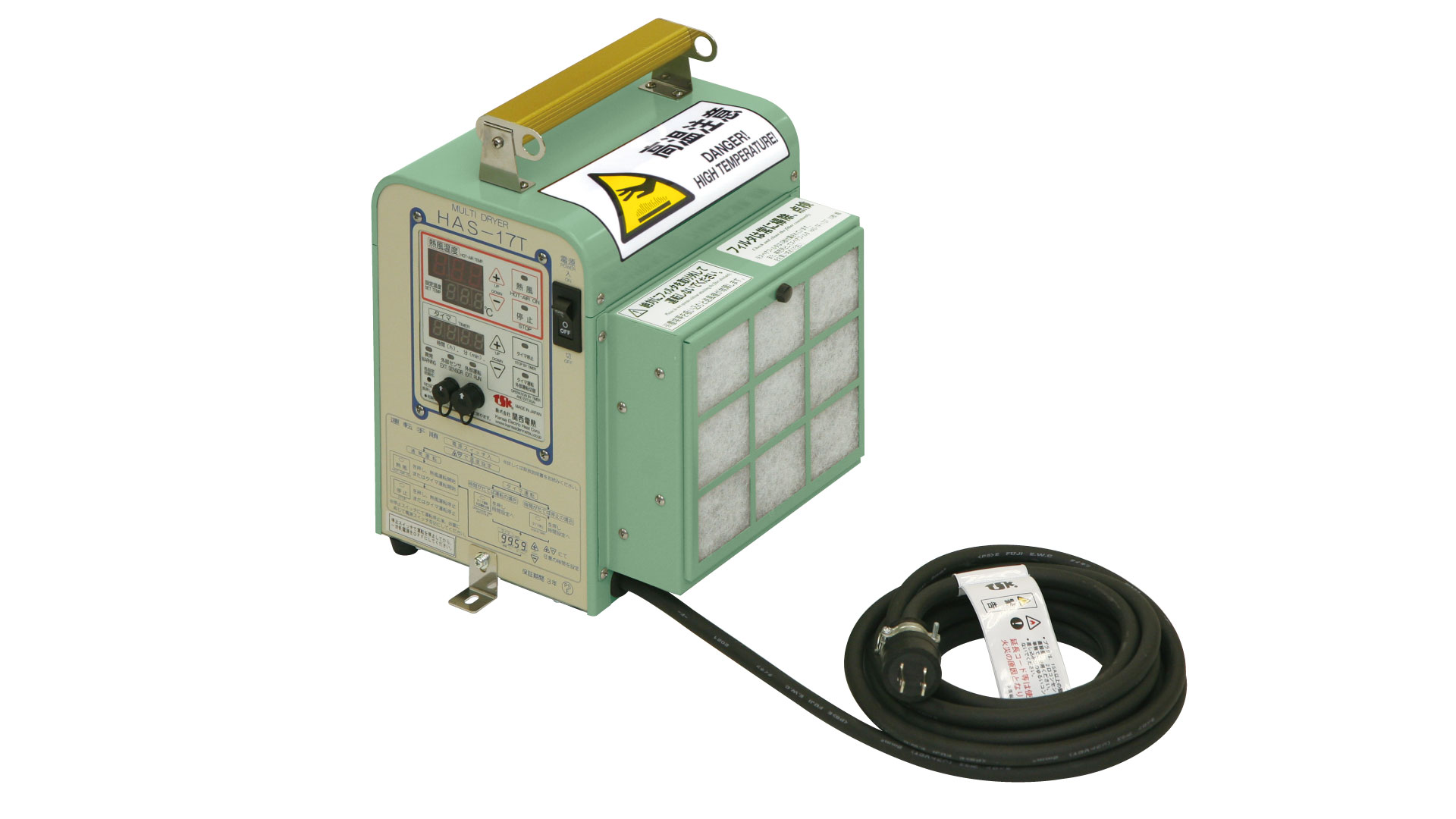

HAS-17T |
|
|---|---|---|
| Model Nos. | 1100-1.4C-007X | 1200-1.7C-007X |
| Power Supply | Single-phase 100 V, 50/60 Hz | Single-phase 200 V, 50/60 Hz |
| Heater Capacity | 1.4 kW | 1.7 kW |
| Max Hot Air Temp. | 200 °C | 200 °C |
| Max Inlet Air Temp. | 40 °C | 40 °C |
| Max Air Volume | 1.3 m³/min | 1.3 m³/min |
| Max Static Pressure | 1800 Pa | 1800 Pa |
 |
|
|
| Model |

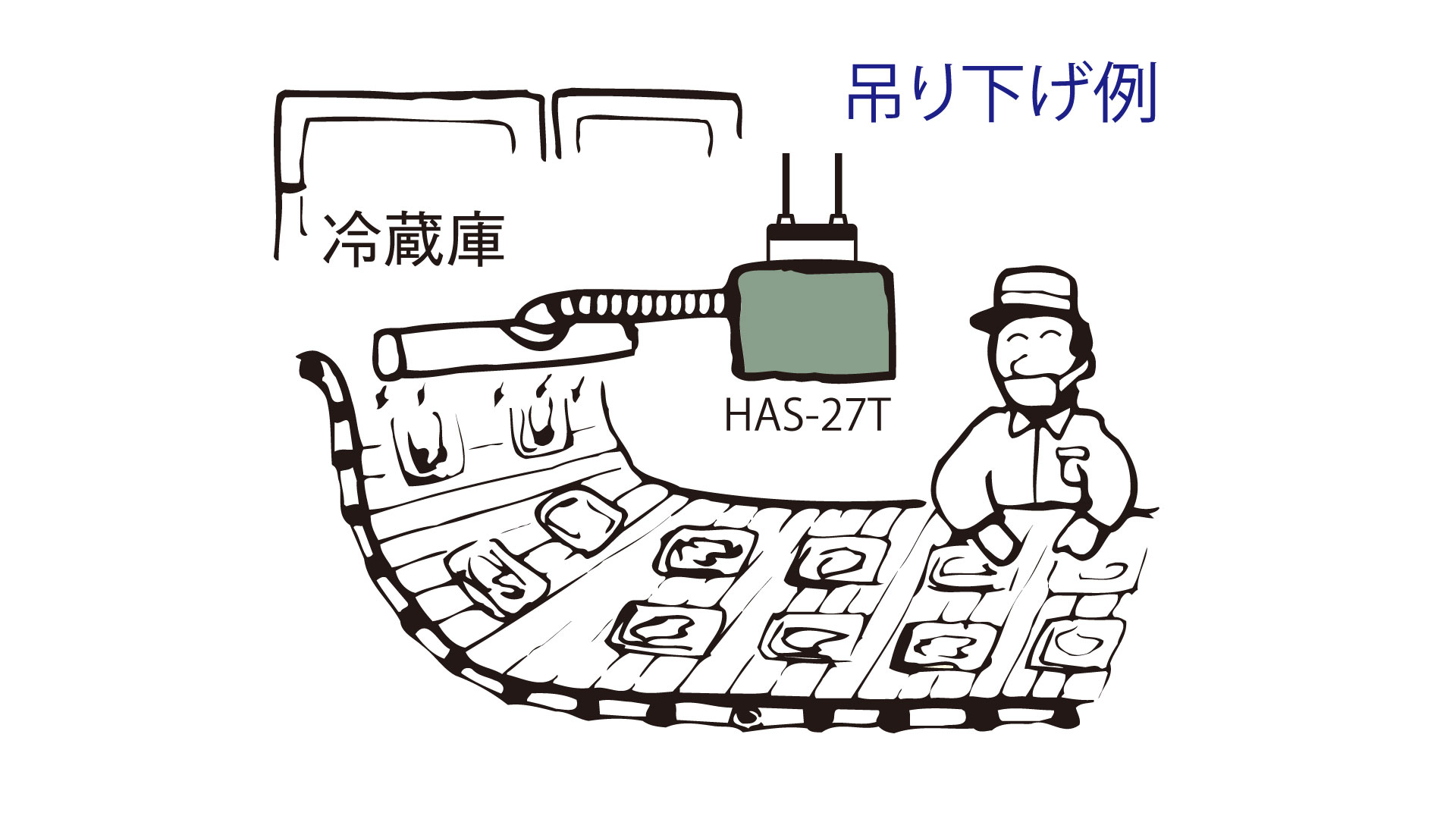

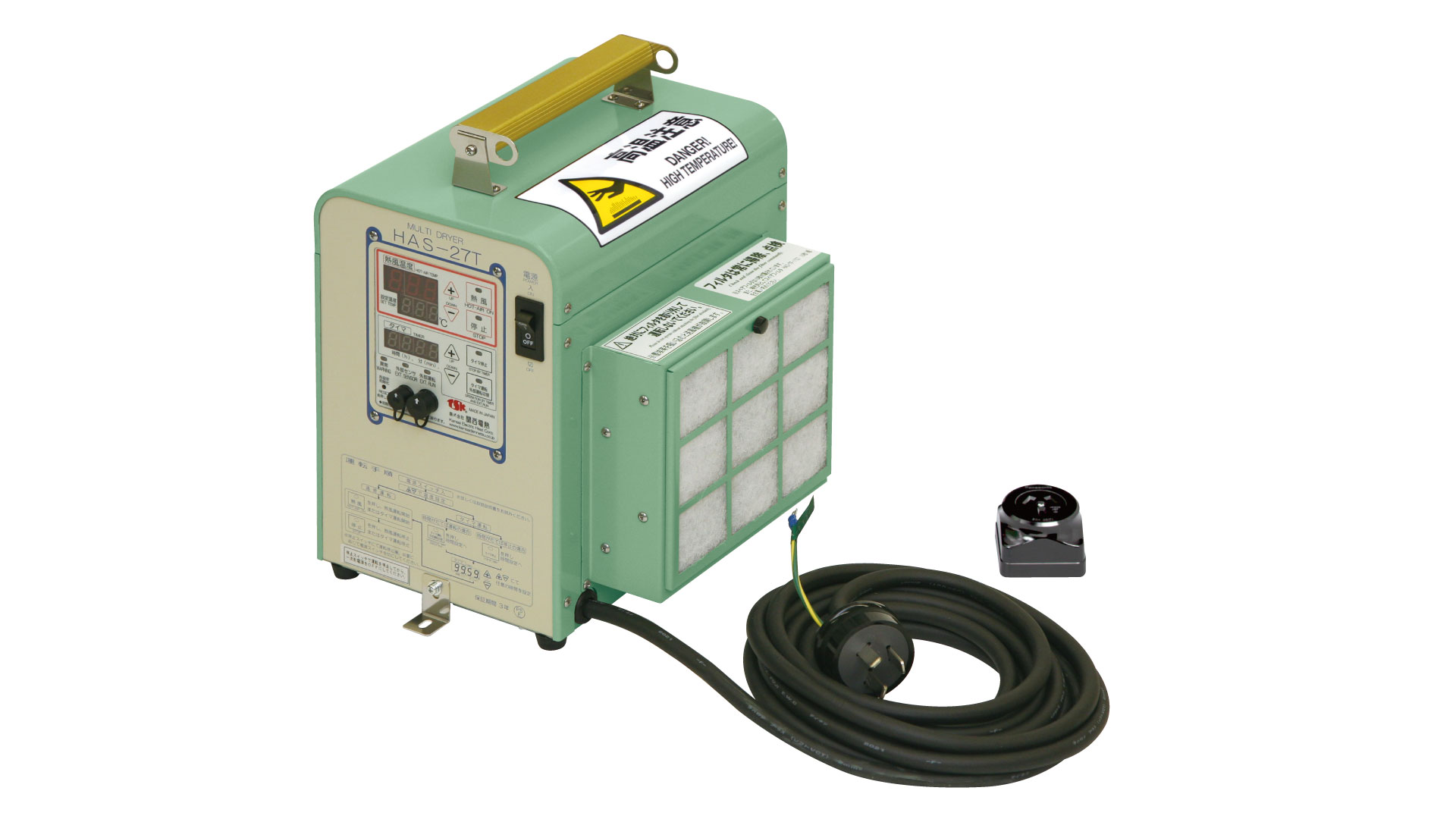

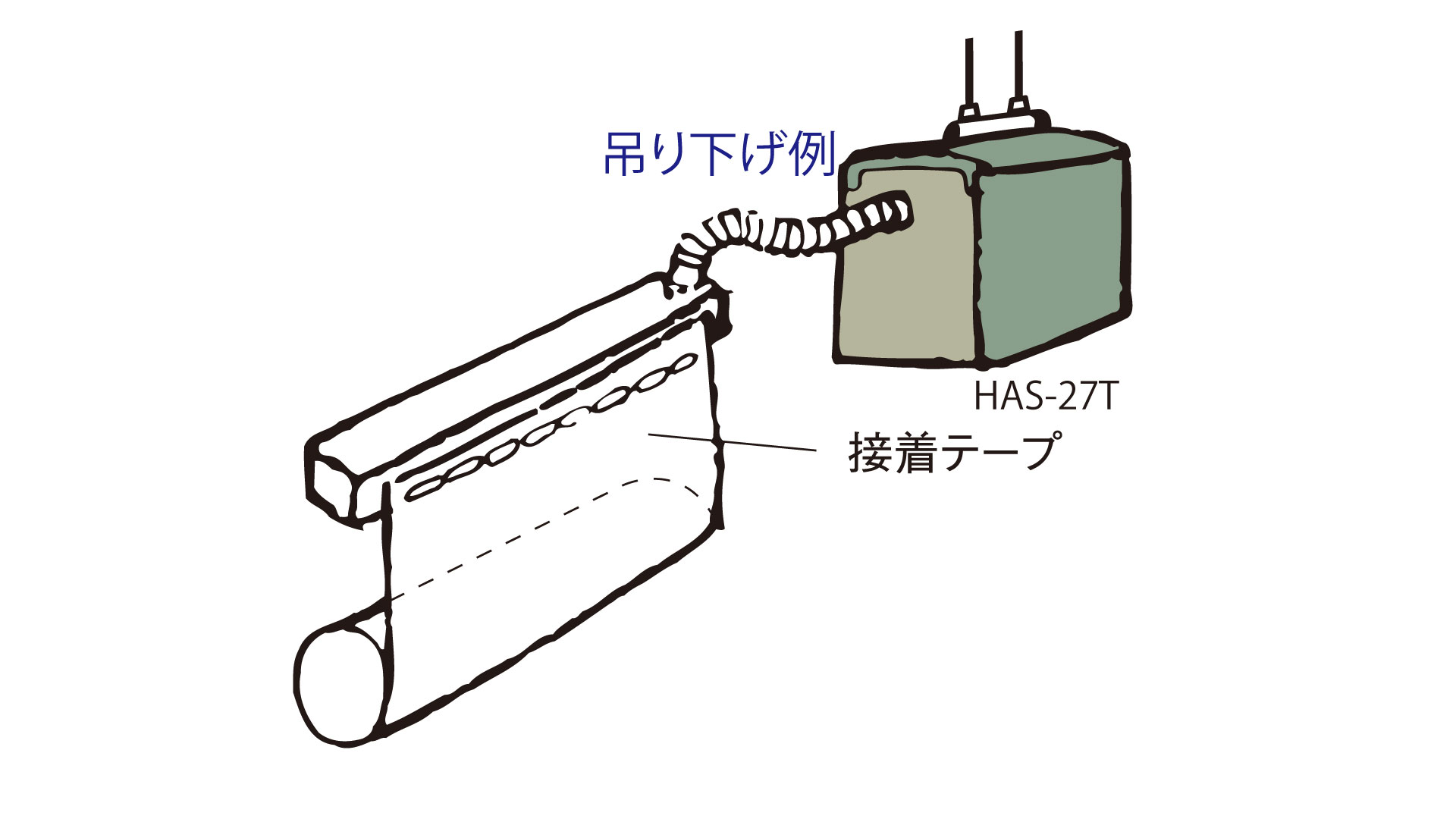

HAS-27T |
|---|---|
| Model No. | 1200-2.8C-007X |
| Power Supply | Single-phase 200 V, 50/60 Hz |
| Heater Capacity | 2.8 kW |
| Max Hot Air Temp. | 200 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 2.3 m³/min |
| Max Static Pressure | 1800 Pa |
 |
|
| Model |

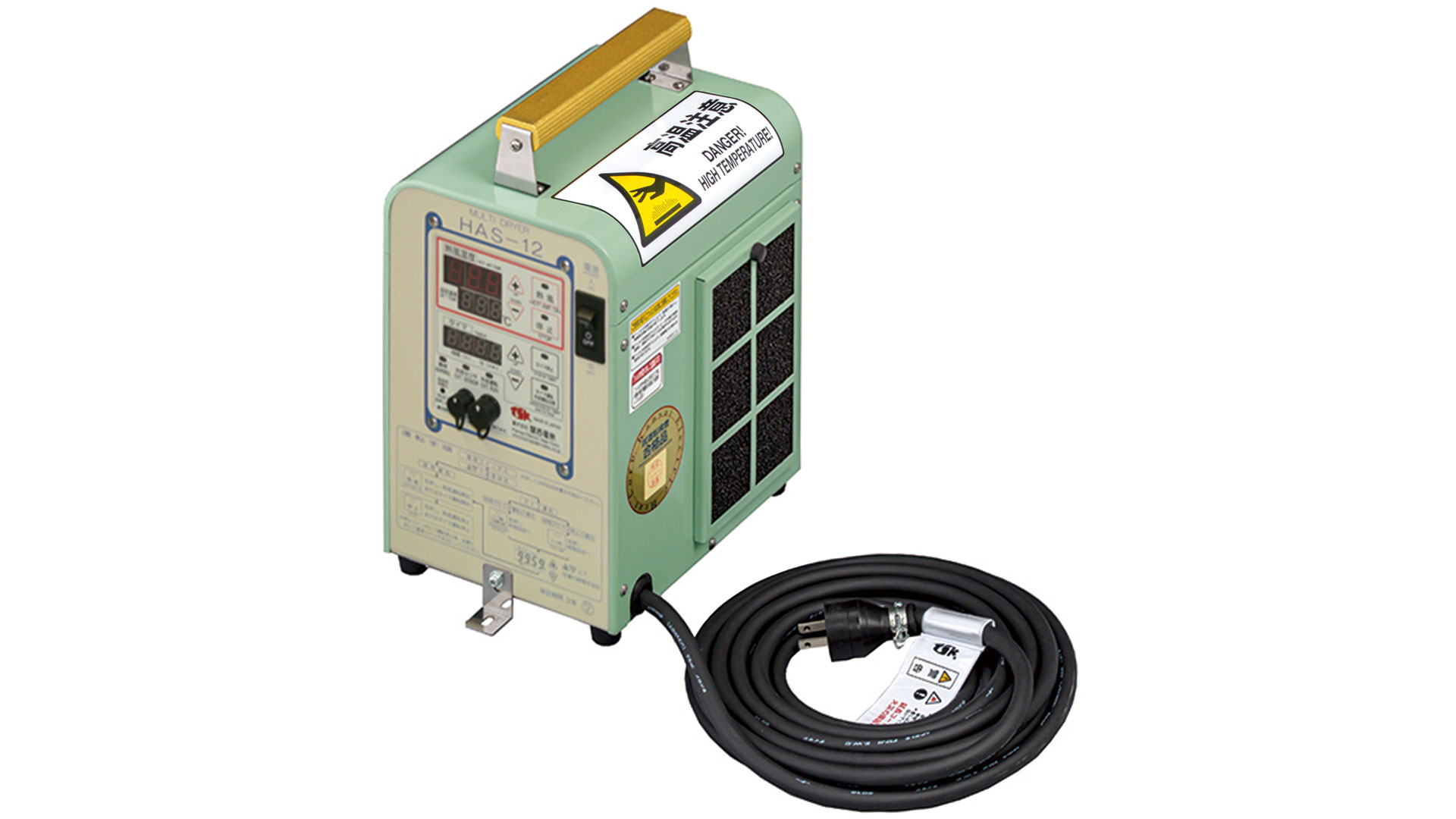

HAS-12 |
|---|---|
| Model No. | N/A |
| Power Supply | Single-phase 100 V, 50/60 Hz |
| Heater Capacity | 1.4 kW |
| Max Hot Air Temp. | 300 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 1.0 / 1.2 m³/min |
| Max Static Pressure | 130 / 200 Pa |
 |
|
| Model |

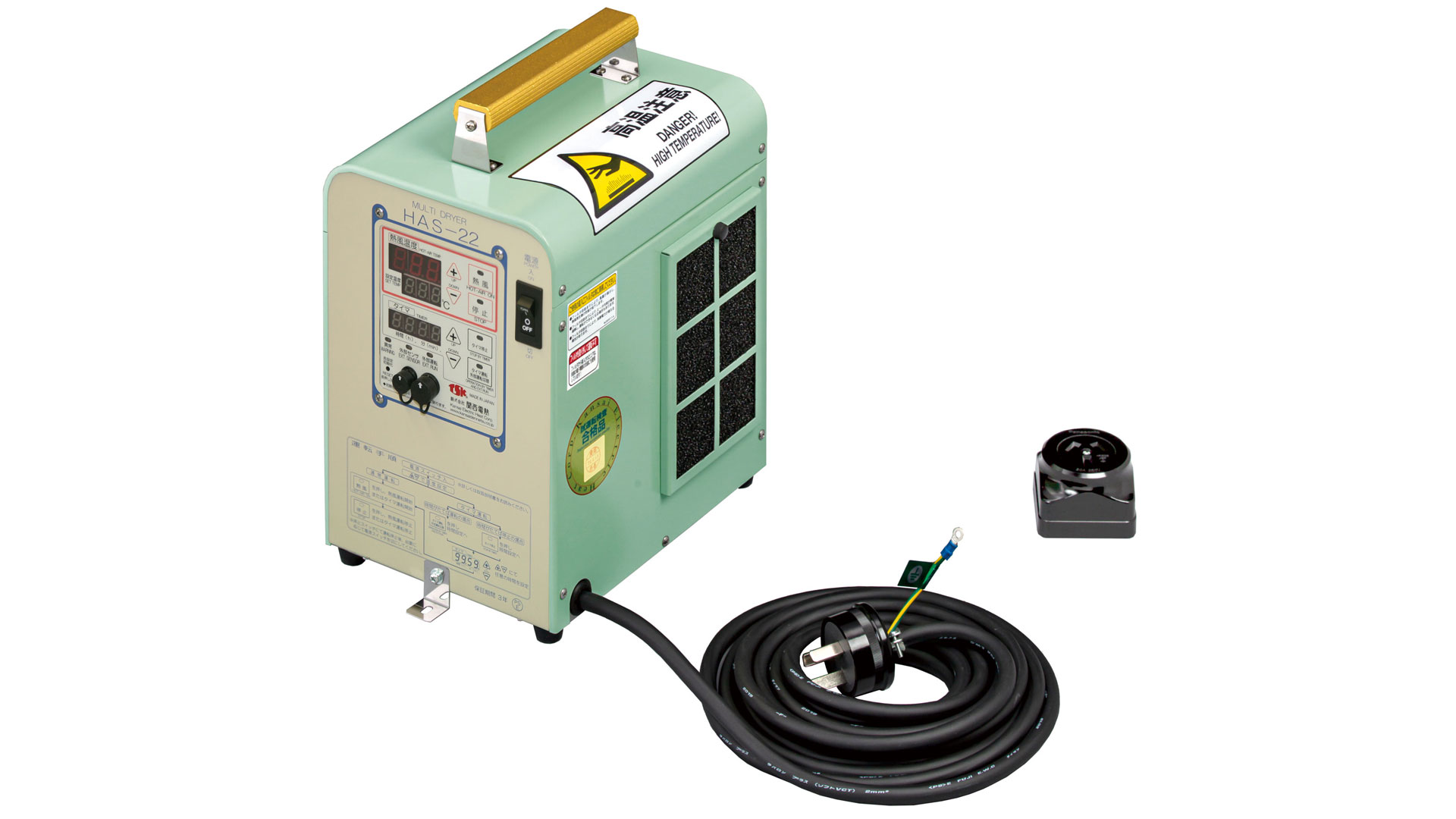

HAS-22 |
|---|---|
| Model No. | N/A |
| Power Supply | Single-phase 200 V, 50/60 Hz |
| Heater Capacity | 2.8 kW |
| Max Hot Air Temp. | 300 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 1.2 / 1.5 m³/min |
| Max Static Pressure | 200 / 290 Pa |
 |
|
| Model |

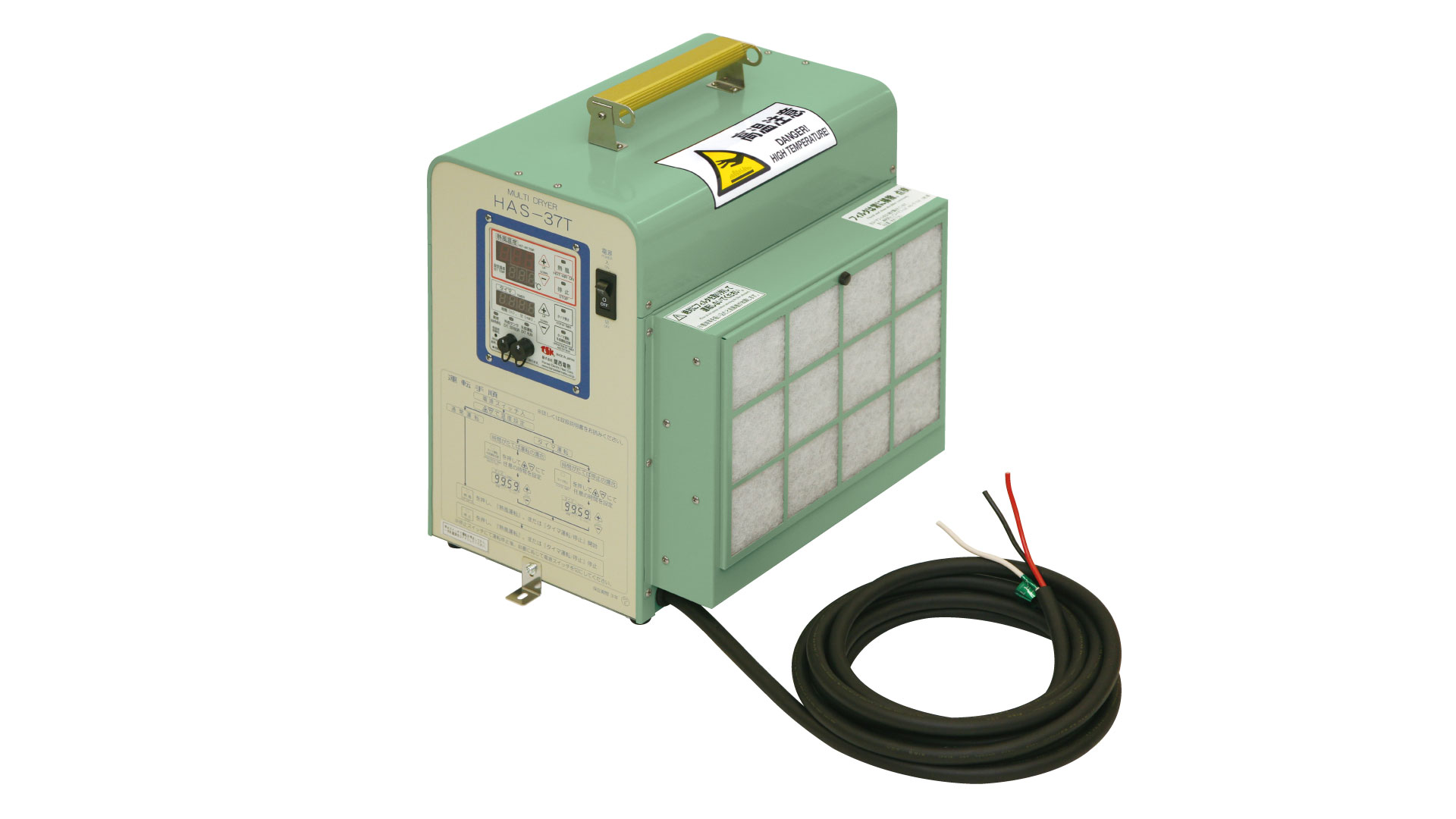

HAS-38 |
|---|---|
| Model No. | 1200-230-3.7C-009X |
| Power Supply |
Single-phase 200 V / 220 V / 230 V, 50/60 Hz |
| Heater Capacity | 3.7 kW |
| Max Hot Air Temp. | 250 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 2.5 / 3.0 m³/min |
| Max Static Pressure | 625 / 900 Pa |
 |
|
| Model |

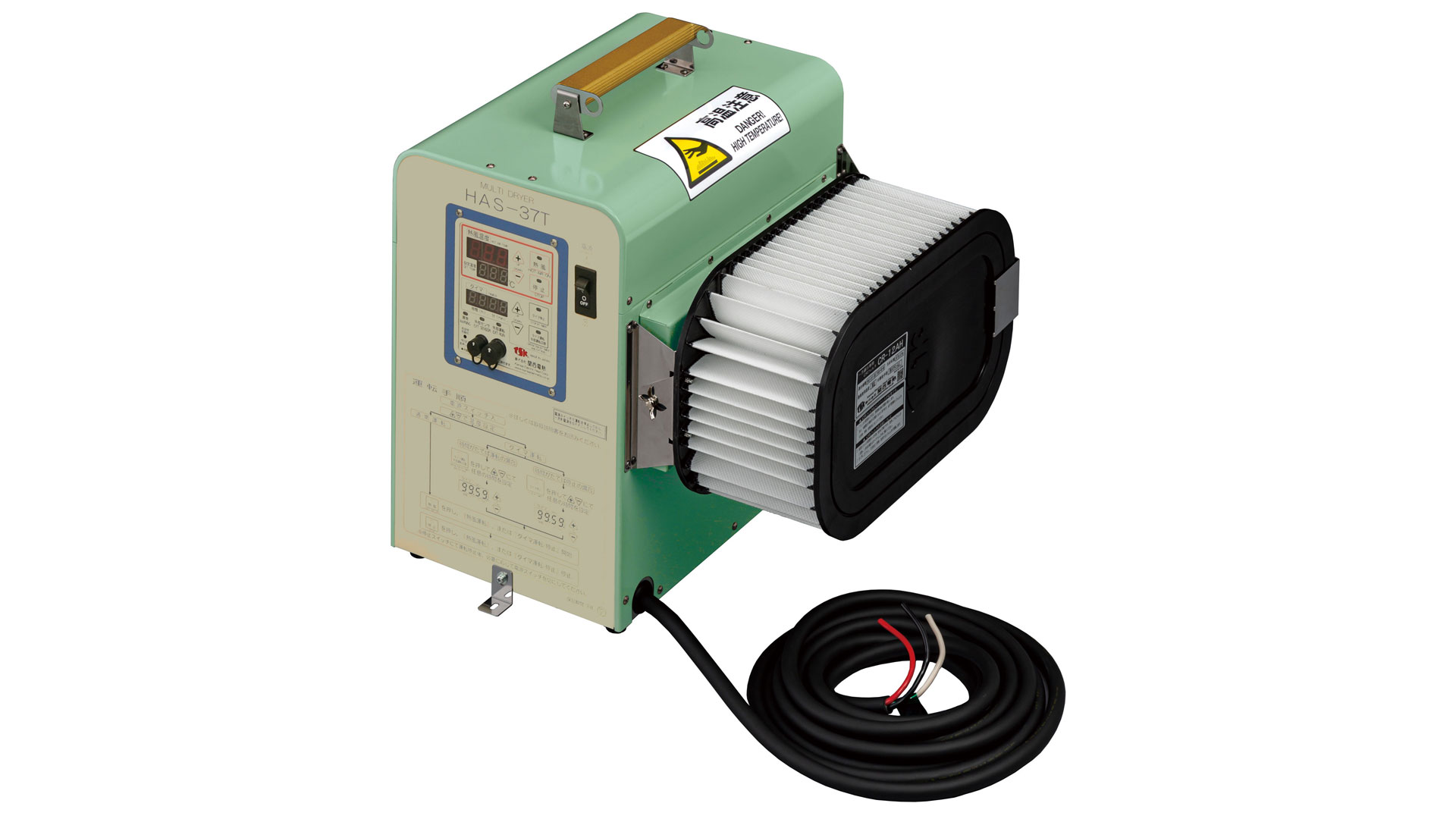

HAS-38F |
|---|---|
| Model Nos. | 1200-230-3.7C-009XF |
| Power Supply |
Single-phase 200 V / 220 V / 230 V, 50/60 Hz |
| Heater Capacity | 3.7 kW |
| Max Hot Air Temp. | 250 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 2.0 / 2.4 m³/min |
| Max Static Pressure | 625 / 900 Pa |
 |
|
| Model |

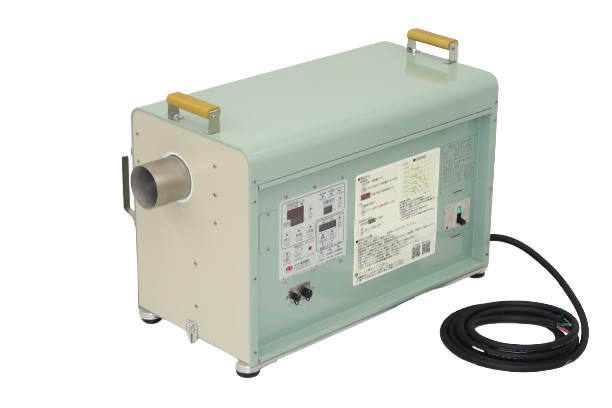

HAS-80N |
|---|---|
| Model Nos. | 3380-480-7.5C-013X |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 7.5 kW (3.7 kW or 5 kW also available) |
| Max Hot Air Temp. | 250 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 4.4 m³/min |
| Max Static Pressure | 1600 Pa |
 |
|
| Model |

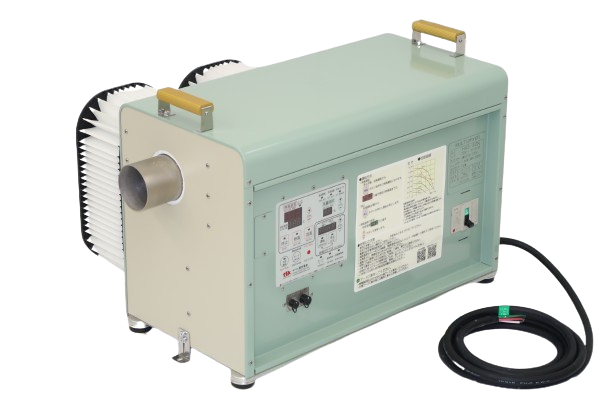

HAS-80NF |
|---|---|
| Model Nos. | 3380-480-7.5C-013XF |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 7.5 kW (3.7 kW or 5 kW also available) |
| Max Hot Air Temp. | 250 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 4.1 m³/min |
| Max Static Pressure | 1600 Pa |
 |
|
| Model |

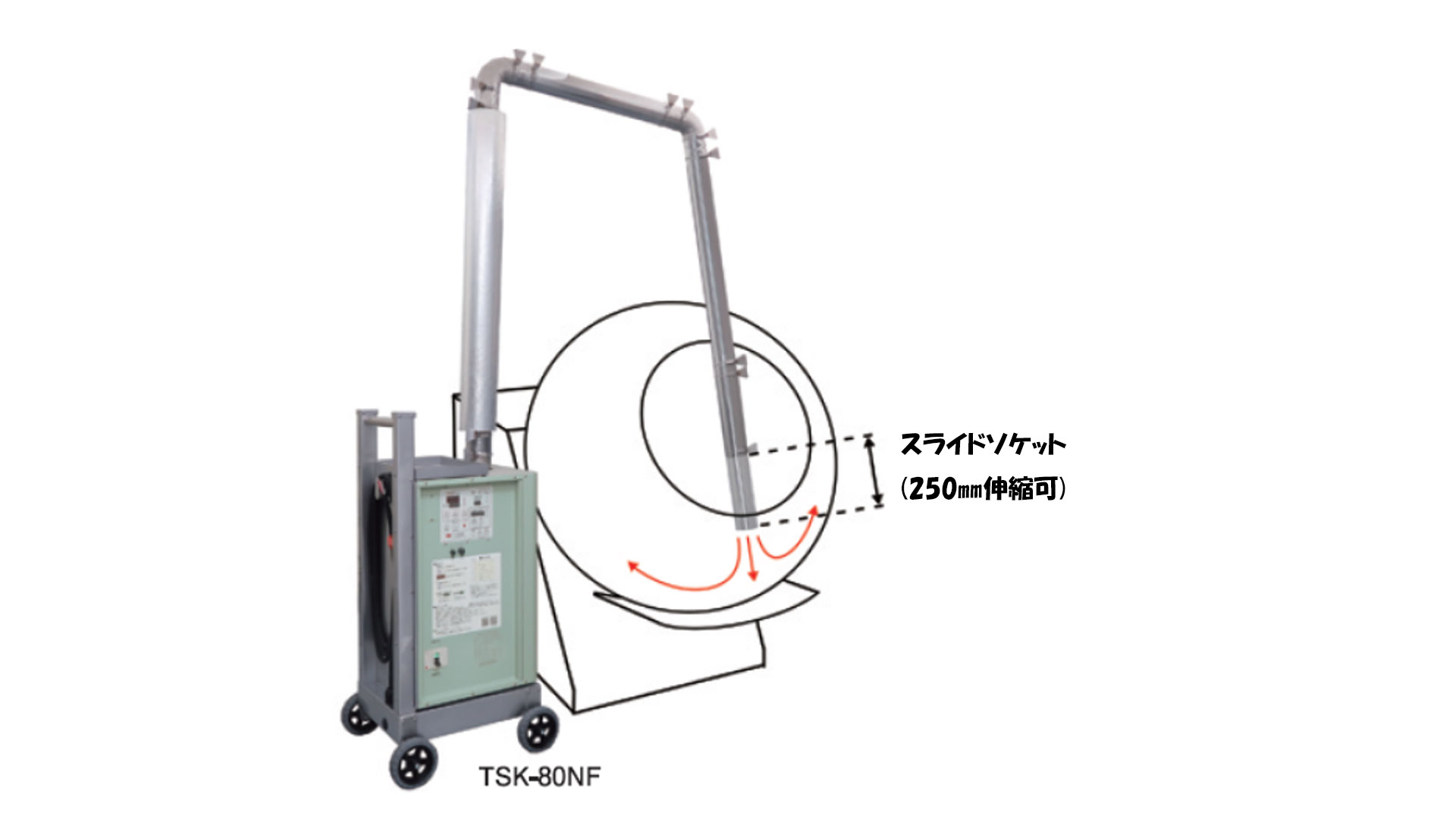

TSK-80NF |
|---|---|
| Model Nos. | 3380-480-7.5C-013XF |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 7.5 kW (3.7 kW or 5 kW also available) |
| Max Hot Air Temp. | 250 °C |
| Max Inlet Air Temp. | 40 °C |
| Max Air Volume | 4.1 m³/min |
| Max Static Pressure | 1600 Pa |
 |
|
Optional Accessories
|
|

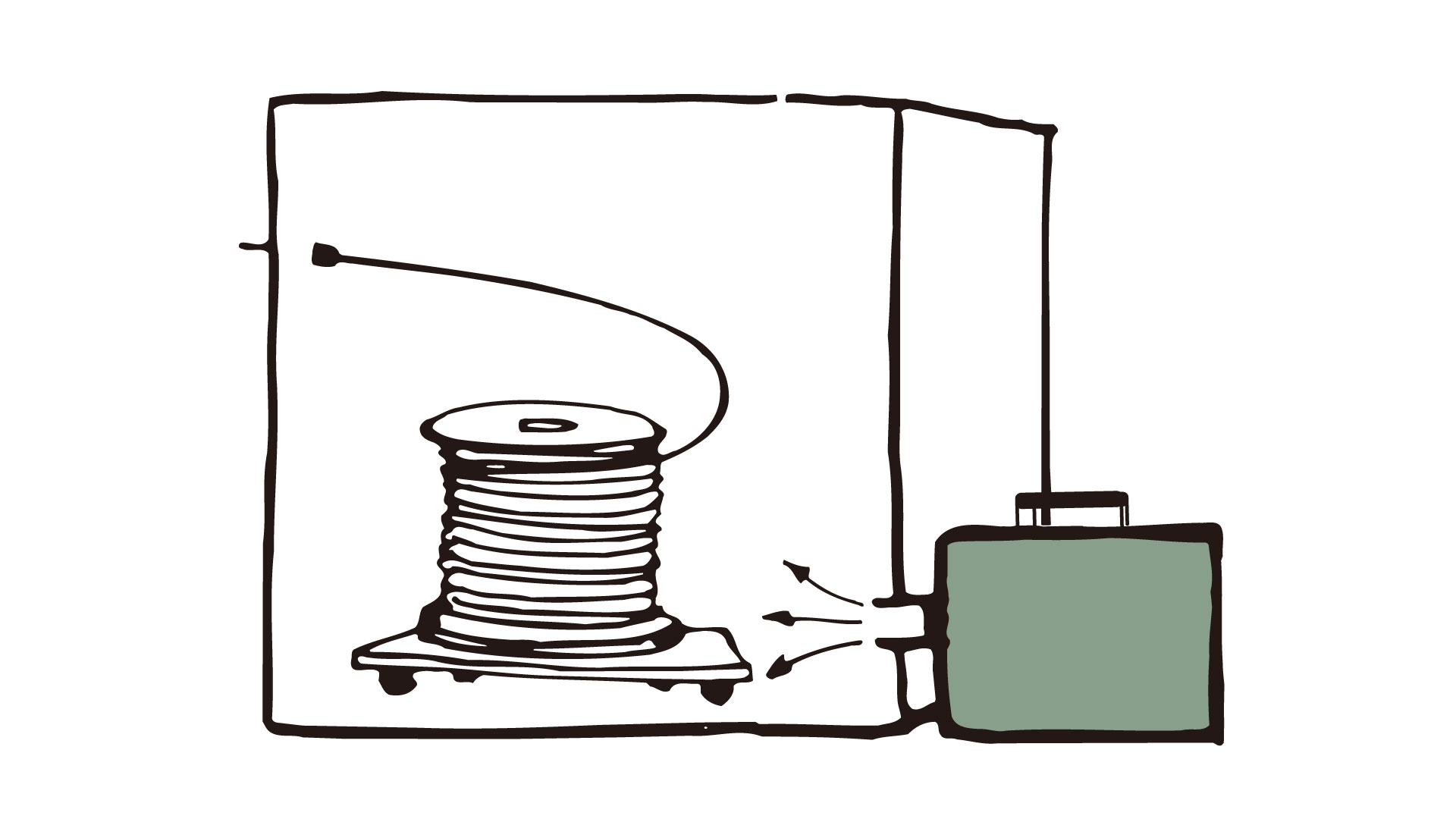

Dedicated External Sensor (Common to All Models) Temperature sensor for controlling the internal temperature of drying ovens and similar equipment. Cable length: 5 m 乾燥炉等の炉内部の温度制御用の温度センサ（コード長さ5m） |
|
|
Remote Operation Cable with Connector (Common to All Models) Cable for external operation control. Standard cable length: 10 m 20 m and 30 m cables are also available. コード長さ10m。20m,30mも対応可能 |
|
|

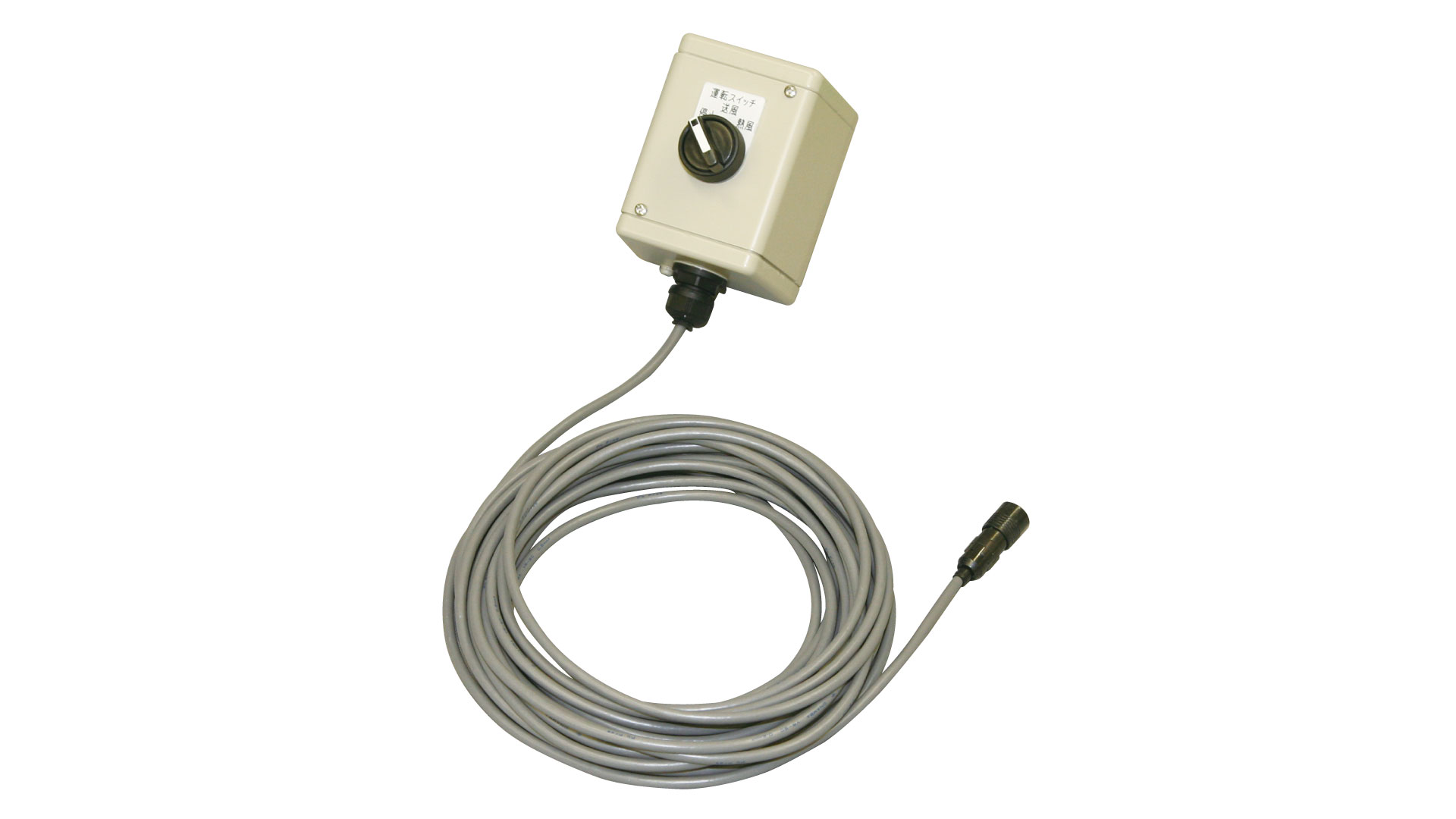

Remote Operation Switch with Connector (Common to All Models) Allows remote switching between Stop / Air Blow / Hot Air. Standard cable length: 10 m 20 m and 30 m lengths available. 離れた場所からの停止・送風・熱風の切り替え コード長さ10m。20m,30m対応可能 |
|
|
Lightweight, versatile, and cost-effective ABS plastic nozzle. 軽量･安価な万能ABS樹脂製 |
