Kansai Electric Heat Corp.
High-Blow Nozzle SUS (Stainless Steel Air Knife Nozzle)
High Performance / Low Pressure Loss / Cost-Effective / Lightweight
High-Blow Nozzle SUS
- Low pressure-loss nozzle that does not require a compressor or high-pressure blower.
- All stainless steel construction (SUS304 with 2B finish).
- Ideal for rapid water removal, rapid drying, powder removal, air curtains, uniform surface heating, cooling, pre-drying before inkjet printing, and condensation prevention.
High-Blow Nozzle SUS Overview
- Heat resistance up to 350 °C
- Low pressure loss, high air volume, and custom sizes available
- Adjustable slit width (hex wrench included as standard)
- All stainless steel construction (SUS304, 2B surface finish)
- Simple internal airflow-straightening structure for low pressure loss

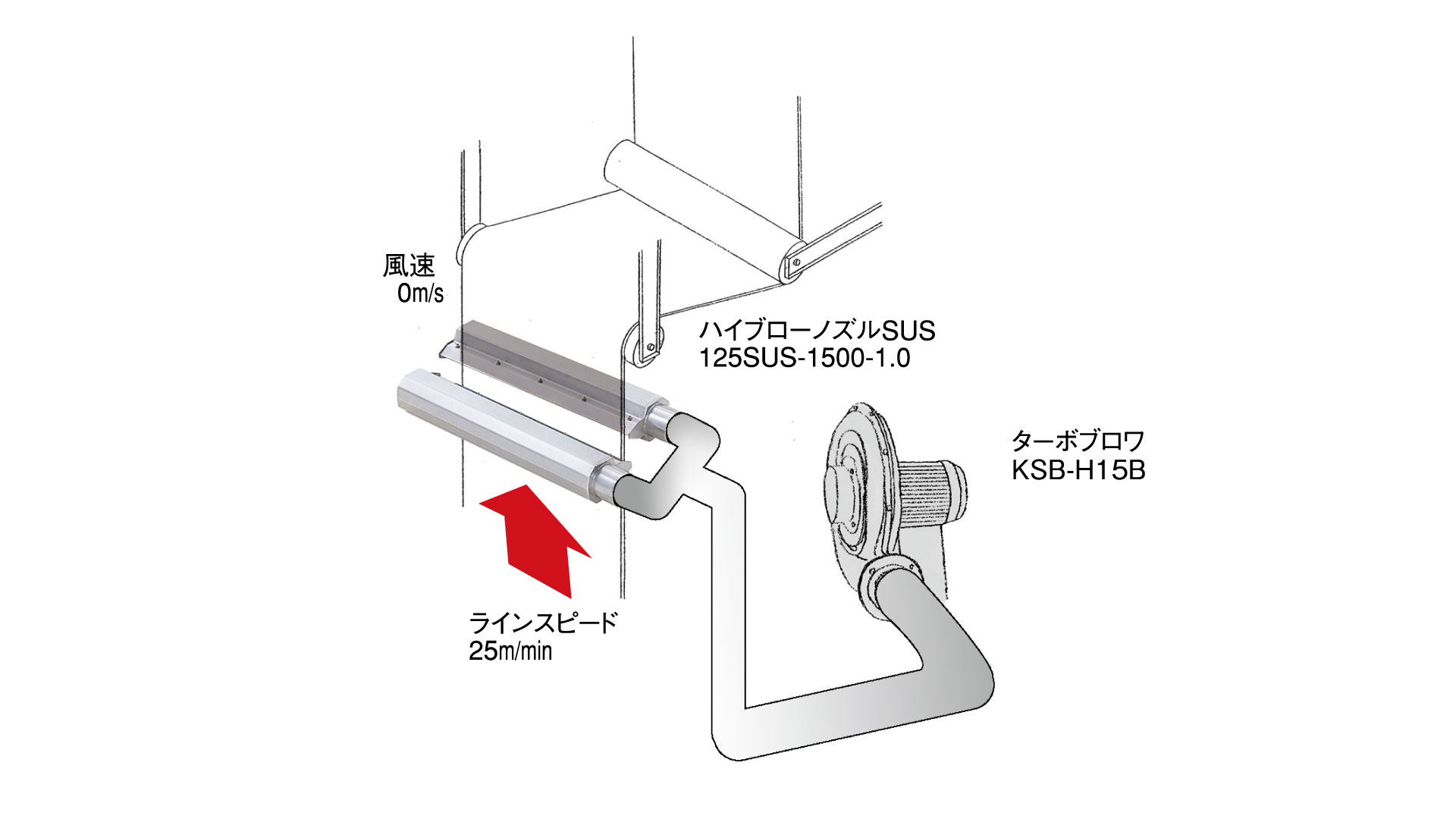

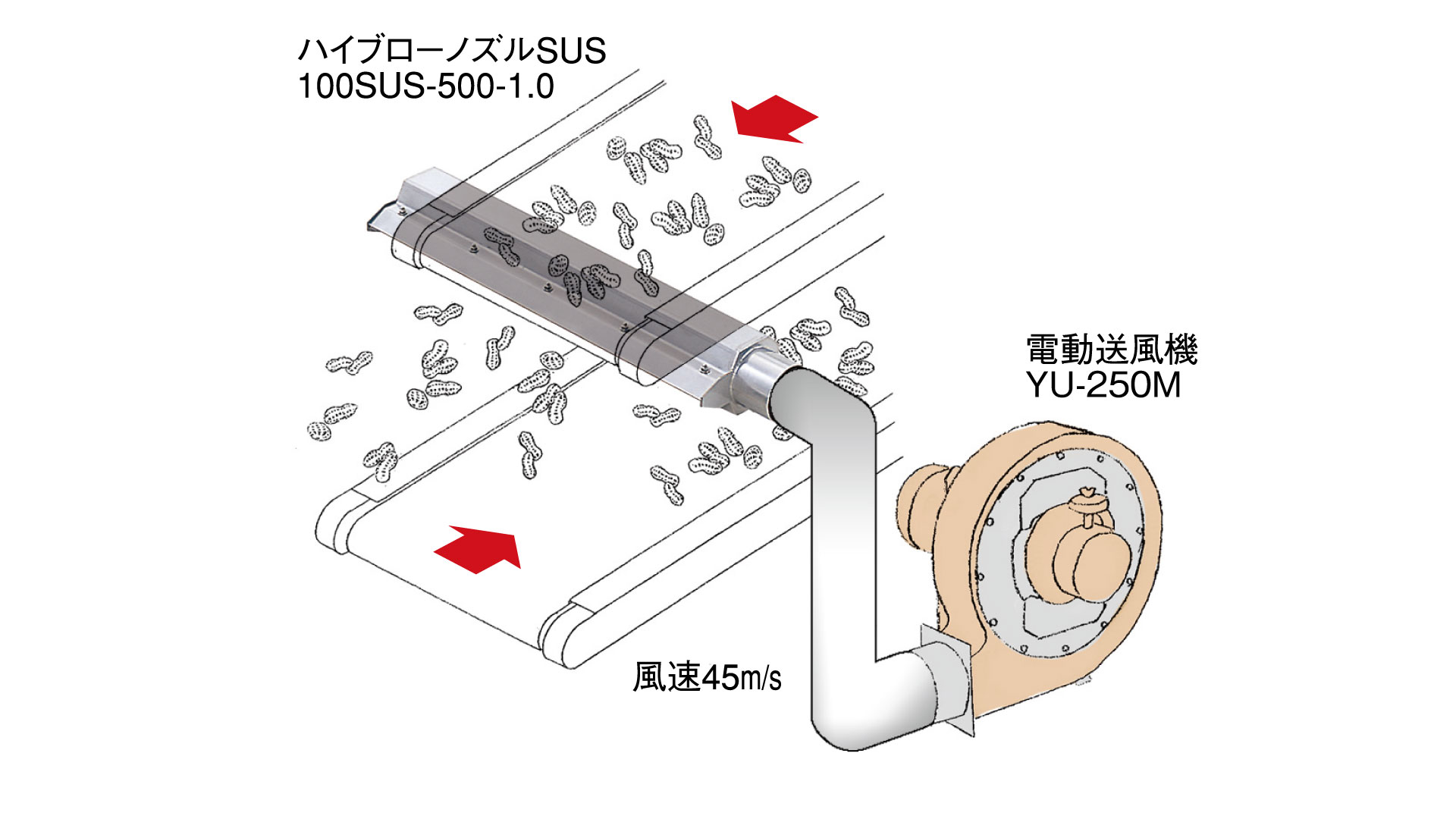

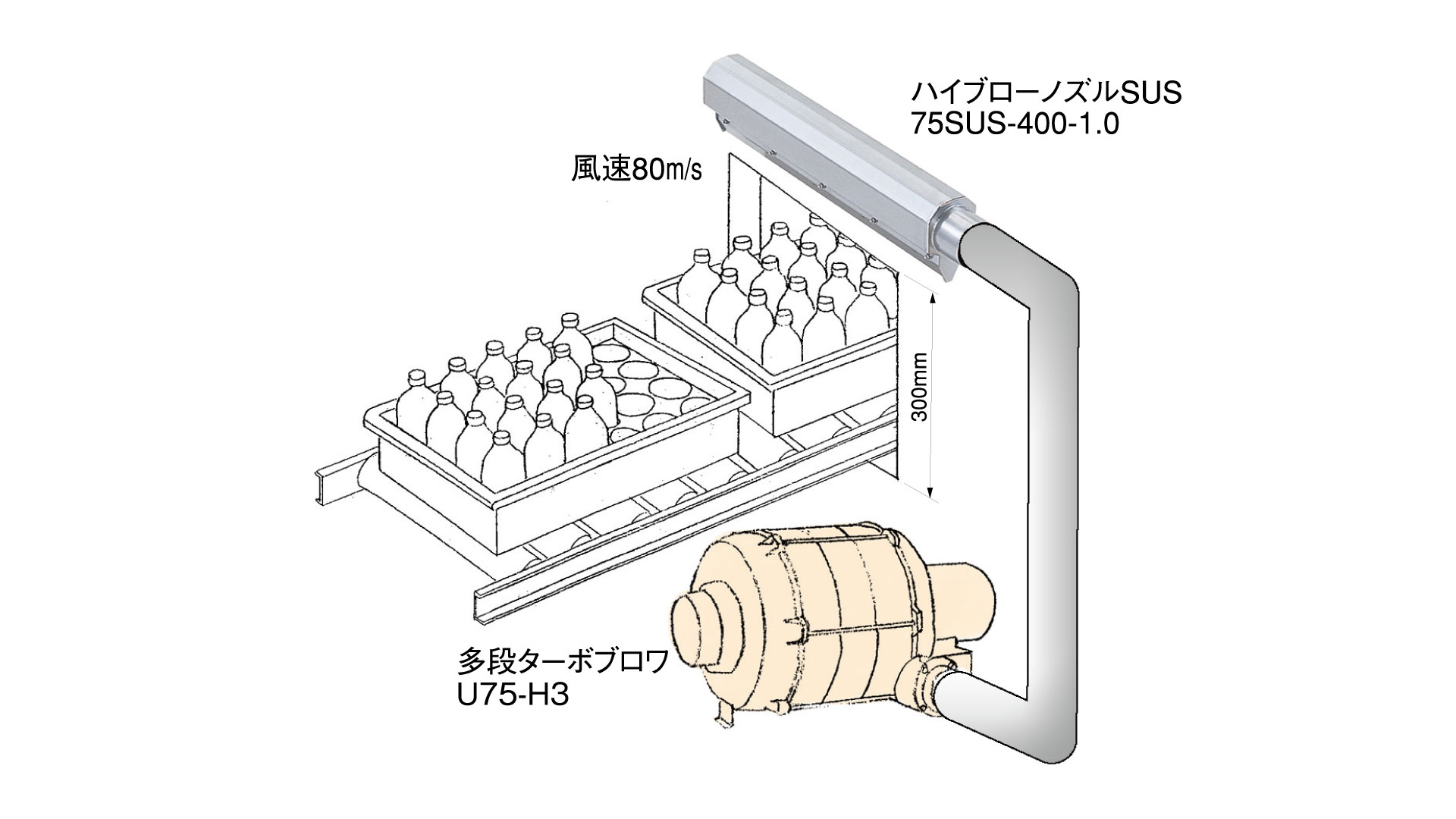

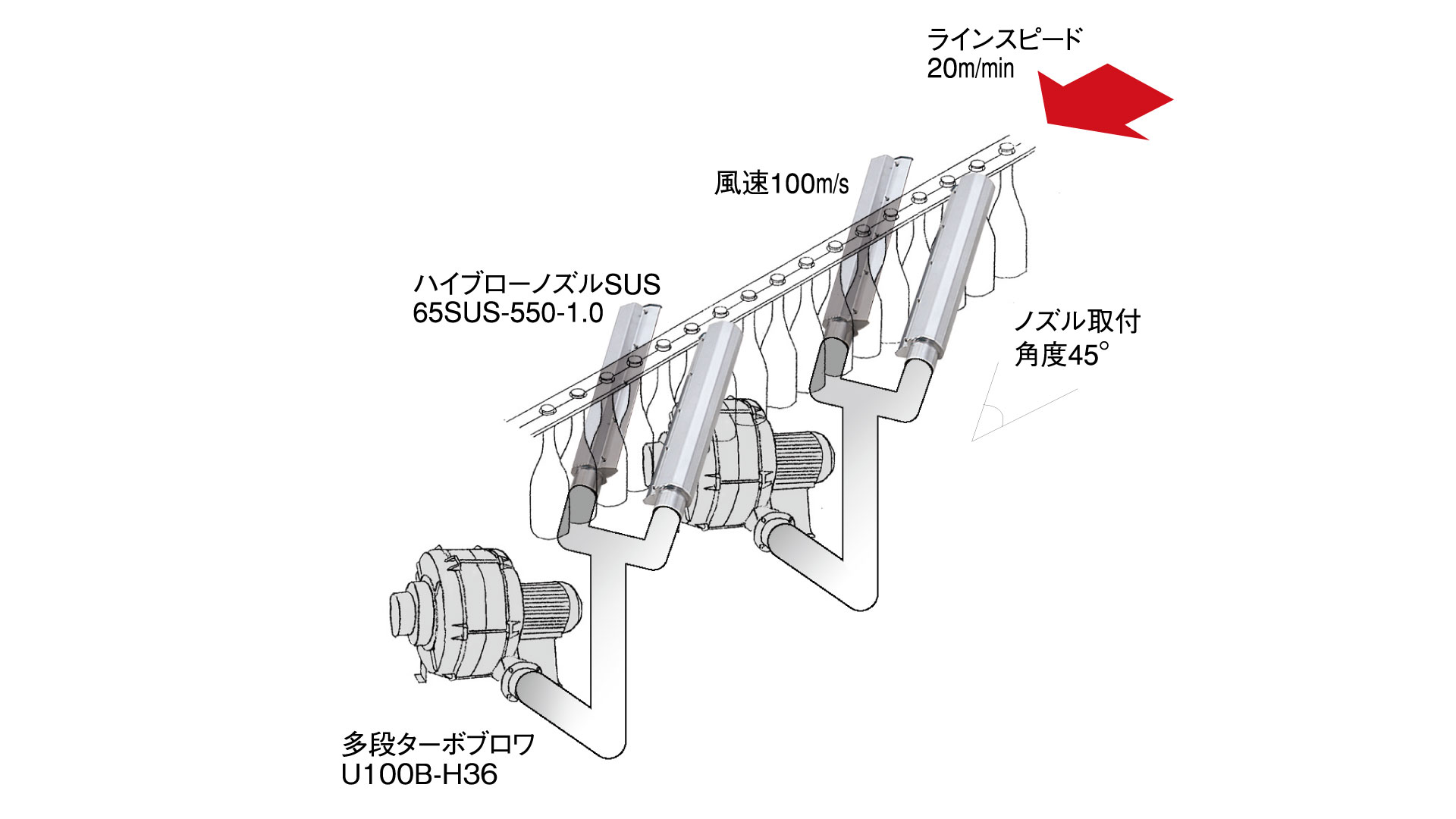

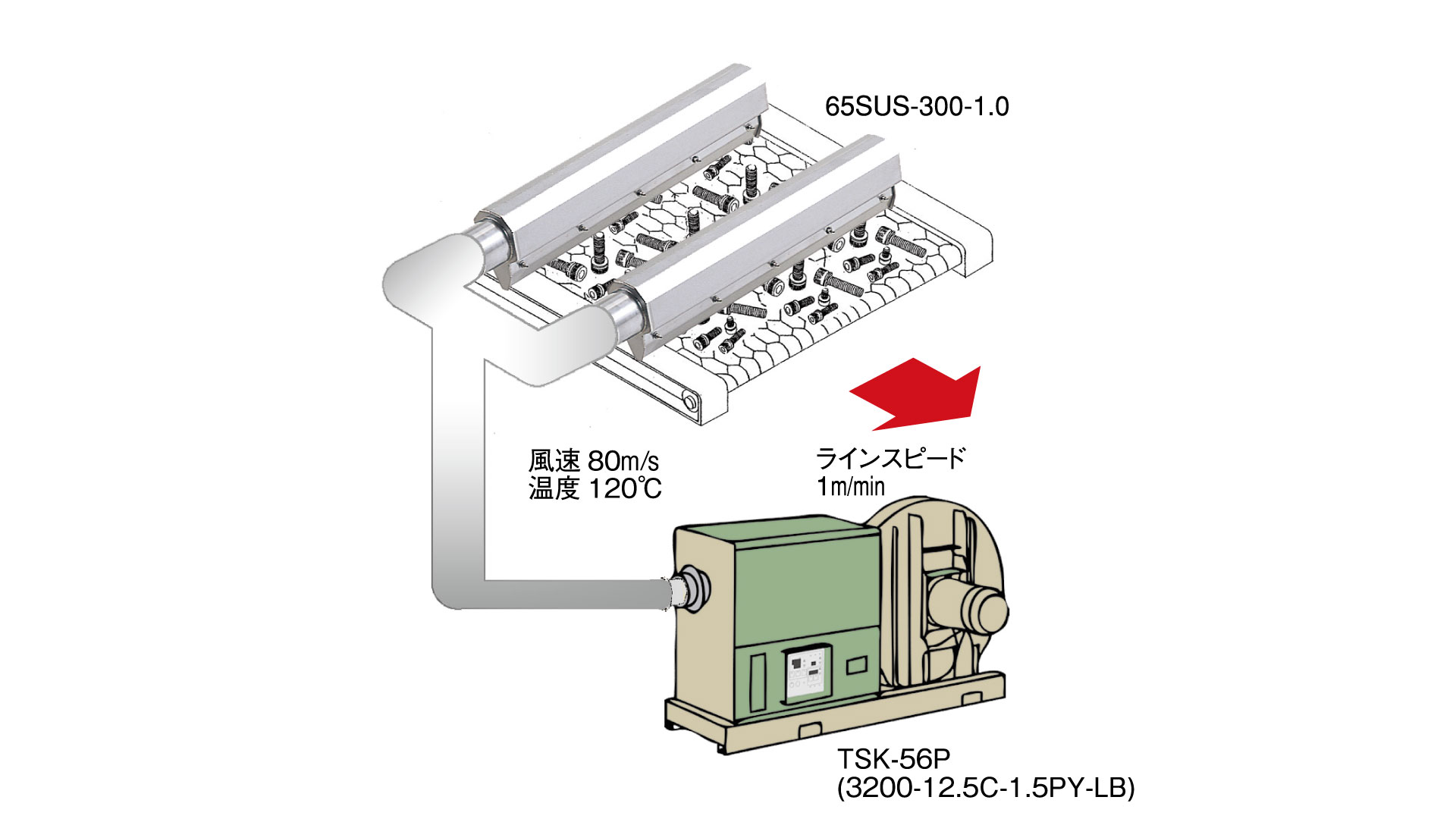

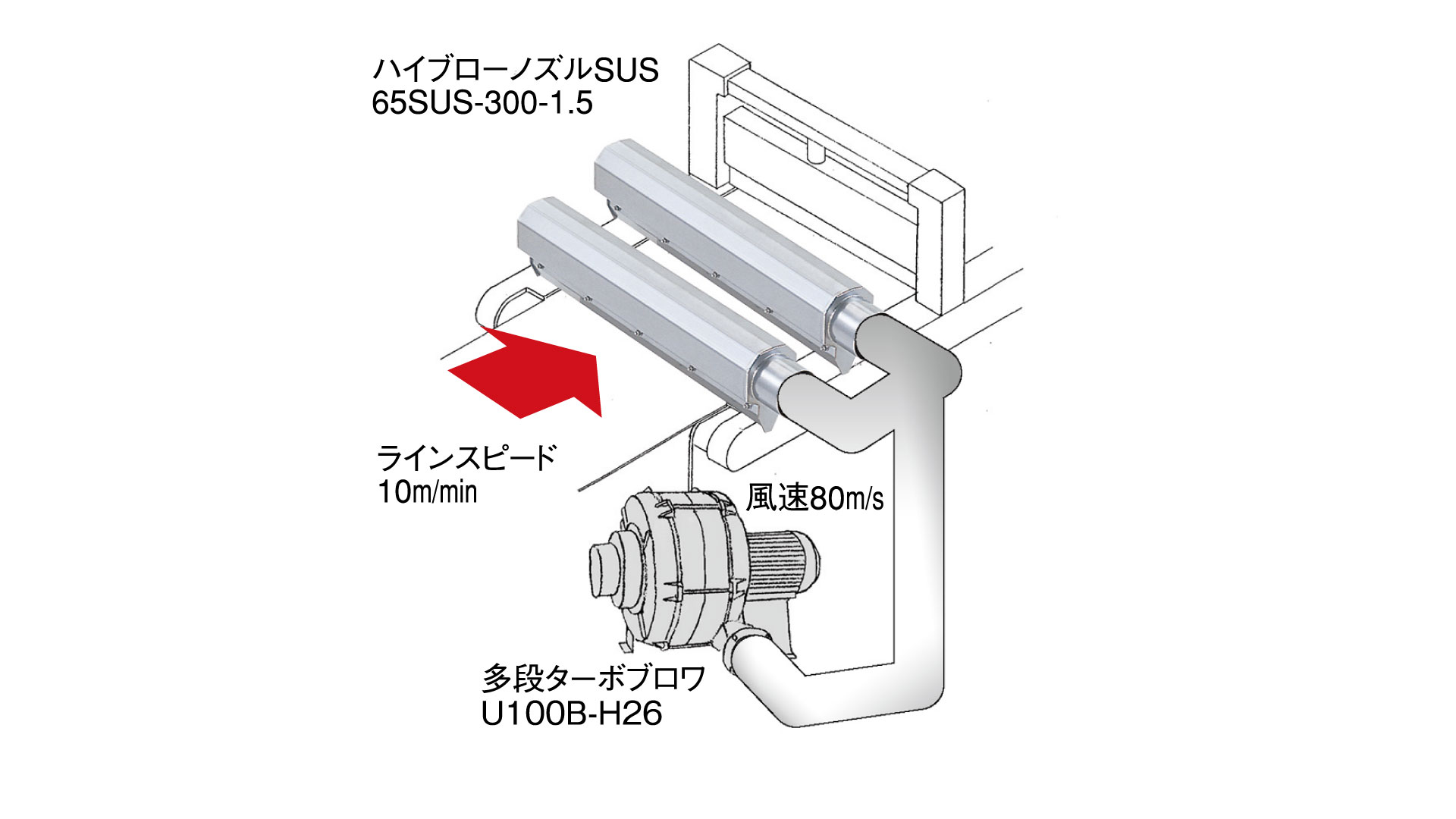

Typical Applications
Note: Some illustrations may contain Japanese text.
The High-Blow Nozzle SUS can be used for many other applications. Please contact us to discuss your application.
Standard Specifications

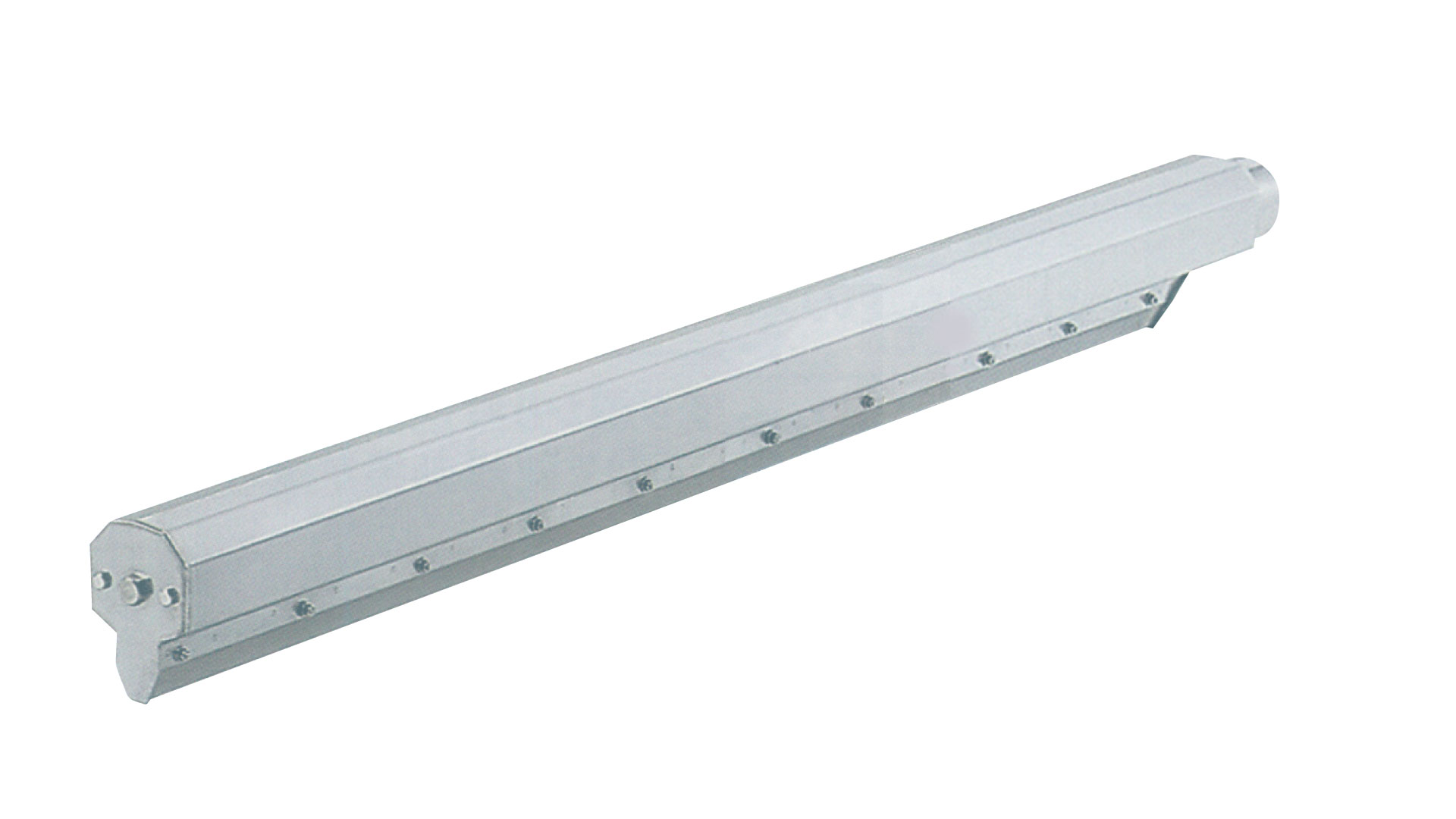

| Model |
50SUS |
|---|---|
| Slit Length | 200-1000 mm |
| Adjustable Slit Width | 0.5-1.5 mm |
| Air Supply Port Options | S1 / S2 / U1 / U2 / F1 / F2, etc. |
 |
|

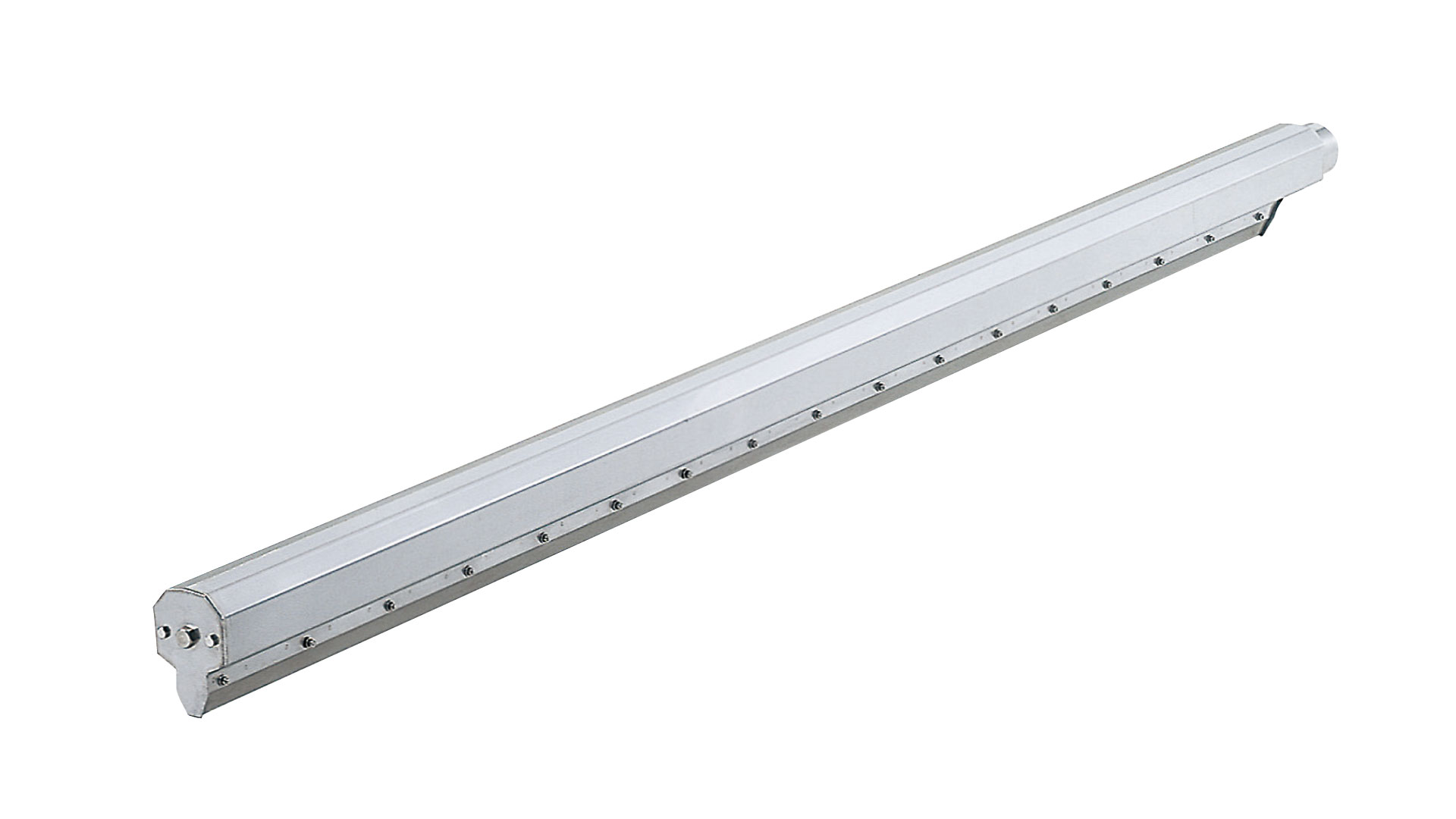

| Model |
65SUS |
|---|---|
| Slit Length | 300-1900 mm |
| Adjustable Slit Width | 1.0-2.0 mm |
| Air Supply Port Options | S1 / S2 / U1 / U2 / F1 / F2, etc. |
 |
|

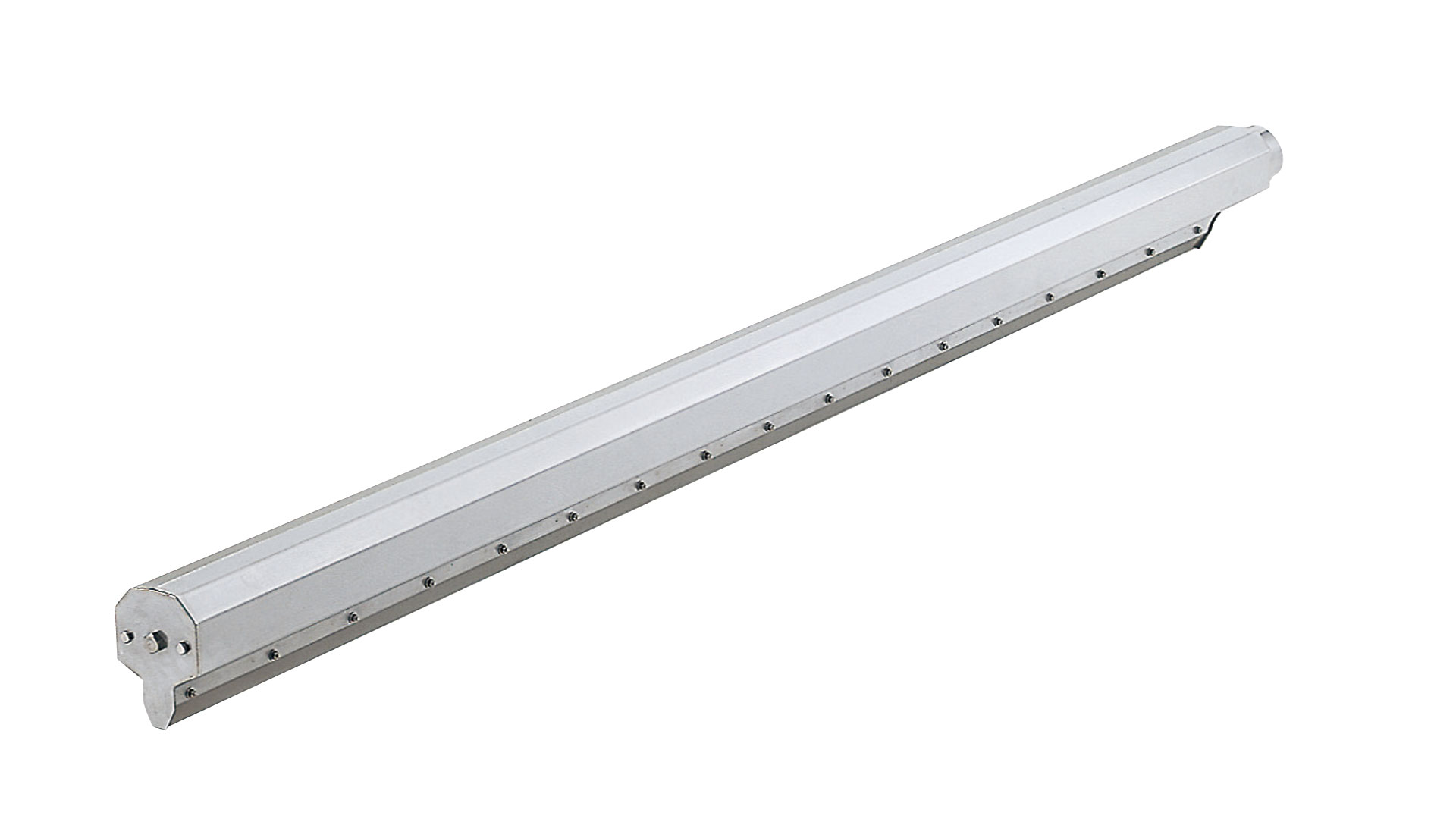

| Model |
75SUS |
|---|---|
| Slit Length | 300-1900 mm |
| Adjustable Slit Width | 1.0-2.0 mm |
| Air Supply Port Options | S1 / S2 / U1 / U2 / F1 / F2, etc. |
 |
|
| Model |
100SUS |
|---|---|
| Slit Length | 500-2400 mm |
| Adjustable Slit Width | 1.0-3.0 mm |
| Air Supply Port Options | S1 / S2 / U1 / U2 / F1 / F2, etc. |
 |
|
| Model |
125SUS |
|---|---|
| Slit Length | 500-2400 mm |
| Adjustable Slit Width | 1.0-4.0 mm |
| Air Supply Port Options | S1 / S2 / U1 / U2 / F1 / F2, etc. |
 |
|
For pricing, customization, or technical inquiries, please contact us:
