Kansai Electric Heat Corp.
YU Series Heat-Resistant Blower
Heat-Resistant Blower for High-Temperature Air Intake and Circulation
- Designed for reliable operation with a proprietary cooling fan system.
- Suitable for hot air circulation in high-temperature furnaces, electric furnaces, and annealing furnaces.
Heat-Resistant Blower Overview
- Maximum Inlet Air Temperature: 600 °C

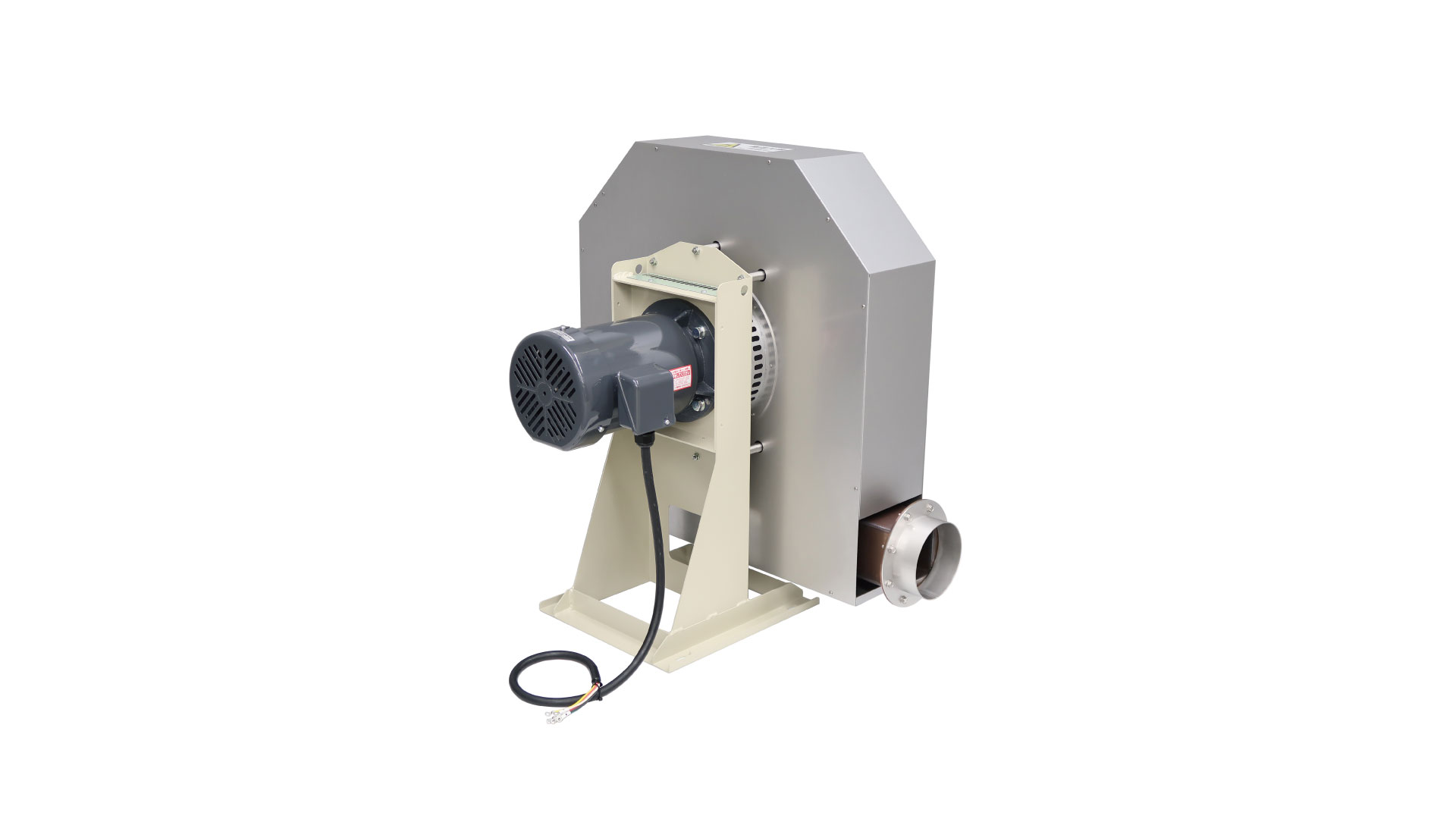

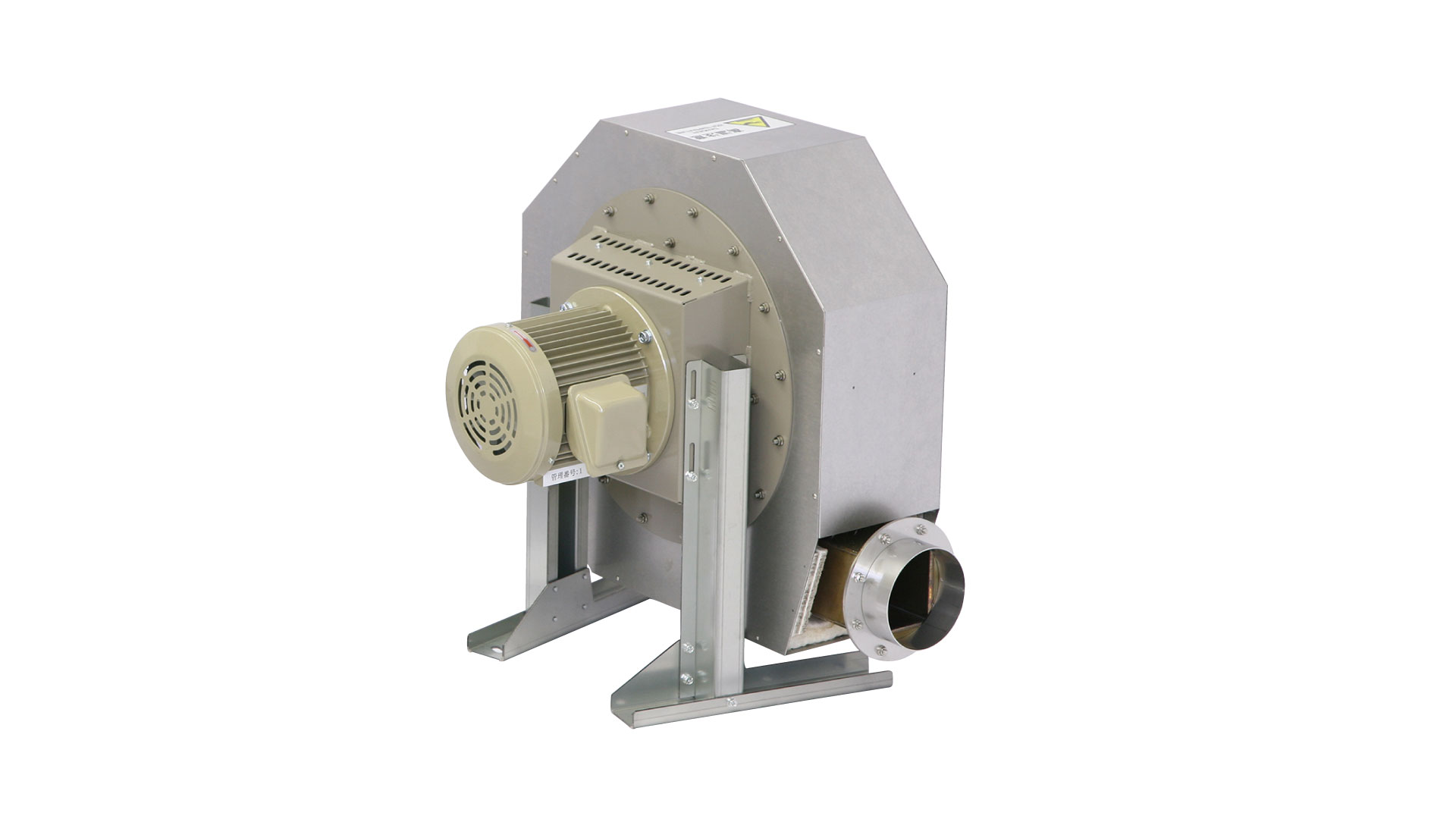

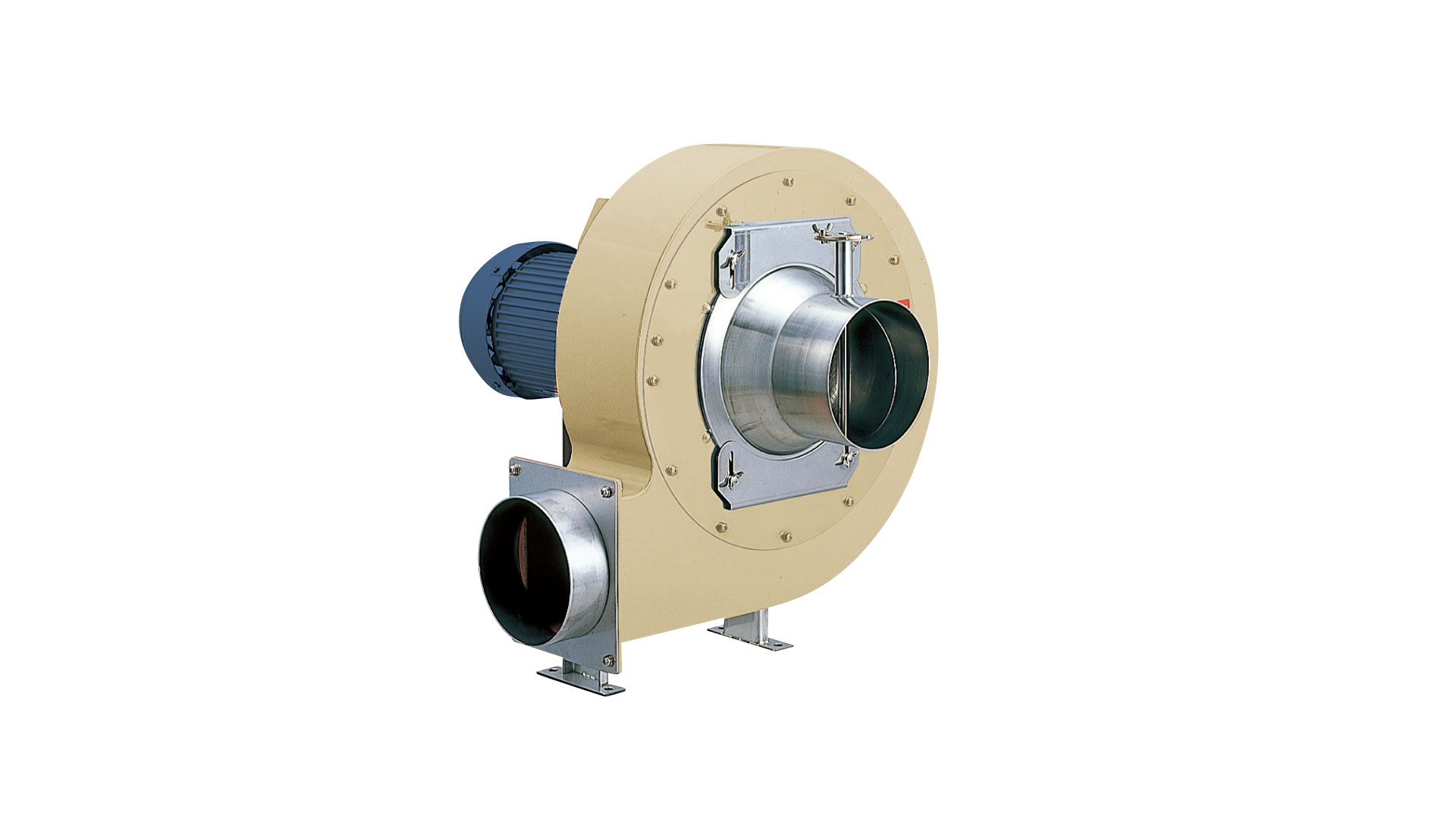

(YU-H Series: 600 °C, YU-HM Series: 500 °C, YU Series: 260 °C) - Blower Motor Capacity: 130 W to 2200 W

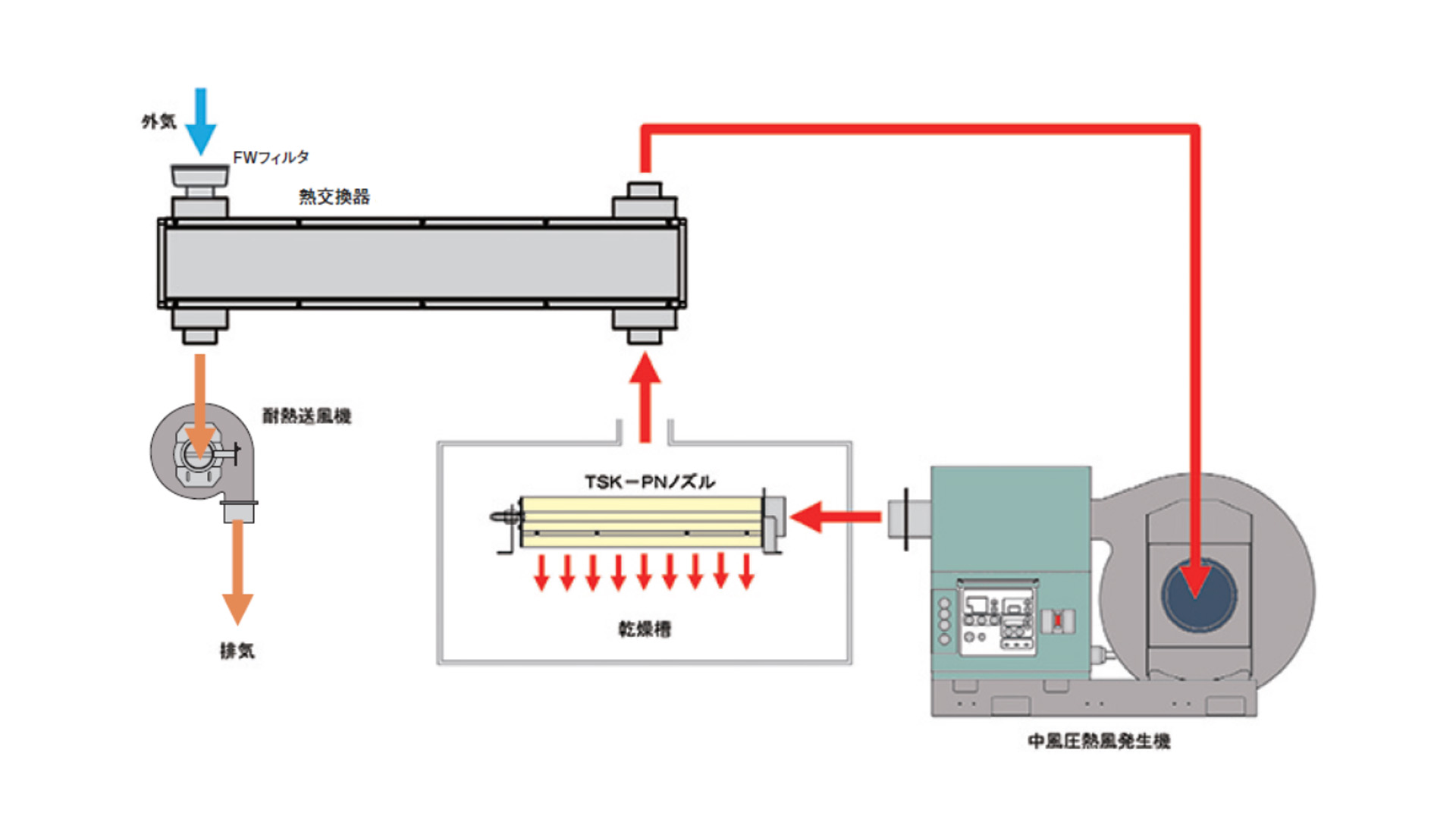

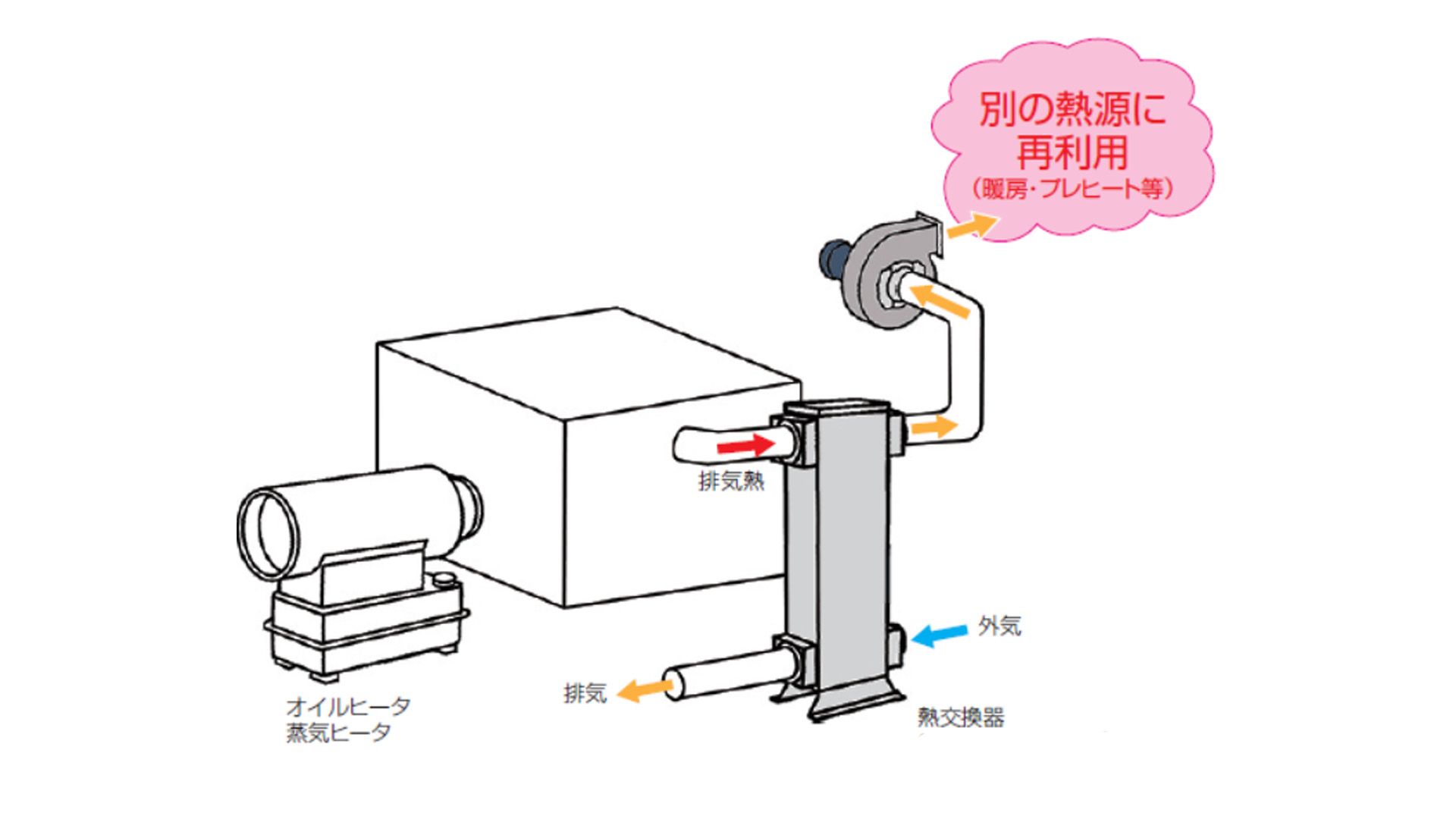

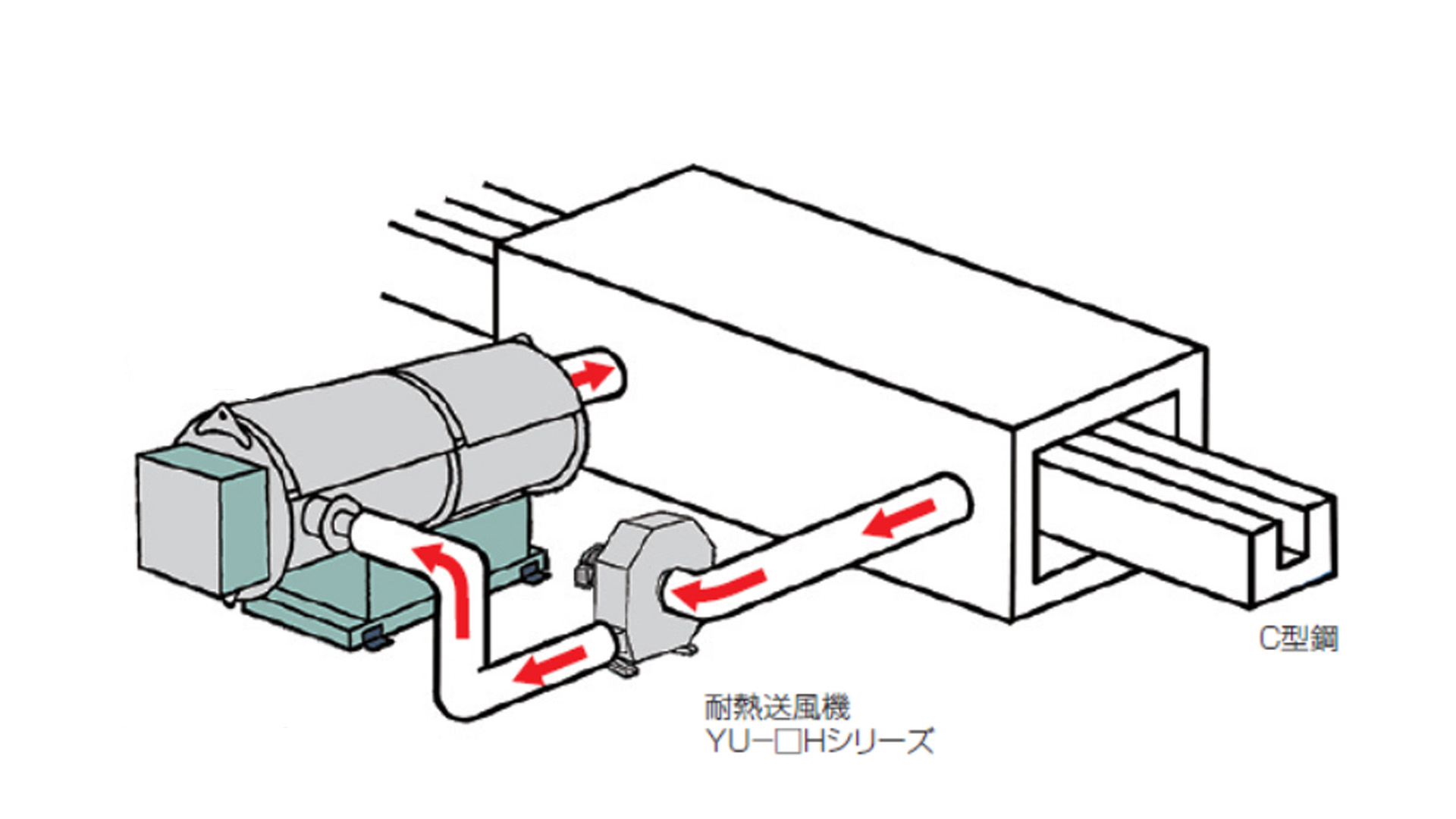

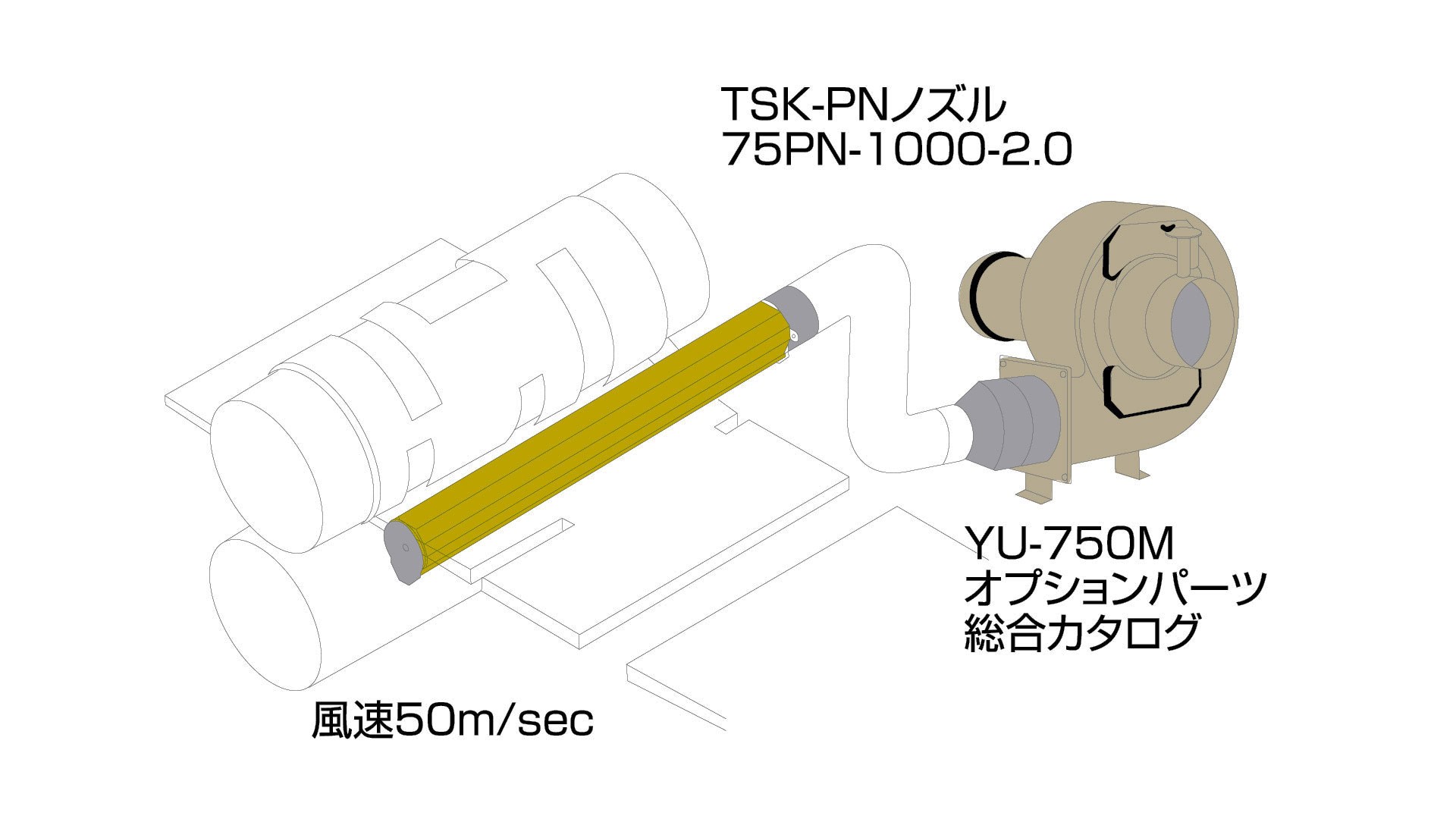

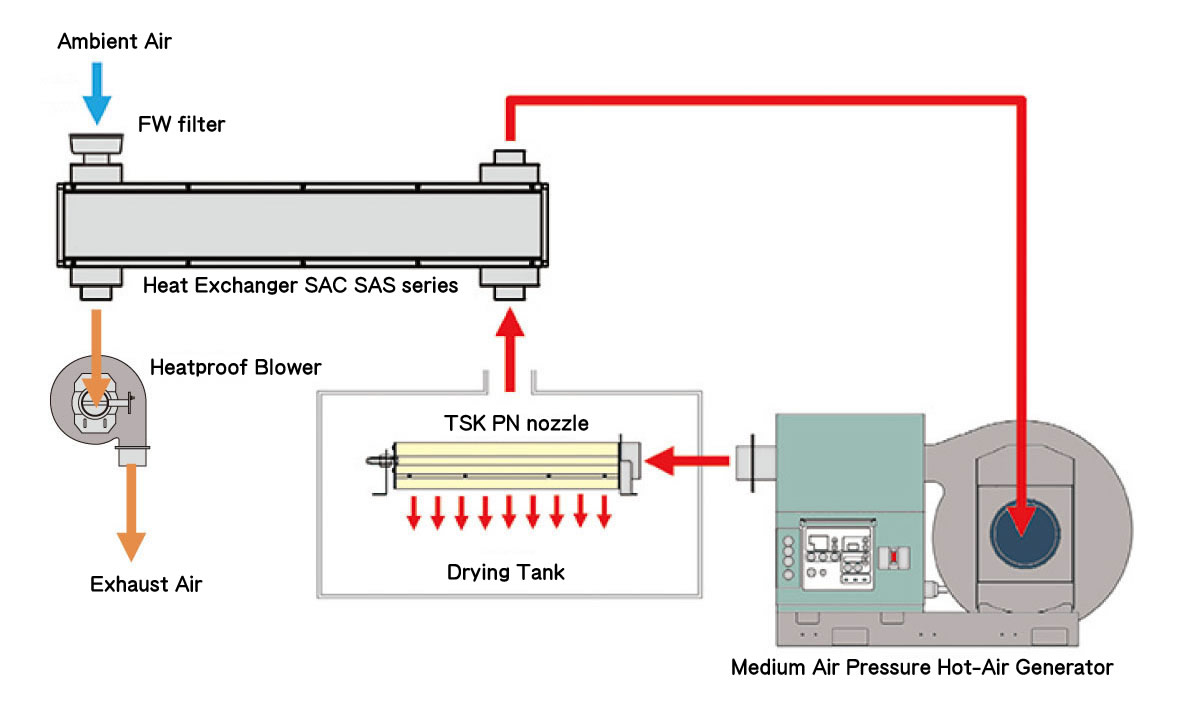

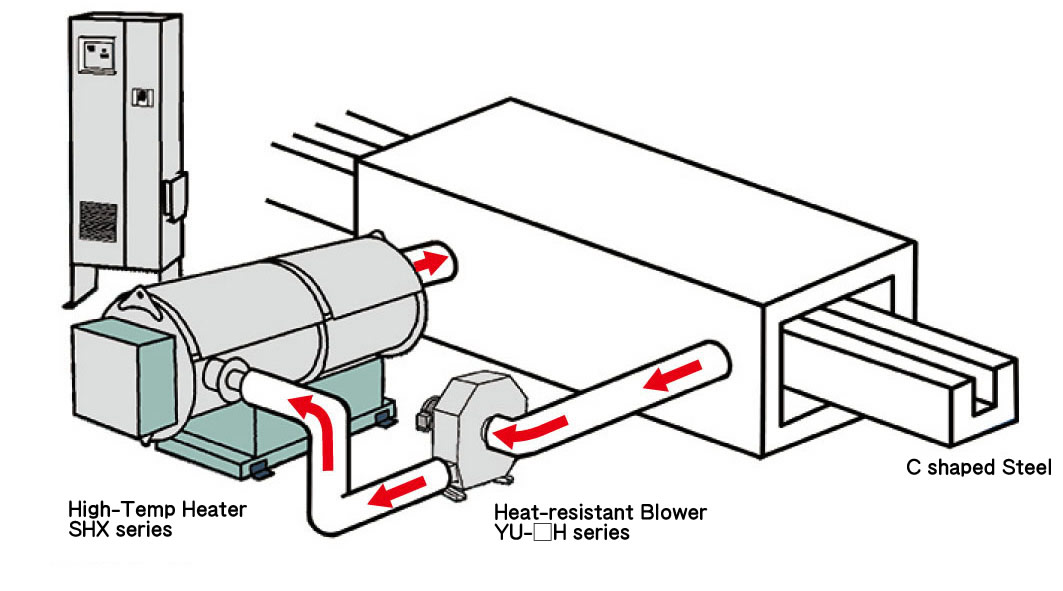

Typical Applications
Note: Some illustrations may contain Japanese text.
The YU Series can also be used for many other applications. Please contact us to discuss your application.
Standard Specifications
| Model |
YU-400H |
|---|---|
| Max Inlet Air Temp. | 600 °C |
| Max Air Volume | 8.0 m³/min |
| Max Static Pressure | 2.0 kPa |
| Blower Motor Capacity | 400 W |
 |
|
| Model |
YU-750H |
|---|---|
| Max Inlet Air Temp. | 600 °C |
| Max Air Volume | 12.0 m³/min |
| Max Static Pressure | 3.5 kPa |
| Blower Motor Capacity | 750 W |
|
|
| Model |
YU-400HM |
|---|---|
| Max Inlet Air Temp. | 500 °C |
| Max Air Volume | 7.6 m³/min |
| Max Static Pressure | 2.25 kPa |
| Blower Motor Capacity | 400 W |
 |
|
| Model |
YU-750HM |
|---|---|
| Max Inlet Air Temp. | 500 °C |
| Max Air Volume | 12.4 m³/min |
| Max Static Pressure | 3.85 kPa |
| Blower Motor Capacity | 750 W |
|
|
| Model |
YU-1500HM |
|---|---|
| Max Inlet Air Temp. | 500 °C |
| Max Air Volume | 17.5 m³/min |
| Max Static Pressure | 6.15 kPa |
| Blower Motor Capacity | 1500 W |
|
|
| Model |
YU-130M |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 5.4 m³/min / 4.5 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 0.86 kPa / 1.20 kPa |
| Blower Motor Capacity | 130 W |
 |
|
| Model |
YU-250M |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 9.3 m³/min / 7.5 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 1.08 kPa / 1.55 kPa |
| Blower Motor Capacity | 250 W |
|
|
| Model |
YU-400 |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 16.1 m³/min / 12.4 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 0.93 kPa / 1.37 kPa |
| Blower Motor Capacity | 400 W |
|
|
| Model |
YU-750M |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 19 m³/min / 12 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 1.78 kPa / 2.55 kPa |
| Blower Motor Capacity | 750 W |
|
|
| Model |
YU-1500M |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 30 m³/min / 23 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 2.10 kPa / 2.90 kPa |
| Blower Motor Capacity | 1500 W |
|
|
| Model |
YU-2200 |
|---|---|
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume (50 Hz / 60 Hz) | 38.7 m³/min / 29.0 m³/min |
| Max Static Pressure (50 Hz / 60 Hz) | 2.65 kPa / 3.78 kPa |
| Blower Motor Capacity | 2200 W |
|
|
For pricing, customization, or technical consultation, please contact us:
sales@kansaidennetsu.co.jp
