Unit Heater (High Airflow Type)

High-airflow, low-noise, energy-efficient unit heater



  • A model combined a heater, ventilation fan, and temperature controller.
    Can be installed indoors at ambient temperatures from room temperature up to 50 °C.


  • Ready for operation by simply connecting the power supply cable.


  • Intermittent operation function is provided as standard.



Unit Heater Overview

  • Maximum continuous operating temperature:50 °C
  • Temperature adjustable in 1 °C increments up to 50 °C (UHPF-TC)
  • Heater capacity: 5 kW to 20 kW
  • Equipped with a high-airflow pressure-type ventilation fan
  • Includes airflow direction guide
  • Suitable for floor mounting or suspended installation
  • Ventilation-fan motor capacity: 25 W / 200 W
  • Built-in overheat protector (cuts off heater at 101 °C)
  • Installing the unit near the ceiling promotes air circulation, reduces temperature differences between ceiling and floor, and improves energy efficiency.
  • Typical applications:
    • Factory space heating and condensation prevention
    • Heat source for fermentation rooms
    • Moisture drying of ceramics
    • Indoor air circulation for heating (circulator use)
Operation manual


Model Lineup

UHPF-25-TC 2UHPF-25-TC UHPF-40-TC 2UHPF-40-TC


Typical Applications

Note: Some illustrations may contain Japanese text.


  • Bean sprout cultivation
  • Prevention of material solidification during winter
  • Bean sprout cultivation
  • Prevention of material solidification during winter


Our products can also be used for many other applications. Please feel free to contact us for further consultation.


Related Products

Multi-Dryer  C Series  H Series  P Series  KD Series  HT Series  Portable Dryer


Standard Specifications List

Model

UHPF-25-TC
Model No. N/A
Power Supply (50/60 Hz) 3-phase 200 V
Heater Capacity 5 kW
Temp. Rise at Max Airflow (50/60 Hz) +16 °C / +14 °C
Max Inlet Air Temp. 50 °C
Max Airflow (50/60 Hz) 19 / 22 m³/min

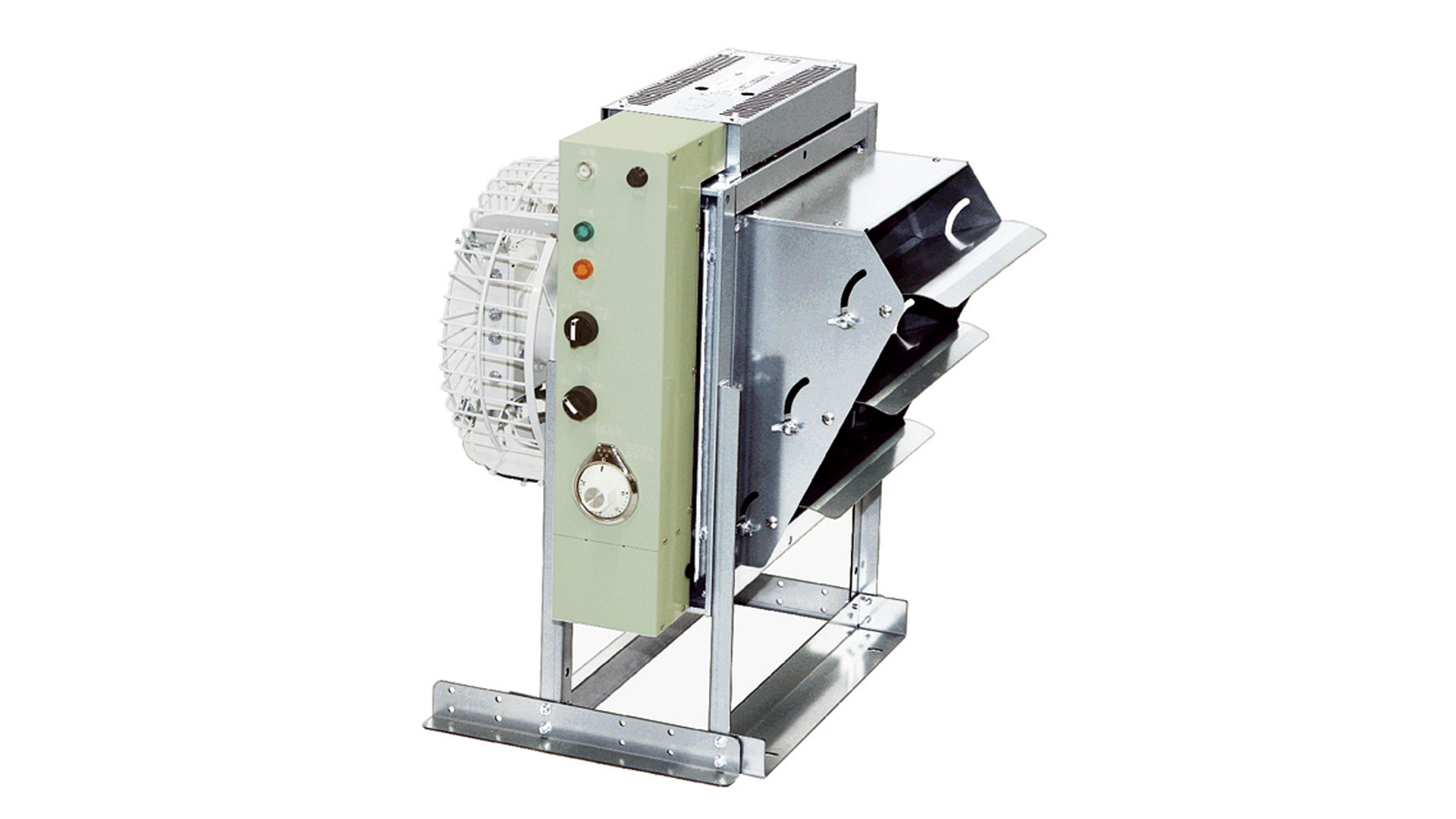

UHPF-25-TC
Outline Drawing
Model

2UHPF-25-TC
Model No. N/A
Power Supply (50/60 Hz) 3-phase 200 V
Heater Capacity 10 kW
Temp. Rise at Max Airflow (50/60 Hz) +45 °C / +35 °C
Max Inlet Air Temp. 50 °C
Max Airflow (50/60 Hz) 19 / 22 m³/min

UHPF-25-TC
*Image shown is UHPF-25-TC.
Outline Drawing
Model

UHPF-40-TC
Model No. N/A
Power Supply (50/60 Hz) 3-phase 200 V
Heater Capacity 10 kW
Temp. Rise at Max Airflow (50/60 Hz) +8.8 °C / +7.6 °C
Max Inlet Air Temp. 50 °C
Max Airflow (50/60 Hz) 64 / 73 m³/min
UHPF-40-TC
Outline Drawing
Model

2UHPF-40-TC
Model No. N/A
Power Supply (50/60 Hz) 3-phase 200 V
Heater Capacity 20 kW
Temp. Rise at Max Airflow (50/60 Hz) +20 °C / +17 °C
Max Inlet Air Temp. 50 °C
Max Airflow (50/60 Hz) 64 / 73 m³/min

UHPF-40-TC
*Image shown is UHPF-40-TC.
Outline Drawing
