P Series (Medium Static Pressure) 熱風発生機 P型シリーズ
The Definitive Electric Hot Air Generator Solution
◆An integrated medium static pressure hot air generator combining the heater, control panel, and heat-resistant blower, equipped with an inverter for hot air circulation applications.
◆Energy-saving design that enables recirculation of high-speed hot air previously discharged to exhaust.
◆Easy installation – ready for operation simply by connecting the power supply cable.
◆With intermittent operation function.
電気式熱風発生機の決定版！！
◆ヒータ、操作盤、耐熱電動送風機が一体となり、インバータを搭載した熱風循環対応の中風圧熱風発生機です。
◆従来、排気処理を行っていた高速熱風が循環可能となる省エネタイプの熱風発生機です。
◆電源ケーブルを接続するだけでご使用できます。
◆間欠運転機能を標準搭載しています。
P Series Overview P型シリーズ概要
- Maximum continuous operating temperature: 350 °C
- Heater capacity: 5 kW to 20 kW
- Equipped with high-efficiency honeycomb block heater
- Includes inverter for airflow adjustment (adjustable from 20 to 60 Hz)
→ Energy-saving - All models equipped with heat-resistant blower for hot air circulation
→ Energy-saving - Blower motor capacity: 400 W to 2200 W
- All models equipped with I/O service terminals
- Equipped with multiple built-in safety circuits using high-reliability thermocouples
- Supports remote control panels, airflow direction change, and multiple voltage ratings (factory-set to order; please specify at purchase)
- Programmable timer: set from 1 minute to 99 hours 59 minutes, in 1-minute increments
• Hot air circulation temperature:
• Up to 170 °C
- 連続使用最高温度 ３５０℃
- ヒータ容量5kW～20kW
- 高効率ハニカムブロックヒータ搭載
- 全機種 風量調節用インバータ搭載（20～60Hz可変）省エネ！
- 全機種 熱風循環用耐熱送風機搭載（熱風循環温度170℃以下） 省エネ！
- 送風機電動機容量400W～2200W
- 全機種入出力サービス端子付
- 各種安全回路内蔵（各種安全装置に高信頼性の熱電対採用）
- 遠隔操作盤・方向変更・異電圧等にも対応可能
- タイマ1分刻みで1分～99時間59分設定可能

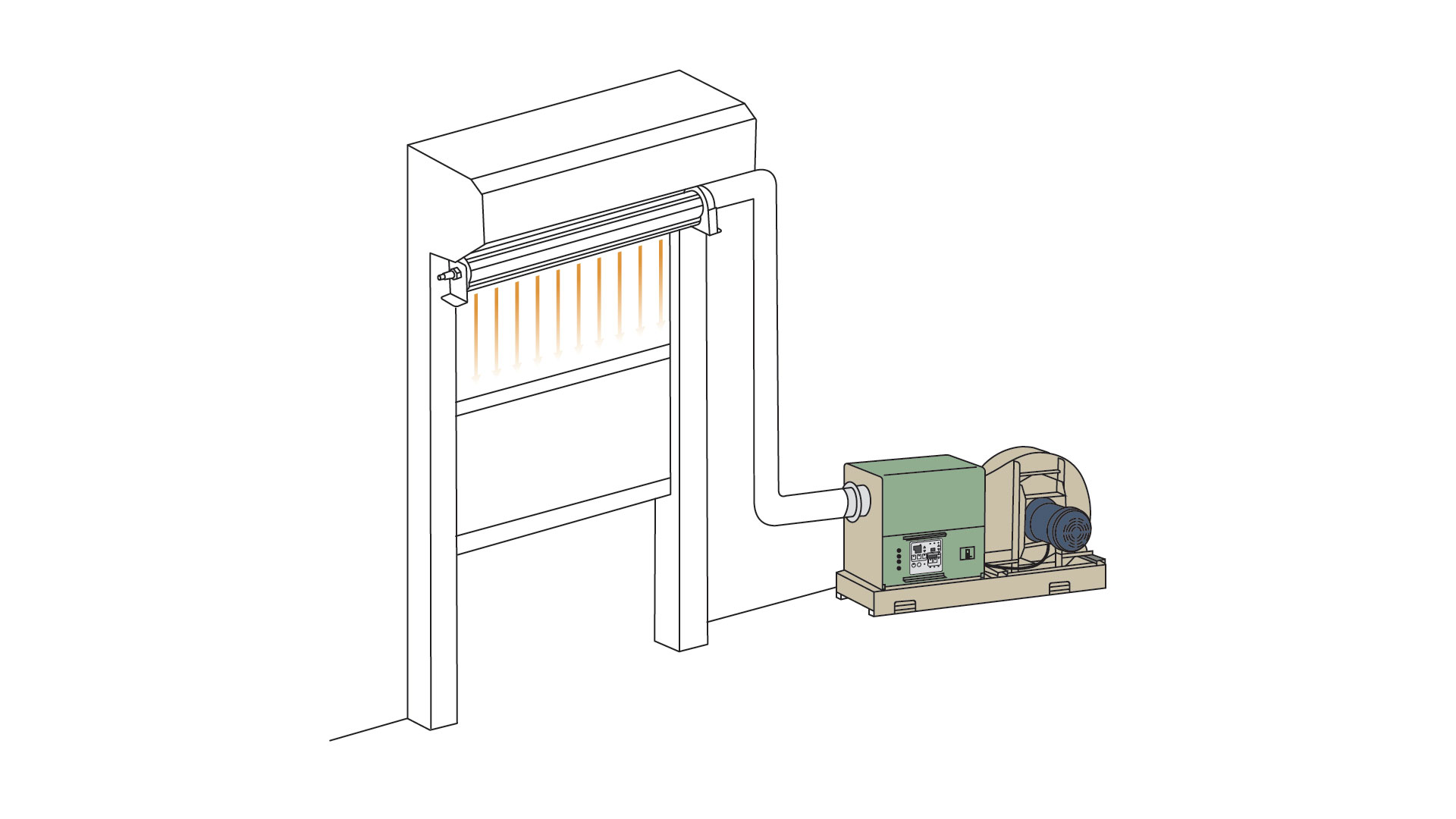

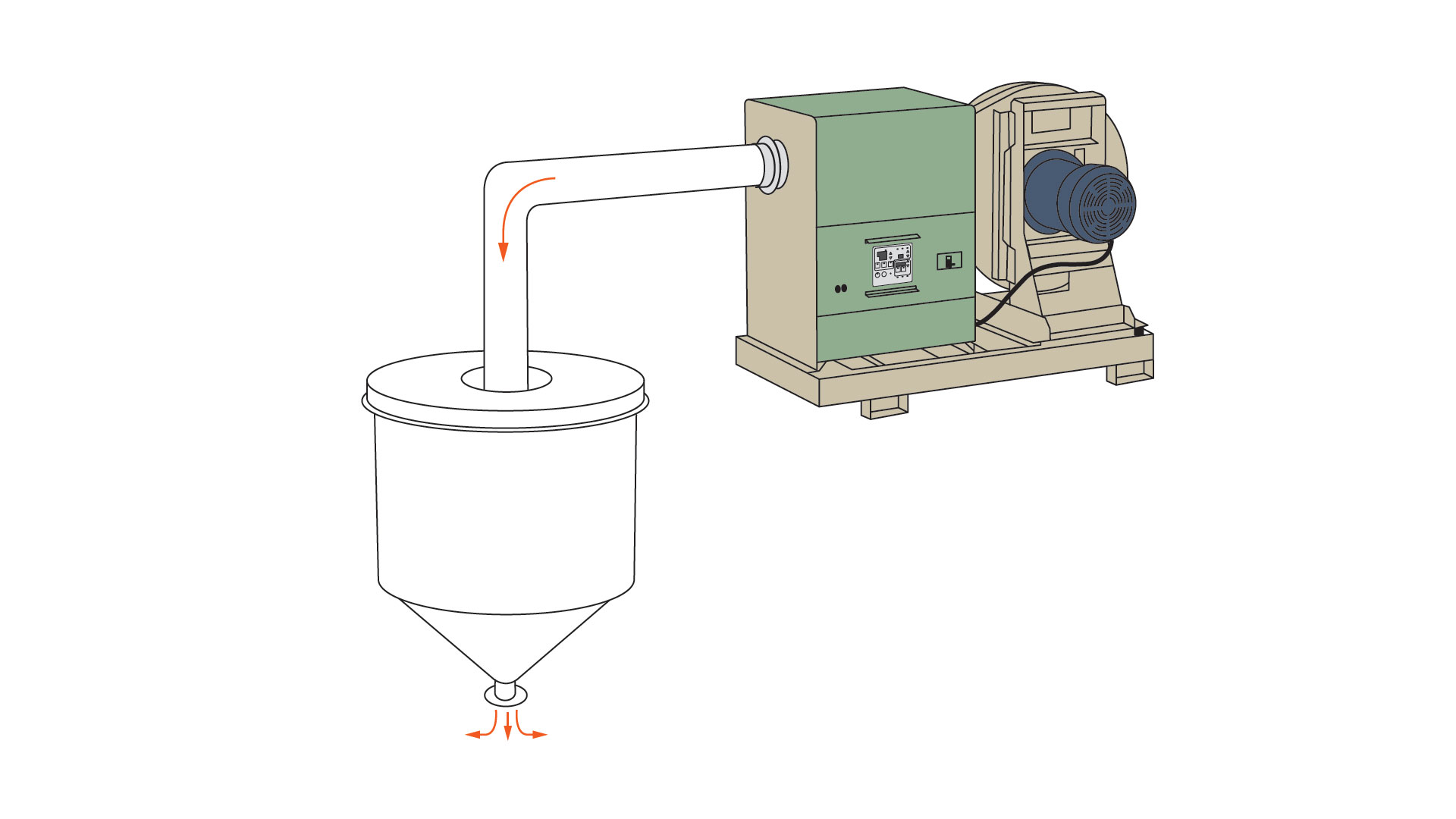

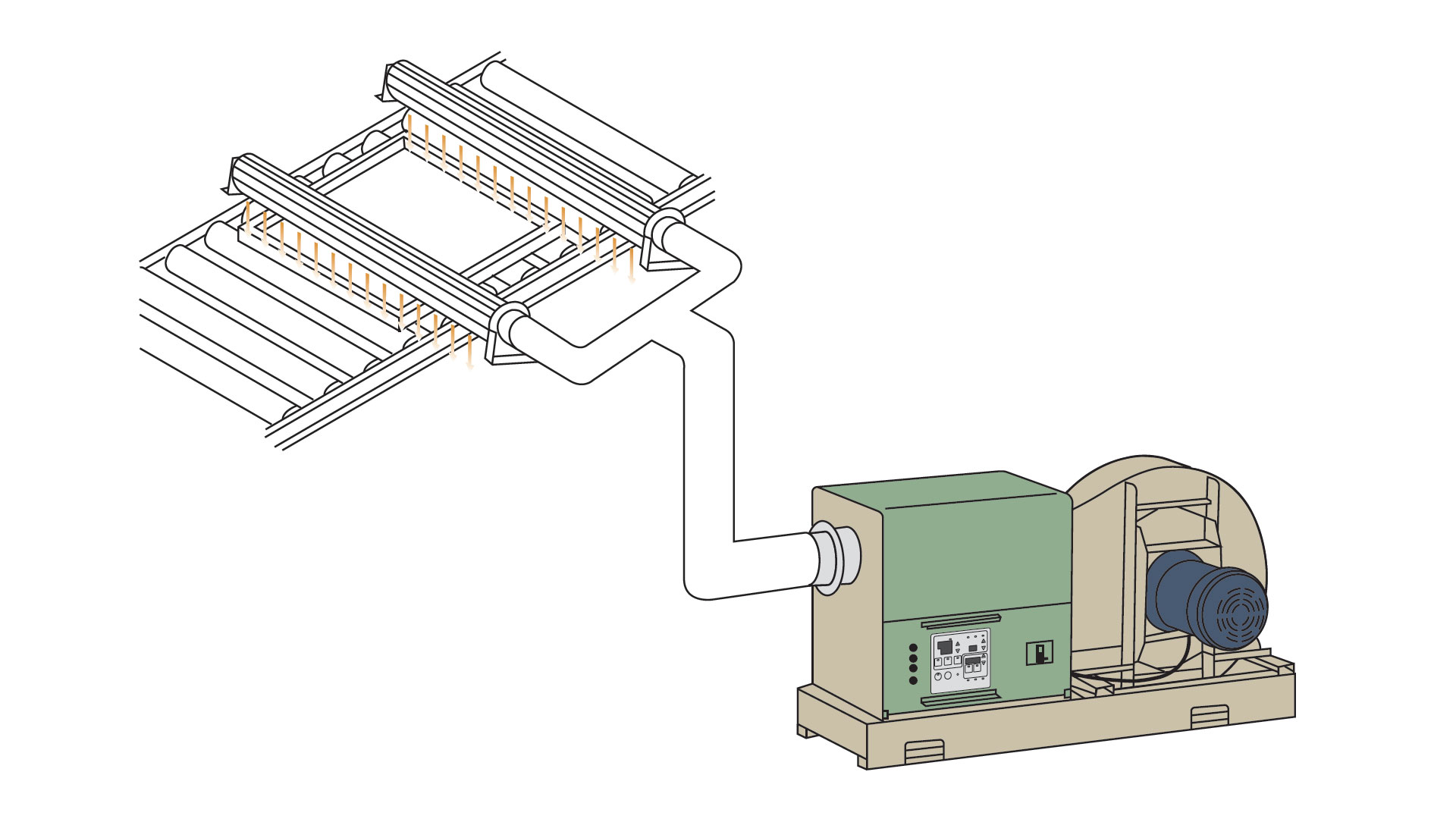

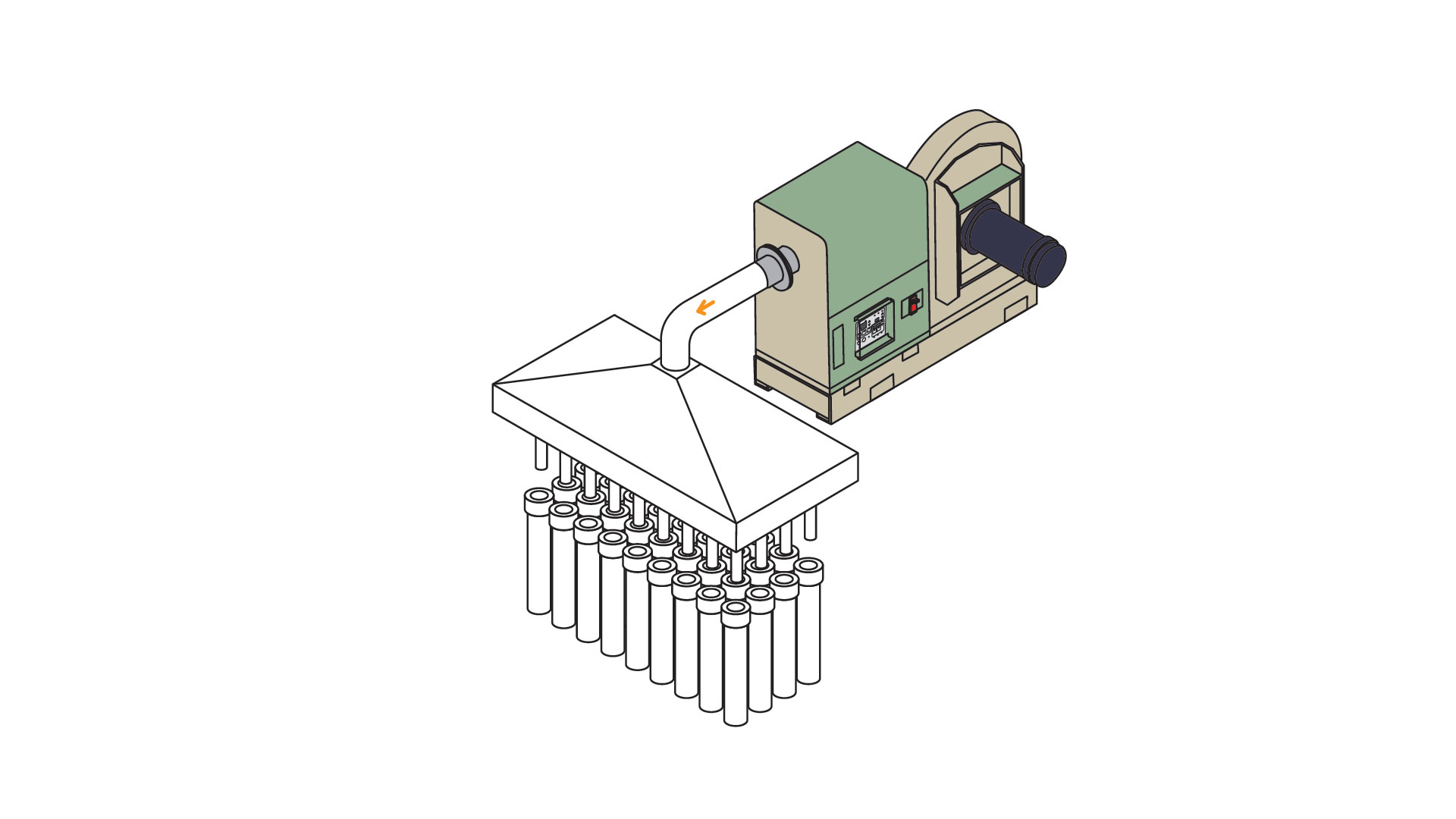

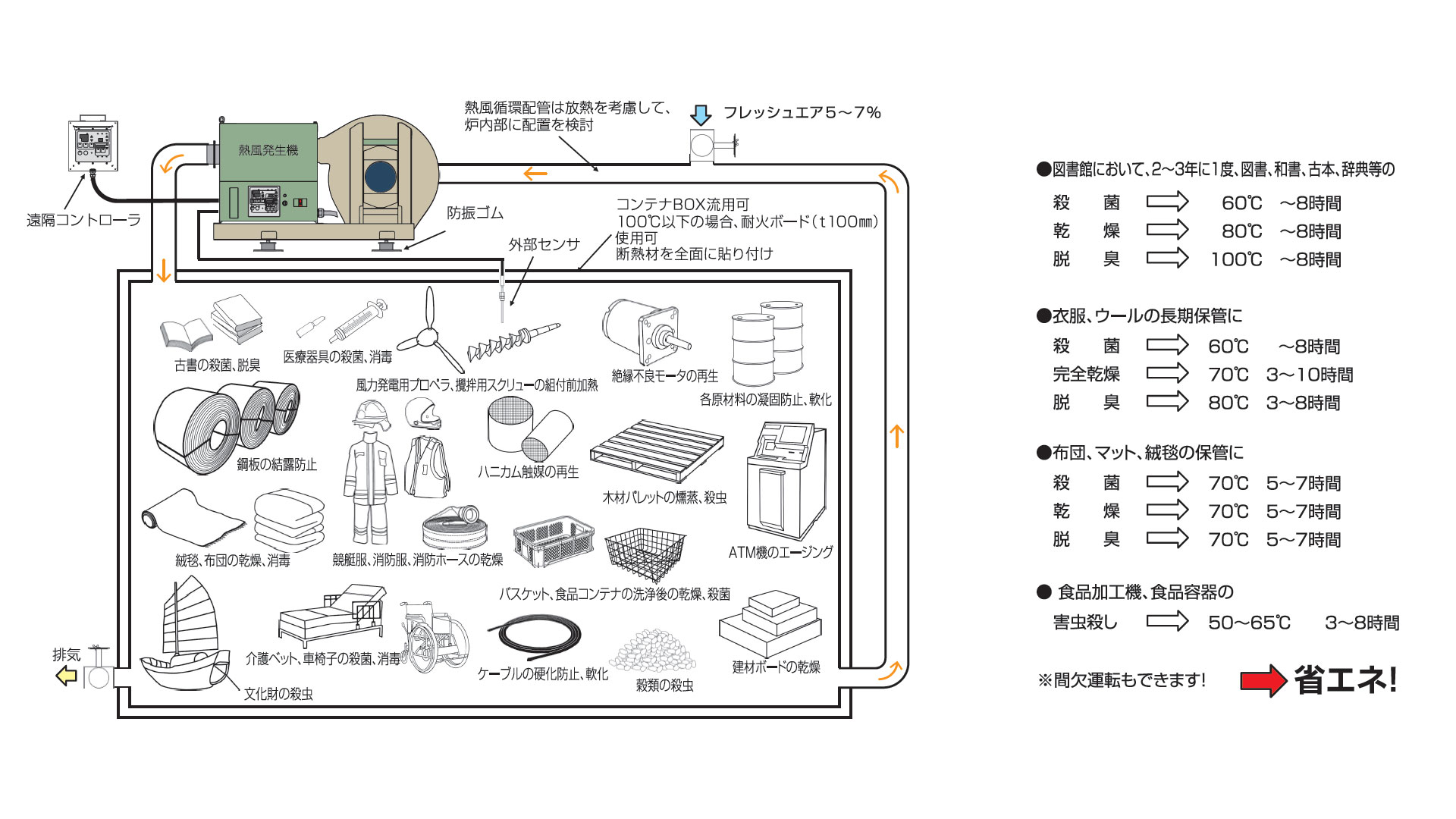

Typical Applications 用途例
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Standard Specifications List
Note: Model numbers vary depending on the voltage specification.
For 380 V-480 V models, the prefix is 3380-.
Please specify the required voltage when placing your order.
| Model |
TSK-24P |
|
|---|---|---|
| Model Nos. | 3380-480-5C-04PY-LB | 3380-480-7.5C-04PY-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 5 kW | 7.5 kW |
| Max Hot Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 170 °C | |
| Max Air Volume | 4.5 m³/min | |
| Max Static Pressure | 3.4 kPa | |
 |
|
|
| Model |

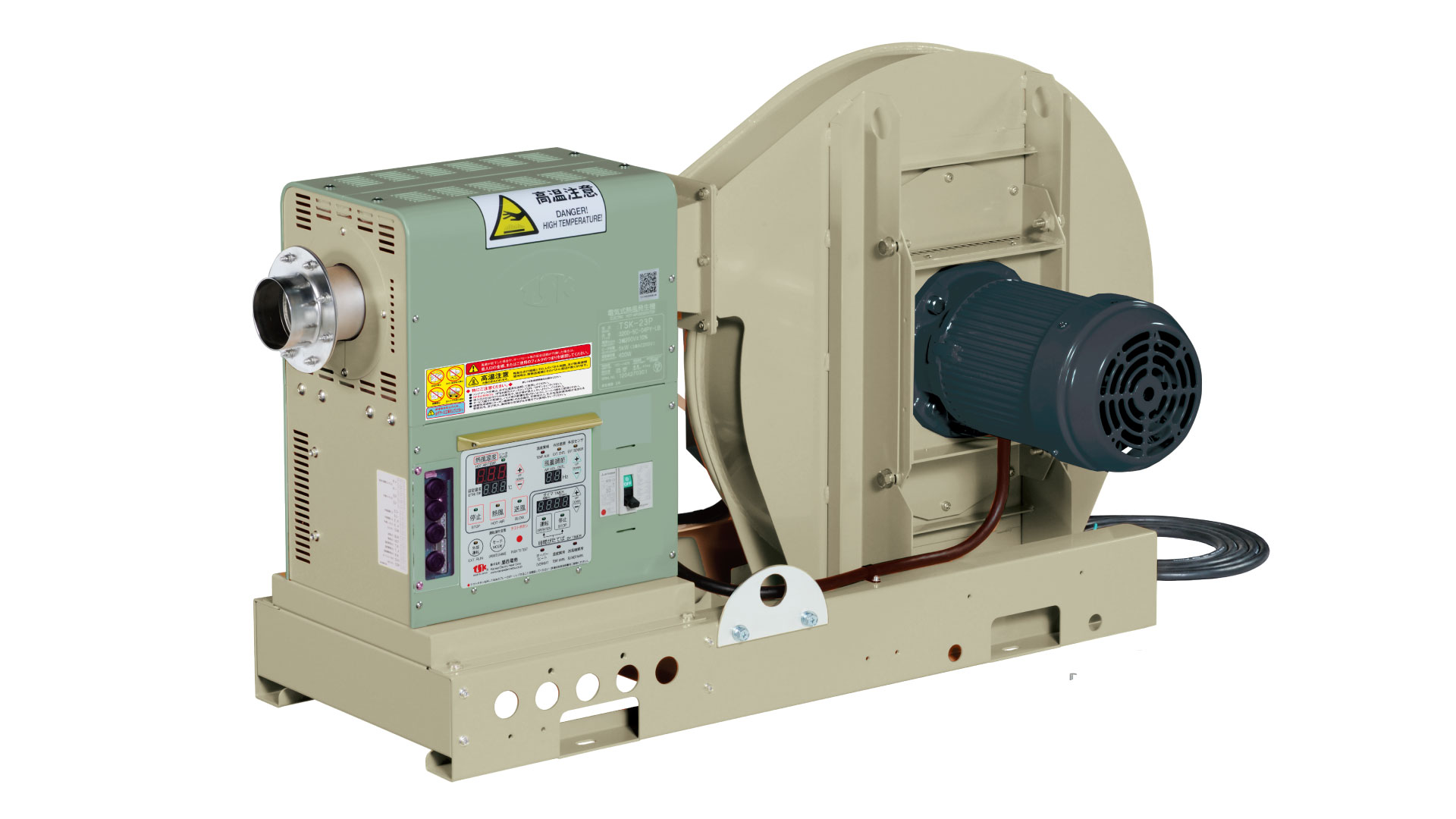

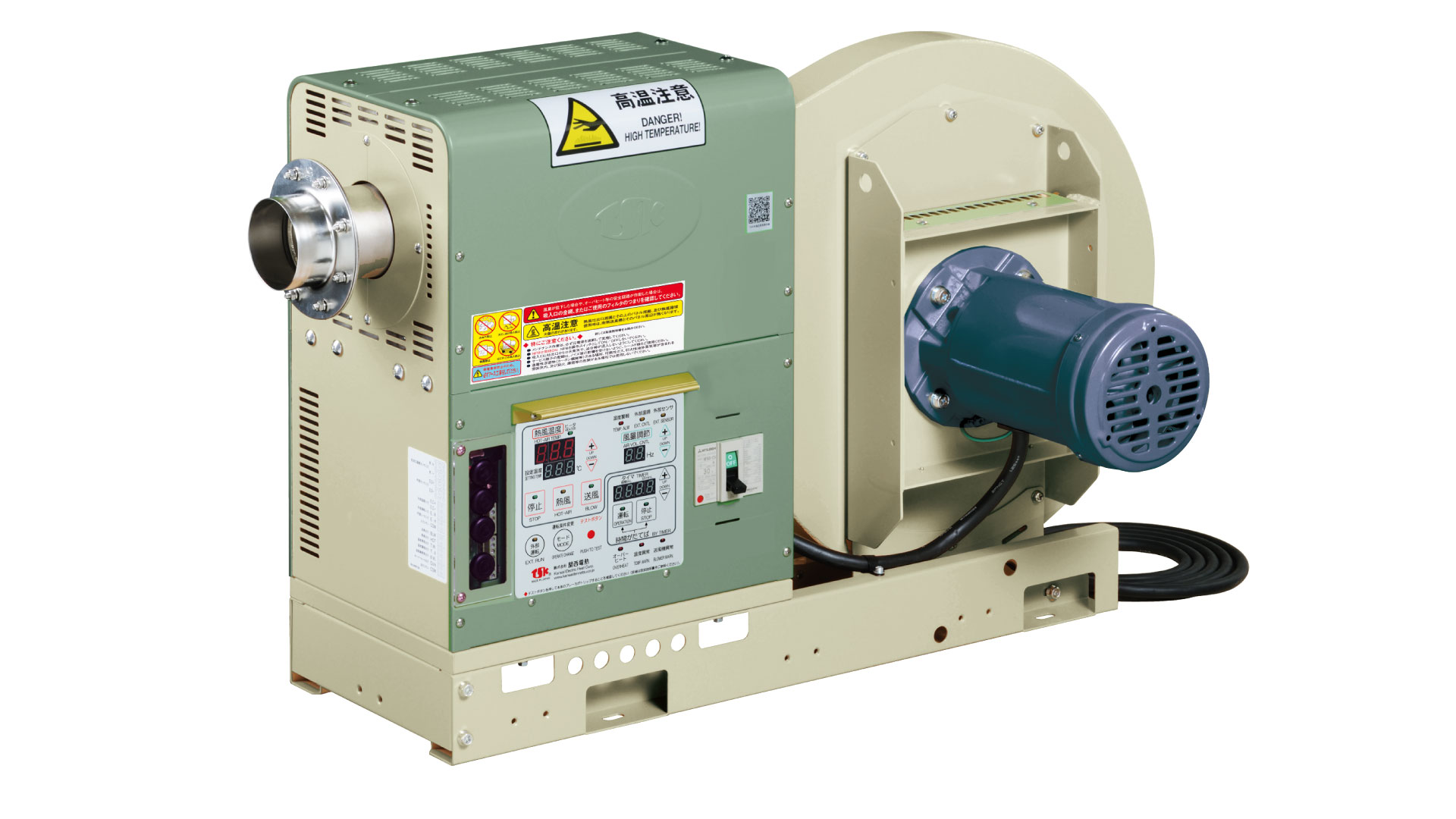

TSK-24PS |
|---|---|
| Model No. | 3200-7.5C-1.5PY-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 7.5 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 170 °C |
| Max Air Volume | 10.2 m³/min |
| Max Static Pressure | 5.9 kPa |
 |
|
| Model |

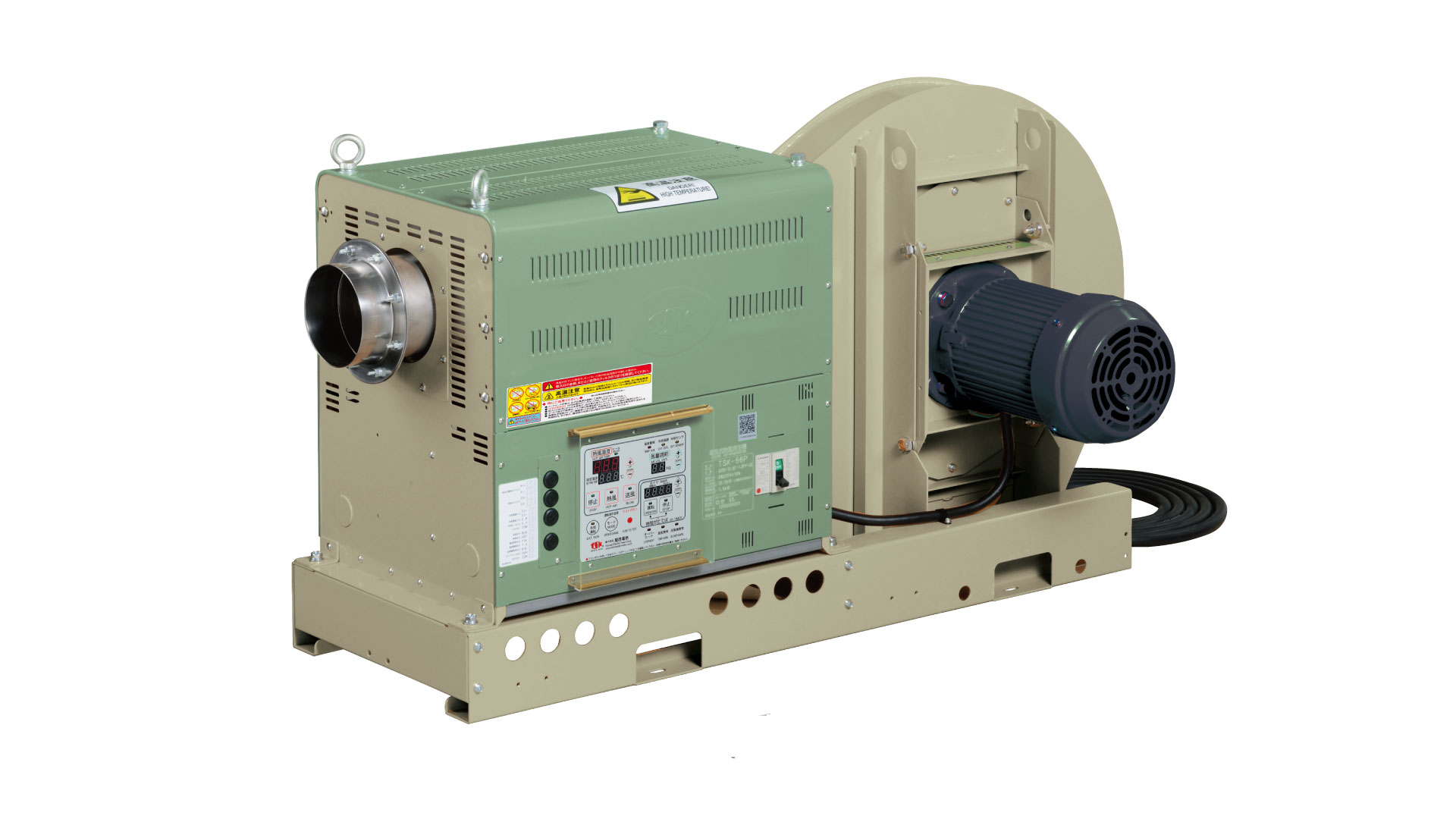

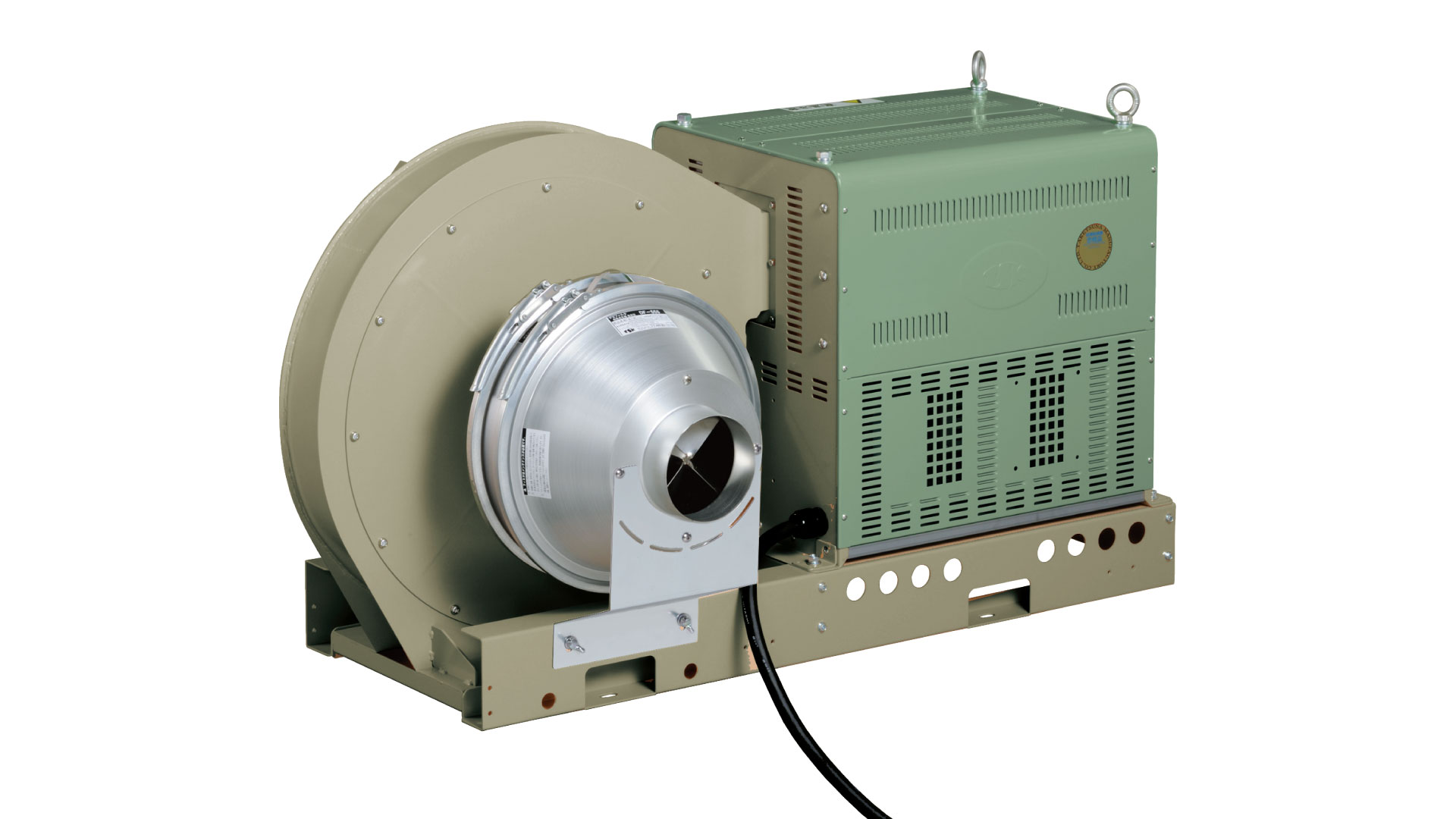

TSK-56P |
|---|---|
| Model No. | 3200-12.5C-1.5PY-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 12.5 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 170 °C |
| Max Air Volume | 16.5 m³/min |
| Max Static Pressure | 5.9 kPa |
 |
|
| Model |

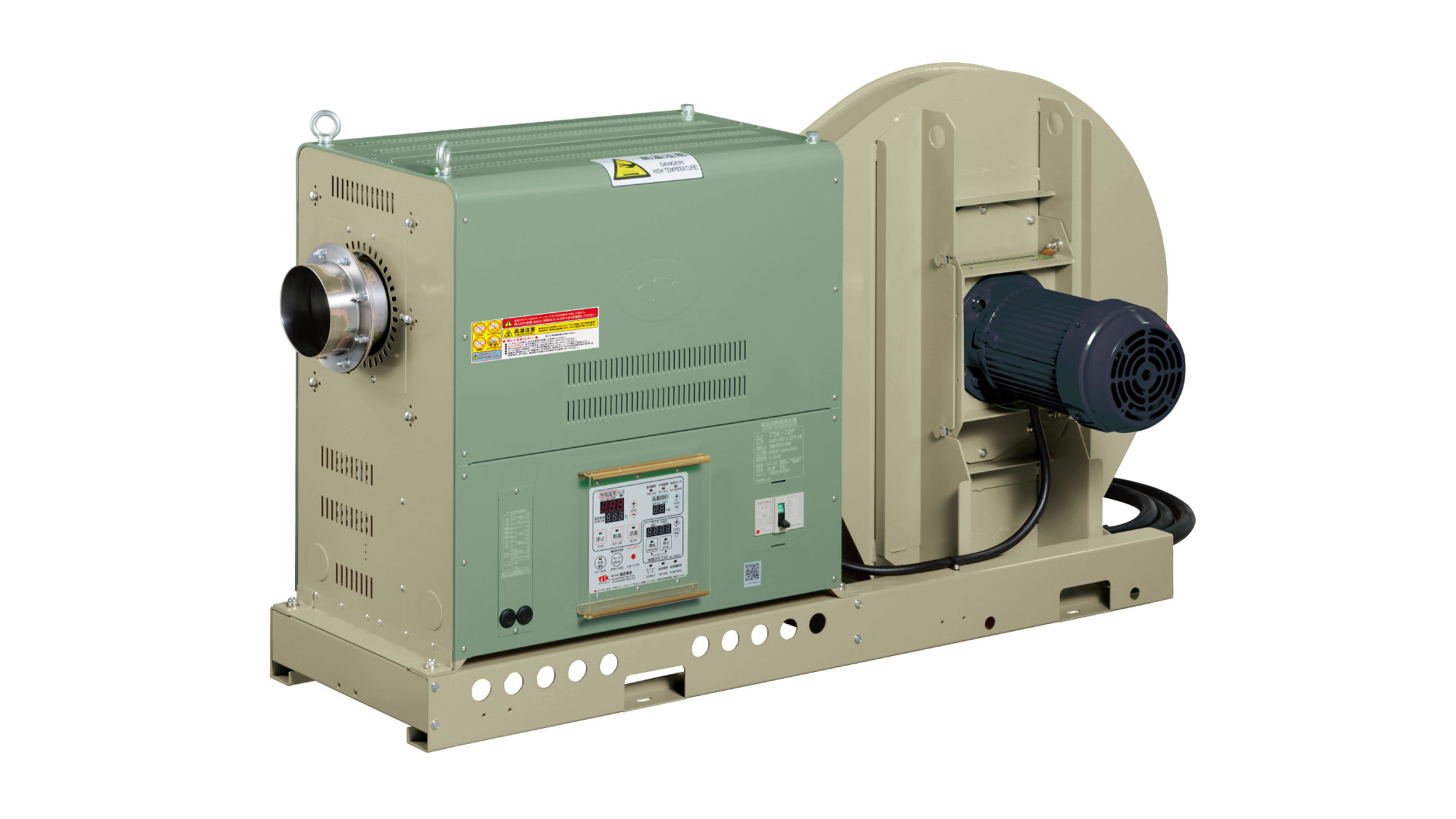

TSK-72P |
|---|---|
| Model No. | 3200-20C-2.2PY-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 20 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 170 °C |
| Max Air Volume | 20.3 m³/min |
| Max Static Pressure | 6.5 kPa |
 |
|
Optional Accessories オプション品
|
|
Can be installed away from the main unit and operated remotely. Retrofit available for standard models. TSK-24P / 24PS / 56P: RCS-10MC TSK-72P: RCT-10MC |
|
|
Temperature sensor (K-type thermocouple) for controlling internal temperature of drying ovens and similar equipment. |
|
|
Available only at factory shipment (Made-to-order) Prevents dust from entering the motor interior |
|
|
|
工場出荷時のみ(受注品) モータ内部に粉塵が入るのを防止 |
|
|

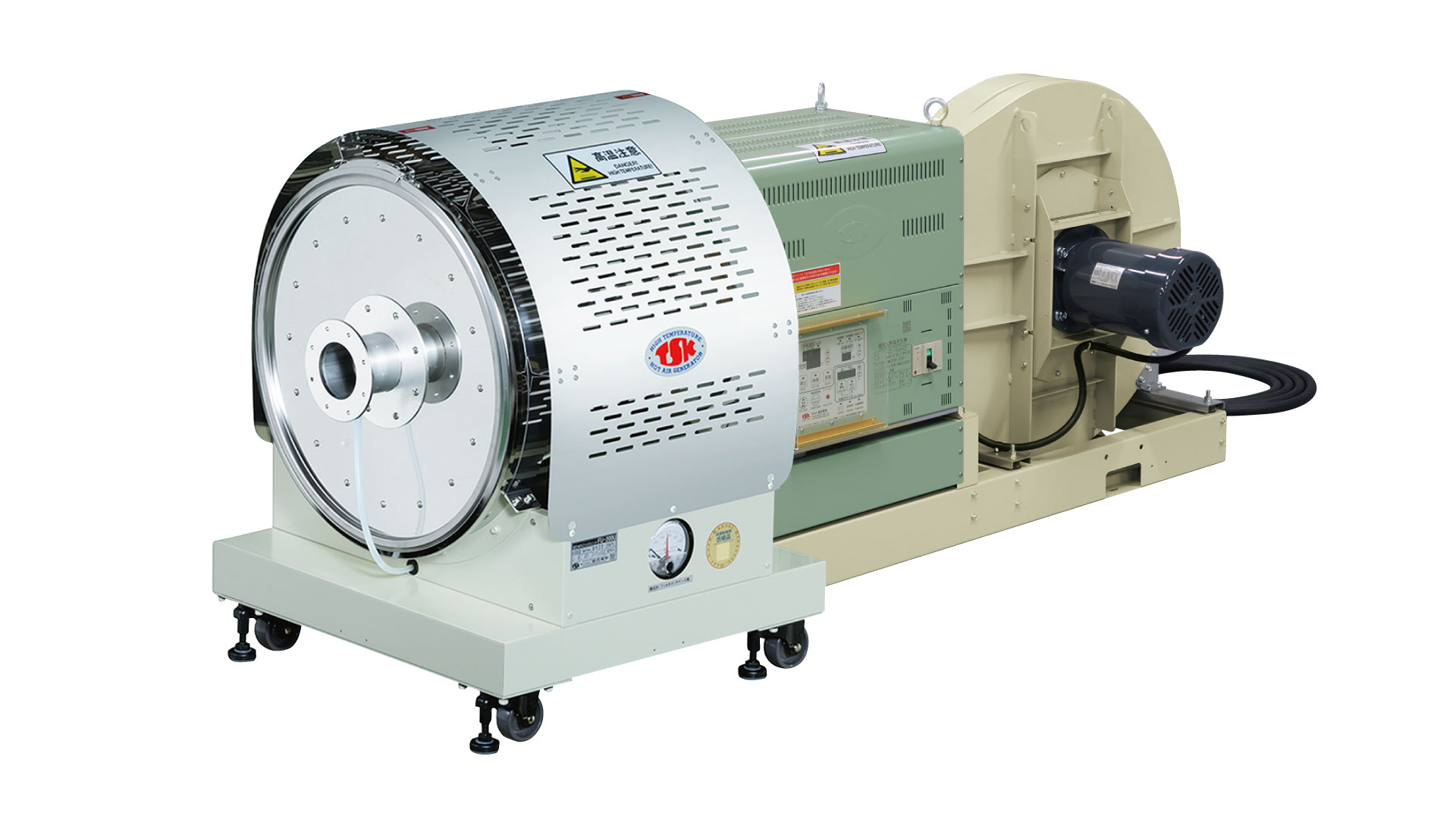

Cuts energy costs using exhaust heat. Copper and stainless options available. |
|
|
For hot air circulation Heat-resistant up to 260 °C Easily removes oil mist and other airborne contaminants. Washable and reusable. |
|
|
One-Way Flow Heat-resistant up to 80 °C Removes approx. 93% of dust particles ≥ 3 µm. Washable and reusable. |
|
|
(Optional) Cleanroom compatible, heat-resistant up to 250 °C. Removes 99.97% of dust particles ≥ 0.3 µm. Filter can be replaced without removing the piping. |
|
|
HEPA Filter Box with Thermal Insulation (Optional) Cleanroom compatible, heat-resistant up to 250 °C. Removes 99.97% of dust particles ≥ 0.3 µm. Filter can be replaced without removing the piping. |
|
|
|
(オプション) クリーンルーム対応 耐熱250℃ 0.3㎛以上の粉塵を99.97%除去 配管をしたままでフィルタの交換が可能 |
