Hot Air Generator – KD Series 熱風発生機　KDシリーズ

The definitive electric hot air drying solution!



  • An electric hot air dryer that integrates the heater, control panel, and heat-resistant motor blower into a single unit, designed for unattended continuous operation 365 days a year.


  • Equipped with a high-efficiency multi-stage blower that supports hot air circulation for energy-efficient drying.


  • Ideal for rapid water-removal drying lines using nozzles.
    The KD Series supports hot air recirculation systems, and heat exchangers are also supported for improved energy efficiency.


    * Heat exchangers are optional products manufactured by Kansai Electric Heat Corp.
    Learn more



  • Ready for operation by simply connecting the power cable.


  • Intermittent operation function included as standard.



電気式熱風乾燥機の決定版！！



◆ヒータ、操作盤、耐熱電動送風機が一体となった、３６５日無人連続運転が可能な電気式熱風乾燥機です。


◆熱風循環型高効率多段ブロワを搭載した電気式熱風発生機です。


◆ノズルによる急速水切乾燥ラインにて、熱風循環システムが採用できます。また、当社製熱交換器の取り付けも可能です。


◆電源ケーブルを接続するだけでご使用できます。


KDシリーズ概要

  • Maximum continuous operating temperature: 350 °C
  • Heater capacity: 9 kW to 30 kW
  • Equipped with a high-efficiency multi-stage blower, achieving approximately 80% energy savings
    compared with conventional high-pressure blowers.
  • Discharge air pressure: 12 kPa or higher
  • Equipped with a high-efficiency honeycomb block heater
  • Includes inverter for airflow control
    (variable frequency: 20 to 60 Hz) → Energy-saving
  • All models equipped with a heat-resistant blower for hot air circulation) → Energy-saving
    (Hot air circulation temperature limits)
      • KD-56H2 / KD-83H2: up to 200 °C
      • KD-82H5: up to 165 °C
  • Blower motor capacity: 2.2 kW to 11 kW
  • Demi filter included as standard on all models
  • All models equipped with I/O service terminals
  • Equipped with multiple built-in safety circuits
    (High-reliability thermocouples used for all safety devices)
  • Supports remote control panels, airflow direction changes, and different voltage specifications
  • Programmable timer:
    Adjustable in 1-minute increments, from 1 minute to 99 hours 59 minutes



保証期間３年(KD-82H5は2年)

  • 連続使用最高温度　３５０℃
  • ヒータ容量9kW～30kW
  • 従来の高風圧ブロワと比較して、約80%の省エネ 高効率多段ブロワ搭載
  • 吐出風圧12kPa以上
  • 高効率ハニカムブロックヒータ搭載
  • 風量調節用インバータ搭載（20～60Hz可変）省エネ！
  • 全機種熱風循環用耐熱送風機搭載　省エネ！

    • （熱風循環温度　KD-56H2・83H2：200℃以下・KD-82H5：165℃以下）

  • 送風機電動機容量2.2kW～11kW
  • 全機種デミフィルタ標準装備
  • 全機種入出力サービス端子付
  • 各種安全回路内蔵（各種安全装置に高信頼性の熱電対採用）
  • 遠隔操作盤・方向変更・異電圧等にも対応可能
  • タイマ1分刻みで1分～99時間59分設定可能
Operation manual


Model Lineup 型式ラインナップ

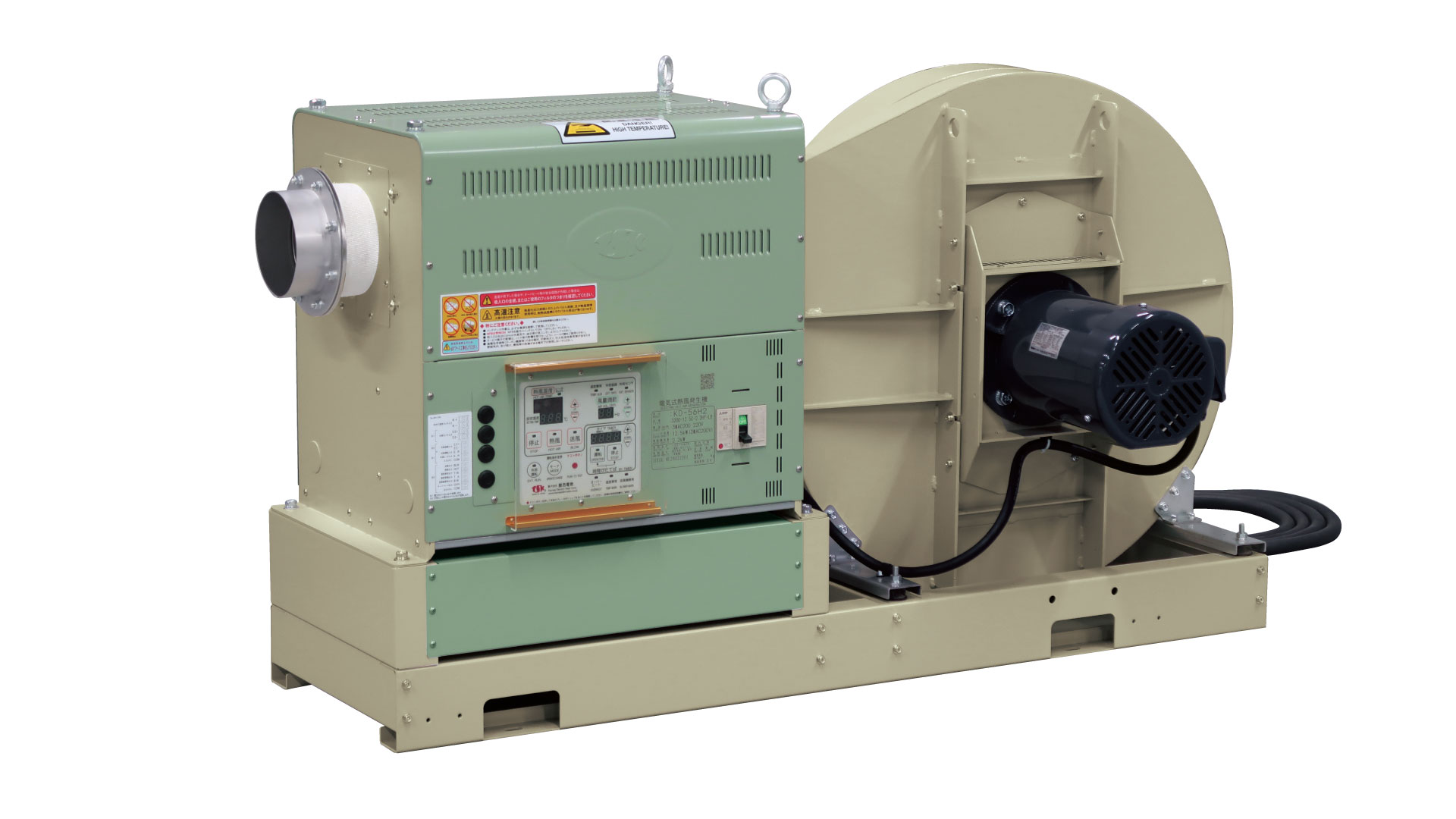

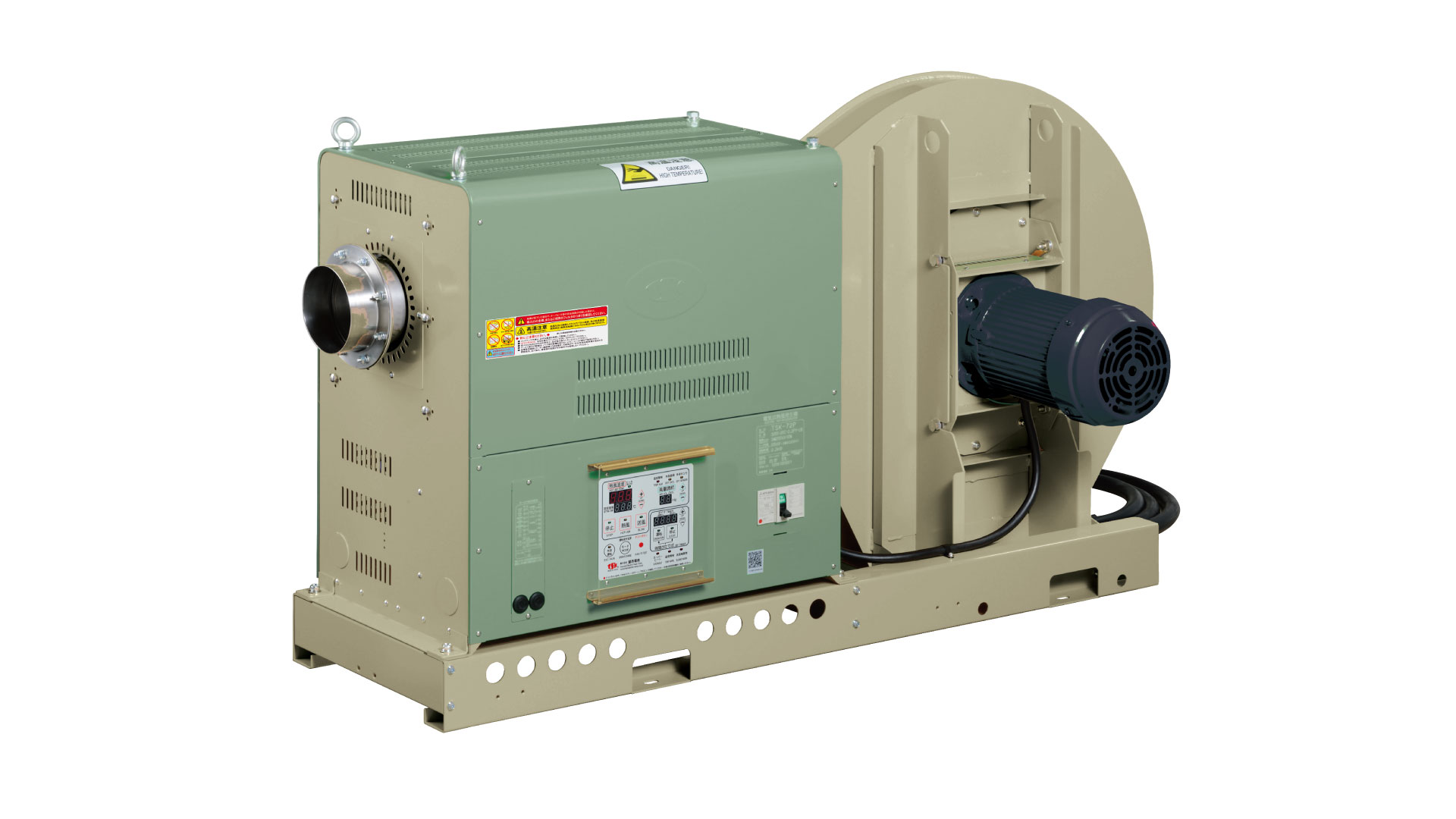

KD-56H2 KD-83H2 KD-82H5


Typical Applications 用途例

Note: Some illustrations may contain Japanese text.


  • Sterilization, drying, and deodorization processes
  • Hot-air water removal and drying of flat glass
  • Hot-air liquid removal and drying after pickling in rolling processes
  • Air curtain at factory entrances during winter shutter operation
  • Heat source for fluidized drying and molding drying
  • Pellet drying inside hoppers
  • Hot-air drying systems for chambers requiring moderate pressure
  • Drying of tank lorries
  • Complete drying, sterilization, and mold prevention after washing pipes and hoppers for food and pharmaceutical transport
  • Sterilization, drying, and deodorization processes
  • Hot-air water removal and drying of flat glass
  • Hot-air liquid removal and drying after pickling in rolling processes
  • Air curtain at factory entrances during winter shutter operation
  • Heat source for fluidized drying and molding drying
  • Pellet drying inside hoppers
  • Hot-air drying systems for chambers requiring moderate pressure
  • Drying of tank lorries
  • Complete drying, sterilization, and mold prevention after washing pipes and hoppers for food and pharmaceutical transport


Our products can also be used for many other applications. Please feel free to contact us for further consultation.


Related Products 類似品

Multi-Dryer  C Series  H Series  P Series  HT Series  Unit Heater  Portable Dryer

Standard Specifications List

Note: Model numbers vary depending on the voltage specification.
For 380 V–480 V models, the prefix is 3380-.
Please specify the required voltage when placing your order.


Model

KD-56H2
Model Nos. 3380-480-9C-2.2HY-LB 3380-480-12.5C-2.2HY-LB
Power Supply

3-phase 380 V / 400 V / 415 V, 50/60 Hz
3-phase 440 V / 480 V, 60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 9 kW 12.5 kW
Max Outlet Air Temp. 350 °C
Max Inlet Air Temp. 200 °C
Max Air Volume 10.0 m³/min
Max Static Pressure 13.0 kPa
KD-56H2
Performance Curve
Outline Drawing
Model

KD-83H2
Model No. 3380-480-30C-7.5HY-LB
Power Supply

3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 30 kW
Max Outlet Air Temp. 350 °C
Max Inlet Air Temp. 200 °C
Max Air Volume 25.5 m³/min
Max Static Pressure 19.0 kPa
KD-83H2
Performance Curve
Outline Drawing
Model

KD-82H5
Model No. 3380-480-30C-11HY-L
Power Supply

3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 30 kW
Max Outlet Air Temp. 350 °C
Max Inlet Air Temp. 165 °C
Max Air Volume 19.5 m³/min
Max Static Pressure 24.0 kPa
KD-82H5
Performance Curve
Outline Drawing

遠隔コントローラ

遠隔コントローラ

本体と離れた場所に設置・操作ができ、標準タイプには後付け可能


TSK-24P･24PS･56P：RCS-10MC

TSK-72P： RCT-10MC
外部センサ(K)　K350A

外部センサ

乾燥炉等の炉内部の温度制御用の温度センサ(K熱電対)
FW防塵フィルタ

FW防塵フィルタ

工場出荷時のみ(受注品)

モータ内部に粉塵が入るのを防止
熱交換器

熱交換器

排気熱を再利用し、電気代、CO₂排出量削減！

用途に合わせて銅仕様とステンレス仕様をご用意
デミフィルタ

デミフィルタ

熱風循環用　耐熱260℃

空気中に含まれる油分などのミストを簡単に除去

洗浄再生可能
CRフィルタ

CRフィルタ

一方通行用　耐熱80℃

3㎛以上の粉塵を約93%除去

洗浄再利用可能
断熱材付HEPAフィルタBOX

断熱材付HEPAフィルタBOX

(オプション)

クリーンルーム対応　耐熱250℃

0.3㎛以上の粉塵を99.97%除去

配管をしたままでフィルタの交換が可能
耐圧HEPAフィルタユニット

耐圧HEPAフィルタユニット

(オプション)

クリーンルーム対応　耐熱250℃

0.3㎛以上の粉塵を99.97%除去

配管をしたままでフィルタの交換が可能
