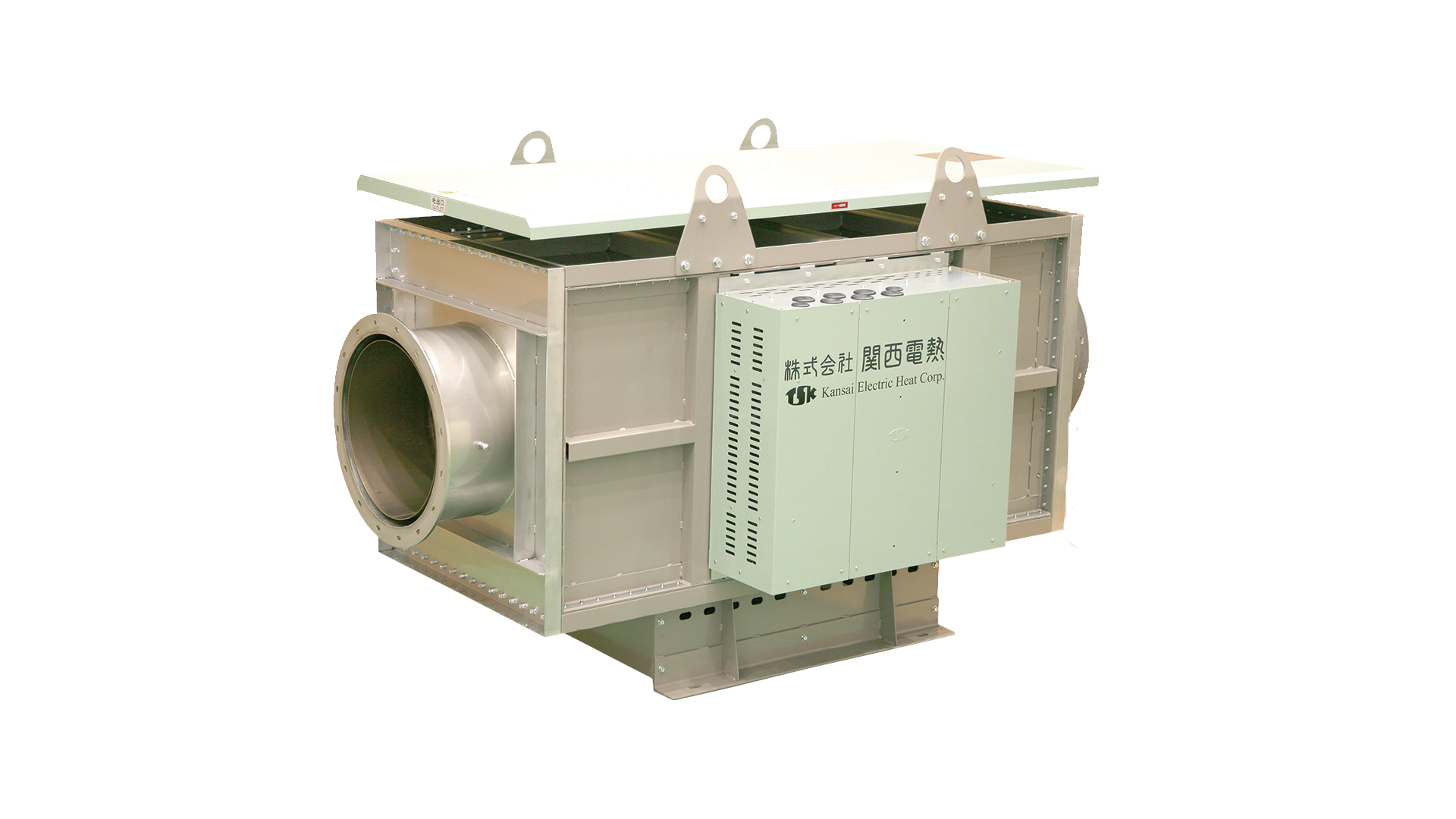

DHX01 Series Electric Hot Air Heater

The DHX01 Series is a high-temperature electric hot air heater capable of producing hot air up to 500 °C for industrial heating, drying, and thermal processing applications.

Electric Hot Air Heater with a Maximum Continuous Operating Temperature of 500 °C



  • Electric hot air heater capable of continuously producing hot air up to 500 °C.
  • Operation can be stopped without a cooling cycle.
  • The use of compact DHX01 block insulators with excellent electrical insulation properties enables a more compact design than conventional block heaters.
  • DHX01 Electric Hot Air Heater 500 °C


DHX01 Series Overview

  • Continuous Operating Temperature: up to 500 °C
  • Heater Capacity: 20 kW to 480 kW
  • All models support hot air recirculation up to 350 °C for improved energy efficiency.
  • Multiple built-in safety circuits incorporating high-reliability thermocouples
  • Different voltage specifications are also available.
  • The use of compact DHX01 block insulators with excellent electrical insulation properties enables a more compact design than conventional block heaters.


Common Specifications (500 °C Type)
  • Rated Operation: Continuous
  • Ambient Temperature: −10 °C to +60 °C
  • Ambient Humidity: Max. 85% RH (non-condensing)
  • Power Supply: DHX01-1L to 4L (3-phase 200 V to 480 V); DHX01-6L to 24L (3-phase 400 V to 480 V)
  • Maximum Inlet Air Temperature: 350 °C
  • Maximum Allowable Internal Pressure: Approx. 30 kPa
  • Hot-Start Operation: 100 °C to 350 °C (when using a dedicated control panel)
  • Outlet Sensor: K-type thermocouple (Sensor A)
  • Overheat Protection Sensor: K-type thermocouple (Sensor B)
  • Main Gas-Contact Materials: Stainless steel (SUS) + carbon steel (SS)
  • Insulation Material: Ceramic wool


Model Lineup

DHX01-1L DHX01-2L DHX01-4L DHX01-6L
DHX01-9L DHX01-12L DHX01-16L DHX01-20L
DHX01-24L


Related Products

TSK-B  Block Heater (BW)  Duct Heater (DH)  Unit Heater (UH/UHPF)  XS Heater  SL Heater


Standard Specifications

* Nm³/min indicates normalized flow at standard conditions.

Model

DHX01-1L
Model No. 3200-20-N500
Power Supply (50/60 Hz) 3-phase 200 V (up to 480 V available)
Heater Capacity 20 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 7.0 m³/min
Min Air Volume 0.8 Nm³/min
Pressure Loss 1.0 kPa (at 3.0 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-2L
Model No. 3200-40-N500
Power Supply (50/60 Hz) 3-phase 200 V (up to 480 V available)
Heater Capacity 40 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 14 m³/min
Min Air Volume 1.6 Nm³/min
Pressure Loss 1.0 kPa (at 6.0 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-4L
Model No. 3200-80-N500
Power Supply (50/60 Hz) 3-phase 200 V (up to 480 V available)
Heater Capacity 80 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 28 m³/min
Min Air Volume 3.2 Nm³/min
Pressure Loss 1.0 kPa (at 12 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-6L
Model No. 3400-120-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 120 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 42 m³/min
Min Air Volume 4.8 Nm³/min
Pressure Loss 1.0 kPa (at 18 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-9L
Model No. 3400-180-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 180 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 63 m³/min
Min Air Volume 7.2 Nm³/min
Pressure Loss 1.0 kPa (at 27 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-12L
Model No. 3400-240-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 240 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 84 m³/min
Min Air Volume 9.6 Nm³/min
Pressure Loss 1.0 kPa (at 36 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-16L
Model No. 3400-320-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 320 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 112 m³/min
Min Air Volume 12.8 Nm³/min
Pressure Loss 1.0 kPa (at 48 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-20L
Model No. 3400-400-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 400 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 140 m³/min
Min Air Volume 16 Nm³/min
Pressure Loss 1.0 kPa (at 60 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
Model

DHX01-24L
Model No. 3400-480-N500
Power Supply (50/60 Hz) 3-phase 400 V (up to 480 V available)
Heater Capacity 480 kW
Max Outlet Air Temp. 500 °C
Max Inlet Air Temp. 350 °C
Max Air Volume 168 m³/min
Min Air Volume 19.2 Nm³/min
Pressure Loss 1.0 kPa (at 72 m³/min)
Body Pressure Rating Approx. 30 kPa
DHX01 Electric Hot Air Heater 500 °C
Performance Curve
Outline Drawing
