SHP Heater Electric Hot Air Heater

Electric Heater for High-Temperature Hot Air Generation



  • High-capacity model of the Spot Heater series
  • Equipped as standard with two K-type thermocouples: an outlet sensor and an internal sensor



高温熱風発生用電気ヒータ



◆スポットヒータの大容量モデルです。



◆吐出センサ、内部センサの２本のＫ熱電対を標準装備しています。

  • SHP Heater lineup for high-temperature hot air generation

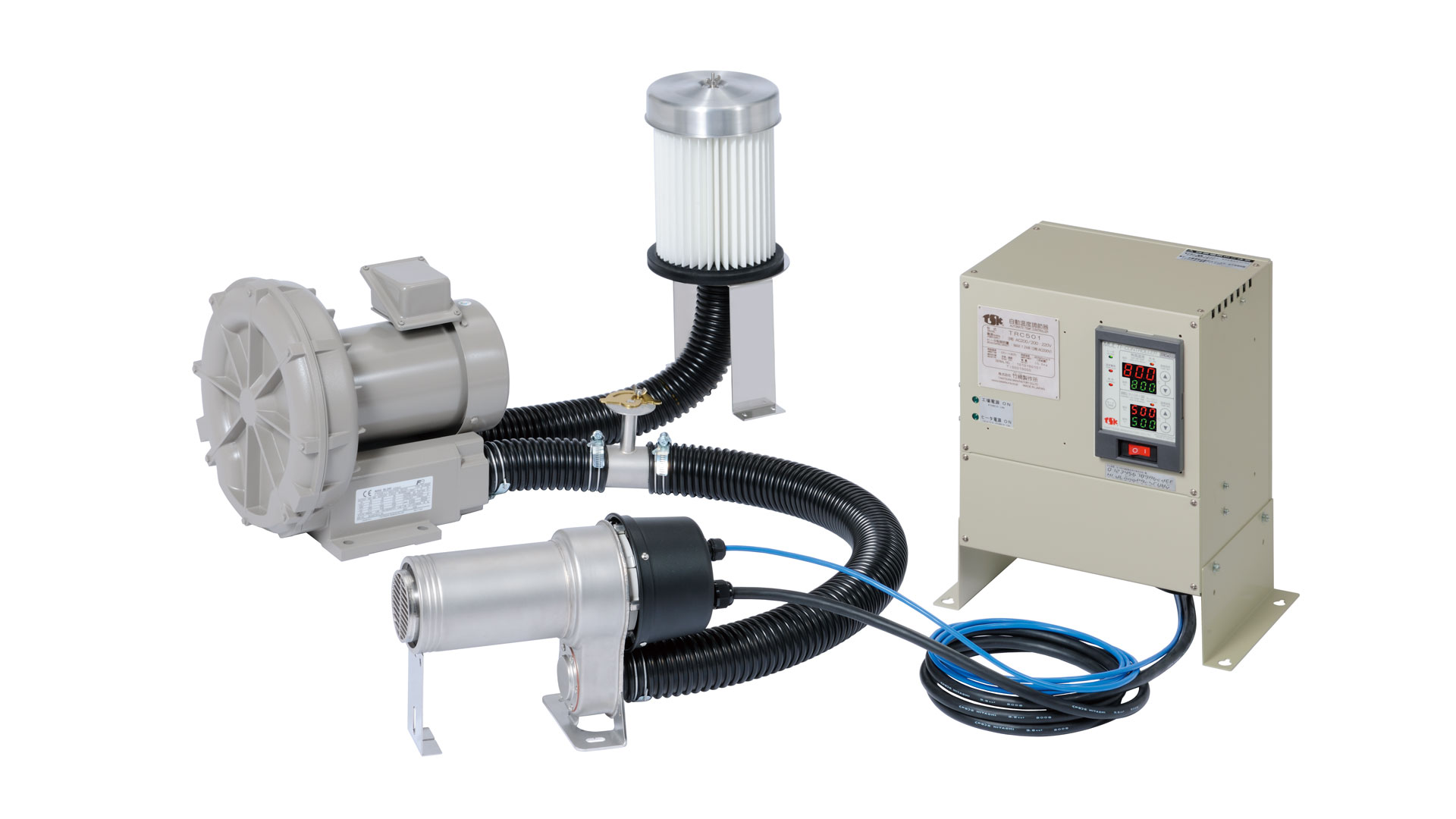

  • SHP Heater combined with a commercially available blower


SHP Heater Overview


  • Maximum Continuous Operating Temperature: 800 °C
  • Heater Capacity: 4.5 kW to 10.5 kW
  • Equipped as standard with an outlet temperature sensor and an internal heater temperature sensor
    ...The A sensor for hot air temperature control is installed at the heater outlet, and the B sensor for overheat prevention is installed very close to the heater element, enabling accurate temperature measurement and control rather than relying on apparent temperature measurement
  • Equipped as standard with two K-type thermocouples, enabling hot start operation
  • High-precision temperature control is possible with a remote automatic temperature controller
    ...By locating the temperature control circuit outside the heater body, the controller is protected from heat influence from the heater and heating atmosphere, ensuring highly accurate and stable temperature control
  • When used with the TRC501 automatic temperature controller, heater disconnection is highly unlikely
    ...Use together with the remote automatic temperature controller TRC501



    • 保証期間１年

    • 連続使用最高温度　８００℃
    • ヒータ容量4.5kW～10.5kW
    • 吐出口温度センサ、ヒータ内部温度センサを標準搭載
      …熱風制御用のＡセンサをヒータ吐出口に、過熱防止検出用のＢセンサをヒータエレメントの極近に装備しており、見かけの温度を計測・制御しているのではありません。
    • ２本のＫ熱電対を標準装備しており、ホットスタート運転が可能
    • 別置き型の自動温度調節器により、高精度な温度制御が可能
      …温度制御回路をヒータ本体に内蔵しないことで、ヒータや加熱雰囲気などから熱の影響を受ける危険性がなくなり、高精度で優れた温度制御を行うことができます。
    • 自動温度調節器 TRC501と使用することで、容易にはヒータは断線しません。
      …別置き型の自動温度調節器TRC501を合わせてご使用ください。
    SHP
    Operation manual


    Model Lineup

    SHP40 SHP50 TRC501


    Related Products

    DHX10 Series  DHX01 Series  HT4 / HT7.5  SH81  Super Heater  Spot Heater  Pen Heater


    Standard Specifications

    Note: Model numbers vary depending on the voltage.
    For 220 V–440 V models, the prefix is 3220-.
    Please specify the required voltage when placing your order.


    Model

    SHP40
    Model No. 3220-440-4.5K 3220-440-6.5K
    Power Supply

    3-phase 220 V / 380 V / 400 V / 440 V, 50 Hz / 60 Hz
    Factory-set to your specified voltage (specify when ordering).
    Heater Capacity 4.5 kW 6.5 kW
    Max Outlet Air Temp. 800 °C
    Max Inlet Air Temp. 70 °C
    Max Applicable Airflow 4.7 m³/min
    Min Applicable Airflow 0.29 Nm³/min 0.43 Nm³/min
    Heater Case Pressure Rating

    Approx. 200 kPa (at room temperature)
    (Pulsating pressure prohibited)
    SHP Heater lineup
    Performance Curve
    Outline Drawing
    Model

    SHP50
    Model No. 3220-440-8.5K 3220-440-10.5K
    Power Supply

    3-phase 220 V / 380 V / 400 V / 440 V, 50 Hz / 60 Hz
    Factory-set to your specified voltage (specify when ordering).
    Heater Capacity 8.5 kW 10.5 kW
    Max Outlet Air Temp. 800 °C
    Max Inlet Air Temp. 70 °C
    Max Applicable Airflow 4.4 m³/min
    Min Applicable Airflow 0.57 Nm³/min 0.70 Nm³/min
    Heater Case Pressure Rating

    Approx. 200 kPa (at room temperature)
    (Pulsating pressure prohibited)
    SHP Heater lineup
    Performance Curve
    Outline Drawing
    Model

    TRC501
    Heater Capacity Up to 12 kW
    Power Supply

    3-phase 220 V / 380 V / 400 V / 440 V (50 Hz)
    3-phase 380 V / 400 V / 440 V (60 Hz)             

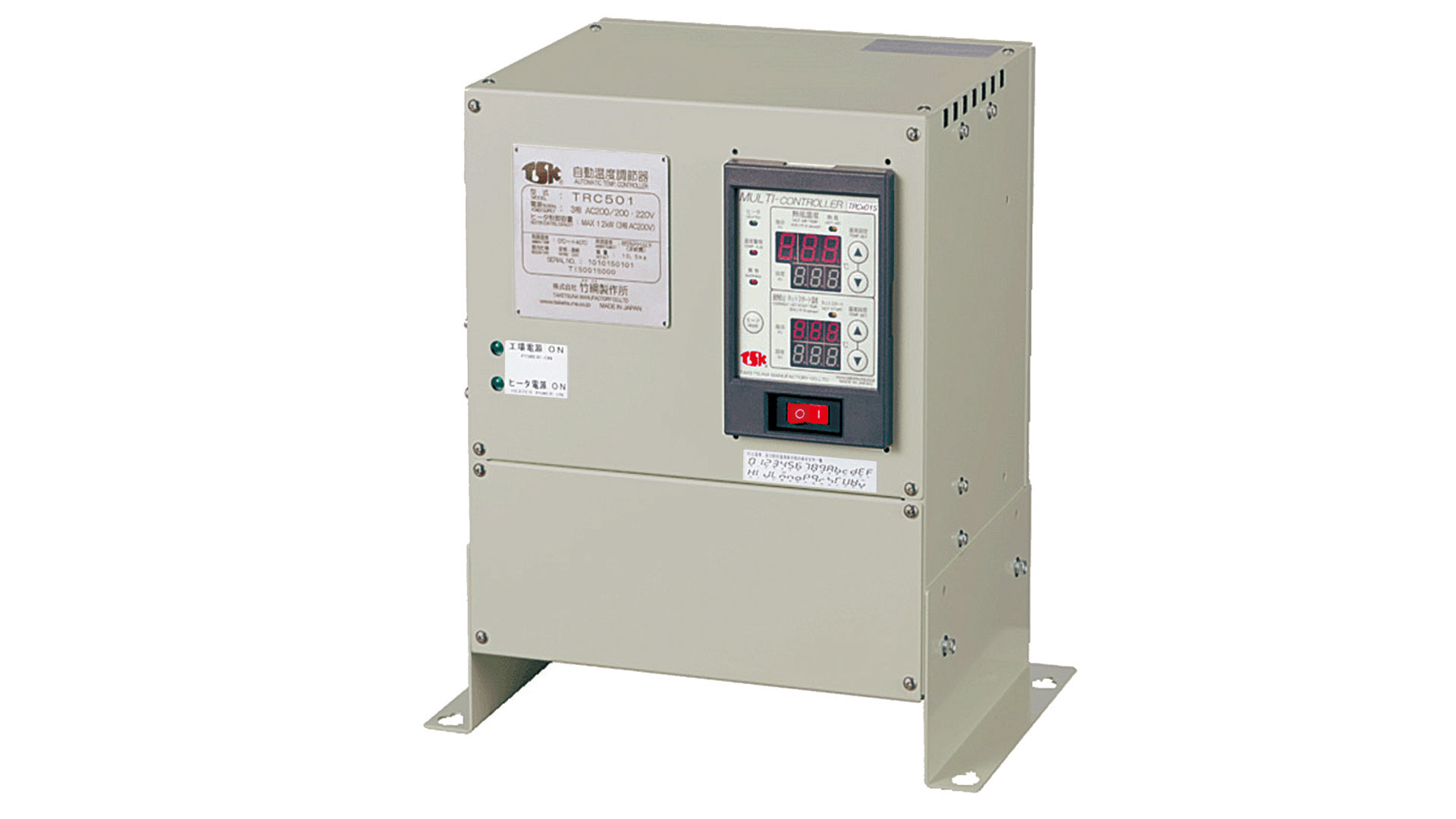

    TRC501 Multi-Controller
    Wiring Example
    Outline Drawing
