Blow Nozzle (Industrial Air Knife)
Compact-Design Blow Nozzle
- Ideal for rapid water removal, drying, cooling, and uniform hot-air surface treatment.
- Stainless steel nozzle.
- Improved air supply port design reduces pressure loss and noise, while the lightweight body contributes to greater energy efficiency.
- Applications include rapid water removal, drying, cooling, uniform surface treatment, and air curtains.
Blow Nozzle Overview
- Heat resistance up to 350 °C
- Stainless steel construction
- Pressure resistance up to 49 kPa
- Discharge air velocity variation within ±3.5% (excluding 25 mm at each end of the slit)

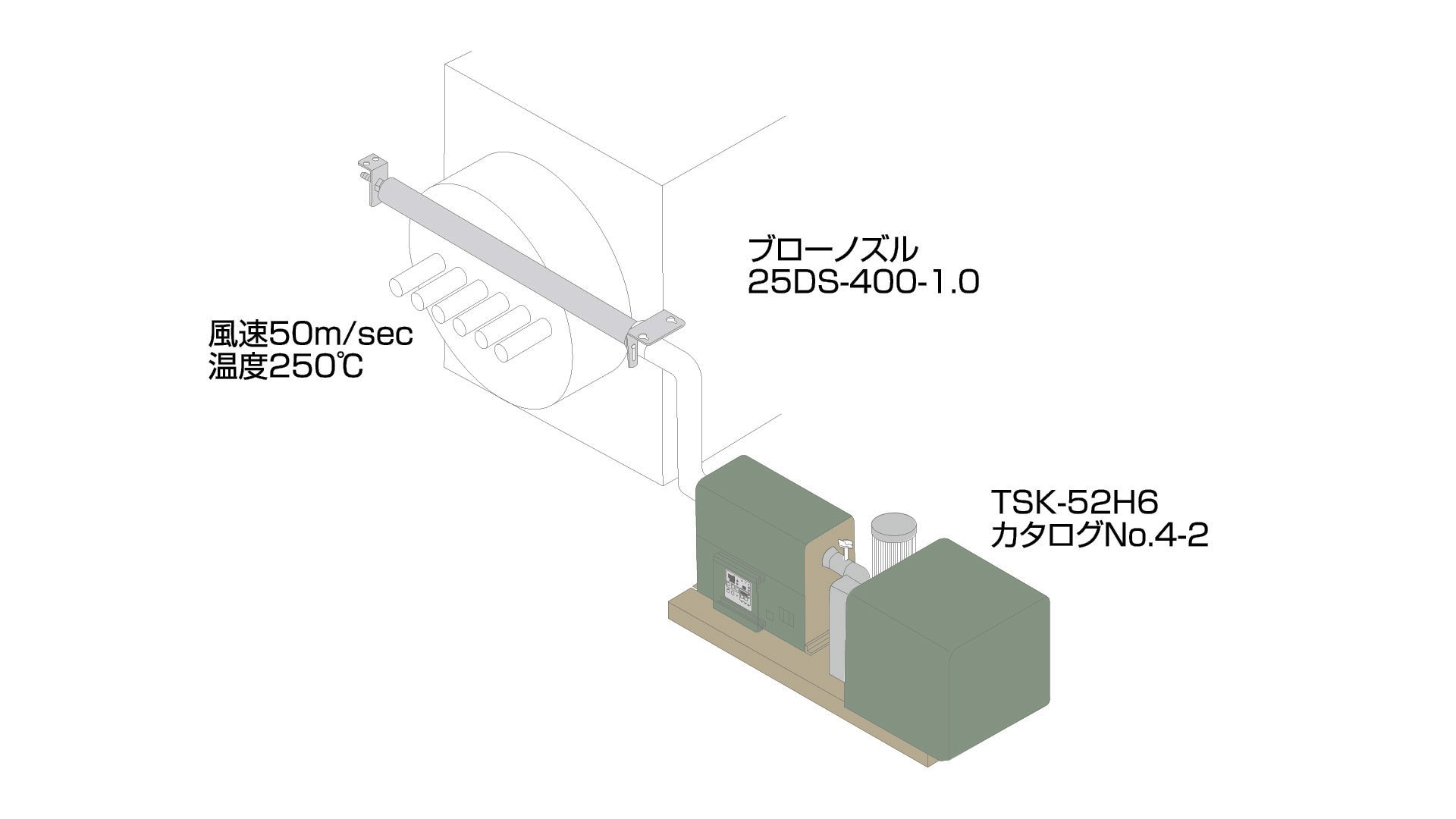

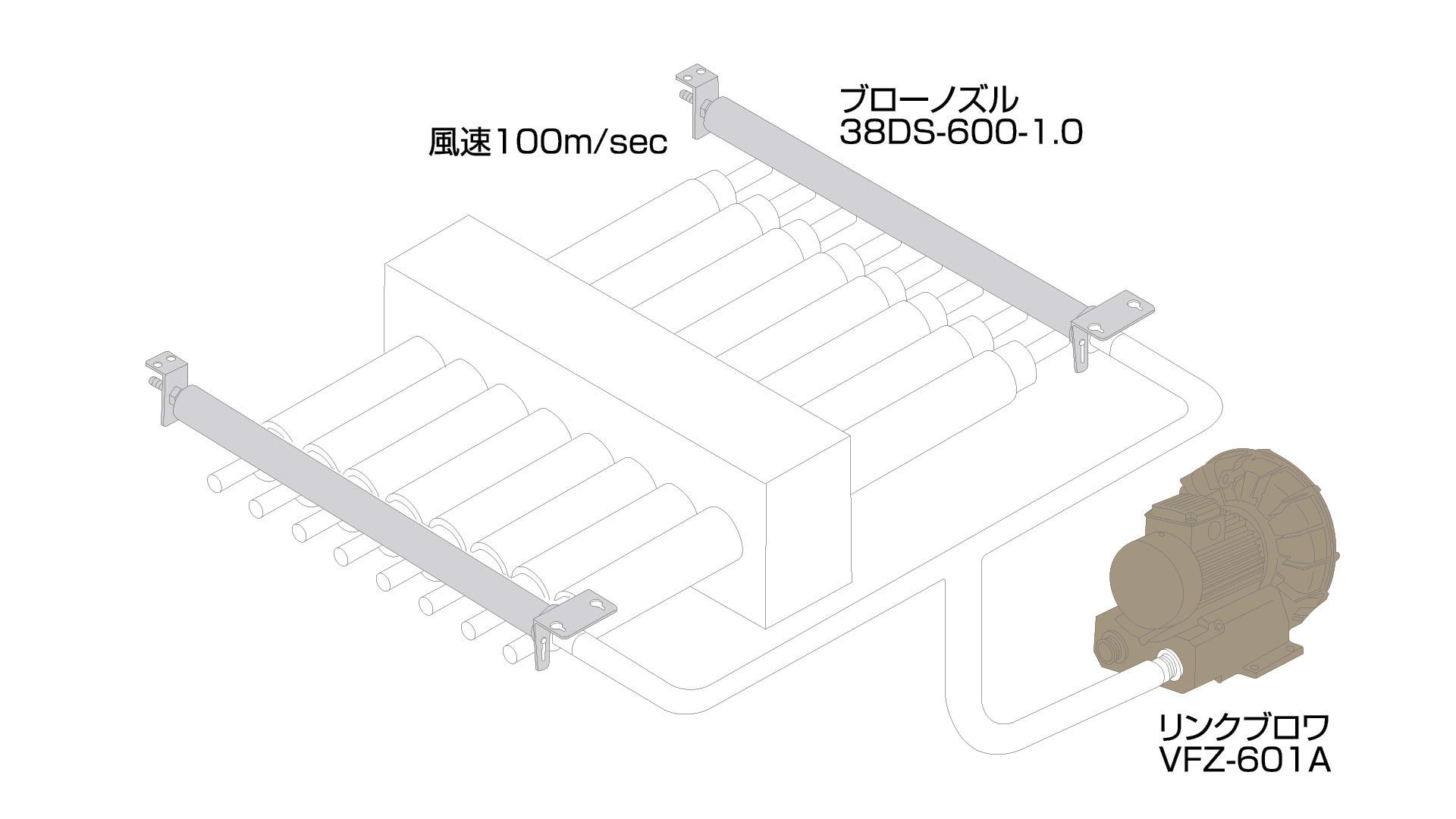

Typical Applications
Note: Some illustrations may contain Japanese text.
The Blow Nozzle can be used for many other applications. Please contact us to discuss your application.
Standard Specifications
| Model |

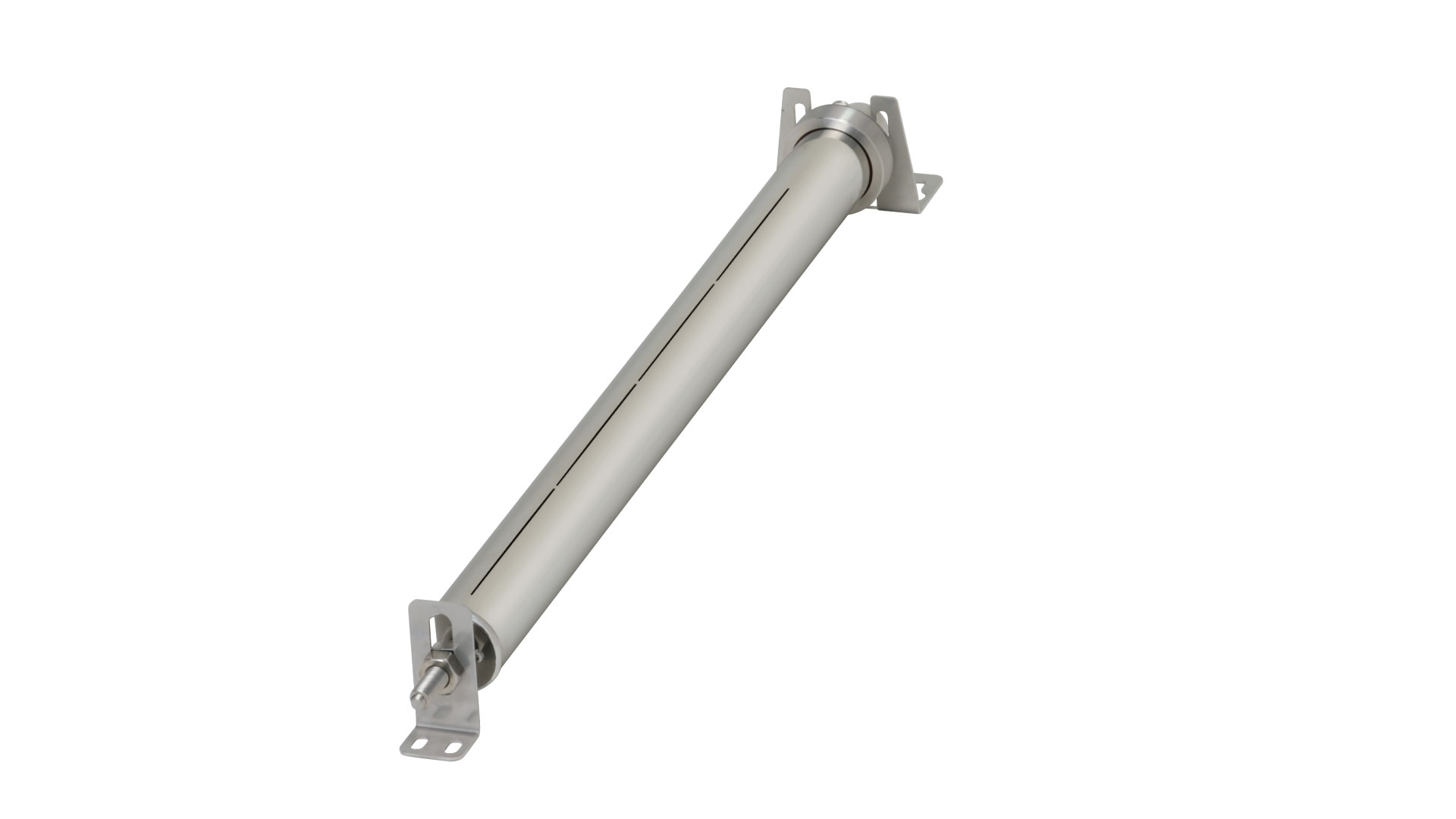

25DS |
||
|---|---|---|---|
| Slit Length | 100-400 mm | ||
| Slit Width | 1.0 / 1.5 mm (fixed slit width) | ||
 |
|
||
| Model |

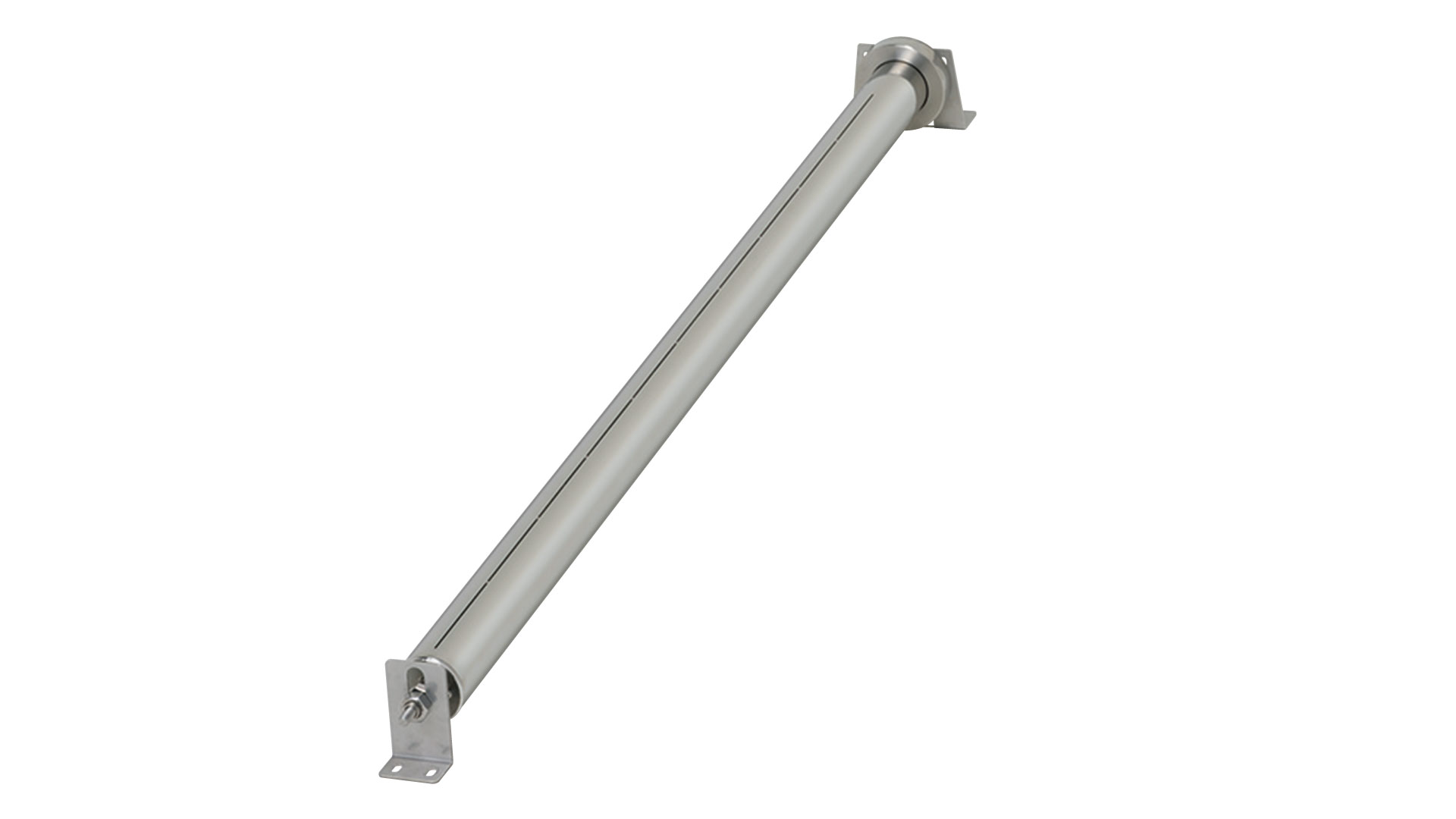

38DS |
|
|---|---|---|
| Slit Length | 300-1000 mm | |
| Slit Width | 1.0 / 1.5 mm (fixed slit width) | |
 |
|
|
| Model |
50DS |
|---|---|
| Slit Length | 600-1500 mm |
| Slit Width | 1.0 / 1.5 / 2.0 mm (fixed slit width) |
 |
|
