Kansai Electric Heat Corp.
HN Nozzle (Industrial Air Knife)
HN Nozzle for HAS-T Series Multi-Dryer
- The HN Nozzle features extremely low pressure loss and is ideal for drying and heating applications.
- Provides a highly directional air stream.
HN Nozzle Overview
- Maximum Continuous Operating Temperature: 200 °C
- Available slit lengths: 150 mm and 300 mm.
- Adjustable slit width from 2 to 7.5 mm.

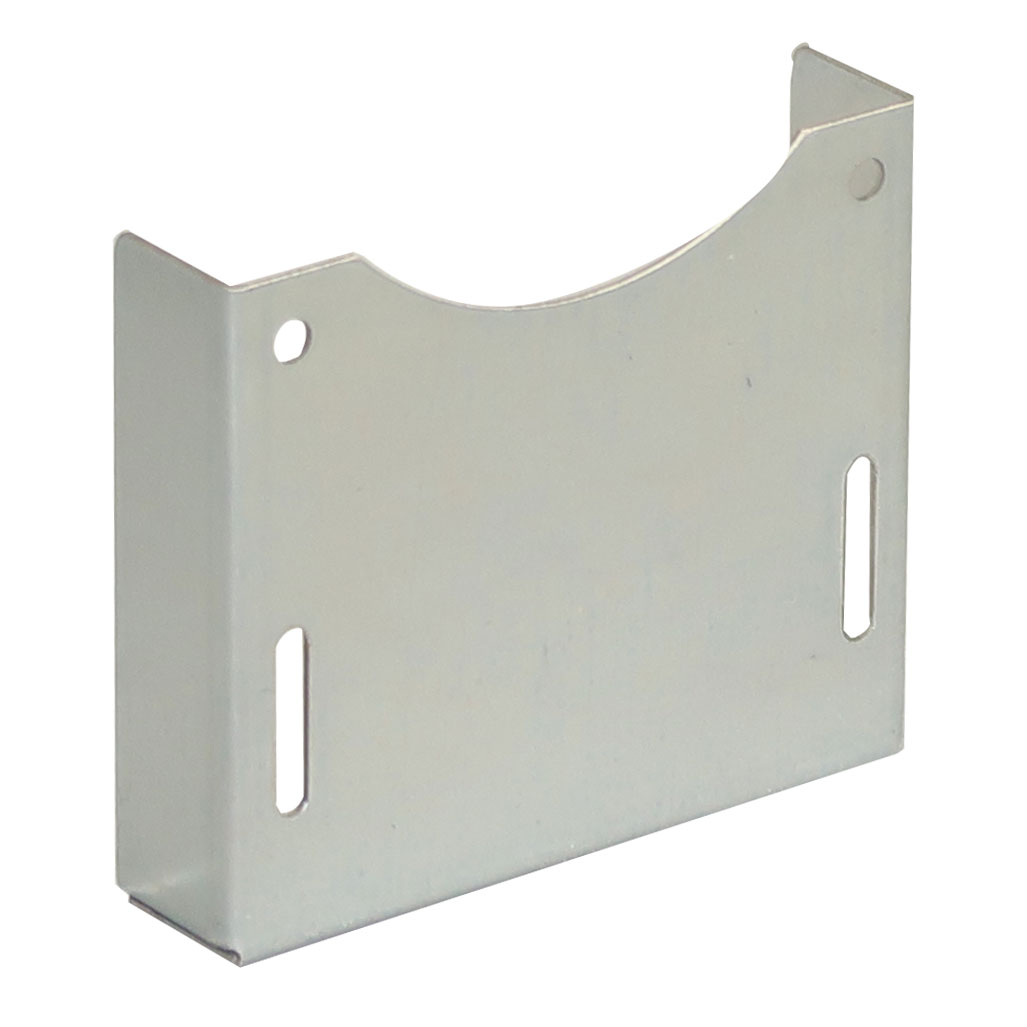

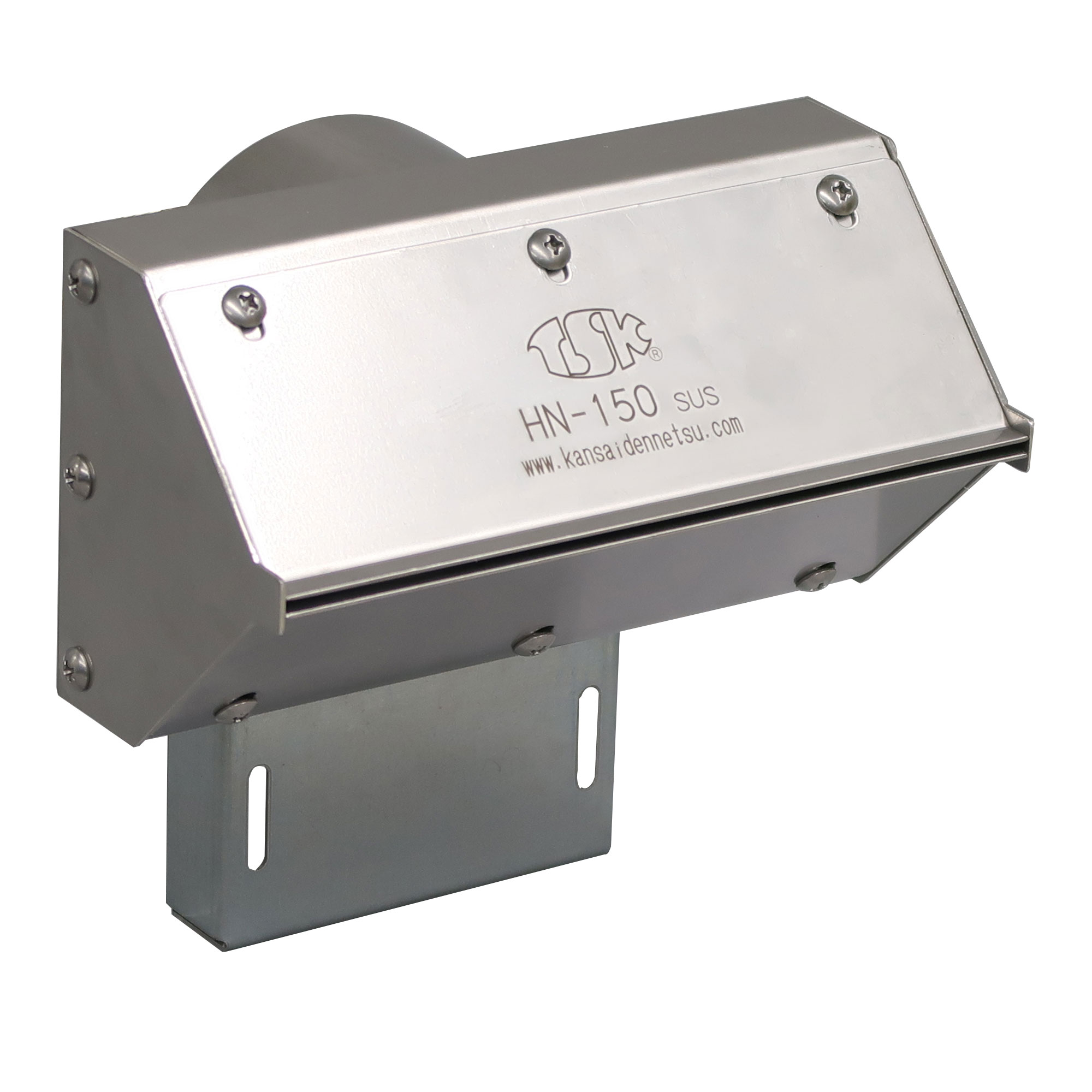

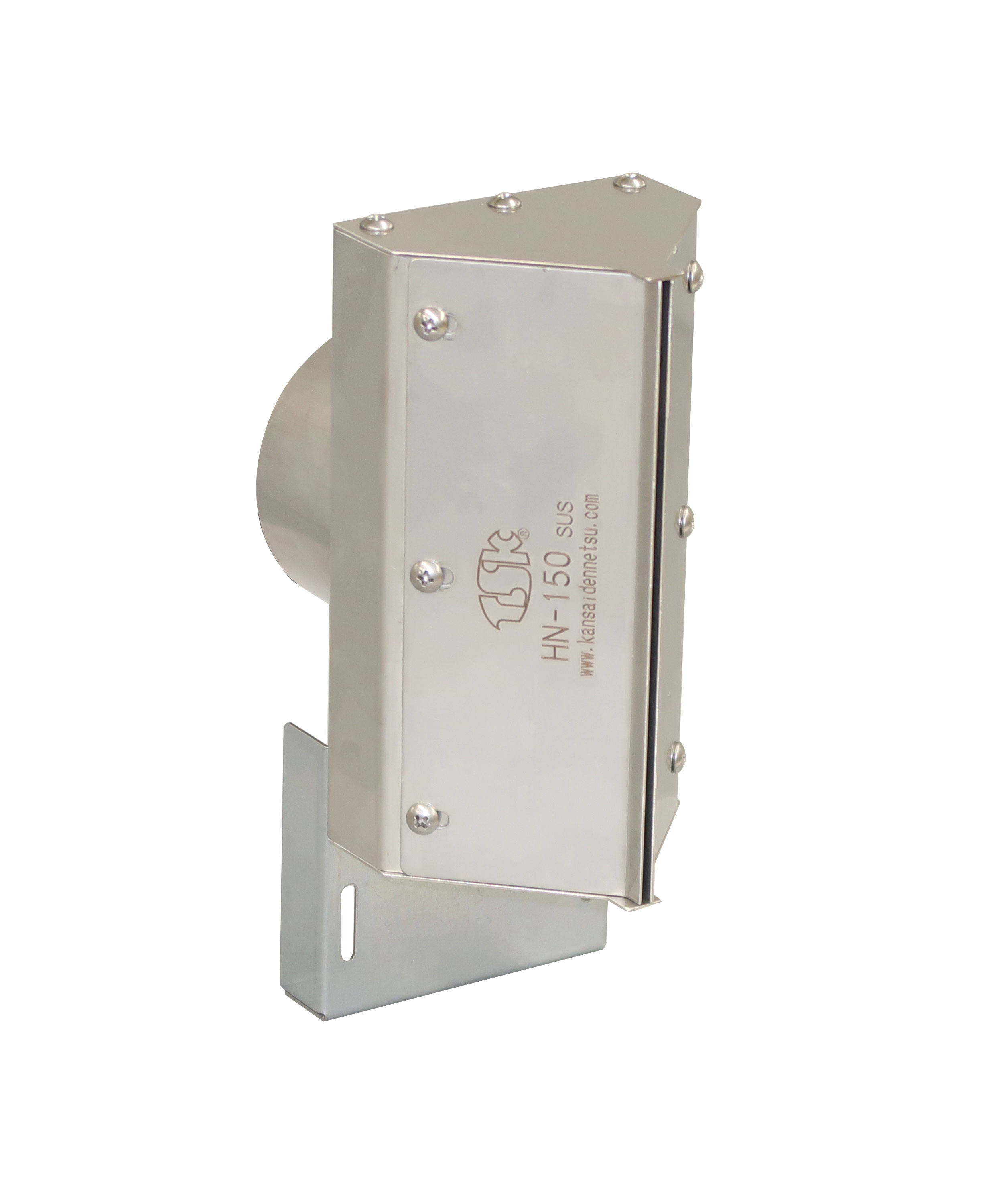

- The included mounting brackets support both vertical and horizontal mounting.
- The slit width can be easily adjusted using a screwdriver for fine adjustment of the discharge air velocity.
- The effective slit length can also be adjusted by applying the included 300 mm aluminum tape.
Typical Applications
Note: Some illustrations may contain Japanese text.
The HN Nozzle can also be used for many other applications. Please contact us to discuss your application.
Standard Specifications
| Model |

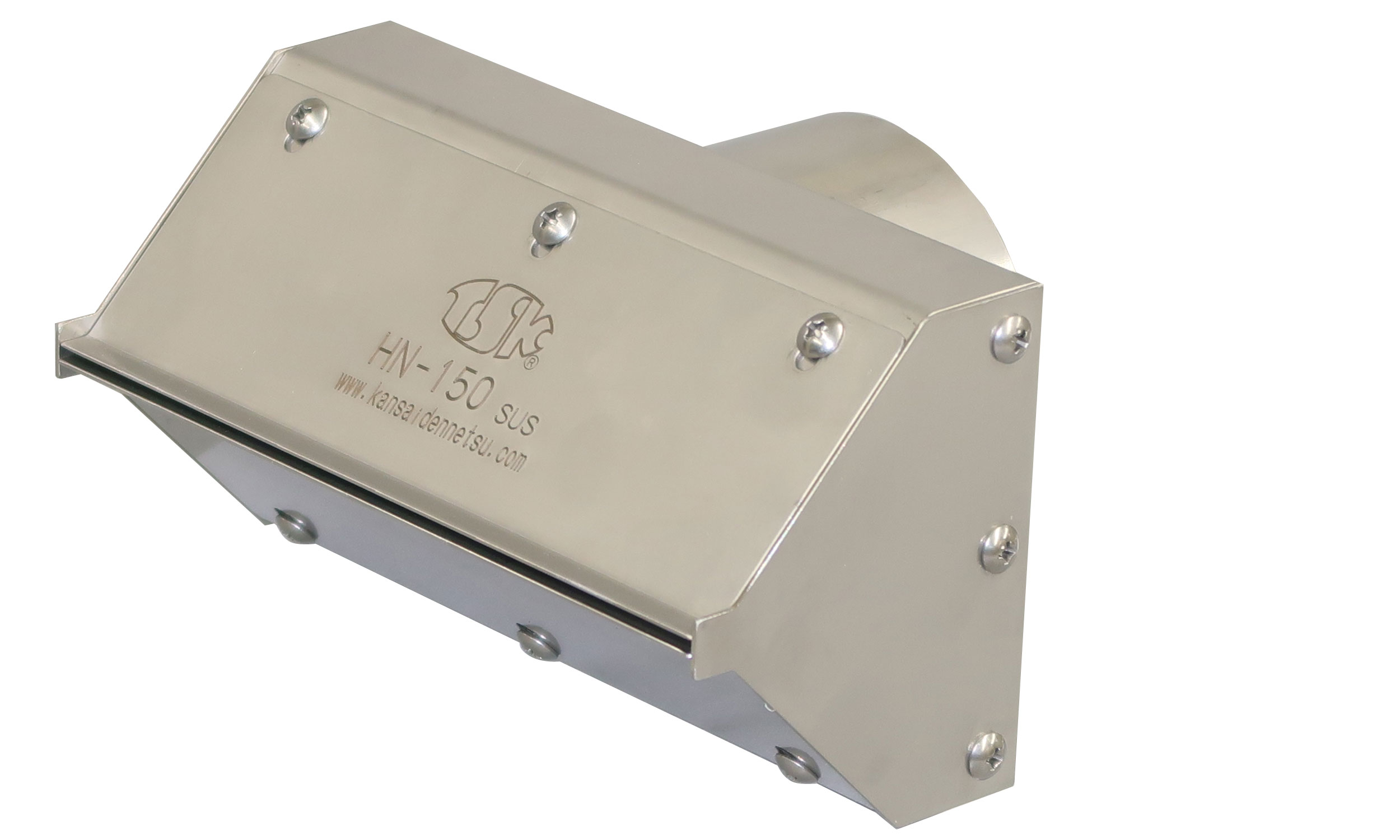

HN-150 |
|---|---|
| Slit Length | 150 mm |
| Adjustable Slit Width | Approx. 2-7.5 mm |
| Slit Shape | Straight Slit |
 |
|
| Model |

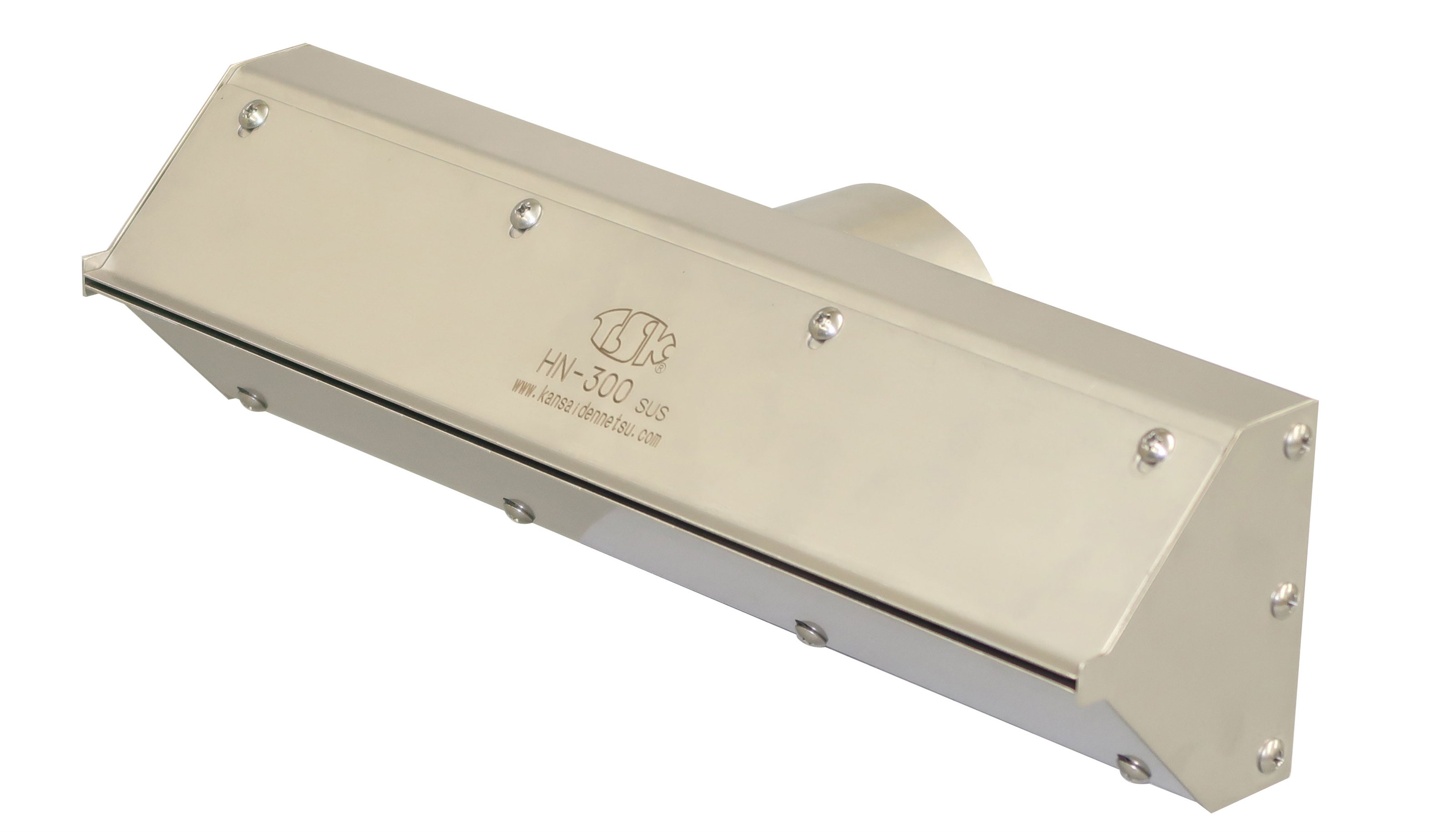

HN-300 |
|---|---|
| Slit Length | 300 mm |
| Adjustable Slit Width | Approx. 2-7.5 mm |
| Slit Shape | Straight Slit |
 |
|
For pricing, customization, or technical inquiries, please contact us:
sales@kansaidennetsu.co.jp
