HJ-15 Exhaust Gas Treatment Electric Heater

Platinum Catalyst Oxidation Deodorizing Unit



  • A deodorizing unit incorporating a platinum catalyst into an Electric Hot Air Generator
  • Provides cost-effective deodorization



白金触媒酸化式 脱臭装置



◆電気式熱風発生機に白金触媒を組み込んだ装置です。



◆安価に脱臭を行うことが可能です。

  • HJ-15 Platinum Catalyst Oxidation Deodorizing Unit
  • Rear view of HJ-15 Platinum Catalyst Oxidation Deodorizing Unit


Deodorizing Unit Overview


  • Maximum Continuous Operating Temperature: 350 °C
  • Heater Capacity: 8.5 kW
  • Equipped with a High-Efficiency Honeycomb Block Heater
  • Equipped with an inverter for airflow adjustment (variable from 20 Hz to 60 Hz) Energy-efficient
  • Equipped with a heat-resistant circulation blower for hot air up to 230 °C
  • Blower Motor Capacity: 130 W / 250 W
  • All models are equipped with input/output service terminals
  • Built-in safety circuits
    (High-reliability thermocouples are used for all safety devices)
  • Compatible with remote control panels, airflow direction changes, and custom voltage specifications
  • Programmable timer:
    Settable from 1 minute to 99 hours 59 minutes in 1-minute increments



保証期間３年

  • 連続使用最高温度　３５０℃
  • ヒータ容量8.5kW
  • 高効率ハニカムブロックヒータ搭載
  • 風量調節用インバータ搭載（20～60Hz可変）省エネ！
  • 熱風循環用耐熱送風機搭載230℃以下
  • 送風機電動機容量130W・250W
  • 全機種入出力サービス端子付
  • 各種安全回路内蔵（各種安全装置に高信頼性の熱電対採用）
  • 遠隔操作盤・方向変更・異電圧等にも対応可能
  • タイマ1分刻みで1分～99時間59分設定可能
Operation Manuals


Model Lineup

HJ-15

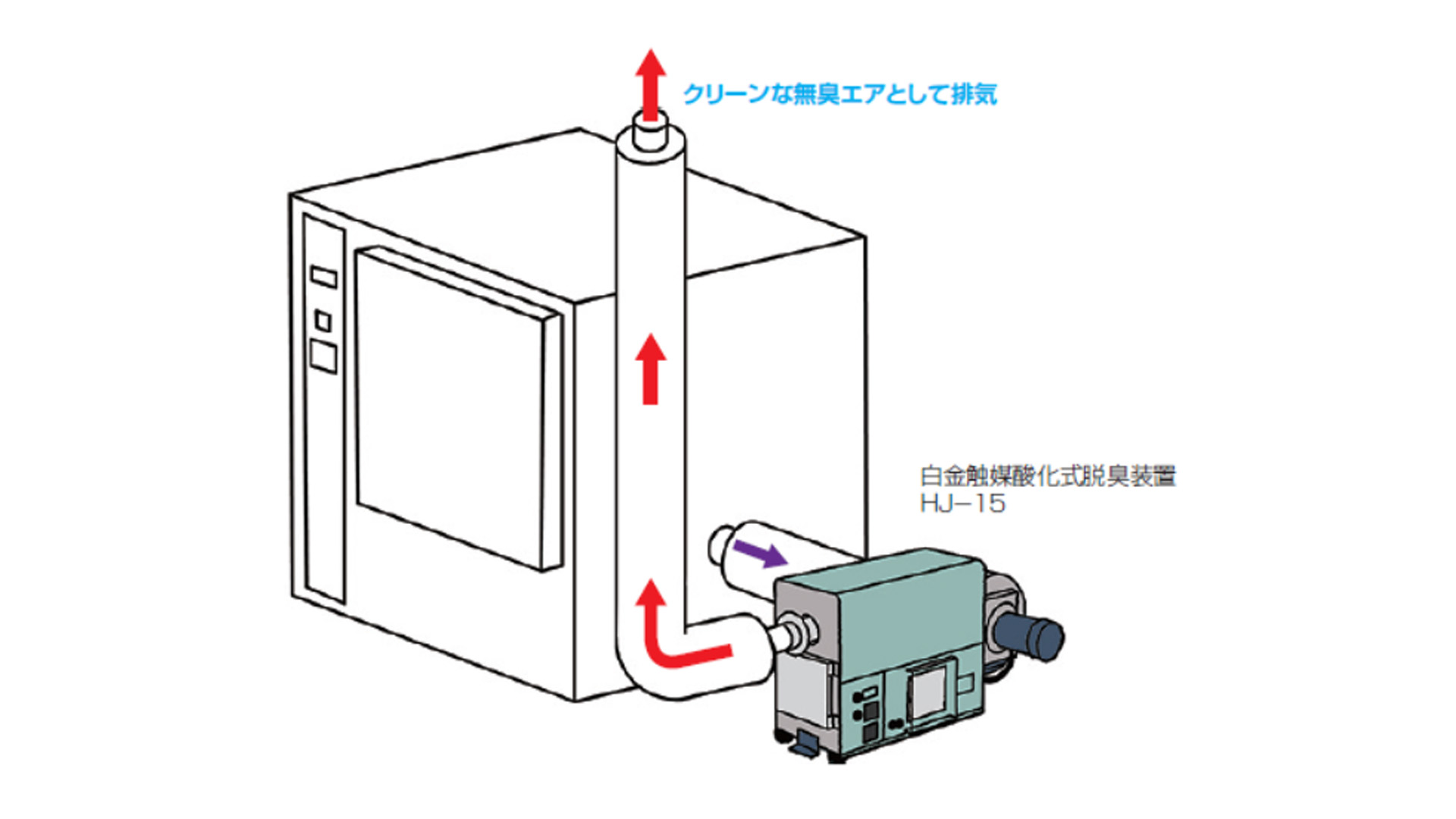

Typical Applications


  • Treatment of hydrocarbon-based exhaust gas from ceramic firing furnaces
  • Treatment of hydrocarbon-based exhaust gas from ceramic firing furnaces


Our products can also be used for various other applications. Please feel free to contact us for further information.

Standard Specifications

Note: Model numbers vary depending on the voltage specification.
For 380 V–440 V models, prefixes vary depending on the specified voltage
(e.g., 3380-, 3400-, 3415-, 3440-).
Please specify the required voltage when placing your order.


Model

HJ-15
Model No. 3380-440-8.5C-013YA-LB-HJ 3380-440-8.5C-025Y-LB-HJ
Power Supply

3-phase 380 V / 400 V / 415 V / 440 V, 50/60 Hz
Factory-set to your specified voltage (specify when ordering).
Heater Capacity 8.5 kW
Max Outlet Air Temp. 300 °C to 350 °C
Max Inlet Air Temp. 230 °C
Odorous Gas Processing Airflow 1.5 Nm³/min (SV 45,000 h⁻¹)
Max Static Pressure 1.2 kPa 1.52 kPa
HJ-15 Platinum Catalyst Oxidation Deodorizing Unit
Performance Curve
Outline Drawing
