Shrink Nozzle for Heat Shrink Packaging
Shrink Nozzle for the PD-12 Portable Dryer
Typical applications include shrink packaging and shrink wrap for bottles, caps, labels, and small packaged products.
- This shrink nozzle is designed exclusively for use with the PD-12 Portable Dryer.

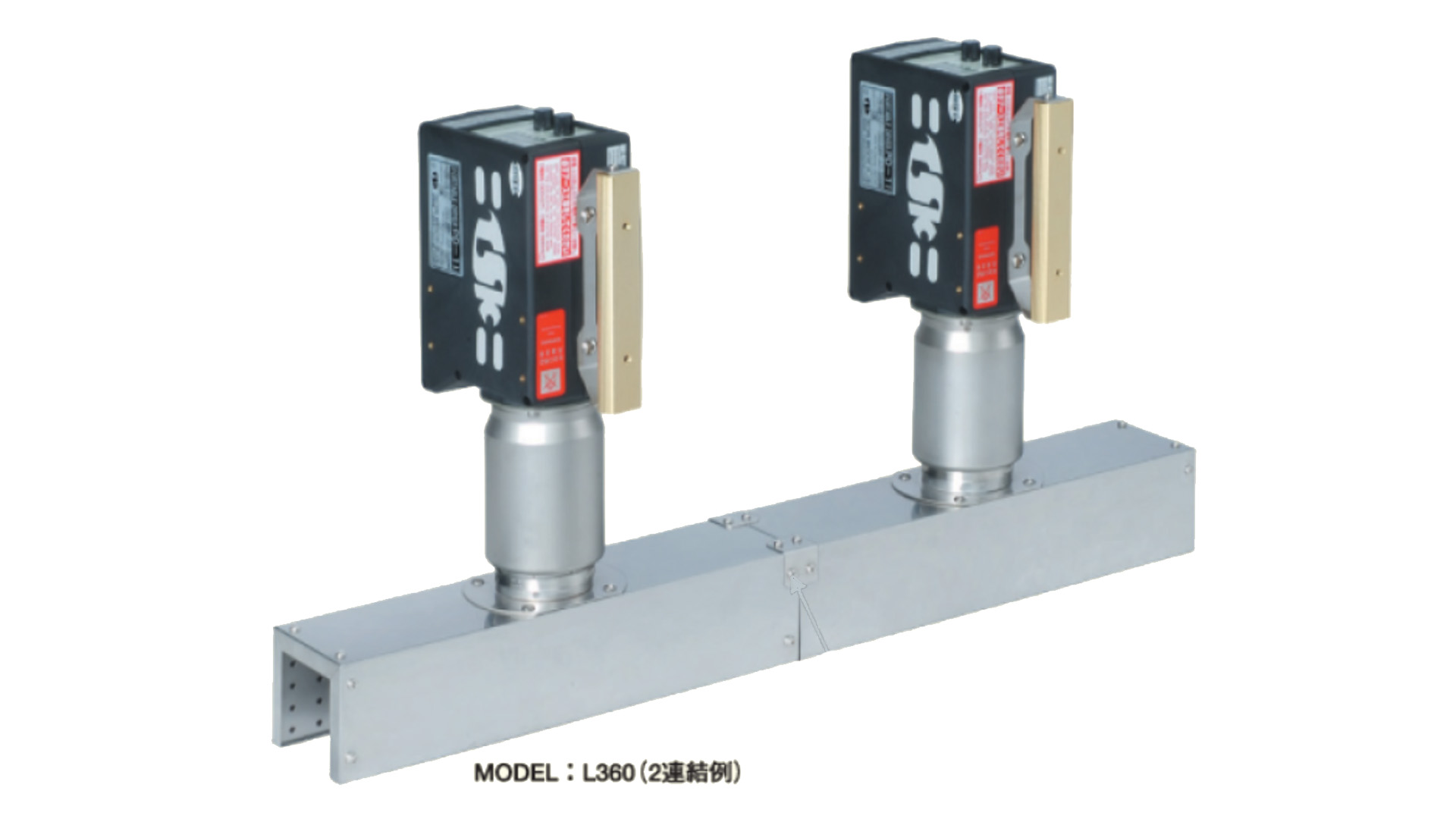

It can be easily converted the PD-12 into a compact shrink tunnel for shrink packaging applications. - By connecting this nozzle to the PD-12, a simple and low-cost shrink tunnel can be created.。
- The shrink nozzle delivers hot air at 250–300°C, ideal for shrink packaging and compact heat shrink tunnel applications.
Table of Contents - Shrink Nozzle
Shrink Nozzle Overview
- Six models are available depending on the width and height of the product.
- Custom nozzles are also available, including changes to dimensions, hot air outlet holes, and inlet shapes.

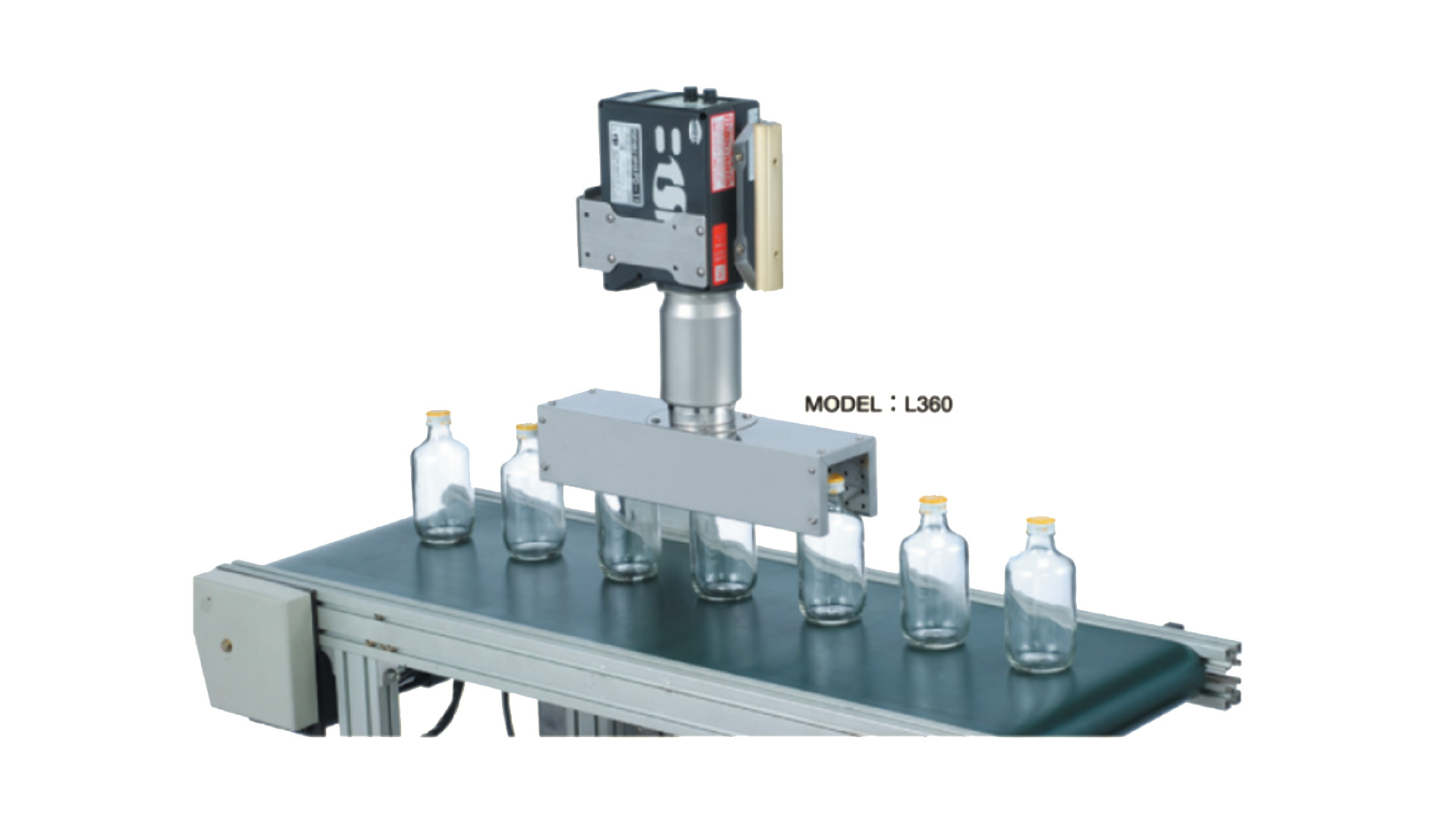

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Standard Specifications
* Effective internal dimensions refer to the internal size of the hot air outlet surfaces (three sides).
For detailed specifications or custom requirements, please contact us at sales@kansaidennetsu.co.jp.

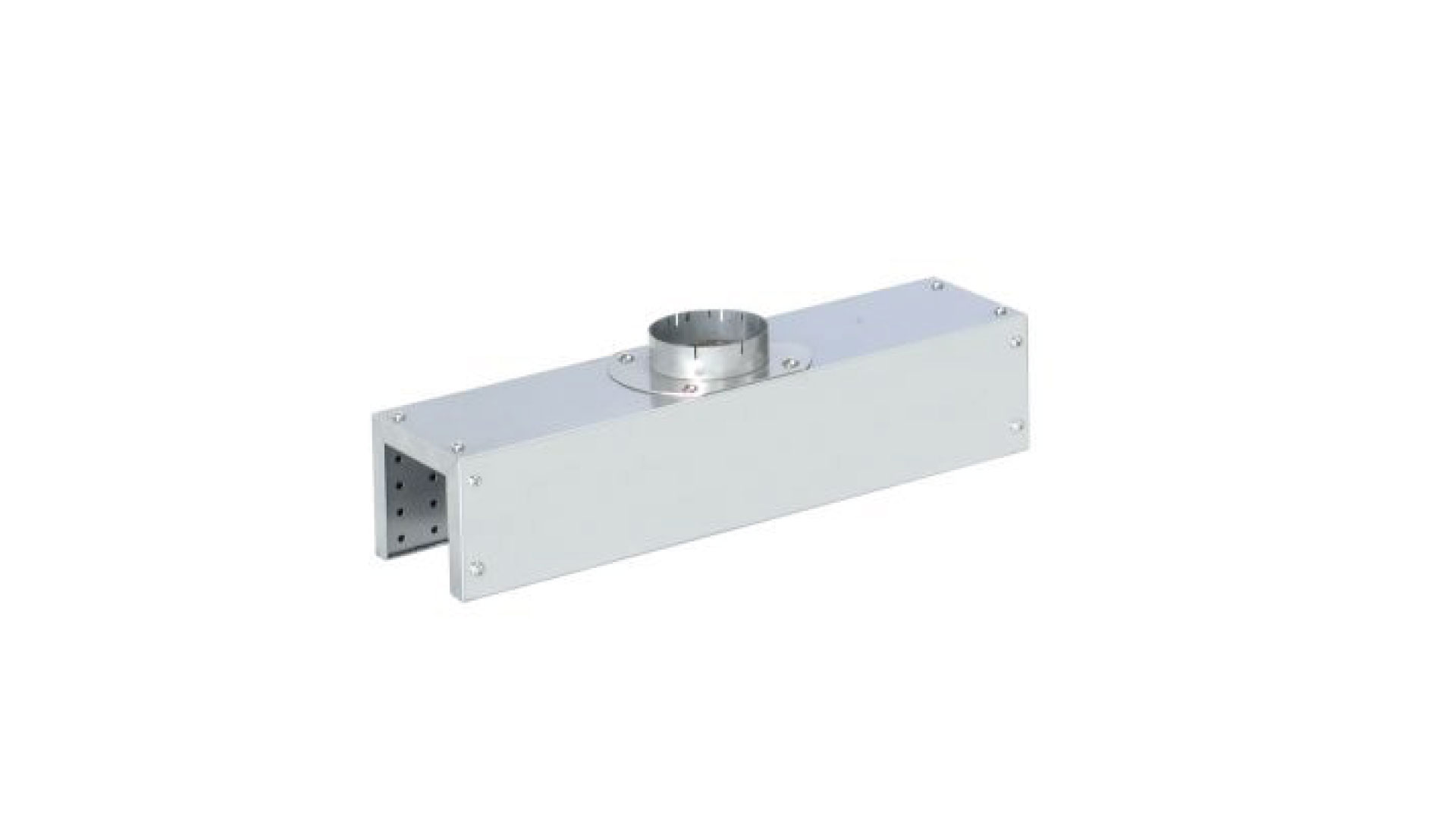

| Model |
L360 |
|---|---|
| Effective Internal Dimensions | L × W × H: 360 × 70 × 70 mm |
| Hot Air Outlet Holes | Ø4.2 × 217 holes |
| Hot Air Temperature | 250–300 °C |
 |
|
| Model |
L300 |
|---|---|
| Effective Internal Dimensions | L × W × H: 300 × 100 × 70 mm |
| Hot Air Outlet Holes | Ø4.2 × 220 holes |
| Hot Air Temperature | 250–300 °C |
 |
|

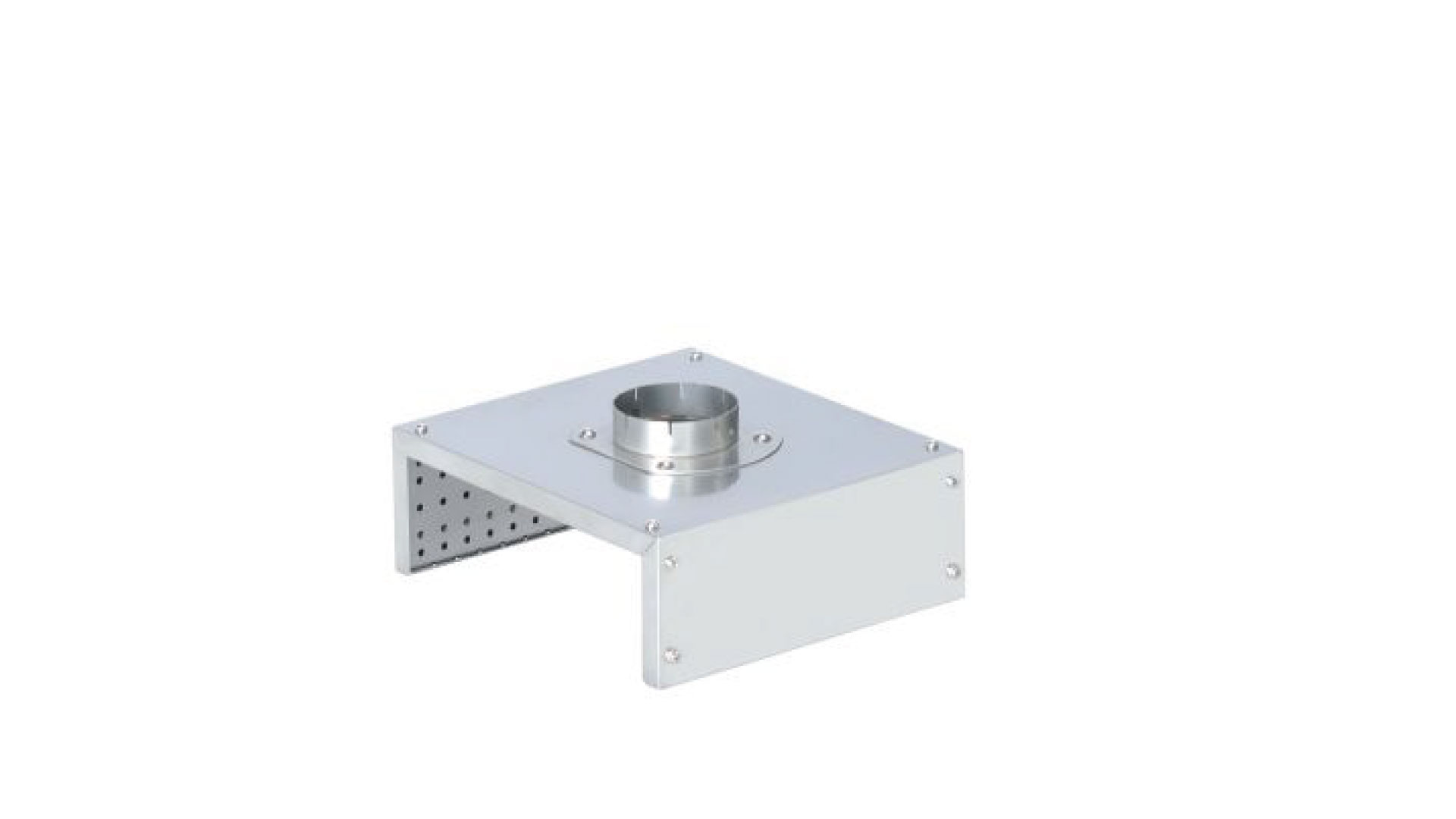

| Model |
W200 |
|---|---|
| Effective Internal Dimensions | L × W × H: 200 × 200 × 70 mm |
| Hot Air Outlet Holes | Ø4.2 × 224 holes |
| Hot Air Temperature | 250–300 °C |
 |
|
| Model |
W150 |
|---|---|
| Effective Internal Dimensions | L × W × H: 125 × 150 × 200 mm |
| Hot Air Outlet Holes | Ø4.2 × 231 holes |
| Hot Air Temperature | 250–300 °C |
 |
|
| Model |
H300 |
|---|---|
| Effective Internal Dimensions | L × W × H: 120× 120 × 300 mm |
| Hot Air Outlet Holes | Ø4.2 × 244 holes |
| Hot Air Temperature | 250–300 °C |
 |
|
| Model |
H250 |
|---|---|
| Effective Internal Dimensions | L × W × H: 120 × 120 × 250 mm |
| Hot Air Outlet Holes | Ø4.2 × 227 holes |
| Hot Air Temperature | 250–300 °C |
 |
|
