Pen Nozzle for Compressed Air
Pen Nozzle for Compressed Air
- Compact nozzle made entirely of SUS304 stainless steel.

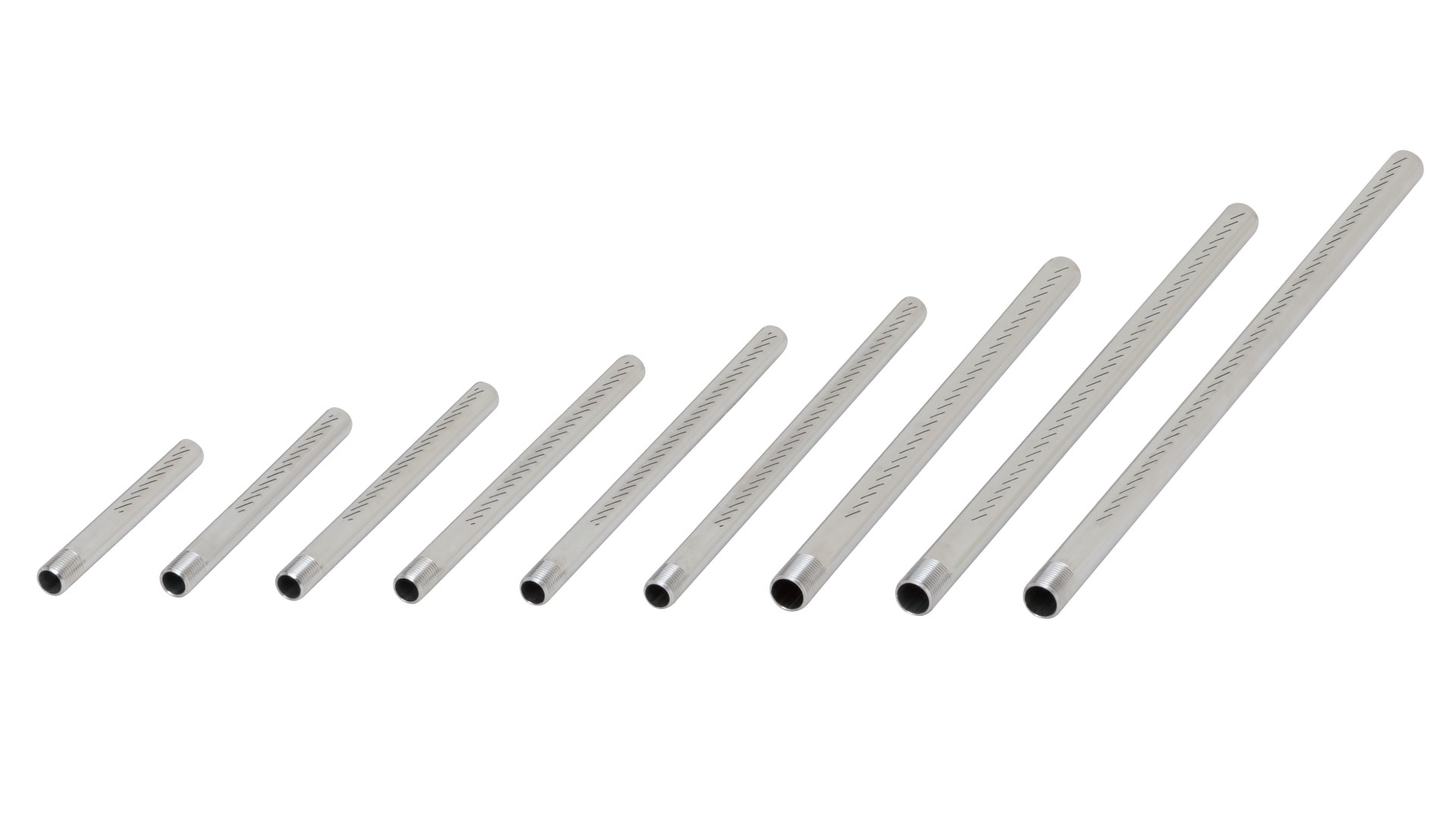

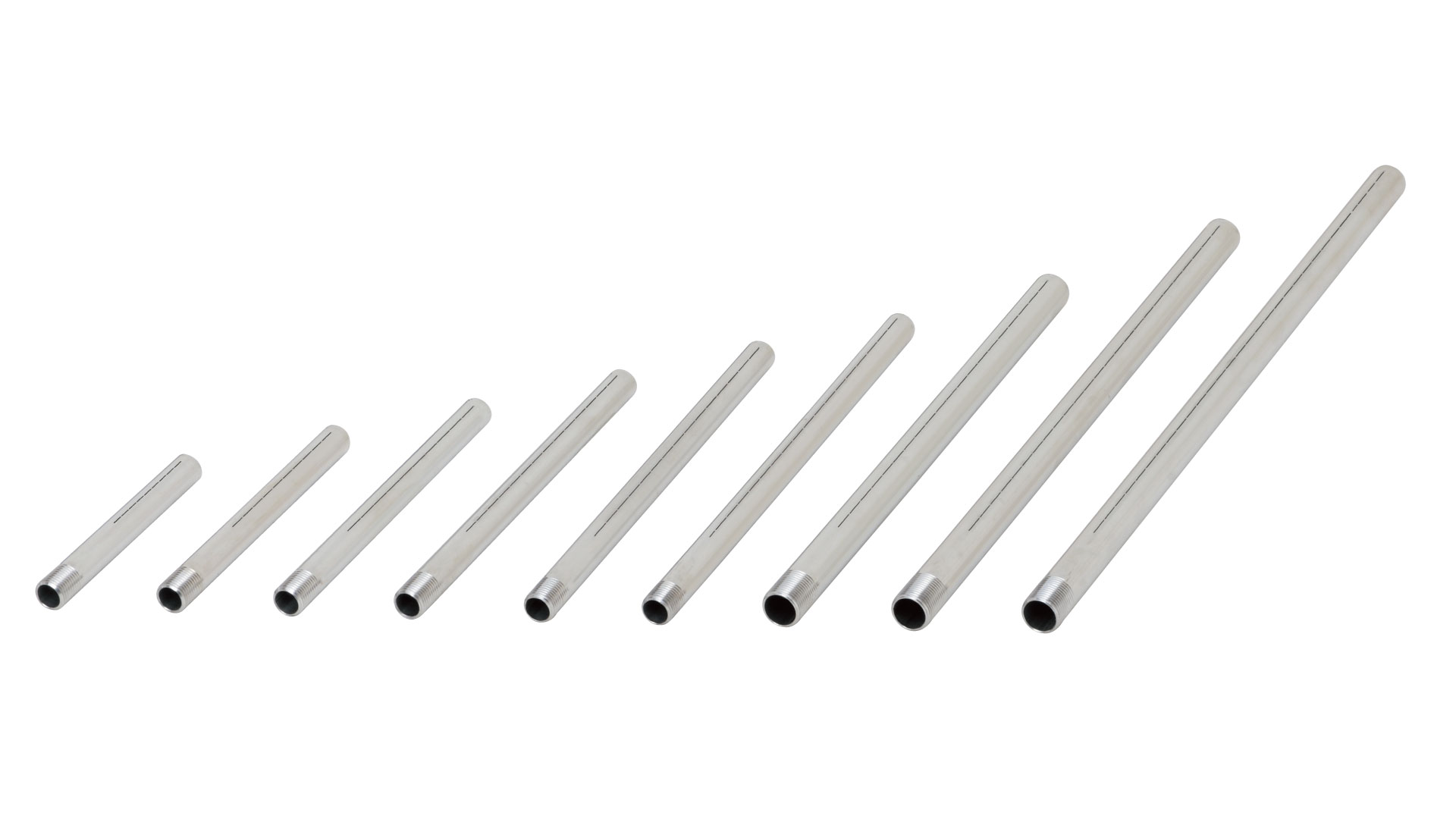

- Available with either an angled slit or a straight slit, depending on the application.
Pen Nozzle Overview
- Heat resistance up to 350 °C
- Using a small amount of compressed air, air velocities of 200 m/s to 300 m/s can be achieved within 10 mm of the slit.
- High-efficiency operation with no resonance noise generated by the nozzle body.
- By supplying compressed air from a compressor (pressure: 0.17 MPa), the nozzle can also function as an air amplifier.
- Slit width of the straight slit: 0.2 mm
- The angled slit provides approximately 3 to 4 times the blowing duration on the target compared with the straight slit.
Typical Applications
Note: Some illustrations may contain Japanese text.
The Pen Nozzle can also be used for many other applications. Please contact us to discuss your application.
Standard Specifications
|
PEN50 |
|
|---|---|
| Slit Length | 50 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
 |
|
|
PEN75 |
|
|---|---|
| Slit Length | 75 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN100 |
|
|---|---|
| Slit Length | 100 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN125 |
|
|---|---|
| Slit Length | 125 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN150 |
|
|---|---|
| Slit Length | 150 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN200 |
|
|---|---|
| Slit Length | 200 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
|
PEN250 |
|
|---|---|
| Slit Length | 250 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
|
PEN300 |
|
|---|---|
| Slit Length | 300 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Straight Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
|
PEN50B |
|
|---|---|
| Slit Length | 50 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
 |
|
|
PEN75B |
|
|---|---|
| Slit Length | 75 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN100B |
|
|---|---|
| Slit Length | 100 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN125B |
|
|---|---|
| Slit Length | 125 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN150B |
|
|---|---|
| Slit Length | 150 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R1/4 (8A) Pipe Thread |
|
|
|
PEN200B |
|
|---|---|
| Slit Length | 200 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
|
PEN250B |
|
|---|---|
| Slit Length | 250 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
|
PEN300B |
|
|---|---|
| Slit Length | 300 mm |
| Slit Width | 0.2 mm |
| Slit Shape | Angled Slit |
| Air Supply Connection | R3/8 (10A) Pipe Thread |
|
|
