Kansai Electric Heat Corp.
SL Series Electric Hot Air Heater
Electric Heater for High-Temperature Hot Air Generation
- A compact, robust, and high-efficiency hot air heater designed to reduce costs.
- deal for high-temperature heating of air supplied by high-static-pressure blowers, compressed air, helium, argon, nitrogen, forming gas, and other gases.
SL Series Overview
- Maximum Continuous Operating Temperature: 500 °C
- Heater Capacity: 4 kW to 7 kW
- Maximum Inlet Air Temperature: 70 °C
- Maximum Allowable Internal Pressure: 490 kPa
- Maximum Allowable Air Volume: 2.5 m³/min

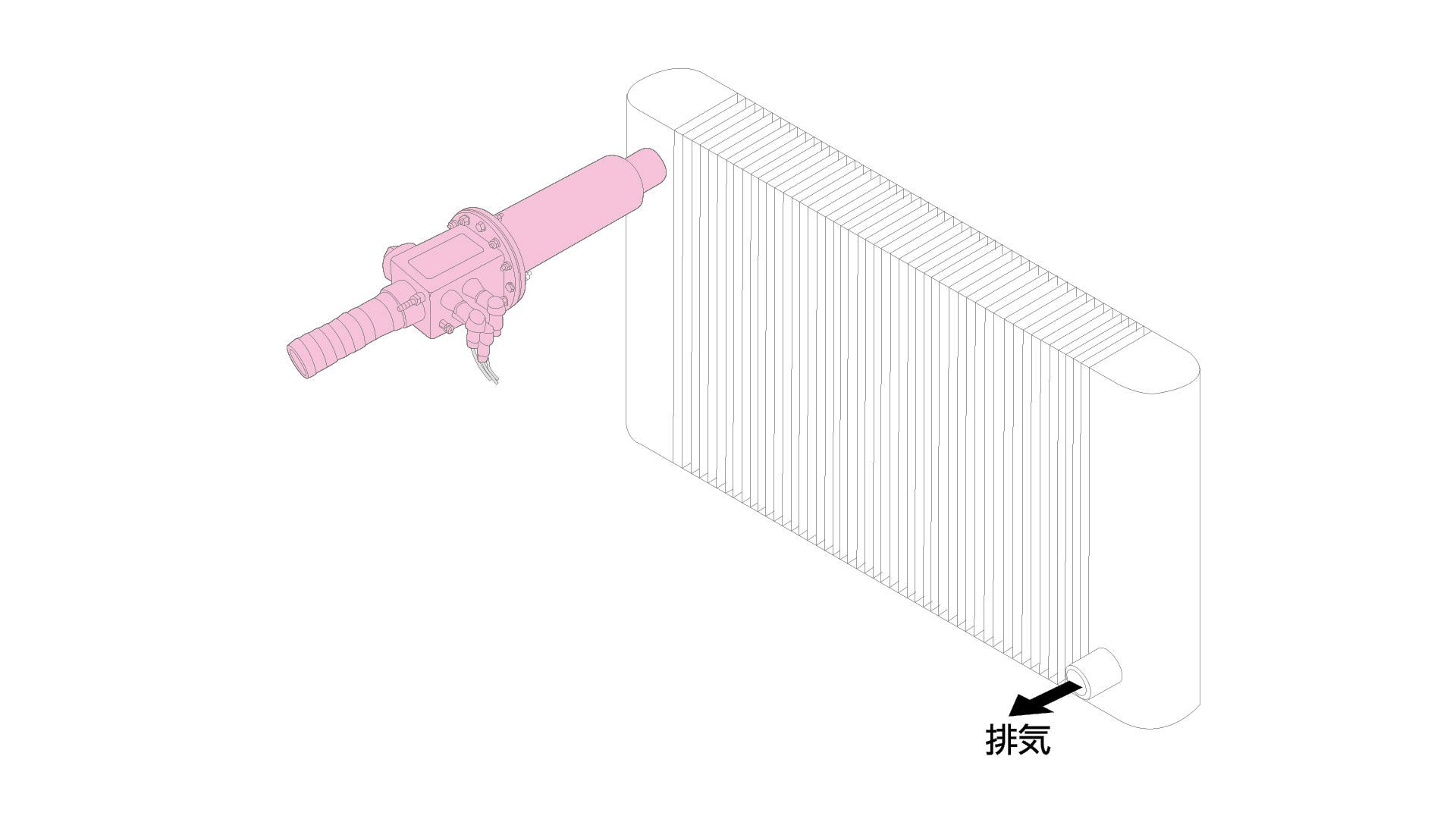

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used in many other applications. Please feel free to contact us for further information.
Related Products
DHX01 (500 °C) TSK-B Block Heater (BW) Duct Heater (DH) Unit Heater (UH/UHPF) XS Heater
Standard Specifications
Note:Model numbers vary depending on the voltage specification.
Available with a three-phase power supply only.
Please specify the required voltage when placing your order.
| Model |
SL-3T |
|---|---|
| Model No. | 3220-380-4 |
| Heater Capacity | 4 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V, 50/60 Hz |
 |
|
| Model |
SL-4T |
|---|---|
| Model No. | 3220-480-5 |
| Heater Capacity | 5 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
|
| Model |
SL-6T |
|---|---|
| Model No. | 3220-480-7 |
| Heater Capacity | 7 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
|
