Kansai Electric Heat Corp.
YK Series Circulation Fan
Improve Furnace Temperature Uniformity with a Circulation Fan
- Improves temperature distribution, drying efficiency, and heating efficiency inside furnaces and drying ovens.
- Easy to install and highly effective.
炉内温度の改善 カクハン扇
◆炉内の温度分布、乾燥効率、加熱効率の向上に
◆簡単に設置でき、効果抜群です。
Circulation Fan Overview
- Maximum Inlet Air Temperature: 210 °C
- Available in a range of models to suit different furnace and drying oven sizes.
- Can be installed in either horizontal or downward-facing orientations.
保証期間１年
- 吸入耐熱温度 ２１０℃
- 乾燥炉・加熱炉のサイズに応じたラインナップ
- 横向き、下向きに取り付けが可能です。

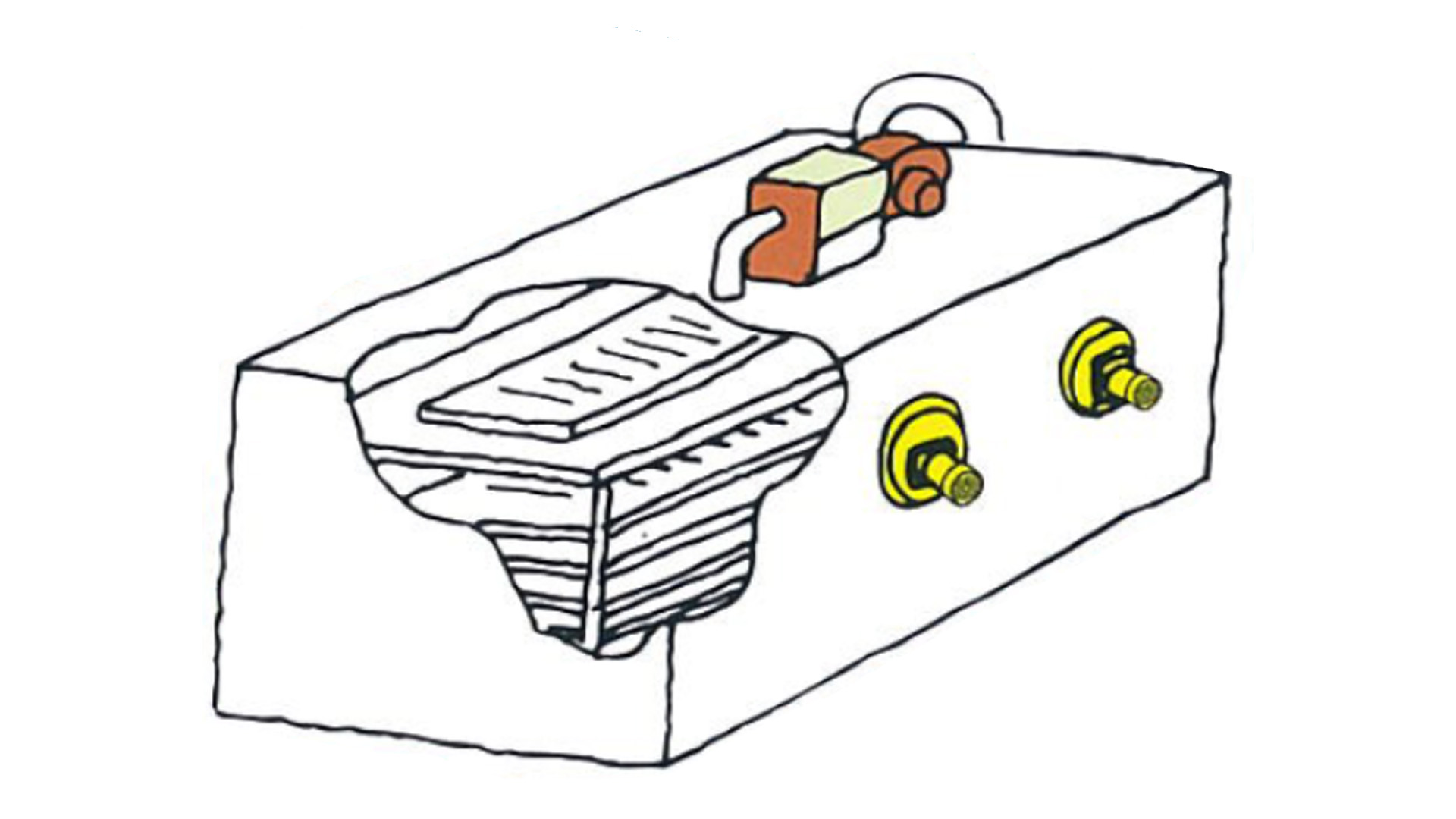

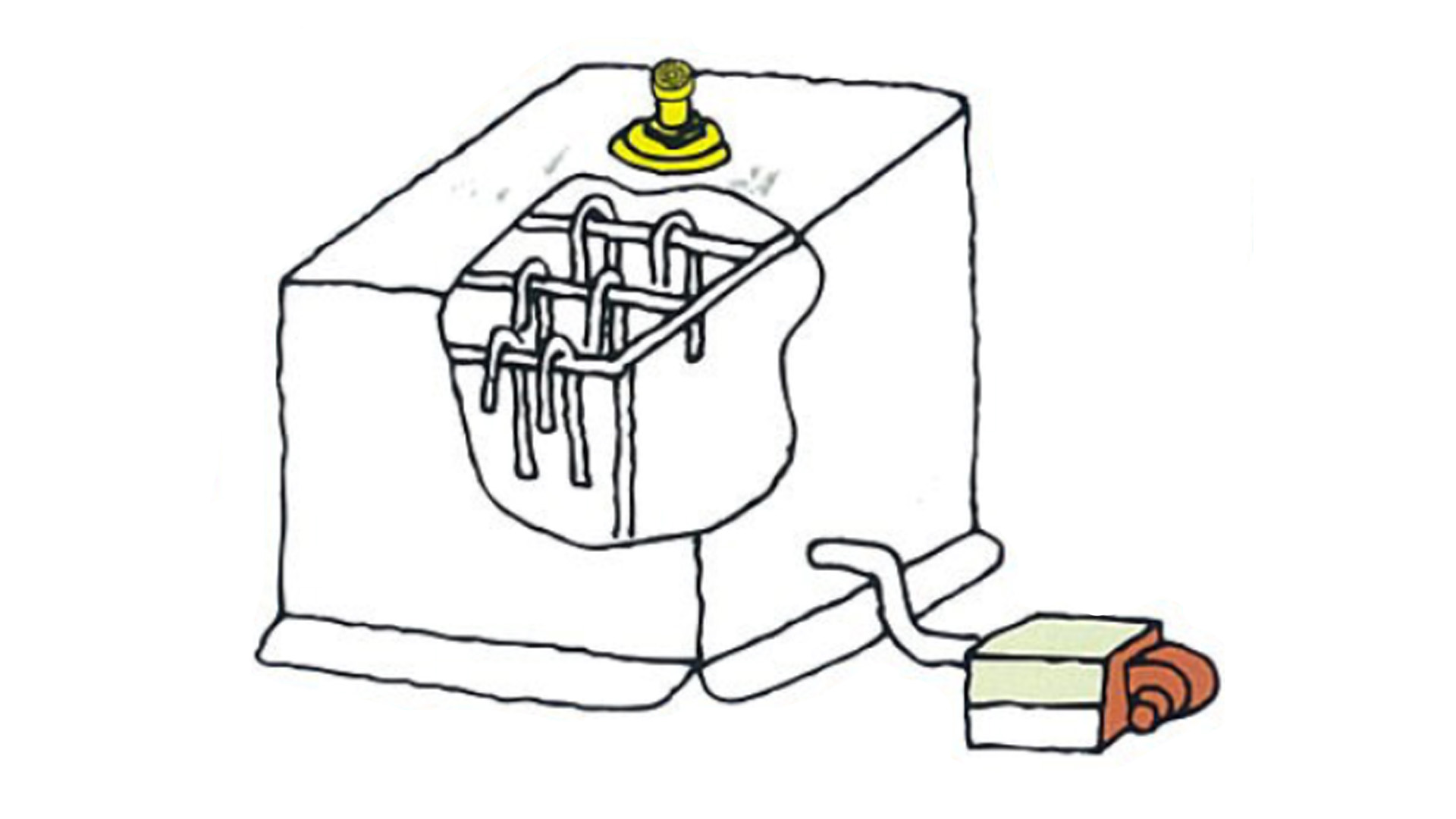

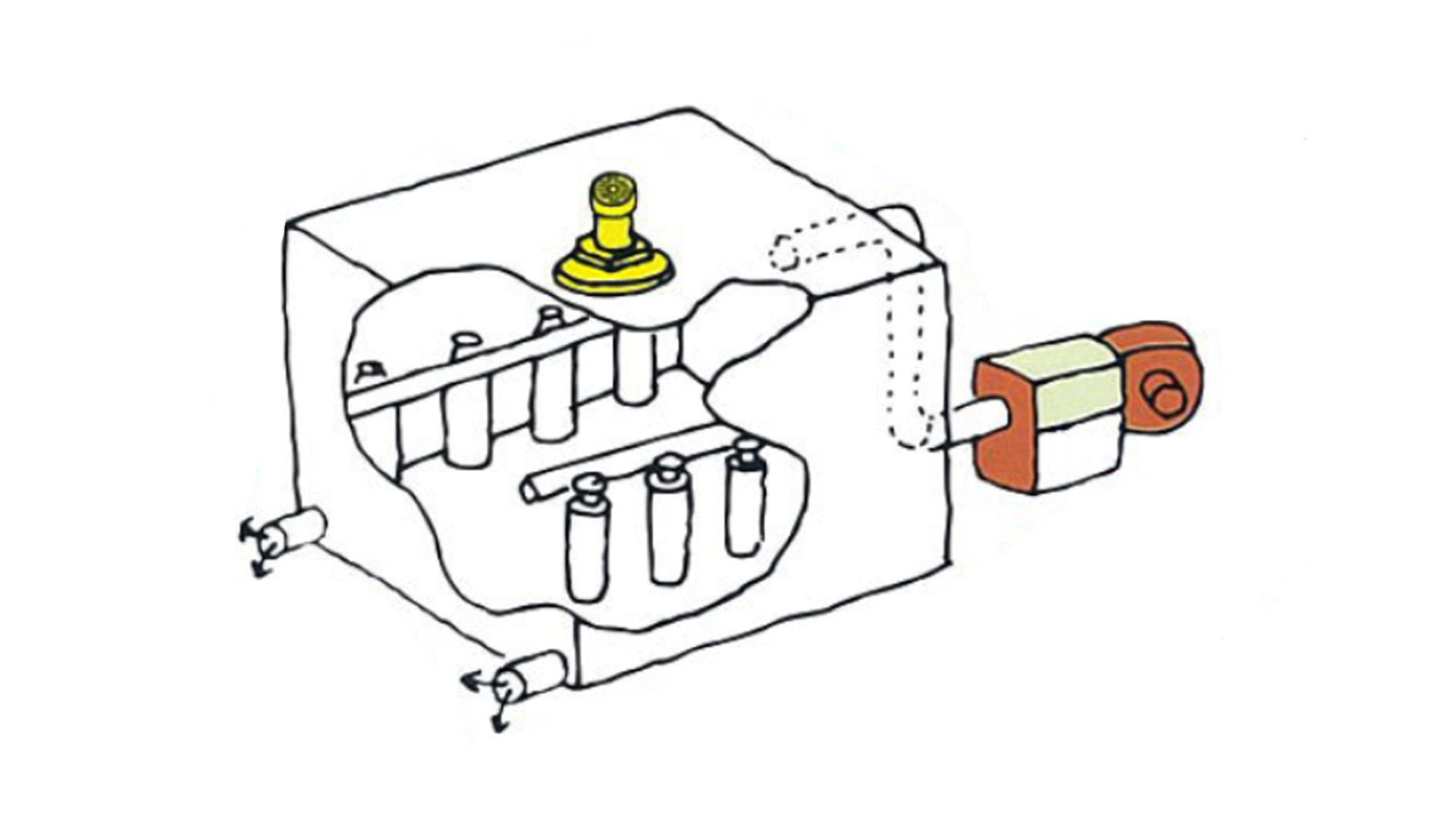

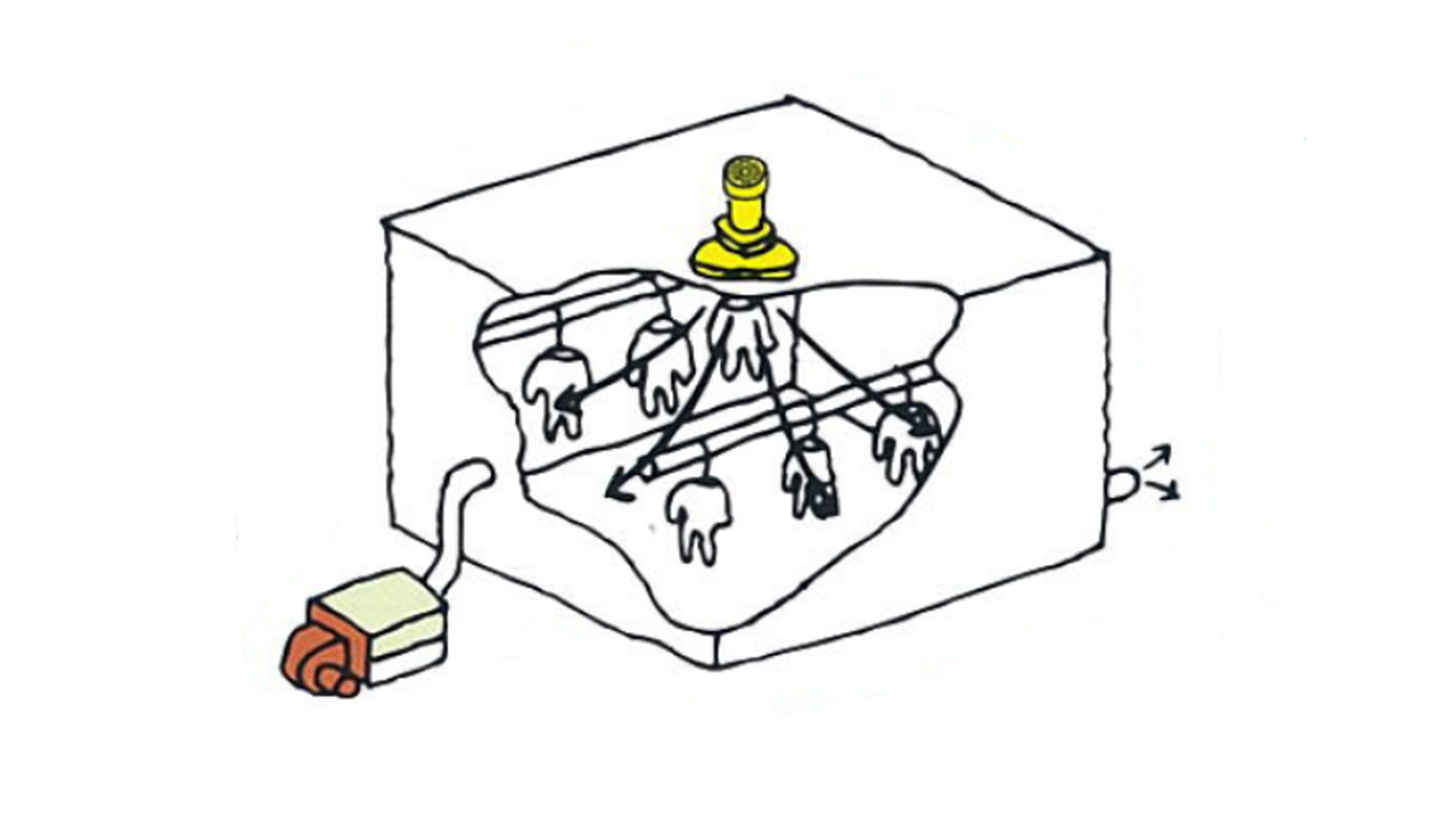

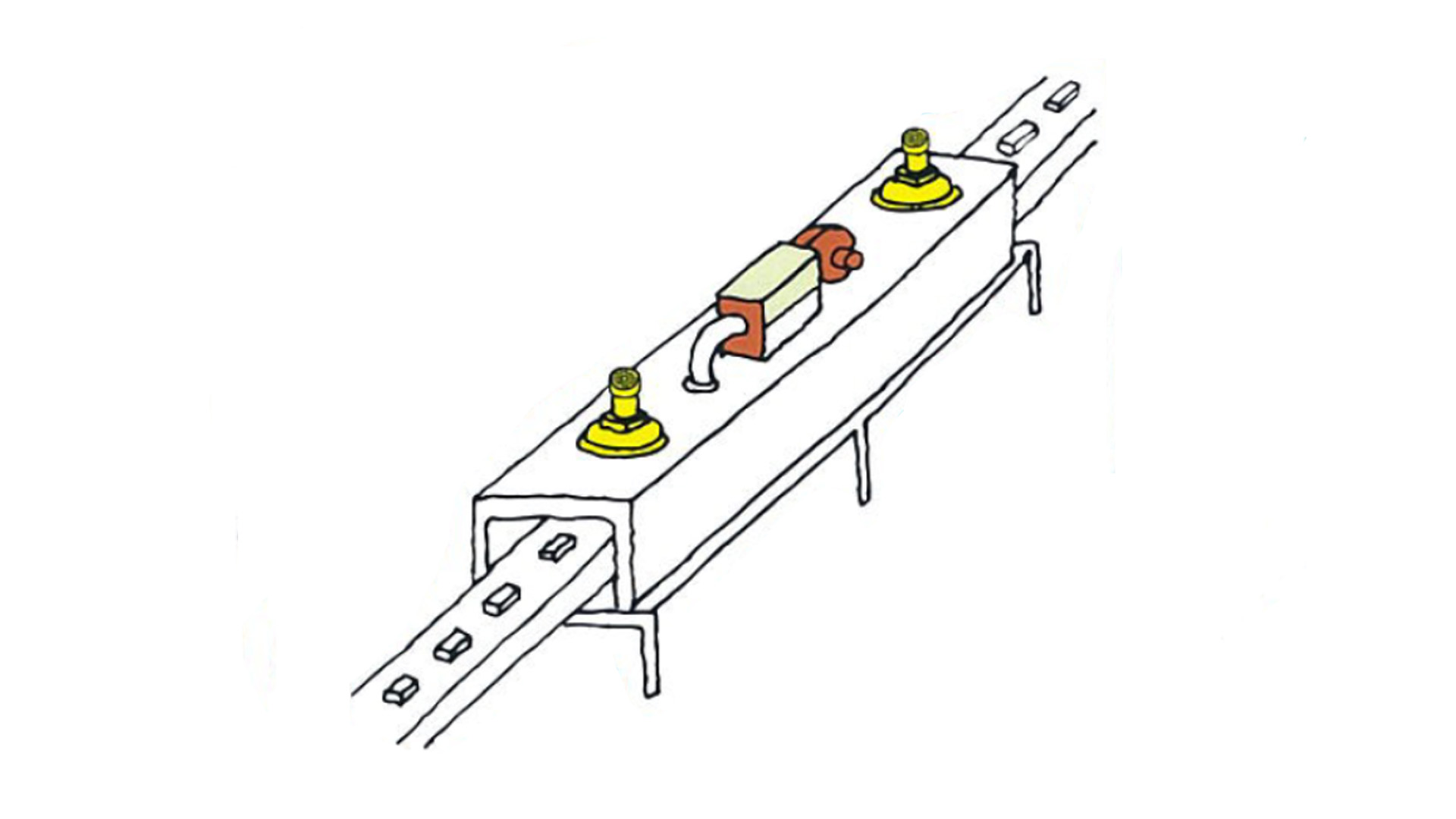

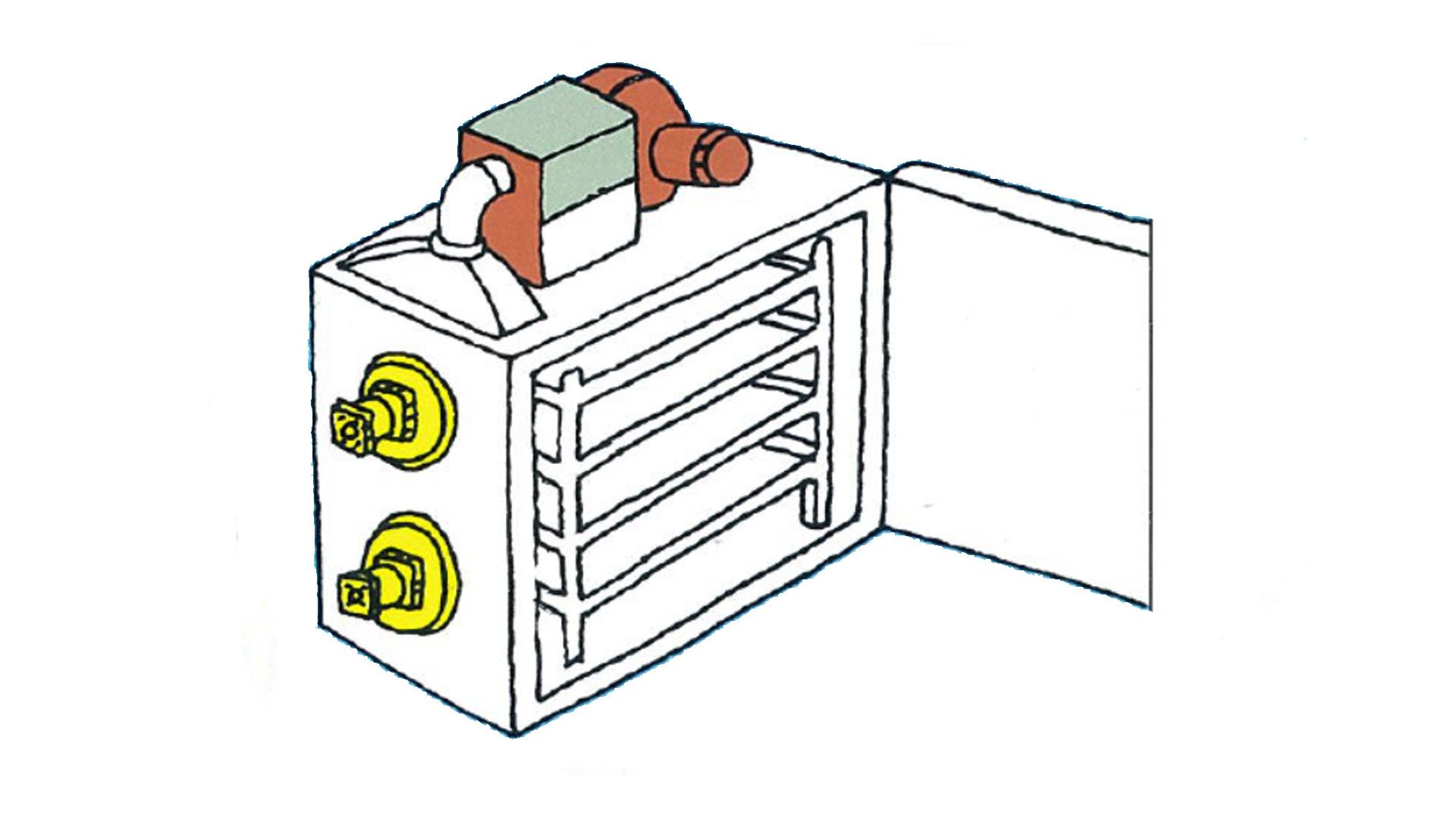

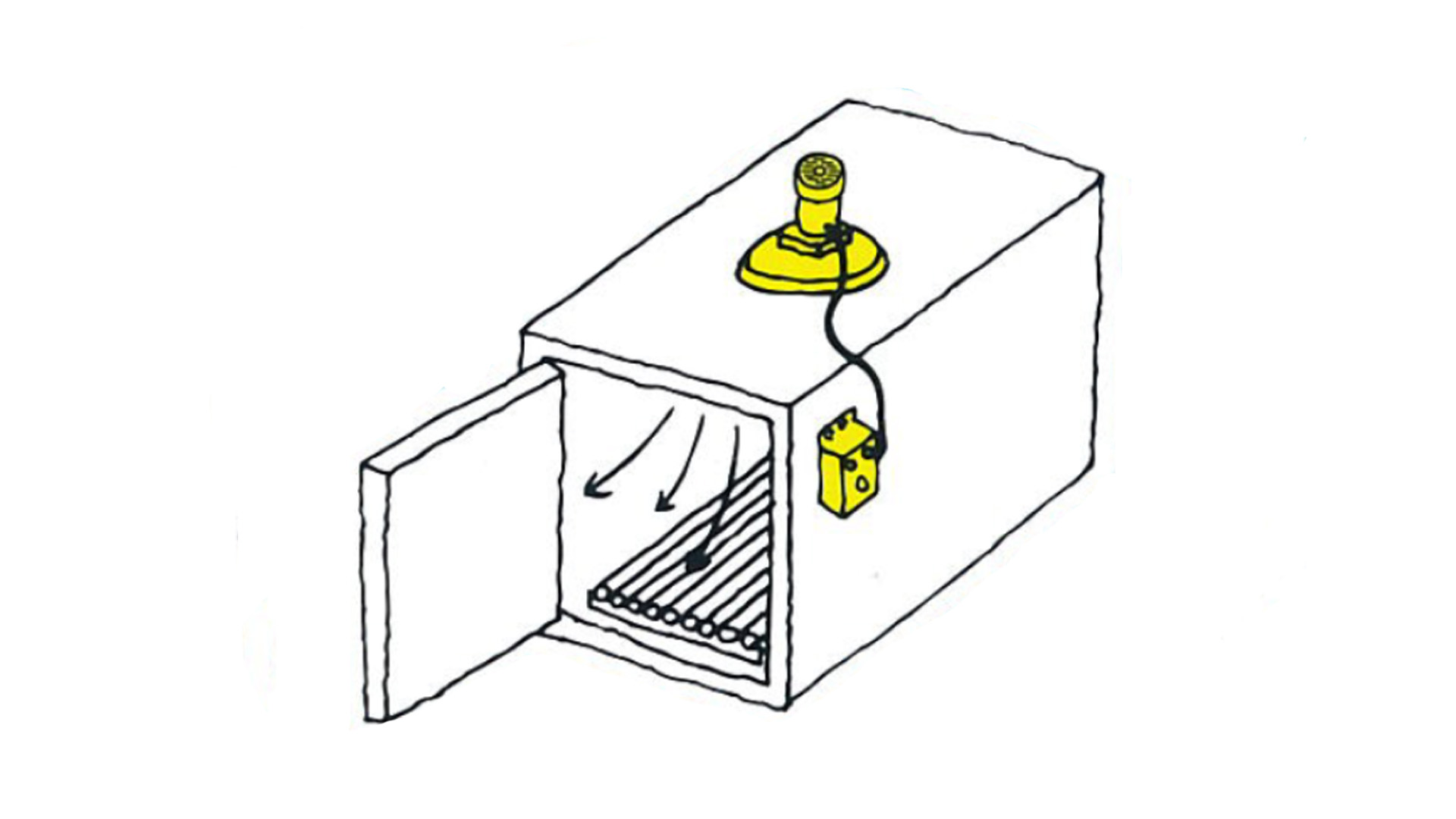

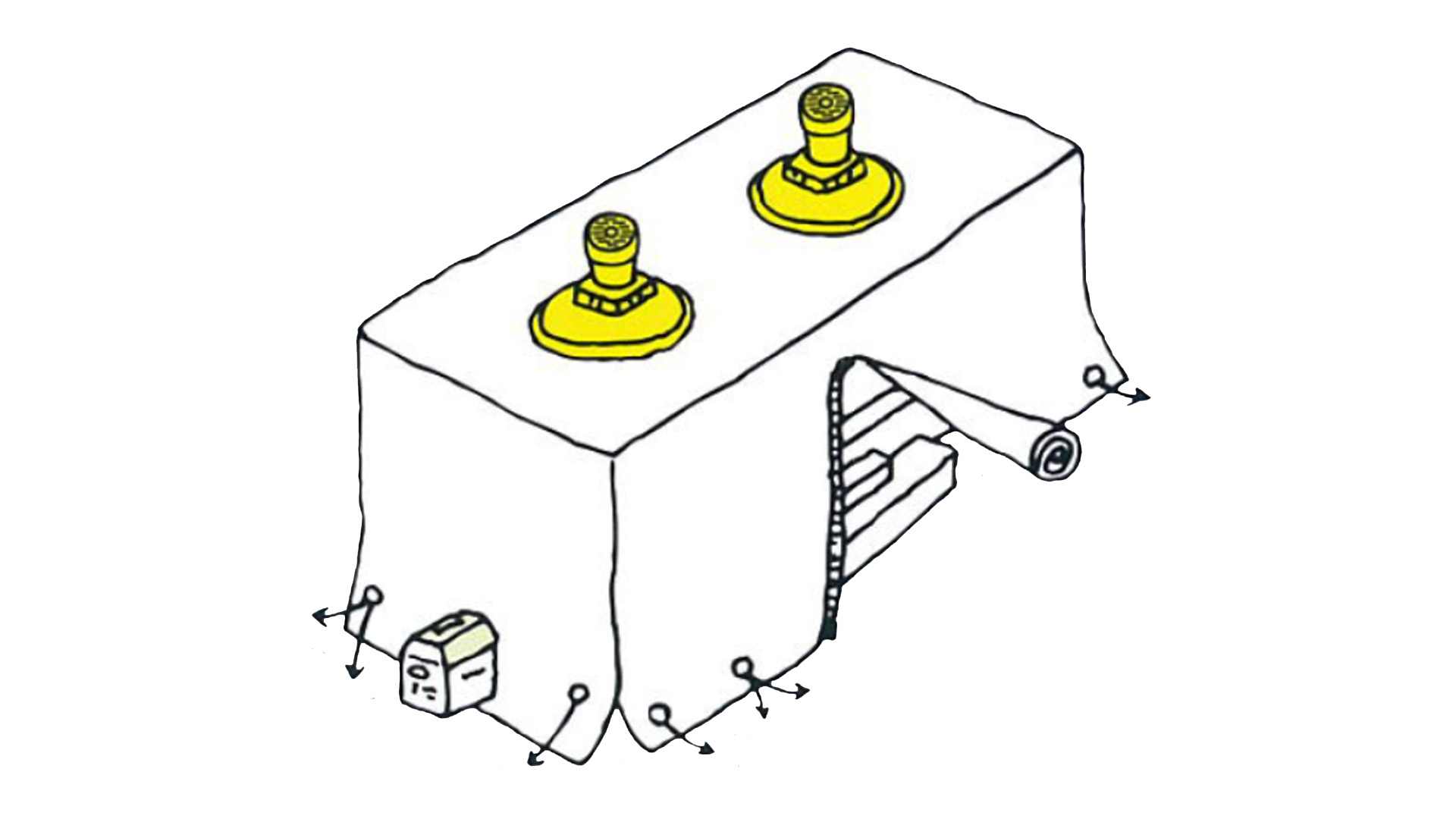

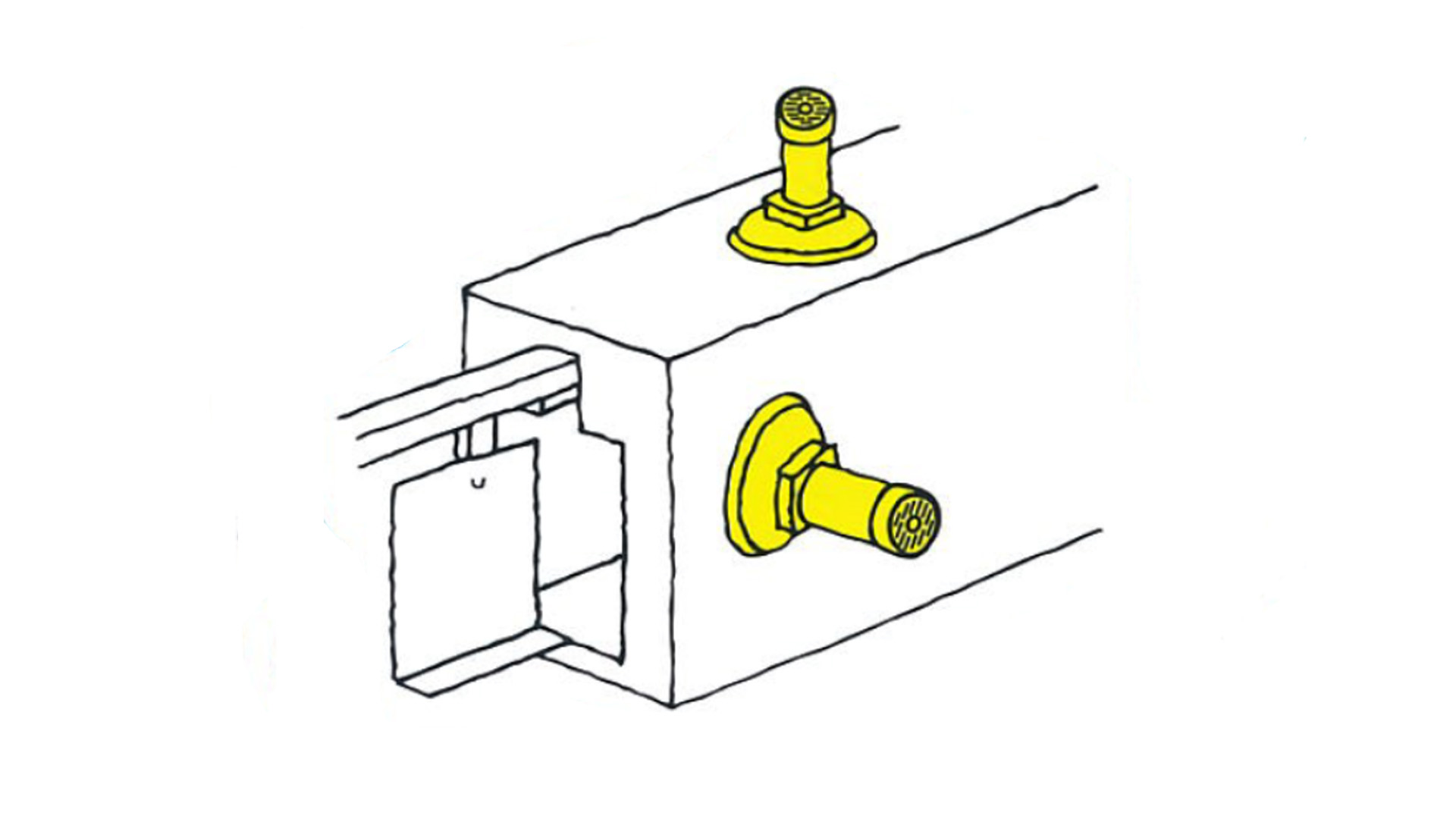

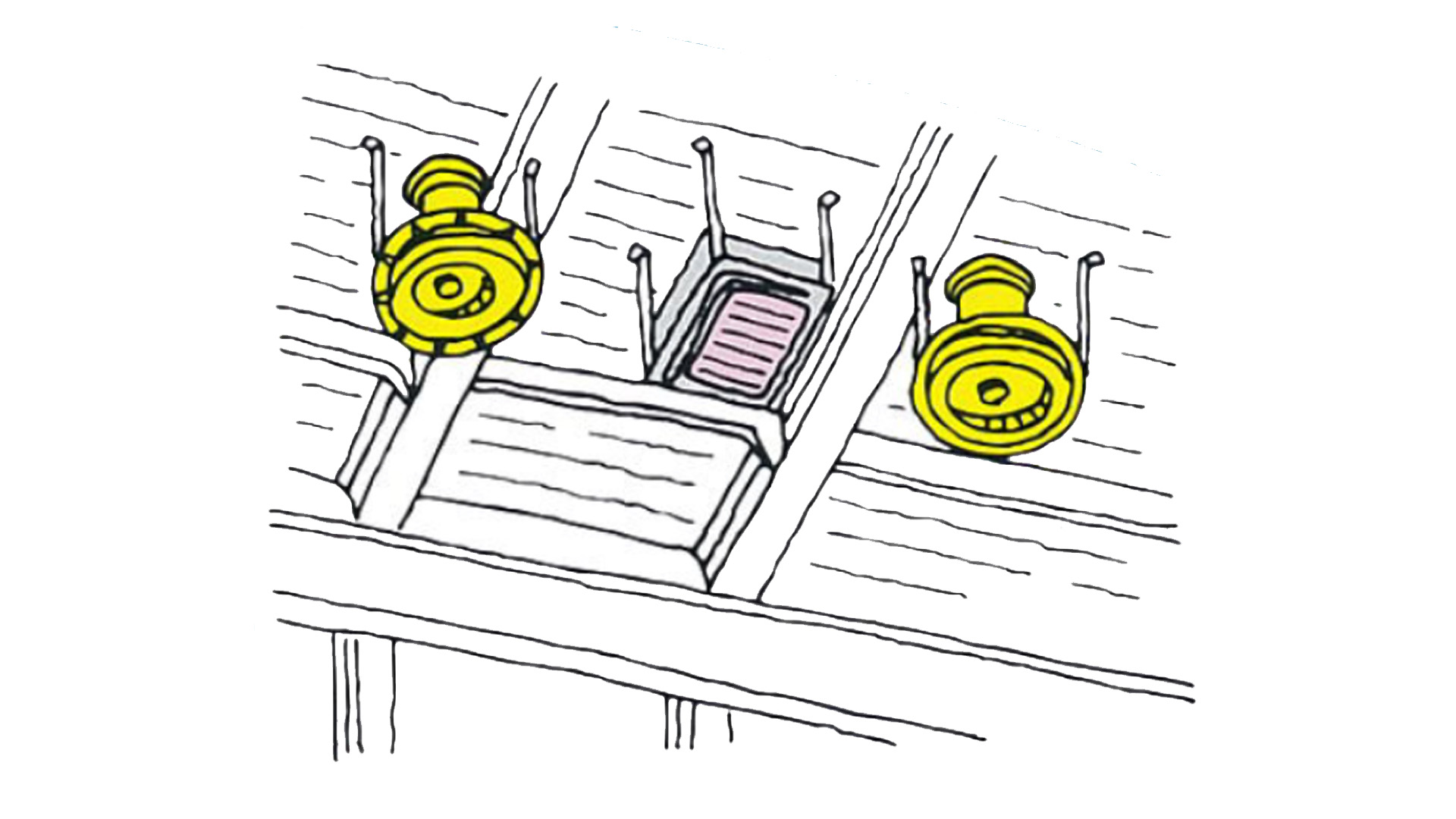

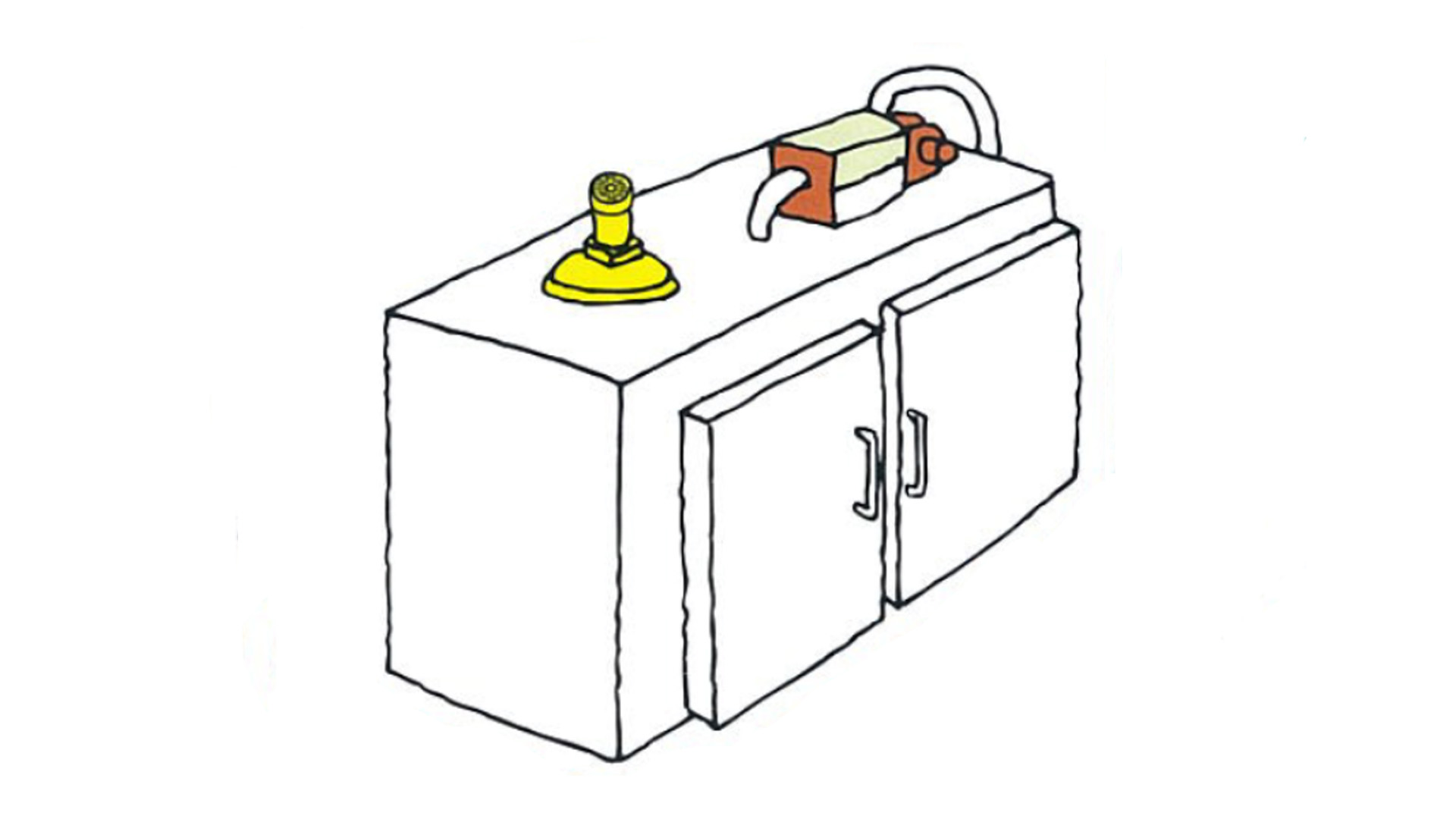

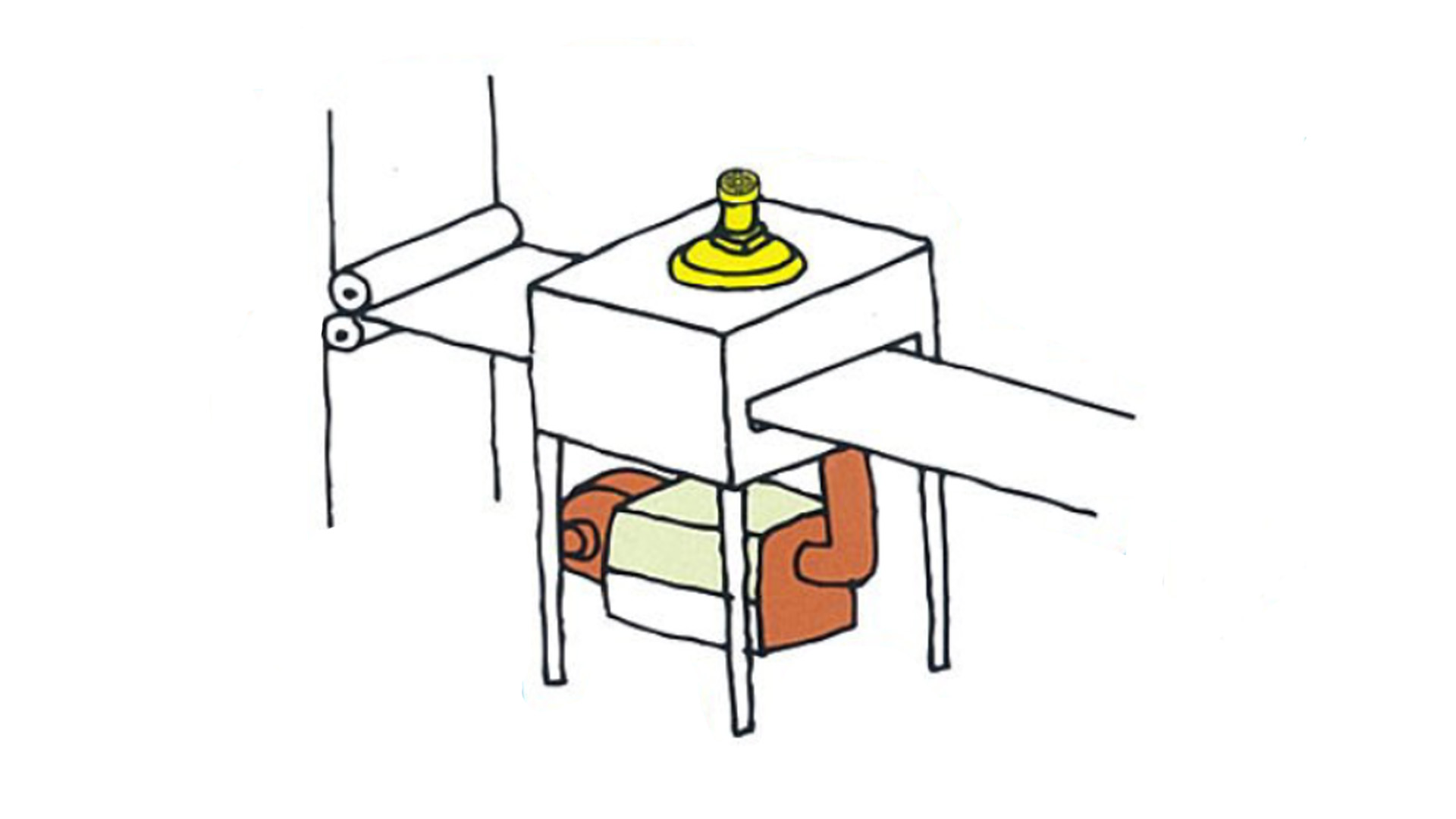

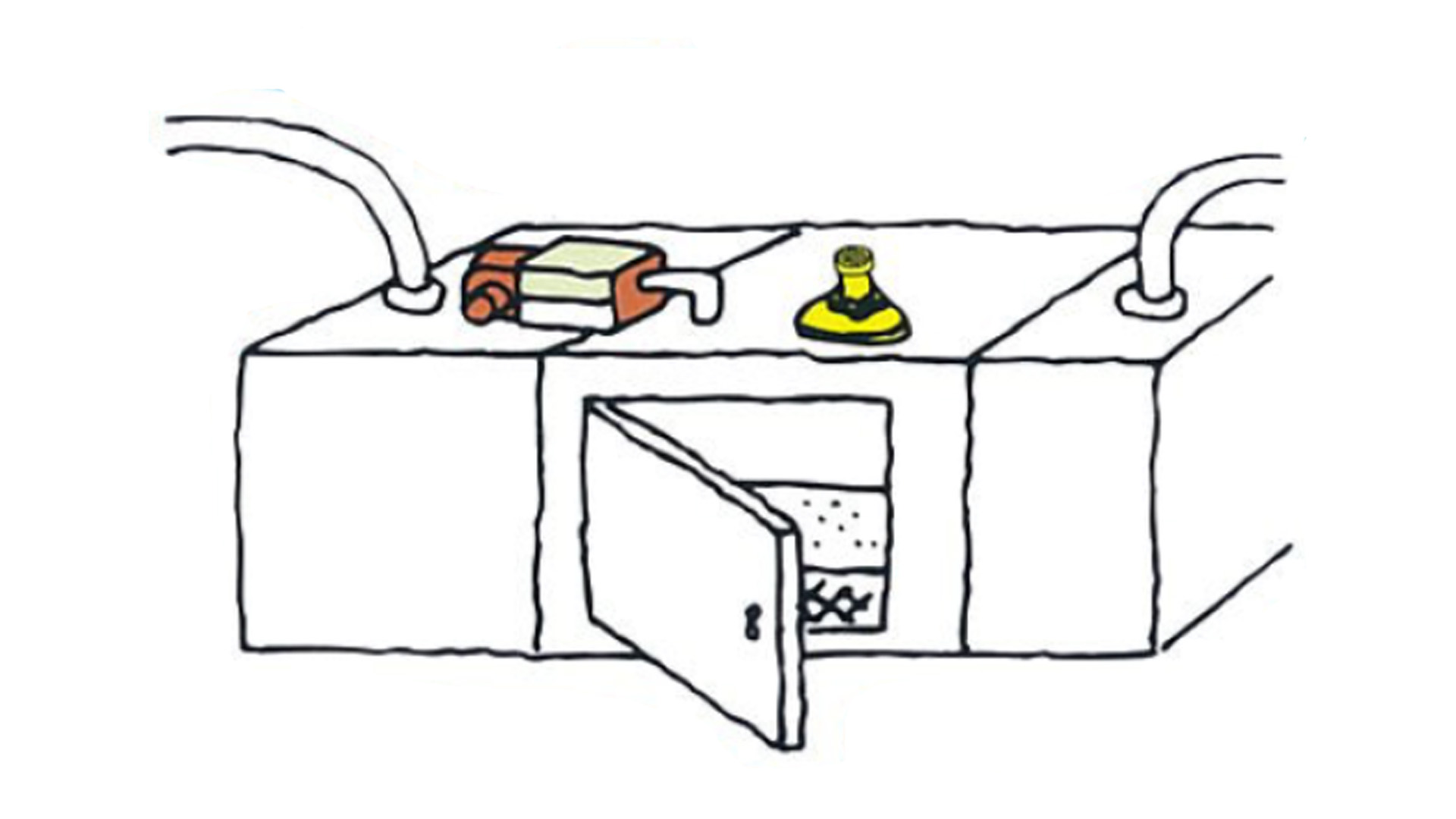

Typical Applications
Many other applications are also possible. Please contact us for details.
Standard Specifications
| Model |
YK50 |
|---|---|
| Motor Capacity | 50 W |
| Air Volume | 1.9 m³/min (50 Hz) / 2.2 m³/min (60 Hz) |
| Power Supply |
50 Hz: 3-phase 380 V / 400 V |
 |
|
| Model |
YK100 |
|---|---|
| Motor Capacity | 130 W |
| Air Volume | 3.8 m³/min (50 Hz) / 4.4 m³/min (60 Hz) |
| Power Supply |
50 Hz: 3-phase 380 V / 400 V |
|
|
| Model |
YK250 |
|---|---|
| Motor Capacity | 250 W |
| Air Volume | 6.2 m³/min (50 Hz) / 7.3 m³/min (60 Hz) |
| Power Supply |
50 Hz: 3-phase 380 V / 400 V |
|
|
| Model |
YK400 |
|---|---|
| Motor Capacity | 400 W |
| Air Volume | 15 m³/min |
| Power Supply |
50 Hz: 3-phase 380 V / 400 V |
|
|
