Kansai Electric Heat Corp.
Unit Heater (Without Control)
Ideal for creating temperature-controlled environments from room temperature up to 50 °C.
- Provides clean heated air suitable for drying ovens, printing machines, conveyor furnaces, and fermentation chambers.
- Equipped with a built-in overheat protection device that shuts off power when the heater case temperature reaches 101 °C.
Table of Contents - Unit Heater (Heater Only)
Unit Heater (Heater Only) Overview
- Maximum continuous operating temperature: 50 °C
- Heater capacity: 5 kW to 20 kW
- Equipped with a high-efficiency honeycomb block heater
- Extremely quiet operation; suitable for continuous 24/7 operation
- Built-in overheat protection that shuts off power when the heater case reaches 101 °C
- Low pressure-loss heater structure minimizes airflow loss and allows stacking up to two units high

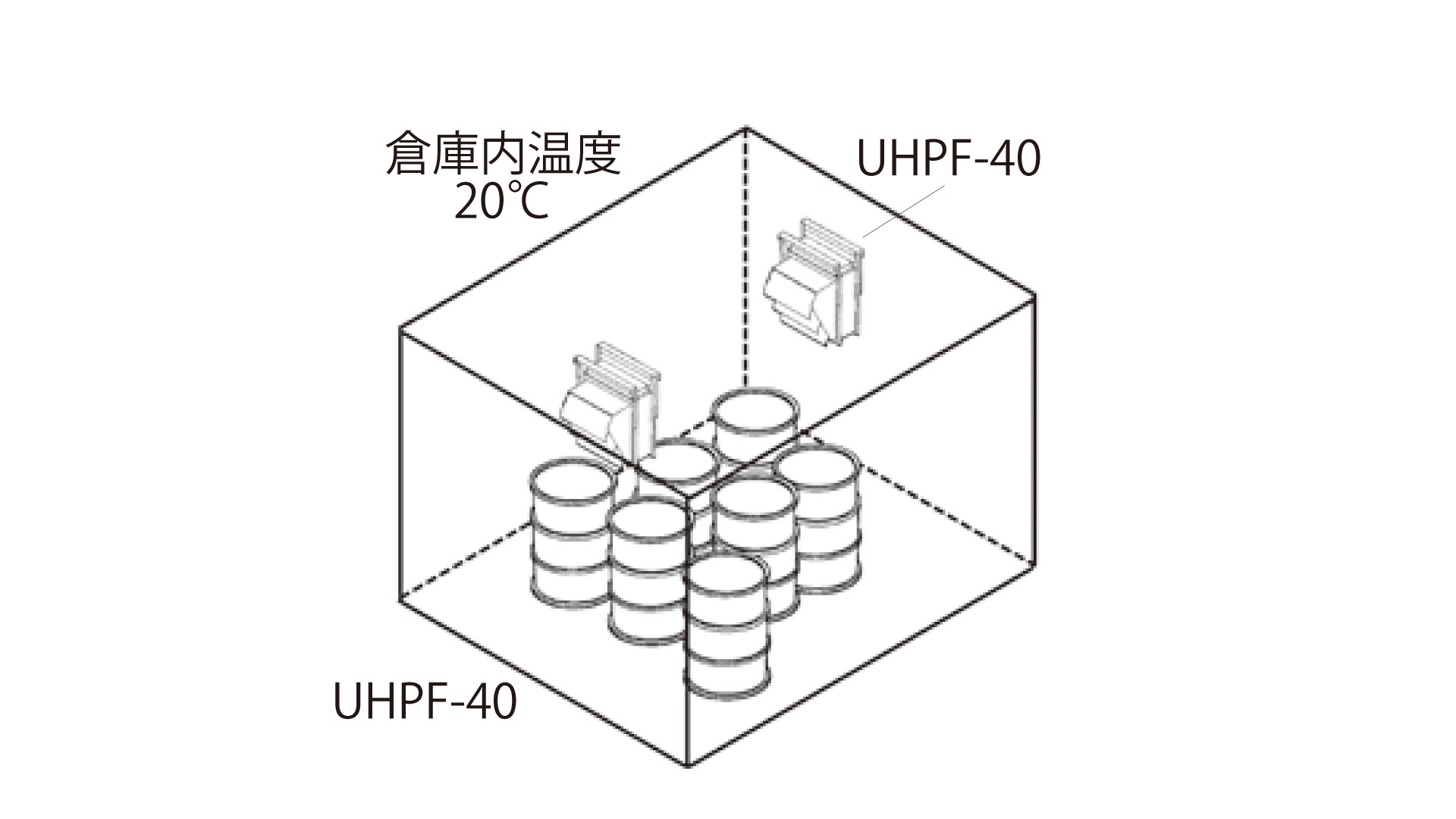

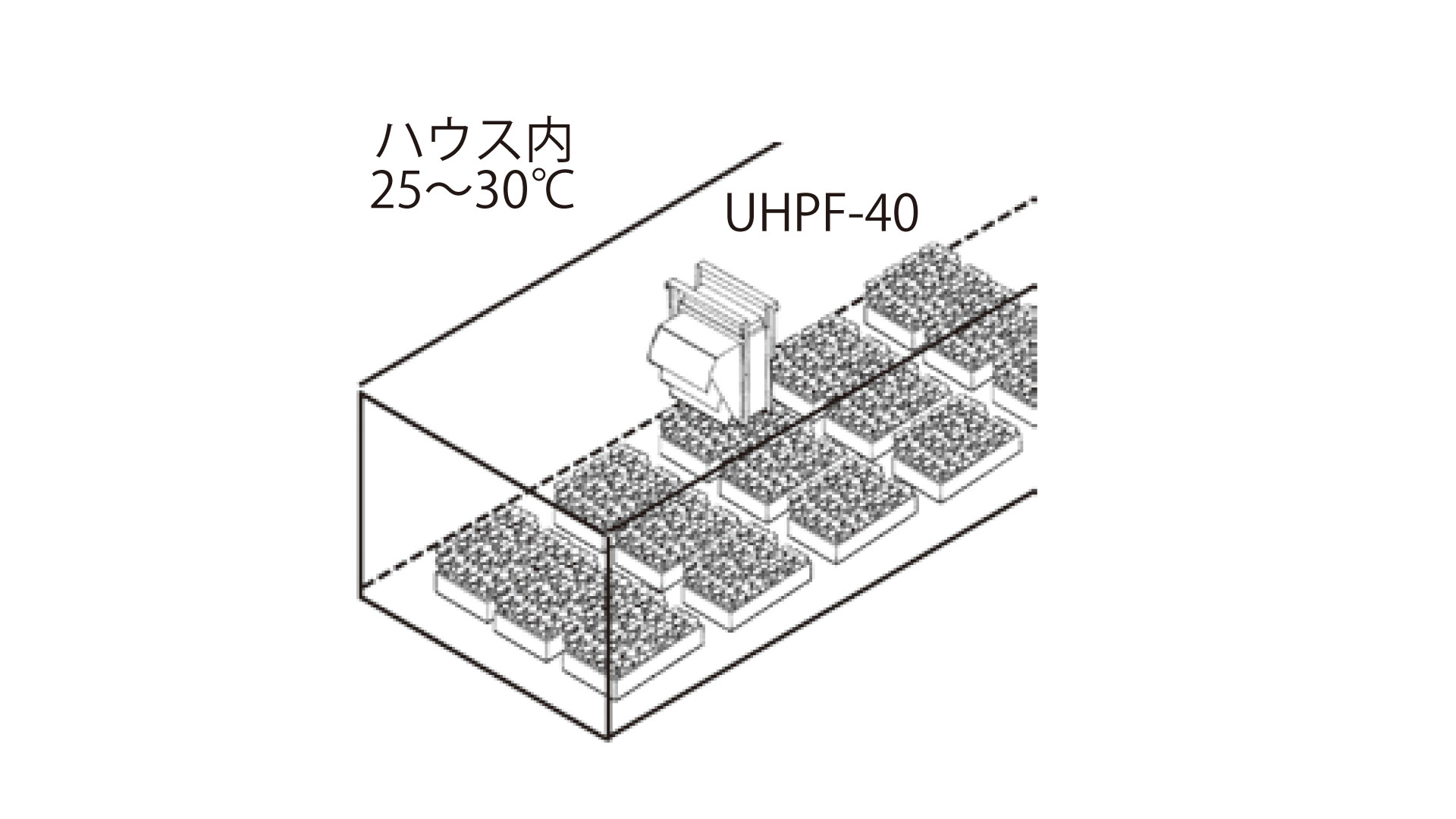

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Related Products
DHX01 Series (500 °C Specification) B Series Block Heater Duct Heater XS Series SL Series
Standard Specifications List
| Model |

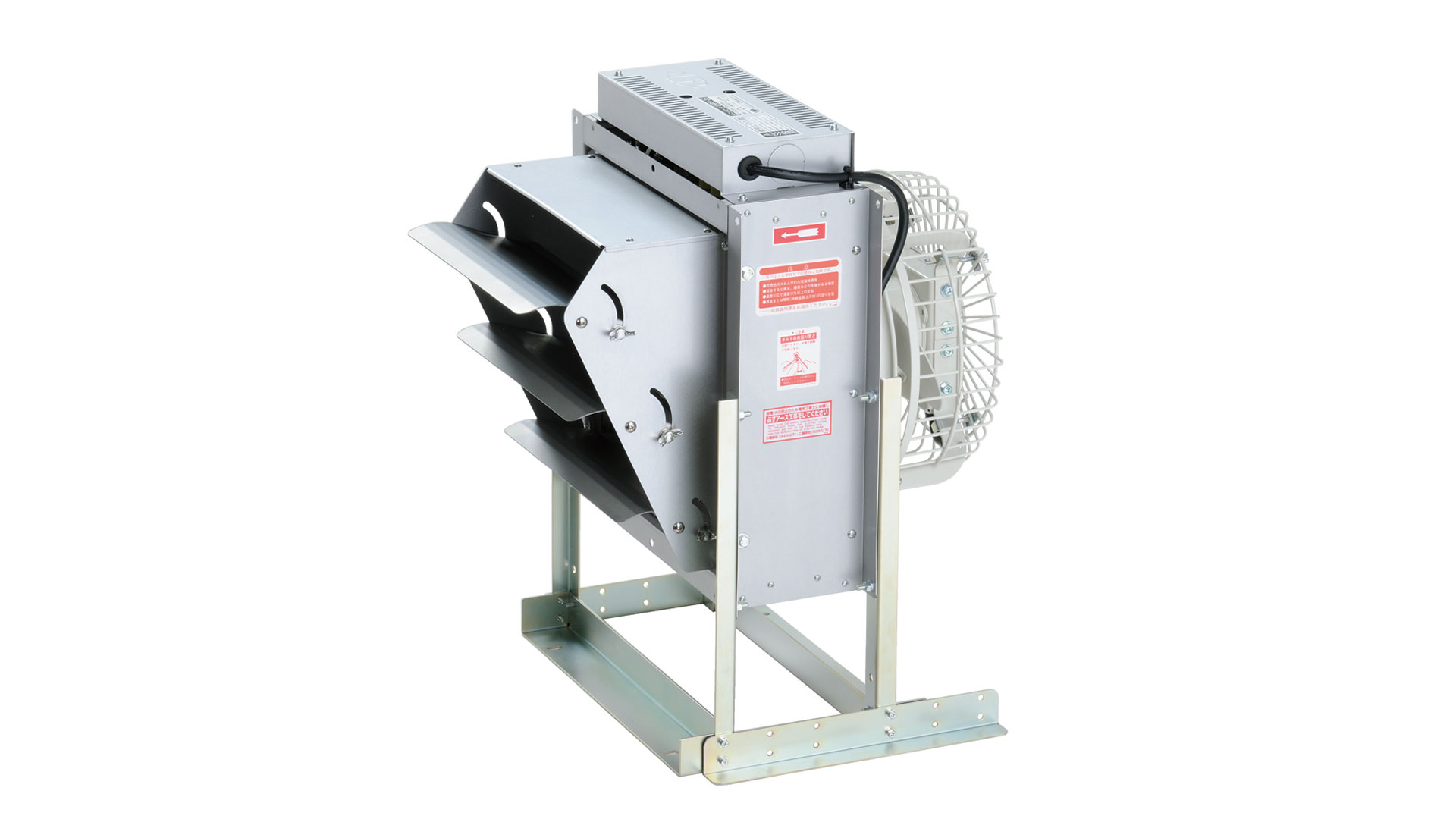

UHPF-25 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 5 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
 |
|
| Model |
2UHPF-25 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 10 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
|
|
|
| Model |

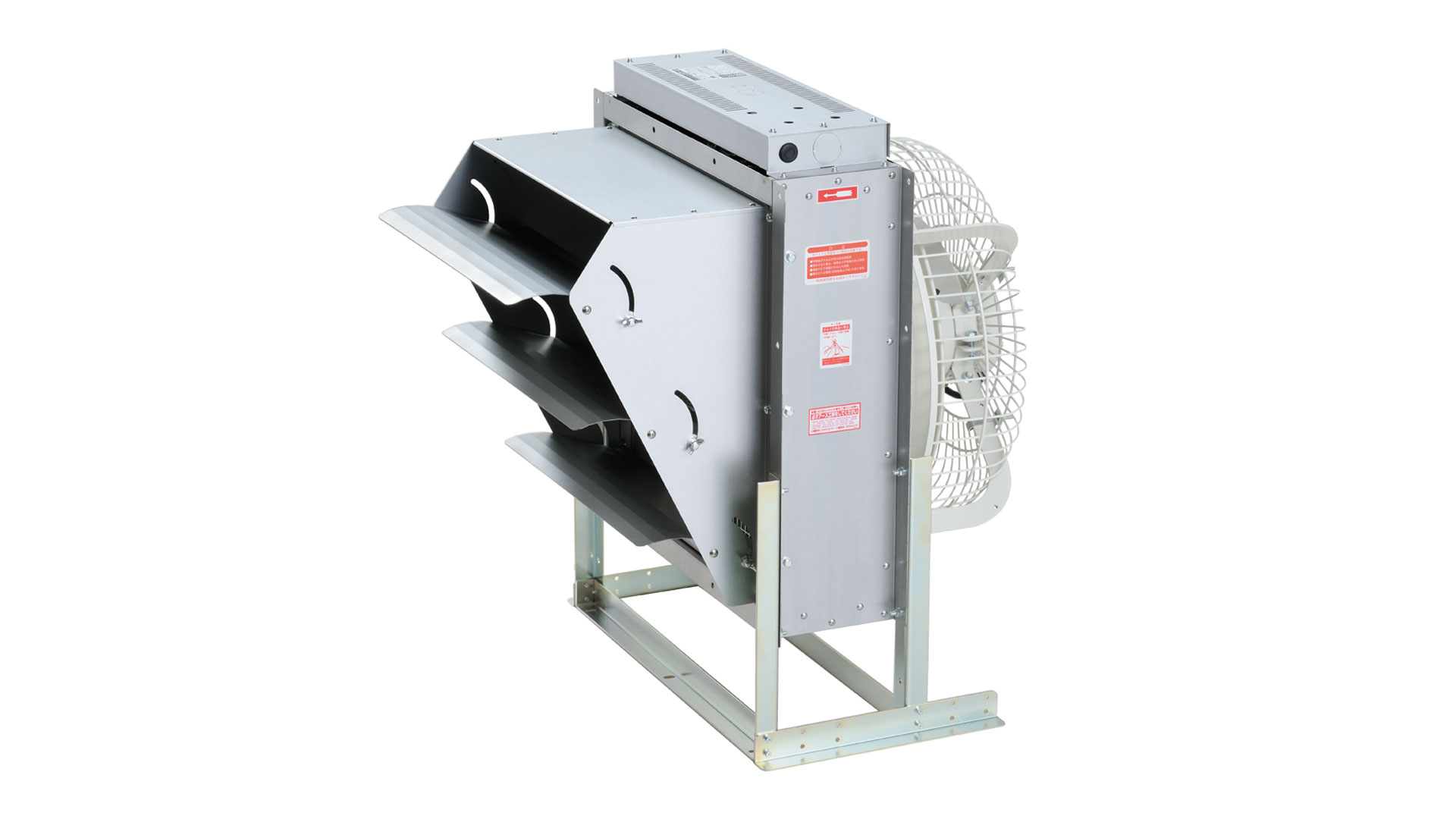

UHPF-40 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 10 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
 |
|
| Model |
2UHPF-40 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 20 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
|
|
|
| Model |
UH-25 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 5 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
 |
|
| Model |
UH-40 |
|---|---|
| Model No. | N/A |
| Heater Capacity | 10 kW |
| Power Supply (50/60 Hz) | 3-phase 200 V |
|
|
