HT Series 1200 °C Electric Air Burner
Electric High-Temperature Air Burner
- The HT4 and HT7.5 are electric air burners capable of generating hot air up to 1200 °C.
- Electric heating provides completely clean hot air without combustion.
- Designed for safe 24-hour continuous and intermittent operation.
- Helps reduce CO₂ emissions by replacing gas or oil burners with electric heating.
- Suitable for heating air, hydrogen, nitrogen, cracked ammonia, argon, and other gases.
- No restrictions on installation orientation; can be installed at any angle.
- Ready to use simply by connecting the power cable.

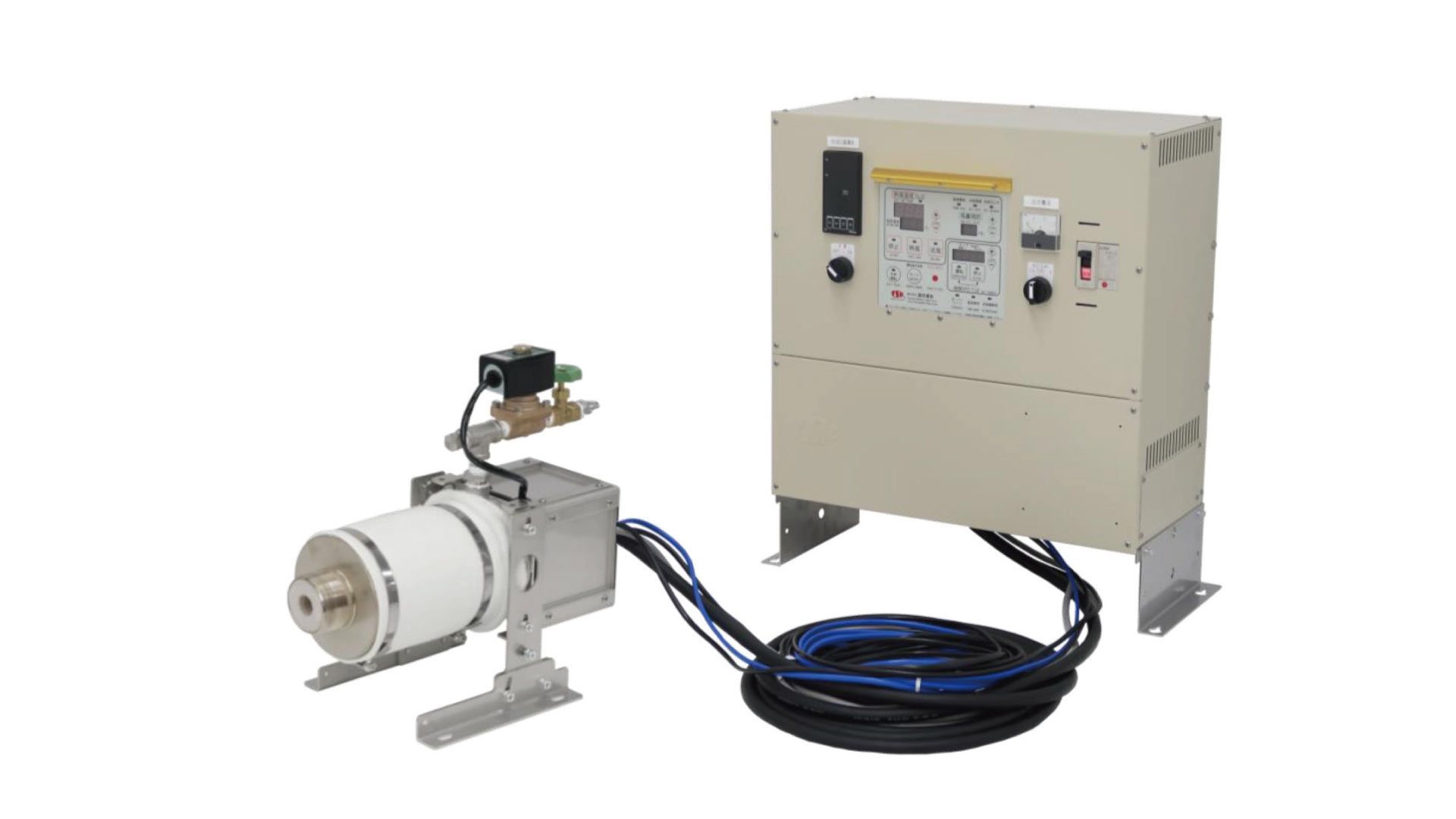

HT4 / HT7.5 Overview
- Heater Capacity: 4 kW / 7.5 kW
- Industry-first rod-type heating elements
- Air-insulated heater case
- Special insulators
The use of industry-first rod-type heating elements and an R-type thermocouple for outlet temperature sensing enables long-term operation while minimizing heating element breakage.
An air-insulated heat exchange structure between the outer casing and internal components effectively utilizes heat from the heating elements.
However, the heater case surface may become hot during preheating or operation at low air volume.
Always operate the heater with the supplied thermal insulation cover installed on the heater case to prevent burns.
The use of special insulators increases gas velocity inside the heater and provides more uniform flow, significantly improving heat transfer efficiency between the heating elements and the supplied gas.

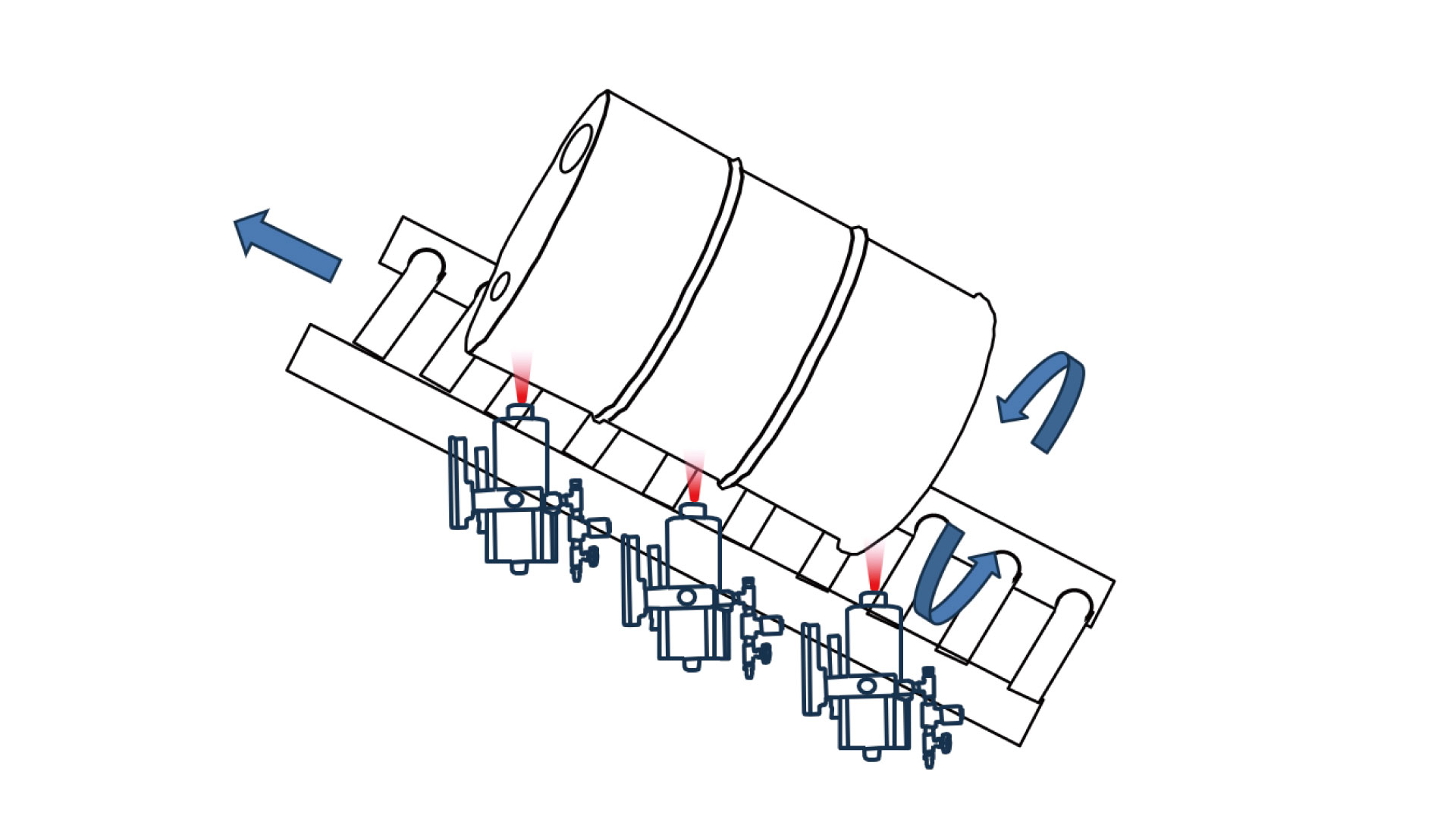

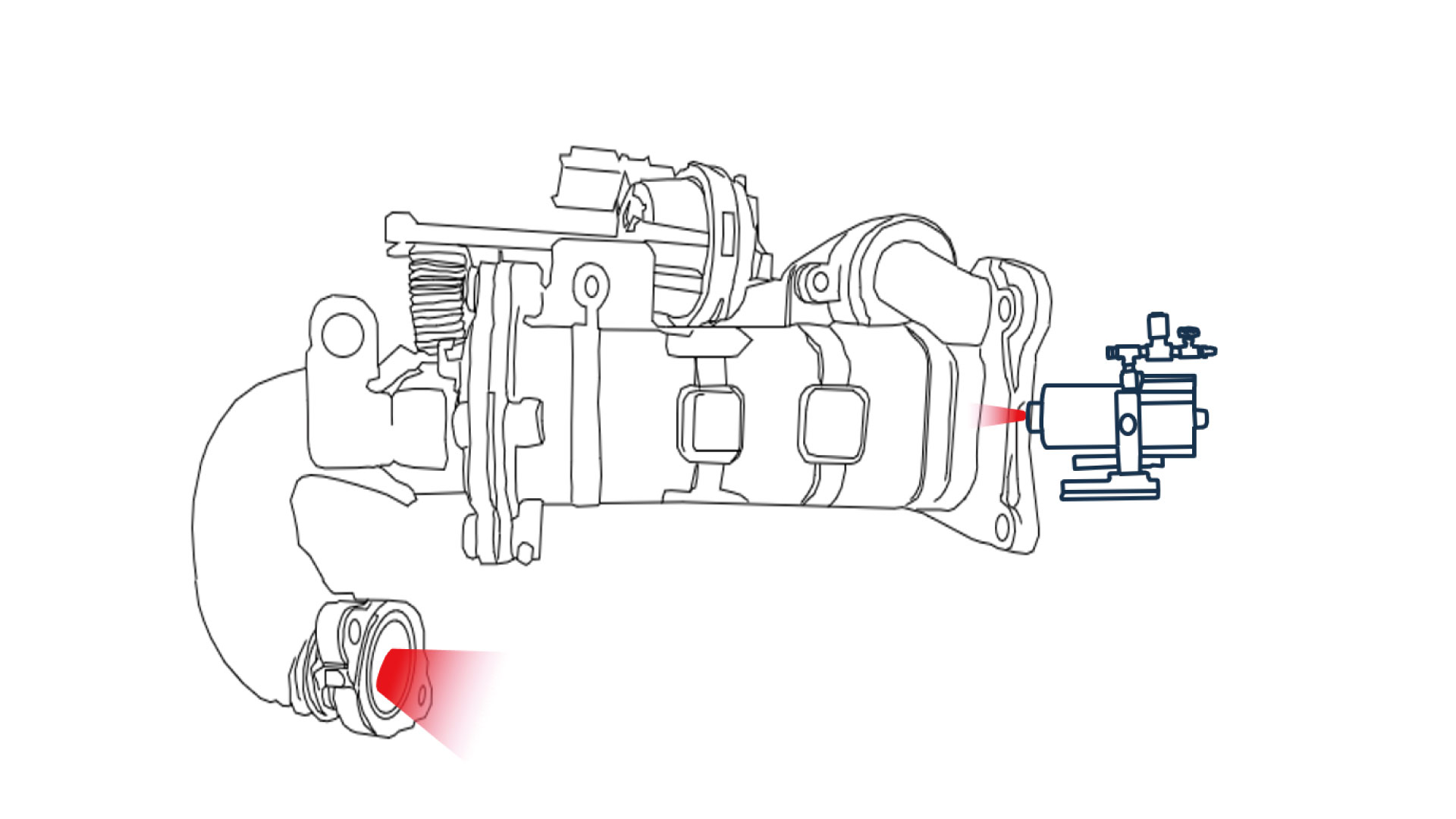

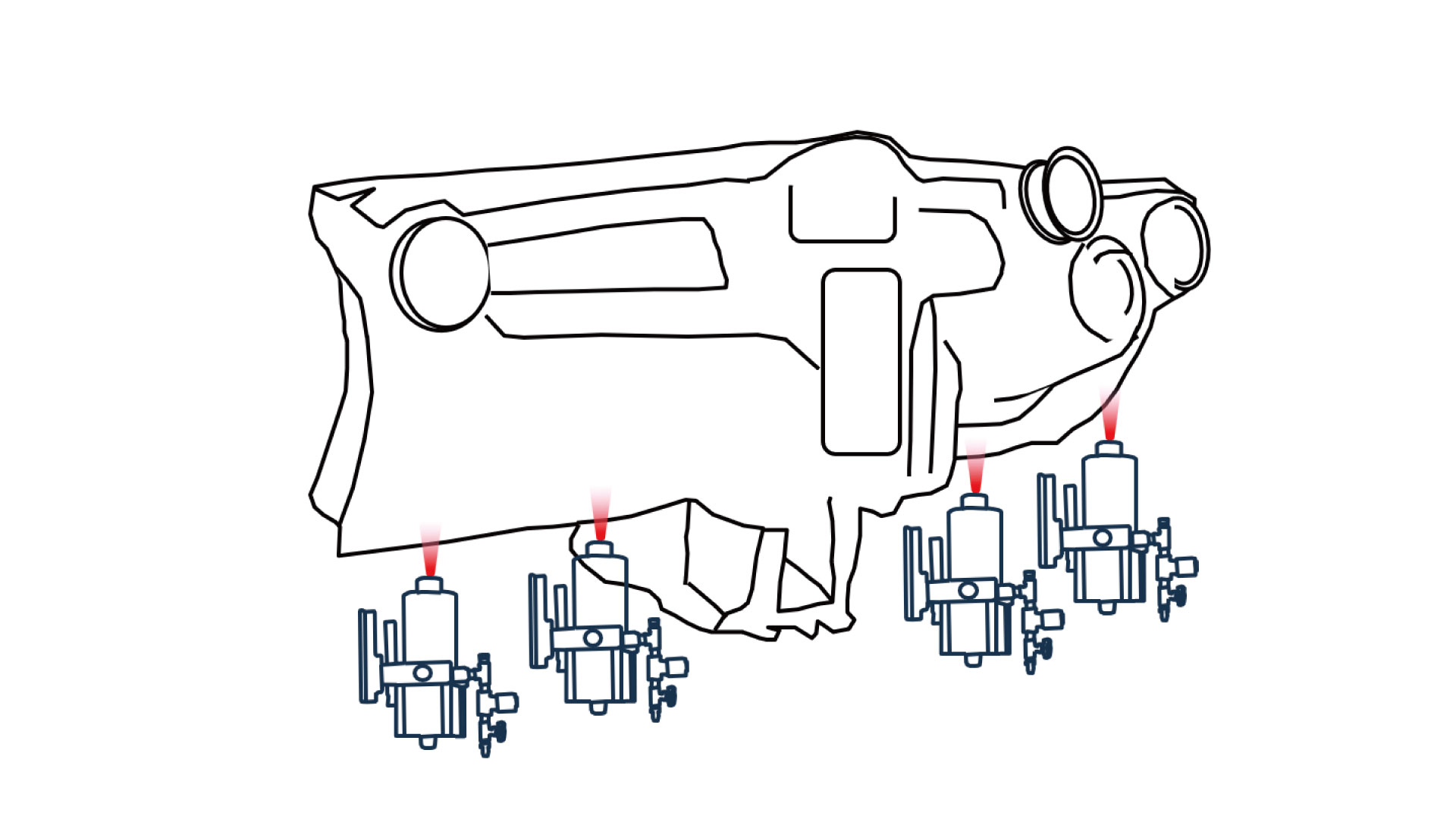

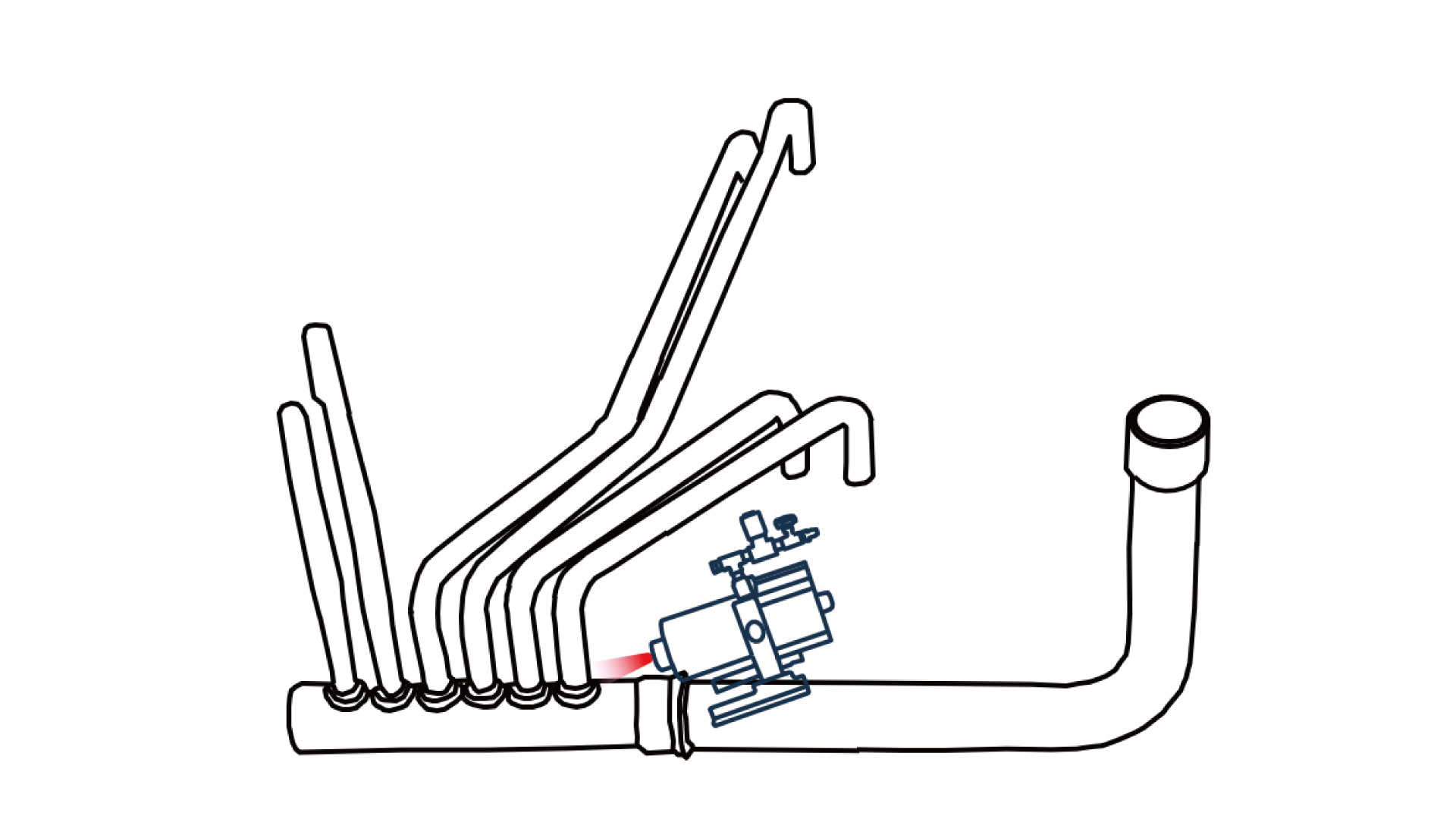

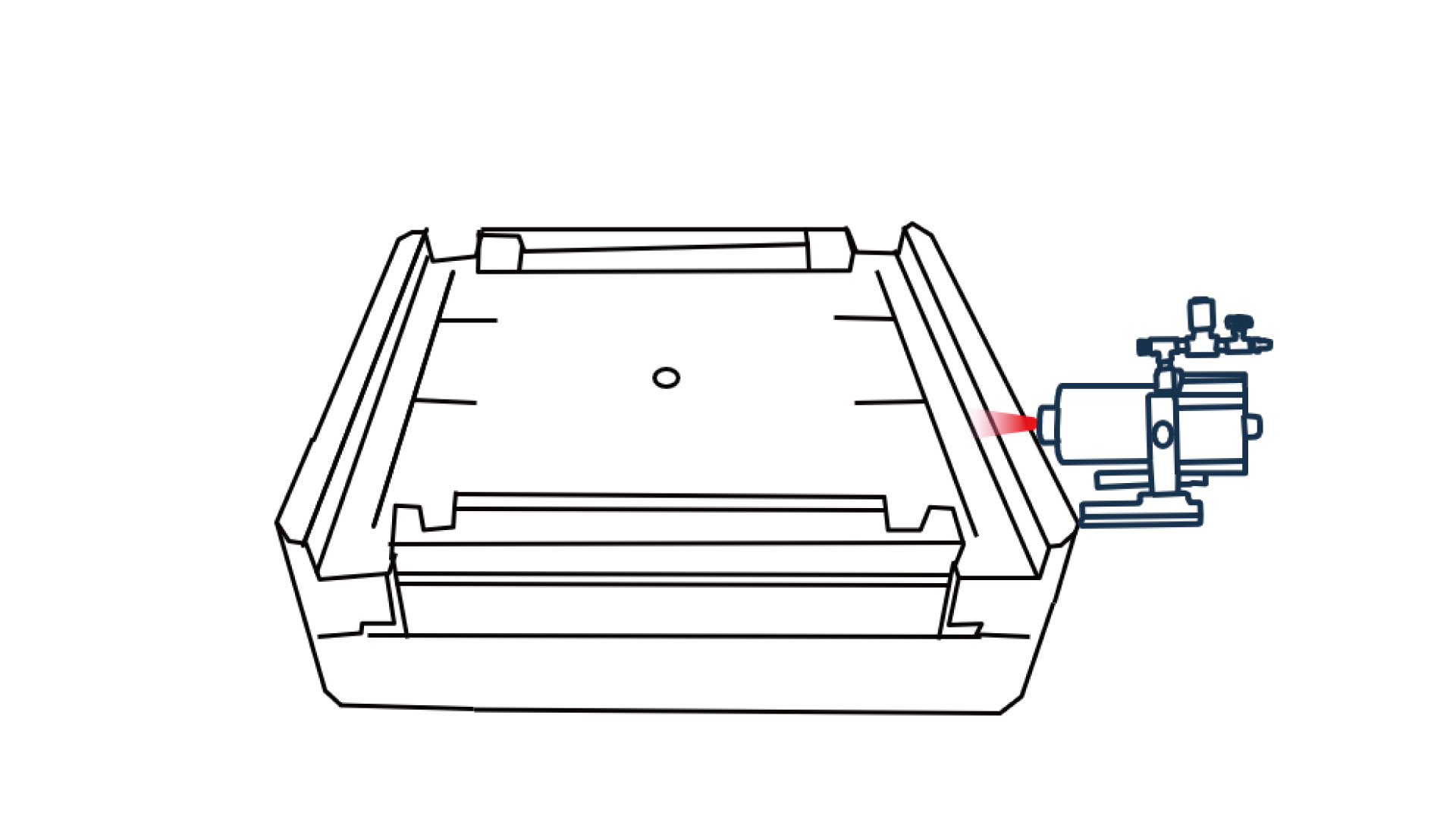

Typical Applications
The HT4 and HT7.5 can be used for many other applications. Please contact us to discuss your application.
Related Products
DHX10 (1200 °C) DHX01 (700 °C) SH81 (1000 °C) Super Heater Spot Heater SHP Heater Pen Heater
Standard Specifications
| Model |
HT4 |
|---|---|
| Model No. | – |
| Power Supply (50/60 Hz) | Single-phase 200 V |
| Heater Capacity | 4 kW |
| Max Outlet Air Temp. | 1200 °C (1100 °C continuous) |
| Max Inlet Air Temp. | 50 °C |
| Max Air Volume | 300 L/min |
| Min Air Volume | 60 L/min (at 1200 °C outlet air temperature) |
| Body Pressure Rating | 0.49 MPa |
 |
|
| Model |
HT7.5 |
|---|---|
| Model No. | – |
| Power Supply (50/60 Hz) | Single-phase 200 V |
| Heater Capacity | 7.5 kW |
| Max Outlet Air Temp. | 1200 °C (1100 °C continuous) |
| Max Inlet Air Temp. | 50 °C |
| Max Air Volume | 600 L/min |
| Min Air Volume | 100 L/min (at 1200 °C outlet air temperature) |
| Body Pressure Rating | 0.49 MPa |
|
|
|
