HT Series Hot Air Recirculation Generator
High-Temperature Electric Hot Air Generator
- An electric Hot Air Generator with a maximum outlet air temperature of 500 °C, integrating the heater, control panel, and heat-resistant blower into a single unit
- Ready to use simply by connecting the power cable
- Equipped with an intermittent operation function as standard
高温電気式熱風発生機
◆ヒータ、操作盤、耐熱電動送風機が一体となった最高熱風温度５００℃の電気式熱風乾燥機です。
◆電源ケーブルを接続するだけでご使用できます。
◆間欠運転機能を標準搭載しています。
HT Series Overview
- Maximum Continuous Operating Temperature: 500 °C
- Heater Capacity: 17 kW to 34 kW
- Equipped with a High-Efficiency Honeycomb Block Heater
- Equipped with an inverter for airflow control (variable frequency: 20 to 60 Hz) Energy-efficient!
- All models are equipped with a heat-resistant blower for hot air circulation
Energy-efficient! - Blower Motor Capacity: 250 W to 750 W
- All models are equipped with I/O service terminals
- Built-in safety circuits
(High-reliability thermocouples are used for all safety devices) - Compatible with remote control panels, airflow direction changes, and custom voltage specifications
- Programmable timer:
Settable from 1 minute to 99 hours 59 minutes in 1-minute increments - For details of the various operating modes, please refer to the Operation Manual.
(Hot air circulation temperature limits:
TSK-52HT / TSK-85HT: up to 260 °C,
TSK-95HT: up to 500 °C)
保証期間３年
- 連続使用最高温度 ５００℃
- ヒータ容量17kW～34kW
- 高効率ハニカムブロックヒータ搭載
- 風量調節用インバータ搭載（20～60Hz可変）省エネ！
- 全機種熱風循環用耐熱送風機搭載 省エネ！
- 送風機電動機容量250W～750W
- 全機種入出力サービス端子付
- 各種安全回路内蔵（各種安全装置に高信頼性の熱電対採用）
- 遠隔操作盤・方向変更・異電圧等にも対応可能
- タイマ1分刻みで1分～99時間59分設定可能
- 多機能なモードについては取扱説明書をご覧ください
（熱風循環温度 TSK-52HT,85HT：260℃以下 ・ TSK-95HT：500℃以下）

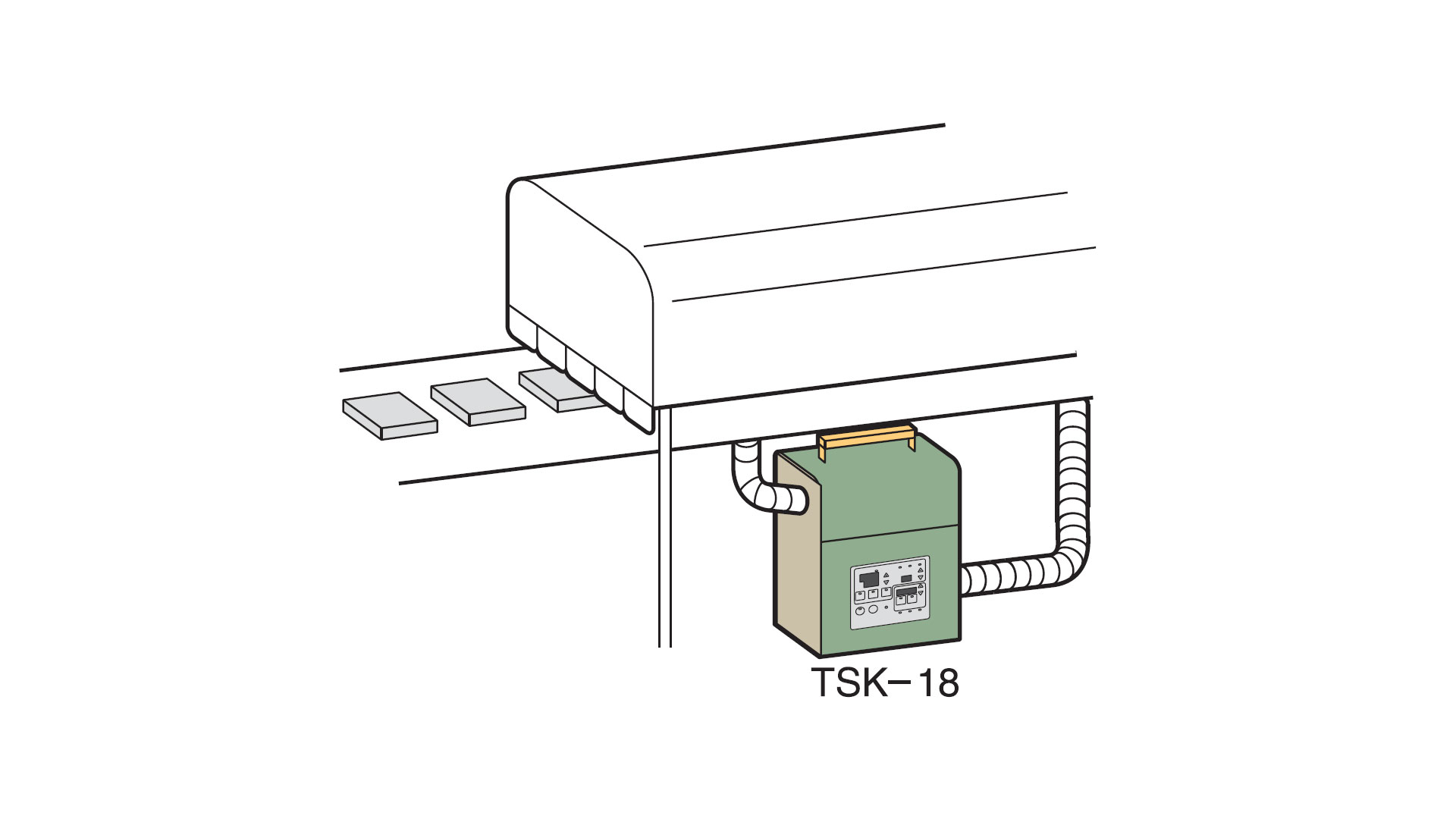

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Installation Example

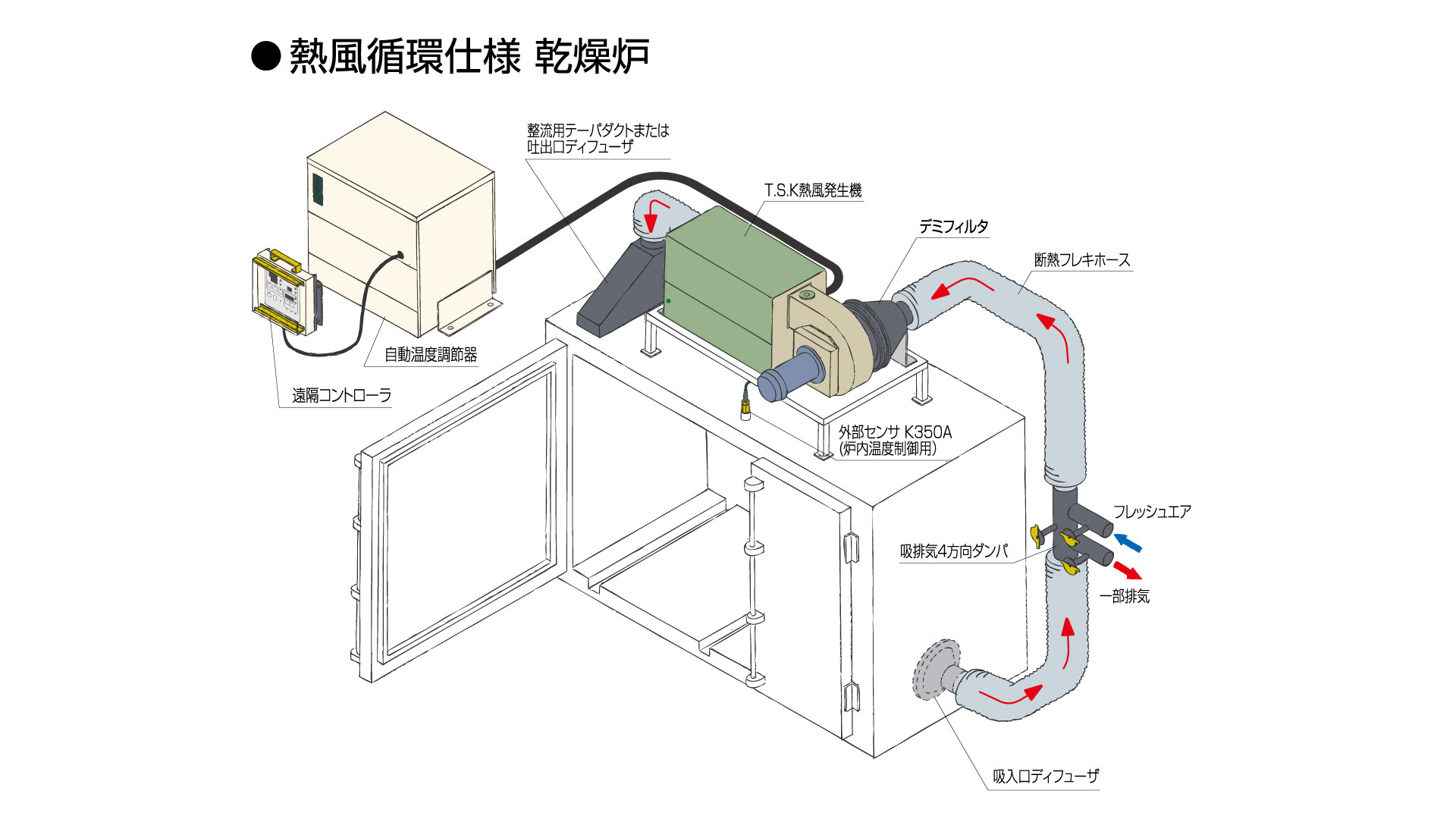

Hot Air Circulation Drying Oven

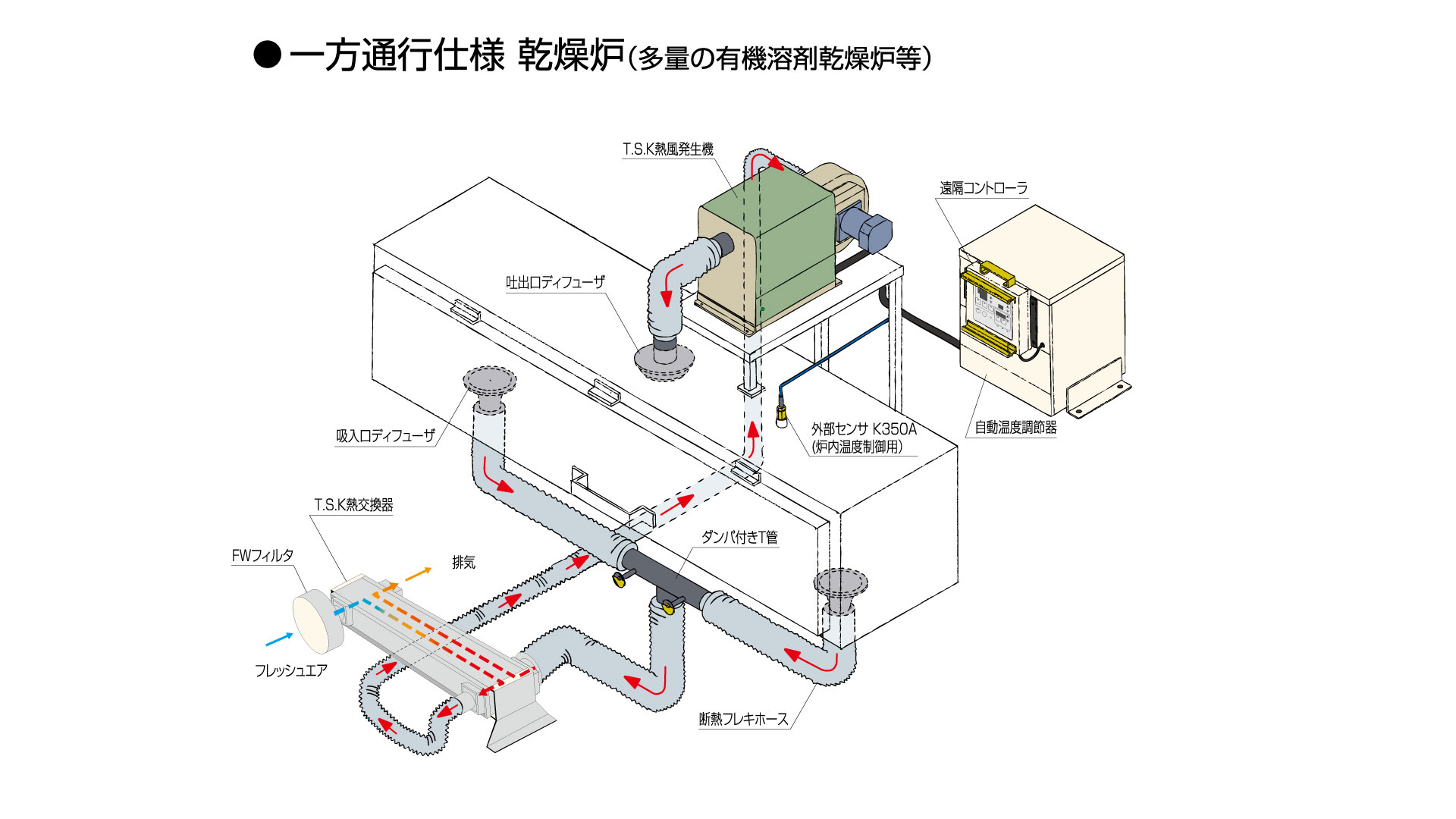

Unidirectional Flow Drying Oven
Standard Specifications
Note: Model numbers vary depending on the voltage specification.
For 380 V–480 V models, prefixes vary depending on the specified voltage
(e.g., 3380-, 3400-, 3415-, 3440-, 3480-).
Please specify the required voltage when placing your order.
| Model |
TSK-52HT |
|---|---|
| Model No. | 3380-480-17C-025Y-LB-HT |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 17 kW |
| Max Outlet Air Temp. | 500 °C |
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume | 7.1 m³/min |
| Max Static Pressure | 1.52 kPa |
 |
|
| Model |

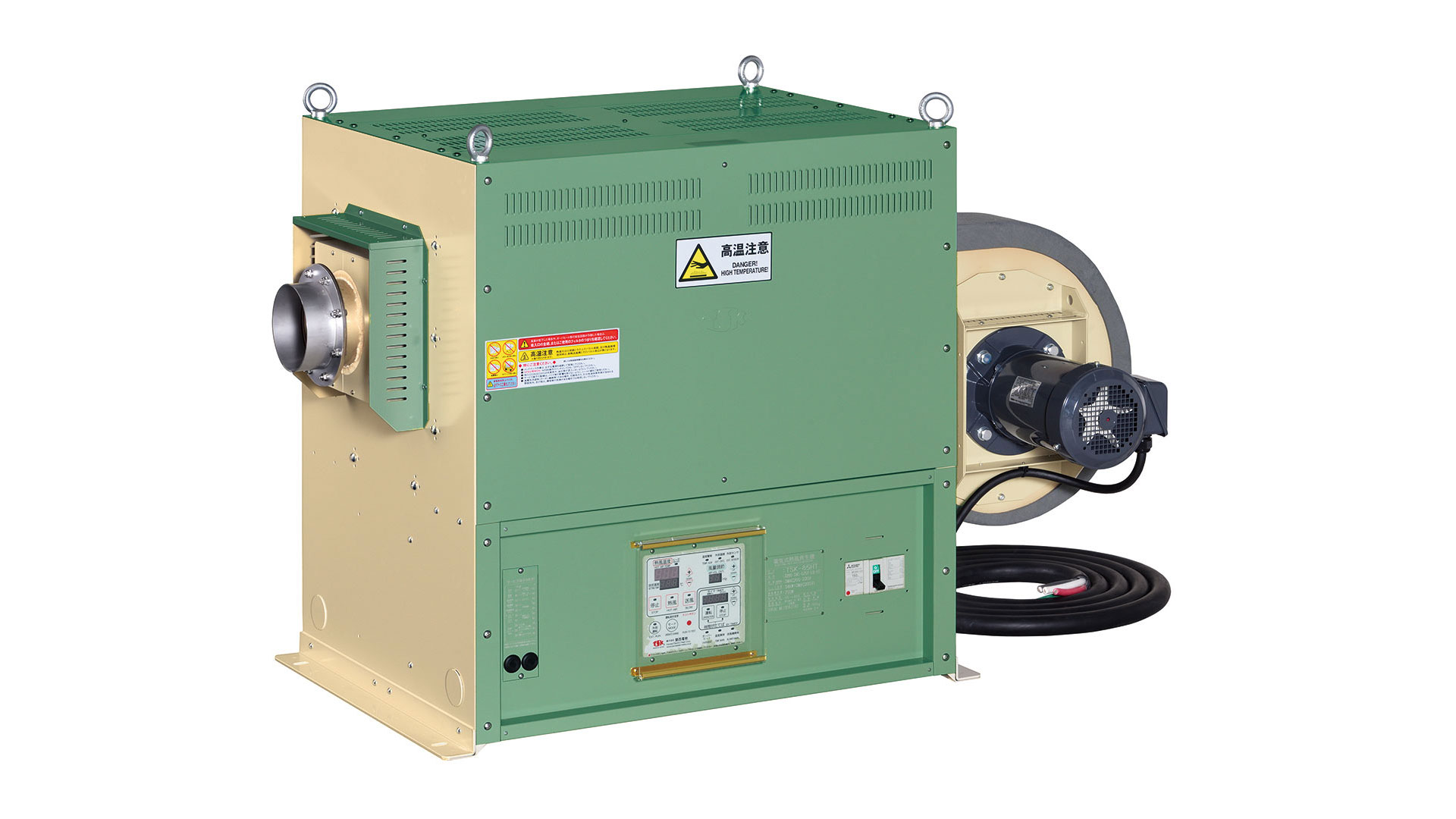

TSK-85HT |
|---|---|
| Model No. | 3380-480-34C-075Y-LB-HT |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 34 kW |
| Max Outlet Air Temp. | 500 °C |
| Max Inlet Air Temp. | 260 °C |
| Max Air Volume | 13.2 m³/min |
| Max Static Pressure | 2.4 kPa |
 |
|
| Model |

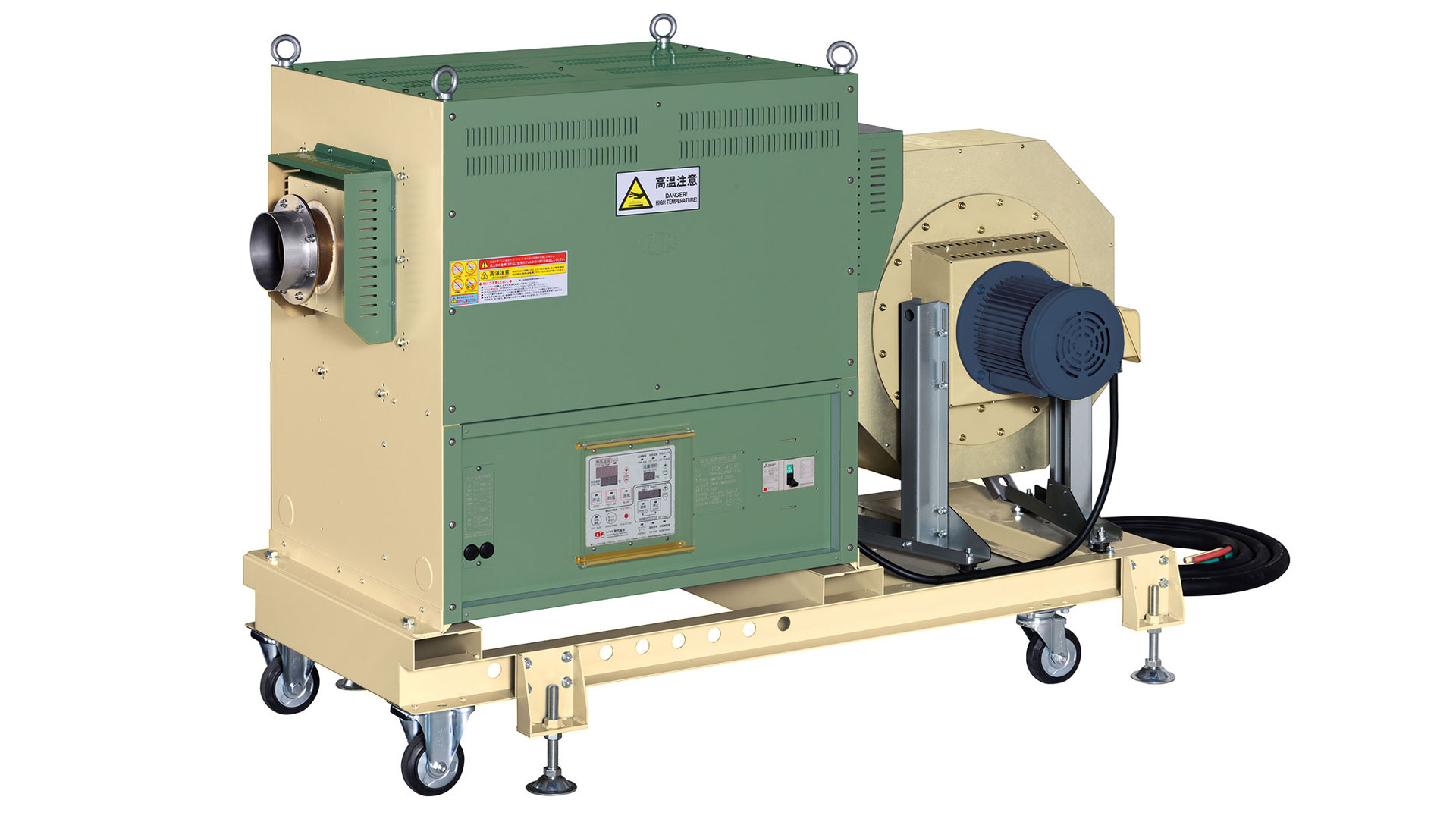

TSK-95HT |
|---|---|
| Model No. | 3380-440-34C-075HY-LB-HT |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 34 kW |
| Max Outlet Air Temp. | 500 °C |
| Max Inlet Air Temp. | 500 °C |
| Max Air Volume | 10.7 m³/min |
| Max Static Pressure | 3.5 kPa |
 |
|
