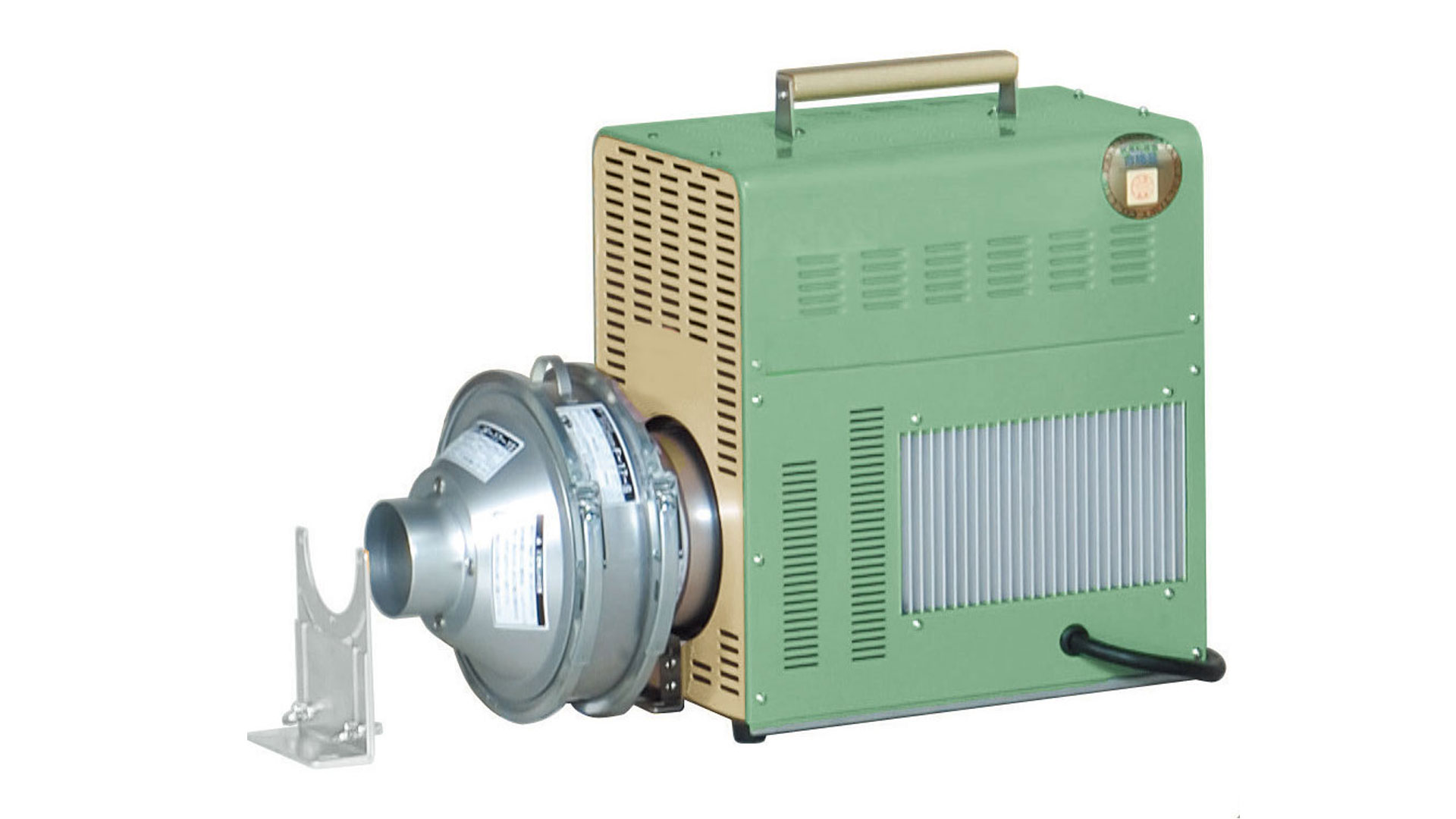

Hot Air Generator – C Series
High-Performance Electric Hot Air Generator!
◆ An electric hot air heater system that combines a heater, control panel, and heat-resistant air blower in a single unit. Capable of unmanned, continuous operation 365 days a year.
◆ Simply connect the power cable and it is ready to use.
電気式熱風乾燥機の決定版！！
◆ヒータ、操作盤、耐熱電動送風機が一体となった、３６５日無人連続運転が可能な電気式熱風乾燥機です。
◆電源ケーブルを接続するだけでご使用できます。
C Series Overview
3-Year Warranty
- Maximum continuous operating temperature: 350 °C
- Heater capacity: 2 kW to 120 kW
- Equipped with high-efficiency honeycomb block heater
- Includes inverter for airflow adjustment (adjustable from 20 to 60 Hz) → Energy-saving
- All models equipped with heat-resistant blower for hot air circulation → Energy-saving
- Blower motor capacity: 80 W to 7500 W
- All models equipped with I/O service terminals
- Equipped with multiple built-in safety circuits using high-reliability thermocouples
- Supports remote control panels, airflow direction change, and
multiple voltage ratings (factory-set to order; please specify at purchase) - Programmable timer: set from 1 minute to 99 hours 59 minutes, in 1-minute increments
• Hot air circulation temperature:
• TSK-18: up to 140 °C
• TSK-23 to TSK-200: up to 230 °C
遠隔操作盤・方向変更・異電圧等にも対応可能
（工場出荷時設定は注文時指定；ご購入時にご指定ください）
保証期間３年
- 連続使用最高温度 ３５０℃
- ヒータ容量2kW～120kW
- 高効率ハニカムブロックヒータ搭載
- 風量調節用インバータ搭載（20～60Hz可変）省エネ！
- 全機種熱風循環用耐熱送風機搭載 省エネ！
- 送風機電動機容量80W～7500W
- 全機種入出力サービス端子付
- 各種安全回路内蔵（各種安全装置に高信頼性の熱電対採用）
- 遠隔操作盤・方向変更・異電圧等にも対応可能
- タイマ1分刻みで1分～99時間59分設定可能
- 多機能なモードについては取扱説明書をご覧ください
（熱風循環温度 TSK-18：140℃以下・TSK-23～200：230℃以下）

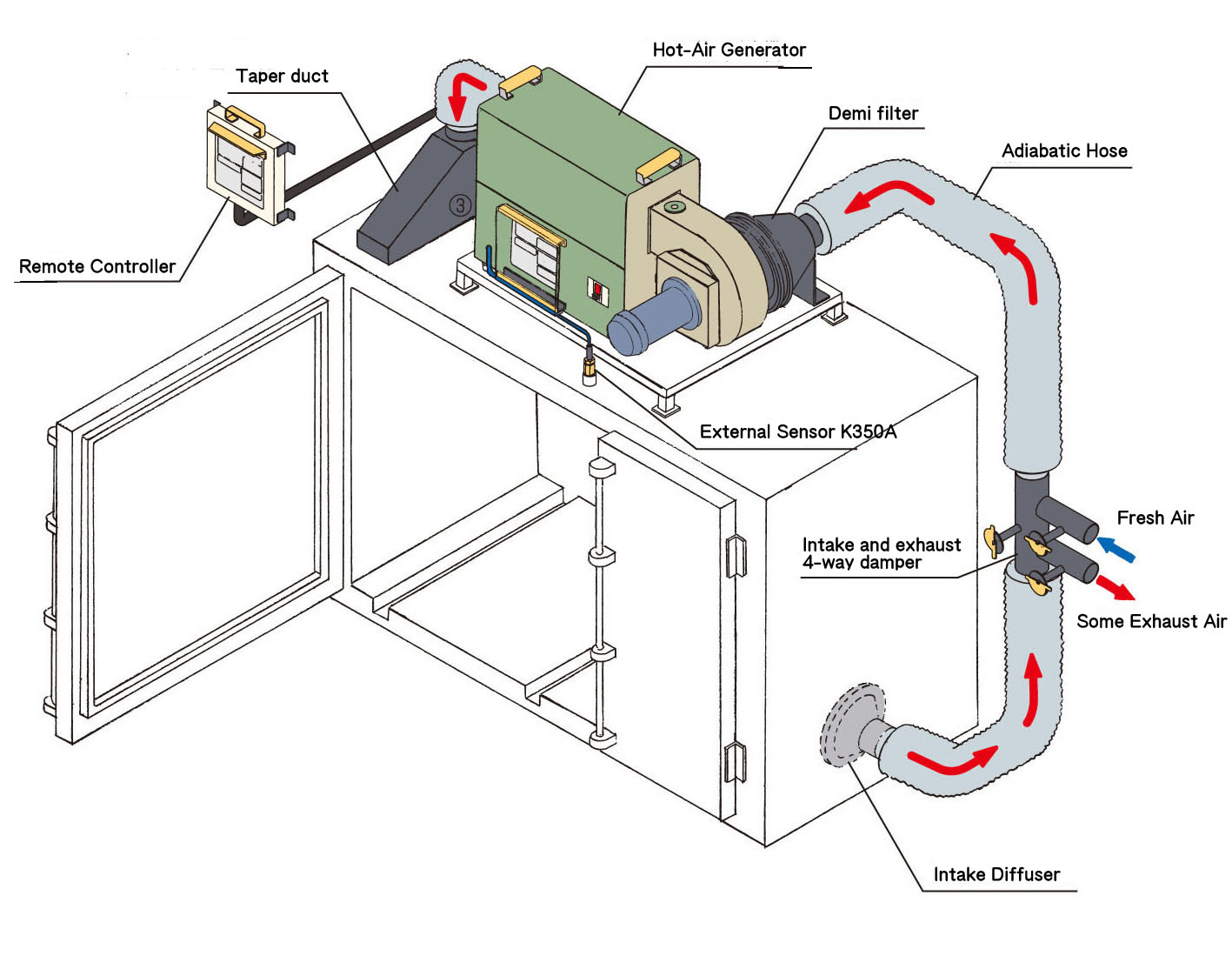

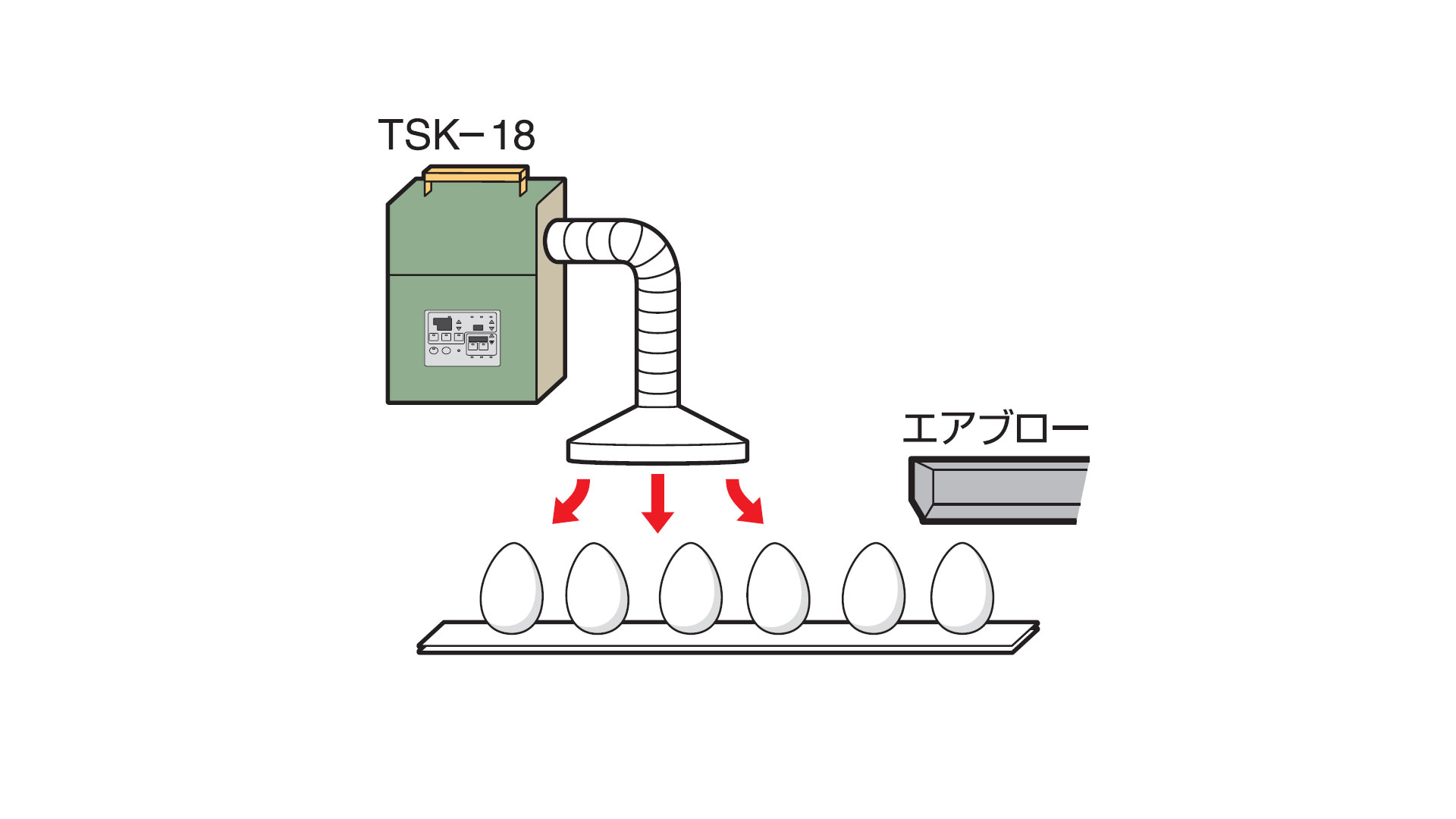

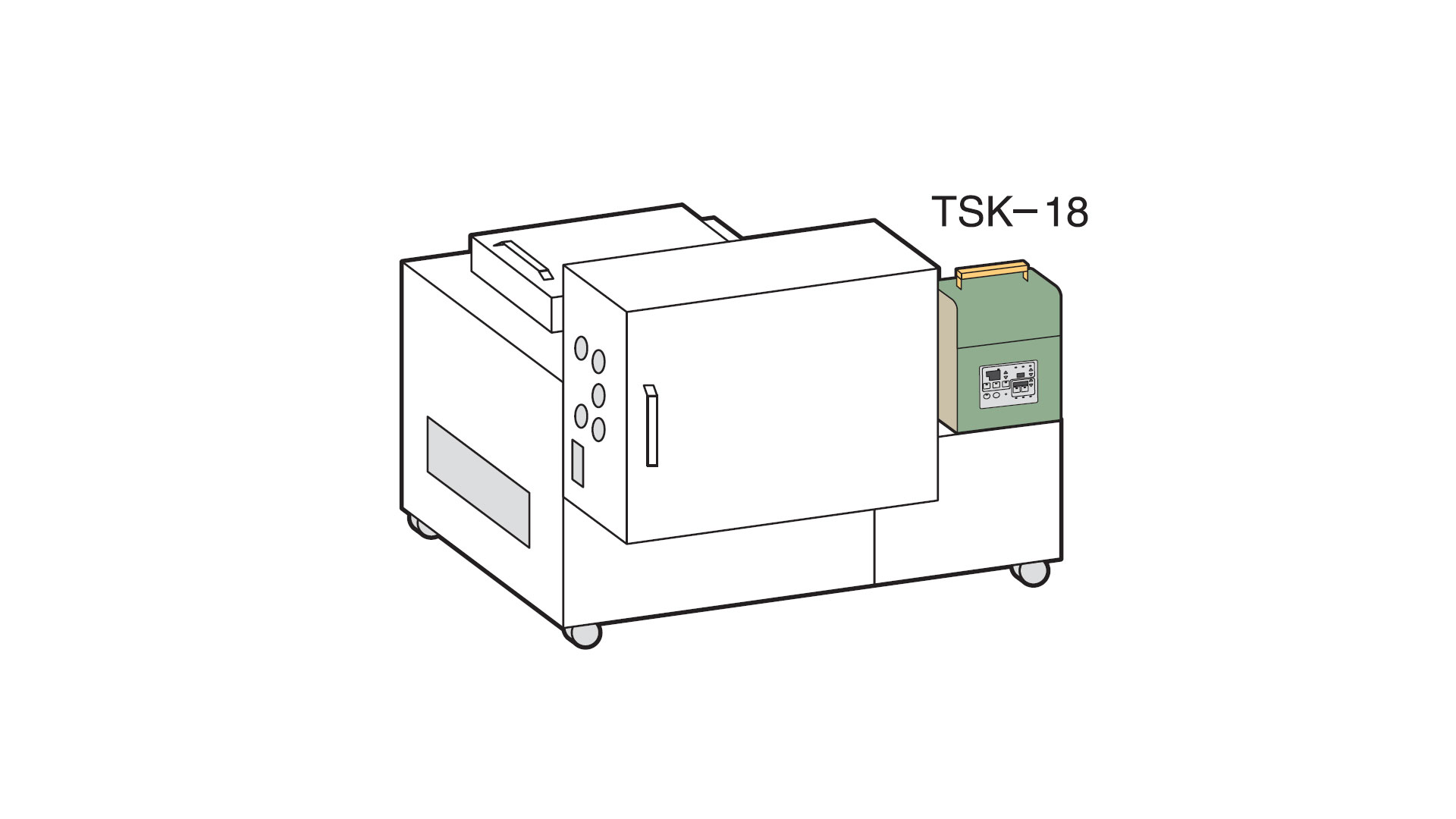

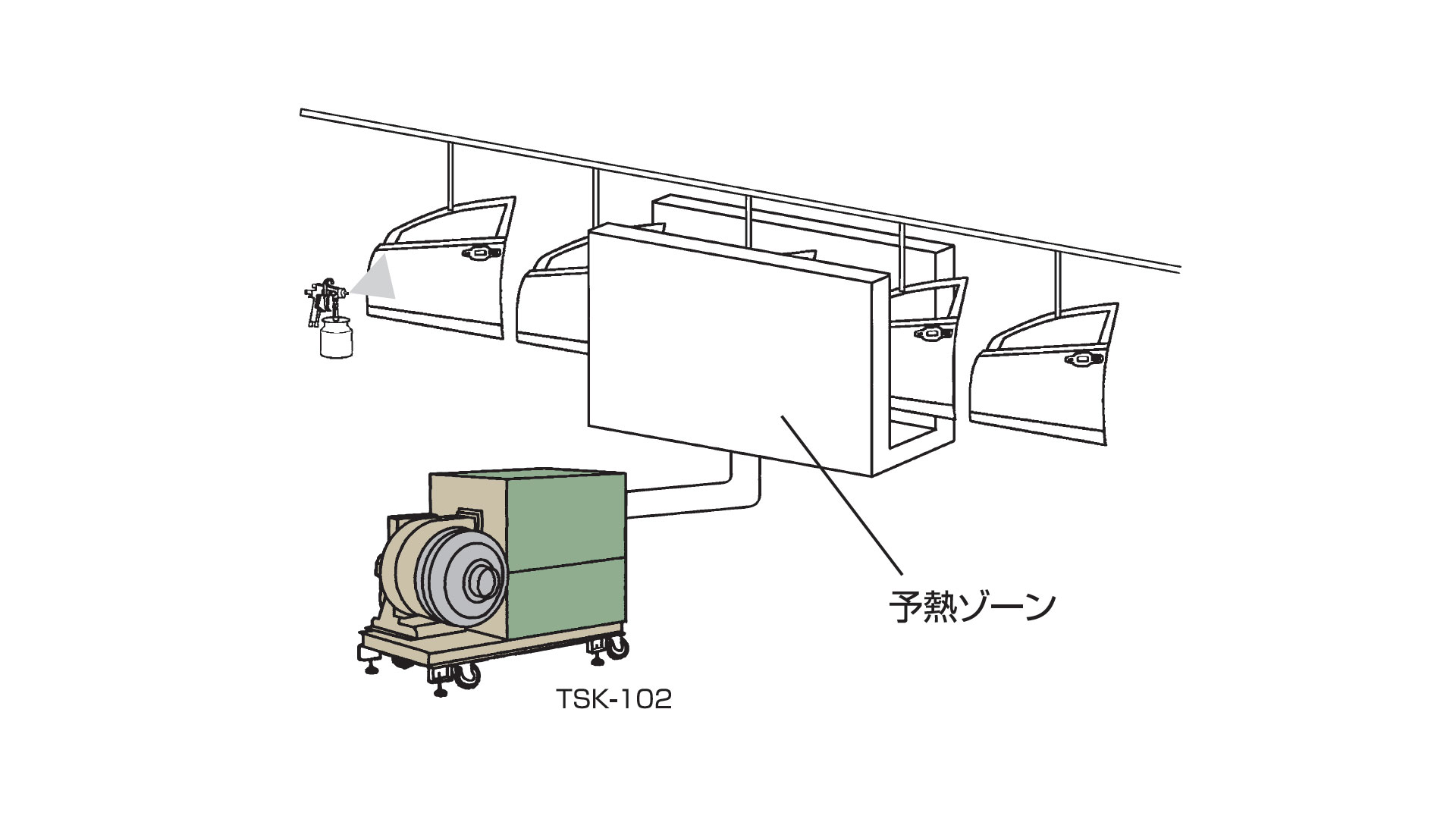

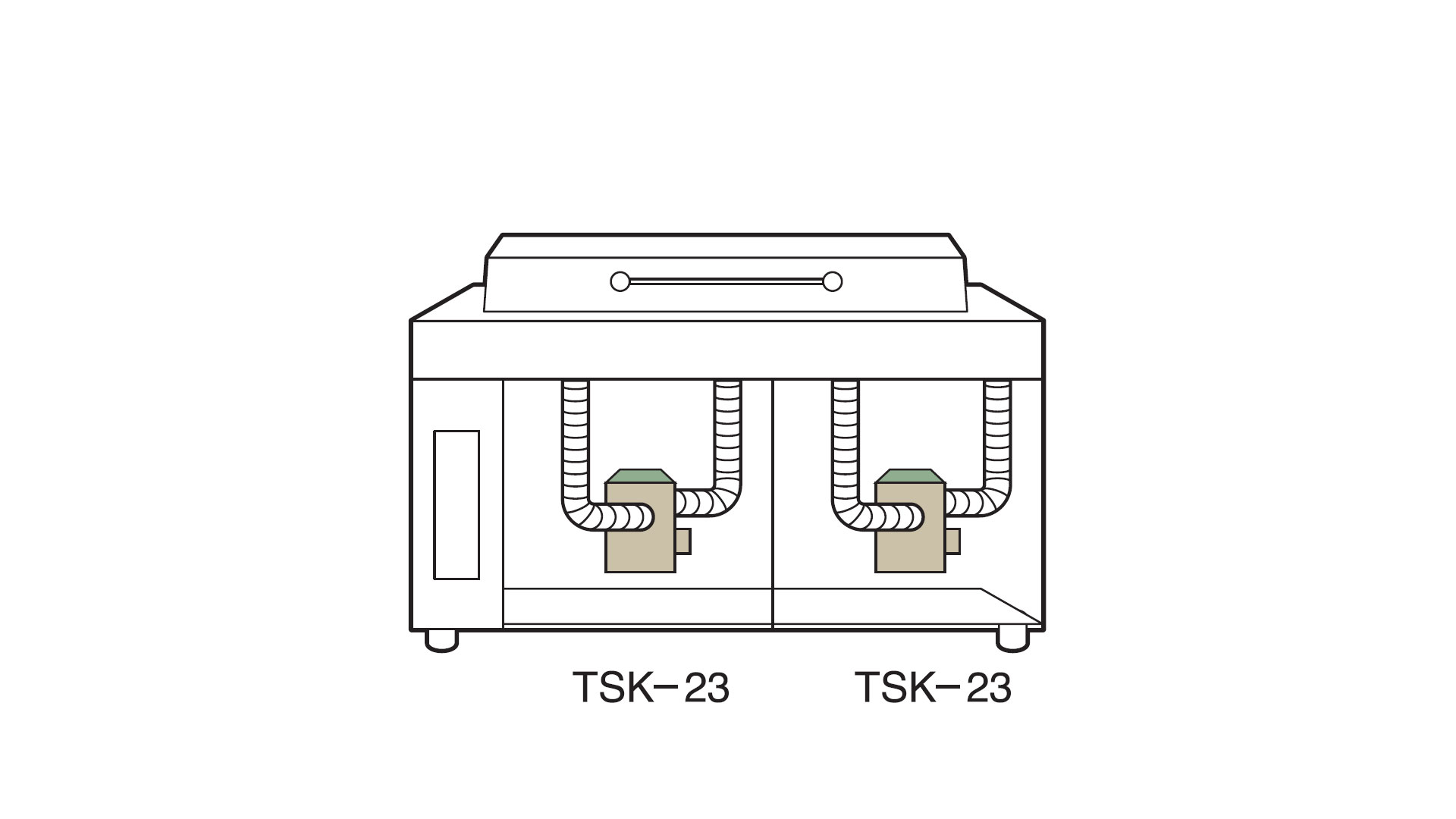

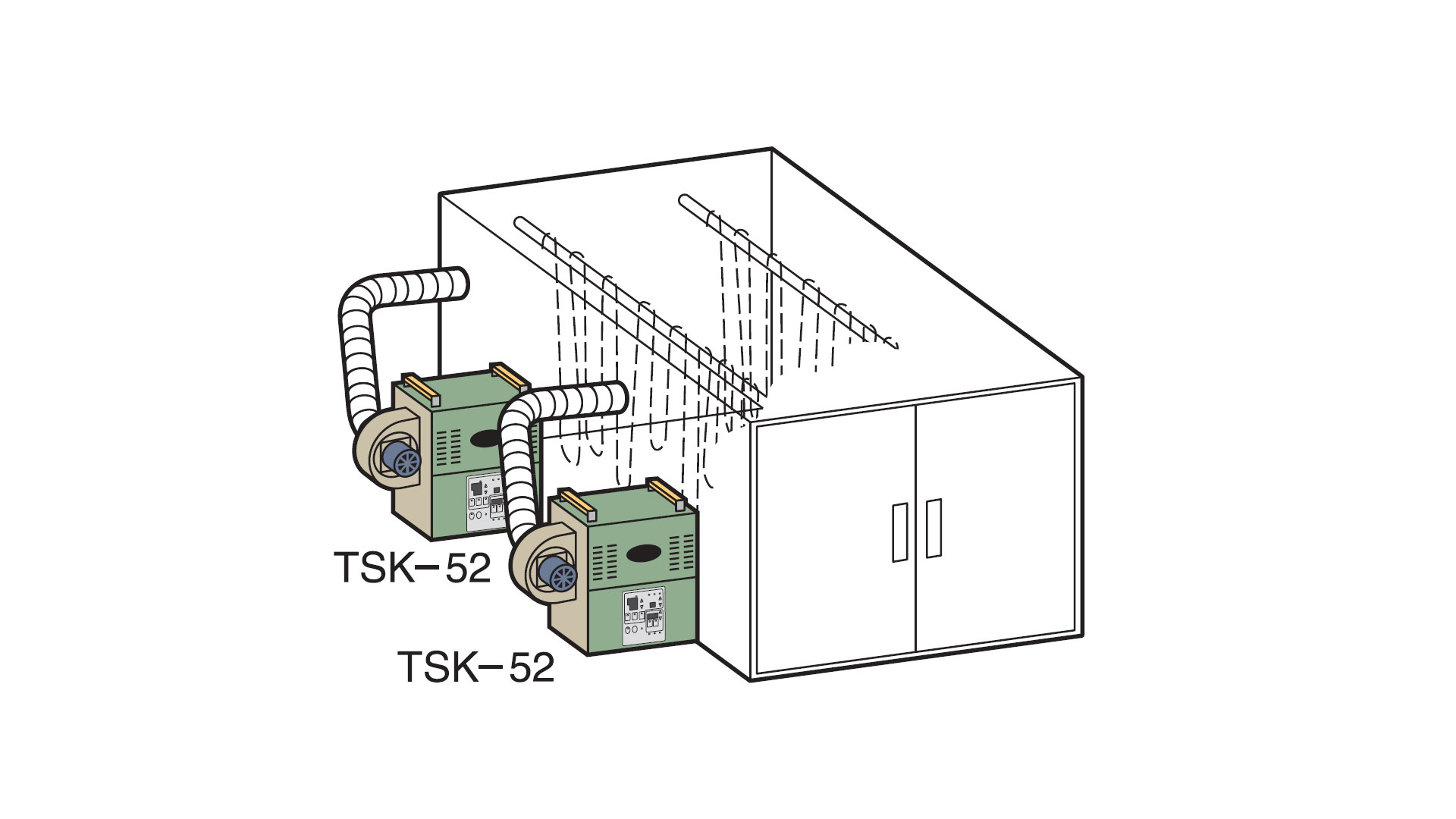

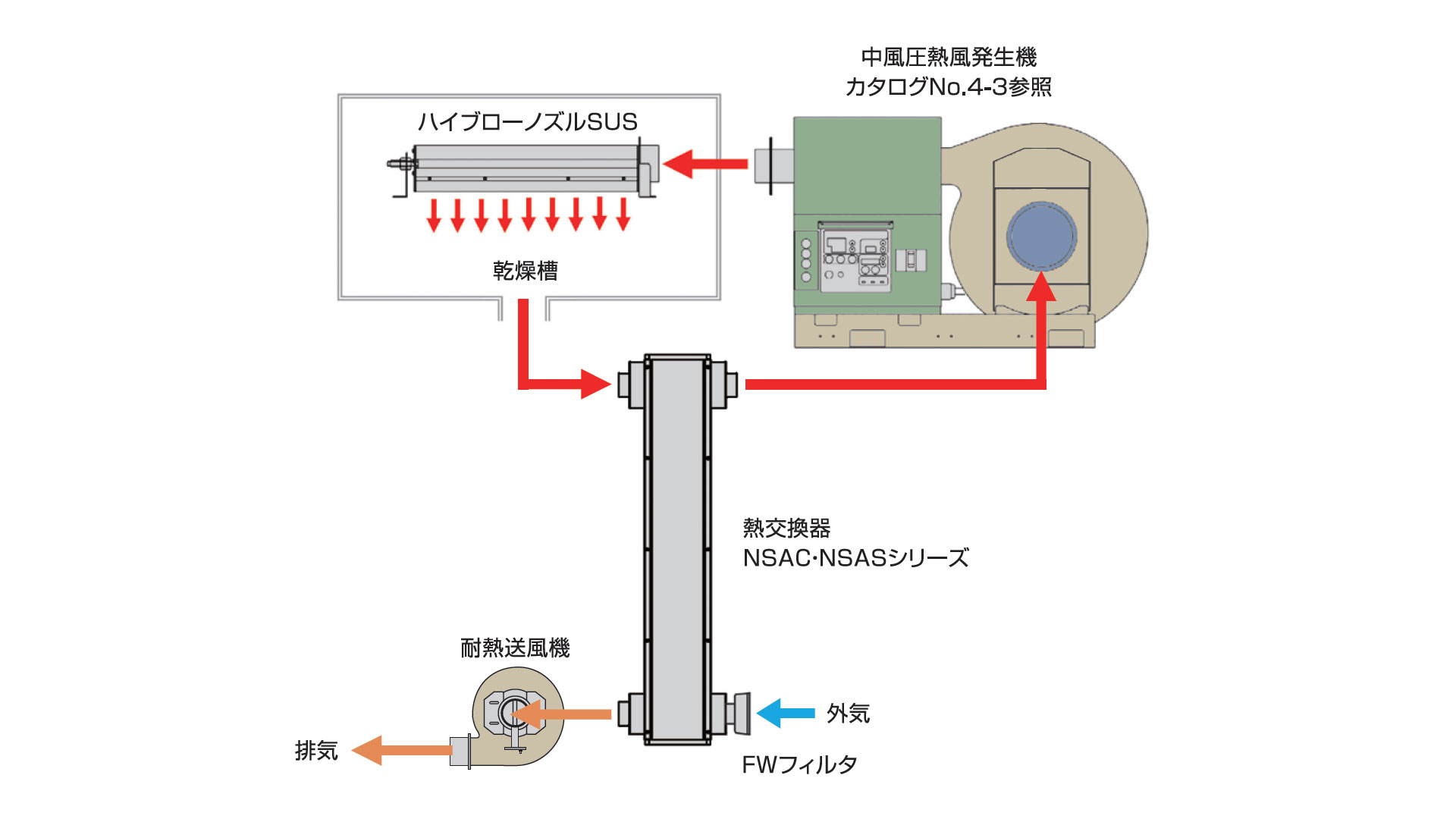

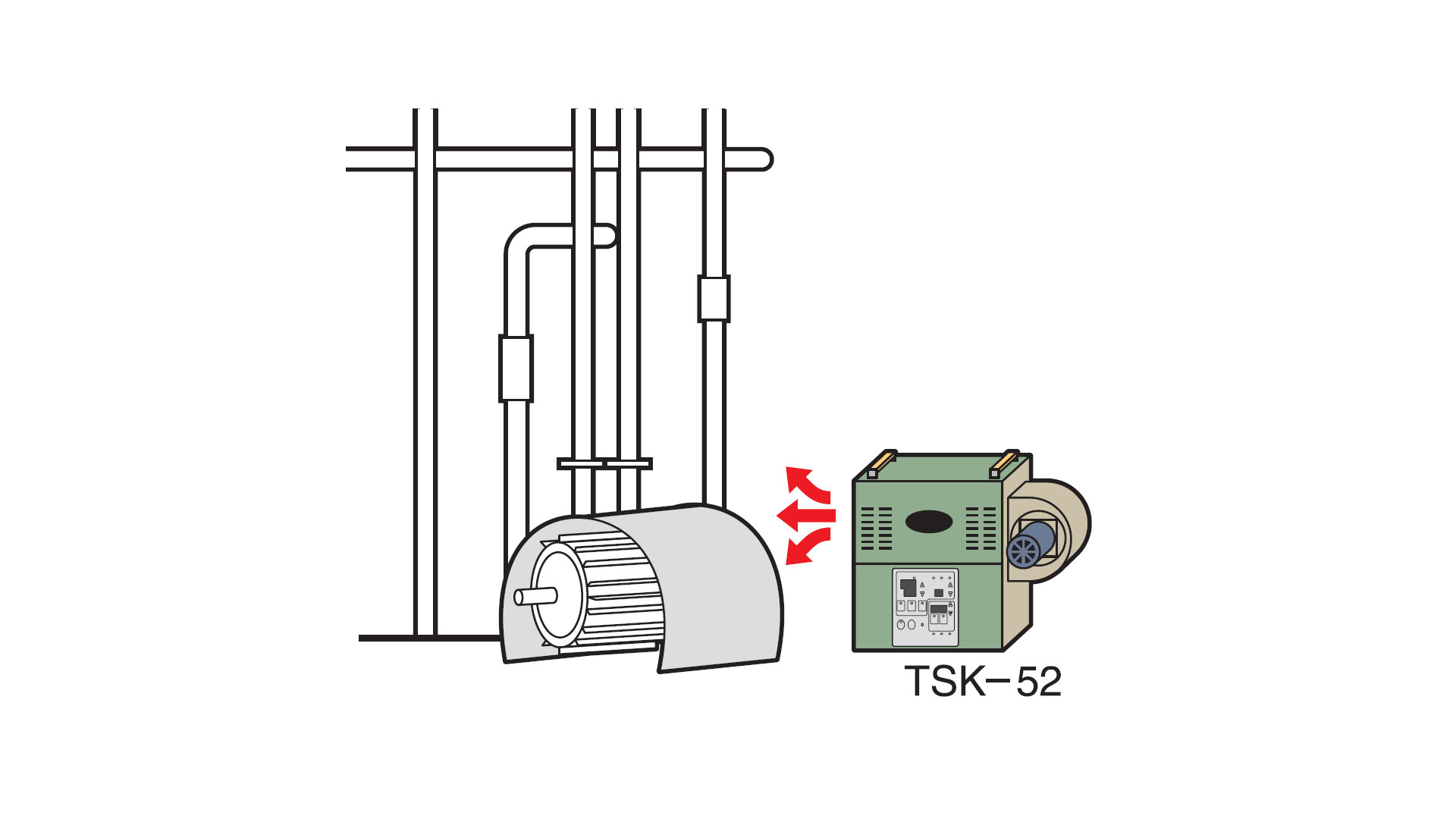

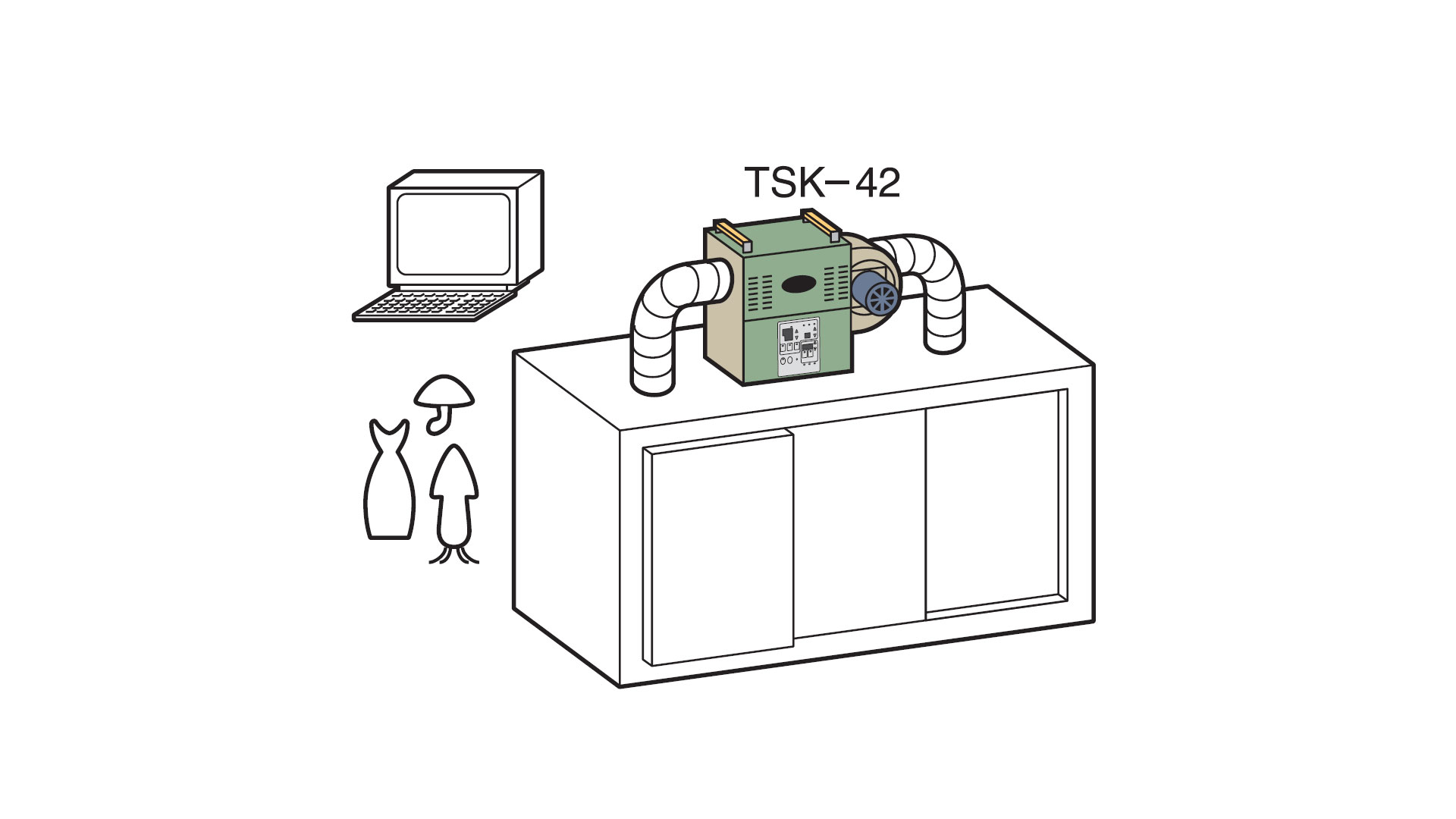

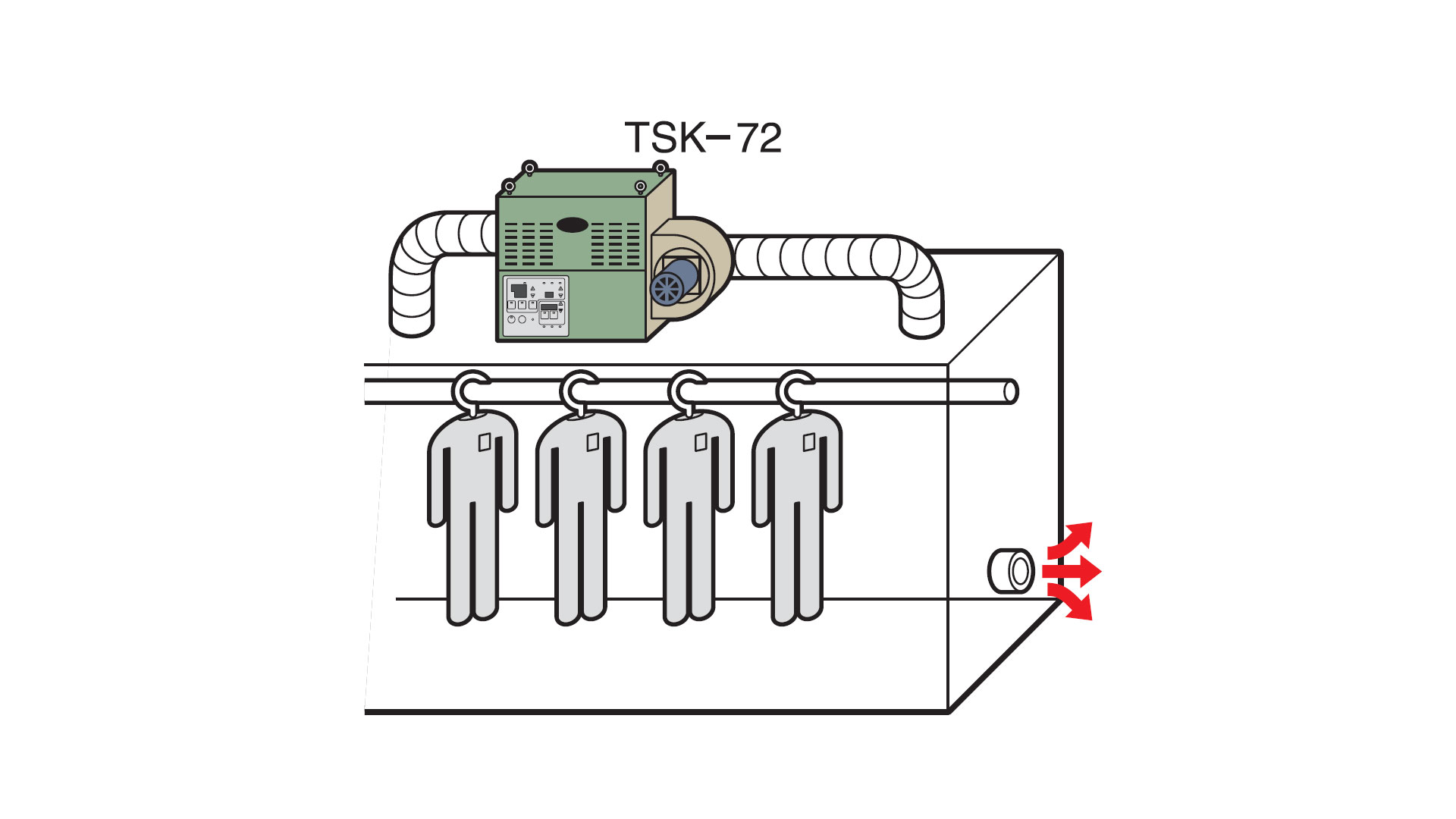

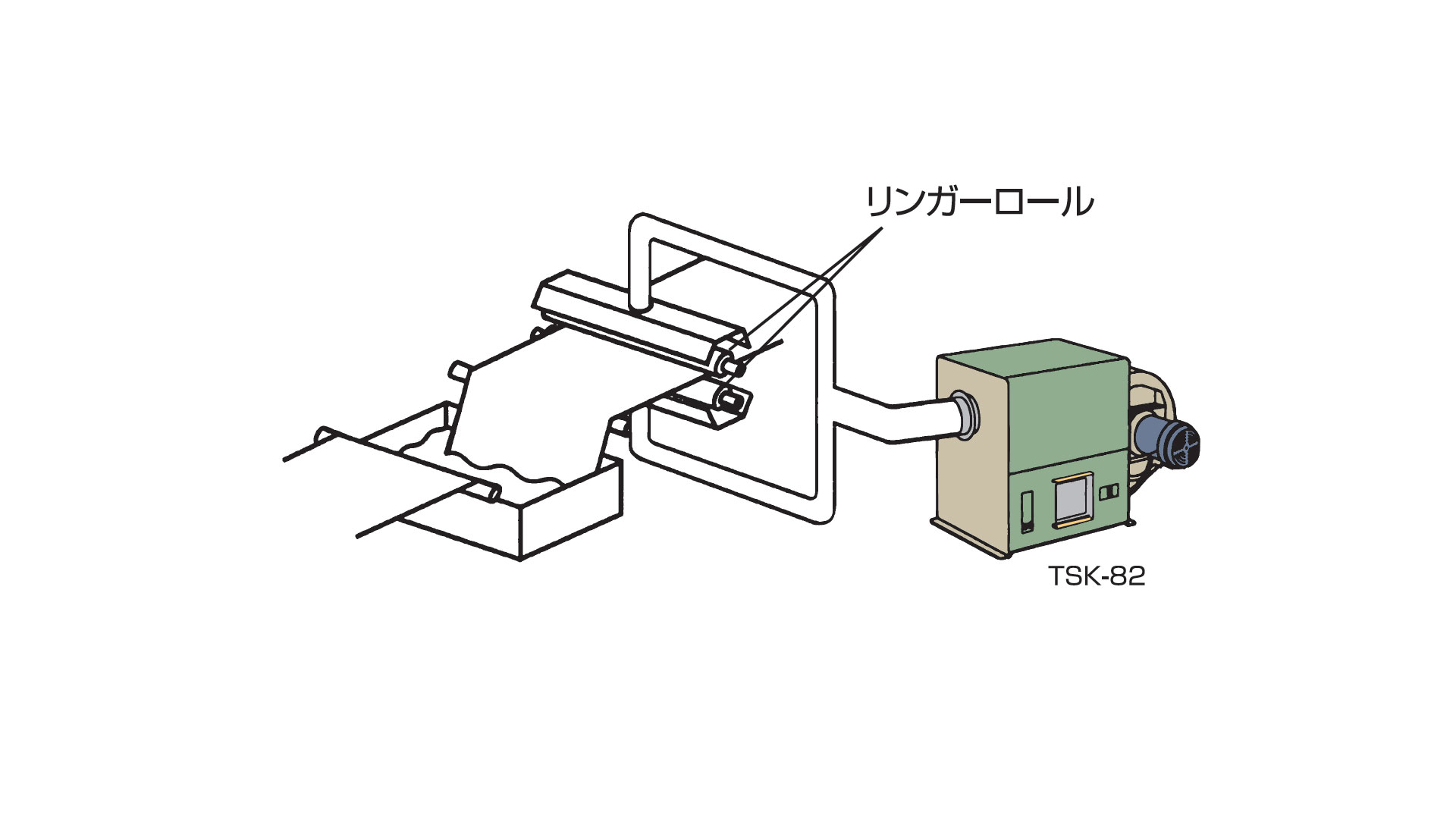

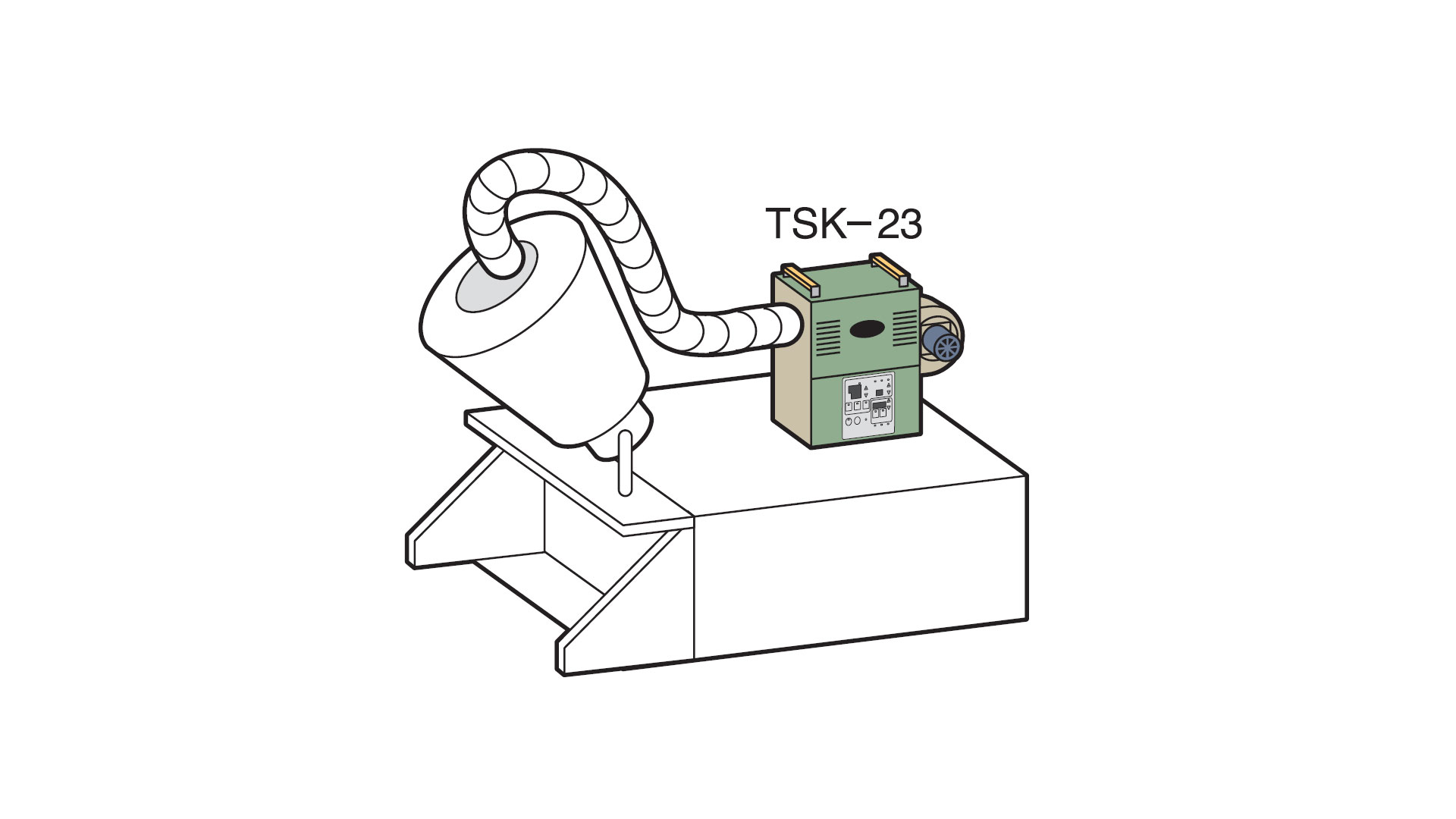

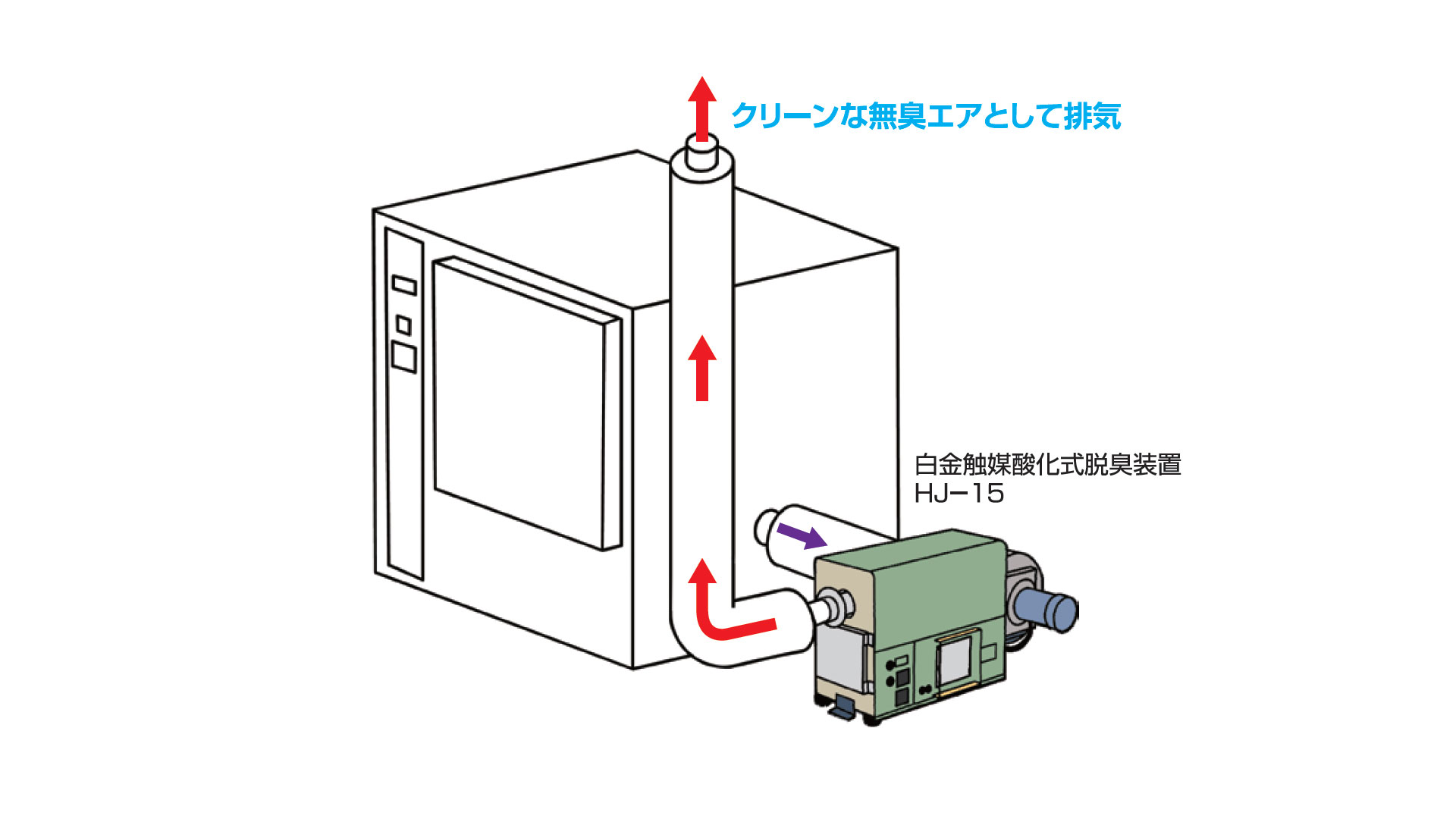

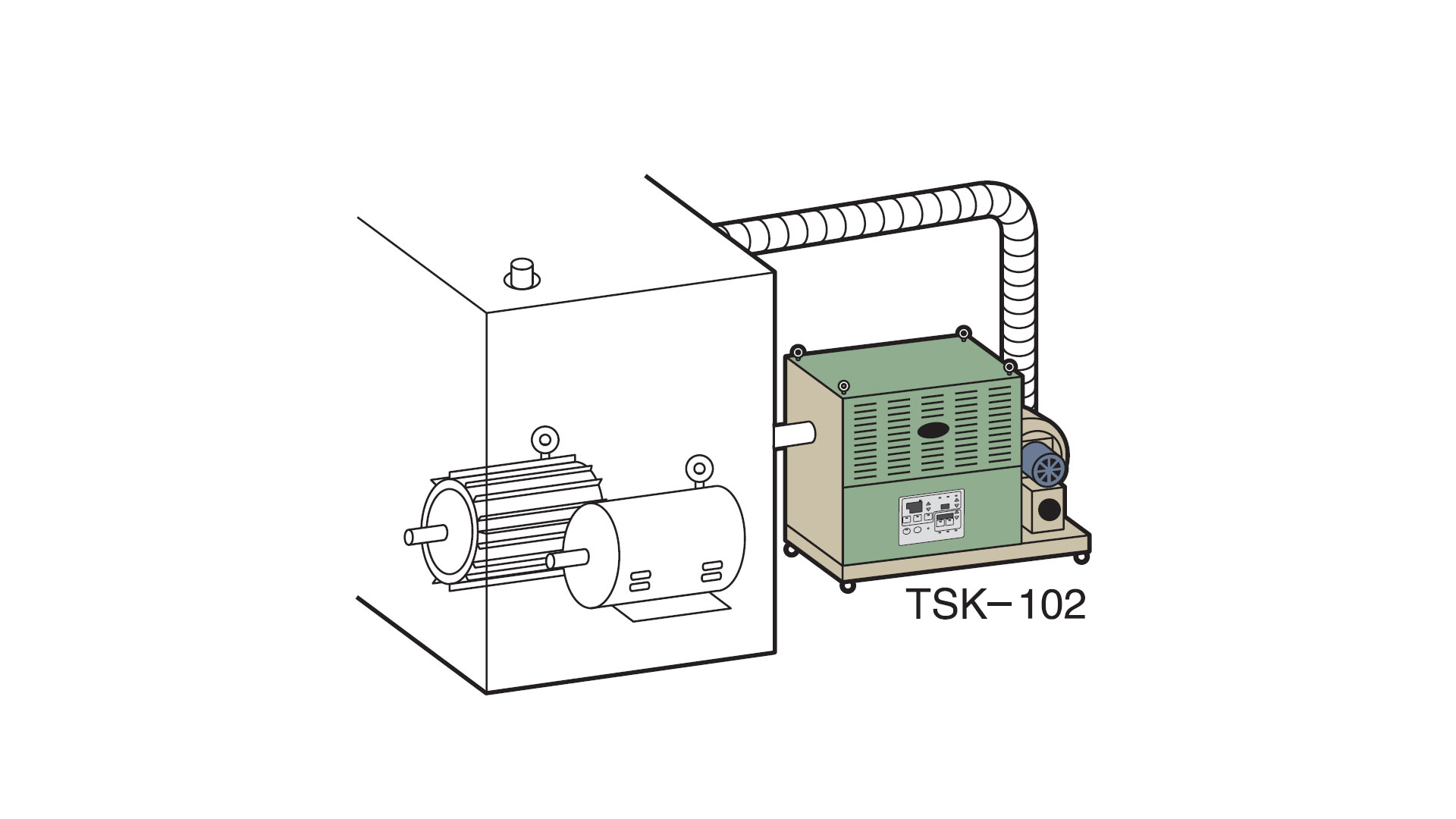

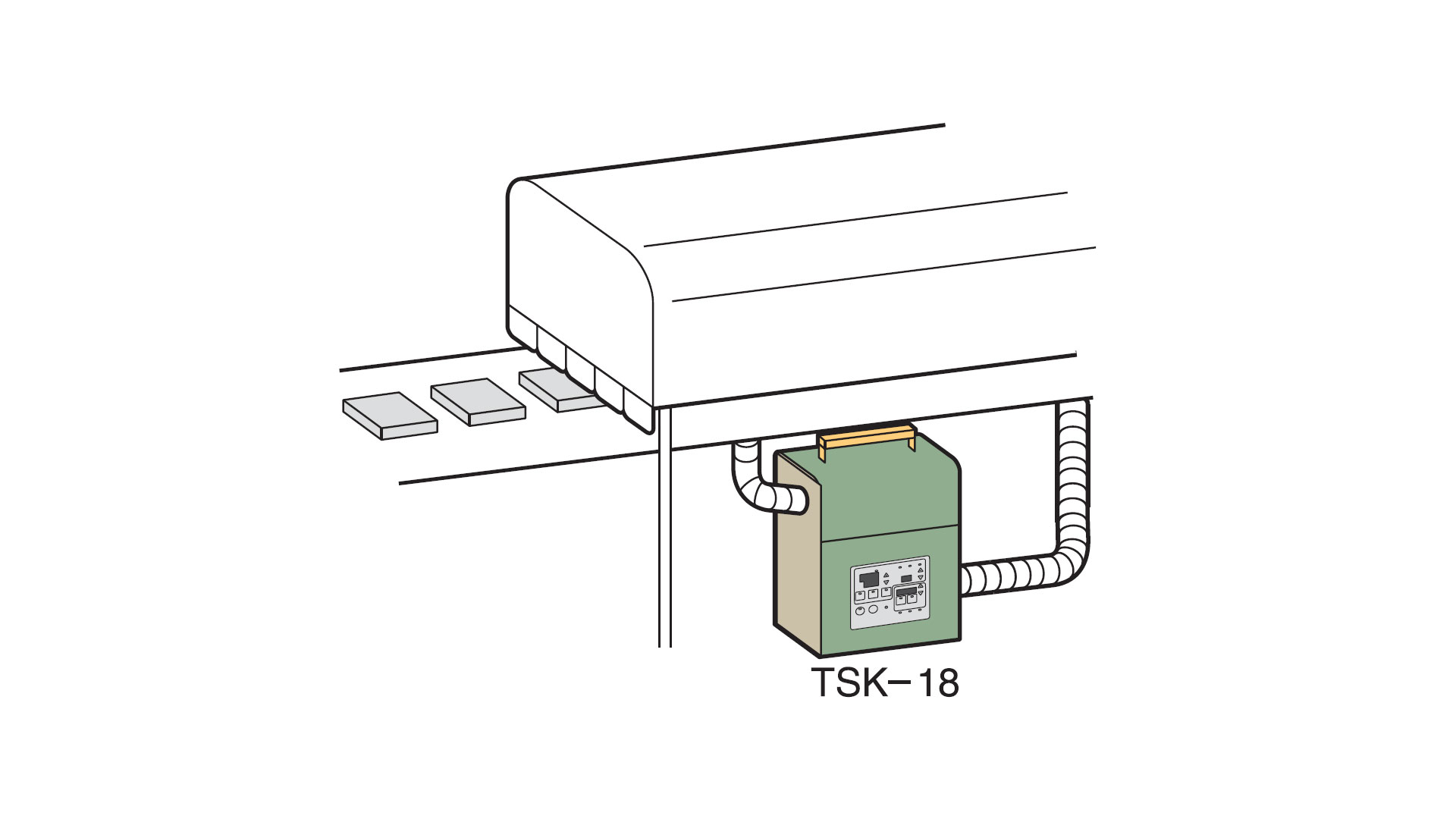

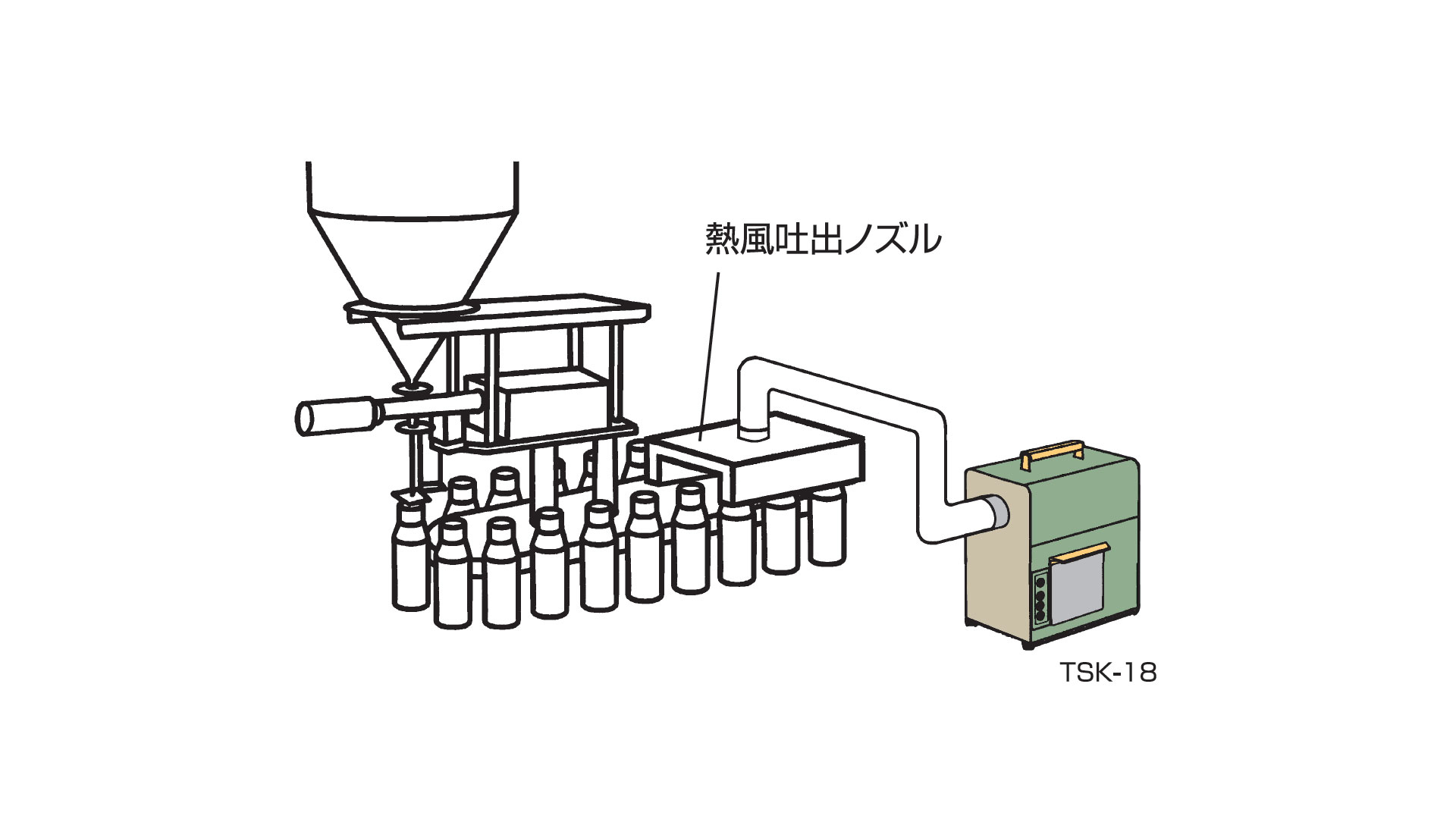

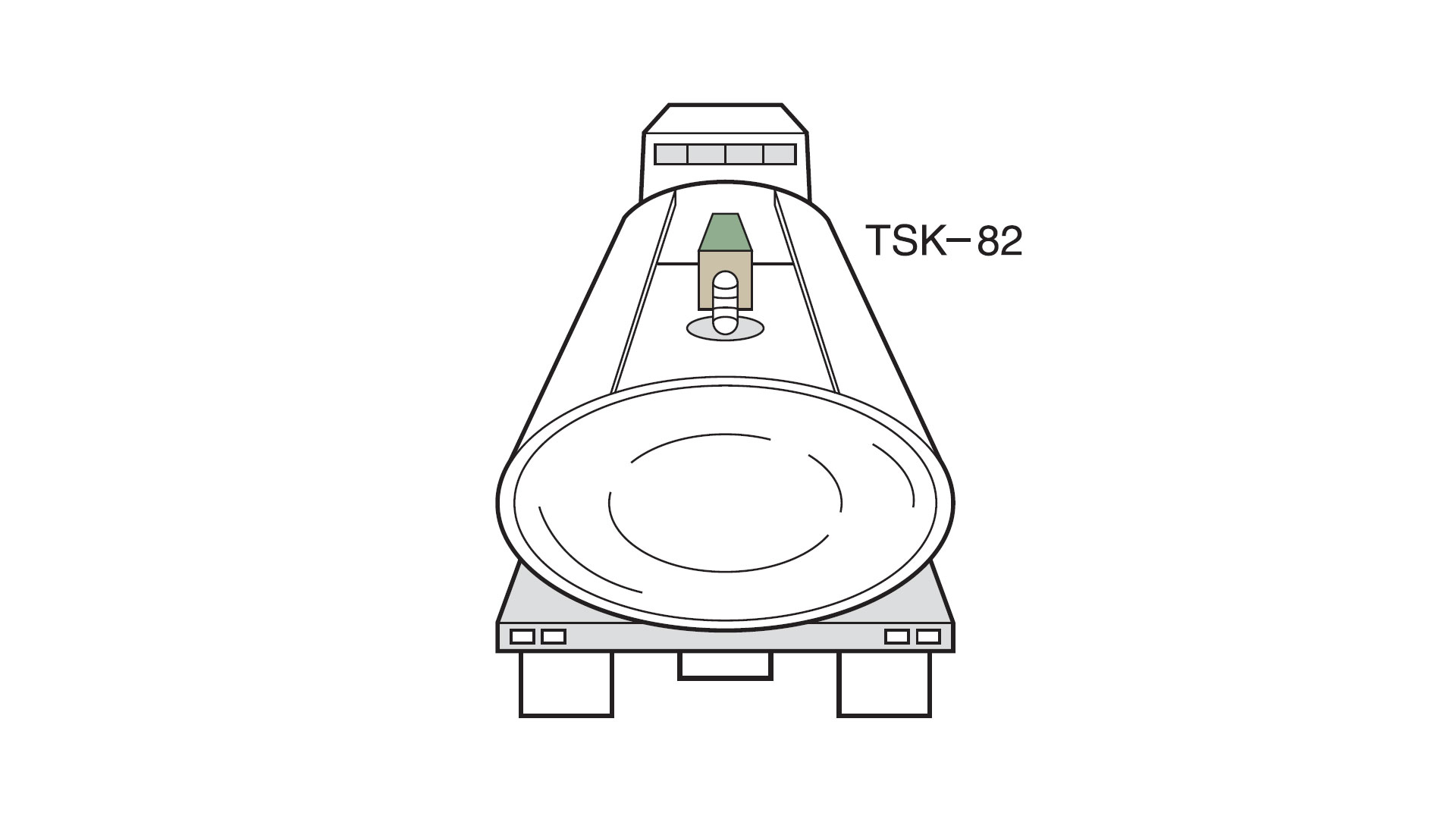

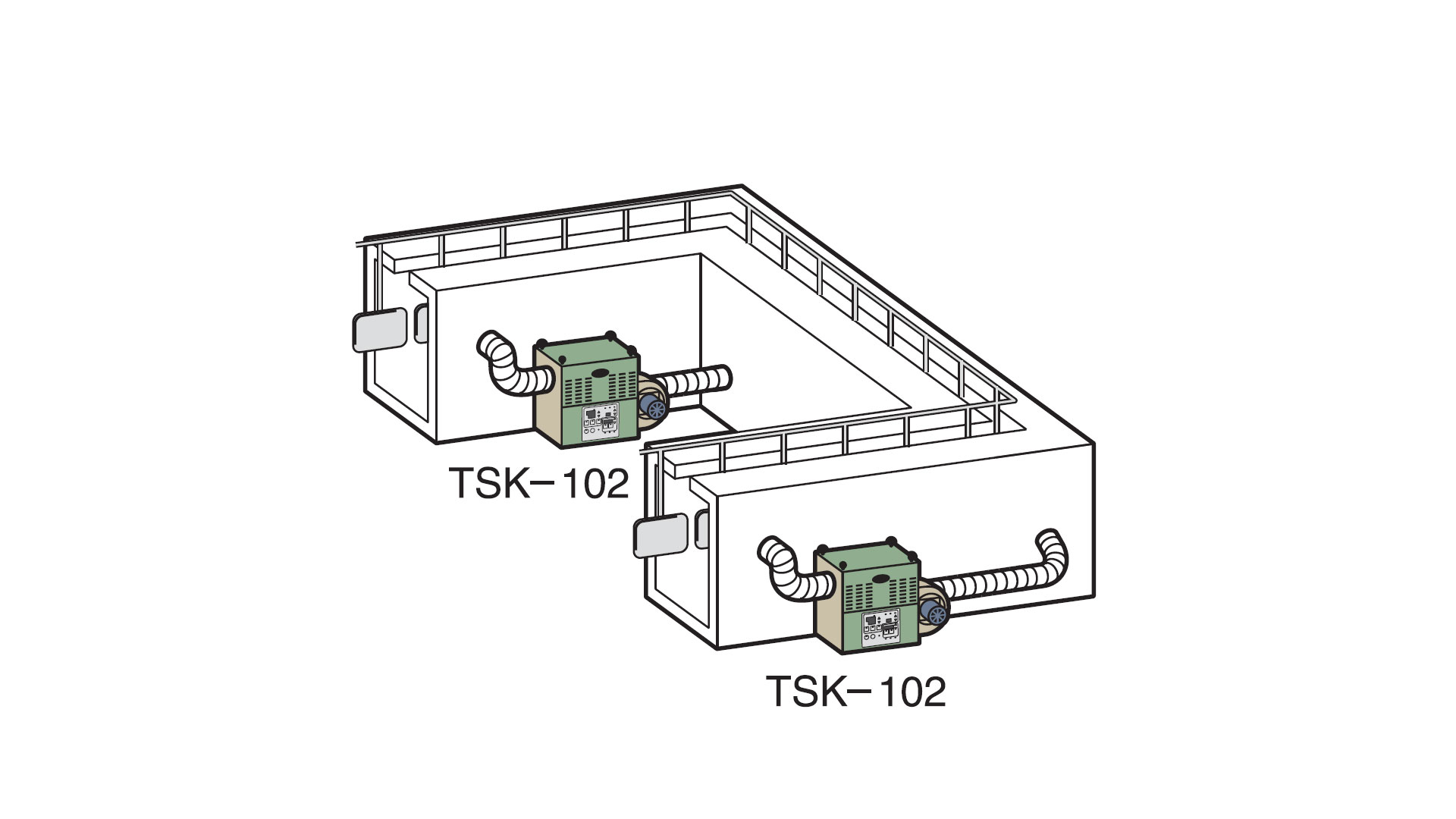

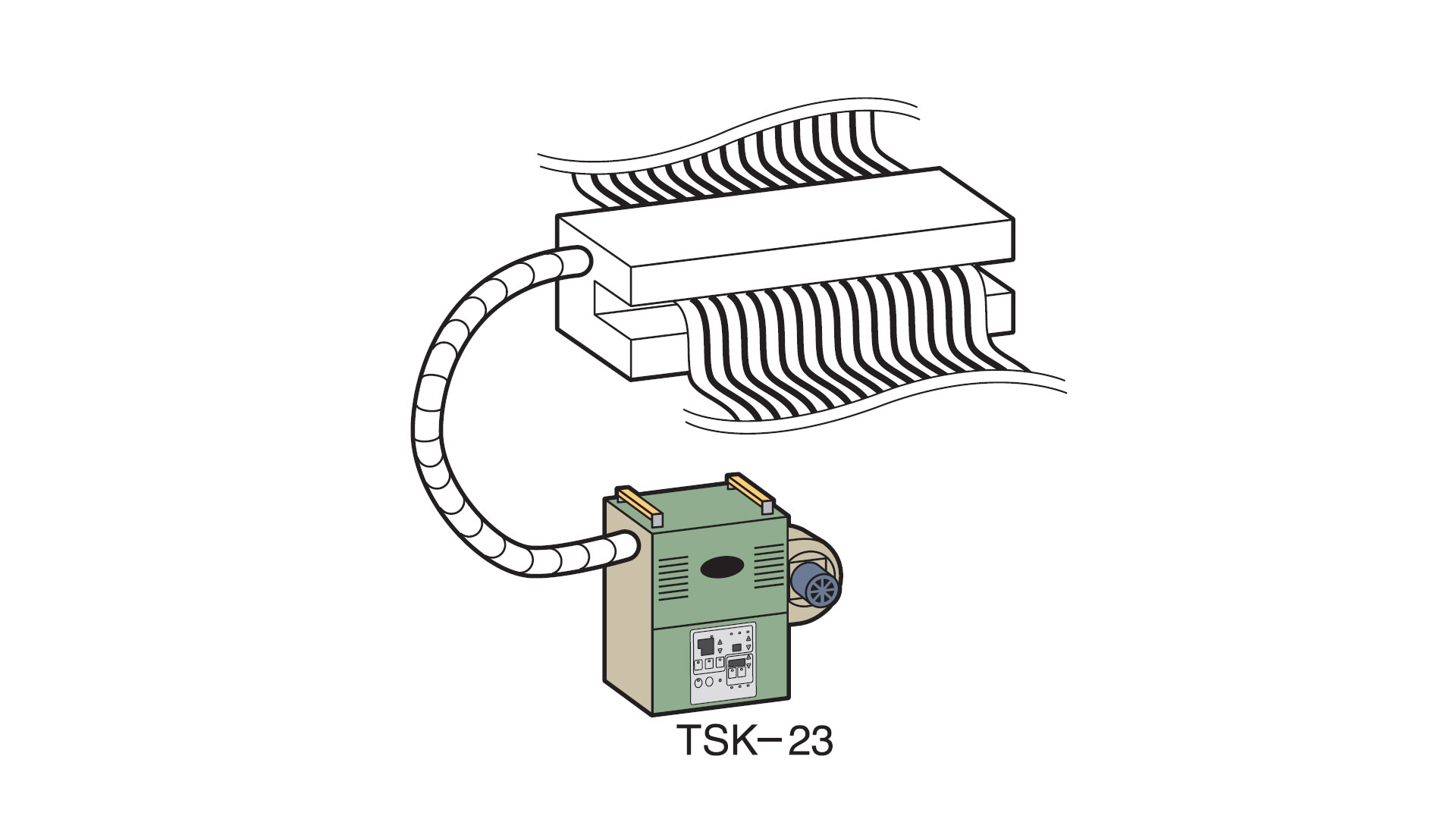

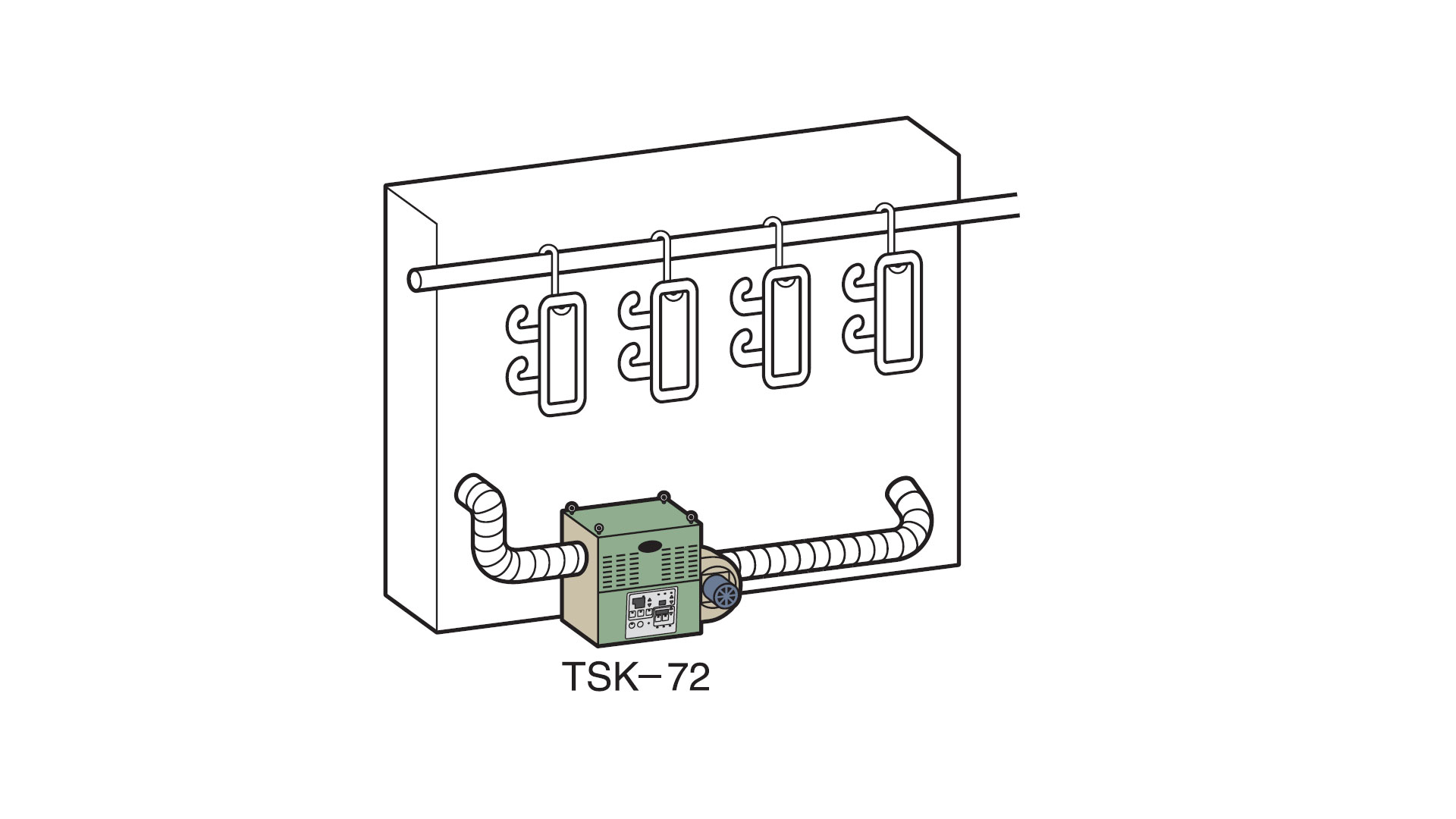

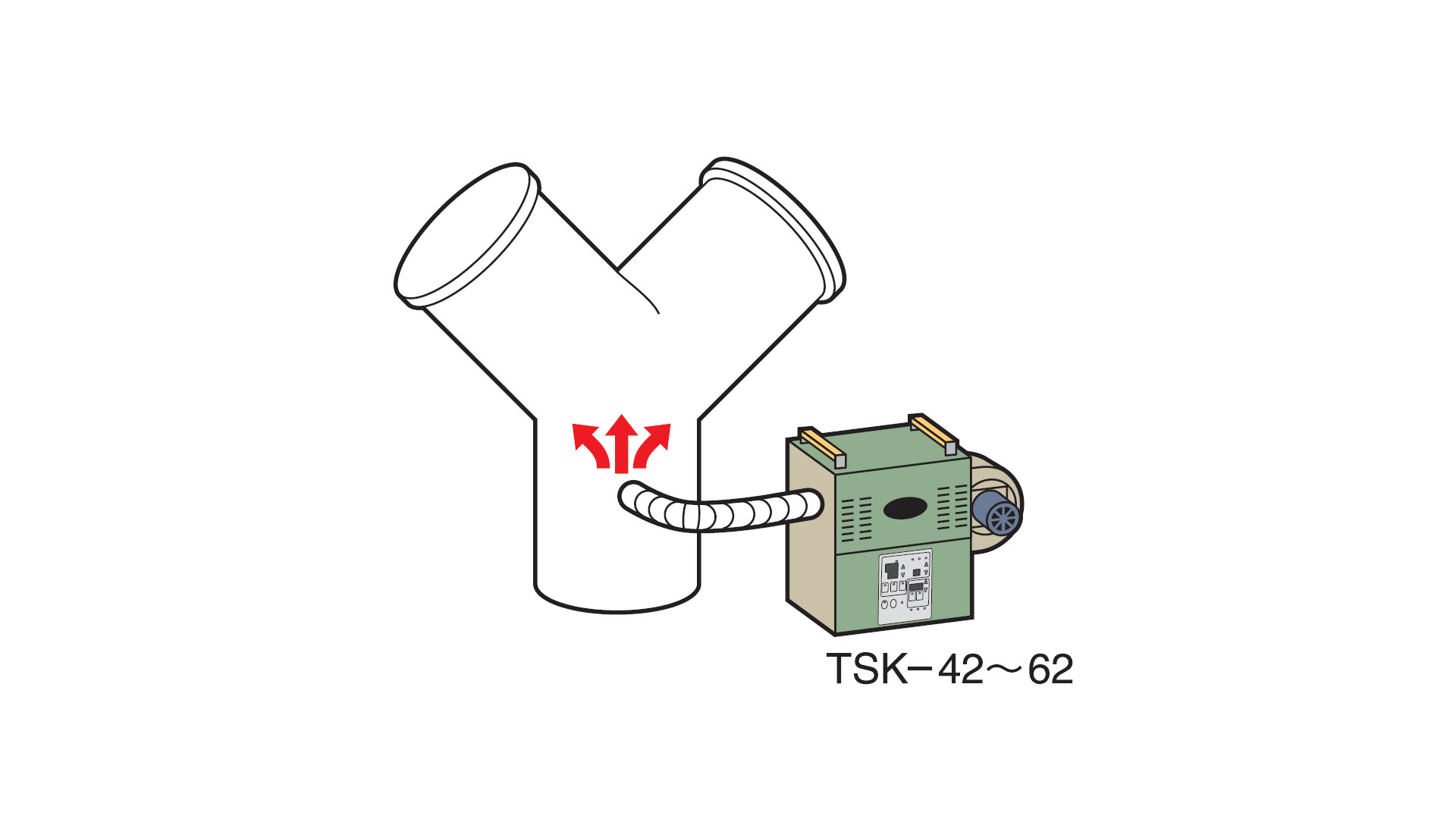

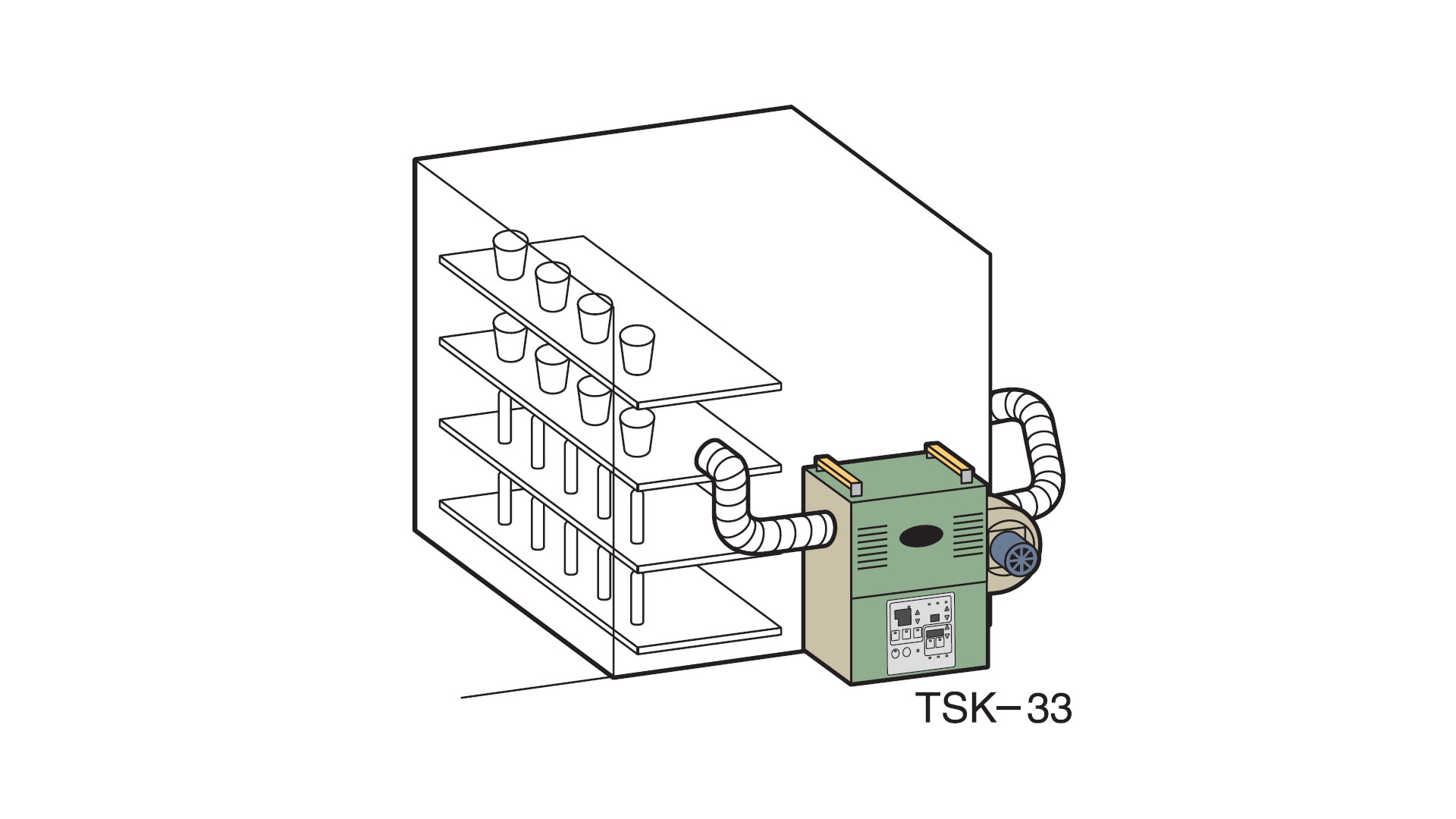

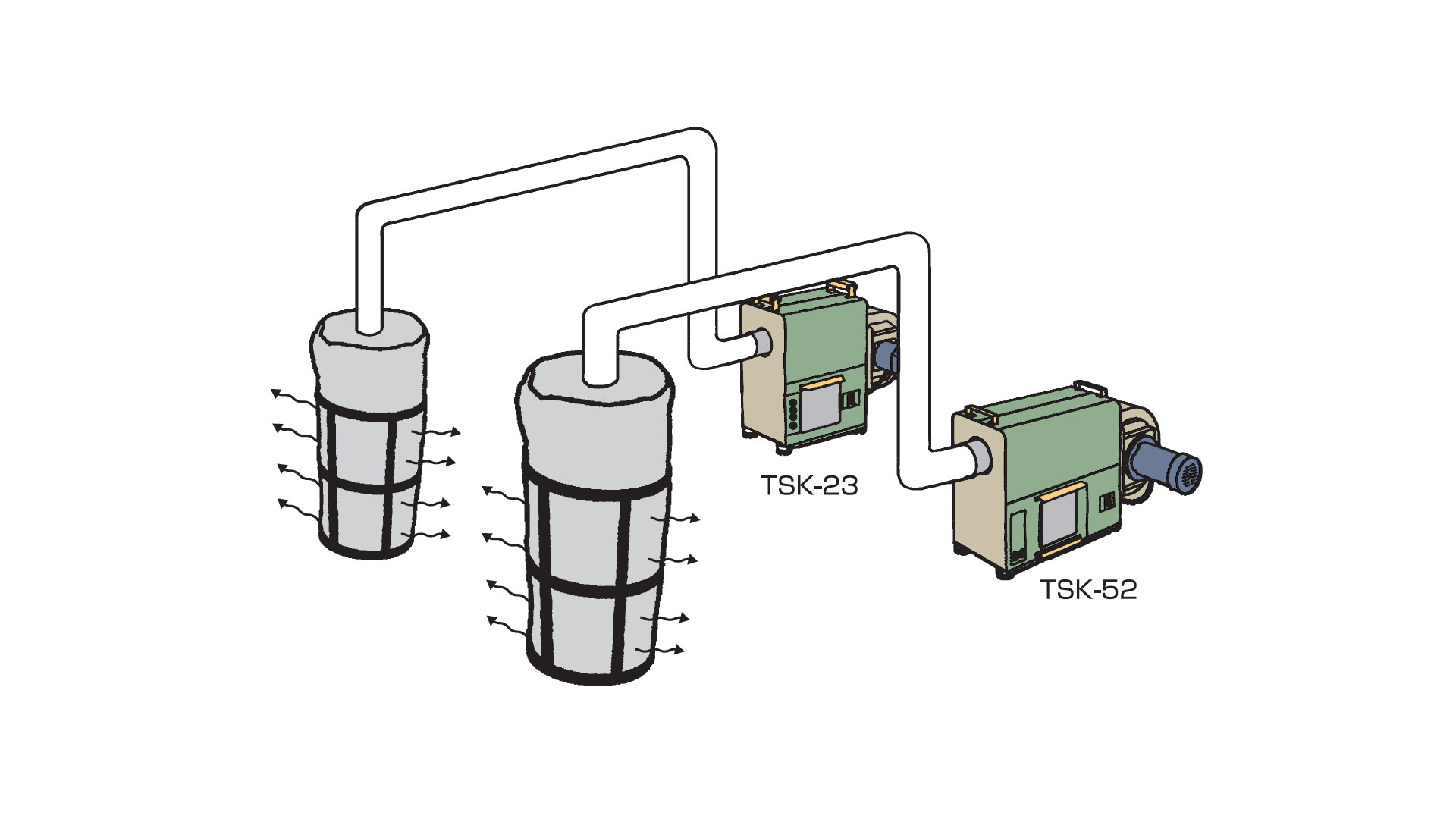

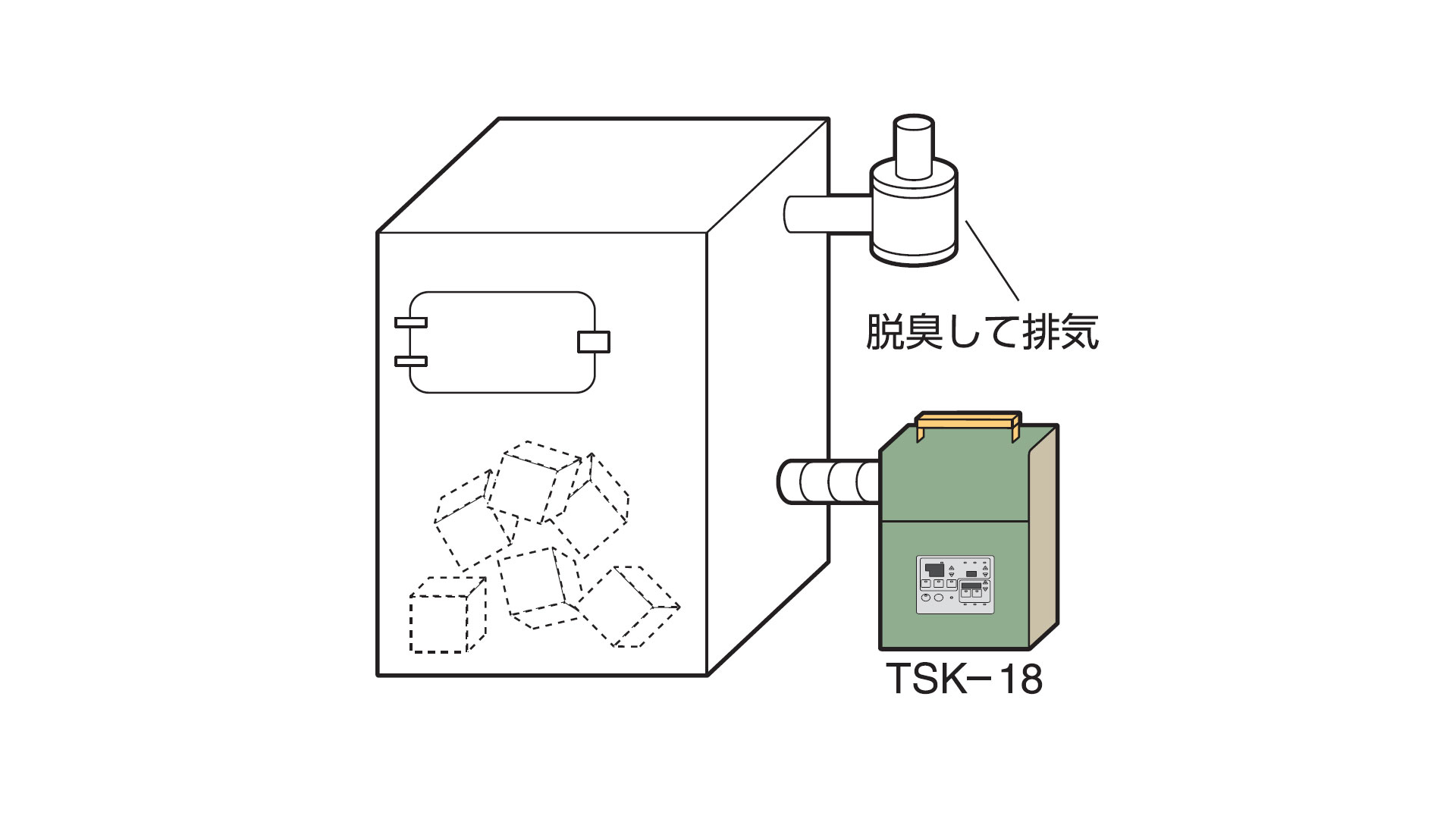

Installation Example

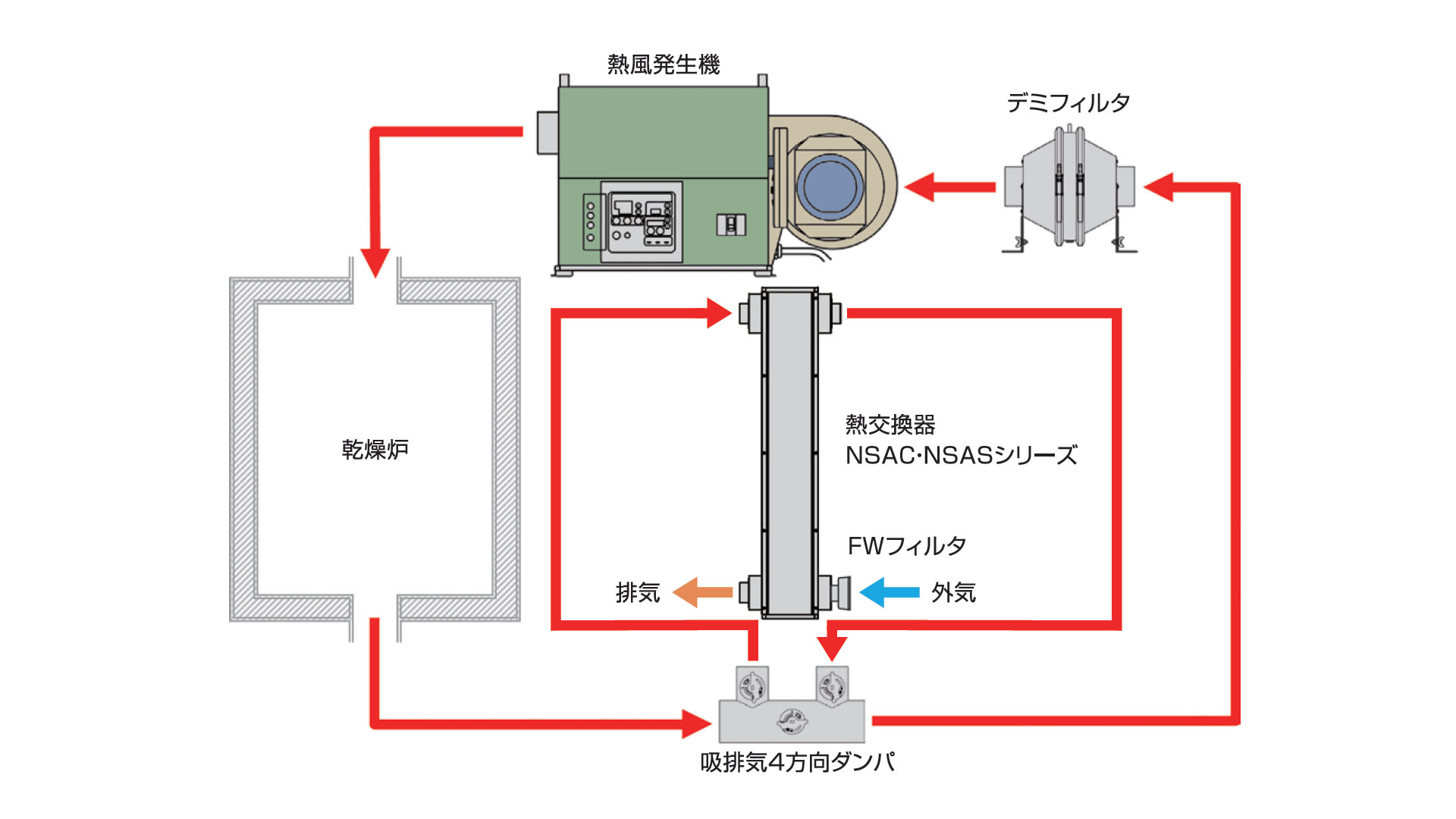

Hot Air Circulation Drying Oven
Unidirectional Flow Drying Oven
Standard Specifications List
Note: Model numbers vary depending on the voltage specification.
For 200 V models, the prefix is 3200-.
For 380 V-480 V models, the prefix is 3380-.
Please specify the required voltage when placing your order.
注：モデル番号は電圧仕様により異なります。
200 Vモデルの場合、接頭辞は3200-です。
380 V – 480 Vモデルの場合、接頭辞は3380-です。
ご注文の際は必要な電圧を明記してください。

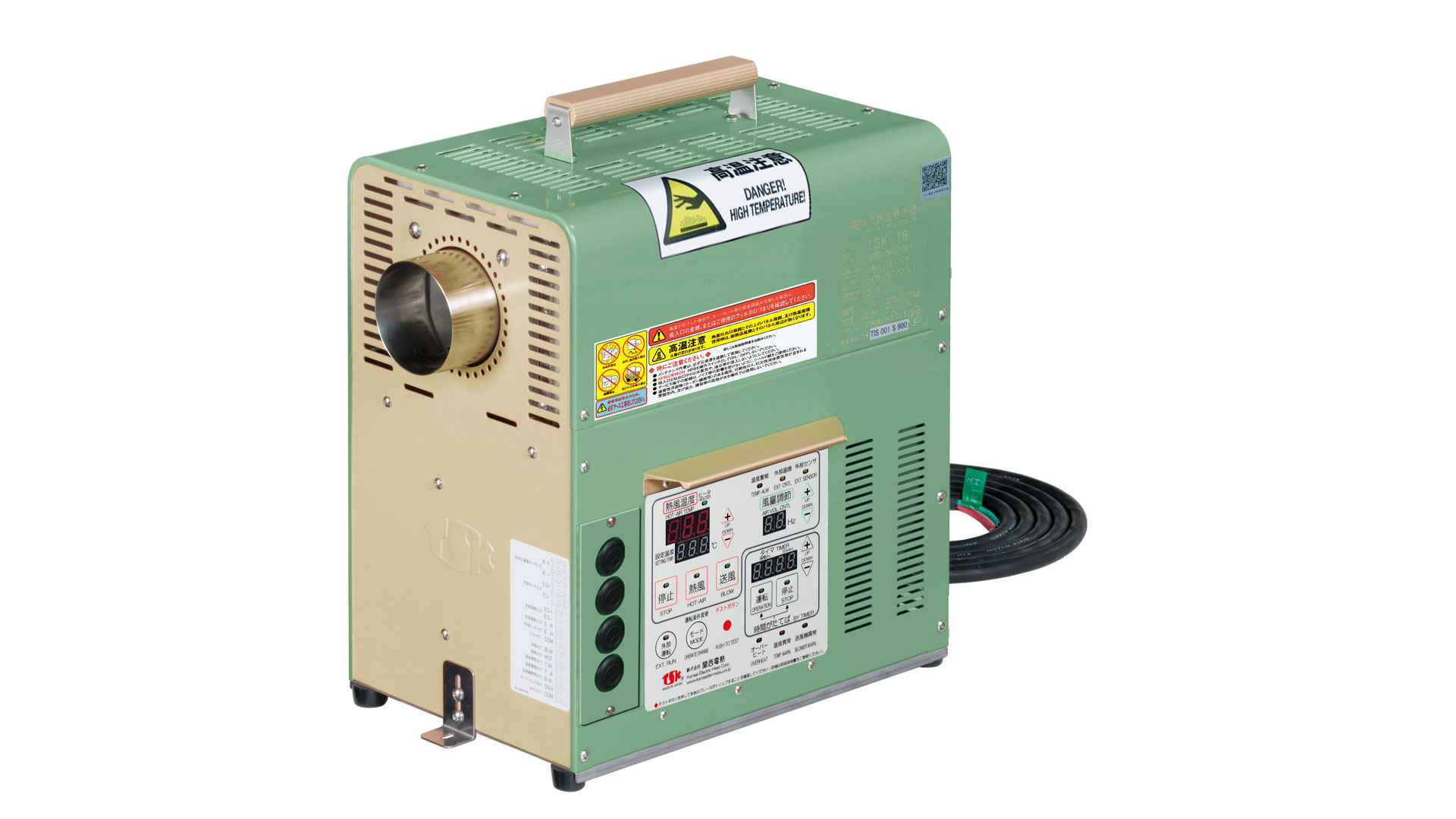

| Model |
TSK-18 |
||
|---|---|---|---|
| Model Nos. 品番 | 3200-2C-008Y | 3200-3.5C-008Y | 3200-5C-008Y |
|
Power Supply |
3-phase 200 V, 50/60 Hz | ||
|
Heater Capacity |
2 kW | 3.5 kW | 5 kW |
|
Max Hot Air Temp. |
350 °C | ||
|
Max Inlet Air Temp. |
140 °C | ||
|
Max Air Volume |
3.5 m³/min | ||
|
Max Static Pressure |
0.95 kPa | ||
 |
|

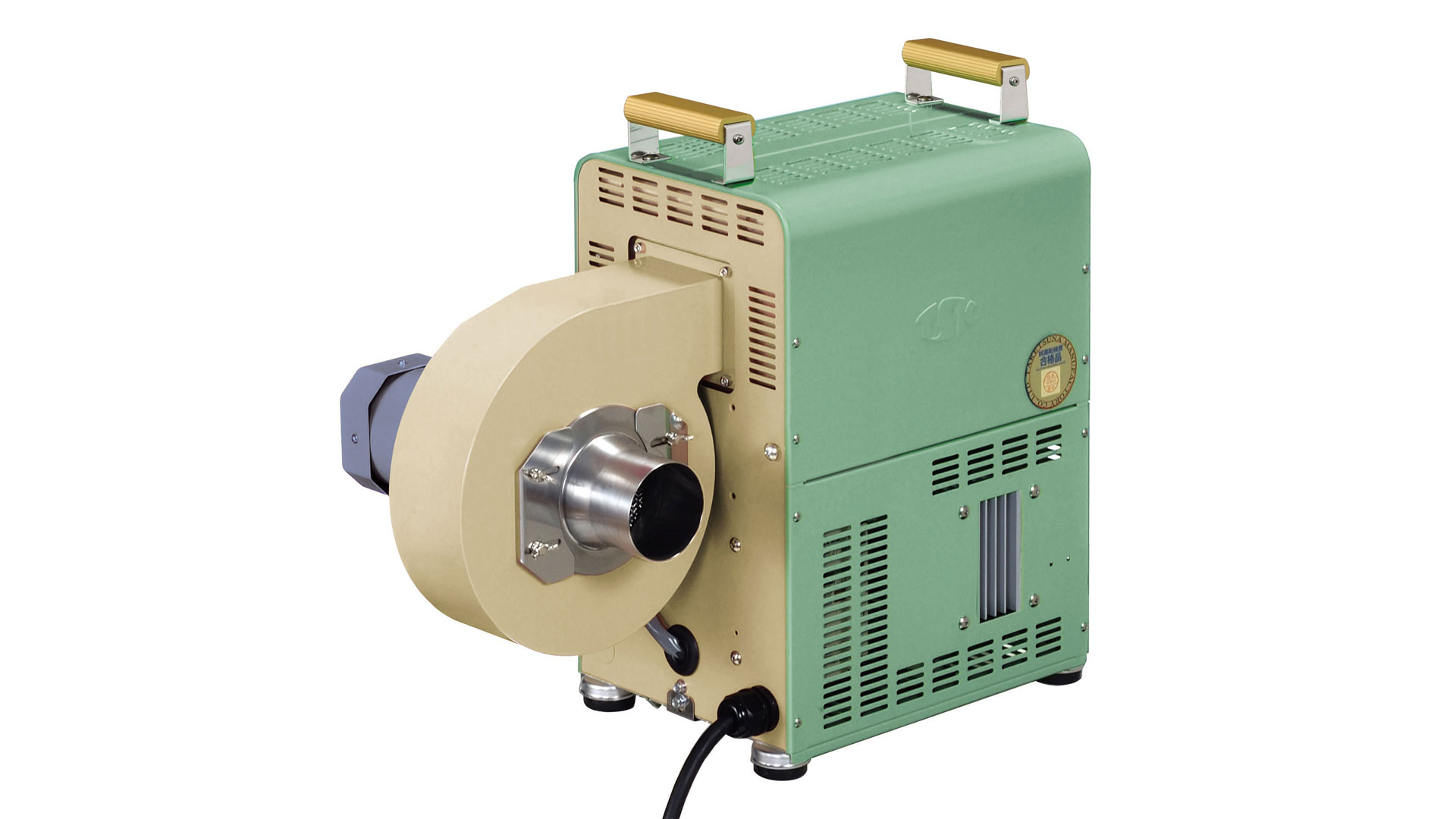

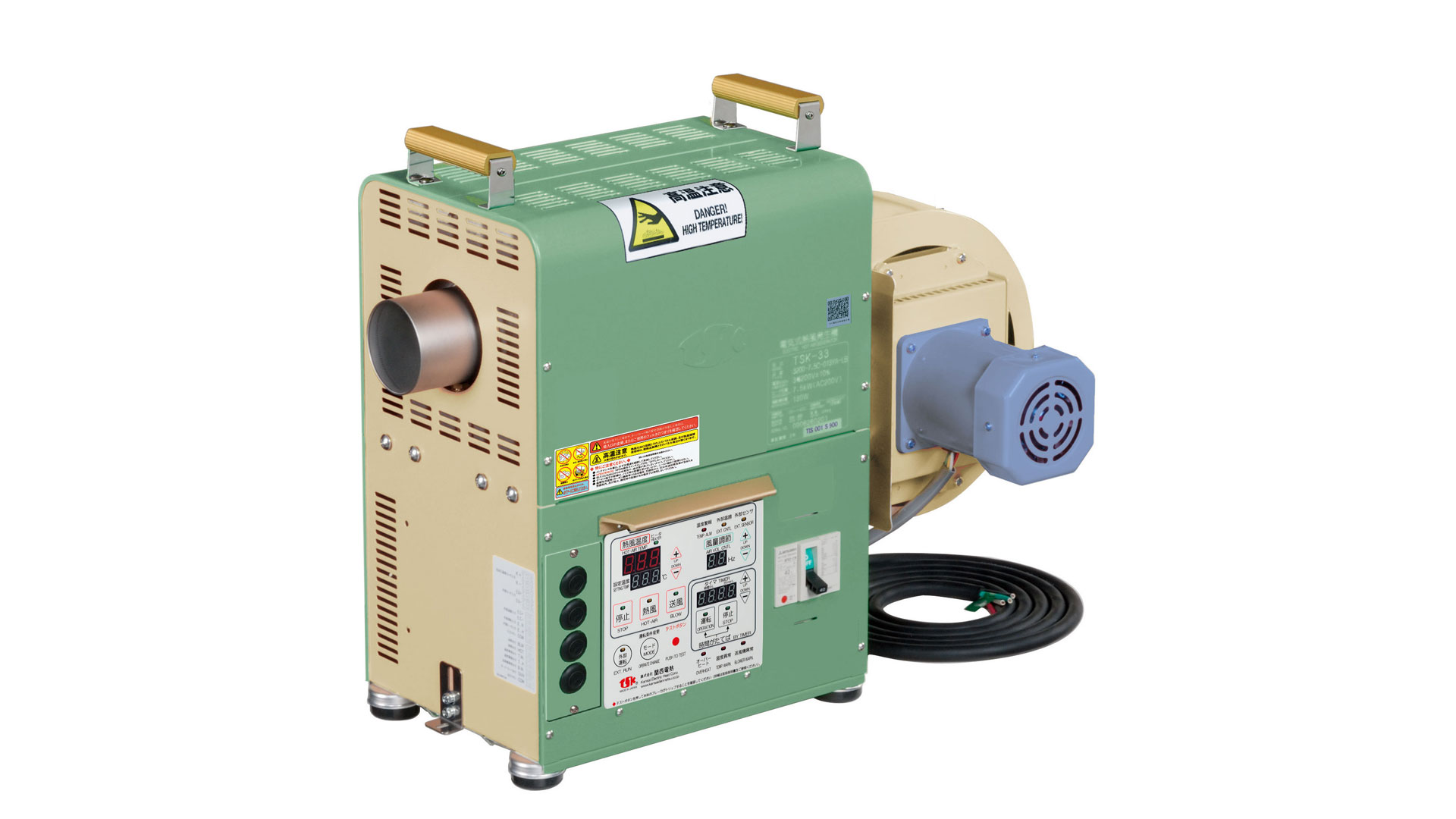

||
| Model |
TSK-23 |
|
|---|---|---|
| Model Nos. | 3380-480-3C-013YA-LB | 3380-480-5C-013YA-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 3 kW | 5 kW |
| Max Hot Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 230 °C | |
| Max Air Volume | 5.3 m³/min | |
| Max Static Pressure | 1.2 kPa | |
 |
|
|
| Model |
TSK-33 |
|---|---|
| Model No. | 3380-480-7.5C-013YA-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 7.5 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 5.3 m³/min |
| Max Static Pressure | 1.2 kPa |
|
|
| Model |
TSK-42 |
|---|---|

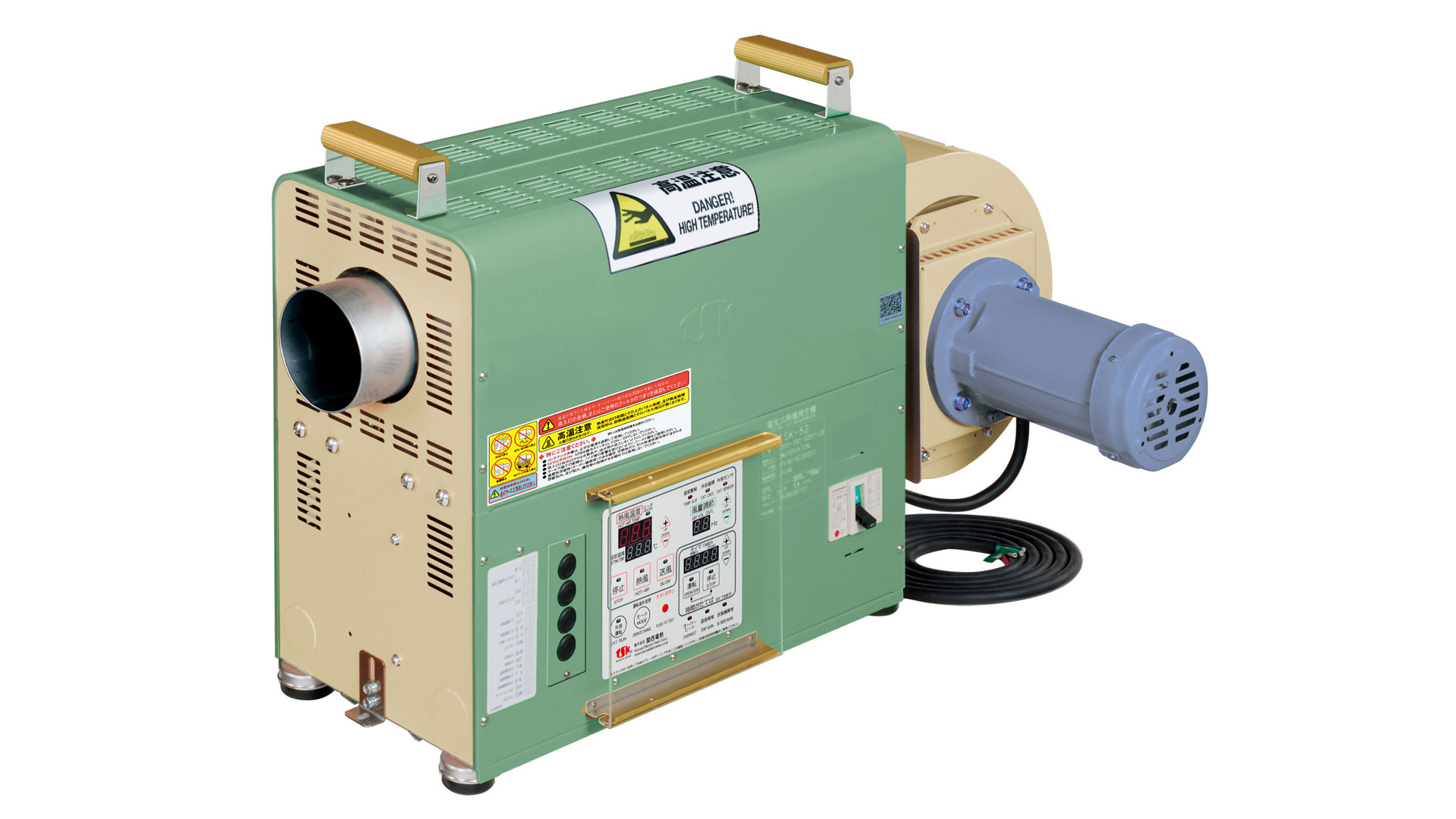

| Model No. | 3380-480-8C-025Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 8 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 7.7 m³/min |
| Max Static Pressure | 1.52 kPa |
 |
|
| Model |
TSK-52 |
|---|---|
| Model No. | 3380-480-10C-025Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 10 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 7.7 m³/min |
| Max Static Pressure | 1.52 kPa |
|
|
| Model |
TSK-56 |
|
|---|---|---|

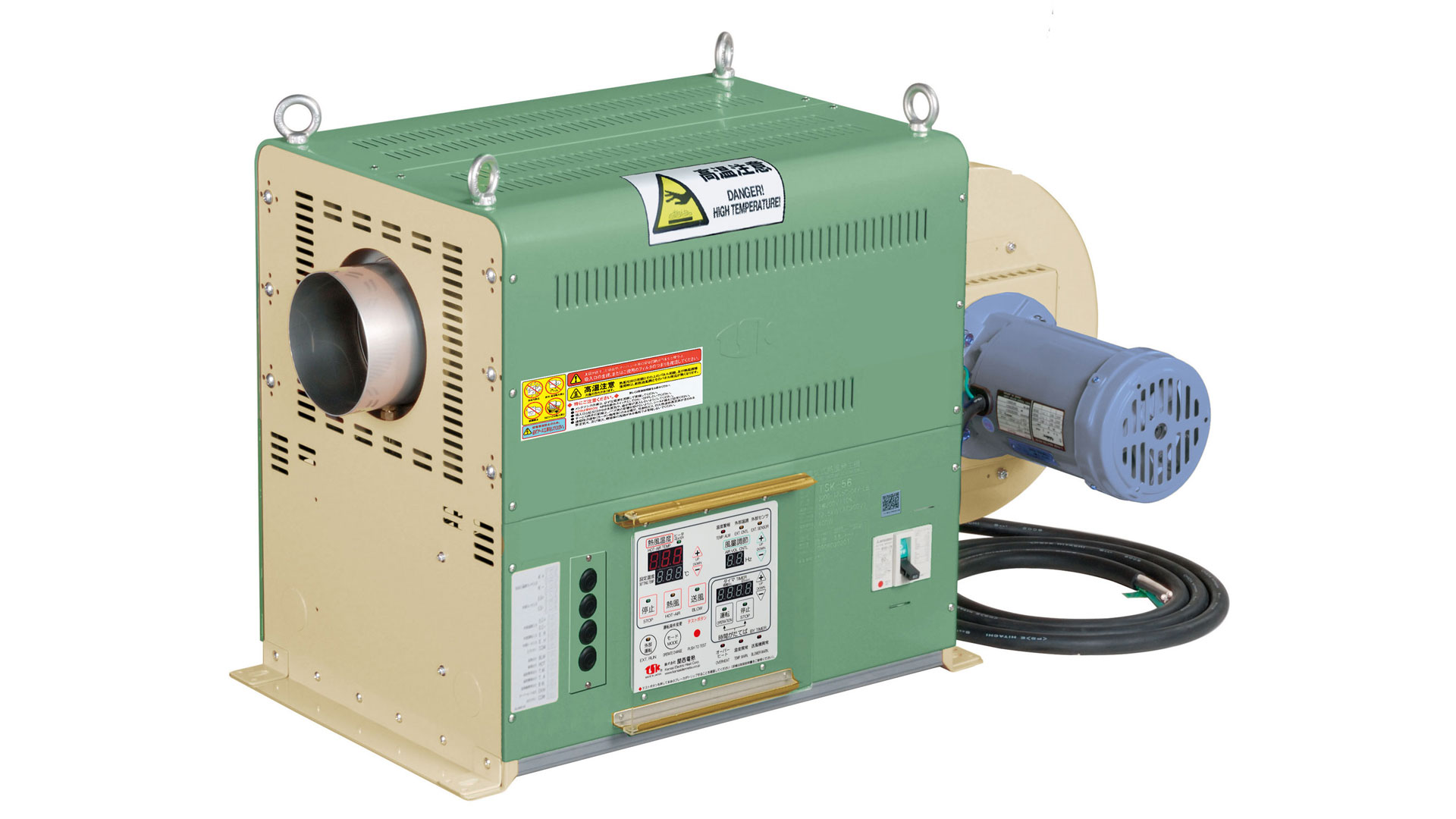

| Model Nos. | 3380-480-9C-04YA-LB | 3380-480-12.5C-04YA-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 9 kW | 12.5 kW |
| Max Hot Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 230 °C | |
| Max Air Volume | 15.5 m³/min | |
| Max Static Pressure | 1.5 kPa | |
 |
|
|

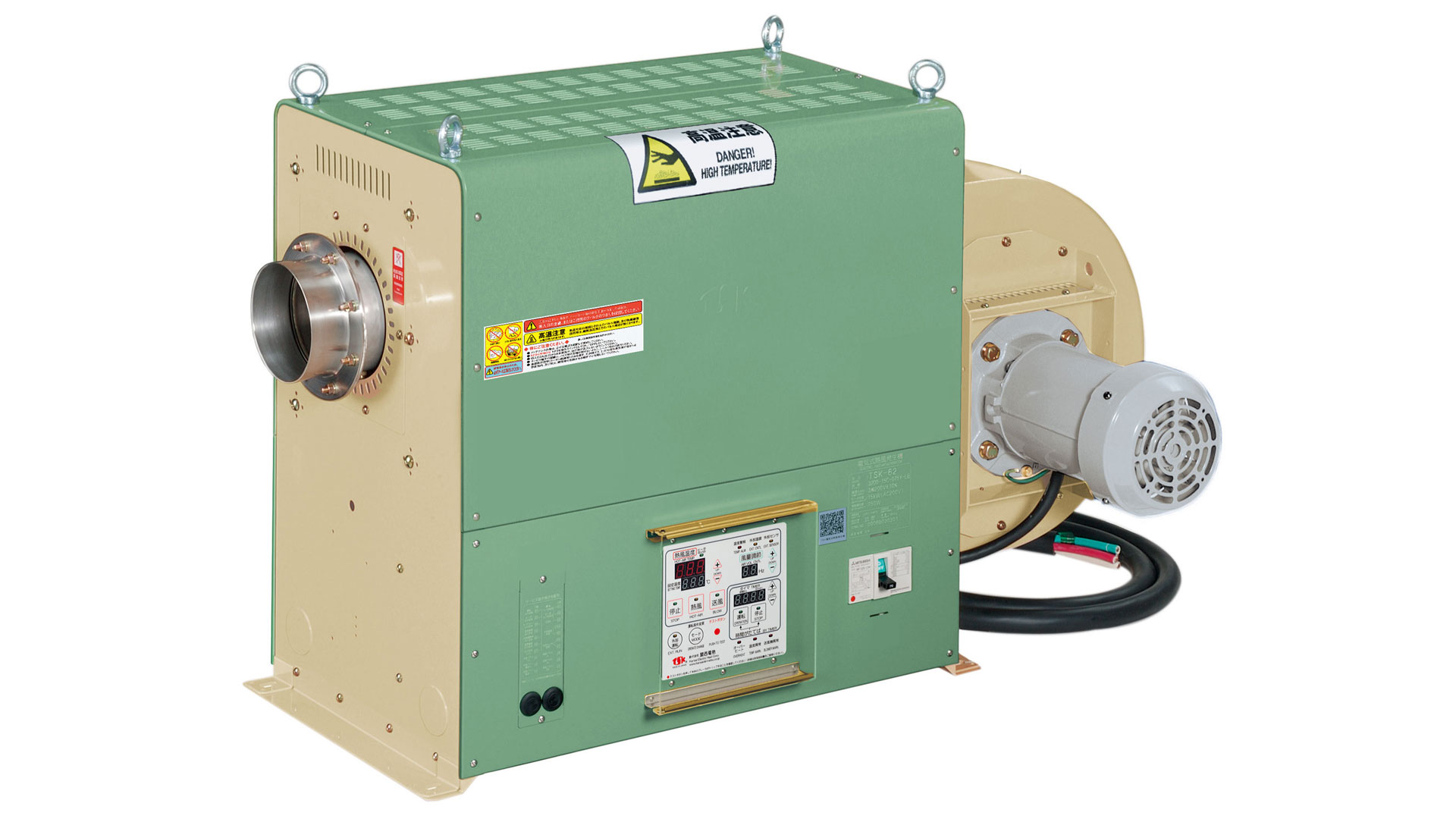

| Model |
TSK-62 |
|---|---|
| Model No. | 3380-480-15C-075Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 15 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 15 m³/min |
| Max Static Pressure | 2.45 kPa |
 |
|
| Model |
TSK-72 |
|---|---|
| Model No. | 3380-480-20C-075Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 20 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 15 m³/min |
| Max Static Pressure | 2.45 kPa |
|
|
| Model |
TSK-82 |
|---|---|

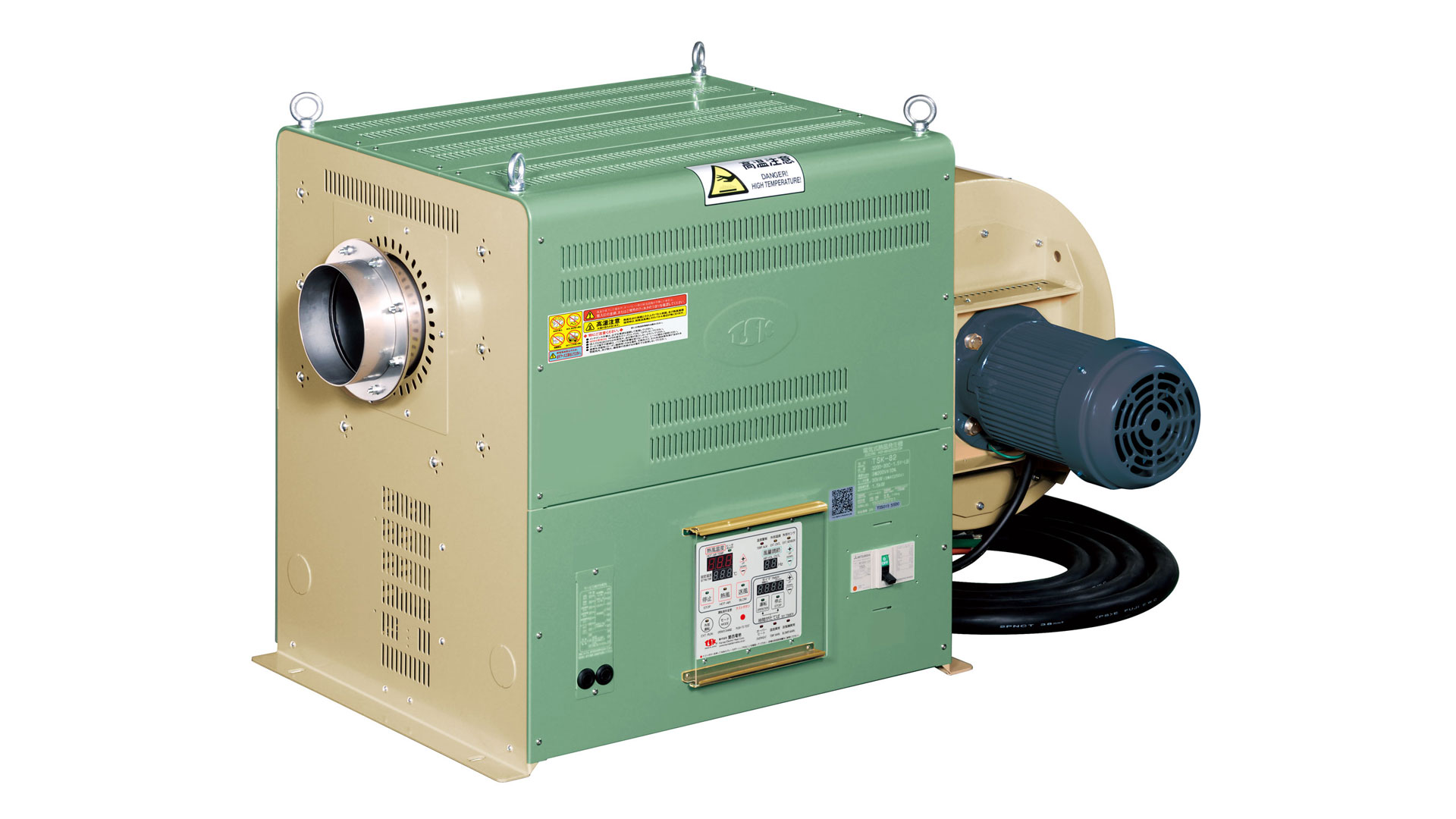

| Model No. | 3380-480-30C-1.5Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 30 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 24.8 m³/min |
| Max Static Pressure | 2.83 kPa |
 |
|
| Model |
TSK-92 |
|---|---|

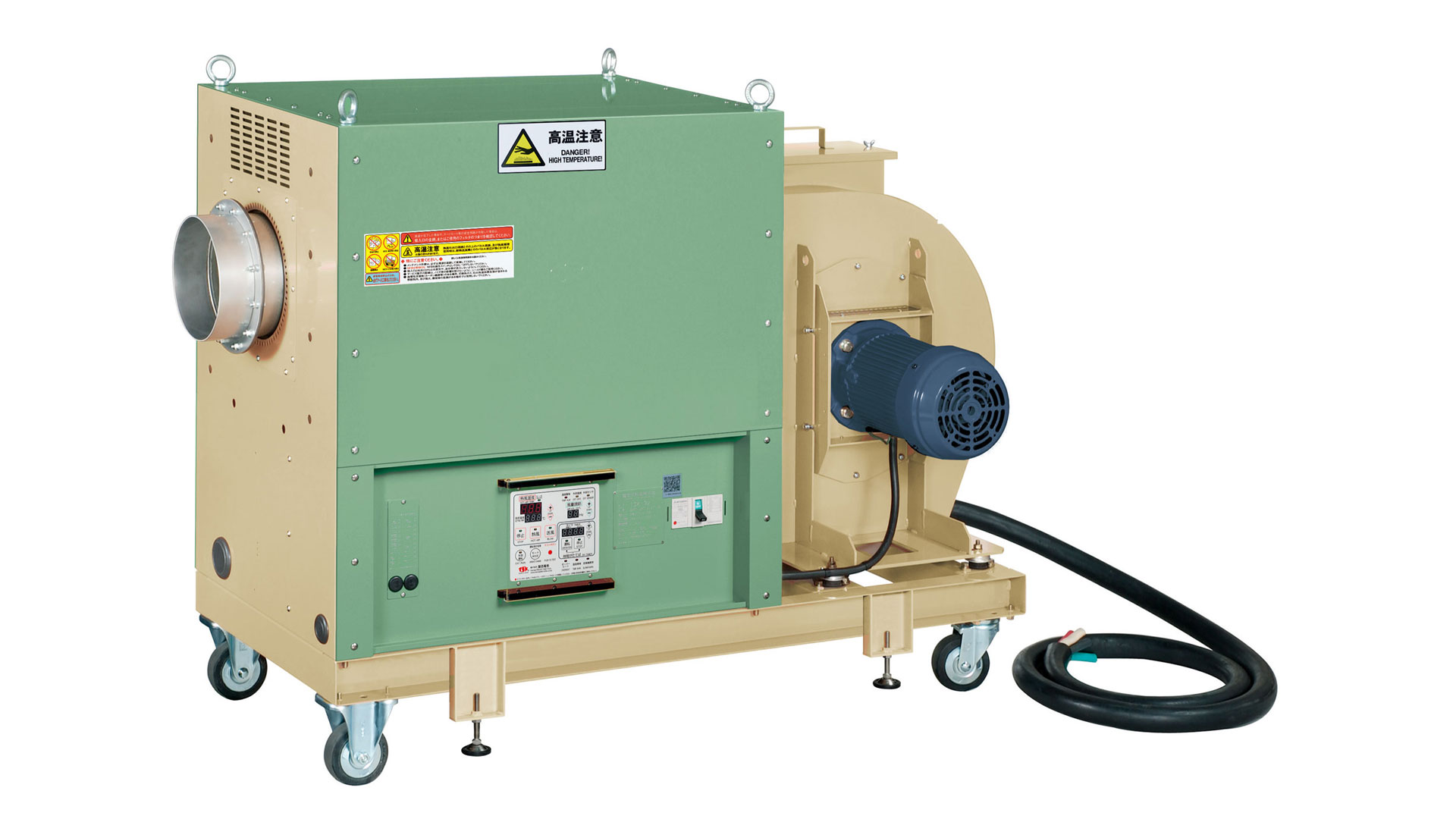

| Model No. | 3380-480-35C-2.2Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 35 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 38.3 m³/min |
| Max Static Pressure | 4.0 kPa |
 |
|
| Model |
TSK-102 |
|---|---|
| Model No. | 3380-480-45C-2.2Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 45 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 38.3 m³/min |
| Max Static Pressure | 4.0 kPa |
|
|

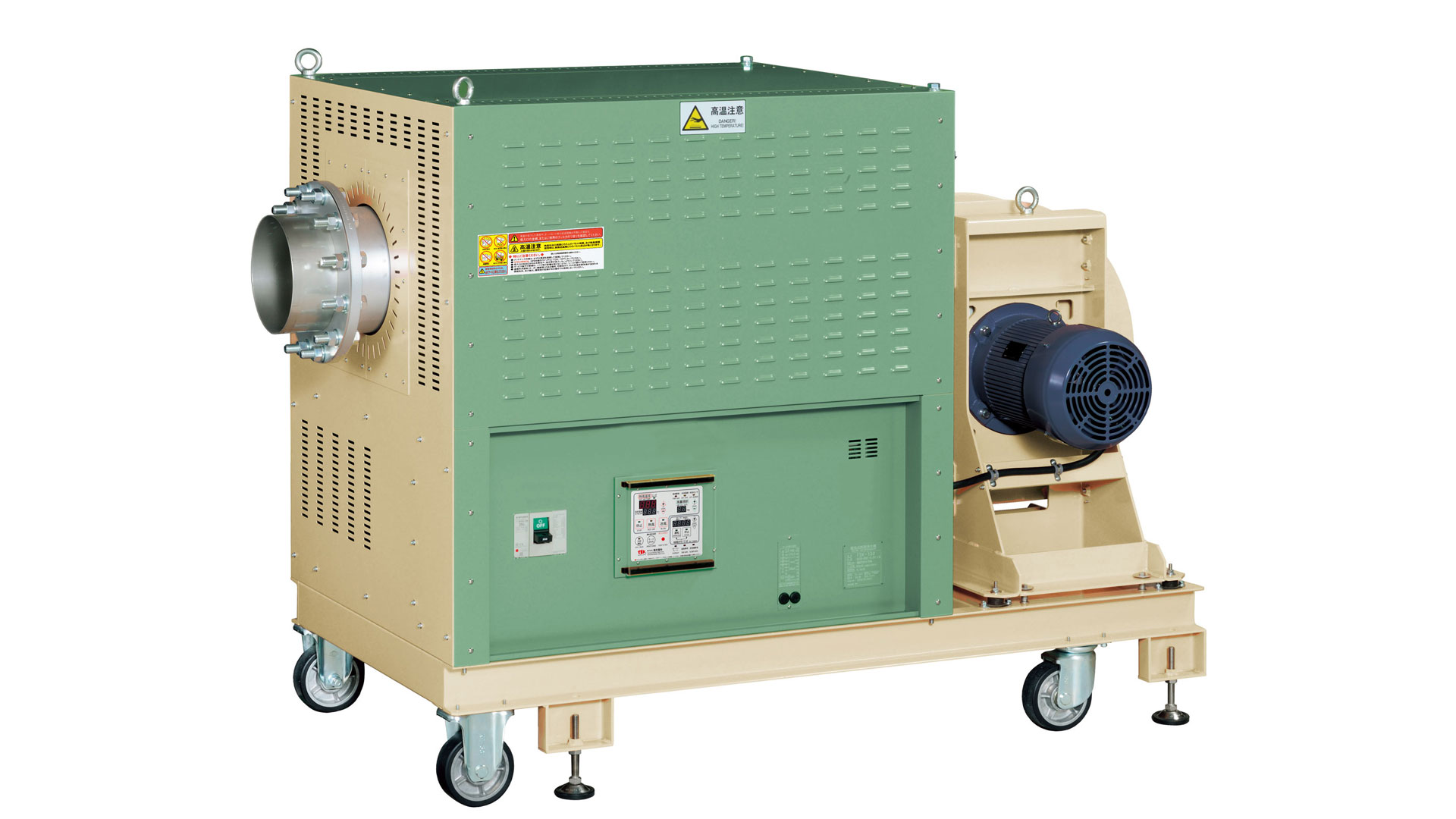

| Model |
TSK-122 |
|
|---|---|---|
| Model Nos. | 3380-480-60C-3.7Y-LB | 3380-480-80C-3.7Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 60 kW | 80 kW |
| Max Hot Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 230 °C | |
| Max Air Volume | 51 m³/min | |
| Max Static Pressure | 5.1 kPa | |
 |
|
|
| Model |
TSK-132 |
|
|---|---|---|
| Model Nos. | 3380-480-60C-5.5Y-LB | 3380-480-80C-5.5Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
| Heater Capacity | 60 kW | 80 kW |
| Max Hot Air Temp. | 350 °C | |
| Max Inlet Air Temp. | 230 °C | |
| Max Air Volume | 62 m³/min | |
| Max Static Pressure | 6.0 kPa | |
|
|
|

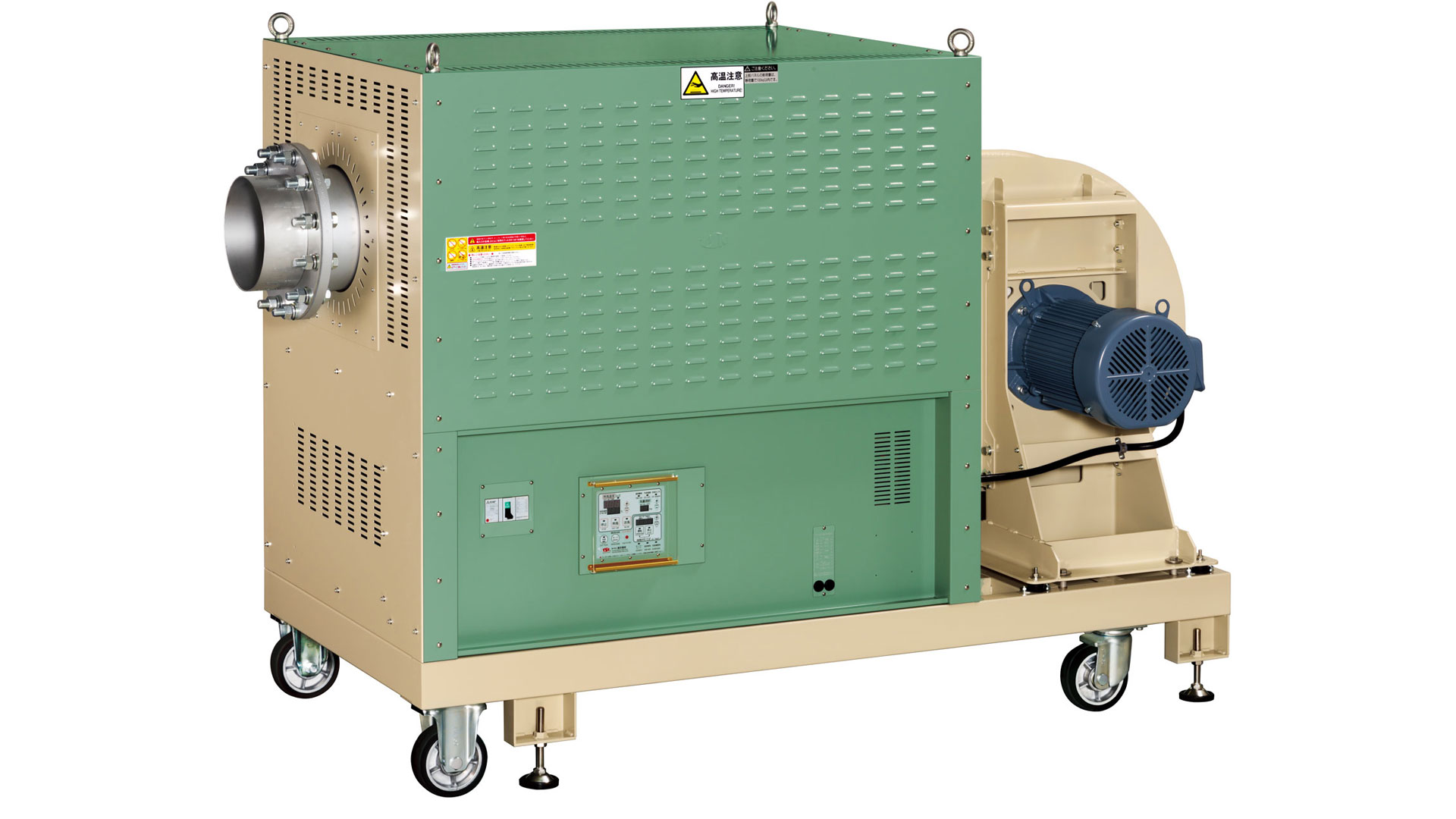

| Model |
TSK-200 |
|---|---|
| Model No. | 3380-480-120C-7.5Y-LB |
| Power Supply |
3-phase 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
| Heater Capacity | 120 kW |
| Max Hot Air Temp. | 350 °C |
| Max Inlet Air Temp. | 230 °C |
| Max Air Volume | 62 m³/min |
| Max Static Pressure | 8.0 kPa |
 |
|
Optional Accessories
|
|

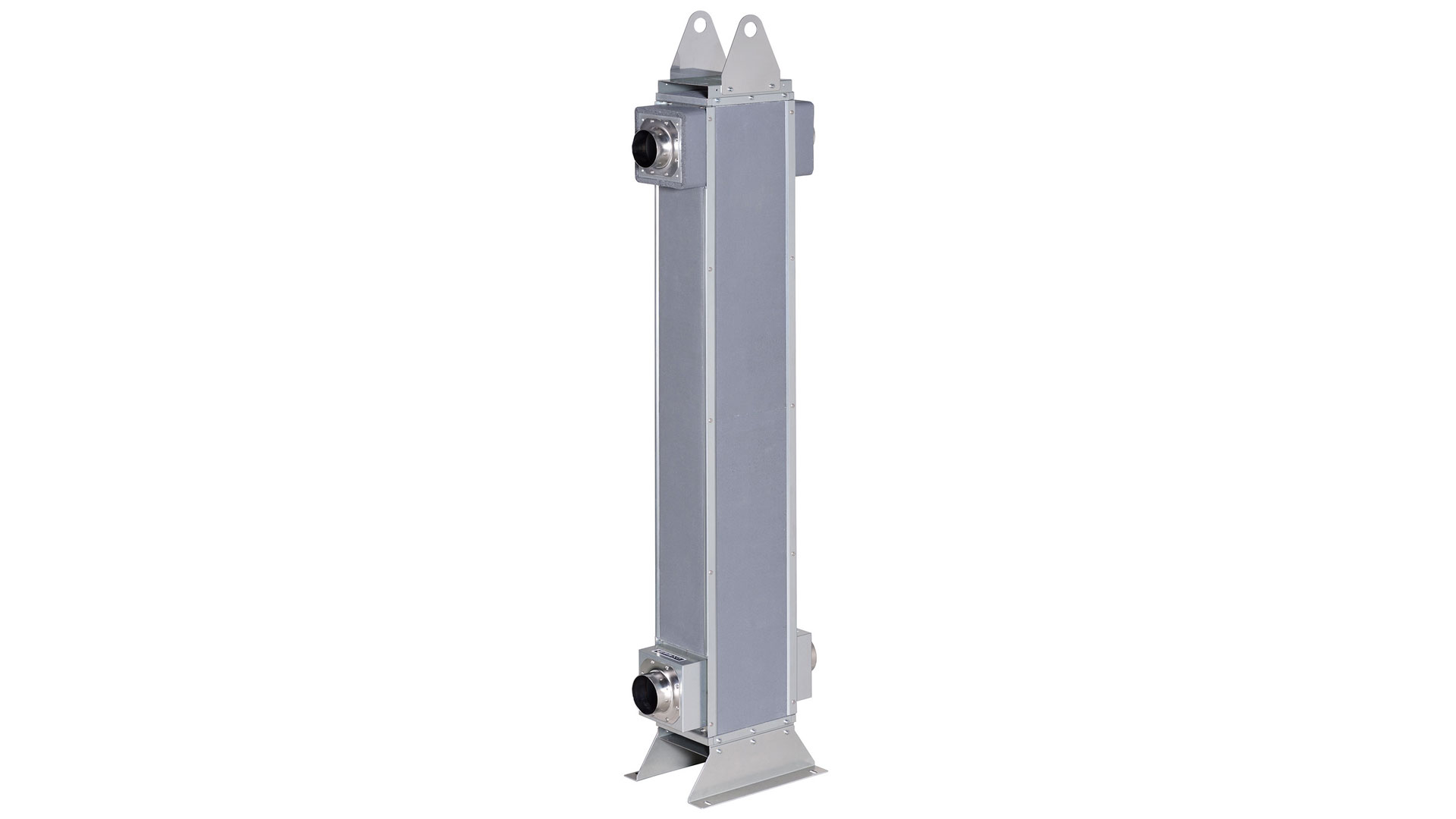

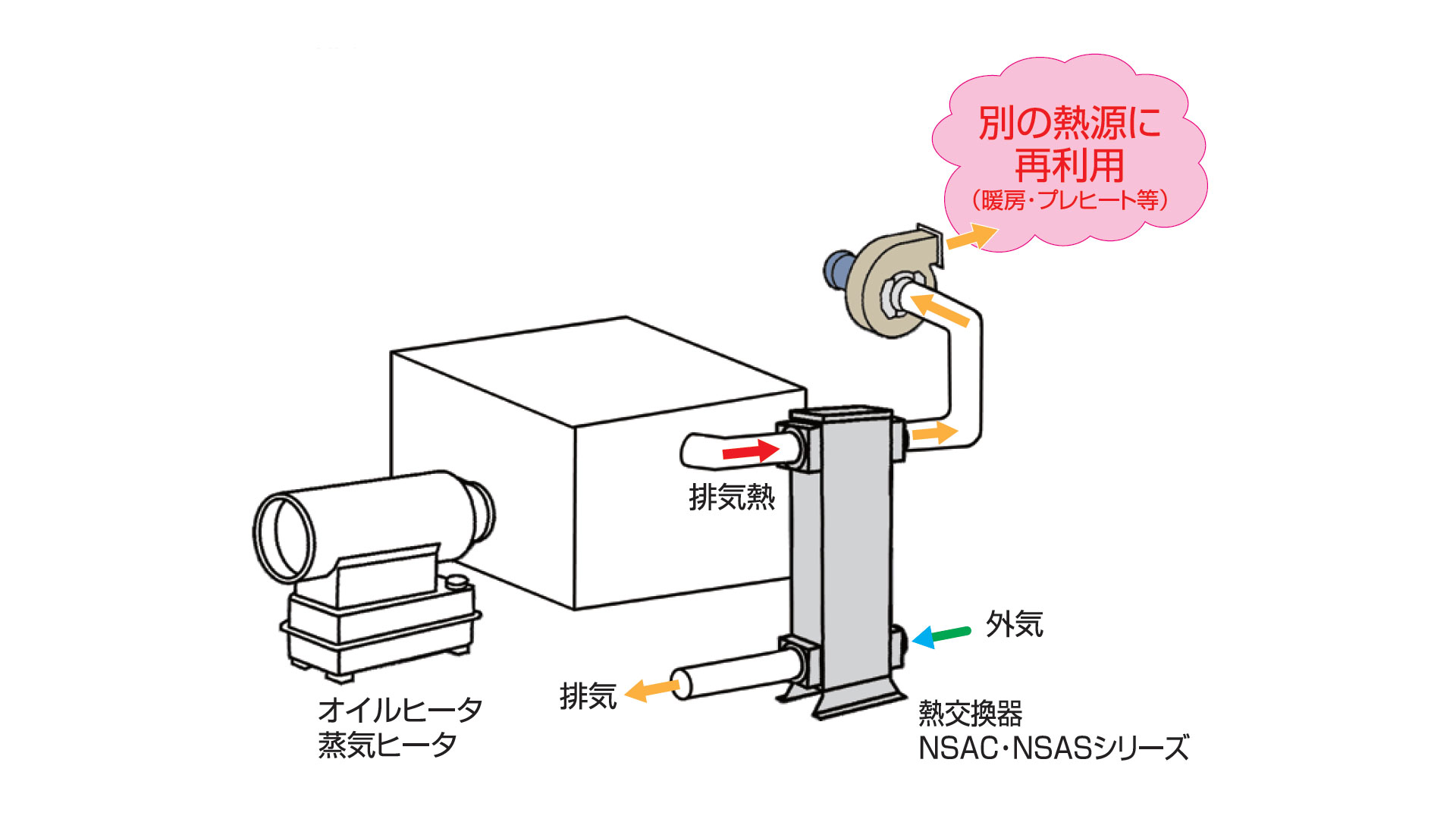

Cuts energy costs using exhaust heat. Copper and stainless options available. 排気熱を再利用し、電気代、CO₂排出量削減！ 用途に合わせて銅仕様と ステンレス仕様をご用意 |
|
|

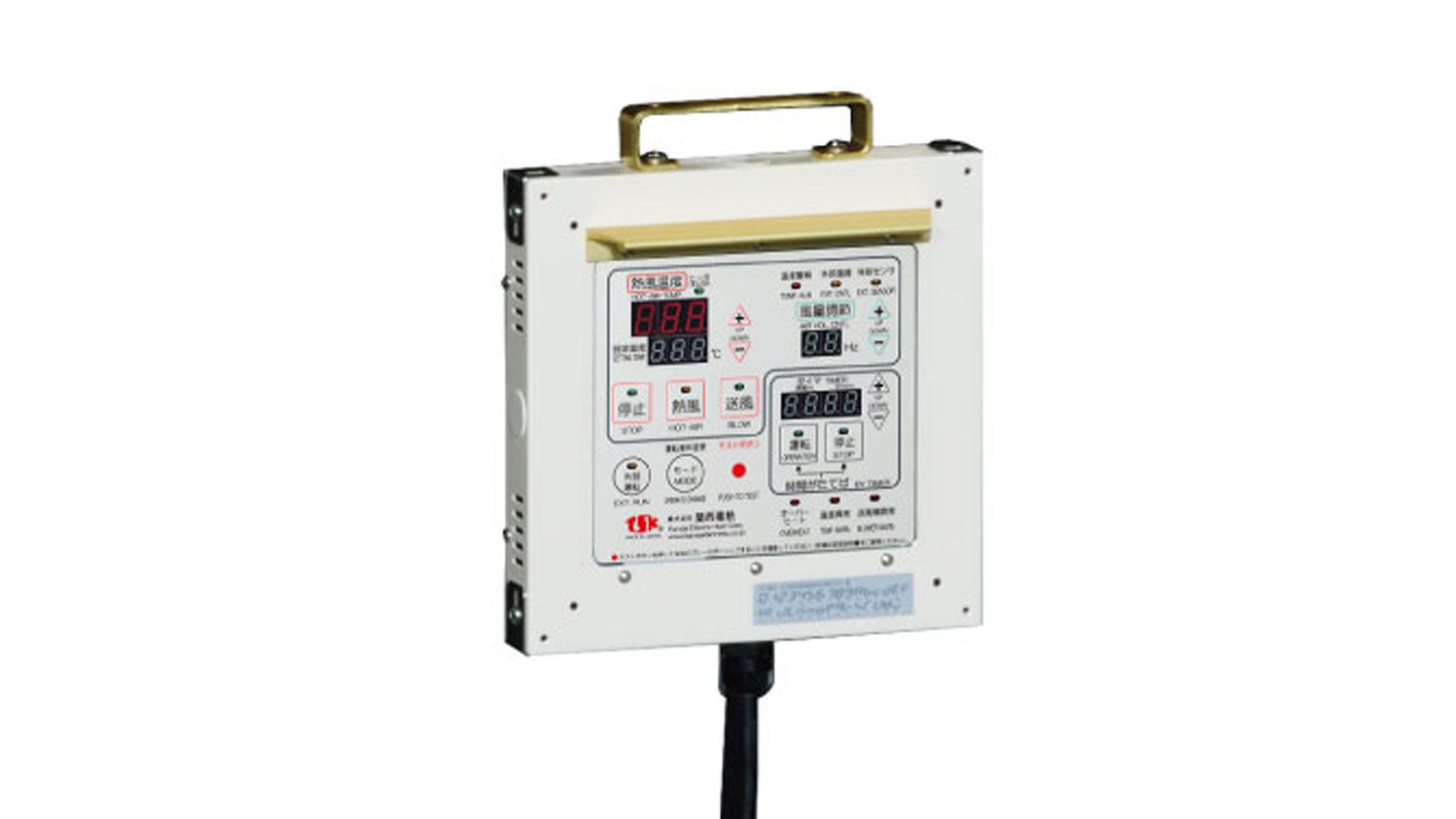

Can be installed away from the main unit and operated remotely. Retrofit available for standard models. TSK-18–56: RCS-10MC TSK-62–200: RCT-10MC 本体と離れた場所に設置・操作ができ、標準タイプには後付け可能 TSK-18～56：RCS-10MC TSK-62～200： RCT-10MC |
|
|

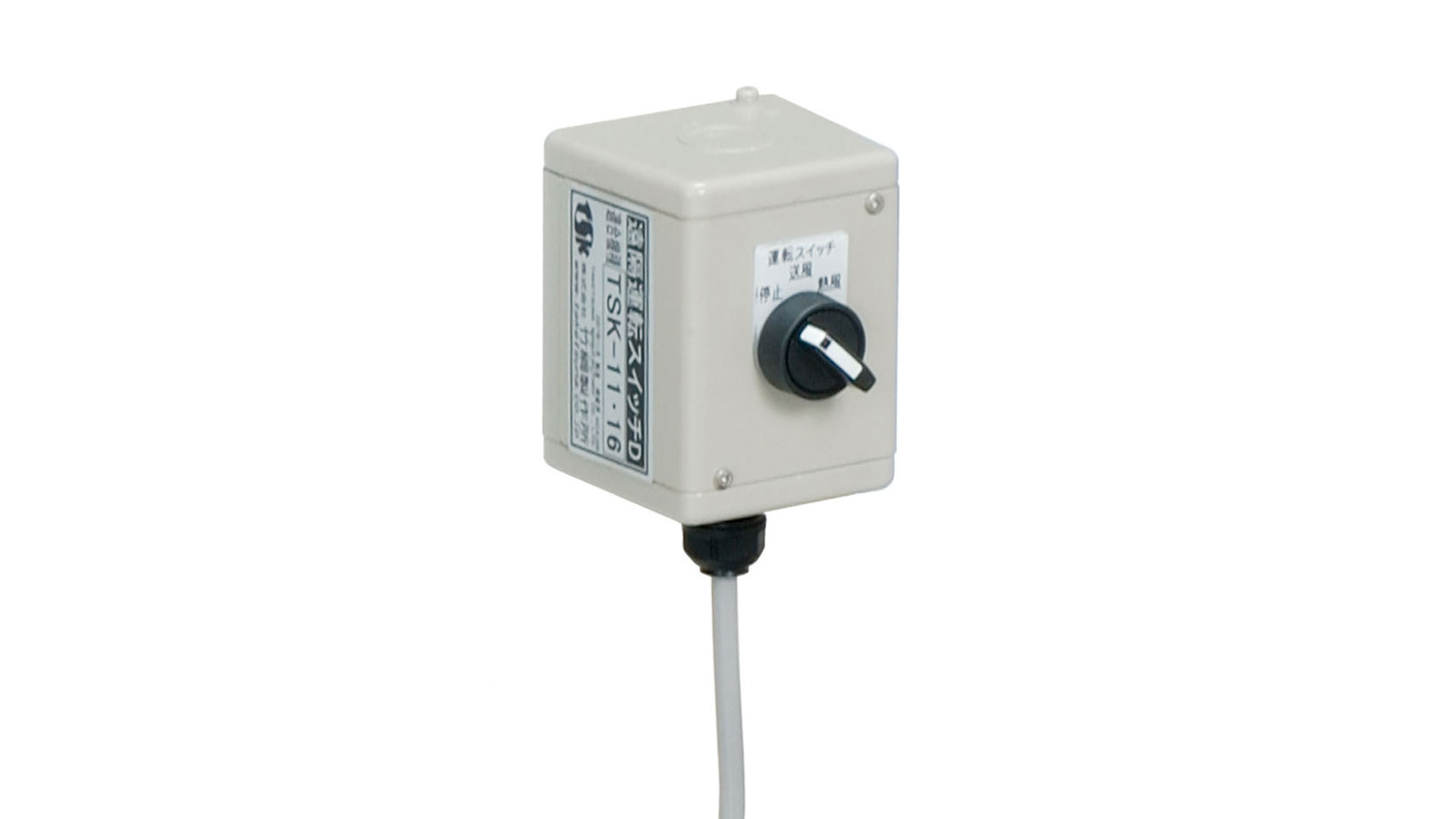

Remote Operation Switch 遠隔運転スイッチ Switch between stop, air blow, and hot air remotely. 離れた場所からの停止・送風・熱風の切り替え |
|
|

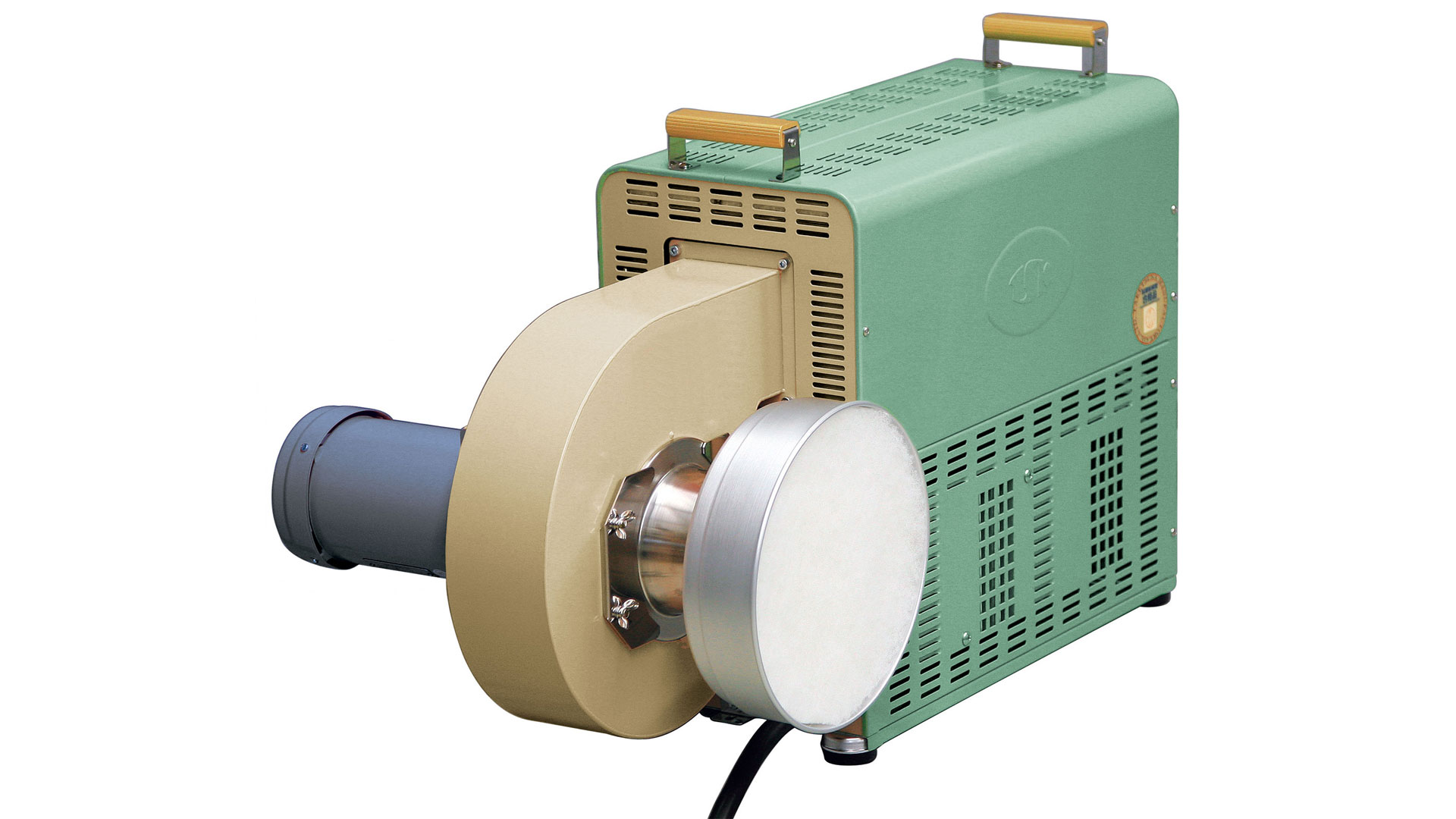

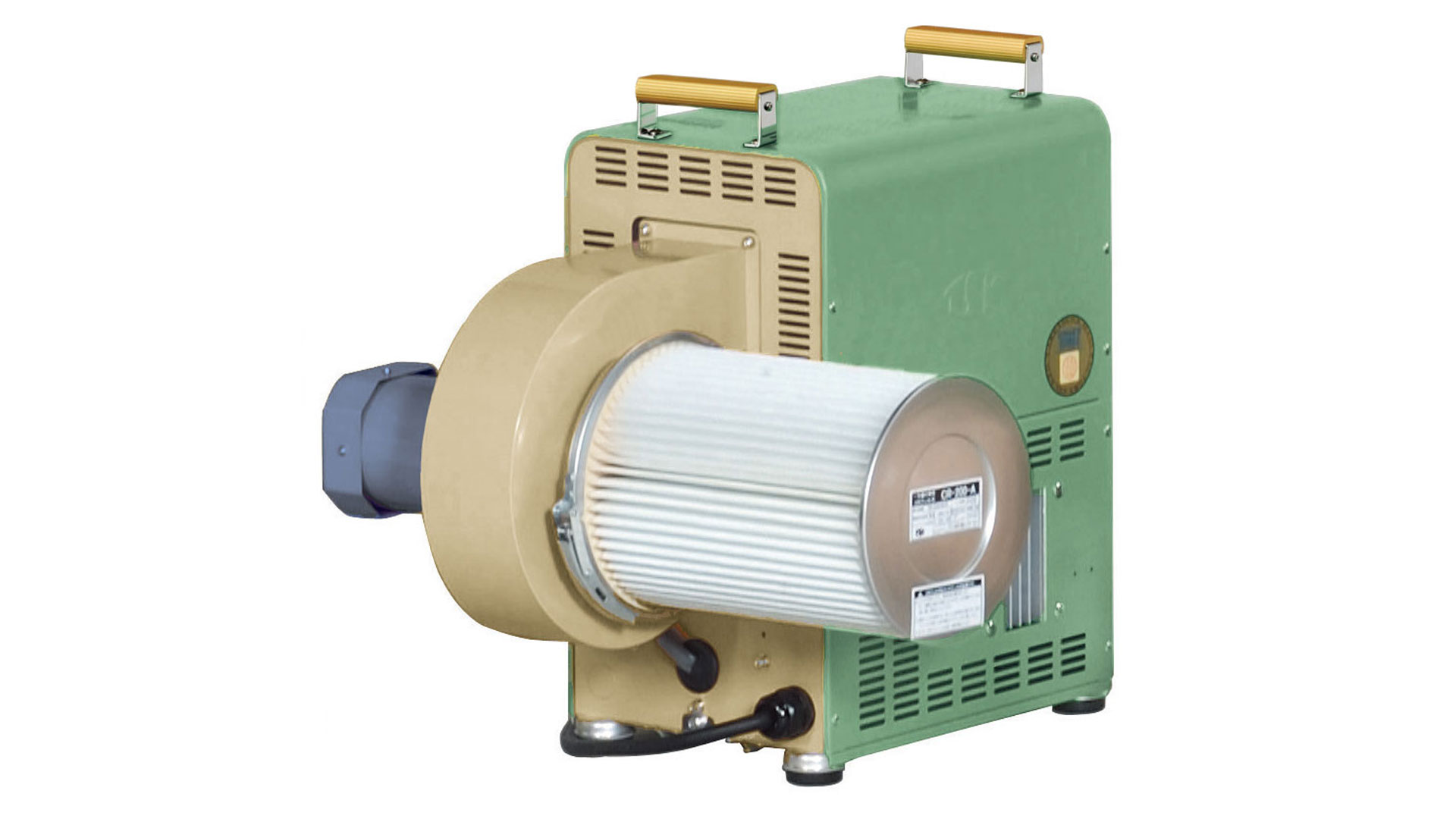

For hot air circulation Heat-resistant up to 260 °C Easily removes oil mist and other airborne contaminants. Washable and reusable. 熱風循環用 耐熱260℃ 空気中に含まれる油分などのミストを 簡単に除去 洗浄再生可能 |
|
|
One-Way Flow Heat-resistant up to 80 °C Removes approx. 93% of dust particles ≥ 3 µm. Washable and reusable. 一方通行用 耐熱80℃ 3㎛以上の粉塵を約93%除去 洗浄再利用可能 |
|
|
One-Way Flow Heat-resistant up to 80 °C Coarse-dust filter that easily removes airborne dust. Disposable type. |
|
|

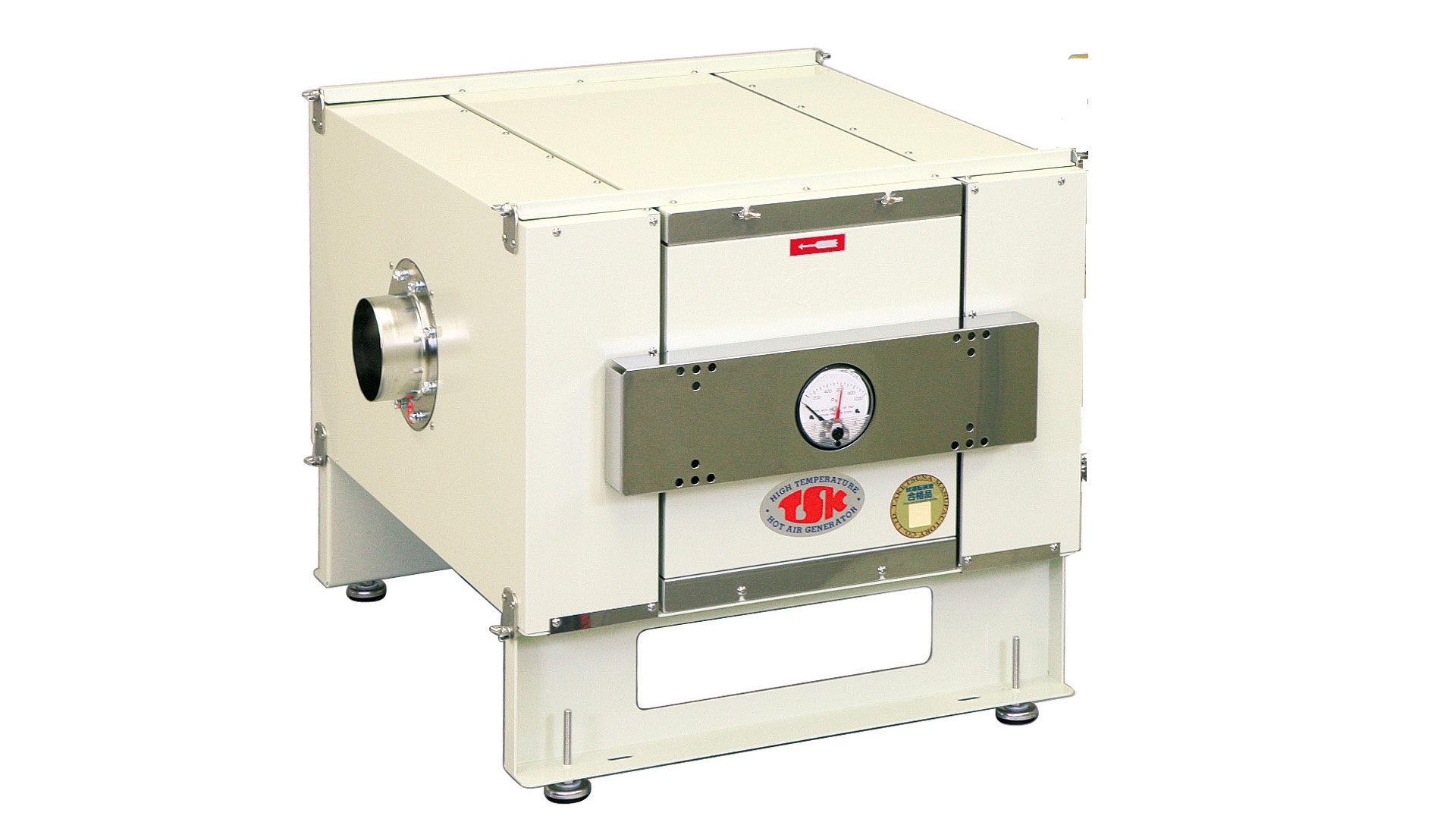

Insulated HEPA Filter Box Cleanroom compatible, heat-resistant up to 250 °C. Removes 99.97% of dust particles ≥ 0.3 µm. Filter can be replaced without removing the piping. クリーンルーム対応 耐熱250℃ 0.3㎛以上の粉塵を99.97%除去 配管をしたままでフィルタの交換が可能 |
|
|

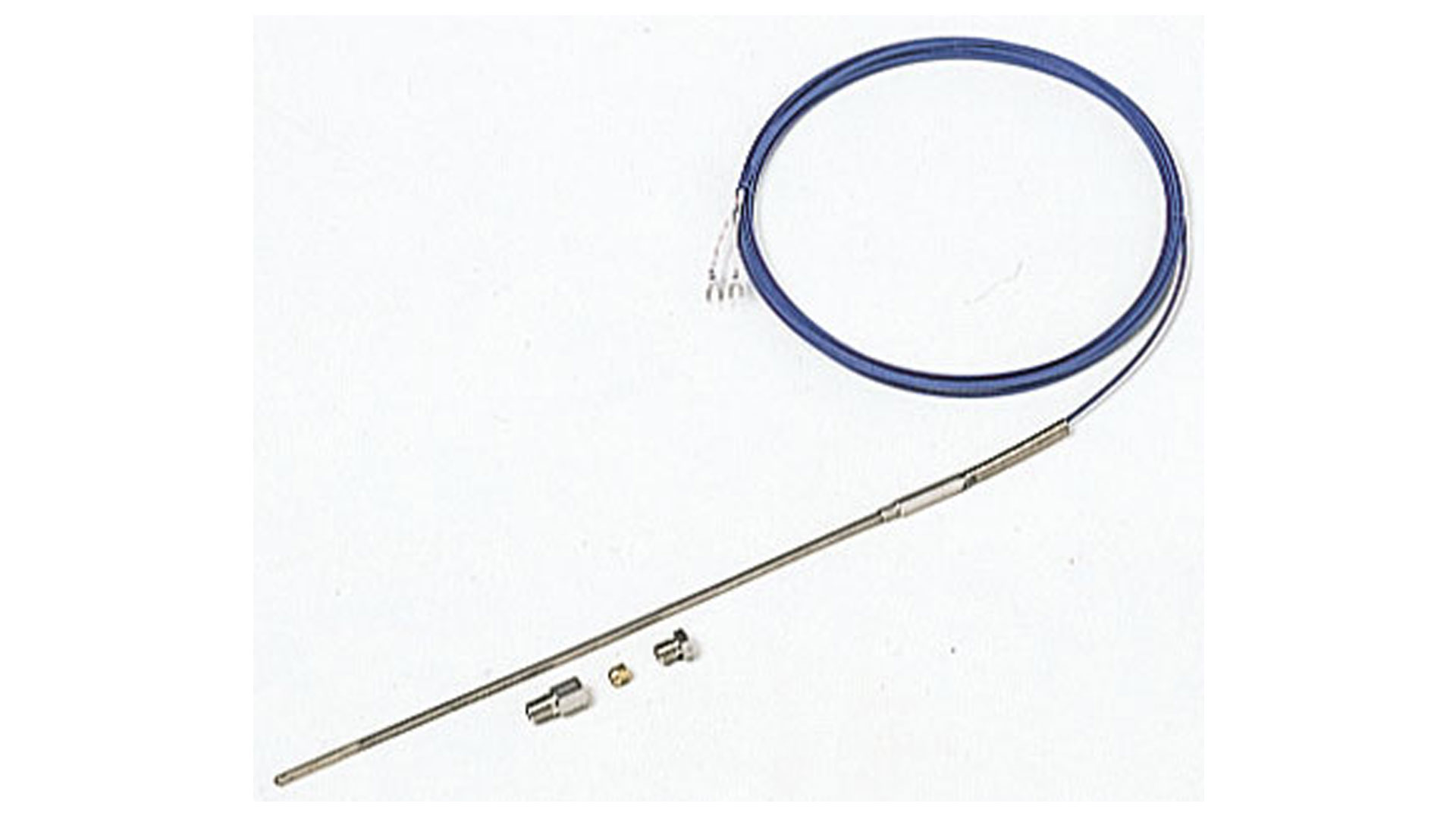

Temperature sensor (K-type thermocouple) for controlling internal temperature of drying ovens and similar equipment. 乾燥炉等の炉内部の温度制御用の 温度センサ(K熱電対) |
|
|
Insulation Cover for Heat-Resistant Blower 耐熱送風機用断熱カバー Prevents burns and saves approx. 3% energy. 火傷防止用 約3％のエネルギー節約が可能 |
|
|

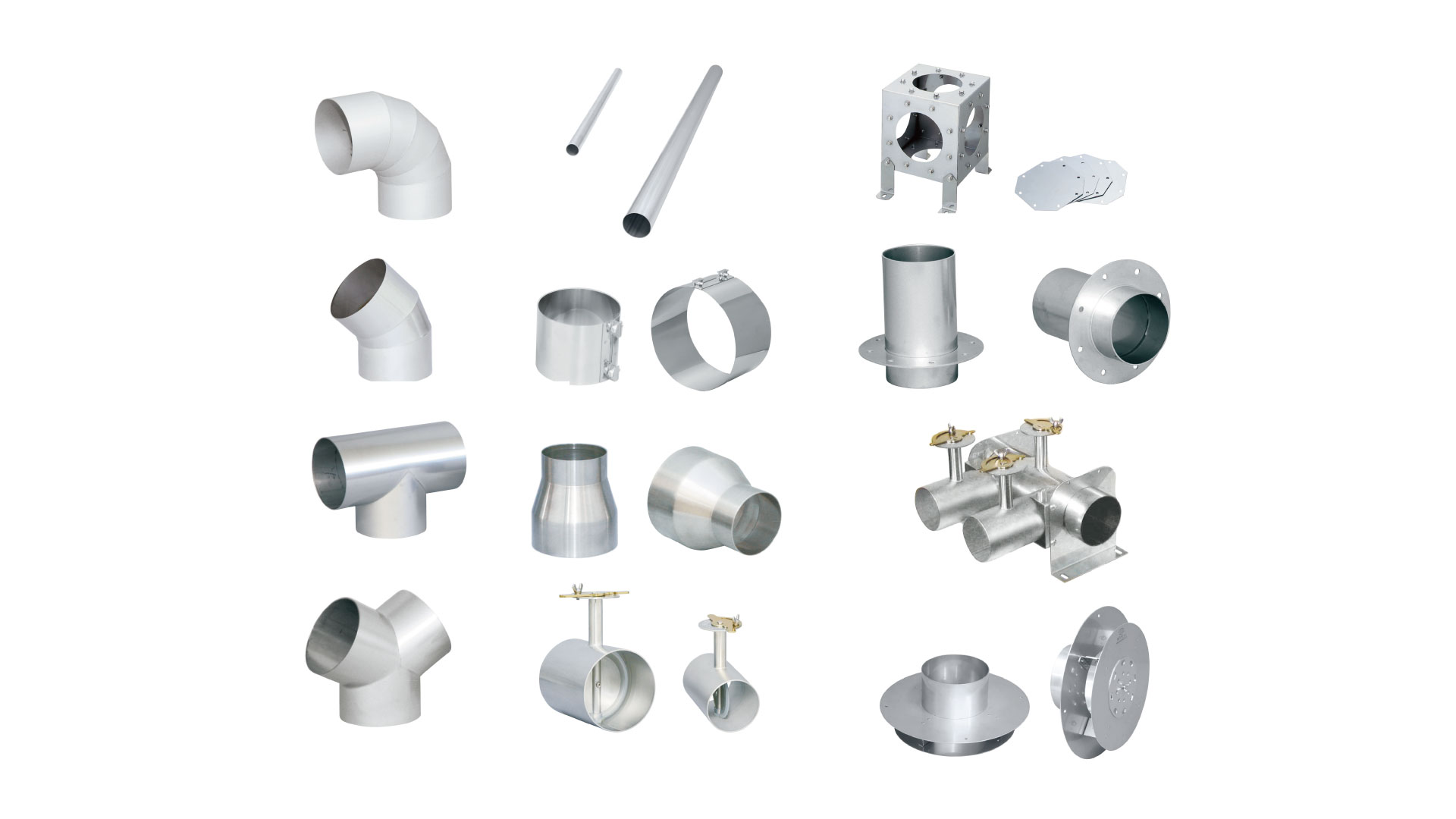

Y管・ダンパ・エルボ等配管用部材類 Y-branches, dampers, elbows, and other fittings. |
|
|

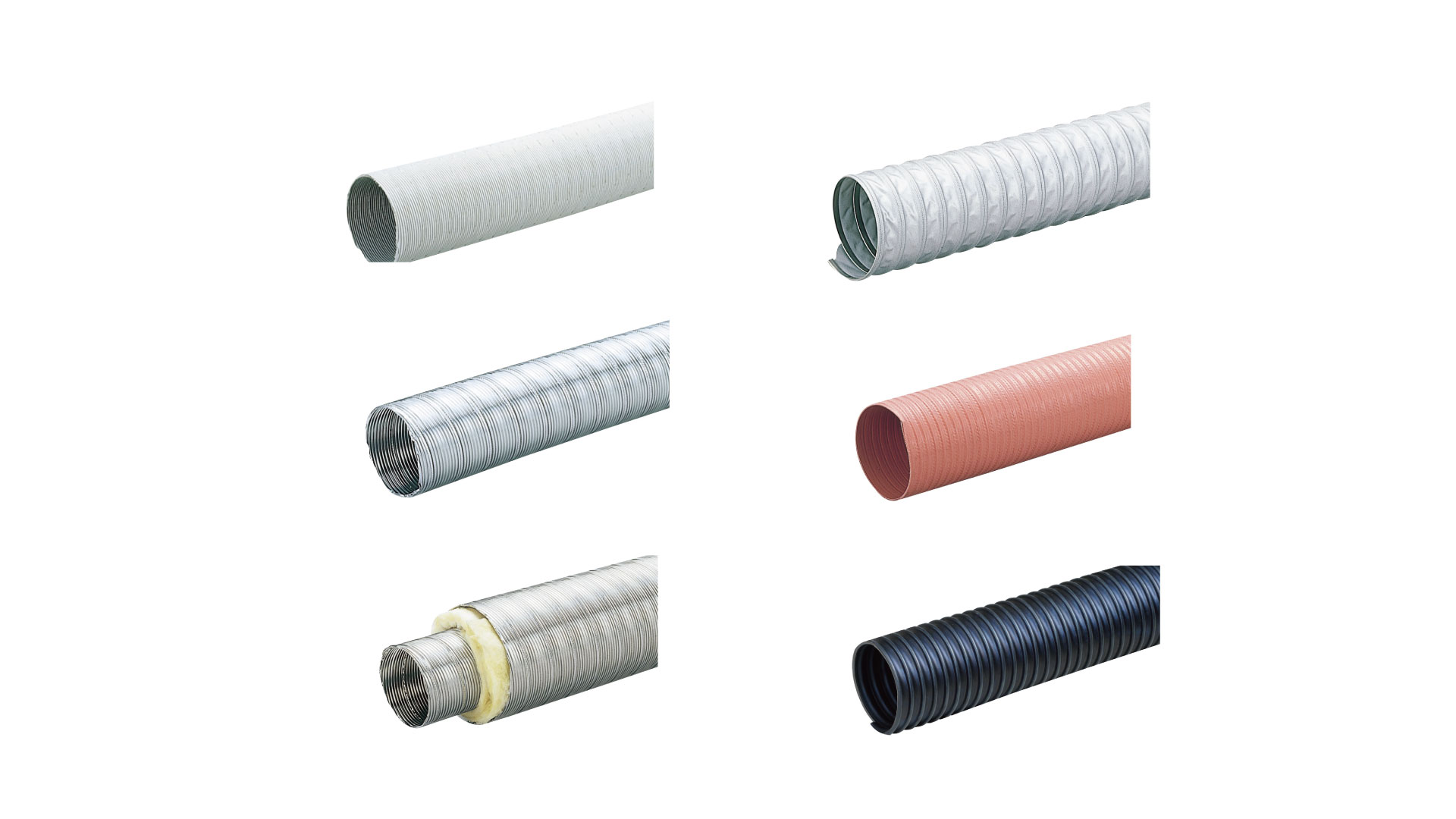

Flexible Hoses & Fittings 各種フレキホース Heat-resistant flexible hoses and fittings for safely directing airflow. |
|
|
Circulation fan for uniform air mixing inside the heating or drying chamber. 炉内の温度分布、乾燥効率、加熱効率が向上！ |
|
|

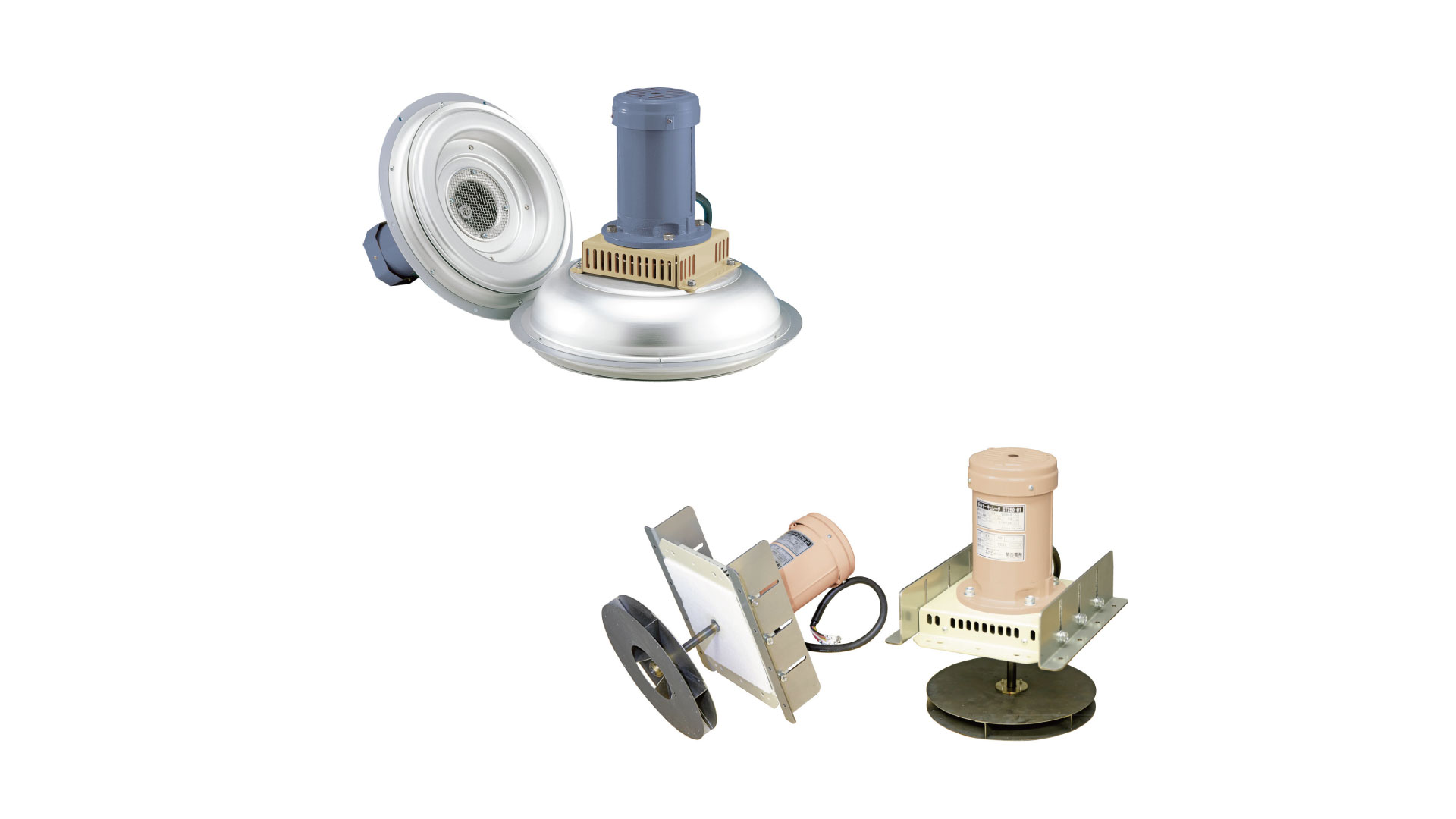

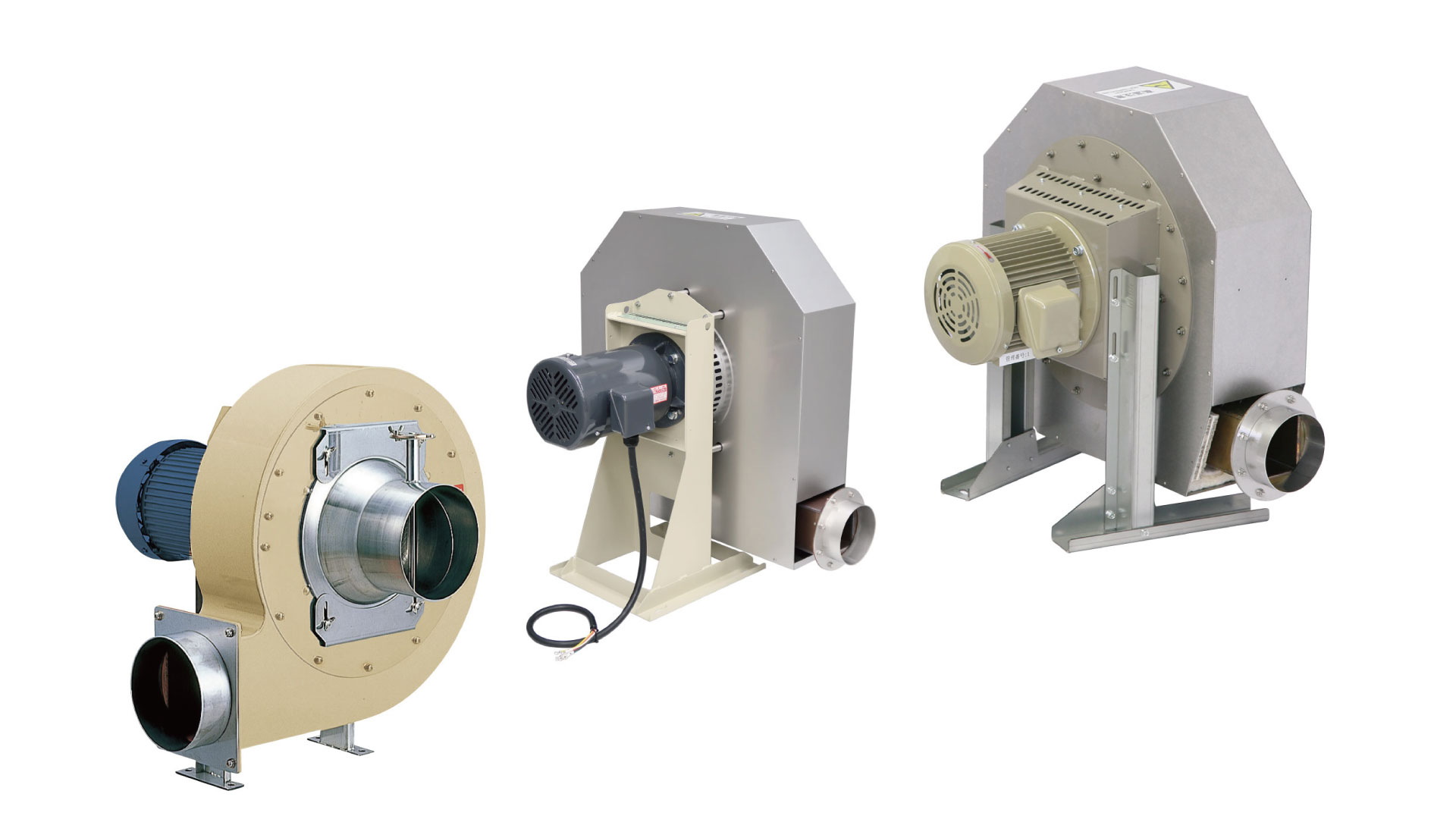

Heat-Resistant Electric Blower High-temperature-resistant blower designed for continuous operation with hot-air systems. 高温熱風炉の循環用、電気炉、焼鈍炉の炉内循環用送風機 |
