Kansai Electric Heat Corp.

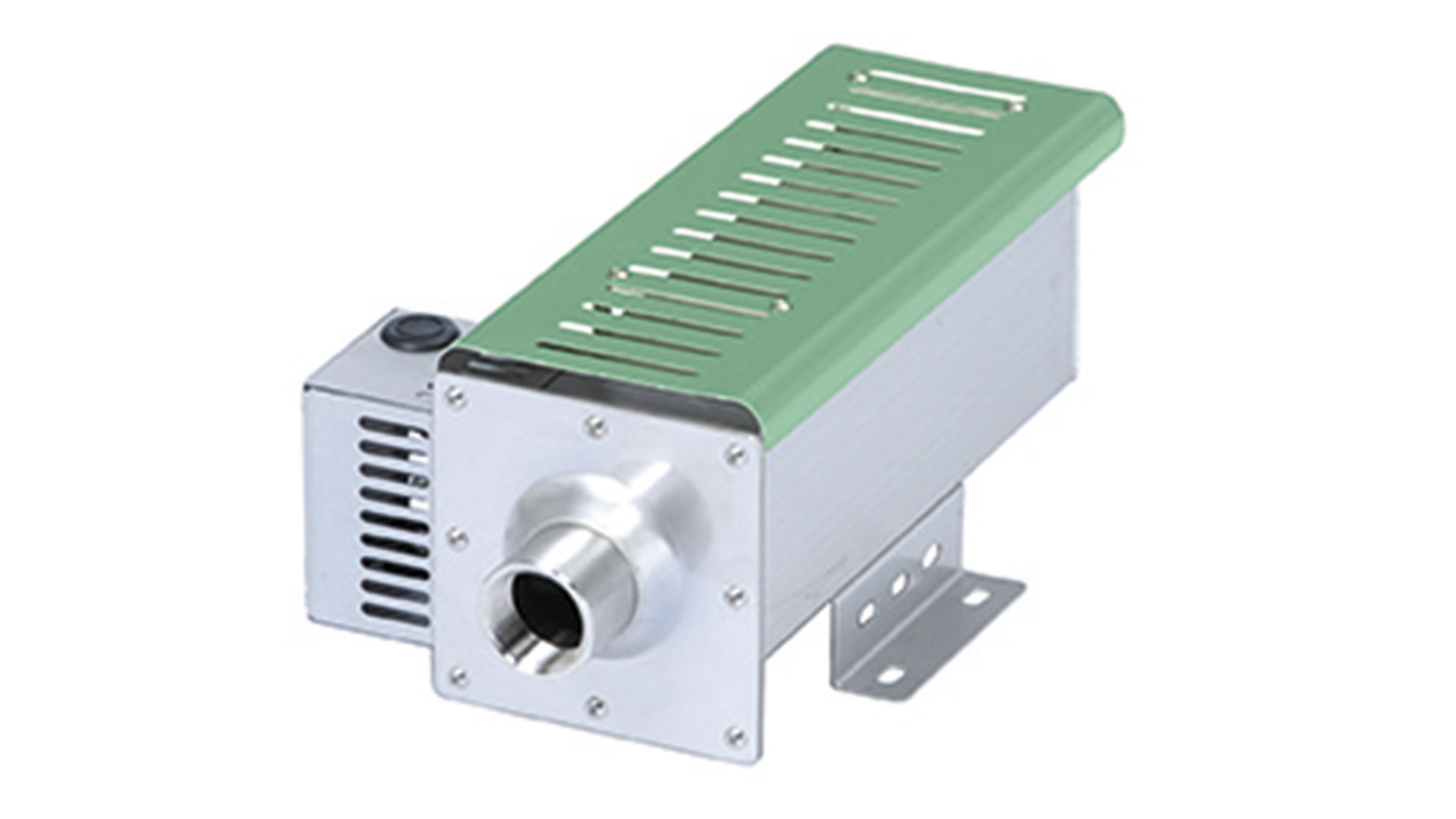

XS Series (High Static Pressure Type)
Electric Heater for High-Temperature Hot Air Generation
- A high-temperature hot air heater featuring a compact and robust frame, high efficiency, and cost-effective design.
- A wide range of models is available to suit your requirements, including operating temperature, operating pressure, and airflow rate.
- Ideal for high-temperature heating of air supplied from high static pressure air sources.
高温熱風発生用電気式ヒータ
◆コンパクト、頑強なフレーム、高効率、コストダウンを実現した熱風発生用ヒータです。
◆使用温度、使用圧力、使用風量等により、選択いただけます。
◆高風圧送風源のエアの高温加熱に最適です。
XS-2 Series Overview XS-2シリーズ概要
- Maximum continuous operating temperature: 350 °C
(XS-2A: 300 °C; 200 V, 50/60 Hz only – Japan domestic model) - Heater capacity: 1.5 kW to 3.8 kW
- Hot-air recirculation available on all models (recirculation temperature: 140 °C) Energy-efficient design
- Allowable internal pressure: 58.8 kPa
- A and B sensors (K-type thermocouples) can be built in upon request
- Hot-start operation available when used with the dedicated automatic temperature controller
- 連続使用最高温度 ３５０℃（XS-2A：300℃）
- ヒータ容量1.5kW～3.8kW
- 全機種熱風循環可能（熱風循環温度 140℃） 省エネ！
- 本体許容圧力58.8kPa
- ご注文時にＡ・Bセンサ（K熱電対）組込み可能
- 専用自動温度調節器の使用で、ホットスタート運転が可能
XS-3 Series Overview
- Maximum continuous operating temperature: 350 °C
- Heater capacity: 3 kW to 10 kW
- Hot-air recirculation available on all models (recirculation temperature: 200 °C) Energy-efficient design
- Allowable internal pressure: 58.8 kPa
- A sensor (K-type thermocouple) can be built in upon request
- Intermittent operation available when used with the dedicated automatic temperature controller
- 連続使用最高温度 ３５０℃
- ヒータ容量3kW～10kW
- 全機種熱風循環可能（熱風循環温度 200℃） 省エネ！
- 本体許容圧力58.8kPa
- ご注文時にＡセンサ（K熱電対）組込み可能
- 専用自動温度調節器の使用で、間欠運転が可能
XS-4 Series Overview
- Maximum continuous operating temperature: 450 °C
- Heater capacity: 4 kW to 12 kW
- Hot-air recirculation available on all models (recirculation temperature: 230 °C) Energy-efficient design
- Allowable internal pressure: 39.2 kPa
- A and B sensors (K-type thermocouples) pre-installed
- Hot-start operation available when used with the dedicated automatic temperature controller
保証期間１年
- 連続使用最高温度 ４５０℃
- ヒータ容量4kW～12kW
- 全機種熱風循環可能（熱風循環温度 230℃） 省エネ！
- 本体許容圧力39.2kPa
- Ａ・Bセンサ（K熱電対）組込み済
- 専用自動温度調節器の使用で、ホットスタート運転が可能
XS-5 Series Overview
- Maximum continuous operating temperature: 350 °C
- Heater capacity: 20 kW
- Hot-air recirculation available on all models (recirculation temperature: 230 °C) Energy-efficient design
- Allowable internal pressure: 25 kPa
- A and B sensors (K-type thermocouples) pre-installed
- Hot-start operation available when used with the dedicated automatic temperature controller
保証期間１年
- 連続使用最高温度 ３５０℃
- ヒータ容量20kW
- 全機種熱風循環可能（熱風循環温度 230℃） 省エネ！
- 本体許容圧力25kPa
- Ａ・Bセンサ（K熱電対）組込み済
- 専用自動温度調節器の使用で、ホットスタート運転が可能
XS-6 Series Overview
- Maximum continuous operating temperature: 350 °C
- Heater capacity: 40 kW
- Hot-air recirculation available on all models (recirculation temperature: 230 °C) Energy-efficient design
- Allowable internal pressure: 25 kPa
- A and B sensors (K-type thermocouples) pre-installed
- Hot-start operation available when used with the dedicated automatic temperature controller
保証期間１年
- 連続使用最高温度 ３５０℃
- ヒータ容量40kW
- 全機種熱風循環可能（熱風循環温度 230℃） 省エネ！
- 本体許容圧力25kPa
- Ａ・Bセンサ（K熱電対）組込み済
- 専用自動温度調節器の使用で、ホットスタート運転が可能

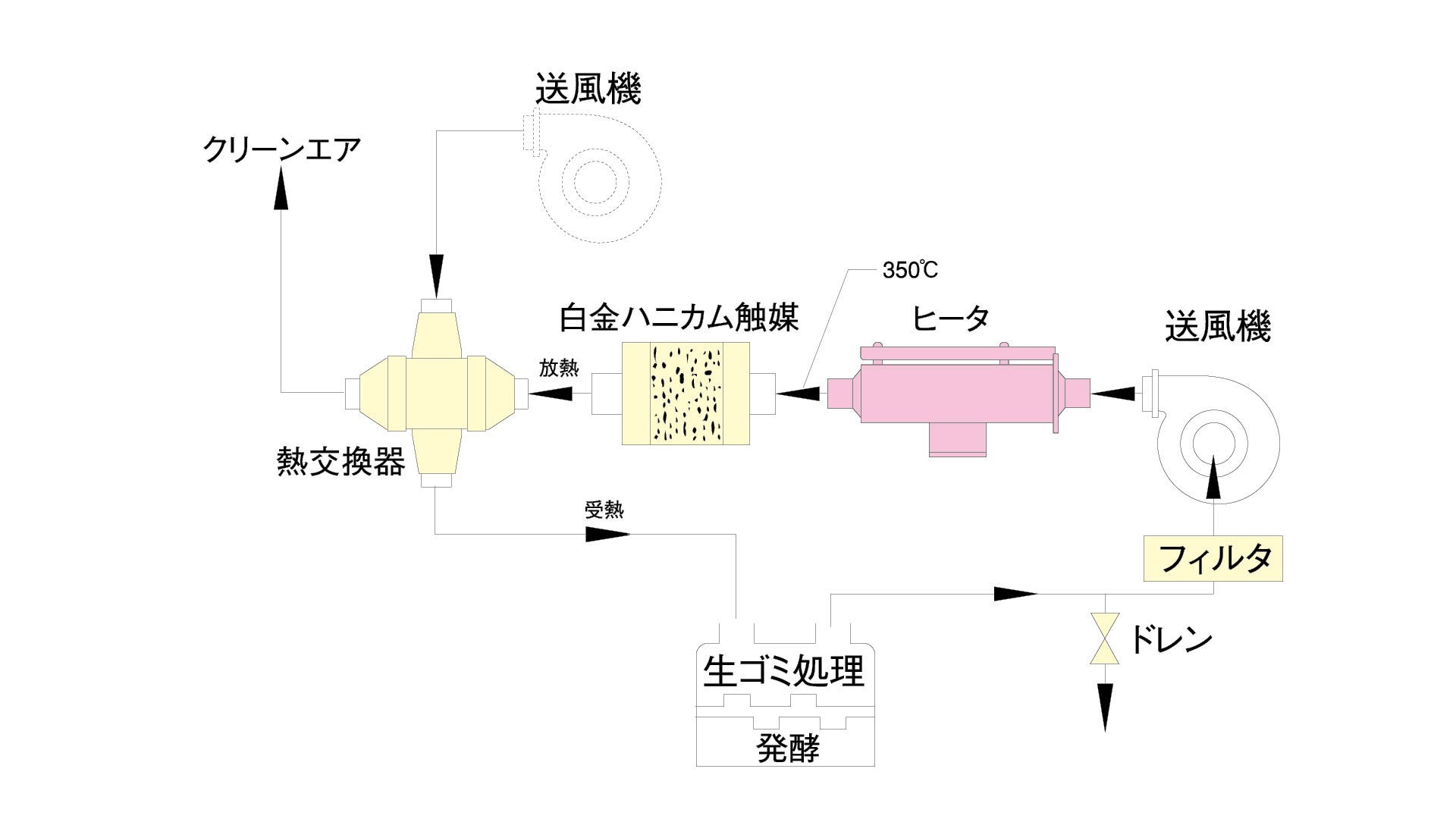

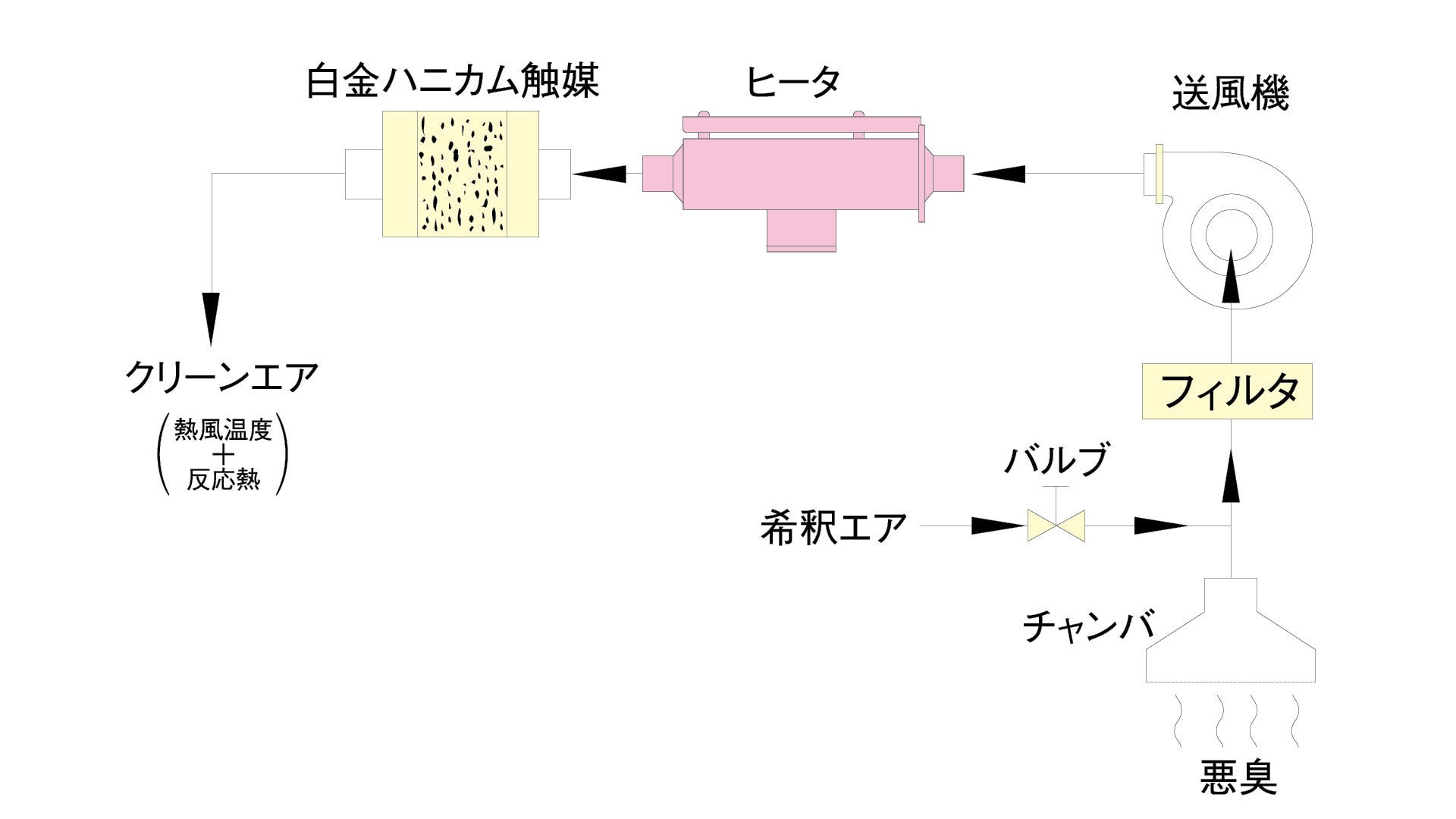

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used for many other applications. Please feel free to contact us for further consultation.
Standard Specifications List
Note: Model numbers and power supply specifications vary depending on the voltage, frequency, and phase (single-phase / 3-phase).
Most models are factory-set to your specified voltage.
Please specify the required voltage when placing your order.
XS-2A is available only in the Japan domestic specification (single-phase 200 V, 50/60 Hz).
注：型番と電源仕様は、電圧、周波数、相（単相／三相）によって異なります。
ほとんどのモデルは工場出荷時にご指定の電圧に設定されています。
ご注文の際は、必要な電圧をご指定ください。
XS-2Aは、日本国内仕様（単相200V、50/60Hz）のみとなります。
| Model |
XS-2A |
|---|---|
| Model No. | 1200-1.5 |
| Heater Capacity | 1.5 kW |
| Power Supply | Single-phase 200 V, 50/60 Hz only (Japan domestic model) |
 |
|
| Model |
XS-2B |
|---|---|
| Model No. | 1230-2.4 |
| Heater Capacity | 2.4 kW |
| Power Supply | Single-phase 230 V, 50/60 Hz |
|
|
| Model |
XS-2C |
|---|---|
| Model No. | 1220-240-3.8 |
| Heater Capacity | 3.8 kW |
| Power Supply | Single-phase 220 V / 230 V / 240 V, 50/60 Hz |
|
|
| Model |
XS-3A |
|---|---|
| Model No. | 3220-240-3 |
| Heater Capacity | 3 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V, 50/60 Hz |
 |
|
| Model |
XS-3B |
|---|---|
| Model No. | 3220-480-5 |
| Heater Capacity | 5 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
| Model |
XS-3C |
|---|---|
| Model No. | 3220-480-10 |
| Heater Capacity | 10 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
| Model |
XS-4A |
|---|---|
| Model No. | 3220-380-4 |
| Heater Capacity | 4 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V, 50/60 Hz |
 |
|
| Model |
XS-4B |
|---|---|
| Model No. | 3220-480-8 |
| Heater Capacity | 8 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
| Model |
XS-4C |
|---|---|
| Model No. | 3220-480-12 |
| Heater Capacity | 12 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 480 V, 50/60 Hz |
|
|
| Model |
XS-5 |
|---|---|
| Model No. | 3220-480-20 |
| Heater Capacity | 20 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
 |
|
| Model |
XS-6 |
|---|---|
| Model No. | 3220-480-40 |
| Heater Capacity | 40 kW |
| Power Supply | 3-phase 220 V / 230 V / 240 V / 380 V / 400 V / 415 V / 440 V / 460 V / 480 V, 50/60 Hz |
|
|
