Pen Heater Series High Temperature Electric Heater

Electric Hot Air Heater for High-Temperature Applications



  • Lightweight, slim and elongated design
  • Designed exclusively for compressor use
  • Clean heater with self-generated particle emission reduced to Class 10,000 equivalent
  • High-precision temperature control with dedicated multi-controller
  • Maximum Outlet Air Temperature: 750 °C (PH22 800 W)



電気式高温熱風発生用ヒータ



◆軽量で細長いスリム形状


◆コンプレッサ専用設計


◆自己発塵量をクラス１０，０００相当まで押さえたクリーンヒータ


◆専用マルチコントローラで高精度な温度制御


◆最高熱風温度　７５０℃ (PH22 800W)

  • PH series Pen Heaters


Pen Heater Overview

  • Maximum Continuous Operating Temperature: 600 °C to 750 °C (varies by model)
  • Heater Capacity: 0.4 kW to 0.8 kW
  • Pinpoint hot air applications

Note: One dedicated multi-controller (TRC202-P) is required per Pen Heater





保証期間１年

  • 連続使用最高温度　６００～７５０℃（機種により異なります）
  • ヒータ容量0.4kW～0.8kW
  • ピンポイントで熱風ブロー

    • 　※ペンヒータ1台につき『ペンヒータ専用マルチコントローラ TRC202-P』1台が必要です


Pen Heater
Operation Manual
Multi-Controller
Operation Manual


Model Lineup

PH12 PH22 TRC202-P


Typical Applications

Note: Some illustrations may contain Japanese text.

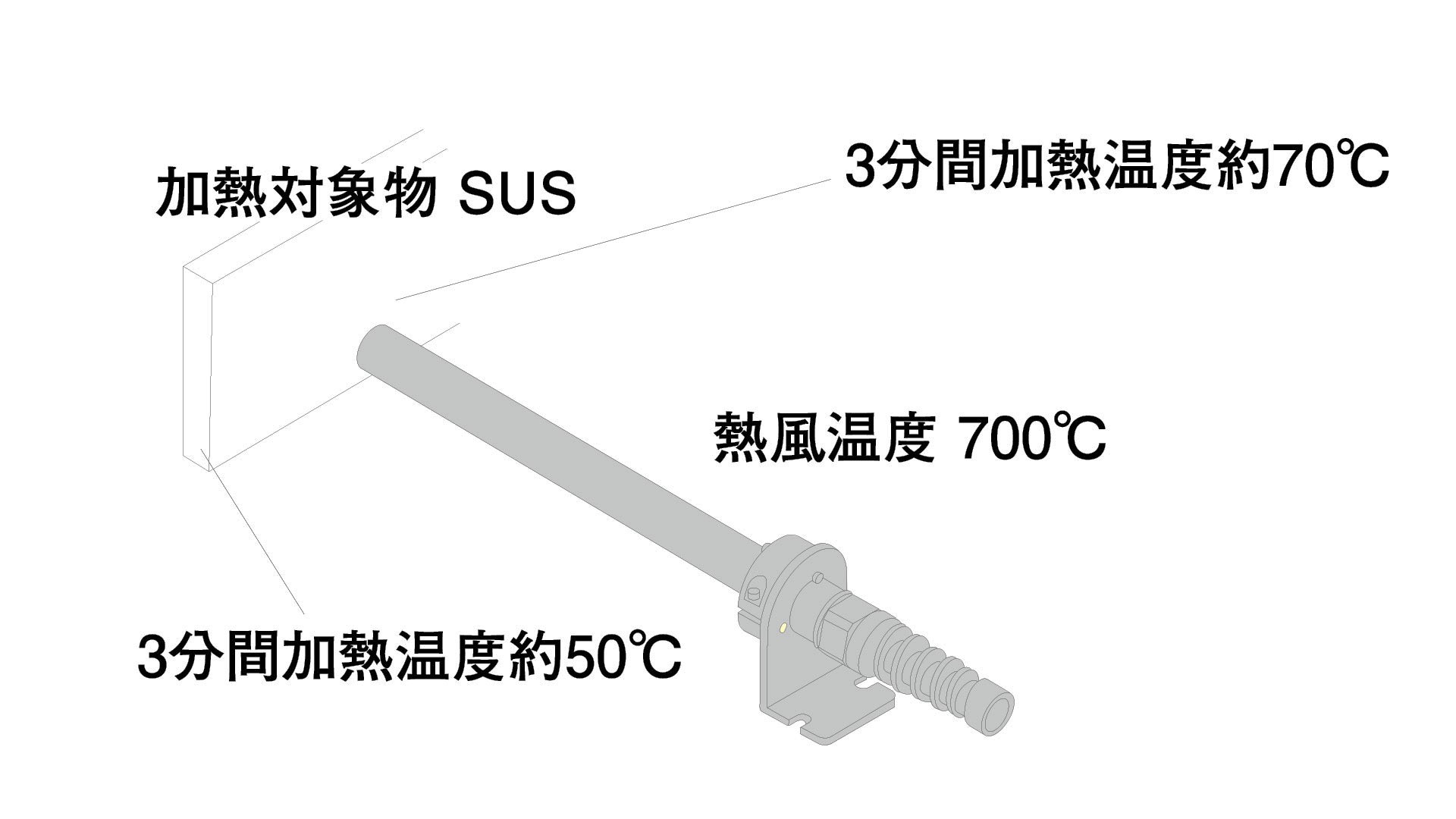

  • Spot heating

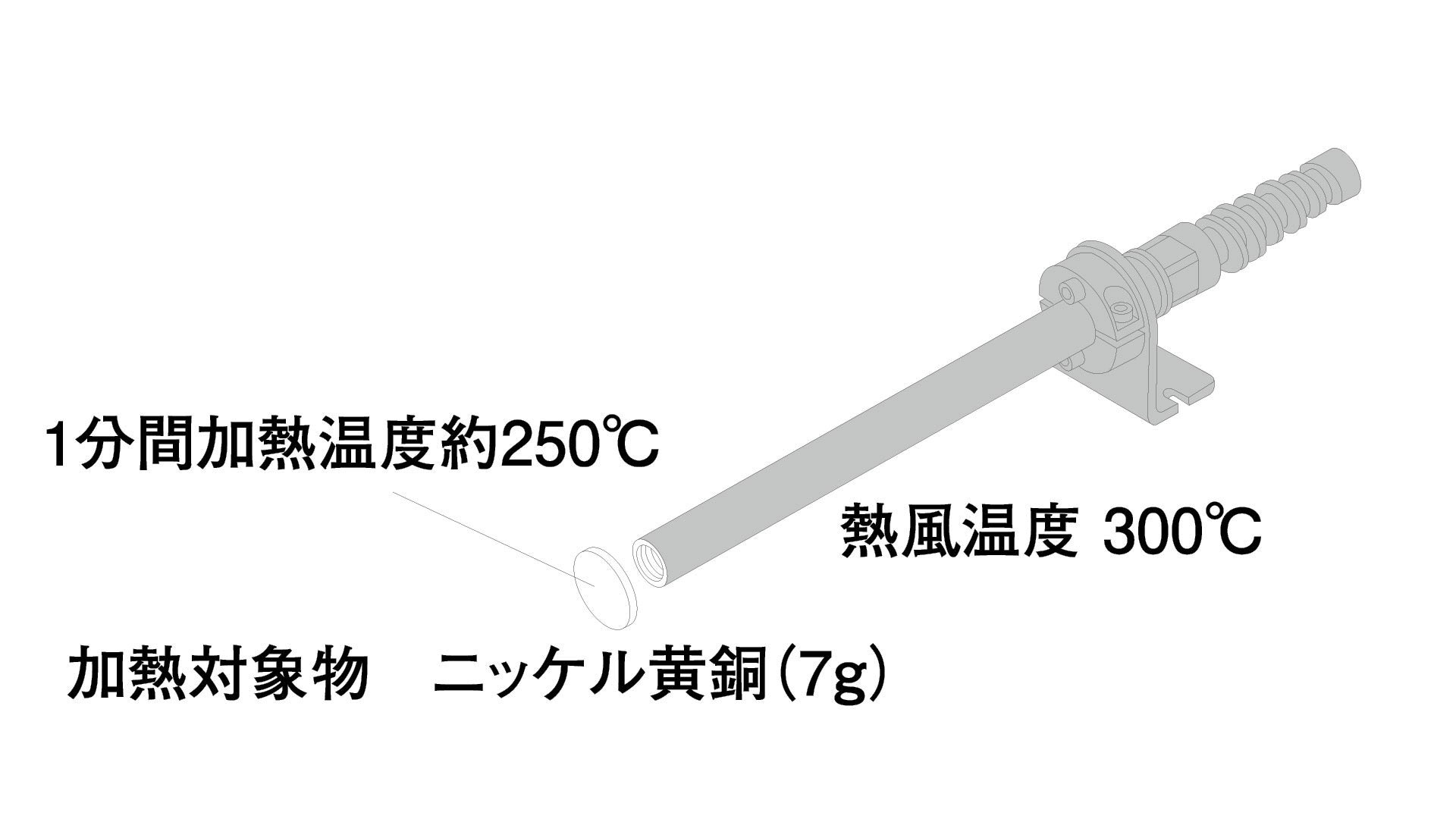

  • Small parts heating

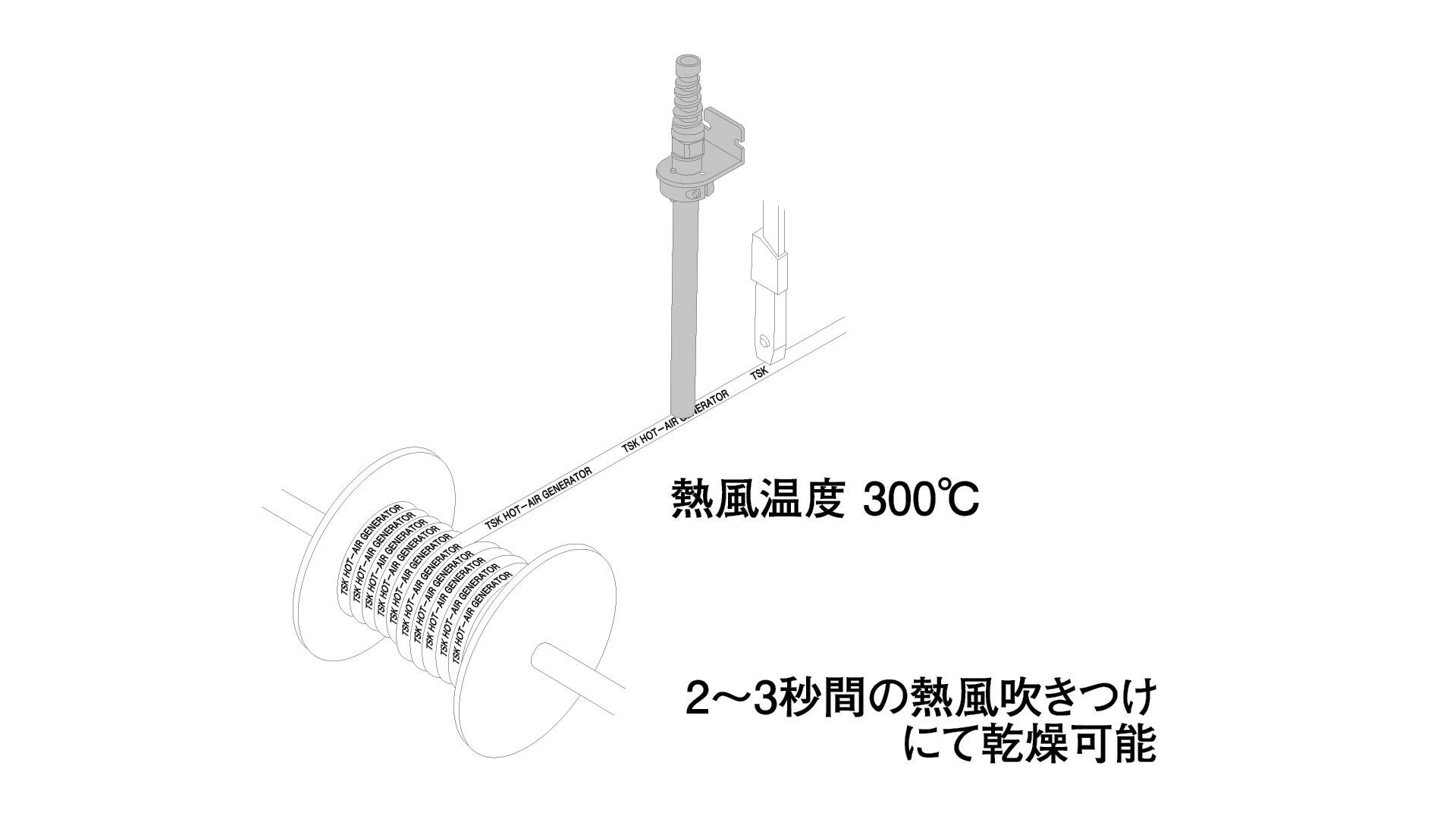

  • Spot drying after inkjet printing
  • Insert nut press-fitting in plastic products
  • Drying inside tubes and pipes

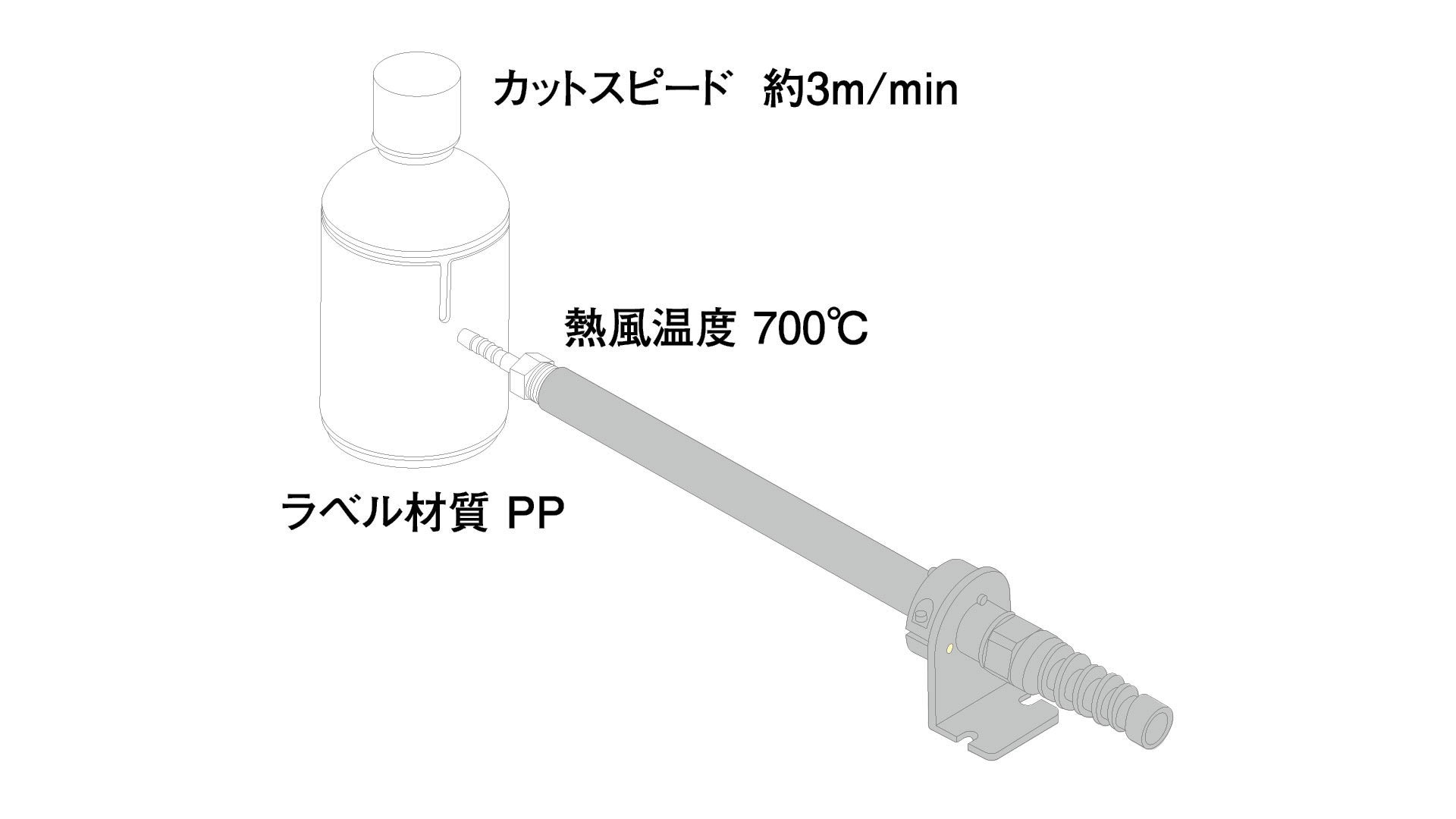

  • Thermal cutting of labels
  • Internal drying after bottle washing

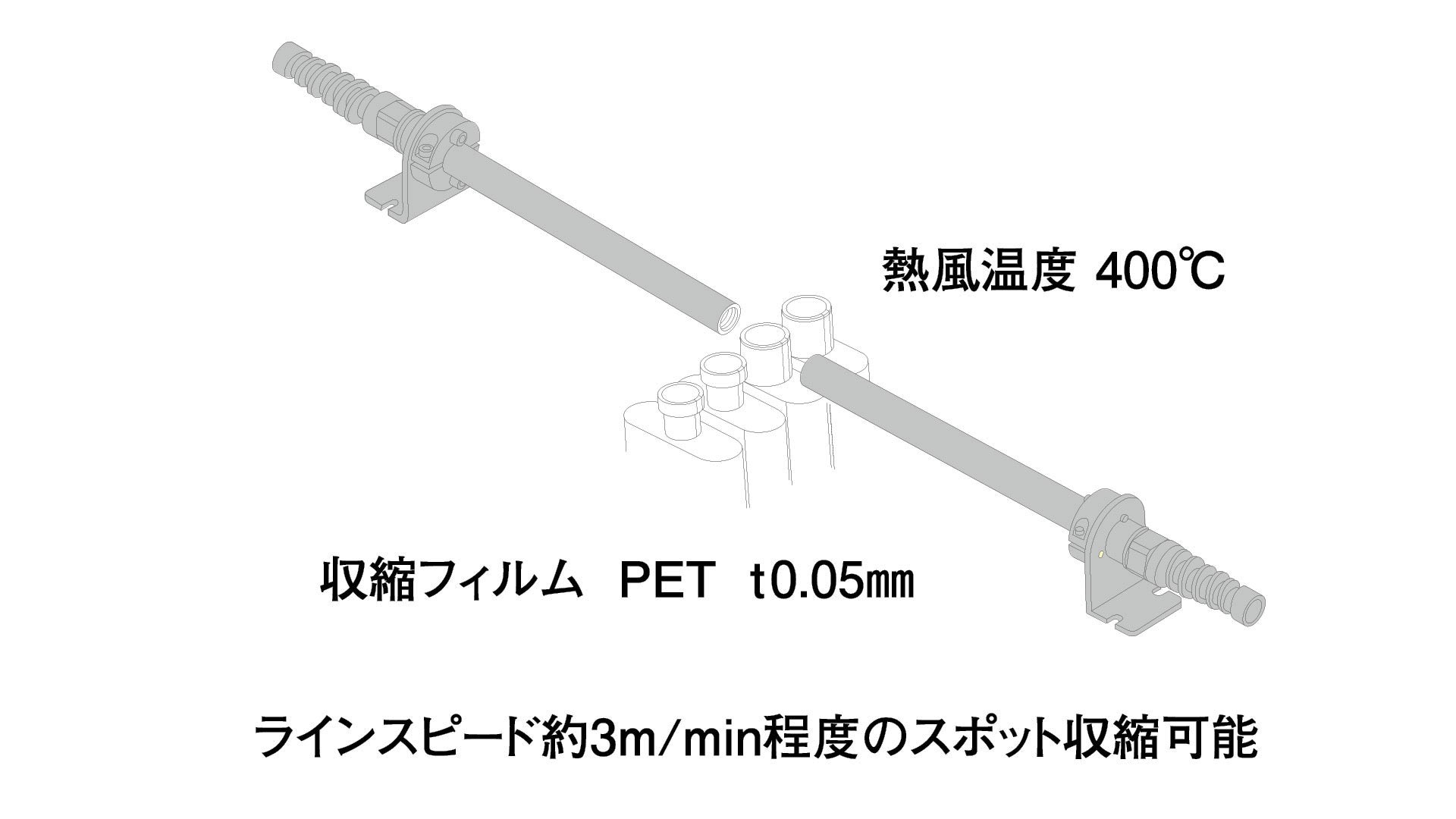

  • Shrink fitting of cap seals and similar components

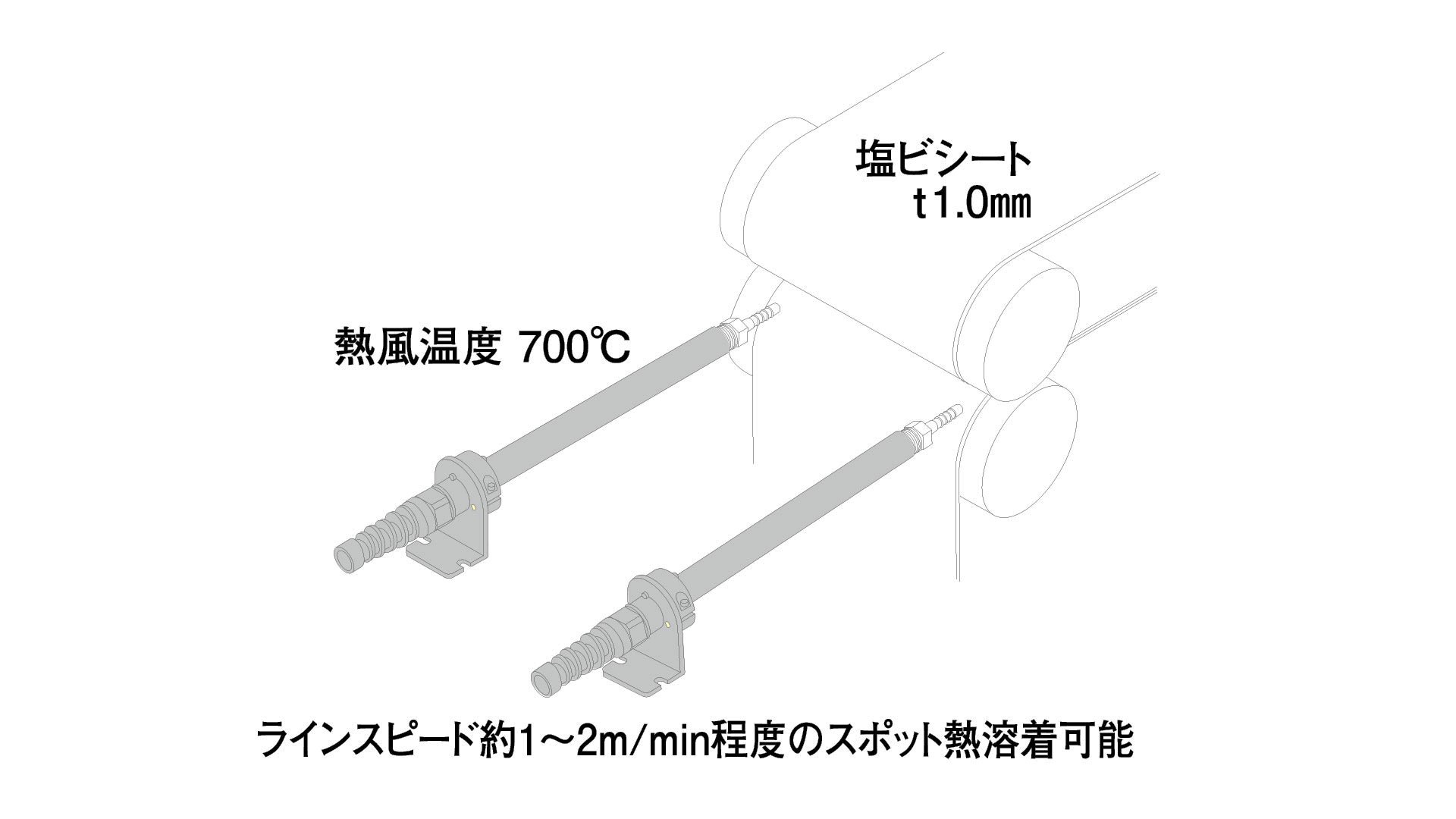

  • Spot thermal welding of sheets

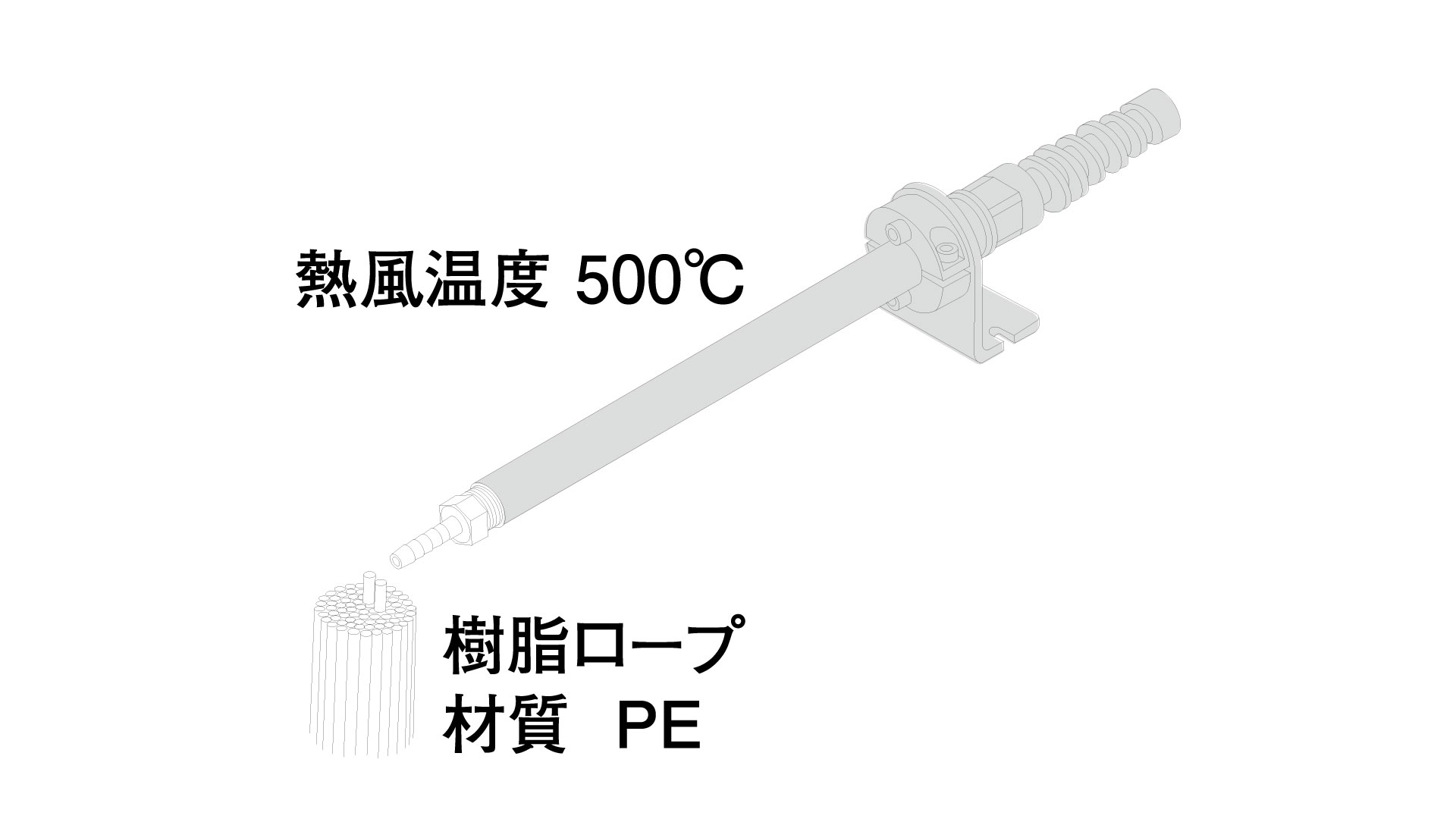

  • Deburring of rope cut surfaces
  • Thermal cutting of plastics
  • Spot heating
  • Small parts heating
  • Spot drying after inkjet printing
  • Insert nut press-fitting in plastic products
  • Drying inside tubes and pipes
  • Thermal cutting of labels
  • Internal drying after bottle washing
  • Shrink fitting of cap seals and similar components
  • Spot thermal welding of sheets
  • Deburring of rope cut surfaces
  • Thermal cutting of plastics


Our products can also be used for many other applications. Please feel free to contact us for further consultation.


Related Products

DHX10 Series  DHX01 Series  HT4 / HT7.5  SH81  Super Heater  Spot Heater  SHP Heater

Standard Specifications

Model

PH12
Model No. 1200-04K
Power Supply 50 Hz / 60 Hz Single-phase 200 V
Heater Capacity 0.4 kW
Max Outlet Air Temp. 600 °C
Max Inlet Air Temp. 60 °C
Max Airflow 250 L/min
Min Airflow 10 NL/min
Body Pressure Rating Approx. 0.5 MPa (at room temperature; pulsating pressure prohibited)
Pen Heater PH12 and PH22 models
Performance Curve
Outline Drawing
Model

PH22
Model No. 1200-06K 1200-08K
Power Supply 50 Hz / 60 Hz Single-phase 200 V
Heater Capacity 0.6 kW 0.8 kW
Max Outlet Air Temp. 700 °C 750 °C
Max Inlet Air Temp. 60 °C
Max Airflow 250 L/min
Min Airflow 10 NL/min
Body Pressure Rating Approx. 0.5 MPa (at room temperature; pulsating pressure prohibited)
Pen Heater PH12 and PH22 models
Performance Curve
Outline Drawing
Model

TRC202-P
Model No. TRC202-P04 TRC202-P06 TRC202-P08
Compatible Pen Heater PH12 (1200-04K) PH22 (1200-06K) PH22 (1200-08K)
Power Supply 50 Hz / 60 Hz Single-phase AC 200 V / 220 V

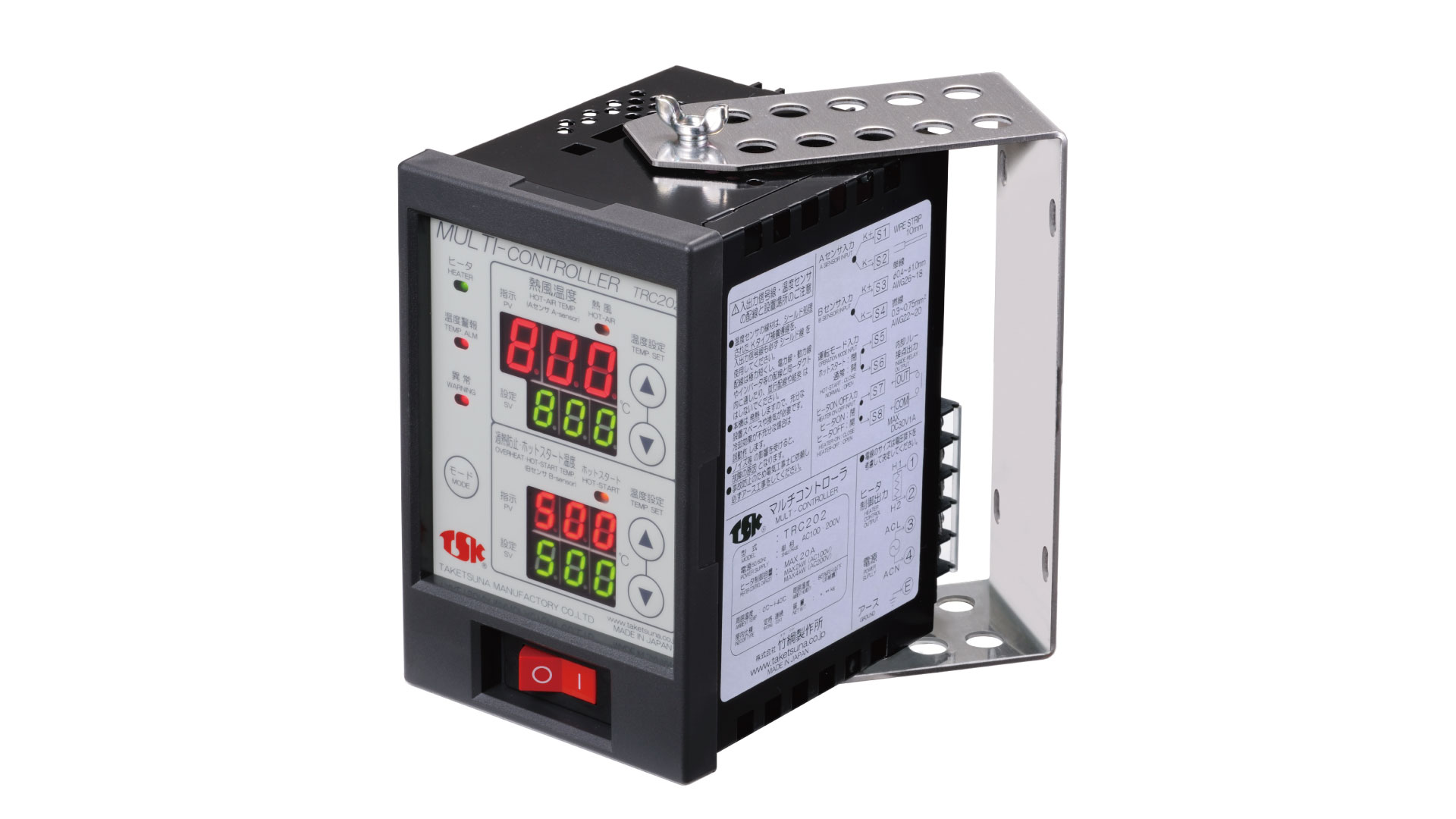

TRC202-P multi-controller for Pen Heater
Wiring Diagram
Outline Drawing
