Kansai Electric Heat Corp.
Portable Dryer PD-12 Electric Hot Air Generator
Industrial Electric Hot Air Generator!
- An electric hot air generator designed for reliable integration into production lines and capable of unattended continuous operation year-round
- Ready to use simply by connecting the power cable
Portable Dryer Overview
- Maximum Continuous Operating Temperature: 650 °C
- Heater capacity: 1.4 kW to 3.2 kW
- Air volume adjustable from 70% to 100% with digital display
- Equipped with inlet air filter
- Automatic Cooling Function
Automatically performs cooling according to the internal temperature when the unit is turned off. - Built-in overheat protection sensor and thermal fuse
- Blower Motor Capacity: 10 W
- All models are equipped with I/O terminals

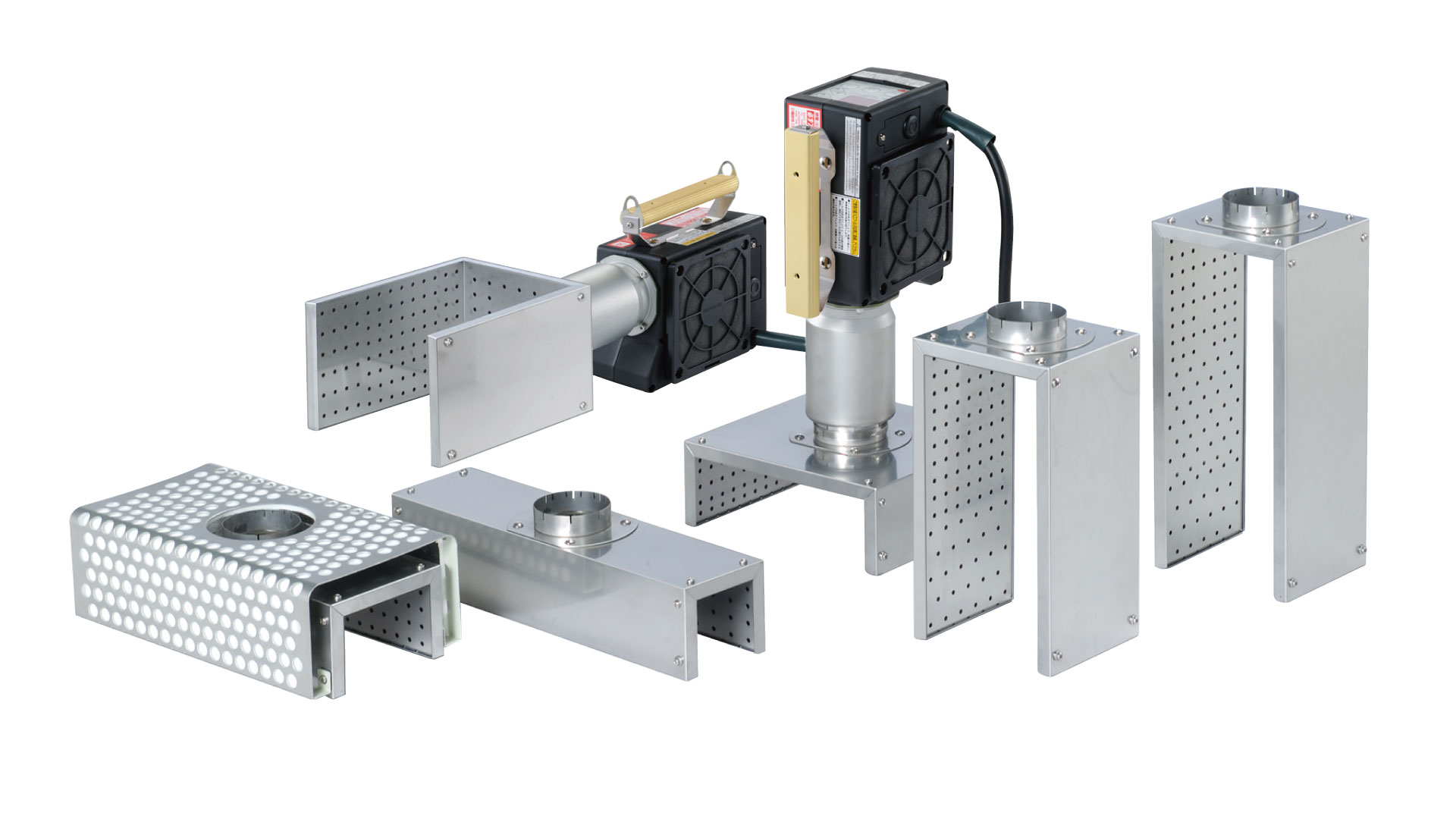

- Dedicated outlet nozzle and flange adapter included as standard
- Equipped with multiple built-in safety circuits incorporating high-reliability thermocouples
- 230 V specification available for regions with 220–240 V power supply
- For multifunction operation modes, please refer to the Operation Manual
Precise temperature control in 1 °C increments up to 650 °C
Notes:
The handle can be used to mount the unit at various angles.
The unit is equipped with an automatic cooling function that operates according to the internal temperature after the power is turned off.
Even when the unit is mounted facing downward, simply turning the power switch OFF initiates automatic cooling, followed by automatic shutdown.

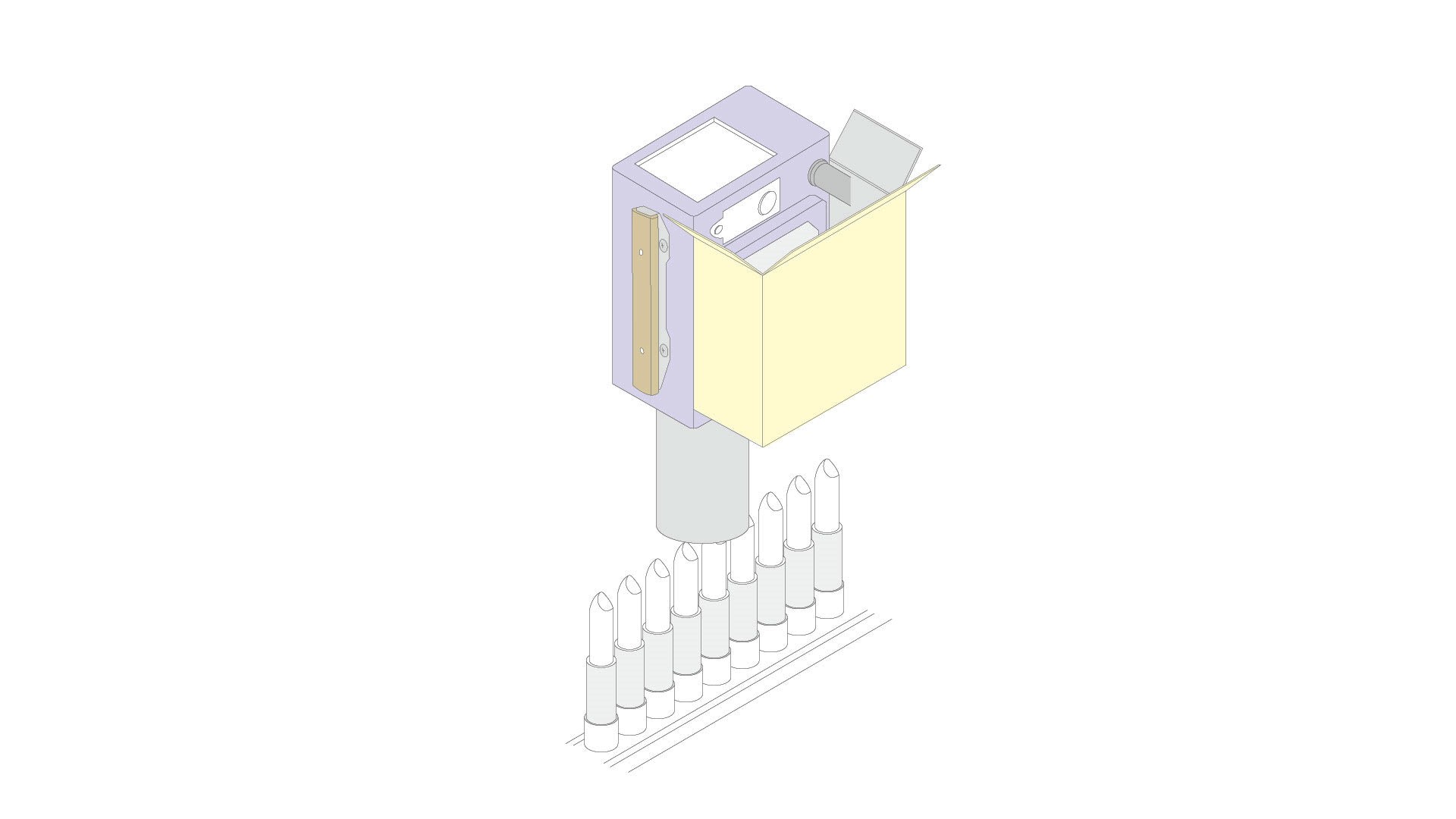

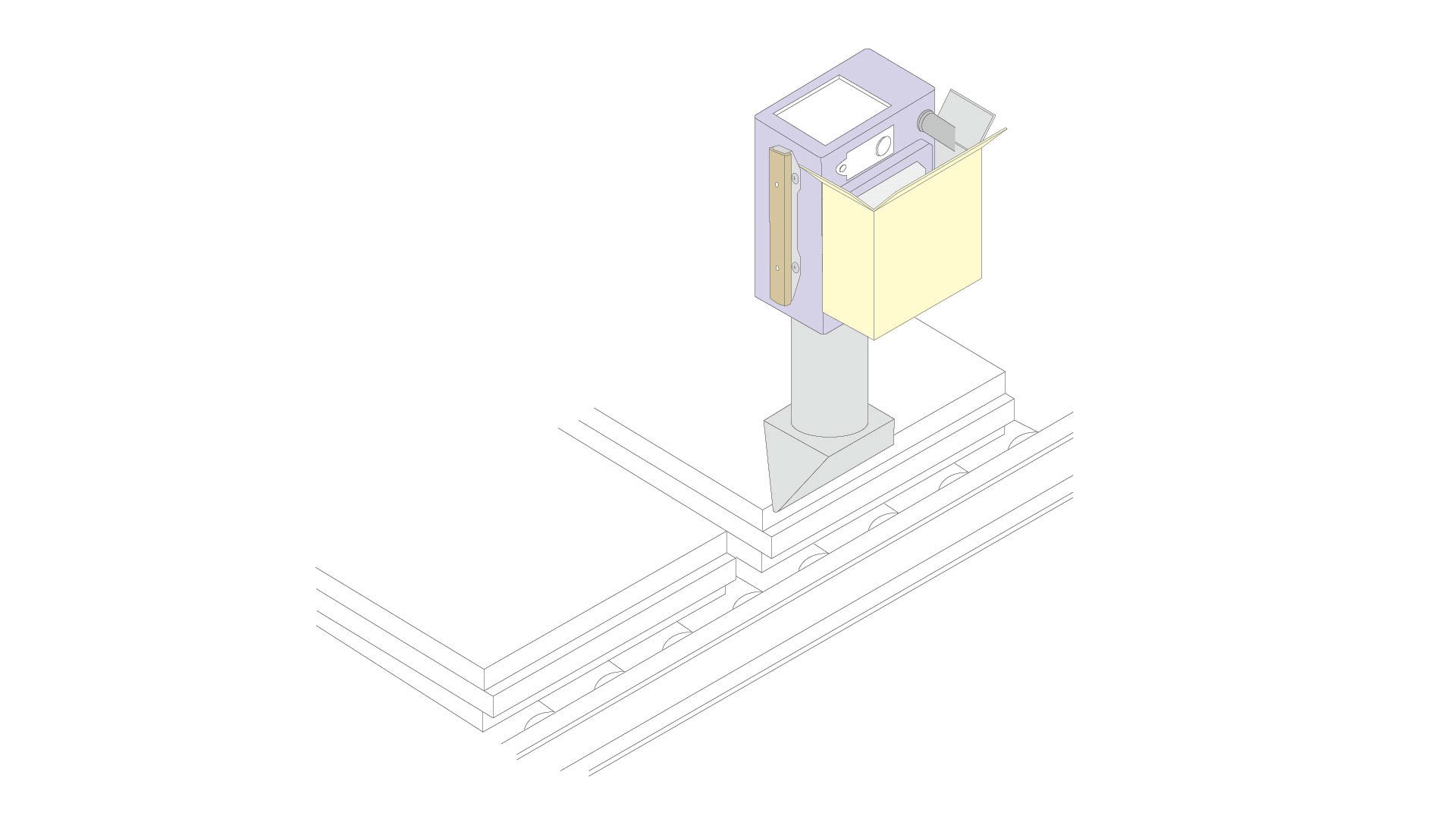

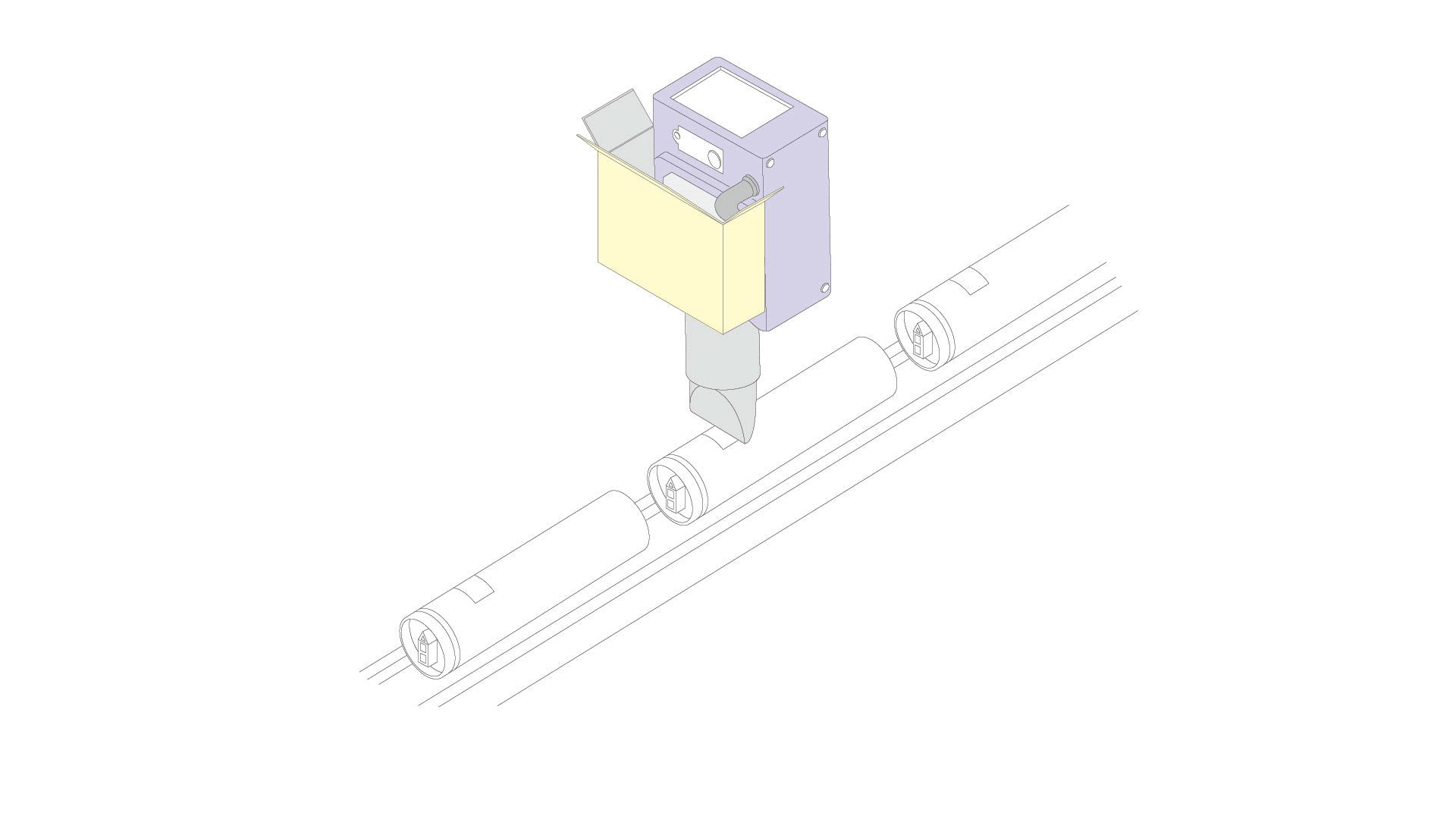

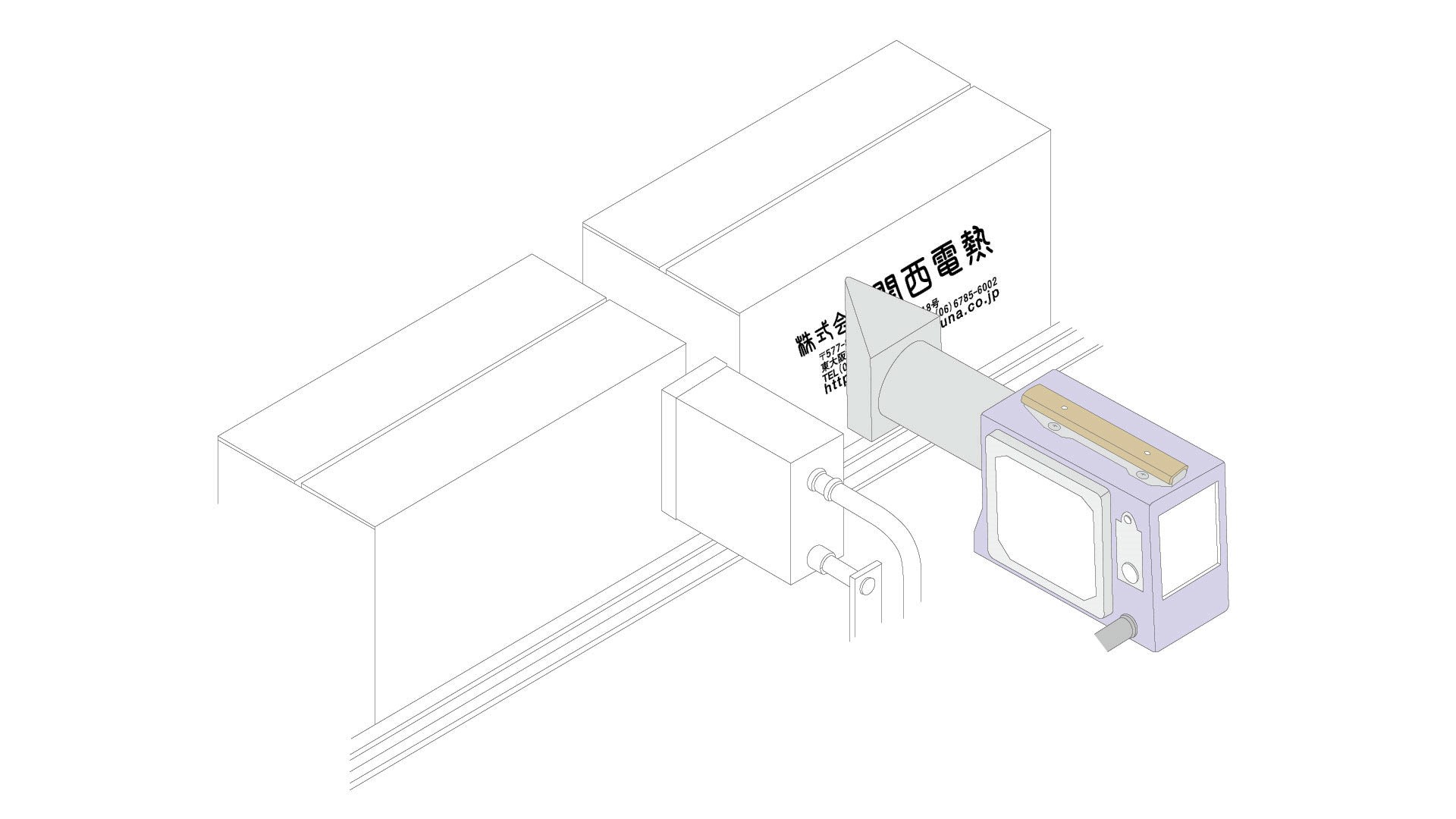

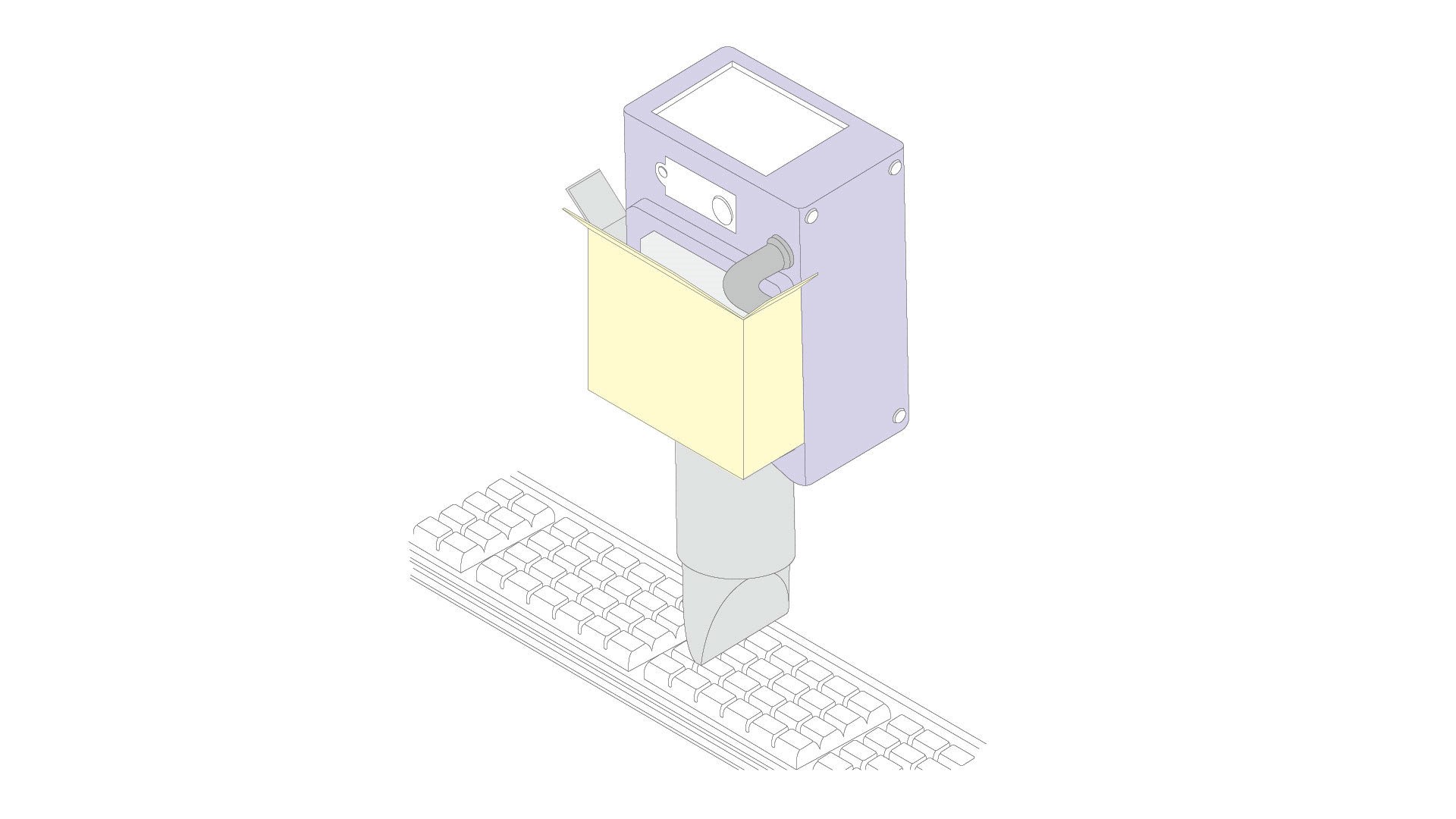

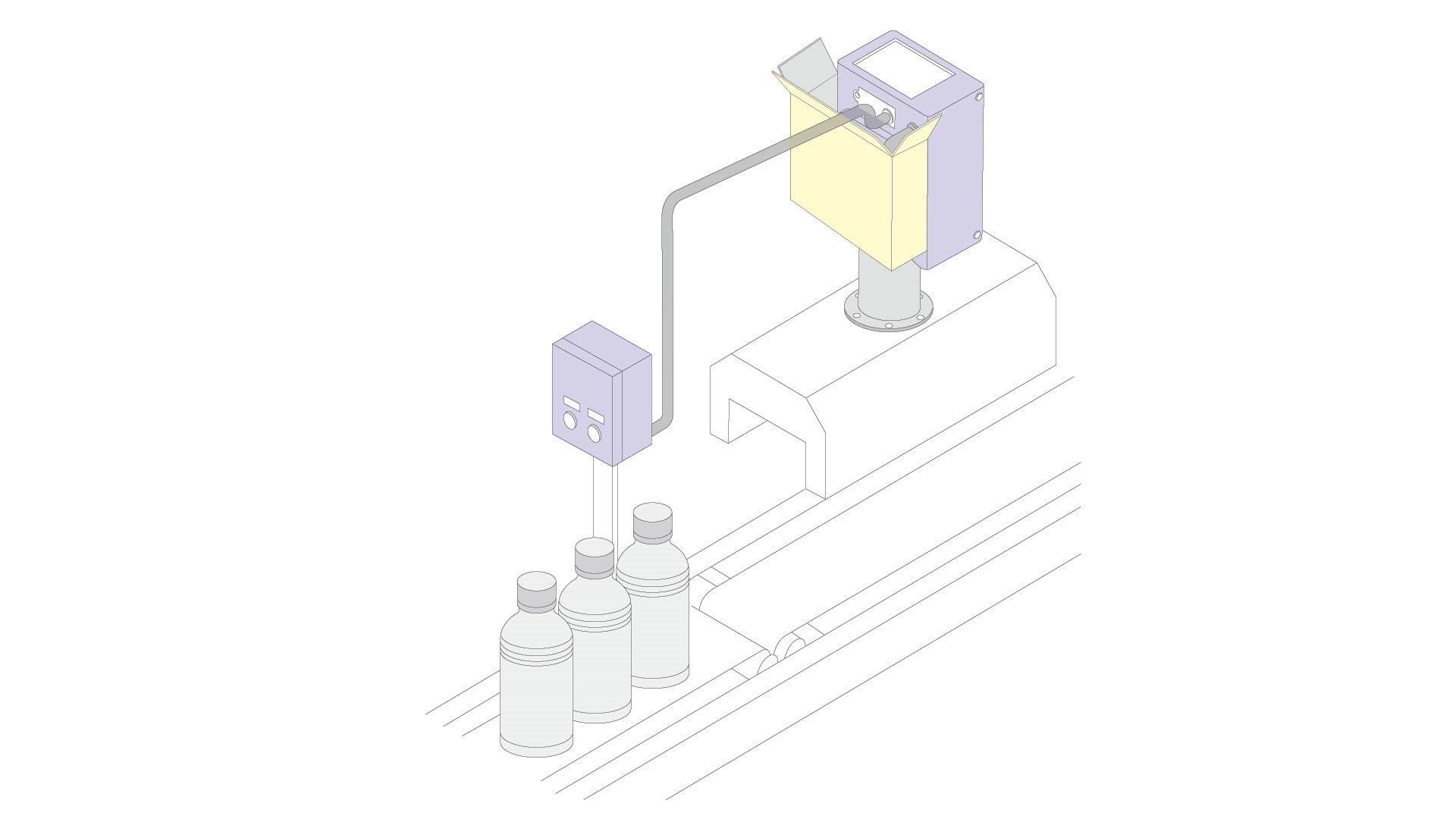

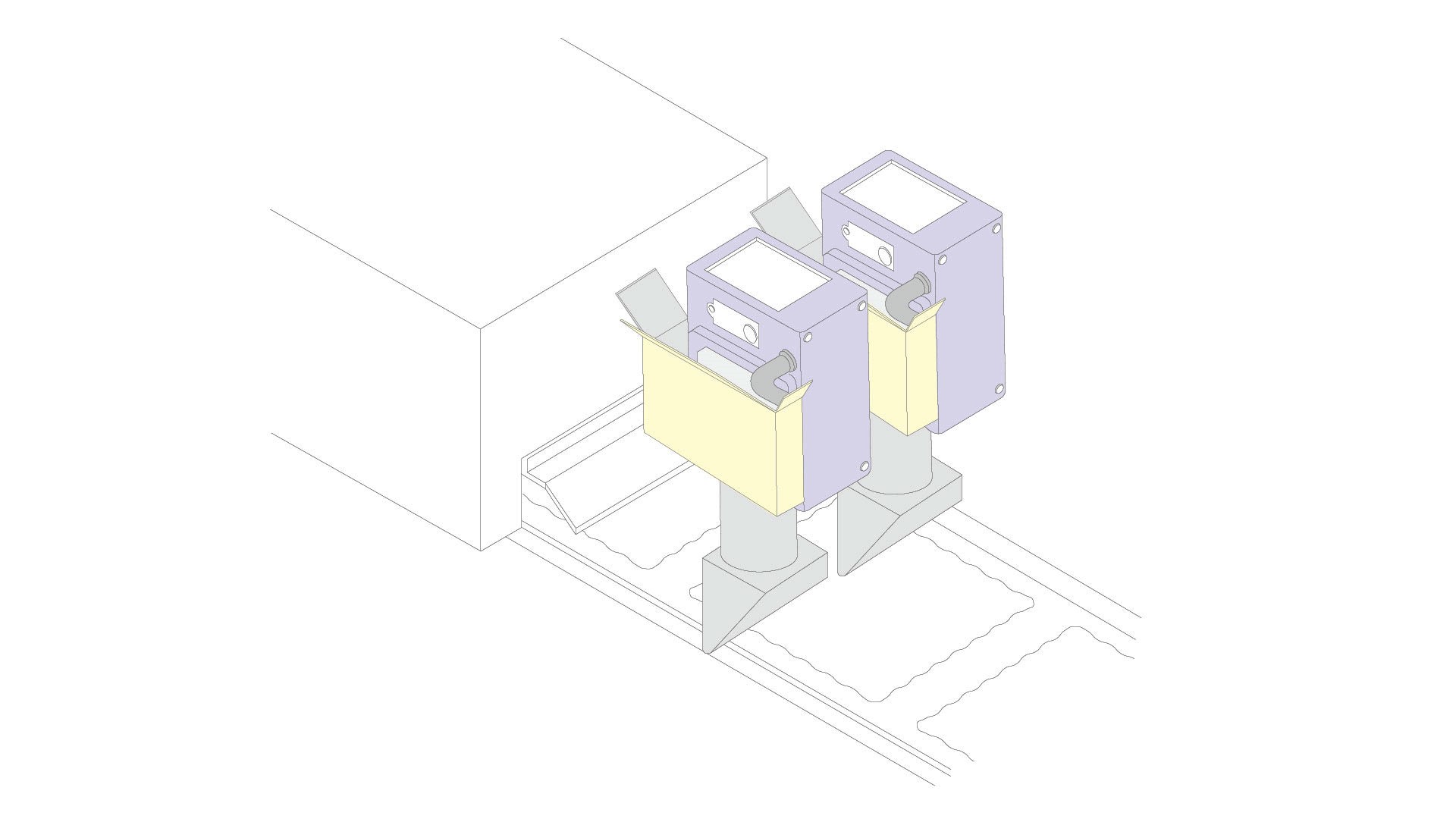

Typical Applications
Note: Some illustrations may contain Japanese text.
Our products can also be used in many other applications. Please feel free to contact us for further information.
Standard Specifications
Note:
This model is designed exclusively for single-phase 230 V power supply.
It can be used in regions with a 220–240 V power standard,
but no other voltage specifications are available.
| Model | PD-12 (For 220–240 V Regions) | |
|---|---|---|
| Model No. | PD1230-2.5 | PD1230-3.2 |
| Power Supply | Single-phase 230 V, 50/60 Hz | |
| Heater Capacity | 2.5 kW | 3.2 kW |
| Max Outlet Air Temp. | 650 °C | |
| Max Inlet Air Temp. | 40 °C | |
| Max Air Volume | 0.45 m³/min | |
| Max Static Pressure | 0.44 kPa | |
 |
|
|
For pricing, customization, or technical inquiries, please contact us:
sales@kansaidennetsu.co.jp
